Centro 2800
Assembly Manual
85-1614-2 (G41201) Propane
85-1650-4 (G41202) Natural Gas
Limited 3-Year Warranty
Read and save manual for future reference.
Assemble your grill immediately.
Missing or damaged parts should be
claimed within 15 days of purchase.
Manual Revision #: 121407
DANGER
1. If you smell Gas:
a. Shut o gas to the appliance
b. Extinguish any open ame
c. Open lid
d. If odor continues, keep away from
the appliance and immediately
call your gas supplier or your
re department
2. Do not store or use gasoline or other
ammable vapours and liquids in the
vicinity of this or any other appliance.
3. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
4. Requires two people to complete the
assembly process.
5. Beware of sharp edges.
WARNING
Failure to follow all of the Manufacturer’s
instructions could result in hazardous res,
explosions, property damage, or serious
personal injury or even death.
Follow all leak check procedures carefully
prior to operation of barbecue, even if grill
was dealer assembled. Do not try to light
this barbecue without reading the Lighting
Instructions section of this manual.

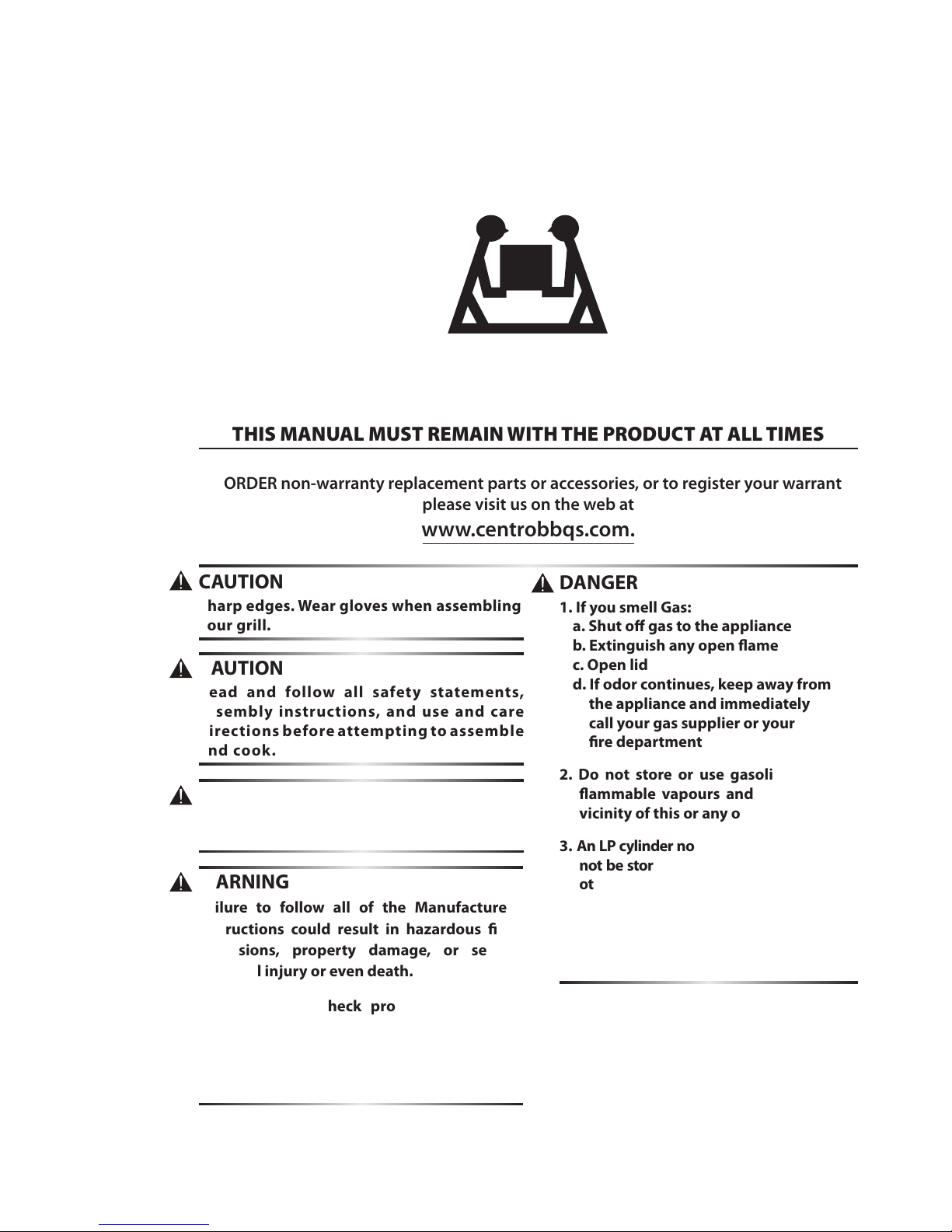

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES
To ORDER non-warranty replacement parts or accessories, or to register your warranty,
please visit us on the web at
www.centrobbqs.com.
CAUTION
Read and follow all safety statements,
assembly instructions, and use and care
directions before attempting to assemble
and cook.
CAUTION
Sharp edges. Wear gloves when assembling
your grill.
THIS BARBECUE IS FOR OUTDOOR USE ONLY
CONTACT CALL CENTRE IF ANY PARTS ARE MISSING
INSTALLER OR ASSEMBLER/CONSUMER
This manual should be kept with the BBQ at
all times.
HEAVY ARTICLE NEEDS 2 TO LIFT
1

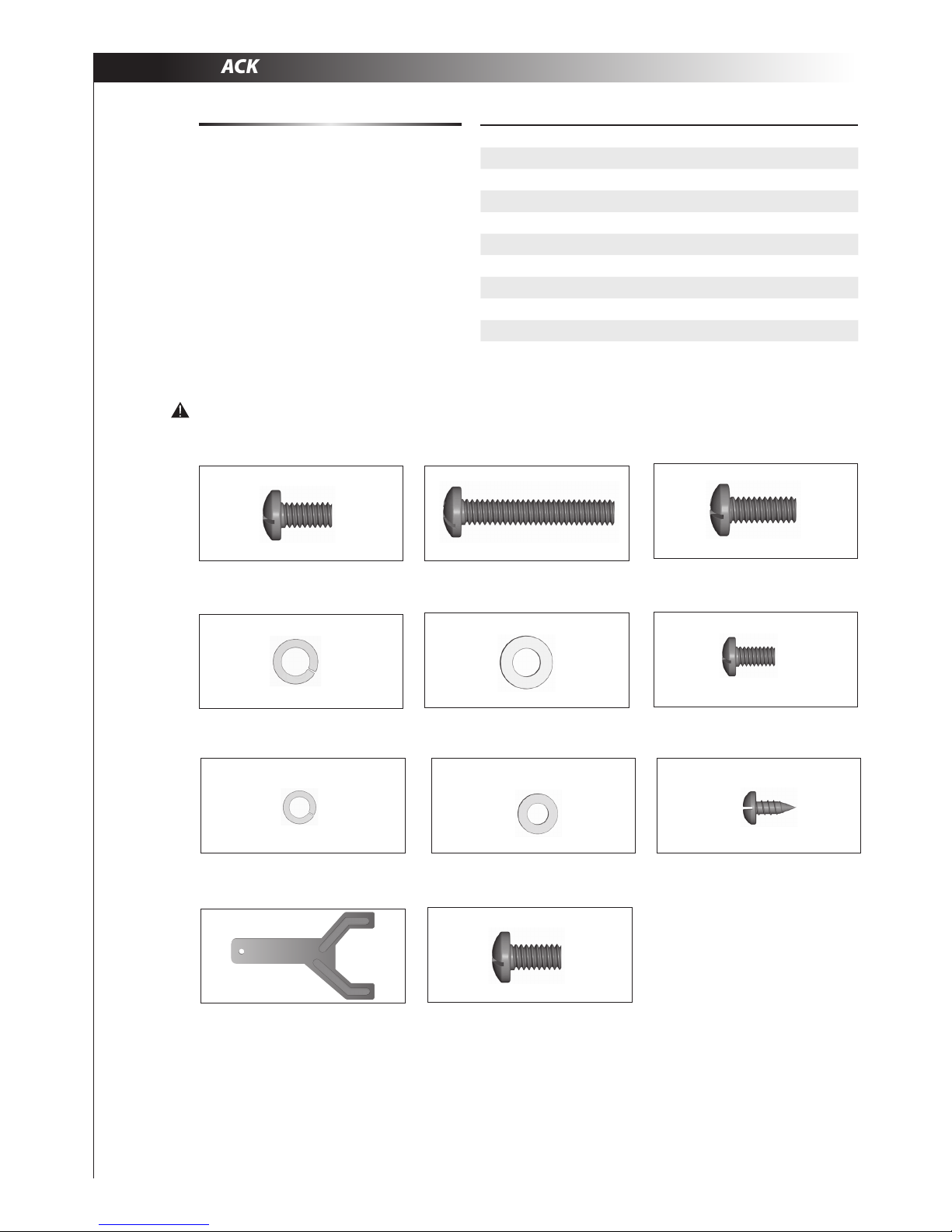

HARDWARE PACK
TOOLS NEEDED FOR ASSEMBLY
• #2 Phillips screwdriver (long and short)
• ¼” Slotted screwdriver (long and short)
• Adjustable wrench
• Pliers
Before assembling the barbecue, read these
instructions carefully.
Assemble the barbecue on a at, clean surface.
Grill is heavy. You should have at least two people
assemble the barbecue together.
Notes: Do not fully tighten all the nuts during this
initial stage.
No. Description Part Number Quantity
11/4"-20UNCX13 Screw 20120-13013-250 6
2 1/4"-20UNCX38 Screw 20120-13038-250 4
3 1/4"-20UNCX16 Screw 20120-13016-250 4
4ø7 Lock Washer 41400-07000-250 14
5 ø7 Washer 40300-07000-250 14
6NO.10-24UNCx10 Screw 20124-10010-250 20
7ø 5 Lock Washer 41400-05000-250 24
8 ø 5 Washer 40300-05000-250 24
9ST4.2x10 Tapping Screw 22500-42010-137 1
10 Wrench G413-0032-9082 1
11 NO.10-24UNCx13 Screw 20124-10013-250 4
1. ¼” - 20UNCX13 Screw (x6)
4. ø7 Lock Washer (x14)
9. ST4.2x10 Tapping Screw (x1)
2. ¼” - 20UNCX38 Screw (x4)
5. ø7 Washer (x14)
7. ø5 Lock Washer (x24)
3. ¼” - 20UNCX16 Screw (x4)
6. NO. 10-24UNC10 Screw (x20)
8. ø5 Washer (x24)
Caution:
Sheet metal can cause injury. Wear gloves when installing the grill.
#10. Wrench (x1) #11. NO. 10-24UNCx13 Screw (x4)
2
Item No. Quantity Description Part No.
AA 1Top Lid G412-0100-01
AB 1Lid handle G412-0004-01
AC 1Lid handle end cap-Left G617-0004-01
AD 1Lid handle end cap-Right G617-0005-01
AE 1Logo Plate G412-0001-01
AF 1Thermometer G412-0003-01
AG 2 Screw for Top Lid G501-0005-01
AH 2 Lid Bumper G508-0063-01
BA1 1Burner Box Weldment G412-0200-01
BA2 1Rear Panel, Burner Box G416-0013-01
BB 1Upper side panel- Left G412-0400-01
BC 1Upper side panel- Right G412-0300-01
BD 3 Main Burner G413-5000-01
BE 2 Carryover assembly G413-0004-01
BF 3 Flame Tamer G413-0036-01
BG 2 Cooking Grate G412-0015-01
BH 1Warming Rack G413-0002-01
BI 1Upper Back Panel G412-0002-01
BJ 1Match Holder G608-0019-01
CA 1Manifold Assembly G412-4000-01
CB 1Regulator- 22" G606-0008-01
CC 3 Control Knobs G412-4500-01
CD1 1Electronic Igniter assembly G501-0072-02
CD2 1Electronic Ignition Button G501-0072-01
CE1 1Electrode Set, Main Burner G412-0009-01
CE2 1Ground wire, main burners G411-0004-01
CF 1Control Panel G412-0005-01
CG 1Heat shield
CH 1Series Logo G412-0016-01
CI 1Grease Tray G412-1000-01
CJ 1Grease Cup G416-0015-01
DA 1Side shelf table- Left G501-0900-01
DB 1Side Shelf fascia- Left G412-0011-01
DC 1Side shelf table- Right G501-0800-01
DD 1Side shelf fascia-Right G412-0010-01
DE 1Cart side panel-Left G412-0500-01
DF 1Cart Side Panel, Right G412-0600-01
DG 2 Pillars G412-0013-01
DH 1Front Panel G412-0012-01
DI 1Bottom Shelf G412-0700-01
DJ 2 Wheel with lock G401-0061-01
DK 2 Wheel G607-0048-01
1Hardware Pack G412-B001-01
1Assembly Manual G412-M001-01
1Safety & Care Manual G617-M001-02
PARTS LIST (PROPANE) FOR 85-1614-2 (G41201)
3

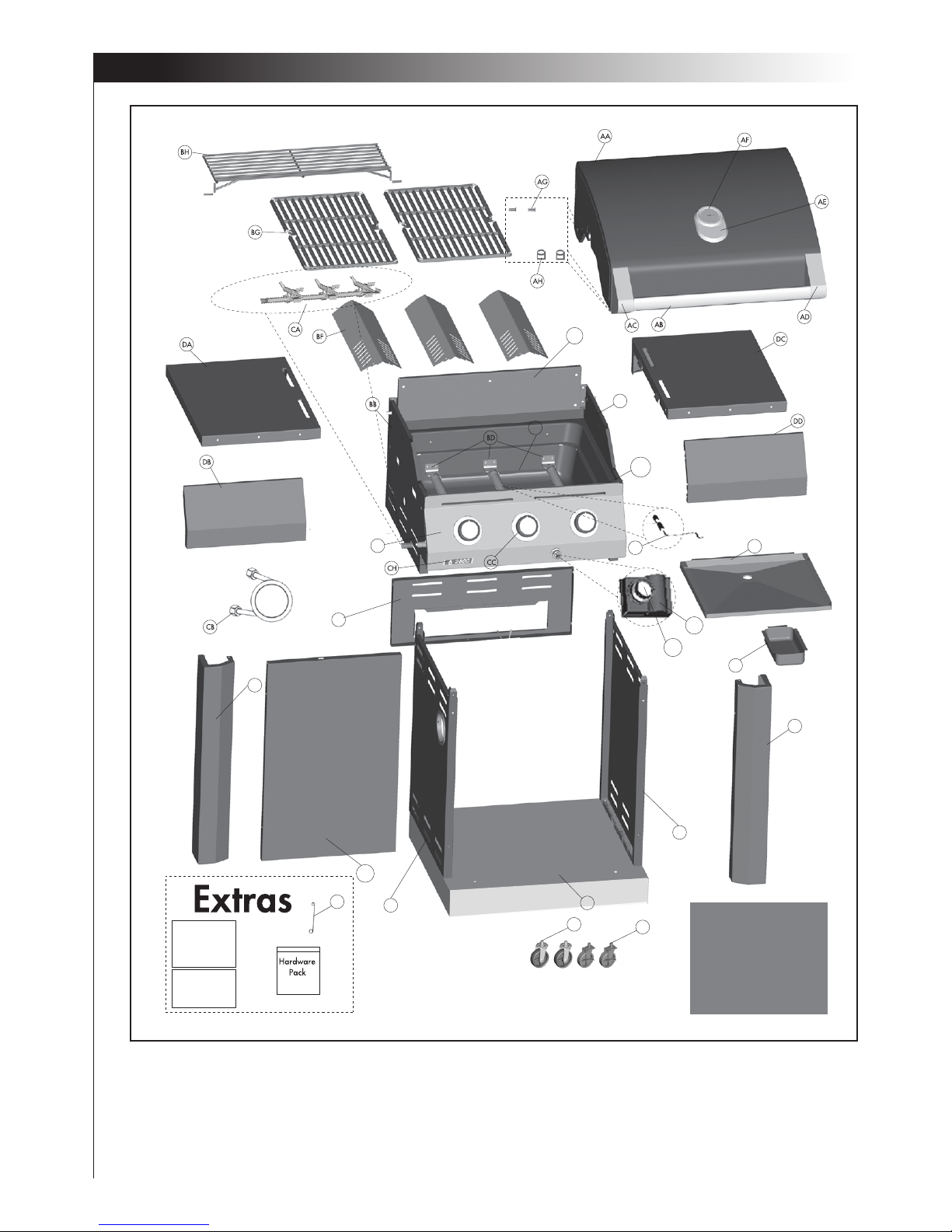

EXPLOADED DIAGRAM (PROPANE) FOR 85-1614-2 (G41201)
DK DJ
DI
DF
DE
DH
BJ
Safety & Care
Manual
Assembly
Manual
DG
CD2
CD1
BI
DG
CJ
CI
CE
BE
BA2
BC
BA1
CF
Heat shield
4
PARTS LIST (NATURAL GAS) FOR 85-1650-4 (G41202)
Item No. Quantity Description Part No.
AA 1Top lid G412-0100-01
AB 1Lid handle G412-0004-01
AC 1Lid handle end cap-Left G617-0004-01
AD 1Lid handle end cap-Right G617-0005-01
AE 1Logo plate G412-0001-01
AF 1Thermometer G412-0003-01
AG 2 Screw for top lid G501-0005-01
AH 2 Lid bumper G508-0063-01
BA1 1Burner box weldment G412-0200-01
BA2 1Rear panel, burner box G416-0013-01
BB 1Upper side panel- Left G412-0400-01
BC 1Upper side panel- Right G412-0300-01
BD 3 Main burner G413-5000-01
BE 2 Carryover assembly G413-0004-01
BF 3 Flame tamer G413-0036-01
BG 2 Cooking grate, G412-0015-01
BH 1Warming rack G413-0002-01
BI 1Upper back panel G412-0002-01
BJ 1Match holder G608-0019-01
CA 1Manifold assembly G412-4100-01
CB 1Natural gas hose G501-0099-01
CC 3 Control knobs G412-4500-01
CD1 1Electronic igniter assembly G501-0072-02
CD2 1Electronic ignition button G501-0072-01
CE1 1Electrode set, main burner G412-0009-01
CE2 1Ground wire, main burners G412-0004-01
CF 1Control panel G412-0005-01
CH 1Series logo G412-0016-01
CI 1Grease tray G412-1000-01
CJ 1Grease cup G416-0015-01
DA 1Side shelf table- Left G501-0900-01
DB 1Side shelf fascia- Left G412-0011-01
DC 1Side shelf table- Right G501-0800-01
DD 1Side shelf fascia-Right G412-0010-01
DE 1Cart side panel-Left G412-0500-01
DF 1Cart side panel, Right G412-0600-01
DG 2 Pillars G412-0013-01
DH 1Front panel G412-0012-01
DI 1Bottom shelf G412-0800-01
DJ 2 Wheel with lock G401-0061-01
DK 2 Wheel G607-0048-01
1Hardware Pack G412-B001-01
1Assembly Manual G412-M001-01
1Safety & Care Manual G617-M001-02
5

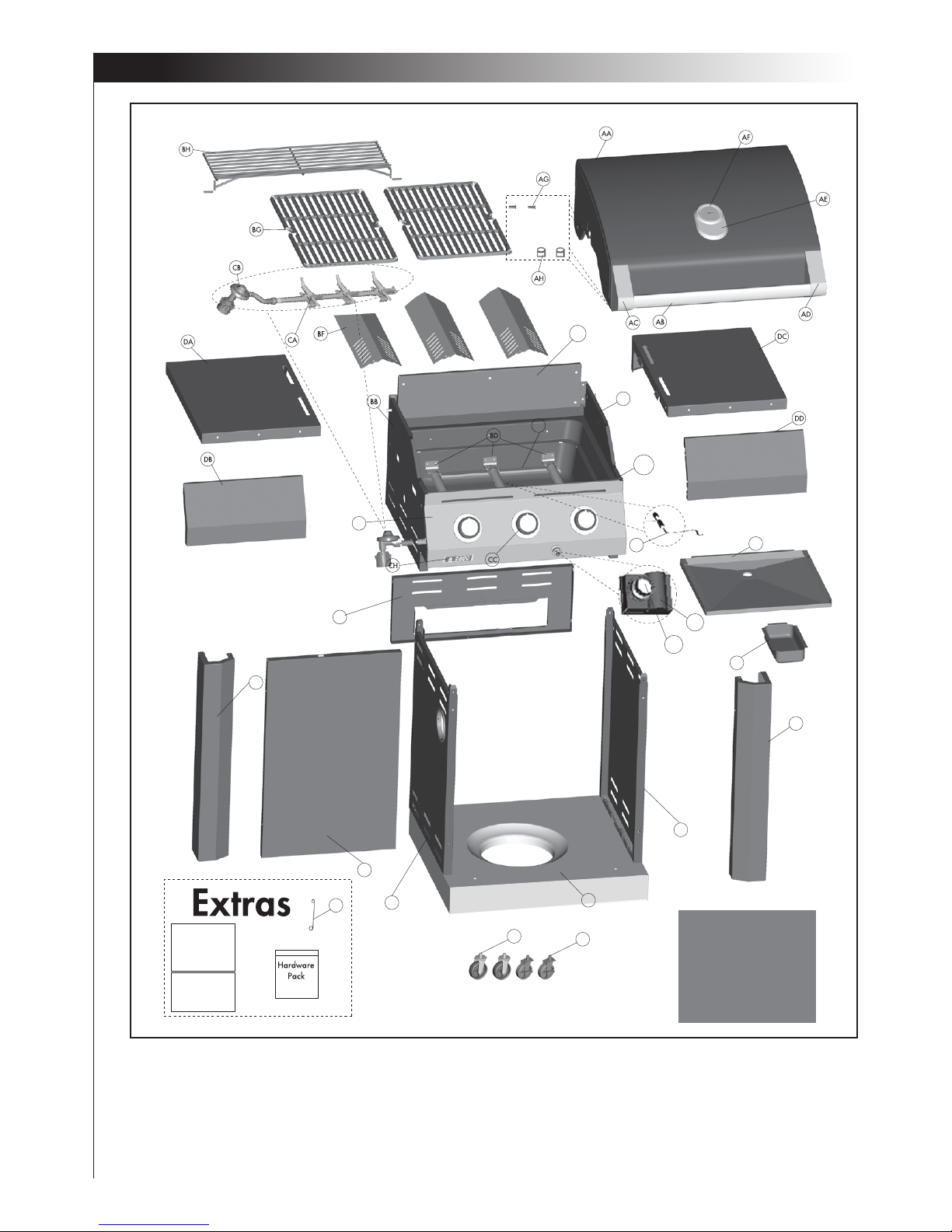

EXPLOADED DIAGRAM (NATURAL GAS) FOR 85-1650-4 (G41202)
BE
BA2
BC
BA1
BI
DG
DE
DH
BJ
Safety & Care
Manual
Assembly
Manual
DK DJ
DI
DF
CD2
CD1
CI
CJ
DG
CE
CF
Heat shield
6
1
2
#1 - ¼” - 20UNCx13 Screw (x6)
#4 - ø7 Lock Washer (x6)
#5 - ø7 Washer (x6)
ASSEMBLY INSTRUCTIONS
DK
DE
DF
DI
DJ
DI
Front view

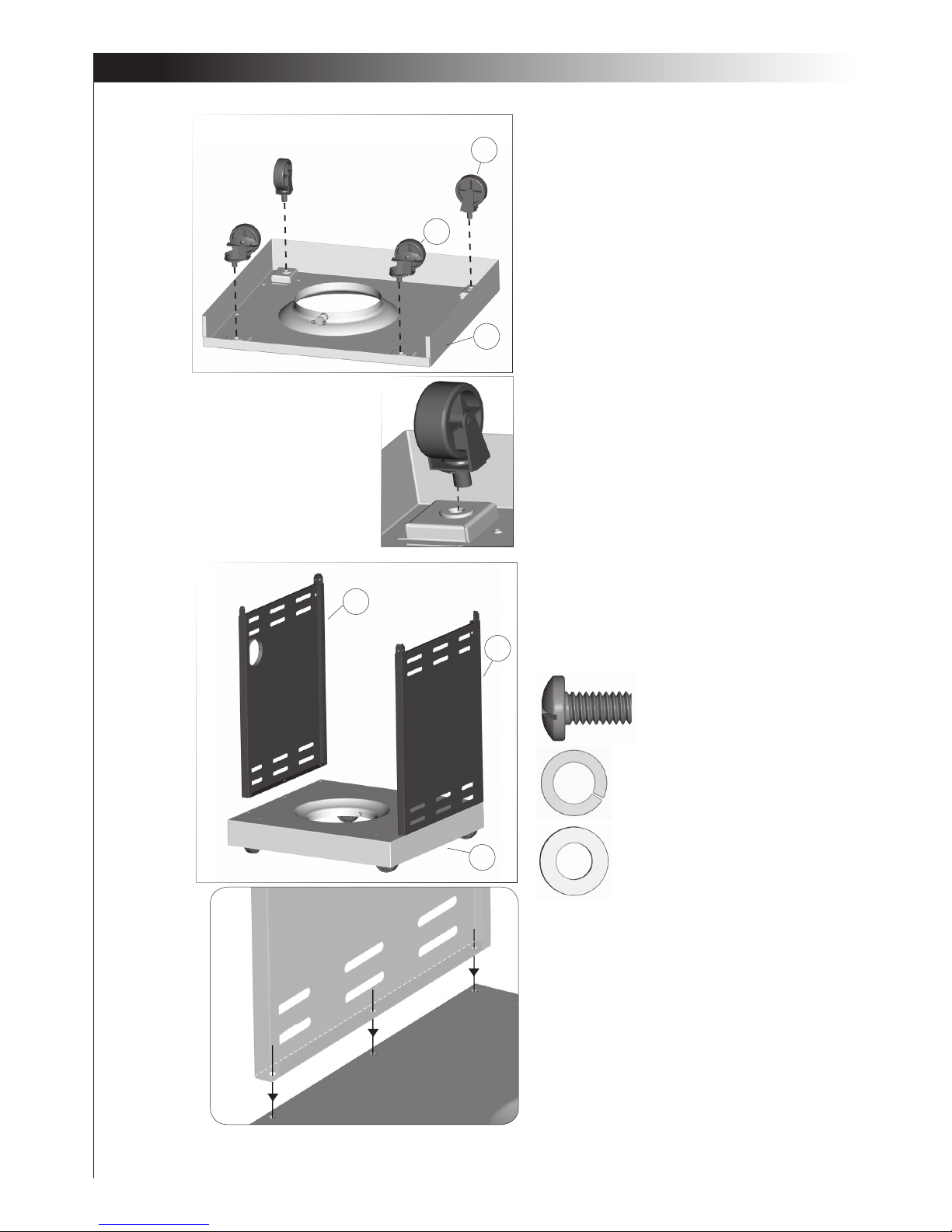

1. Separate the 2 dierent types of wheels, 2
locking wheels (DJ) and 2 regular wheels (DK).
Attach the locking wheels (DJ) to the back of
the bottom shelf (DI) and the regular wheels
(DK) to the front of the bottom shelf (DI).
To secure the 4 wheels, hand tighten rst.
Then, tighten further using the Wrench pro-
vided in the hardware pack.
2. Ensure that the wheels are rmly locked in the
“ON”position before continuing.
Assemble the left side panel (DE) and the right
side panel (DF) to the bottom shelf (DI).
7
3
44. Attach the front panel (DH) onto the pillars (DG).
#6 - NO. 10-24UNCx10 Screw (x4)
#6 - NO. 10-24UNCx10 Screw (x6)
#7 - ø5 Lock Washer (x4)
#7 - ø5 Lock Washer (x6)
#8 - ø5 Washer (x4)
#8 - ø5 Washer (x6)
ASSEMBLY INSTRUCTIONS
DF
DF
DG DG
DG
DH
DE
Back view

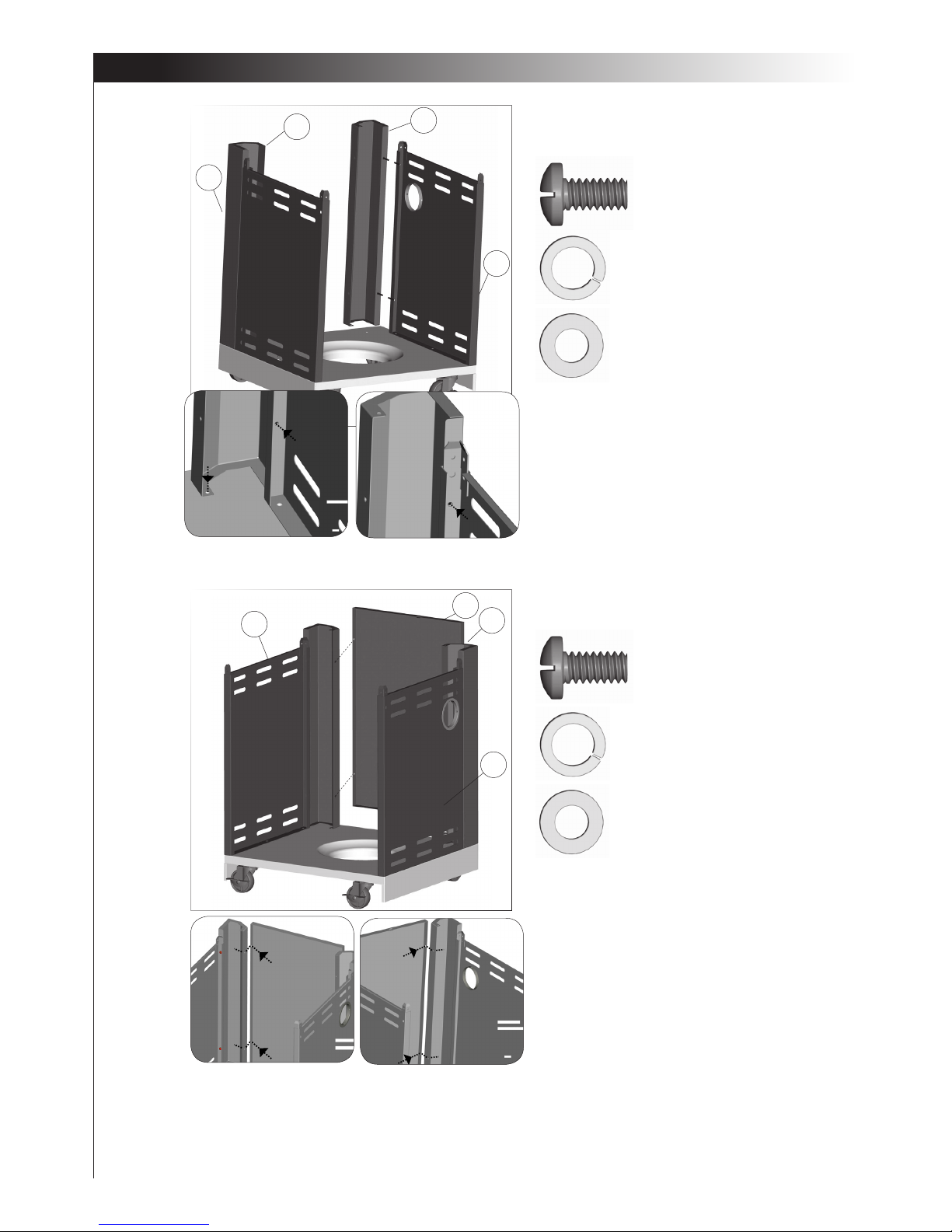

3. Assemble the Left and right Pillars (DG), to the
cart side panels, as shown in gure A and B.
AB
DE
8
5
6

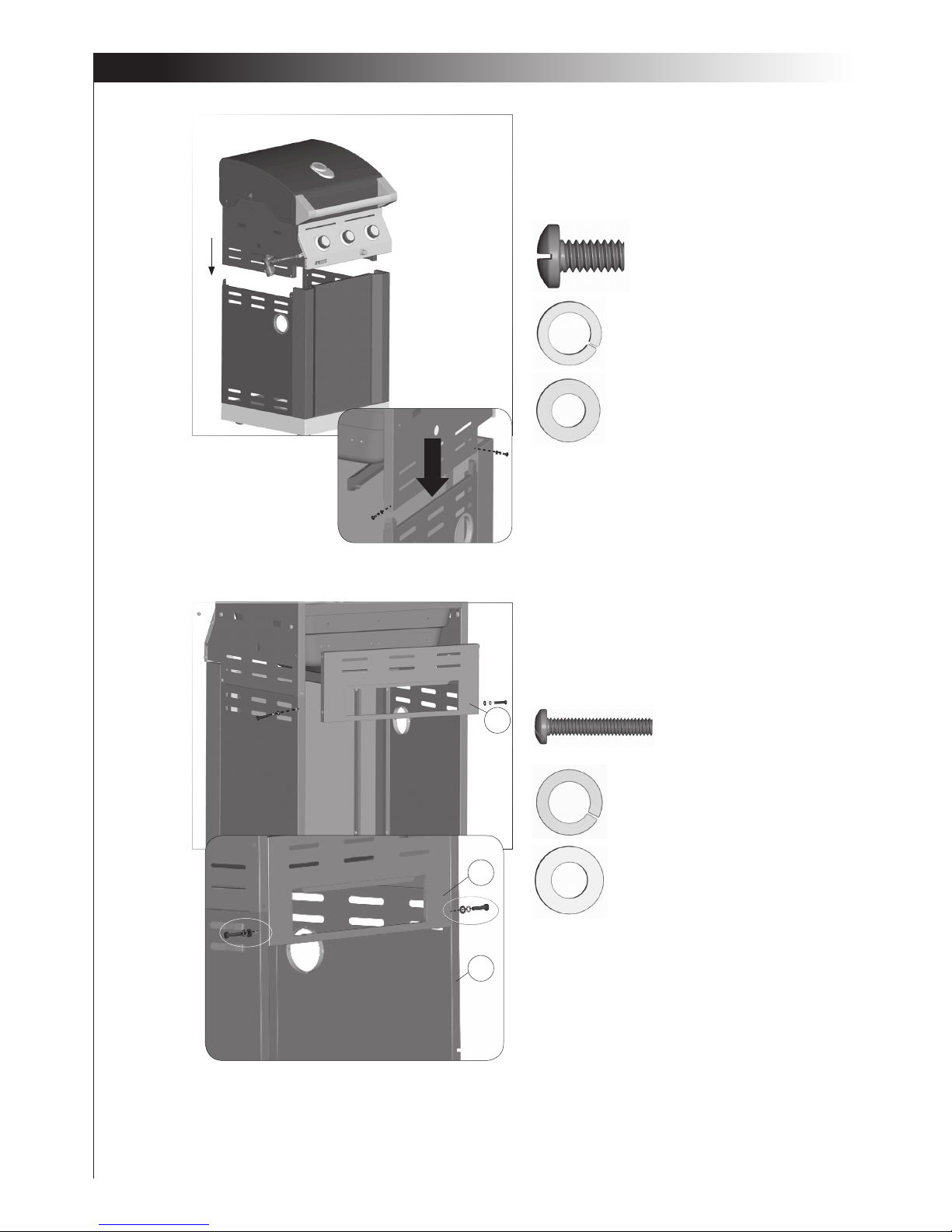

5. Position the top lid and burner box assembly
(A and B) onto the cart assembly (C) as shown.
in gure A. Use the hardware to connect both
parts, on the left and right sides, at the two
points indicated in Figure B.
#2 - ¼” - 20UNCx38 Screw (x2)
#6 - NO.10-24UNCx10 Screw (x4)
#4 - ø7 Lock Washer (x2)
#7 - ø5 Lock Washer (x4)
#5 - ø7 Washer (x2)
#8 - ø5 Washer (x4)
ASSEMBLY INSTRUCTIONS
BI
Rear view
BI
DE
6. Attach the upper back panel (BI) to both the
left and right side panels (DE and DF).
Only install hardware in the bottom portion of
the back panel, as shown in gure B.
A
B
