1 About This Guide
This guide is a complementation of Quick Installation Guide. The Quick Installation Guide
instructs you on quick Internet setup, and this guide provides details of each function and shows
you the way to configure these functions appropriate to your needs.
When using this guide, please notice that features of the router may vary slightly depending on
the model and software version you have, and on your location, language, and Internet service
provider. All screenshots, images, parameters and descriptions documented in this guide are used
for demonstration only.
2 Note
2.1 Installation Precautions
Do not place the equipment near flammable or conductive items, high temperatures (such
as direct sunlight) or in wet conditions, or on a PC chassis, and check that the surrounding
appliances are stable.
Check the cable for aging. Check and verify that the AC or DC input voltage is within the
permissible range of the device and that the polarity of the DC is correct.
Unless the manufacturer permit, use the type of power indicated on the label and the
adapter supplied with the product.
To prevent damage to the product from lightning, make sure that the ground of the power
outlet and the power adapter is securely grounded. In the thunderstorm, be sure to unplug
the power and all the connections.
Equipment input voltage fluctuation should be less than 10%, the power plug, refrigerators,
hair dryer and iron should not use the same socket.
To avoid electric shock or fire due to overload of the power outlet, damage to the cord or
damage to the plug, check the power cord regularly. If damage is found, replace it
immediately.
Please place the device on a flat surface and can not place items on the device.
Equipment is easy to produce heat when working, should maintain the appropriate cooling
space to avoid damage caused by overheating products. The elongated hole on the shell is
designed for heat dissipation. Keep the ventilation clean and avoid falling from the heat sink
into the equipment. Otherwise, the equipment may be damaged or fire. Do not spill liquid
onto the surface of the equipment.
www.szceres.com Shenzhen Ceres Wireless Router User Manual
5
2.2 Precautions for Use
Please read the user manual carefully before using the equipment and follow all the
precautions on the user manual and the product.
Turn off the power when the device is not in use
Before plugging the power supply, make sure that the power switch is turned off to avoid
surge. Be careful when unplugging the power supply and the transformer temperature may
be high.
To ensure safety, do not open the enclosure of the device, especially when the device is
powered up.
Unplug the power supply before cleaning the equipment. Use a soft dry cloth to clean the
equipment to avoid the use of liquids or sprays.
Do not connect this product to any electronic product unless it is instructed by our customer
engineer or your broadband supplier, as any incorrect connection may cause power or fire
hazard.
3 Get to Know About Your Router
3.1 Product Overview
WR135G-AC1200 is a wireless router that supports 1 10/100/1000Mbps WAN port and 4
10/100/1000Mbps LAN ports. The 2.4G WI-FI rate can reach 300Mpbs, and the 5G WI-FI rate can
reach 867Mpbs, allowing you to quickly set up a 300Mbps wireless network or an 867Mbps
wireless network, allowing your computer to access the Internet. The wireless router is
compatible with the IEEE802.11b/g/n/ac standard, with four external antennas, supports a
maximum data rate of 1200Mbps, and has the characteristics of strong penetration and wide
coverage, providing users with more efficient data transmission protection.
3.2 Product Features
A wan port and four lan ports all support automatic negotiation and port automatic reverse
Support NAT function
Support IP bandwidth control, reasonable distribute network bandwidth
Support WDS wireless bridge, easily extend wireless networks
Support parents control function, can control time online and Internet content
Supports PPPoE, Dynamic IP, Static IP access to internet
Support DDNS, static routing Pass - through
Provide DoS attack prevention, with functions of automatic isolation virus
Support virtual servers, special application and DMZ host port forwarding, can be used in
the construction of Intranet web sites
Support SSID broadcasting control, support access control list based on the MAC address
Built-in firewall, support IP, MAC, URL filtering, can be flexible to control Internet access and
online time
Built-in DHCP server, and can automatically and dynamically assigned IP address
Support free software upgrade
www.szceres.com Shenzhen Ceres Wireless Router User Manual
6
3.3 Product Specifications
Working Temperature: -10℃to 50 ℃
Storage Temperature: - 30 ℃to 70 ℃
Work Humidity: 10% to 90%RH does not condense
Storage Humidity: 5% to 90%RH does not condense
Power Adapter Input: DC12V/1A
3.4 The Back Panel

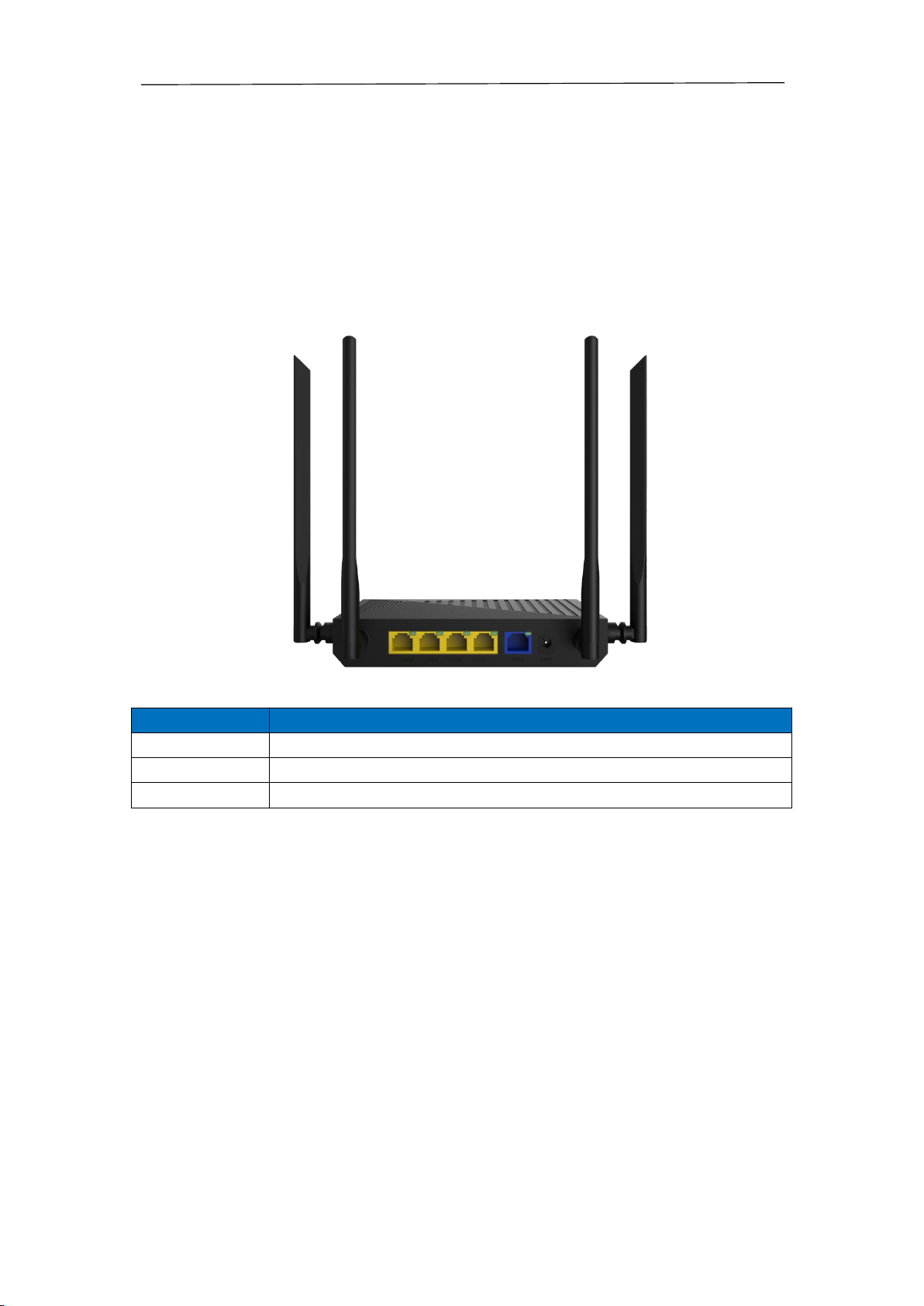

The following parts (view from left to right) are located on the rear panel.
Item
Description
LAN1-LAN4
connect computers and other terminal devices.
WAN
connect the operators network .
PWR
For connecting the router to a power socket via the provided power adapter.
www.szceres.com Shenzhen Ceres Wireless Router User Manual
7
3.5 Top View

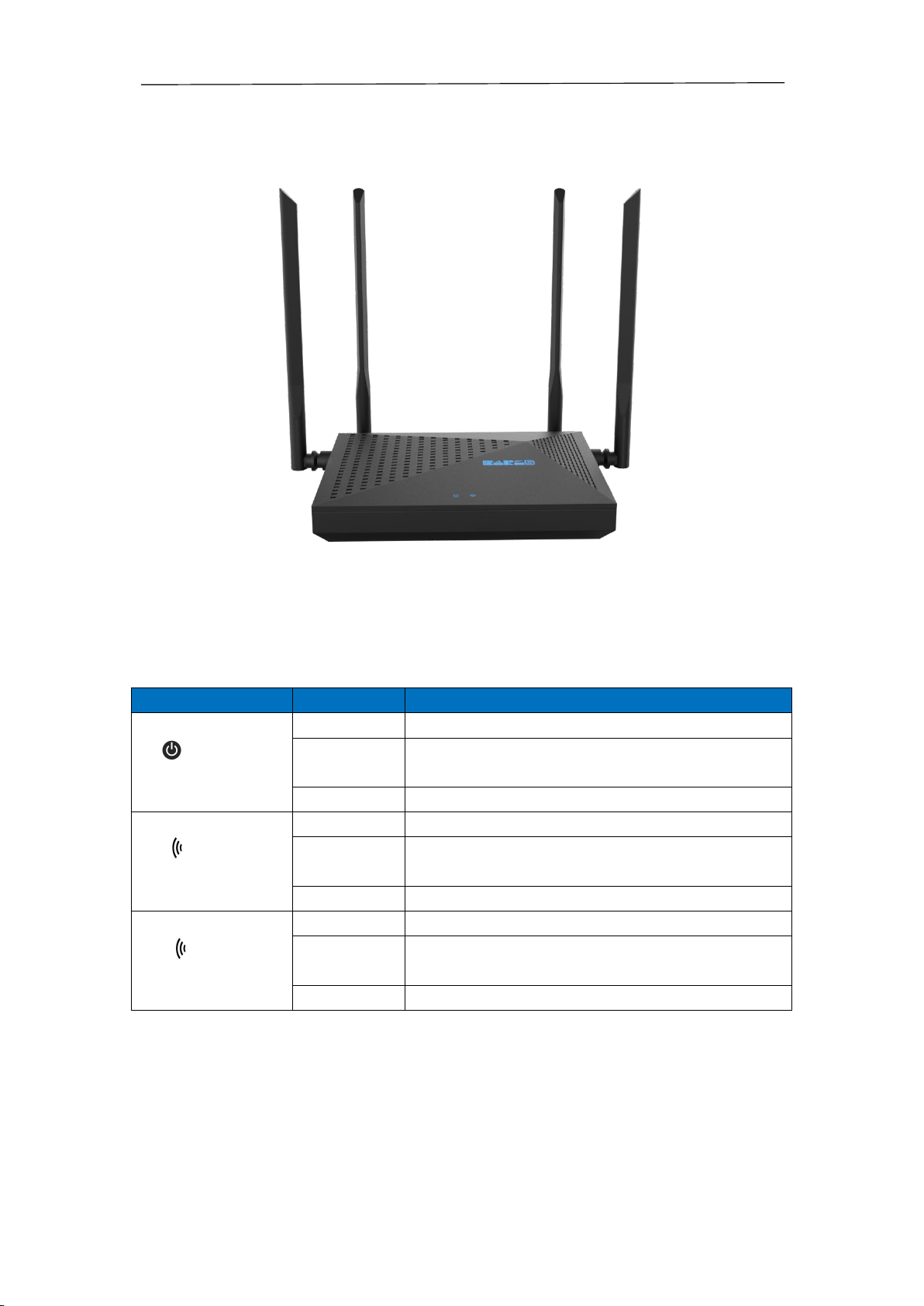

The router’s LEDs (view from left to right) are located on the front panel. You can check the
router’s working status by following the LED Explanation table.
name
Status
Indication
On
System initialization completes
Flashing
System initialization or firmware upgrade is in process. Do not
disconnect or power off the router
Off
Power is off
On
The 2.4GHz wireless band is working properly.
Flashing
At least one device is connected to a wireless network and has
traffic passing through
Off
The 2.4GHz wireless band is disabled.
On
The 5GHz wireless band is working properly.
Flashing
At least one device is connected to a wireless network and has
traffic passing through
Off
The 5GHz wireless band is disabled.
2.4G
5G
Power
www.szceres.com Shenzhen Ceres Wireless Router User Manual
8
4 Connect Your Router
4.1 DSL/Cable/Satellite modem connected to router

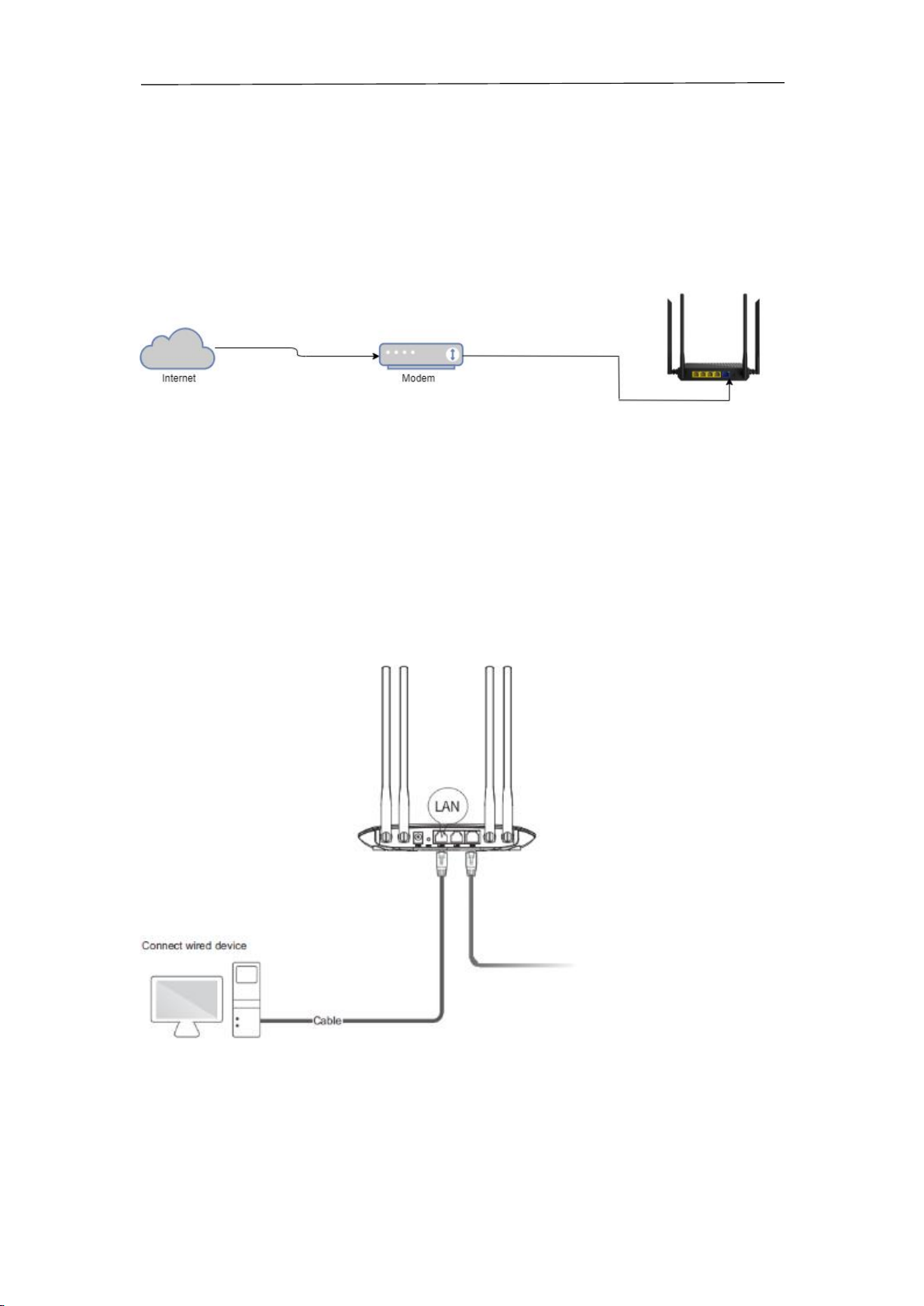

If your Internet connection is through an Ethernet cable from the wall instead of through a DSL /
Cable / Satellite modem, connect the Ethernet cable directly to the router’s Internet port, then
follow Step 4 and 5 to complete the hardware connection.
1) Turn off the modem.
2) Connect the modem to the WAN port on the router via an ethernet cable.
3) Turn on the modem, and then wait about 2 minutes for it to restart.
4) Turn on the router.
5) Verify that the hardware connection is correct by checking these LEDs.
4.2 Connect your computer/Phone to the router.
Method 1: Wired
Turn off the Wi-Fi on your computer and connect the devices as shown below.
Method 2: Wireless
1) Find the SSID (Network Name) and Wireless Password printed on the label at the bottom of
the router.
2) Click the network icon of your computer or go to Wi-Fi Setting of your smart device, and
then select the SSID to join the network.
www.szceres.com Shenzhen Ceres Wireless Router User Manual
9

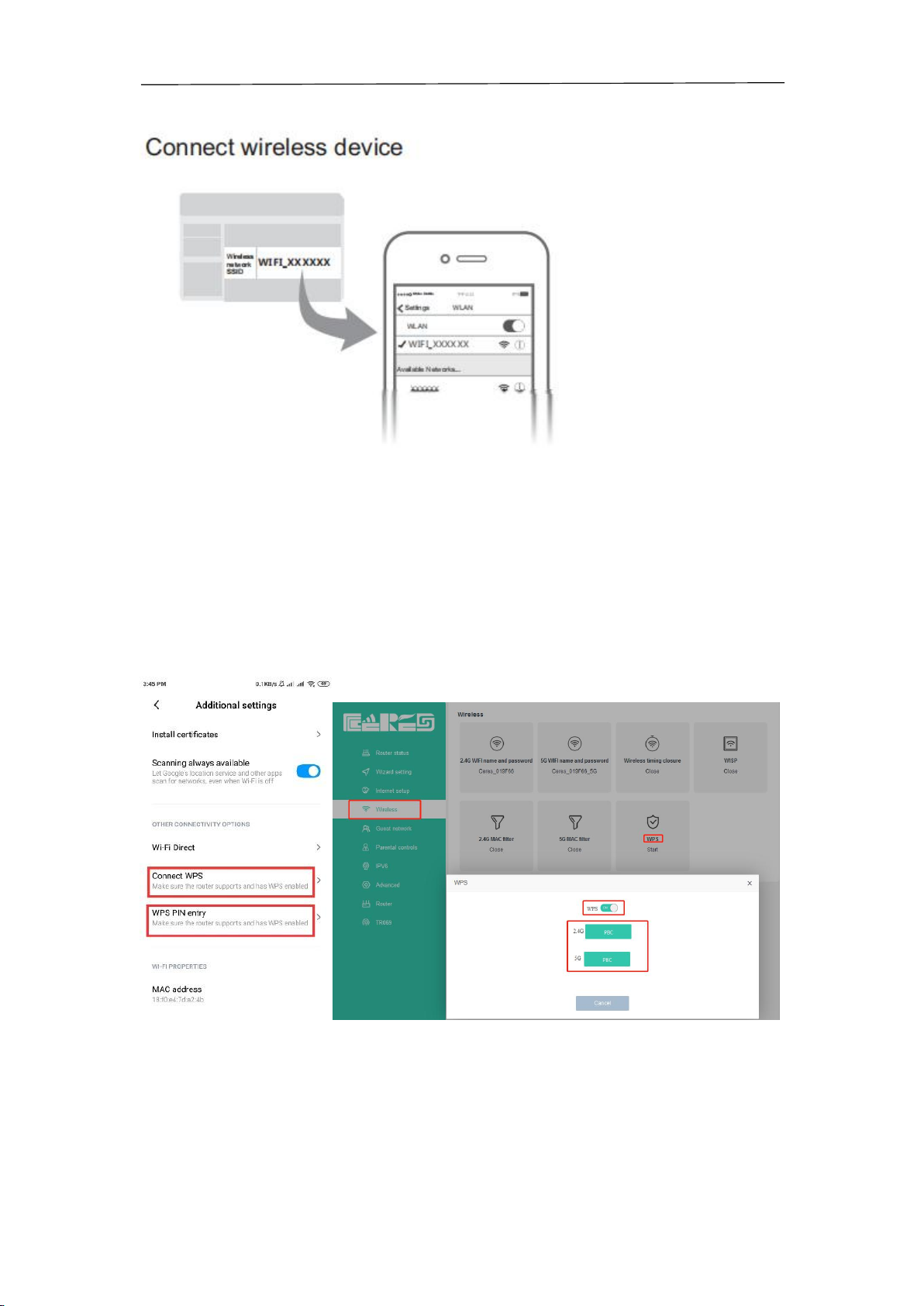

Method 3: Use the WPS button
Wireless devices that support WPS, including Android phones, tablets, most USB network cards,
can be connected to your router through this method (WPS is not supported by iOS devices).
1. Choose Connect WPS on your phone
2.Click the WPS button on the router web management
Note:
The WPS function cannot be configured if the wireless function of the router is disabled. Also, the WPS function
will be disabled if your wireless encryption is WEP. Please make sure the wireless function is enabled and is
configured with the appropriate encryption before configuring the WPS.
www.szceres.com Shenzhen Ceres Wireless Router User Manual
10
5 Log into Your Router
With the web-based utility, it is easy to configure and manage the router. The web- based utility
can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft
Internet Explorer, Mozilla Firefox or Apple Safari.
Follow the steps below to log into your router.
1) Set up the TCP/IP Protocol in Obtain an IP address automatically mode on your computer.
2) open PC Web browser (IE, firefox, Google), copy and paste the WIFI router to access the URL：

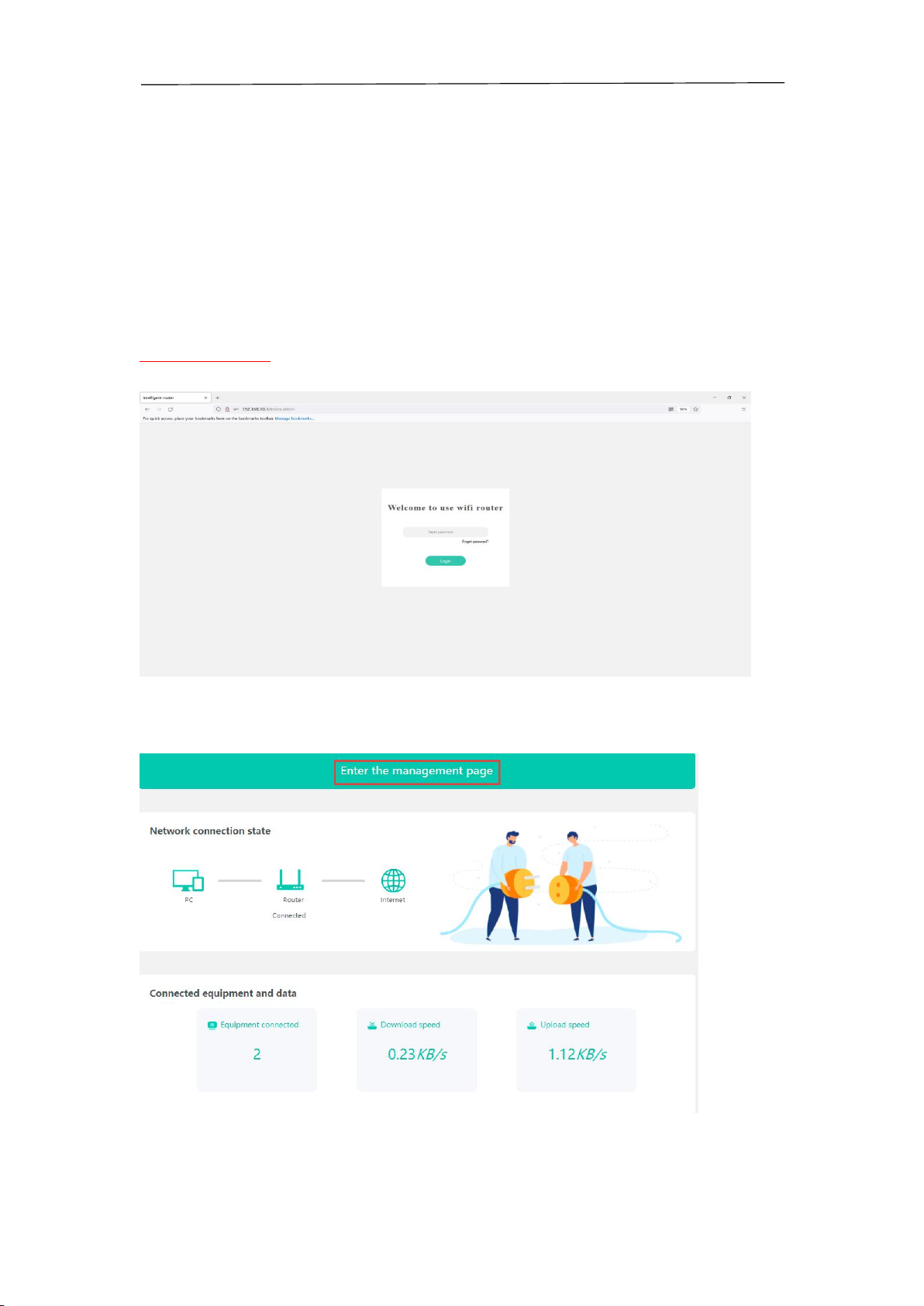

http://192.168.10.1 or http://cereslogin.com, then pop-up WIFI router prompt login page as
follows:
Input WIFI router PassWord：admin，Click “LogIn” button. Then we can see setup guide as
follows：
Click 【Enter the management page】to enter the main interface of the WIFI router, you can
further set up the WIFI router, next we can see the set guide.
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali CERES Router di rete
Manuali Router di rete popolari di altre marche
NETGEAR
NETGEAR FS526T - Switch Manuale utente
Korenix
Korenix JetNet 5710G Series Manuale utente
Automated Logic
Automated Logic ZN551 Manuale del proprietario
Cisco
Cisco ASR 1000 Series Manuale dell'operatore
EnGenius
EnGenius ESR-9710 Manuale utente
Cisco
Cisco 805 Series Istruzioni operative e di sicurezza
