Installation Guide

5Ghz Outdoor Omni 12dBi with 1M N-Plug to N-Plug NFC200 Low Loss RF Cable Pole / Wall Mount Antenna

CERIO Corporation

ANT-12A

5Ghz Outdoor Omni 12dBi

with RF Cable Pole / Wall Mount Antenna

Installation Guide

Technical Support

E-mail: support@cerio.com.tw

TEL: +886-2-8911-6160 #222

Web Site: www.cerio.com.tw

Installation Guide

5Ghz Outdoor Omni 12dBi with 1M N-Plug to N-Plug NFC200 Low Loss RF Cable Pole / Wall Mount Antenna

Package Contents :

ANT-12A Main Unit x1

Pole & Wall Mounting Ki x1

RF Cables (NFC-NNP-1M) x1

Quick Installation Guide x1

Warranty Card x1

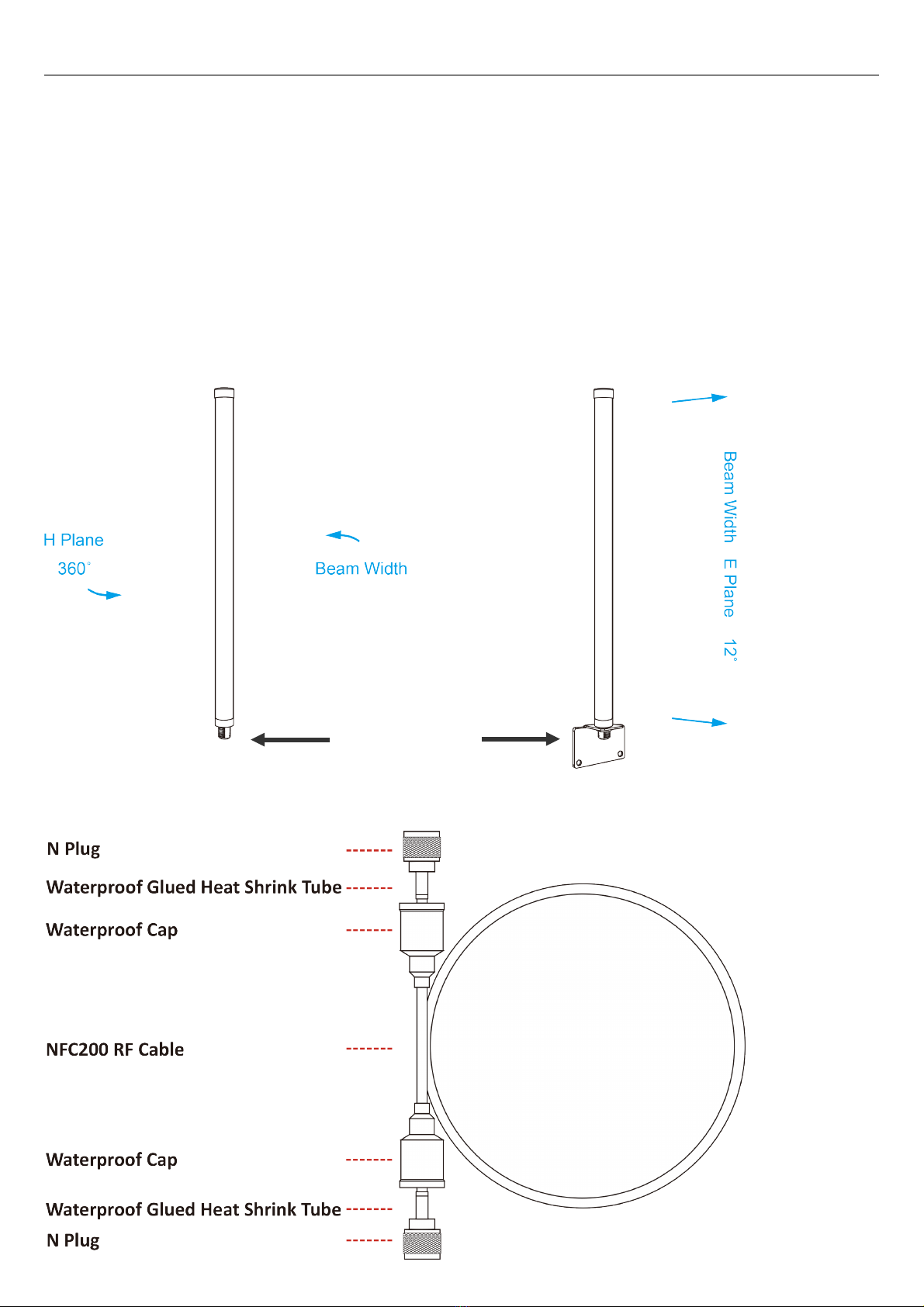

Main Unit Overview : (ANT-12A)

RF Cable Overview : (NFC-NNP-1M)

N Connect

Installation Guide

5Ghz Outdoor Omni 12dBi with 1M N-Plug to N-Plug NFC200 Low Loss RF Cable Pole / Wall Mount Antenna

Installation:

1. Mount the antenna on the brackets according to the Mounting diagram. Make sure

the horizontal omnidirectional of the ANT-12A antenna with a beamwidth (H plane)

of 360  and a beamwidth (E plane) of 12 .

2. Mount the ANT-12A antenna on the antenna on the mast supplied by customer

according to the Mounting diagram.

3. Test the antenna with equipment to make sure the antenna receive the best signal first,

then lock all the screws and seal the connector between ANT-12A antenna and NFC-NNP-

1M RF cables with a waterproof cap.

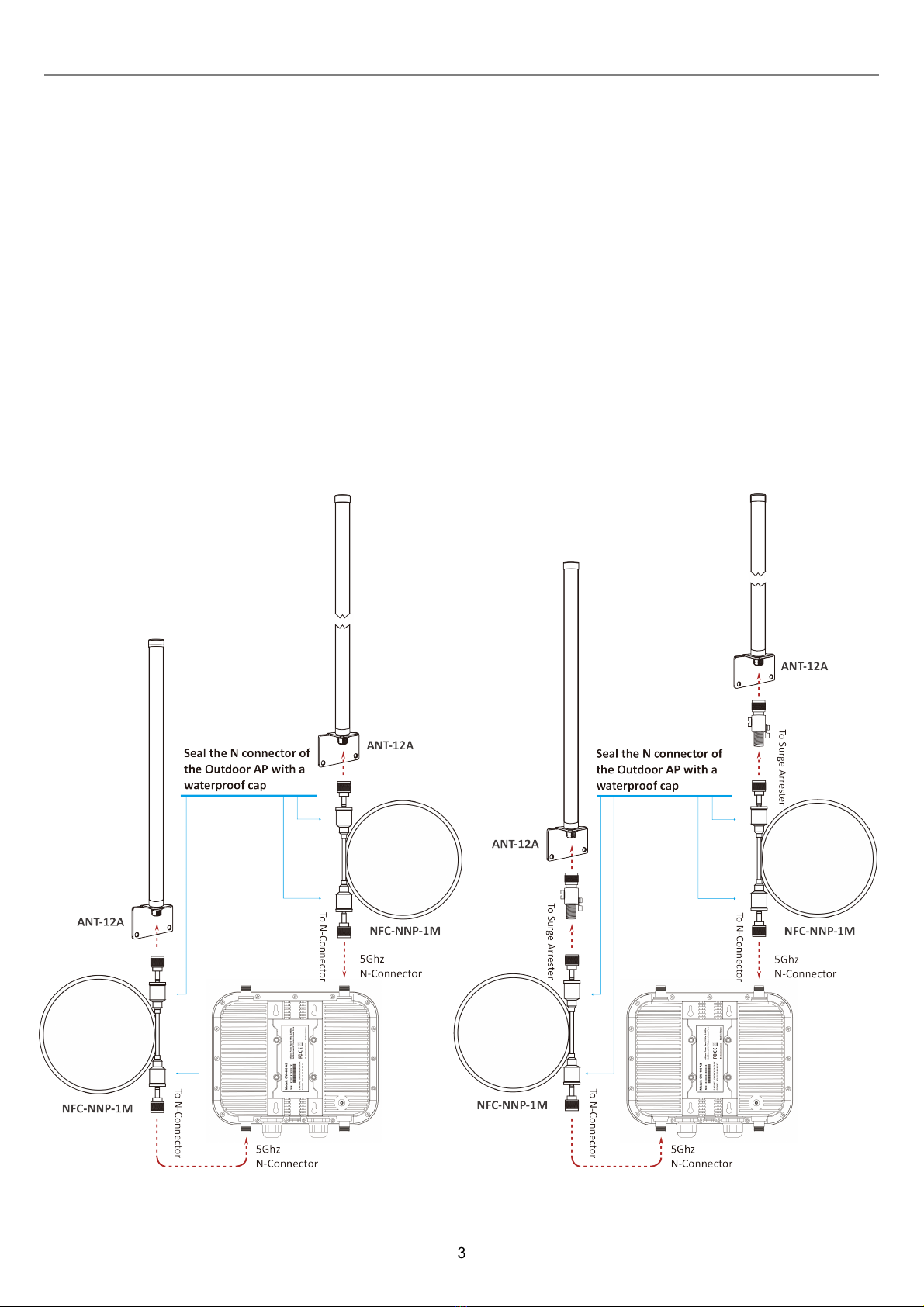

No Surge arrester installation

Installation using a Surge arrester

Installation Guide

5Ghz Outdoor Omni 12dBi with 1M N-Plug to N-Plug NFC200 Low Loss RF Cable Pole / Wall Mount Antenna

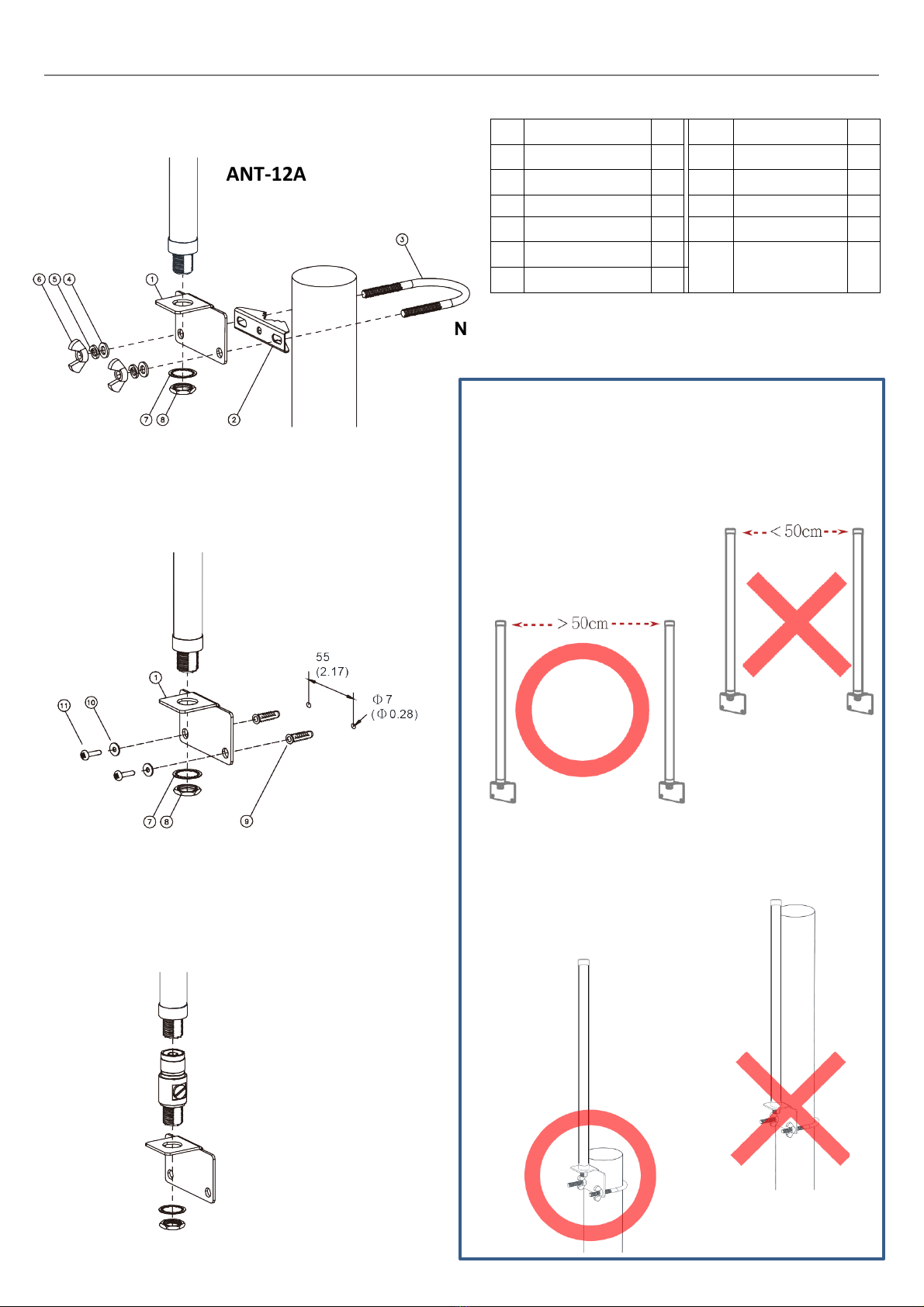

DESCRIPTION QTY

L Bracket

Lock washer

Pole-clamp

HEX. Nut

1/4” U-bolt

Plastic wall plug

Flat washer

M4 flat washer

Spring washer

5/32" Self tapping

screws screws

1/4” Wing nut

(in)

ANT-12A

NO.3 Available Pole Range│Ø20-Ø52mm

If equipped with Surge Arrester

1. Pole Mount (Pole Range: Ø40-Ø50mm)

2. Alternative wall mount

Drill 2 holes on the wall with following dimensions.

ANT-12A

The product does not include Surge Arrester ,

The Surge Arrester ( model : LP-300) is by optional.

ANT-12A

Pay attention to the installation location

The antenna radiation would be

interfered if the metal pole and

antenna overlap too much.

Caution:

Pay attention to spacing

The antenna installation distance must

be greater than 50cm, otherwise it will

cause signal interference.
