Cerwin-Vega CVHD Series Manuale utente
home theater 5.1 surround
CVHD
THEATER LIKE
SURROUND SOUND
The CVHD Series for high definition audio
for home theater is true to the earth-
shaking legacy of Cerwin-Vega! It plays
loud, delivers great bass, and brings
home theater to an entirely new level.
Finally you’ll hear what you’ve been
missing — from the delicate overtones of
a stringed instrument to increased vocal
intelligibility of movie dialog. And when
the action begins, you’ll feel it like never
before. The CVHD Series is just what
you’ve always wanted from the company
that defined bass!
CRANK IT UP!
CRANK IT UP!
These loudspeakers can play loud...
and deliver seismic bass
• Satellites incorporate a 1-inch [2.54 cm] soft
dome tweeter and six 3-inch [7.62 cm]
composite cone woofers for rich accurate sound
• Neodymium magnets in woofers and tweeters
deliver exceptional reproduction of music and
movie sound
• Highly damped polymer enclosure with
proprietary high frequency waveguide
for improved acoustics and increased vocal
intelligibility
• Satellites employ treated silver-mylar tweeters
for improved definition and acoustic clarity
• Thermal overload protection for playback at
increased volume
• Elegant, high-tech design blends well with
flat screen displays

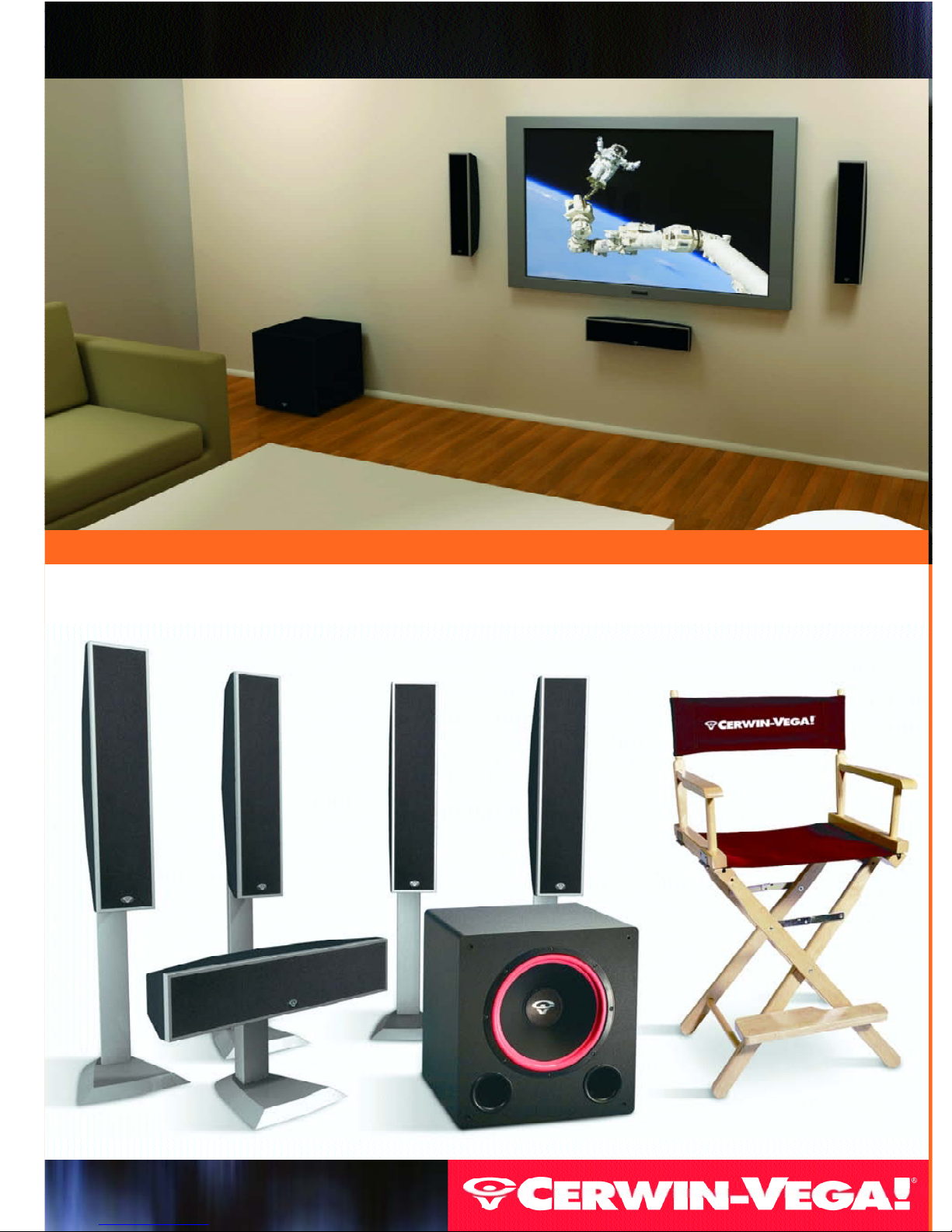

home theater 5.1 surround with a punch
CVHD HOME
T H E A TER SYST E M
Benefits:
• Linear Dispersion Speaker Te chnology™
(LDST) will fill the entire listening
e n v i r onment with rich, high defi n i t i o n
a u d i o
• 12 - i n ch[30.48 cm], 250 watt powered
s u b wo o fer for room shaking bass
p e r fo r m a n c e
• High power handling capability enabling
the system to efficiently play really loud!
• Elegant design for any env i r onment -
floor stands, as well as wall and ceiling
mounting, Omni-mounts also ava ila b l e
• Sate l l i tes are magnetically shielded
for safe use near any TV

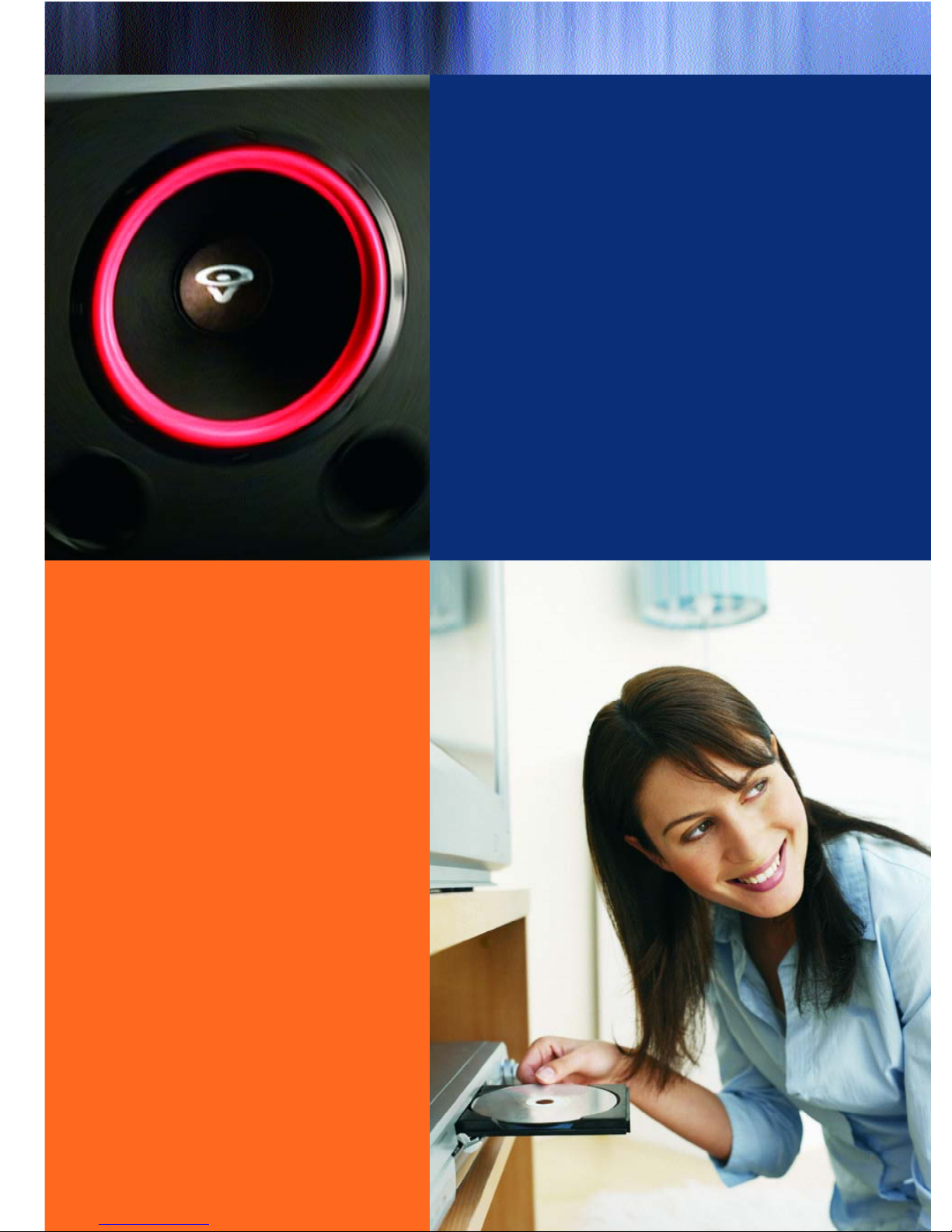

FEEL THE BASS
FEEL THE BASS
L o w end response will Shake the ro o m !
• High excursion powered sub-woofer for bass
response you can feel
• 250 watts of continuous power dedicated to
subwoofer, reserving receiver/external
amplifier power exclusively for satellites
• Tuned bass-reflex enclosure for maximized output
• Low diffraction baffle design for reduced distortion
• LFE (low frequency effects) input ensures all low
frequency information from DVDs is reproduced
• Continuously variable crossover optimizes
low frequency performance for increased clarity

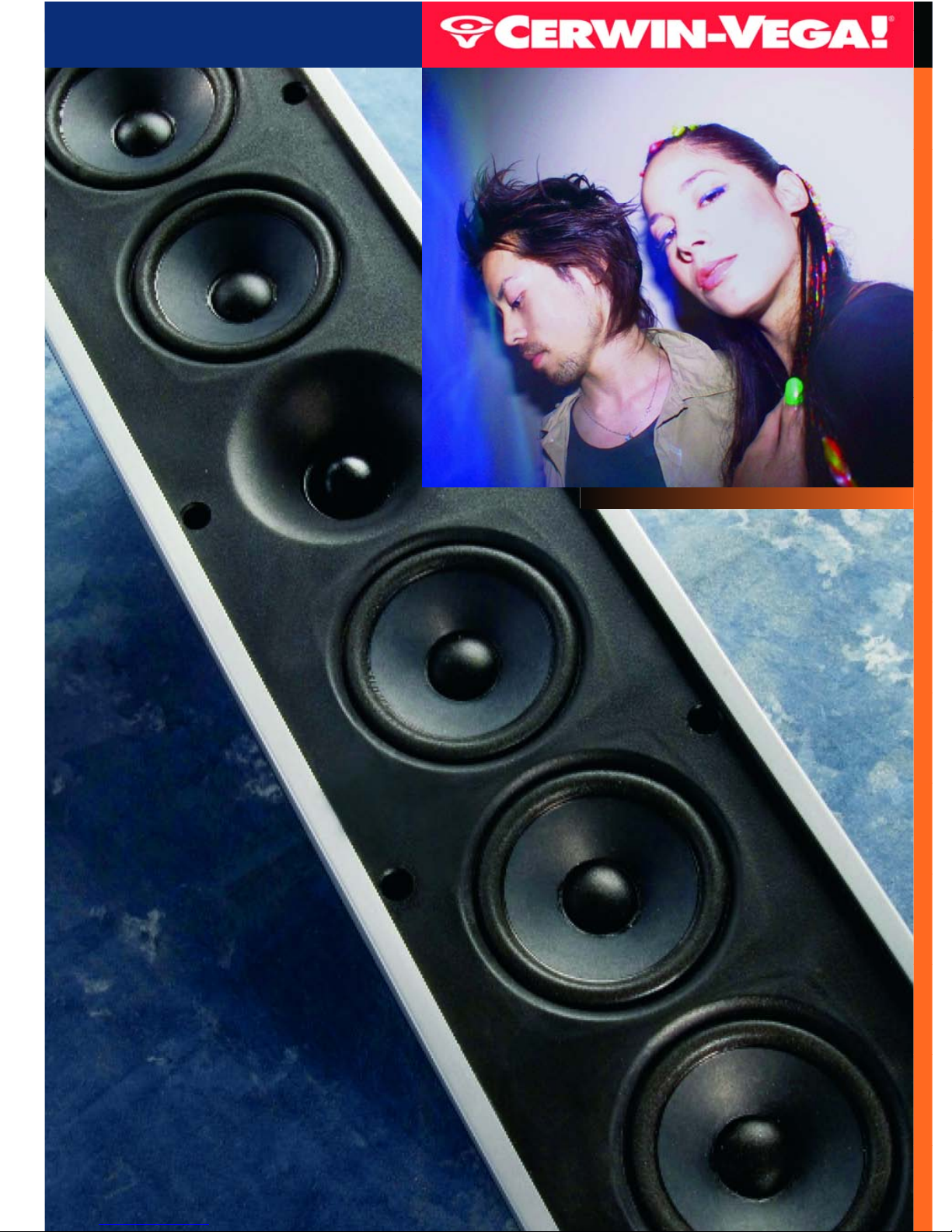

CVHD Center Channel Speaker
• Magnetically shielded design enables speaker to be placed
close to video monitor without distorting picture
• Features a 1-inch [2.54 cm] soft dome tweeter and six 3-inch
[7.62 cm] composite cone woofers for rich, articulate sound
reproduction
• Low diffraction baffle cabinet design for increased
clarity and intelligibility of dialog
• Neodymium magnets in woofers and tweeters provide
crystal clear highs and natural sound quality
•Thermal overload protection for playback at increased volume
CVHD Center Channel Speaker
• Magnetically shielded design enables speaker to be placed
close to video monitor without distorting picture
• Features a 1-inch [2.54 cm] soft dome tweeter and six 3-inch
[7.62 cm] composite cone woofers for rich, articulate sound
reproduction
• Low diffraction baffle cabinet design for increased
clarity and intelligibility of dialog
• Neodymium magnets in woofers and tweeters provide
crystal clear highs and natural sound quality
•Thermal overload protection for playback at increased volume
www.cerwin-vega.com
USA
3000 SW 42 Street, Hollywood Florida 33312
Phone: 1-954-316-1501 • Fax:1-954-316-1590
E-mail: Inf[email protected]
Europe
382 Avenue de la Couronne, 1050 Brussels, Belgium
Phone: +32 2 645 05 00 • Fax: +32 2 645 05 05
E-mail: int[email protected]
Cerwin-Vega products are designed and engineered in Chatsworth California
Frequency Response:
Power:
Impedance:
Sensitivity:
Filters:
Drivers:
Video Shielding:
Floor Stands:
Dimension:
Wall Bracket:
Subwoofer:
Frequency Response:
Amplifier:
Speaker:
Cabinet:
Dimension:
Weight (unpacked):
Other features:
System 28 Hz to 22 Khz
Satellite 150 Hz to 22 Khz
50 to 125 watts continuous
8 Ohm nominal
95 db
150 Hz high pass filter
One 1” [2.54cm] high definition soft dome tweeter and
six 3” [7.62 cm] cellulose composite cone woofers
Yes
Yes (optional) vertical stands sold in pairs provides 3
adjustable height positions, with wire management
(HxWxD) 22.5 x” 5” x 5”
57.15 x 12.7 x 12.7 cm
6.32 lbs [2.84 Kgs]
Yes Included - Optional Omni-mount brackets for
wall and ceiling mounting
12" [30.48 cm] powered
28 Hz to 150 Khz
250 Watts (110V and 230V versions available)
12” [30.48 cm] woofer
Bass reflex
(HxWxD) 17.75” x 16.75” x 16.5”
45.09 x 42.55 x 41.91 cm
48.5 Lbs, [22.05 Kgs]
AC and thermal protection
Speaker level and line level inputs
Auto-on sensing
S P E C I F I C A T I O N
CVHD Sate l l i t es with Linear Dispersion Speaker Te c h n o l o g y™ ( L D ST )
