Cerwin-Vega VMAXX Series Manuale utente

vmaxx

SUBWOOFER

VMAX65D2

VMAX8D2/VMAX8D4

VMAX10D2/VMAX10D4

VMAX12D2/VMAX12D4

MANUAL

We reserve the right to change the products and speciﬁcations at any time without notice.

Images may or may not include optional equipment.

Cerwin Vega Mobile Subwoofers

Congratulations for purchasing Cerwin Vega Mobile subwoofers

for your car audio system. You have chosen Cerwin Vega

Mobile because you deserve the best!

Cerwin Vega Mobile speakers are designed and engineered to

reproduce great sound quality for many years of listening enjoy-

ment in your vehicle! We highly recommend that your new

speakers be installed by an authorized Cerwin Vega Mobile

dealer. Your authorized dealer can professionally assemble /

disassemble the interior of your vehicle and set the proper

subwoofer placement for ideal sound quality.

If you decide to install the subwoofers by yourself, please

thoroughly read through this manual before getting started.

This manual will help familiarize yourself with these speakers

and guide you through the installation process and procedures.

Please contact your local authorized Cerwin Vega Mobile dealer

if you have any questions regarding the instructions in this manual.

If you require additional assistance, please contact

the Cerwin Vega Mobile Technical Support Department

during business hours at 213-261-4161

VMAX65D2 - 6.5 INCH SUBWOOFER

VMAX8D2 / VMAX8D4 - 8 INCH SUBWOOFER

VMAX10D2 / VMAX10D4 - 10 INCH SUBWOOFER

VMAX12D2 / VMAX12D4 - 12 INCH SUBWOOFER

Heavy Industrial Strength Aluminum Cast Frame

Black Design Patterned Treated Semi-Pressed Plped Cone

Elevated Motor Structure Cooling Design

Oversized Spider

Black Coated Voice Coil for Higher Thermal Capability

Oversized Polished Black Chrome Finished Terminals

Shorting Ring for lower Distortion

Polished Bumped Backplate

Klippel DA Optimized Motor and Suspension Symmetry

Dimensions

Total Diameter (A)

Mounting Diameter (B)

Screw Hole Dia. (C)

Mounting Depth (D)

Magnet Dia. (E)

Displacement

Unit

in. (mm)

cu.ft / 3/L

VMAX65D2 VMAX8D2/8D4 VMAX10D2/10D4 VMAX12D2/12D4

5.59” (142)

4.25” (108)

7.36” (187)

4.80” (122)

9.47” (240.5)

5.39” (137)

11.02” (280)

5.98” (152)

12.79” (325)

7.89” (200.5)

11.06” (281)

6.89” (175)

8.74” (222)

6.57” (167)

6.89” (175)

5.53” (140.5)

0.18” (4.5) 0.24” (6) 0.26” (6.5) 0.26” (6.5)

0.037 (1.04L) 0.058 (1.65L) 0.072 (2.05L) 0.094 (2.67L)

Parameter (unit)

SPL (dB)

Re (Ω)[series]

Qms

Qes

Qts

Fs (Hz)

Vas (L)

Cms (mm/N)

Mms (g)

Sd (m2)

BL (T*M)

Xmax (mm)

Pwr (W) NOM/MAX

VMAX65D2 VMAX8D2 VMAX8D4 VMAX10D2 VMAX10D4 VMAX12D2 VMAX12D4

2Ω/4Ω

0.40

0.44

51.3

4.7

58.7

5.07

83.5

200/400

12.5

2Ω/4Ω

500/1000

2Ω/4Ω

0.55

0.62

16.9

43.6

100.4

7.5

4.75

81.9

500/1000

2Ω/4Ω

800/1600

2Ω/4Ω

0.54

0.6

20.4

36.9

159.5

21.5

5.23

84.4

800/1600

2Ω/4Ω

1000/2000

2Ω/4Ω

0.44

0.48

32.9

272.3

44.2

4.49

86.9

1000/2000

0.16

0.014

81.1

5.86

0.65

0.58

41.5

8.1

0.14

103.2

0.02

13.8

0.13

0.02

83.3

6.73

0.61

0.56

32.6

24.6

0.13

178.5

0.036

14.7

0.12

0.036

84.8

5.09

0.5

0.46

29.1

40.6

0.1

290.9

0.053 0.053

19.5

0.12

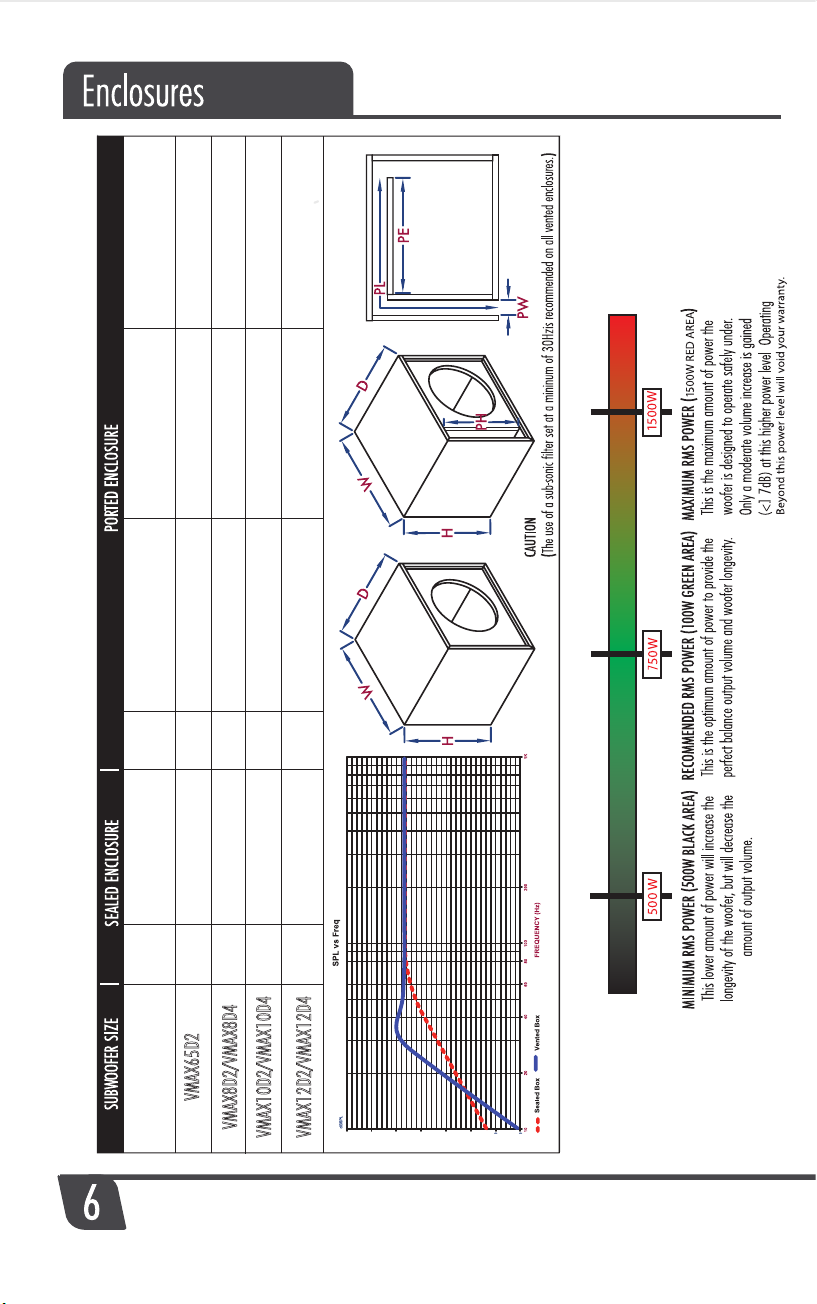

RECOMMENDED ENCLOSURES

(All measurements are

calculated Using 3/4” MDF)

Volume

(net int.)

External Dimensions

Width x Height x Depth Volume

(net int.)

Enclosure External Dimensions

Width x Height x Depth

Slot Port Internal Dimensions

Port Width x Port Height x Port Length

Port Extension Length

“PE”

VMAX65D2

VMAX8D2/VMAX8D4

VMAX10D2/VMAX10D4

VMAX12D2/VMAX12D4

0.4 ft3

0.6 ft3

1.0 ft3

1.25 ft3

8” x 9.5” x 15”

203.2mm x 241.3mm x 381mm

9.5” x 9.5” x 17.5”

241.3mm x 241.3mm x 444.5mm

11” x 14.5” x 15.5”

279.4mm x 368.3mm x 393.7mm

13” x 14.5” x 16”

330.2mm x 368.3mm x 406.4mm

0.75 ft3

1.0 ft3

1.25 ft3

1.75 ft3

10” x 12” x 16”

254mm x 304.8mm x 406.4mm

11.25” x 13” x 17”

285.8mm x 330.2mm x 431.8mm

12” x 14.25” x 17.5”

304.8mm x 361.95mm x 444.5mm

14” x 16” x 18.25”

355.6mm x 406.4mm x 463.55mm

0.75” x 8” x 17”

19.05mm x 203.2mm x 431.8mm

0.75” x 10” x 24”

19.05mm x 254mm x 609.6mm

1.25” x 12” x 21”

31.75mm x 304m x 533.4mm

1.5” x 14” x 21”

38.1mm x 355.6mm x 533.4mm

8”

203.2mm

10”

254mm

10.5”

266.7mm

12.5”

317.5mm

We reserve the right to change the products and speciﬁcations at any time without notice.

Images may or may not include optional equipment.

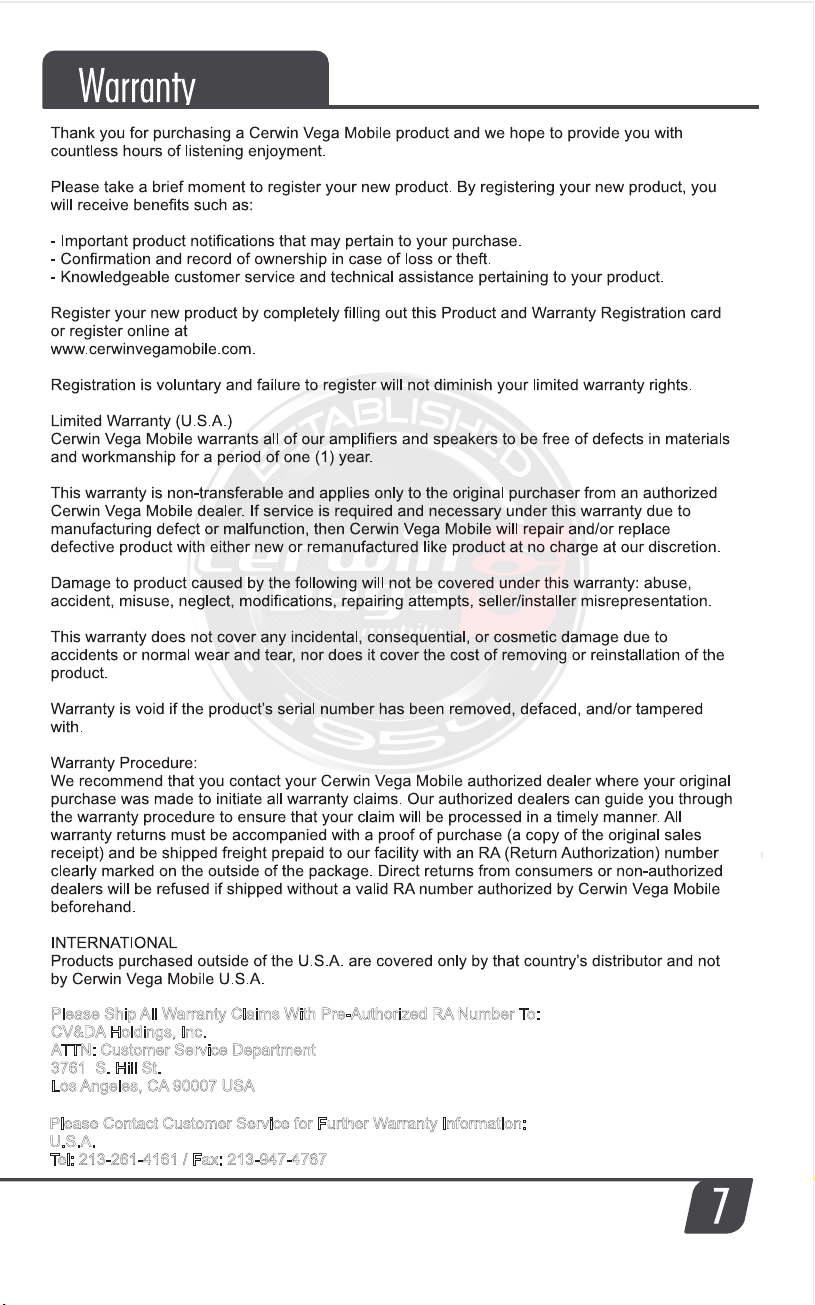

Please Ship All Warranty Claims With Pre-Authorized RA Number To:

CV&DA Holdings, Inc.

ATTN: Customer Service Department

3761 S. Hill St.

Los Angeles, CA 90007 USA

Please Contact Customer Service for Further Warranty Information:

U.S.A.

Tel: 213-261-4161 / Fax: 213-947-4767

3761 South Hill Street

Los Angeles 90007, USA

P 213-261-4161 / F 213-947-4767

(a division of CV & DA Holdings, Inc.)
