CGuard 285 Manuale utente

cGuard 285

User guide

cGuard 285 –User guide

Contents

1. Copyrights and guarantees ...................................................................................................2

2. Introduction .........................................................................................................................3

3. Specifications ......................................................................................................................4

4. Set contains..........................................................................................................................6

5. Components of cGuard 285..................................................................................................6

6. Interface connector description ............................................................................................7

7. First-time setting..................................................................................................................9

7.1 Channel setting ..............................................................................................................9

7.2 Remote configuration...................................................................................................12

8. Connecting the automobile cGuard tracker.........................................................................13

8.1. Inserting a SIM-card ...................................................................................................13

8.2. GPS/GLONASS-antenna installing .............................................................................14

8.3. GSM-antenna installing...............................................................................................14

8.4. Power connection........................................................................................................14

8.5. Connecting the analog inputs of tracker.......................................................................16

8.6. Connecting the frequency/pulse inputs of tracker ........................................................18

8.7. Connecting the power output of the tracker .................................................................19

8.8. Connecting devices to RS-485 interface ......................................................................19

8.9. Connecting CANLog to RS-232 interface ...................................................................20

9. Device status indication .....................................................................................................23

SAT indicator ....................................................................................................................23

DAT indicator....................................................................................................................23

10. Contacts.........................................................................................................................24

cGuard 285 –User guide

1. Copyrights and guarantees

This guide contains descriptions of the device and its functionality, and methods of its

connection and installing

This guide is designed for specialists acquainted with repair and installation work on automobile

transport and having professional knowledge about electronic and electric equipment of various

vehicles. All the data about functions and specifications and other information in this guide is

mentioned to be actual for the publication date. cGuard LLC company keeps its right to make

changes in this information and specifications without additional notifying.

cGuard LLC company isn’t responsible to any harm or problems, caused by using functions or

consumables other from original cGuard products or approved by cGuard.

cGuard LLC company isn’t responsible for any harm, problems, losses or expenses caused by

inappropriate using of a product, accidents, unwarranted modification, repair or changes in

product, or impossibility to strictly follow the working and service instructions worked by

cGuard. Important!

Officially released by cGuard LLC and recommended to install on trackers are

firmware versions named like this:

fw-[fnxx-]a.b.c-hash

fw-[fnxx-]a.b.c-[oem-]hash

here:

fw –short for “firmware”;

fnxx –here n –digit corresponding to processor type in tracker;

a.b.c –firmware version;

oem –sign of a company the special firmware designed for;

hash –hash-code.

Data in square brackets is optional.

Ex.: fw-f2xx-3.0.9- 4fc22f89439a

Firmwares like:

fw-[fnxx-]a.b.c[rck]-hash - release candidate

fw-[fnxx-]a.b.c-dev[-description]-hash - test version

fw-[fnxx-]a.b.c-hash+ - developer version, provided to

users only in special cases

can be installed to tracker under user’s responsibility, and cGuard LLC isn’t

responsible for any negative consequences caused by using these firmwares.

Version of a firmware installed on tracker is shown in configurator (“Tracker” tab) (see «first-

time setting»)

cGuard 285 –User guide

2. Introduction

This guide represents the user instructions for the user terminal of transport monitoring cGuard

285 ((“Tracker” as further in text), designed for monitoring vehicles by executing following

functions:

Real-time locating current vehicle’s position;

Sending data to server for tracking the vehicle in monitoring system;

Vehicle’s mileage count;

Detecting of passing the checkpoints of the route by vehicle;

Determination of current speed and computing the average speed in specified time

interval;

Counting the time of a vehicle’s standing period;

Measuring the voltage of the vehicle mains;

Control over vehicle’s parameters by measuring analog and discrete signals from

state vehicle’s sensors (ex. fuel level or engine’s temperature sensors, door-

operated switches etc.);

Control over vehicle’s or load’s parameters by installing addictive sensors of

other manufacturers;

Ability to detect driver’s actions performed in order to prevent the control process

by remembering the moments of voltage disappearing and recovery and

positioning signals;

Detecting the driving’s quality.

cGuard 285 –User guide

3. Specifications

Global positioning system:

Satellite system.............................................................................................. GLONASS/GPS

Cold start, s.......................................................................................................................... 35

Hot start, s............................................................................................................................ 10

Channels.............................................................................................................................. 99

Navigational receiver sensitivity, dBm..............................................................................-165

Position accuracy, m.............................................................................................................. 3

GSM:

GPRS multi-slot class ....................................................................................................... 10/8

GPRS mobile station class .....................................................................................................B

Frequency range, MHz...............................................................................850/900/1800/1900

SIM-cards quantity, pcs. ........................................................................................................ 2

Energy consumption:

Power voltage, V............................................................................................................ 8,5-40

Maximum power voltage, V................................................................................................. 44

Consumable amperage (average), not more, mA ...............................................................1501

Maximum (peak) consumable amperage, mА.................................................................... 250

Maximum consumable amperage while charging internal battery, mA............................... 350

Internal battery.................................................................................................................Li-po

Nominal voltage of internal battery, V .............................................................................3.7 В

1All device parameters measurements, except special case, were made by nominal power voltage 12,0 ± 0,5 V.

cGuard 285 –User guide

Interfaces:

Analog inputs (0..30 V), pcs....................................................................................................3-42

Frequency/pulse (0..30 V), pcs............................................................................................... 4

Power output with open drain (30 V, 1 A), pcs........................................................................3-42

RS-485 (TIA/EIA-485-A), pcs............................................................................................... 1

(RS-232, pcs. ......................................................................................................................... 1-23

1-Wire, pcs. ........................................................................................................................... 1

Audio output “Autoinformer”', pcs. ....................................................................................... 1

Microphone input, pcs. .......................................................................................................... 1

CAN, pcs............................................................................................................................... 1

microSD, pcs. ....................................................................................................................... 1

USB 2.0, pcs. ........................................................................................................................ 1

General:

PC-connection interface..............................................................................................USB 2.0

Internal nonvolatile memory, MB/route points.....................................................16 / 200 тыс.

Internal accelerometer.......................................................................................................Есть

Temperature:

Operating temperature range, ˚С................................................................................- 35..+50

Storage temperature range, ˚С....................................................................................- 40..+50

Physical parameters:

Dimensions, mm..................................................................................................100x22x74.5

Case material ......................................................................................................... Aluminium

2Depends on hardware version (8.0 or 8.1), analog inputs and power outputs quantity may vary (3 or 4). Pinout is shown on one

of the device’s case surfaces.

3Depends on hardware version (8.0 or 8.1), RS-232 interfaces quantity may vary. 8.0 version –2, 8.1 version –1.

cGuard 285 –User guide

4. Set contains

1. cGuard 285 tracker..................................................................................................1 pcs.

2. GPS antenna ...........................................................................................................1 pcs.

3. GSM antenna ..........................................................................................................1 pcs.

4. Micro-Fit connector 12x2........................................................................................1 pcs.

5. Wires set.................................................................................................................1 pcs.

6. Device passport.......................................................................................................1 pcs.

5. Components of cGuard 285

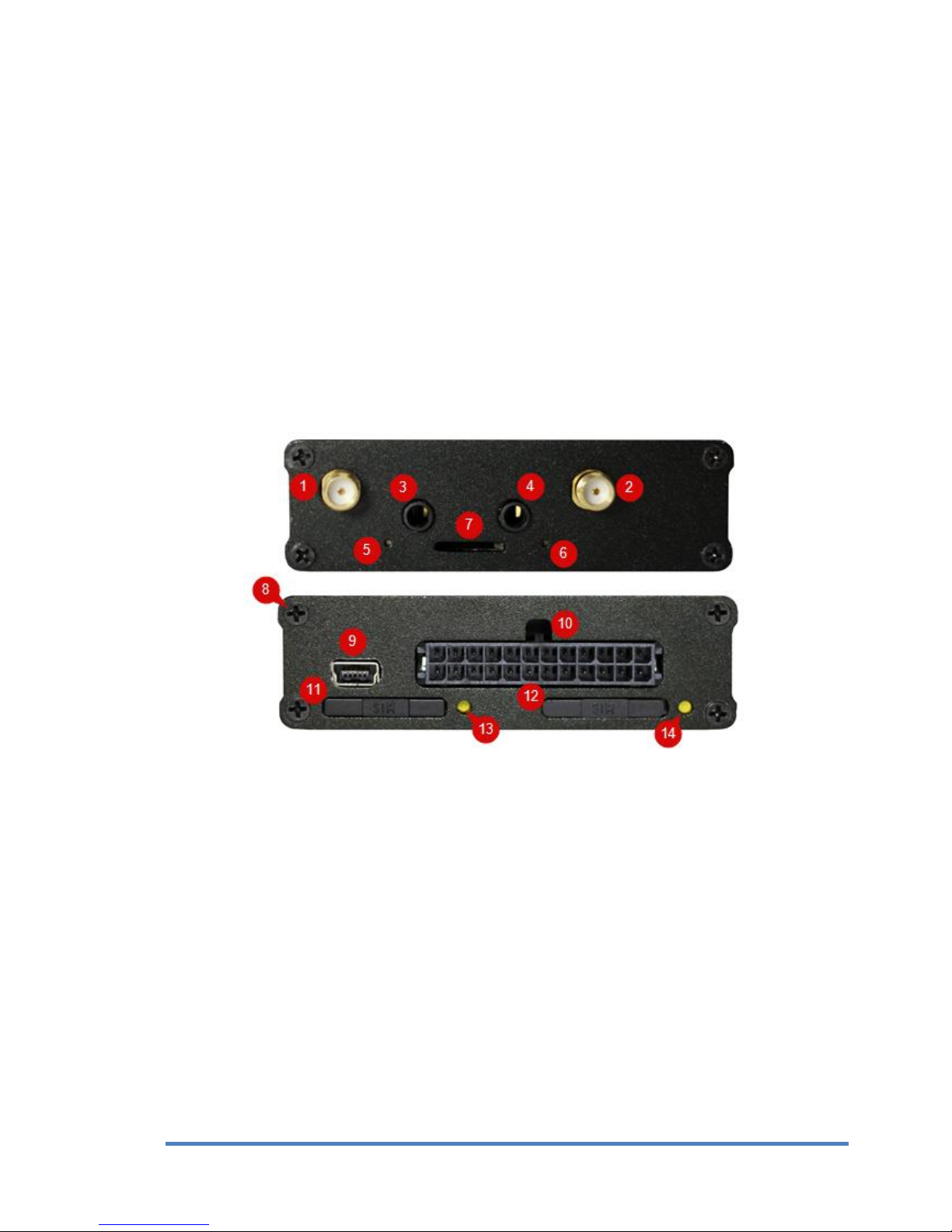

Pic.1.Components of a tracker

1. GSM antenna connector

2. GPS/GLONASS antenna connector

3. MIC input

4. SPKR input

5. Positioning status LED - STAT

6. GSM status LED –DAT

7. Memory card slot

8. Screws (8 pcs)

9. miniUSB

10. MicroFit connector 12x2

11. SIM-card slot (SIM2)

12. SIM-card slot (SIM1)

13. SIM2 removing button

14. SIM1 removing button

cGuard 285 –User guide

6. Interface connector description

Pic.2.Interface connector

Table 1.Pinout for external sensors installation for hardware version 8.0

Contact number

Input purpose

Analog/Discrete input (0-30 V) 1

Analog/Discrete input (0-30 V) 2

Analog/Discrete input (0-30 V) 3

Frequency/pulse input 1

Frequency/pulse input 3

Frequency/pulse input 2

Frequency/pulse input 4

Power output with open drain 1

Ground

Power output with open drain 3

1-Wire (DATA input)

Power output with open drain 2

RS-232 (TX) 2

Autoinformer output “+”

RS-232 (RX) 2

Autoinformer output “-”

RS-232 (RX) 1

RS-232 (TX) 1

RS-485 (Вinput)

CAN (LO input)

RS-485 (Аinput)

CAN (HI input)

Main power minus

Main power plus

cGuard 285 –User guide

Table 2. Pinout for external sensors installation for hardware version 8.1

Contact number

Input purpose

Analog/Discrete input (0-30 V) 1

Analog/Discrete input (0-30 V) 2

Analog/Discrete input (0-30 V) 4

Analog/Discrete input (0-30 V) 3

Frequency/pulse input 1

Frequency/pulse input 2

Frequency/pulse input 4

Frequency/pulse input 3

Power output with open drain 1

Power output with open drain 2

Power output with open drain 4

Power output with open drain 3

Ground

Autoinformer output “+”

1-Wire (DATA input)

Autoinformer output “-”

RS-232 (RX)

RS-232 (TX)

RS-485 (Вinput)

CAN (LO input)

RS-485 (Аinput)

CAN (HI input)

Main power minus

Main power plus

cGuard 285 –User guide

7. First-time setting

The cGuard trackers can be configured by using official application –cGuard Configurator. This

program allows to set tracker’s parameters for GPS/GLONASS monitoring and also to tune the

data exchange and analysis to work with data from tracker and external devices.

Actual version of this application can be downloaded from manufacturer’s website.

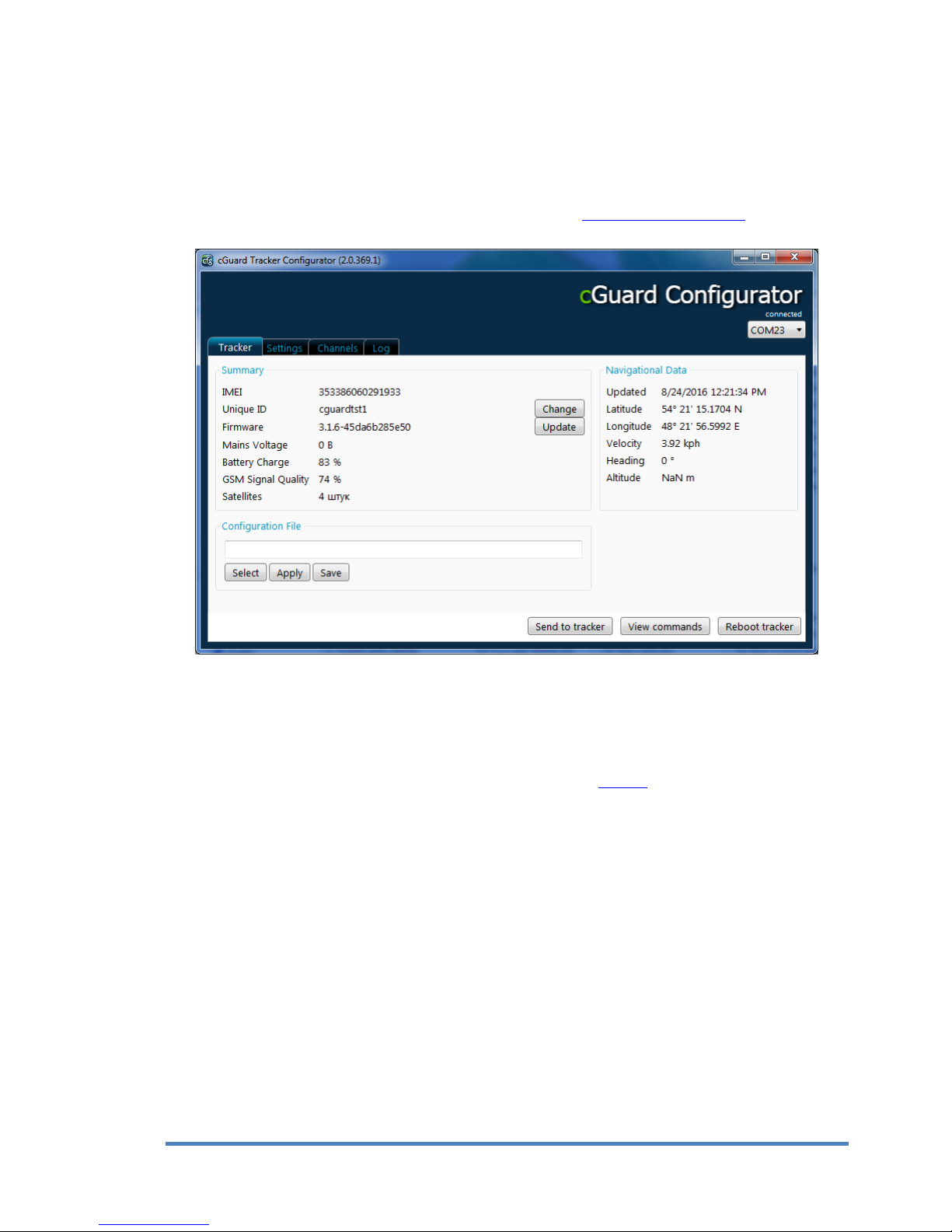

Pic.3. cGuard Configurator

“Tracker” tab contains general information about tracker, its location, IMEI, ID and current

firmware version. Also, there’s the ability to change the unique ID (for identifying the device in

monitoring system), upload the firmware, and to upload the configuration (saved to file before).

More about working with configurator can be seen in the remote configuration guide on the

website.

7.1 Channel setting

For tracker status monitoring and working with external devices it is necessary to set up the data

channels. It can be done in “Channels” tab in configurator.

Indice

Altri manuali cGuard GPS

cGuard

cGuard Litom Manuale utente

cGuard

cGuard Beacon Manuale utente

Manuali GPS popolari di altre marche

Raven

Raven Cruizer II Manuale

Hama

Hama 53118 Manuale utente

Garmin

Garmin SOUNDER 125 Manuale utente

Garmin

Garmin DEZL 580 Manuale utente

Jigabot

Jigabot EX Manuale utente

Pointer

Pointer Cellocator CelloTrack XT LTE Guida all'installazione

Queclink

Queclink GV55LITE Manuale utente

Voxson

Voxson Voxtrack GPS500 Manuale di istruzioni

Garmin

Garmin ECHOMAP PLUS Manuale utente

Starcom Systems

Starcom Systems Kylos Compact Manuale utente

Garmin

Garmin 15 H Series Manuale utente

Cobra

Cobra Marine MC 600Ci Manuale utente

Cellocator

Cellocator CelloTrack T Manuale utente

Enfora

Enfora Mini-MT GSM2228UG001 Manuale utente

Magellan

Magellan eXplorist 100 Manuale utente

LTE

LTE G50B Manuale utente

Garmin

Garmin DEZL OTR500 Manuale utente

SkyGolf

SkyGolf SkyCaddie SG1 Manuale utente

cGuard 285 Manuale utente

Manuali GPS popolari di altre marche
