CHAFFOTEAUX CORVEC BRITONY II.T Manuale utente

CORVECBRITONYII .T

instructions for use

Purpose provided room ventilation is not required since the air& the burner is taken.fiorn

outside the house. The,flue goesdirect1.ythrough the wall behind the heater.

The installation qfthe heater must becurried out by a competent person.

CONFORMS WITH BRITISH STANDARD BS 5386 PART I

AND EUROPEAN STANDARD EN.26

Fig. 1

Fig. 2

Fig. 3

Fig. 4

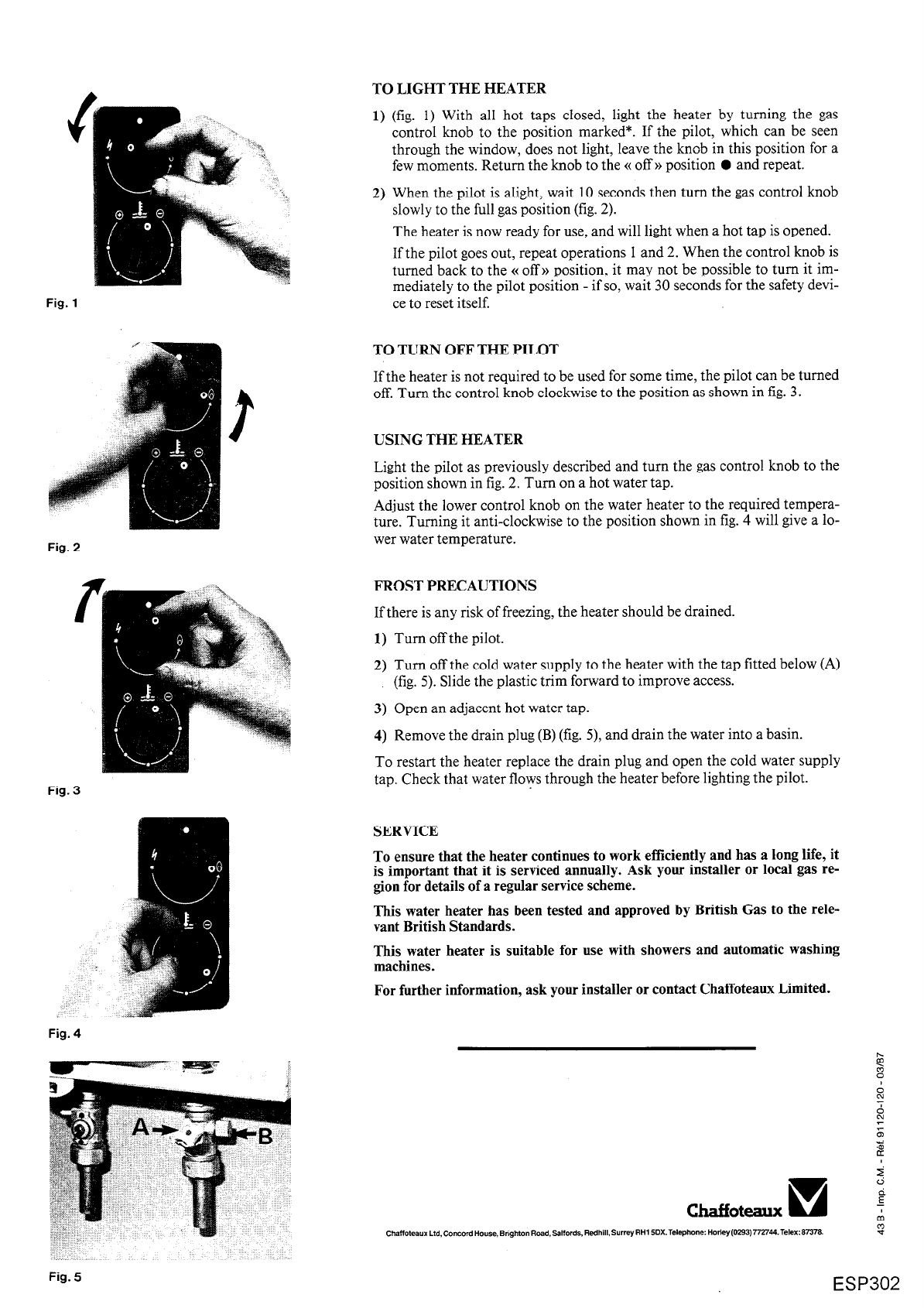

TO LIGHT THE HEATER

1)

a

(fig. 1) With all hot taps closed, light the heater by turning the gas

control knob to the position marked*. If the pilot, which can be seen

through the window, does not light, leave the knob in this position for a

few moments. Return the knob to the (<off x>position 0 and repeat.

When the pilot is alight, wait 10 secondsthen turn the gascontrol knob

slowly to the full gasposition (fig. 2).

The heater is now ready for use,and will light when a hot tap is opened.

If the pilot goesout, repeat operations 1and 2. When the control knob is

turned back to the <<off Mposition, it may not be possible to turn it im-

mediately to the pilot position - if so,wait 30 secondsfor the safety devi-

ceto resetitself.

TO TURN OFF THE PILOT

If the heater is not required to be usedfor sometime, the pilot can beturned

off. Turn the control knob clockwise to the position asshown in fig. 3.

USING THE HEATER

Light the pilot aspreviously described and turn the gascontrol knob to the

position shown in fig. 2. Turn on a hot water tap.

Adjust the lower control knob on the water heater to the required tempera-

ture. Turning it anti-clockwise to the position shown in fig. 4 will give a

lo-

wer water temperature.

FROST PRECAUTIONS

If there is any risk of freezing, the heater should be drained.

1)

2)

3)

4)

Turn off the pilot.

Turn off the cold water supply to the heater with the tap fitted below (A)

(fig. 5). Slide the plastic trim forward to improve access.

Open an adjacent hot water tap.

Remove the drain plug (B) (fig. 5) and drain the water into abasin.

To restart the heater replace the drain plug and open the cold water supply

tap. Check that water flows through the heater before lighting the pilot.

SERVICE

To ensure that the heater continues to work efficiently and has a long life, it

is important that it is serviced annually. Ask your installer or local gas re-

gion for details of a regular service scheme.

This water heater has been tested and approved by British Gas to the rele-

vant British Standards.

This water heater is suitable for use with showers and automatic washing

machines.

For further information, ask your installer or contact Chaffoteaux Limited.

Fig. 5

ESP302
