Chamberlain Clicker KLIK2U Manuale utente
Universal Wireless Keypad
MODELS KLIK2U, KLIK2U-P2, KLIK2C AND KLIK2C-P2
Introduction . . . . . . . . . . . . . 2
Programming . . . . . . . . . . . 3-7
Installation. . . . . . . . . . . . . . 8
Changing your 4-digit PIN . . . 8
Battery. . . . . . . . . . . . . . . . . 8
FAQs . . . . . . . . . . . . . . . . . . 9
Introduction
Thank you for your purchase of the Universal Wireless Keypad.
PLEASE DO NOT RETURN TO THE RETAIL STORE. If for any reason you have
questions or need help with troubleshooting please call: 1-800-442-1255.
Read instructions thoroughly BEFORE beginning. If using this product
with residential door openers, this product must be used only with
door openers manufactured after 1993 that utilize photoelectric
sensors. The photoelectric sensors are always located on or near the
bottom of the door track.
WARNING: This product can expose you to chemicals including
lead, which are known to the State of California to cause cancer or
birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
STOP
To prevent possible SERIOUS INJURY or DEATH from a moving gate or
garage door:
• Install keypad within sight of garage door, out of reach of small children at
a minimum height of 5 feet (1.5 m) above floors, landings, steps or any
other adjacent walking surface, and away from ALL moving parts of door.
• ALWAYS keep remote controls out of reach of children. NEVER permit
children to operate, or play with remote controls.
• Activate gate or door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed. NEVER
permit anyone to cross path of moving gate or door.
DETERMINE GARAGE DOOR OPENER TYPES:
Proceed with instructions according to your garage door opener type. NOTE: Your motor unit and/or remote control may look different.
TYPE 1
Chamberlain, Sears
Craftsman, LiftMaster,
Master Mechanic and Do It
garage door openers or
receivers with: 3 position
DIP switches.
Opener
Remote Control
TYPE 2
Genie, Linear and Moore-O-
Matic garage door openers or
receivers with: 2 position DIP
switches.
ON
ON
Opener
Remote Control

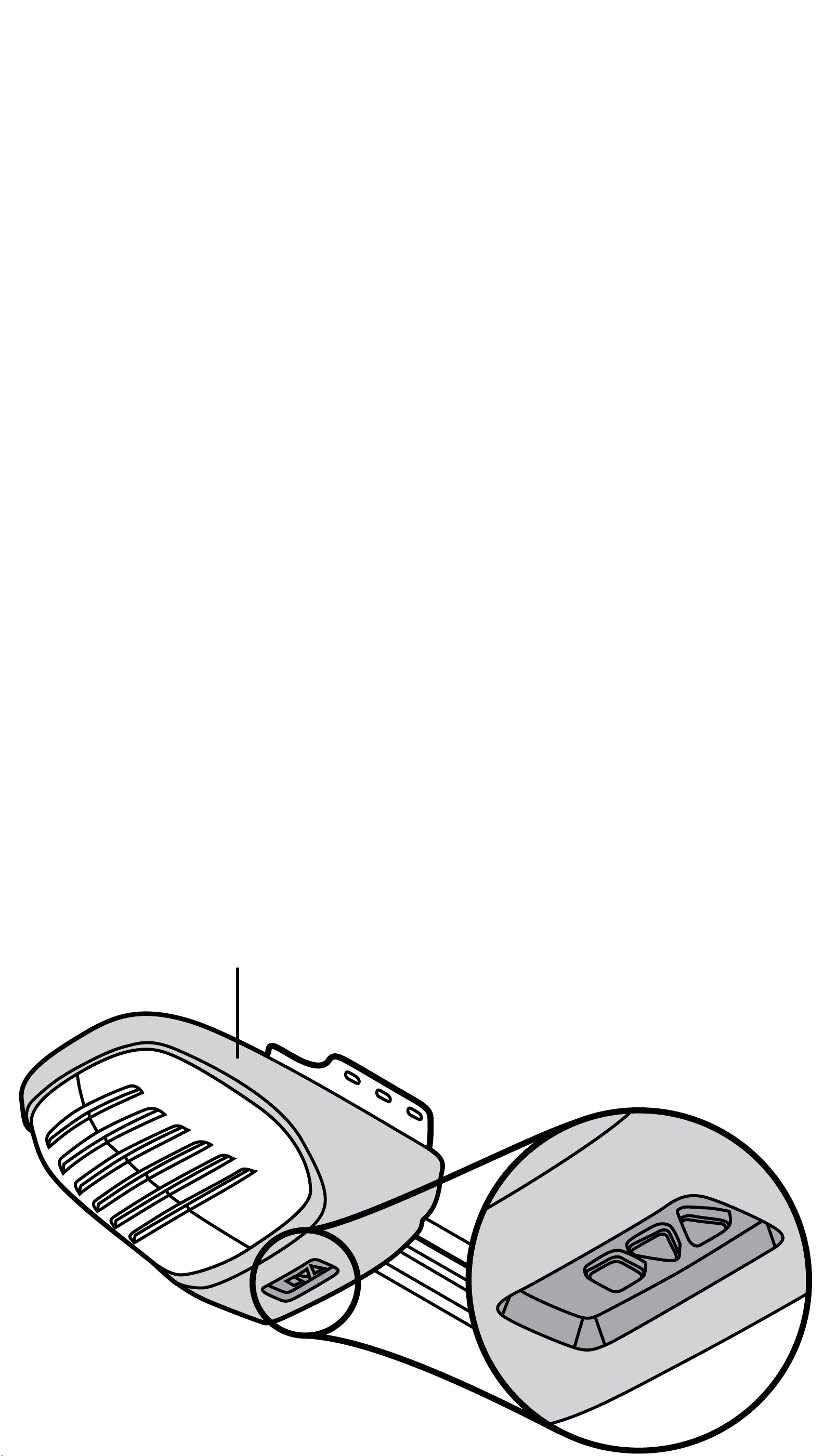

TYPE 3
Chamberlain, Sears
Craftsman, LiftMaster, Master
Mechanic and Do It garage
door openers or receivers
with: Yellow, white or grey
Smart/Learn buttons.
Opener
Remote Control
TYPE 4
Chamberlain, Sears
Craftsman, LiftMaster, Master
Mechanic, Do It, Genie
Intellicode, Overhead Door,
Stanley, Wayne Dalton or
Linear garage door openers
with: Smart/Learn button.
Opener
TYPE 5
Genie Intellicode 2 garage
door openers with: Program/
Set button.
BEFORE STARTING:
You MUST have a Genie
IntelliCode 2 remote control
with at least one button
already programmed to the
opener.
Opener

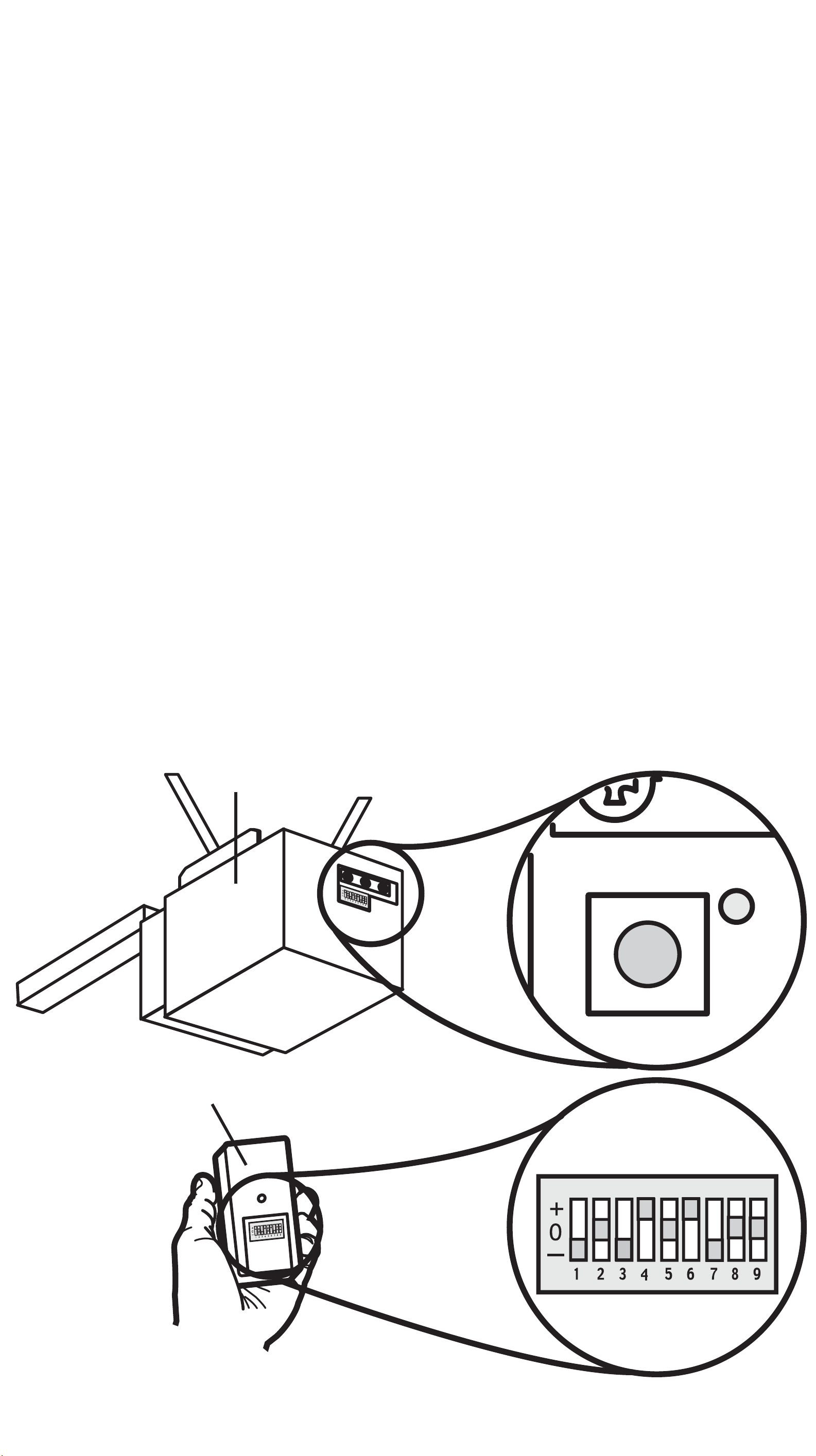

TYPE 1
Chamberlain, Sears Craftsman, LiftMaster,
Master Mechanic and Do It garage door
openers or receivers with: 3 position
DIP switches.
Select and write a 4-digit PIN:
__ __ __ __

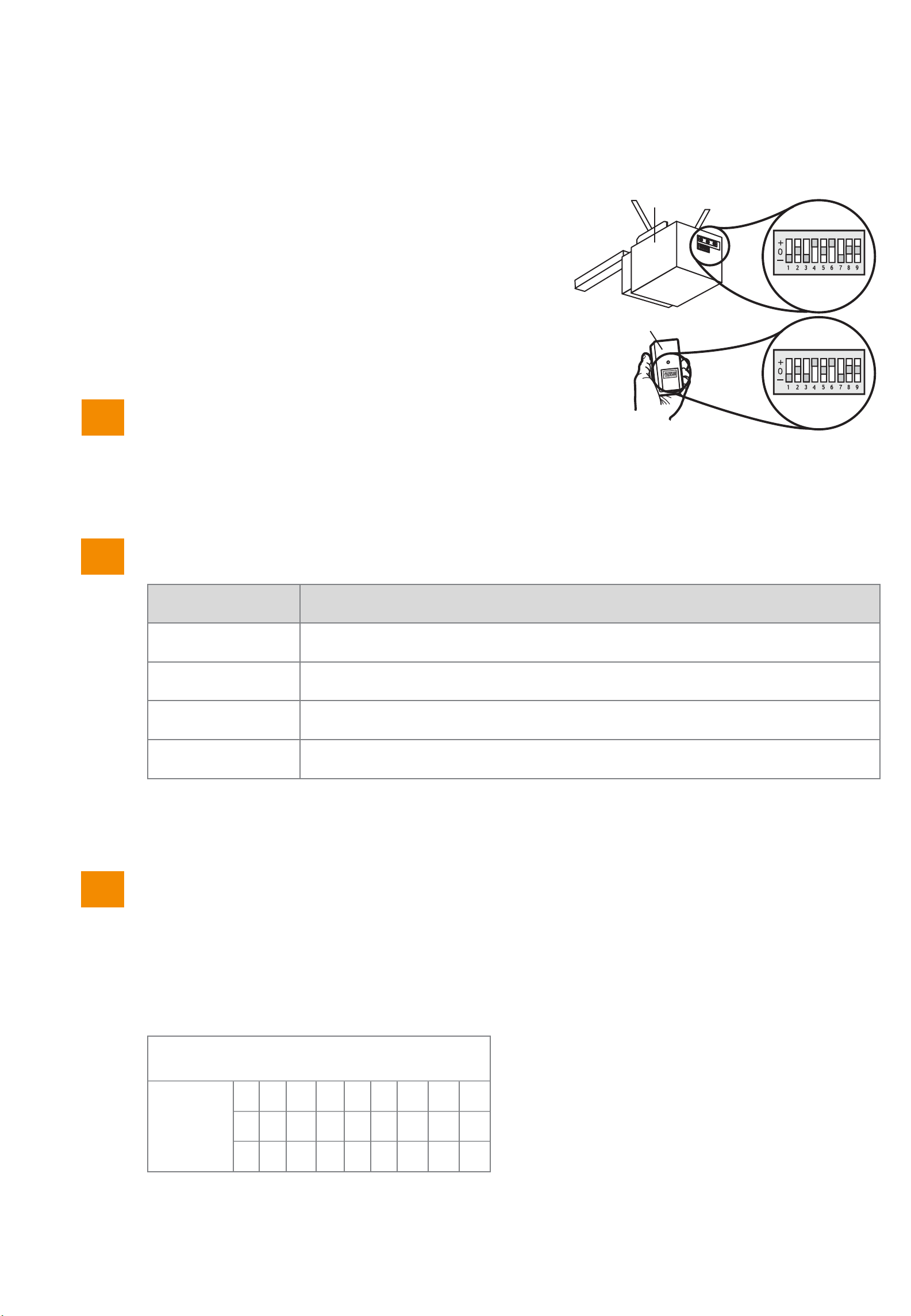

Determine your opener ID using the list below.
The first DIP switch must be set to the “-” position on your remote and
opener. Record your DIP switch sequence for remaining DIP switches. If
the DIP switch is in the “+” position place a 1, “0” position place a 2, “-”
position place a 3 in the corresponding box in the chart below:
NOTE: Leave any unused switch locations blank.
1
Programming
2
3
DIP Switch
Sequence 123 4567 8 9
+
0
-3
Opener
Remote Control
ID DIP Switch Type
11 9 DIP switch garage door openers (U.S.)
12 9 DIP switch garage door openers (Canada)
15 8 DIP switch garage door openers
19 7 DIP switch garage door openers
If opener does not function, repeat programming.

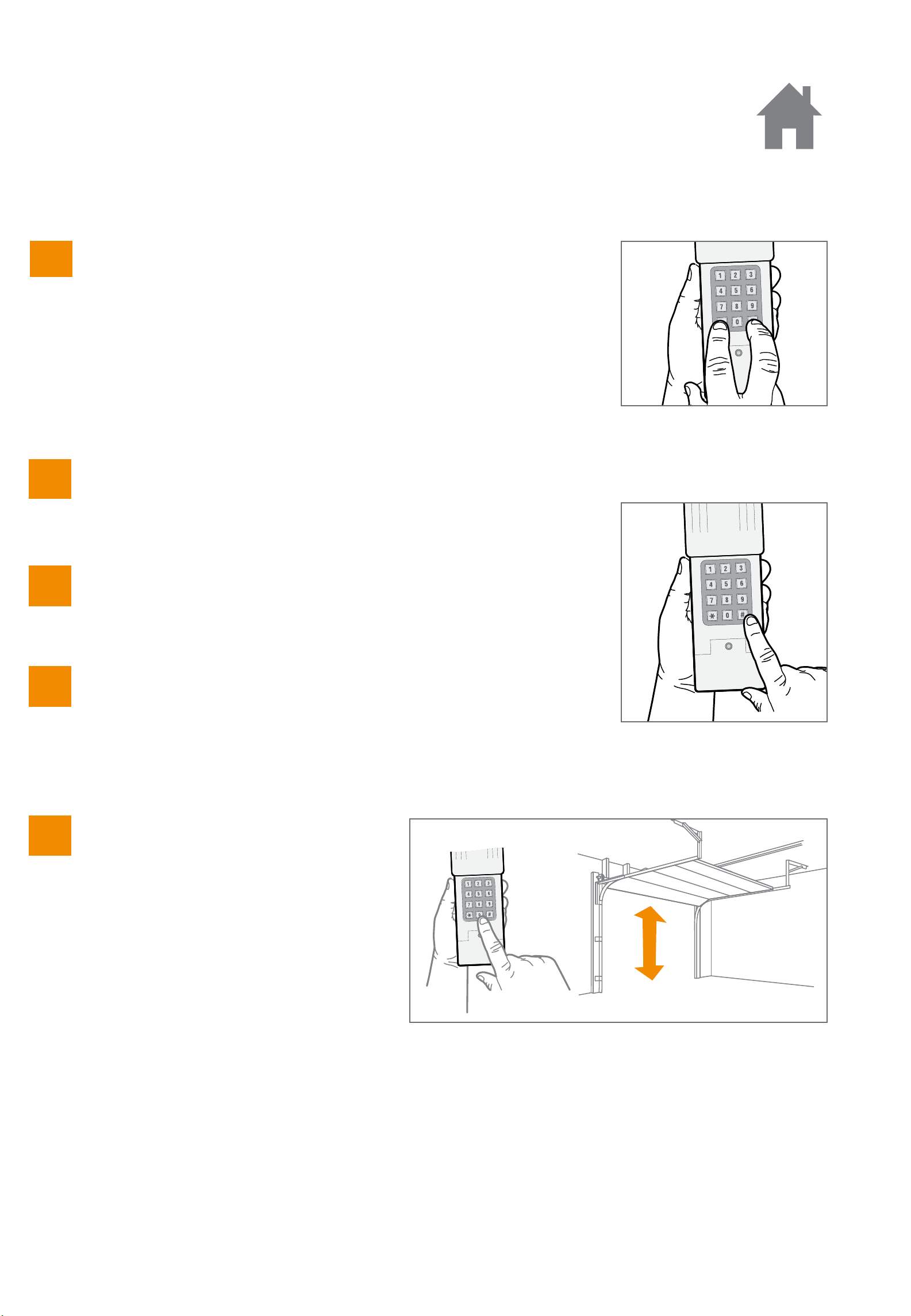

Enter PIN from step 1, press #.
Enter ID from step 2, press #.
Enter DIP switch sequence from step
3 and press #key.
To test and use, wait until
lights turn off, enter your PIN
and press the 0key.
5
6
7
8
Press and hold the *and #buttons until keypad
stops flashing.
4

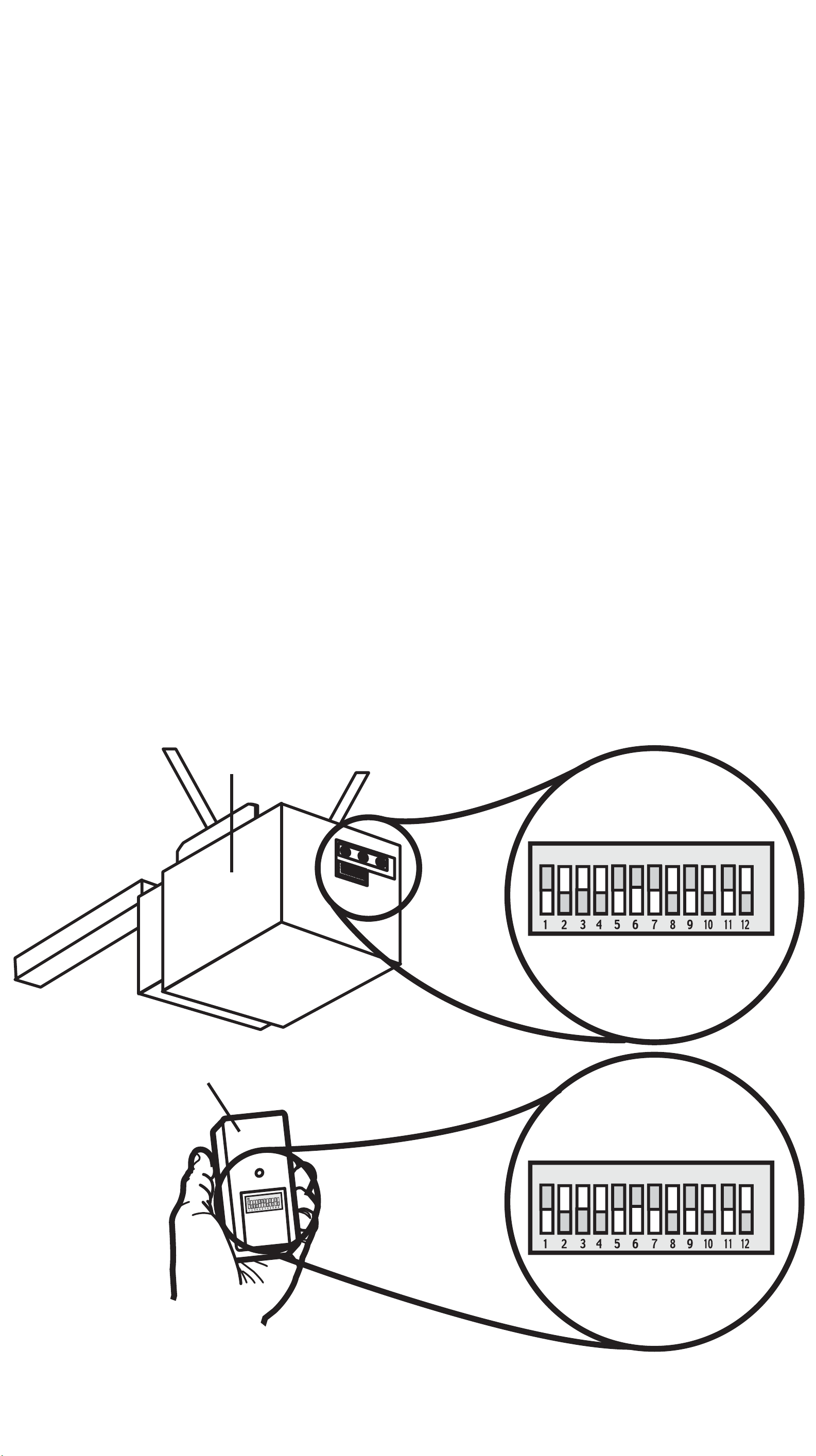

TYPE 2
Genie, Linear and Moore-O-Matic garage
door openers or receivers with: 2 position
DIP switches.
Select and write a 4-digit PIN:
__ __ __ __
Determine your opener ID using the list below.
Record your DIP switch sequence. If DIP switch is in the “on” or “up”
position place a 1, “off” or “down” position place a 2 in the corresponding
box in the chart below: NOTE: Leave any unused switch locations blank.
1
Programming
2
3
ON
ON
Opener
Remote Control
ID DIP Switch Type
13 12 DIP switch Genie garage door openers
14 10 DIP switch Linear garage door openers
16 10 DIP switch Stanley garage door openers
17 9 DIP switch Genie garage door openers
18 8 DIP switch Linear, Moore-O-Matic garage door
openers
DIP Switch
Sequence 123456789101112
ON
OFF
