Champion UL-100 Manuale utente

(2M) 9/07 Printed in U.S.A.

CH085

Low Temperature

Undercounter

Dishwashing Machine

UNDERCOUNTER

STANDARD FEATURES

• Pumped drain

• Door safety switch

• Low-water tank heat protection

• Built-in detergent, rinse-aid, and sanitizer

dispensing pumps

• Wash pump, 1-Hp motor

• Fill and dump

• Electric tank heater

• Upper & lower interchangeable

wash/rinse spray arms

• Top mounted controls

• Stainless steel top and side panels

• Single phase connection

• Stainless steel construction

• One year parts and labor warranty

SPECIFIER STATEMENT

Specied unit will be Champion model UL-100

undercounter low temperature dishwashing machine

with built-in detergent, rinse-aid, and sanitizer

dispensing pumps.

Features 141 second total cycle, 1 Hp pump motor, ll

and dump, pumped drain. Constructed of stainless steel.

1 year parts and labor warranty.

Champion Industries, Inc.

P. O. Box 4149, Winston-Salem, NC 27115

Tel: 336/661-1556 Fax: 336/661-1979

www.championindustries.com

Project

Item No.

Quantity

OPTIONS & ACCESSORIES

1-RDT Dish Table Durable, heavy-gauge

stainless steel dish table with sink,

stand-pipe drain, removable scrap screen

holder, drain-board, backsplash and lower

storage cabinet. Sprayhose is optional.

See 1-RDT catalog sheet)

Specify right hand or left hand sink.

Additional Dish Racks

17” Stand

Stainless Steel

6” Leg Stand

17” Storage Cabinet

Peg

Flat

NEW!

Low Temperature

Undercounter

Dishwashing Machine

UL100

UL100 UNDERCOUNTER

Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.

Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com

Dimensions shown in inches

Warning

Plumbing and

electrical connections should

be made by qualified personnel

who will observe all the

applicable plumbing, sanitary

and safety codes and the

National Electrical Code.

SPECIFICATIONS

Capacity

Racks per hr. (NSF rated) 21

Motor horsepower

Wash 1

Water consumption

U.S. Gal. per hr. (Max. use) 38.4

U.S. Gal. per rack 1.8

Temperatures °F/°C

Wash 140/60

Rinse 140/60

Heating

Tank heat, electric (kW) .75

Time cycle in seconds

Wash 90

Rinse 26

Drain/fill 25

Total cycle 141

Standard 20” x 20” rack complement

Dish 1

Open 1

Utilities

1 Electrical

115/60/1; 12-amp draw; to be fused at 15 amp. 4 ft. plug-in cord supplied.

2 Water connection

140°F/60°C minimum hot water connection; 6 ft. long, 1/2” I.D. flexible fill hose with

3/4” hose connector. Flow pressure: 25-95 psi.

3 Pumped Drain

5/8” I.D. flexible reinforced hose, 6 ft. long.

Max. drain flow 15 US gpm.

Max. drain height 3 ft.

Uncrated Crated

Height* 33-3/4” 39-1/2”

Width 24” 25”

Depth 25” 25-1/2”

Ship Wt. lbs/kg 153 173

* Front leveling feet provided.

1 2

33-3/4" [857]

24" [610]

40-1/2" [1029]

15-3/4"

[400]

Clearance

25" [635]

1 2

33-3/4" [857]

24" [610]

40-1/2" [1029]

15-3/4"

[400]

Clearance

25" [635]

1 2

33-3/4" [857]

24" [610]

40-1/2" [1029]

15-3/4"

[400]

Clearance

25" [635]

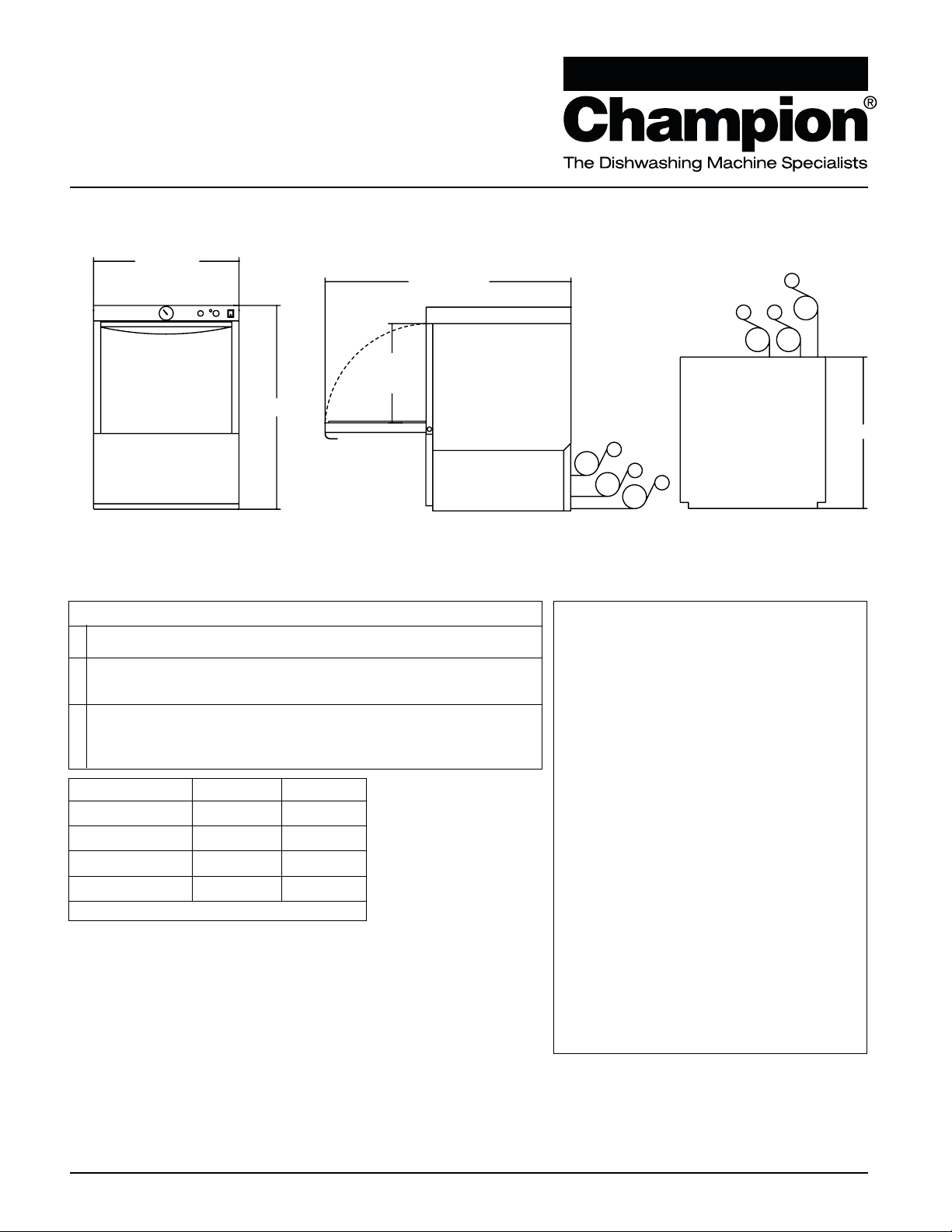

Front View Side View Plan View
