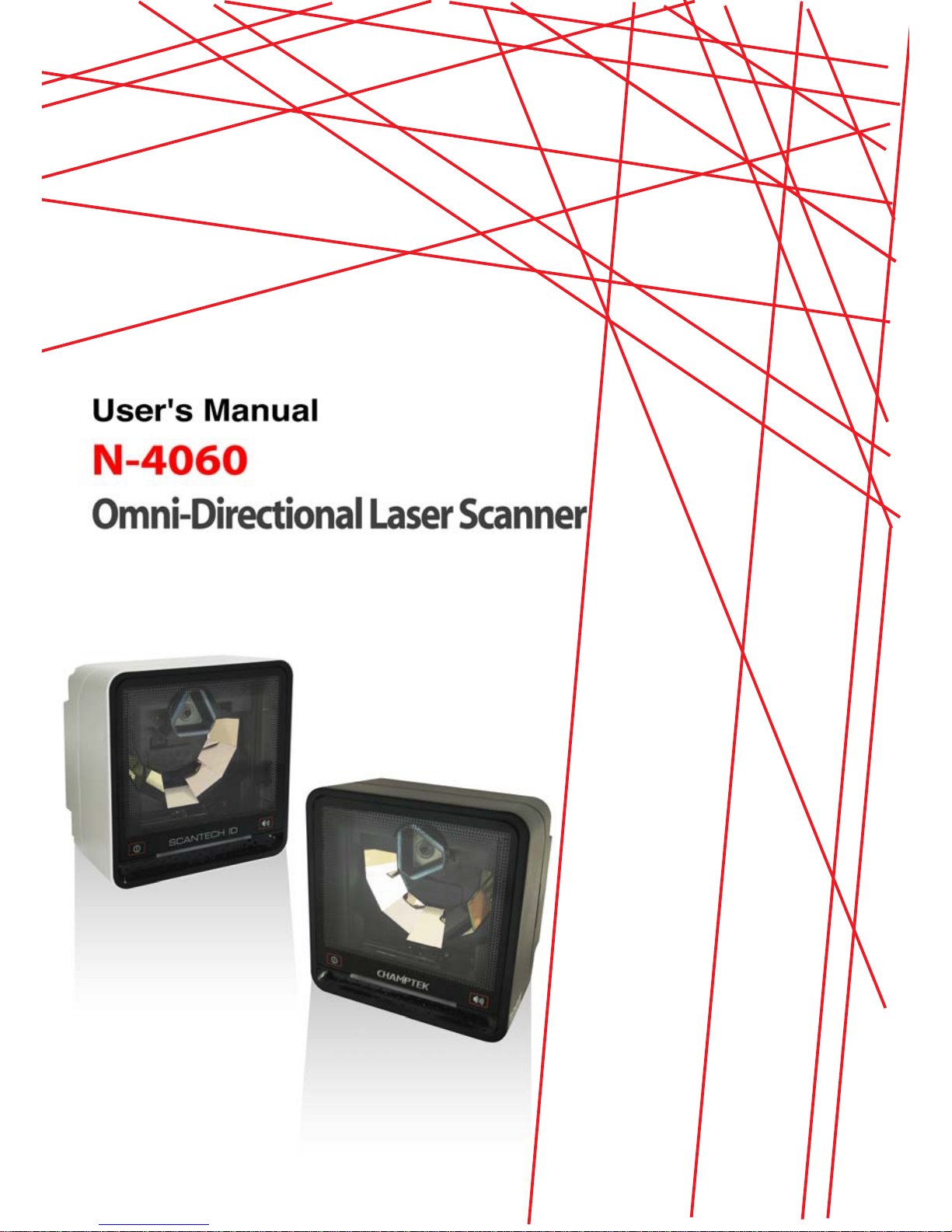

Champtek N-4060 Manuale utente

User’s Manual

whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic medium or

machine readable form without prior written consent of the manufacturer.

Important

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

EN55022, and with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the user’s manual, may cause harmful interference to radio

communications. Operation of the equipment in a residential area is likely to cause harmful interference in

which case the user will be required to correct the interference at his own expense. Any unauthorized

changes or modifications to this equipment could void the user’s authority to operate this equipment.

For CE-countries:

-This equipment is in conformity with the CE standards.

P/N: 0145-NOV0011 Dec 2011

Table of Contents

Preface ...................................................................................................i

Chapter 1 Product Overview ....................................................................... 1

1.1 Unpacking............................................................................ 2

1.2 Declaration of Conformity...................................................... 4

1.3 Scanning Barcodes............................................................... 6

1.4 Scanner Labelling ................................................................. 7

Chapter 2 Installation.................................................................................. 9

2.1 Connecting the Scanner ...................................................... 10

2.2 Interface Selection.............................................................. 12

2.3 Installing the Scanner on a Counter Surface .......................... 13

Appendices ............................................................................................... 16

AConnector Types and Pin Definitions..................................... 17

BTechnical Specifications ...................................................... 19

CInterface Type .................................................................... 21

DMaintaining the Scanner ...................................................... 22

EControlling the Scanner From the POS System...................... 23

FTroubleshooting.................................................................. 24

Preface

This N-4060 is the continuation of the excellent optical design experience and

with a new back-end design, to create an outstanding product performance and

reliability. This scanner features high inerrability, flexibility, scanning, and

decoding capability. It is ideally suited for supermarkets, pharmacies, petrol

stations, and other similar retail stores.

Based on the standard product reliability, the product design concept is fully

focused on user’s context and mode. It also reduces time and cost.

Our solutions provide instant and accurate scanning, making the checkout

process more efficient for you and more convenient for your customers.

zReduce checkout lines at busy times, including weekends and holidays.

zCreate additional points-of-sale anywhere in the store by enabling sales

associates to access POS systems in real-time and complete transactions

on the store floor.

zTrue presentation scanning, with Omni-directional and pass-by scan

capabilities offer a faster and more natural way of working.

The N-4060 reads all popular barcode symbologies, and supports a wide range

of scan pattern. In addition, this scanner also provides an aggressive first-pass

scanning, reducing the time that takes to scan products, increasing customer

satisfaction and employee efficiency. Another important feature of this scanner

is its programmable sleep mode which is designed to save power on this

scanner. If the scanner is not used within a programmable period of time, the

scanner switches off automatically. The scanner can be re-activated by pressing

the Sleep/Wake Button. The N-4060 is available in two color versions, both

supporting multiple interfaces for communication with any host system. The

multiple interface versions are: RS-232 + USB + P-USB + Keyboard

Wedge(Option).

This manual contains two chapters and six appendices. The first chapter

describes this scanner and its general features. The description for installation

can be found in the second chapter. Precisely follow the instructions for the

installation of the scanner. Default settings can be changed with the barcode

labels from the Configuration Guide that came with the scanner. Appendix A

gives the pin definition for the Data ports of the scanner. The pin definition may

be required when you want to make a new cable for communication with the

POS/computer. Technical specifications of this scanner can be found in

Appendix B. Refer to Appendix C for the interface cable types. For maintaining

the scanner and controlling the scanner from the POS system, they can be

found in Appendix D & E. Refer to Appendix F for troubleshooting if the scanner

is not working properly.

Chapter 1 Product Overview

Product Overview

1.1 UNPACKING

Remove the scanner and its accessories from the box and packing material.

Refer to the packing list to make sure you have received all the items ordered.

Visually inspect the scanner and accessories for any evidence of physical

damage. Refer to the figure on page 21 to locate the interface cable and make

sure that the scanner interface corresponds with the host system interface.

Immediately contact your supplier if anything appears to be damaged, or if the

supported interface does not correspond with the host system interface.

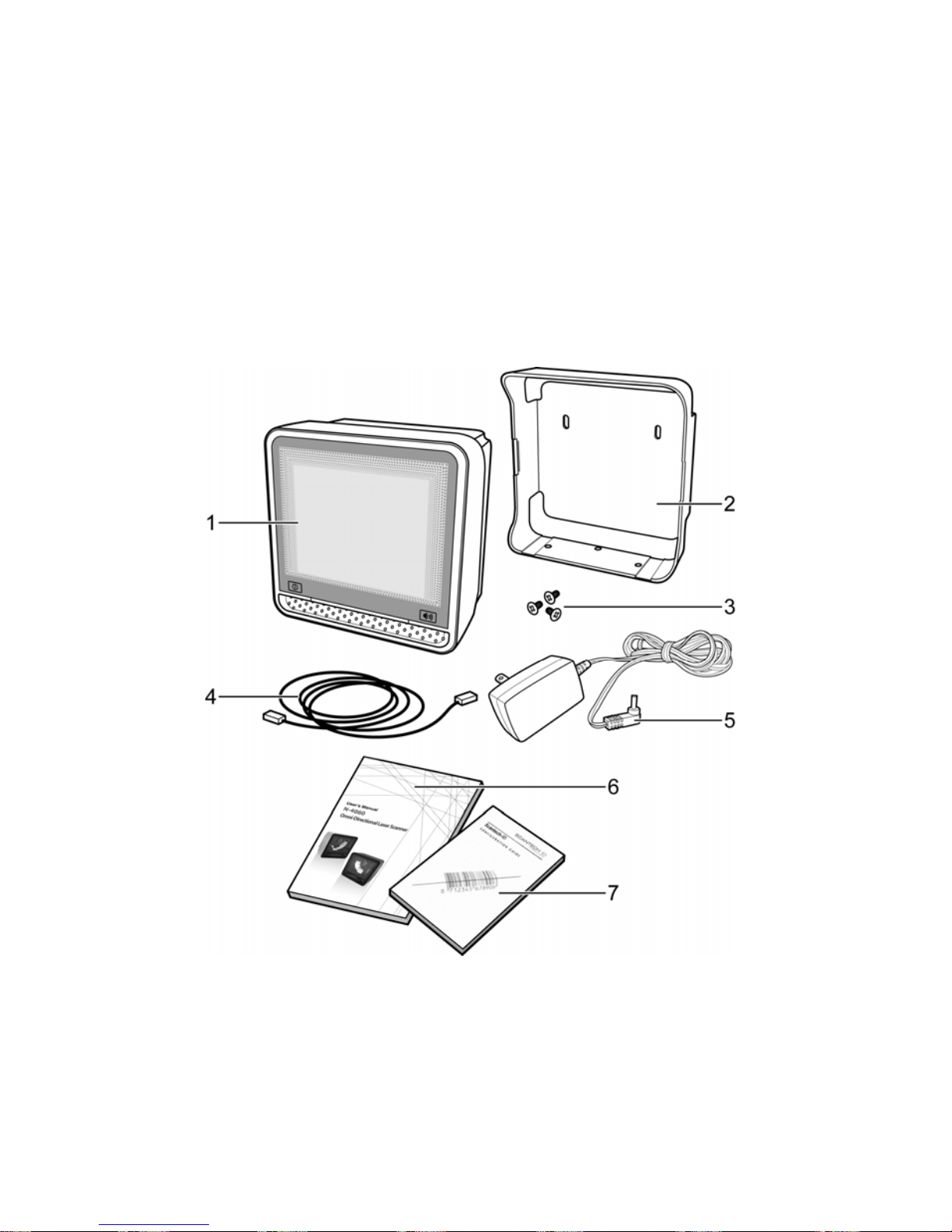

1. Scanner 4. Interface Cable 7. Configuration Guide

2. Bracket 5. Power Adapter

3. Screws 6. User’s Manual
