The A0240 is a 2-channel 40 Watt class D amplifier. It can be used to

power a small 1-room audio system or integrated with Channel Vision’s

A0302 to provide supplemental power to low power distributed audio

systems. It’s compact size makes it easy to hide and its versatile power

plug allows direct wall plug-in or tabletop operation using the detachable

power cable. With its easy installation and operation, the A0240 is perfect

for any audio system that just needs a little more power.

Features:

!40 Watts per channel

!Compact size

!Audio-sensing power shut off to conserve energy

!Easy installation

Accessories (sold separately)

Complementary Products (sold separately)

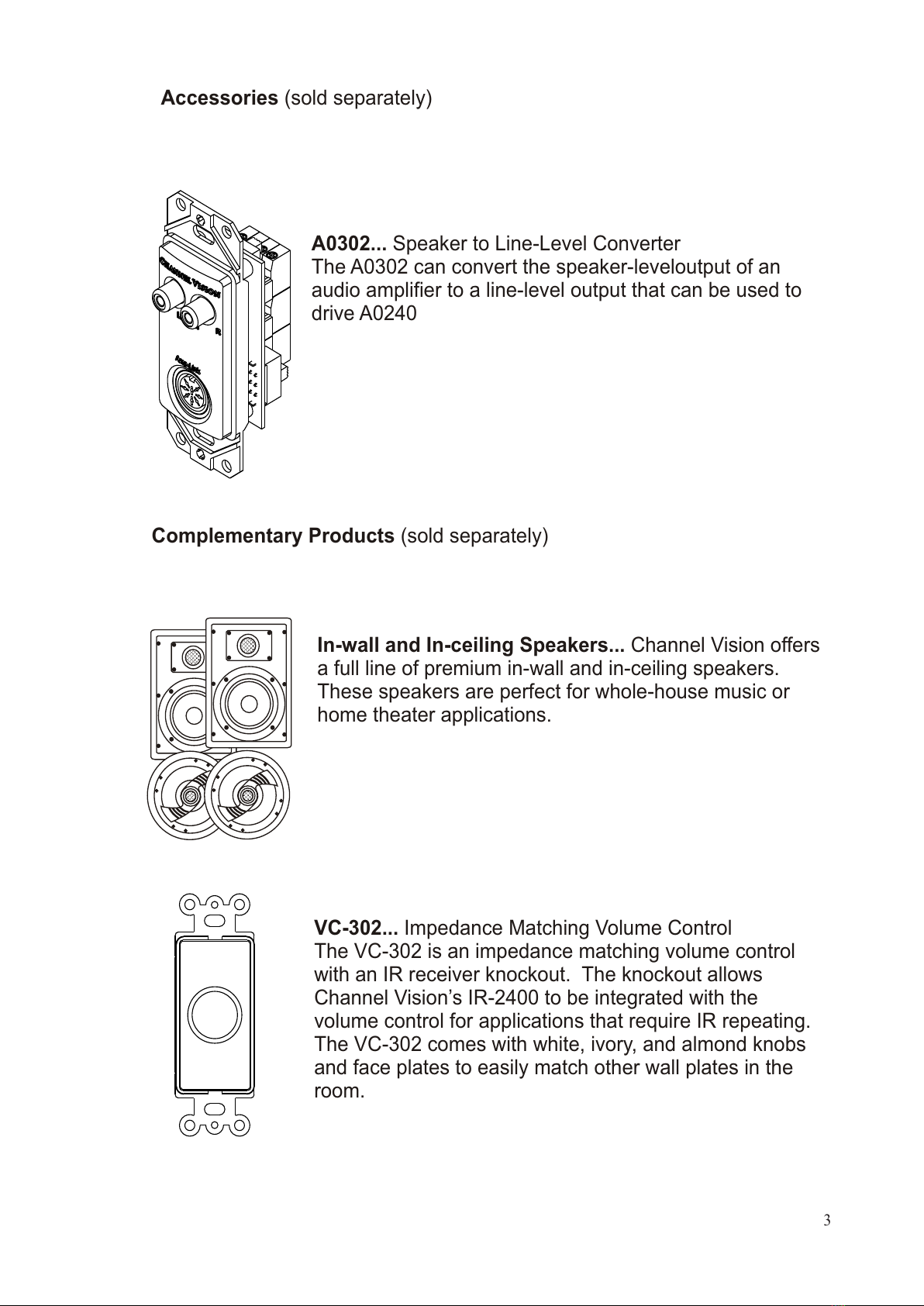

A0302... Speaker to Line-Level Converter

The A0302 can convert the speaker-leveloutput of an

audio amplifier to a line-level output that can be used to

drive A0240

In-wall and In-ceiling Speakers... Channel Vision offers

a full line of premium in-wall and in-ceiling speakers.

These speakers are perfect for whole-house music or

home theater applications.

VC-302... Impedance Matching Volume Control

The VC-302 is an impedance matching volume control

with an IR receiver knockout. The knockout allows

Channel Vision’s IR-2400 to be integrated with the

volume control for applications that require IR repeating.

The VC-302 comes with white, ivory, and almond knobs

and face plates to easily match other wall plates in the

room.

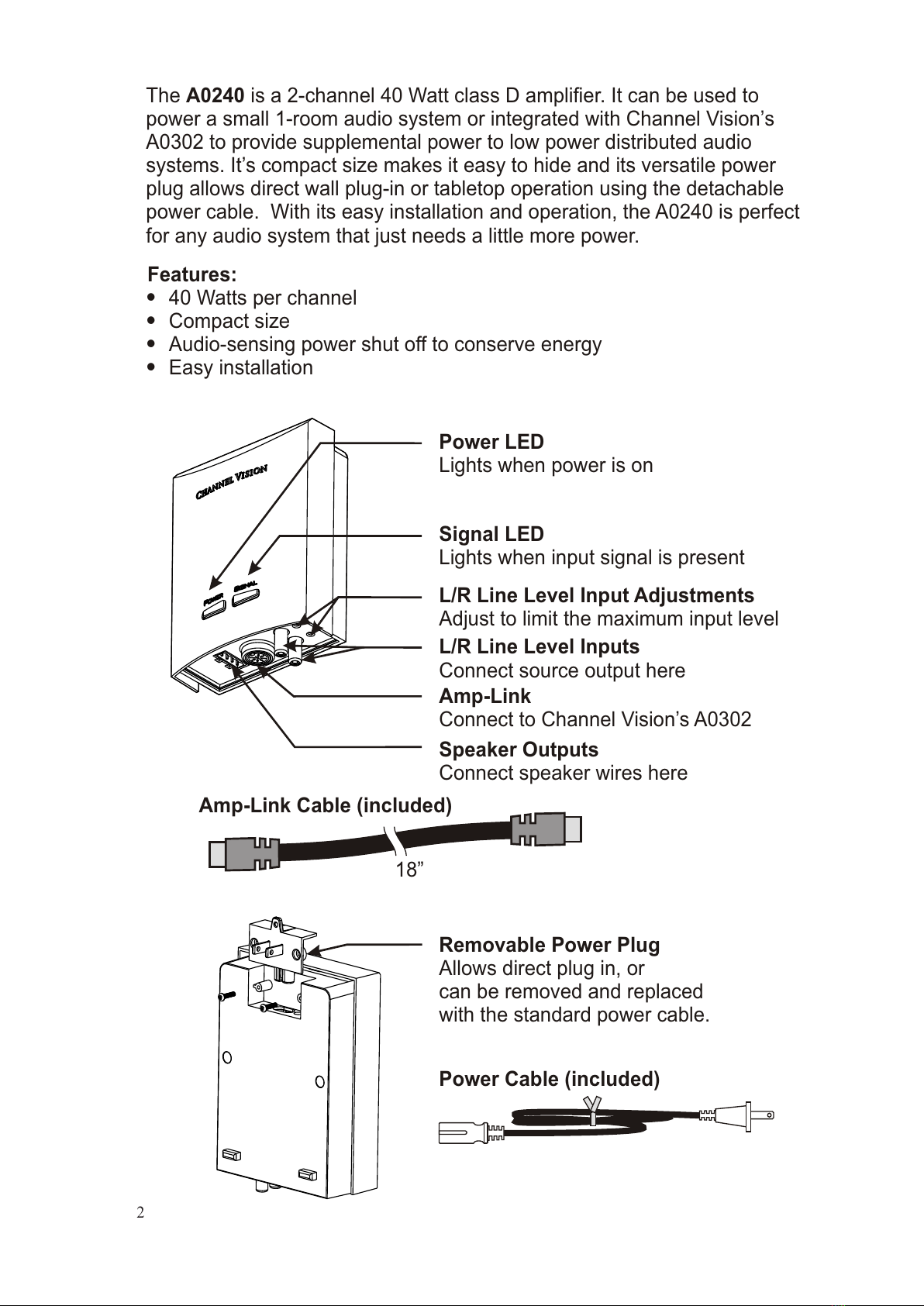

Amp-Link

Connect to Channel Vision’s A0302

Amp-Link Cable (included)

18”

L/R Line Level Inputs

Connect source output here

L/R Line Level Input Adjustments

Adjust to limit the maximum input level

Power LED

Lights when power is on

Signal LED

Lights when input signal is present

Speaker Outputs

Connect speaker wires here

Removable Power Plug

Allows direct plug in, or

can be removed and replaced

with the standard power cable.

Power Cable (included)
