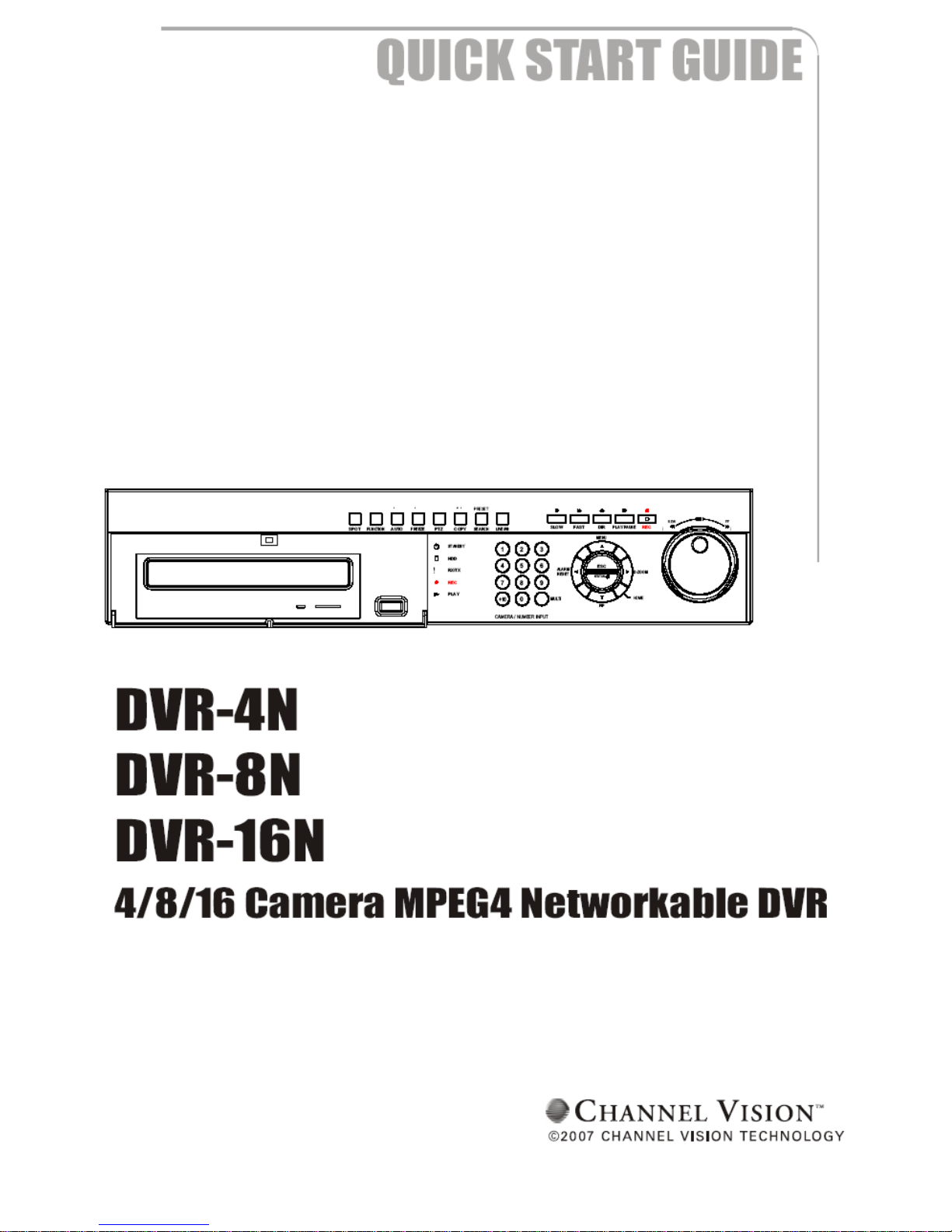

Channel Vision DVR-N Manuale utente
Section 1: Software Setup
Follow Steps:
1.)
Click on the "Start" menu and click "Run"
Write the word "cmd" or "command" for Windows XP or Vista. Click OK.
Type in ipconfig /all
This is similar to what you will get when you type in
ipconfig
Copy this information from your ipconfig /all. (Example on previous page )
Section 2: Online Viewing.
Press "Spacebar" and your keyboard once ActiveX control is installed.
There are 2 ways to view this online.
1. Internet Explorer (or any browser that uses ActiveX Controls)
2. Software. (DVR Viewer 1.35, 1.45, 1.50, 1.75, 1.84, 1.99)
1.) To use Internet Explorer, use this address.
Http://211.174.251.155
You will be prompted to install an ActiveX Control. Click install.
You may also use an external IP, as long as your port is forwarded.
For example, Channel Vision’s DVR display model is 68.165.38.221.
It is an external IP Address.
Enter IP Address, and Port number. Click Connect.
When prompted for password, enter password. Factory Default is 8 ‘1s’ all in a row
for master (11111111) or 22222222 for a non-administrator password.
Shown is an internal IP. (192.168.1.122) The Port is 5401
Note: You can only view your cameras in Internet Explorer; you cannot search for
events or change settings.
IMPORTANT NOTE: You must contact your router’s Technical Support to find
out how to forward your DVR’s IP to a certain port. If you do not, you can only
view the DVR from your location.
2. Double click the My Computer Icon
-1. Place DVR CD in CD Rom Drive
2.) For Software: Follow steps below
4. Double Click Software
3. Double click the CD-Rom Drive
5. Double-Click Setup.exe
6. Install Software.
The picture below is what the software looks like once installed.
The software version is listed here
Section 3: Basic DVR configuration
Press the menu button and the Quick Setup menu appears as the following picture.
Quick Setup will configure your DVR to record when your camera sees motion.
Change image size to 720x480, as 720x240 is a widescreen image. (Jog Dial)
Make sure you hit "Escape" and "Save And Exit" to save settings.
Turn Quick Setup on, by moving the Jog Dial.
