Chantico Fire INSERT A-05 Manuale utente
INSERT A-05
USER’S MANUAL
Edition : I0266#02 of 27.04.2009
1
TABLE OF CONTENTS
1. Product’s description 2
a. General characteristics 2
b. Planika and the Environment 2
c. Material specification 3
d. Overall Dimensions 3
2.Safety 4
3. Installation 6
4. Operating Instructions 13
5. Cleaning and maintenance 16
6. Additonal Information 16
a. Technical data 16
b. Utilization and recycling 16
The manual must be read carefully BEFORE you attempt to
install or use the product
2
1. Product’s Description
a. General Characteristics
This product is a modern appliance which combines all the advantages
of a traditional fireplace without any of the disadvantages.
Weighing much less than a traditional fireplace, your new fireplace is
easy and quick to install and can be ready to ignite in a matter of hours.
Within the home, the Insert A-05 is designed to create a cosy,
intimate and friendly atmosphere.
.
b. Planika and the Environment
The Insert A-05 requires no flue.It can be used in any environment
having adequate natural ventilation. No flue also means all the heat
remains within the room.
Thanks to the use of FANOLA® alcohol-based, ecological liquid, the
operation of the Insert A-05 means clean, emission free and
environmentally friendly usage. There are no combustion residues, such as
ash or soot, to clean or remove!
PLEASE NOTE:
The Chantico Fire Insert A-05 is for indoor use only.
The Chantico Fire Insert A-05 is not a heating appliance.
3
1. Material specification.
Construction materials:
A – Containier for FANOLĘ®, shutter – acid-proof polished stainless
steel,
B - Body - stainless steel coated with the heat-proof paint
C – Glass shield – tempered glass

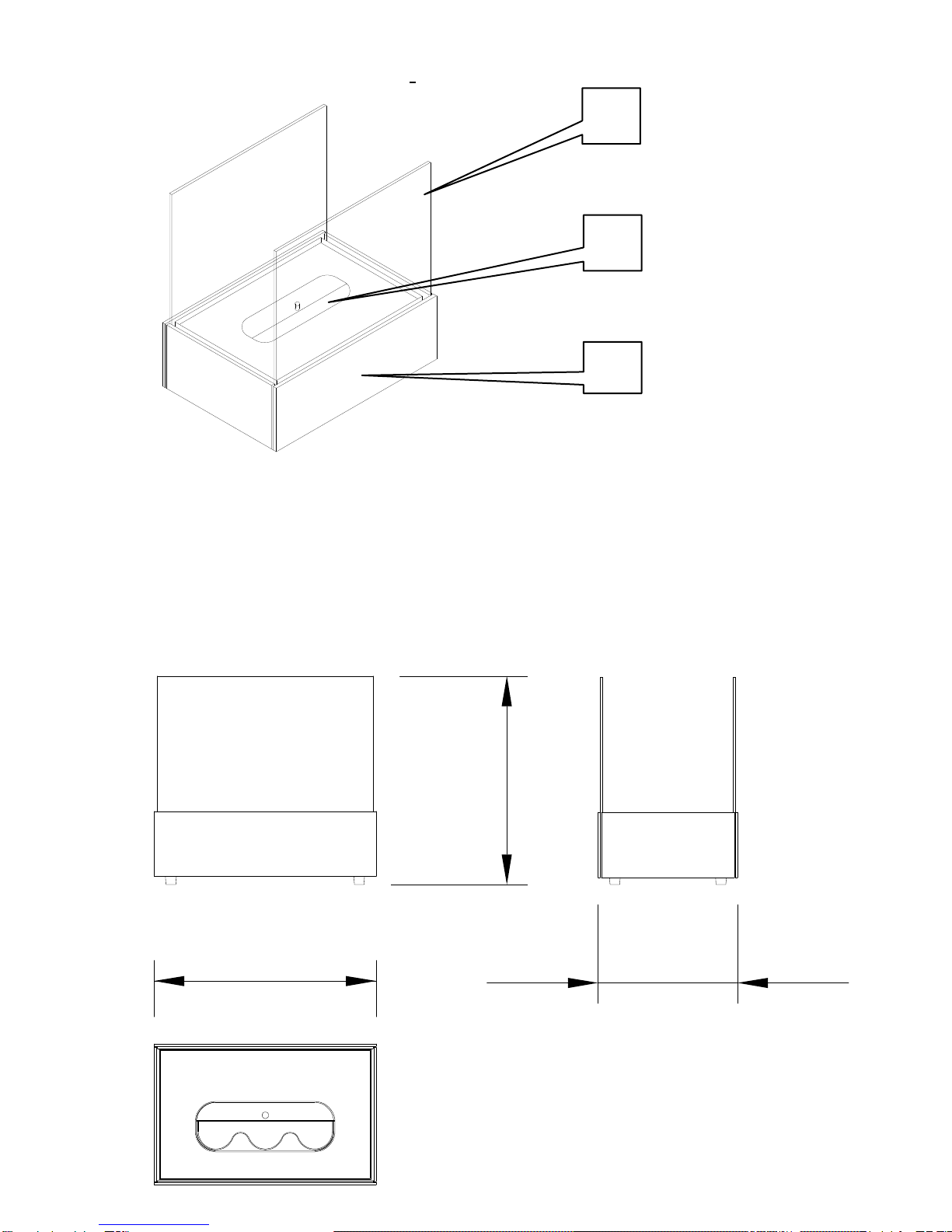

d. Overall dimensions
C
B
A
41cm/16,1in 2cm/6
10,2 in3
38,5cm/15,2in
4
2. Safety
In this chapter there is information concerning the responsible use of
the Insert A-05.
Complying with the following safety recommendations will avoid
damaging the product and creating potentially hazardous situations which
may result in bodily injuries.
To ensure the safe and appropriate use of the Insert A-05 you must
abide by the following guidelines:
Before assembling your Insert A-05, select its location taking into
consideration the following rules:
Do not expose to outdoor conditions. This Product is for indoor use
only.
Do not use the product in a room of an area below 24m2/ 258.33ft2
(or approximately 63m3/ 2224.82ft3).
There should be adequate natural ventilation in the room where the
Insert A-05 will be used. If required increase the ventilation by
opening a window or a door.
Do not allow children to light the Insert A-05.
Do not place the Insert A-05 in draughty areas, close to fans or other
ventilating devices.
Do not place the product in places where potentially explosive or
combustible particles may be present in the atmosphere, e.g. lacquer
fumes, industrial dust, etc.
Do not use faulty or damaged parts of the Insert A-05.
Due to high surface temperatures, keep children, pets, clothing, and
furniture away. The appliance is hot while in operation and contact
with it may cause burns to the skin.

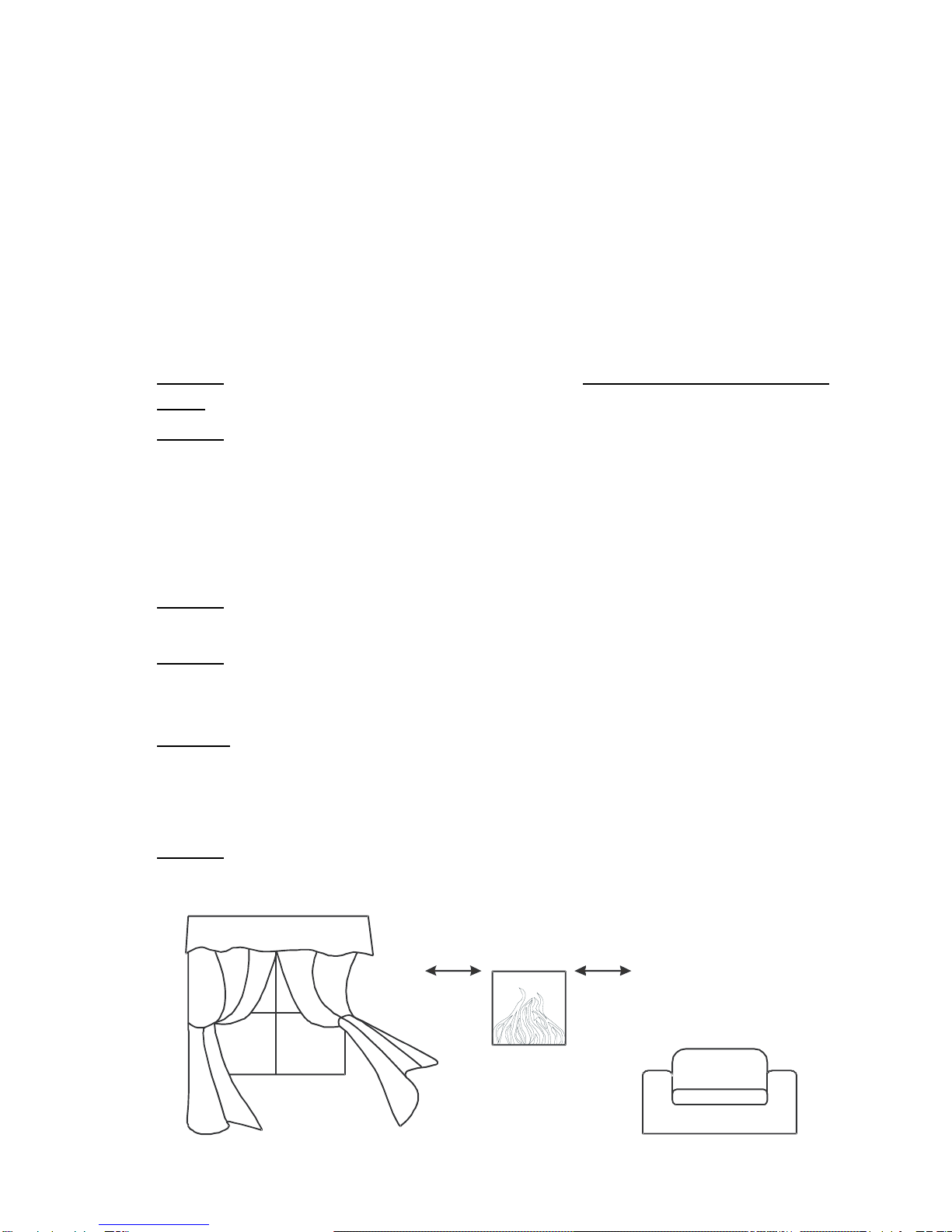

Do not place any flammable materials such as curtains, blinds, etc.
within a 100 cm (39.37 in) radius of the Insert A-05.
100 cm
100 cm
39,37 in 39,37 in
5
Do not leave a burning Insert A-05 without adult supervision.
Children and animals should not be left alone in the room while the
appliance is in usage.
Do not try to repair or alter the construction of the Insert A-05.
Use FANOLA® – clean burning & odorless liquid recommended by
the manufacturer.
Using any other liquids or fuels may result in the emission of a variety
of gases during the burning process, which may have negative effects
on the health.
The liquid is poisonous and must not be consumed.
Store the liquid in a safe place out of reach of children, pets and any
unauthorized persons.
Do not attempt to pour FANOLA® or any other liquid or fuel into
the reservoir during the burning process.
Only use the liquid designed for this type of Insert.
Do not place anything inside the fireplace which has not been
supplied by the Manufacturer.
Only use the Insert A-05 accessories provided by the Manufacturer
and in accordance with their instructions as per the Manual.
Do not touch heated elements of the Insert A-05.
Do not cover the Insert, or the ventilation slots etc. as it may cause a
fire.
6
3. Installation
Before installing the product, read Section 2 of the manual (Safety). To
ensure proper assembly and installation, please proceed as follows:
3.1 Unpack the product and remove all parts from the packaging.
ABCDEFG
3.2 Choose a suitable location for the Insert A-05 as it is presented in
Section 2.

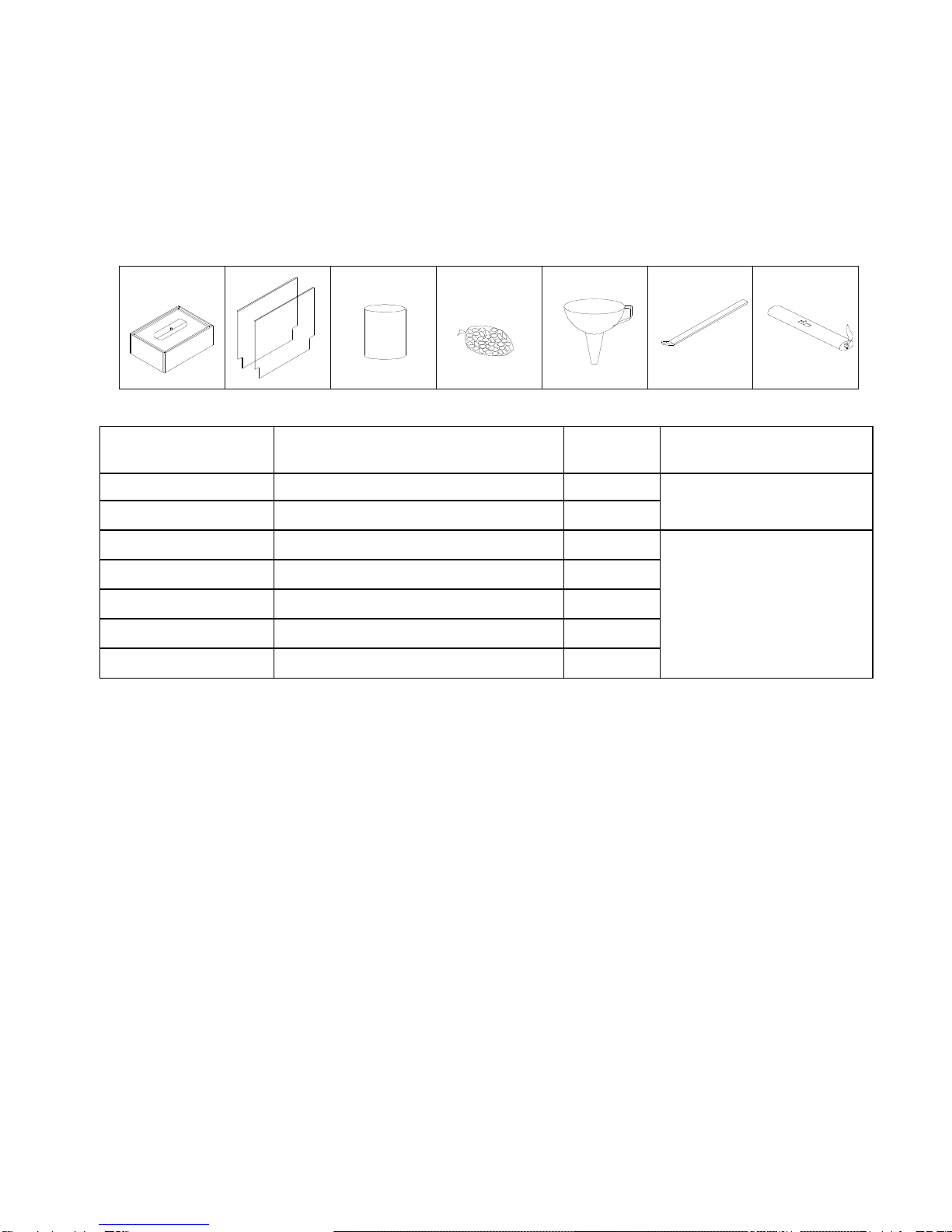

SYMBOL ELEMENT DESCRIPTION PCS USAGE
A Insert 1 Construction
elements
B Glass shield 2
C Measuring cup 1
Operation elements
D Decorative stones 2
E Funnel 1
F Metal tool 1
G Lighter 1
7

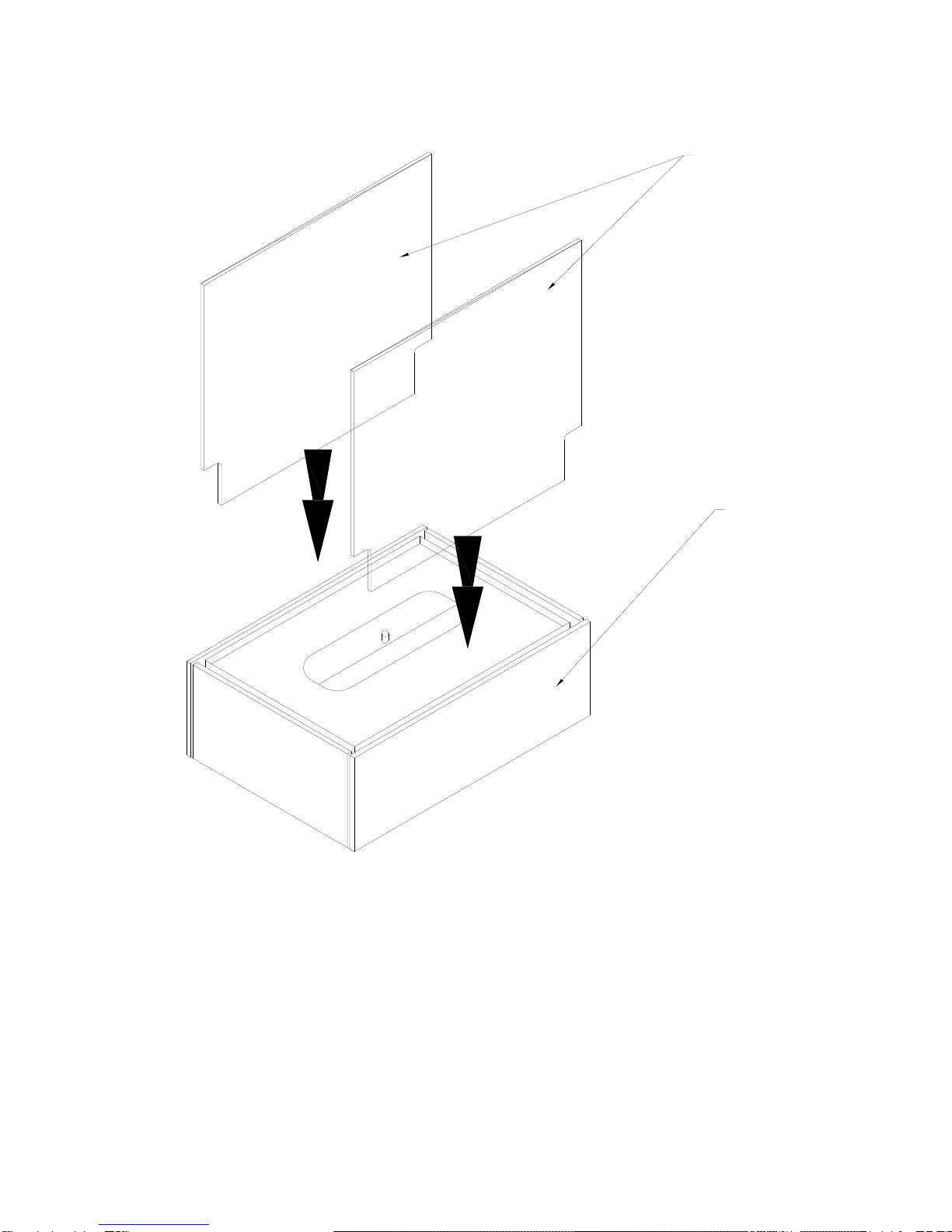

2.1. Assemble the product according to drawing.
3.4. Choose one of the installation modes:
a. The existing fireplace with a chimney.
b. The existing fireplace without a chimney. The walls of the fireplace
are made of non-flammable materials.
c. The existing fireplace without a chimney. The walls of the fireplace
are made of flammable materials.
A
B
8
Ad. a.
The product installation in the existing fireplace with a chimney

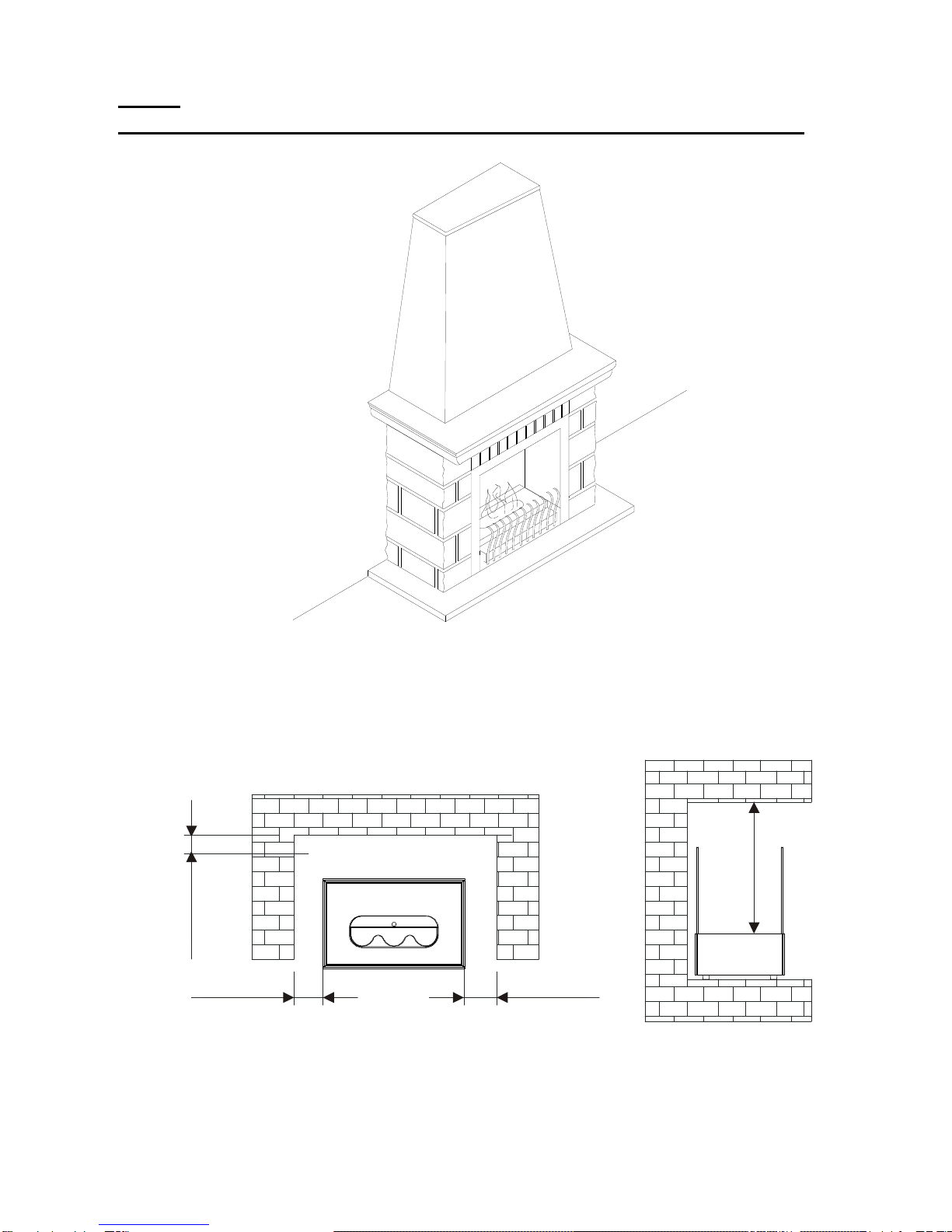

a.1 Before you put the insert in the existing fireplace, make sure that the
minimal dimensions presented in the below drawings are kept.
a.2 You should clean the inside of the chimney where the product will be
placed from ash and the rests of the burnt wood.
min 1cm/
0,39in
min 1cm/
0,39in
m
in 1c
m
/
0,39in
min 50cm/
19,7in
9
CAUTION!!
The product must not be placed in the cast iron inserts closed
with the glass door. The product may be put in the cast iron
insert when the glass door is removed
a.3 If the chimney is equipped with the air regulating system, it should be
installed in the maximum open position
a.4 If the chimney is equipped with the draught system, it should be
installed in the maximum open position (while the product is in usage,
you may try to close it but you should observe the flame. If the
draught system does not affect the size of the flame, you may set it
according to your needs).
Ad. b.
The product installation in the existing fireplace where its walls are
made of non-flammable materials
In case where the building wall is made of non-flammable materials, you
should:
