PROFESSIONAL SPREADER Assembly / Operation Instructions / Parts
CHAPIN INTERNATIONAL, INC. P.O.BOX 549 700 ELLICOTT ST.BATAVIA, NY 14021-0549 www.chapinmfg.com 800-950-4458
Please call 800-950-4458 if you are missing any parts, having trouble assembling, or have any questions regarding the
safe operation of this product.
DO NOT RETURN TO THE STORE

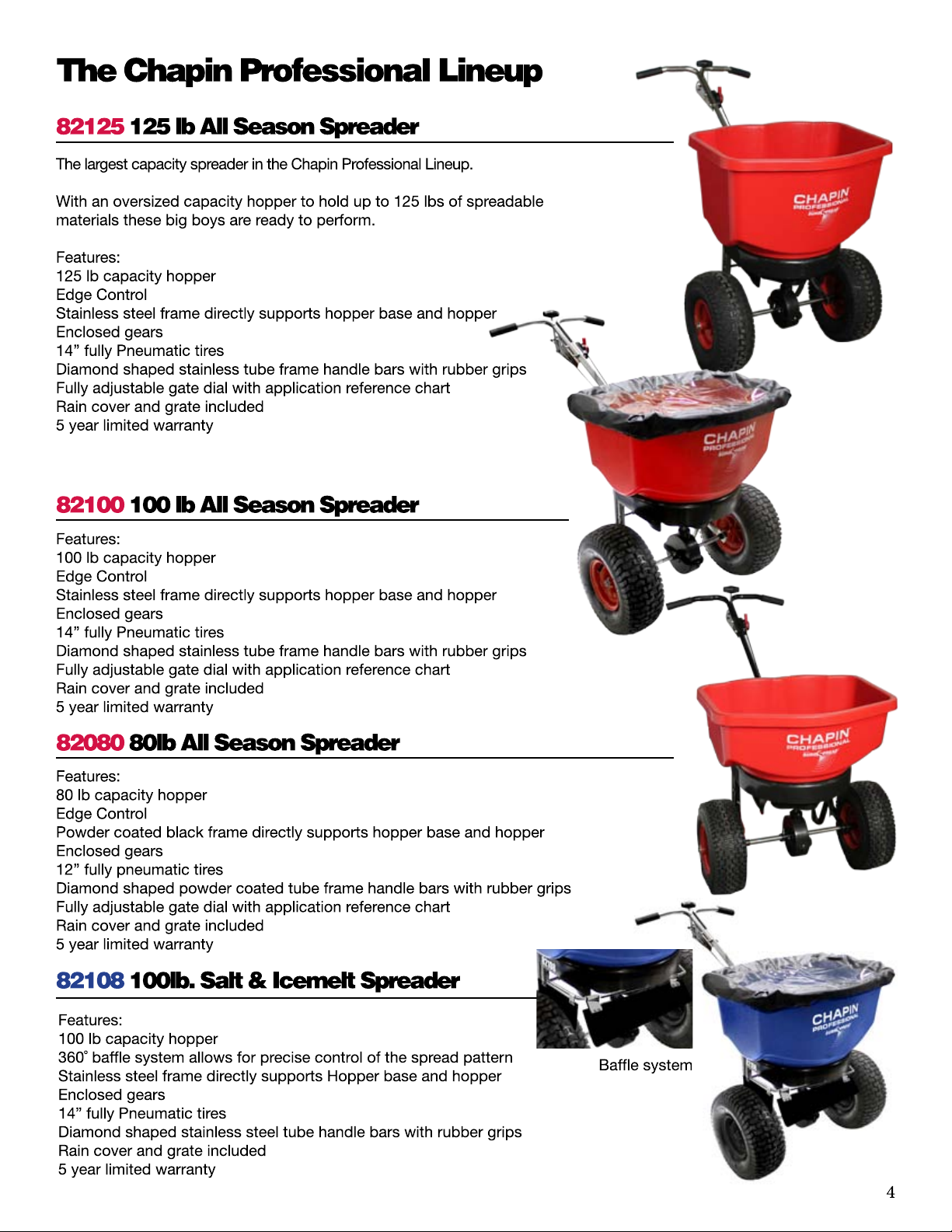

MODEL 82125/82100/82080
Carefully Read These Instructions Before Use
IMPROPER USE OR FAILURE TO FOLLOW INSTRUCTIONS CAN RESULT IN PRODUCT FAILURE OR INJURIES. FOR SAFE
USE OF THIS PRODUCT YOU MUST READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING.
- Do not allow anyone to operate the broadcast spreader without proper instructions
- Do not permit children to operate the broadcast spreader
- Wear protective eyewear and gloves when handling and applying lawn and garden chemicals
- Read the chemical label instructions and warnings for handling and applying the chemicals you plan to
spread – application settings provided are only a guideline
WARNING
Model 82100
100 lb. Spreader
Model 82125
125 lb. Spreader
Model 82080
80 lb. Spreader
011973 R0713
ASSEMBLY INSTRUCTIONS
Suggested Tools:
Wrench and/or Ratchet Set
1.5mm Allen Wrench
Pliers
Protective Eyewear
Approximate assembly time is 20-45 minutes
CHAPIN INTERNATIONAL, INC. P.O.BOX 549 700 ELLICOTT ST. BATAVIA, NY 14021-0549 www.chapinmfg.com 800-950-4458
Full scale nuts and bolts
NOTE: Depending on model, this package may contain
additional hardware not needed for assembly.
M5 Nylon Locknut (1)
M6 Nylon Locknut (7) M6 x 55mm Hex Bolt (6) M6 x 45mm Hex Bolt (1)
M5 x 35mm Hex Bolt (1)
Spacer (4)
Flat Washer (1)
R- Pin (1) Cotter Pin (1) #8-18 x 1/2
read-Forming
Phillips Screw (1)
P-Clamp (1)
End Cap (2)
Cable Tie (2)
Hand Grip (2) Bushing (2)
Step 1:
Attach the right Frame leg and the le Frame leg to the Frame
Body using 2 spacers, (2) M6X55mm hex bolts and (2) M6 Nylon
locknuts per frame leg. Aer the frame legs have been attached,
place the two End caps onto the bottom of both frame legs. DO
NOT TIGHTEN DOWN COMPLETELY.
NOTE: Use bottom hole pattern on legs if equipped.
CHAPIN INTERNATIONAL, INC. P.O.BOX 549 700 ELLICOTT ST. BATAVIA, NY 14021-0549 www.chapinmfg.com 800-950-4458
Step 2:
Slide bushings into the holes on
the hopper frame from outside
of the frame.
Step 3:
Insert Axle into Tire as shown and secure using (1) M6 x 45mm Hex
Bolt and (1) M6 Nylon Locknut. Take note of hole locations on
Axle, to ensure correct orientation.
Hole at top
CHAPIN INTERNATIONAL, INC. P.O.BOX 549 700 ELLICOTT ST. BATAVIA, NY 14021-0549 www.chapinmfg.com 800-950-4458
Step 4: Install the Axle/Drive Shaft
a. Slide the Drive sha through one side of the
hopper frame
b. Slide gearbox onto axle/drive sha (make sure
“FRONT” is facing front of frame as shown) and
align middle hole with gearbox
c. Slide through the other side of the hopper
frame. Assemble M5 x 35mm Hex bolt to Axle/
Gearbox and secure with M5 Nylon Locknut.
Step 5:
Attach non-drive Wheel onto exposed end of Axle and secure with Flat Washer & Cotter Pin. Slide
the Flat Washer onto the Axle until it makes contact with the Wheel, and then slide the Cotter Pin
into the hole at the end of the Axle.
Additional Notes:
Drive Sha: Hole Near Middle should be closer to the right wheel so that the gear box is centered.
Bend
M5 x 35mm Hex bolt
Step 8:
Assemble Handle Tube to Frame Legs by sliding
Handle Tube into the gap between the two parts
and using (2) M6X55mm bolts and (2) M6
Nylon Locknuts to connect the parts together.
Handle orientation is important (see image).
Finish tightening frame legs to the frame body.
CHAPIN INTERNATIONAL, INC. P.O.BOX 549 700 ELLICOTT ST. BATAVIA, NY 14021-0549 www.chapinmfg.com 800-950-4458
Step 6:
Look inside hopper. Insert
R-pin into hole in impeller
sha.
Step7:
A portion of the Handle will be preassembled as shown. Carefully remove the
(2) M6 Hex Nuts, while holding the rest of the Handle Assembly together.
Install opposite Handle onto the
exposed (2) M6 Hex Bolts, and re-
secure the (2) M6 Hex Nuts.
Step 9:
Attach Edge Control cable. Turn spreader upside down for step 9 (if possible set on table as shown) Note: While doing
this make sure the Edge Control lever is in the ON position and the trim guard itself is making contact with the bottom of
the hopper base. Slide the Wire onto the hole on the wire control barrel (Fig. A). Pull wire through barrel until it is taute.
Tighten the Set screw onto the wire with aPhillips head screw driver. Next take a P-clamp and place it on the cable sheath.
Align so P-clamp is under mount post. Take a self tapping screw and screw the P-clamp into the hole on the bottom of the
hopper base (Fig. B & C). e wire should be tight so the trim guard doesn’t fall when released.
CHAPIN INTERNATIONAL, INC. P.O.BOX 549 700 ELLICOTT ST. BATAVIA, NY 14021-0549 www.chapinmfg.com 800-950-4458
Figure B Figure C
Cable Sheath
Wire Control
Barrel
Tighten
Figure A
Trim Guard
Table
Step 10: Attaching the Gate Control Rod
a. Slide gate control lever forward and attach hook at bottom of
rod to spring at hopper base
b. Attach gate control rod to upper screw on gate control by
removing the screw rst, attaching the rod, and then
re-attaching the screw
Step 11:
Both Hand Grips slide onto both the le and right
handle bars. e Grips should Slide right on.
CHAPIN INTERNATIONAL, INC. P.O.BOX 549 700 ELLICOTT ST. BATAVIA, NY 14021-0549 www.chapinmfg.com 800-950-4458
Step 12:
Secure edge control cable with zip ties (provided) onto the
handle as shown in image.
Zip tie
Zip tie
CHAPIN INTERNATIONAL, INC. P.O.BOX 549 700 ELLICOTT ST. BATAVIA, NY 14021-0549 www.chapinmfg.com 800-950-4458
99
1
2
4
5
7
10
3
8
11
6

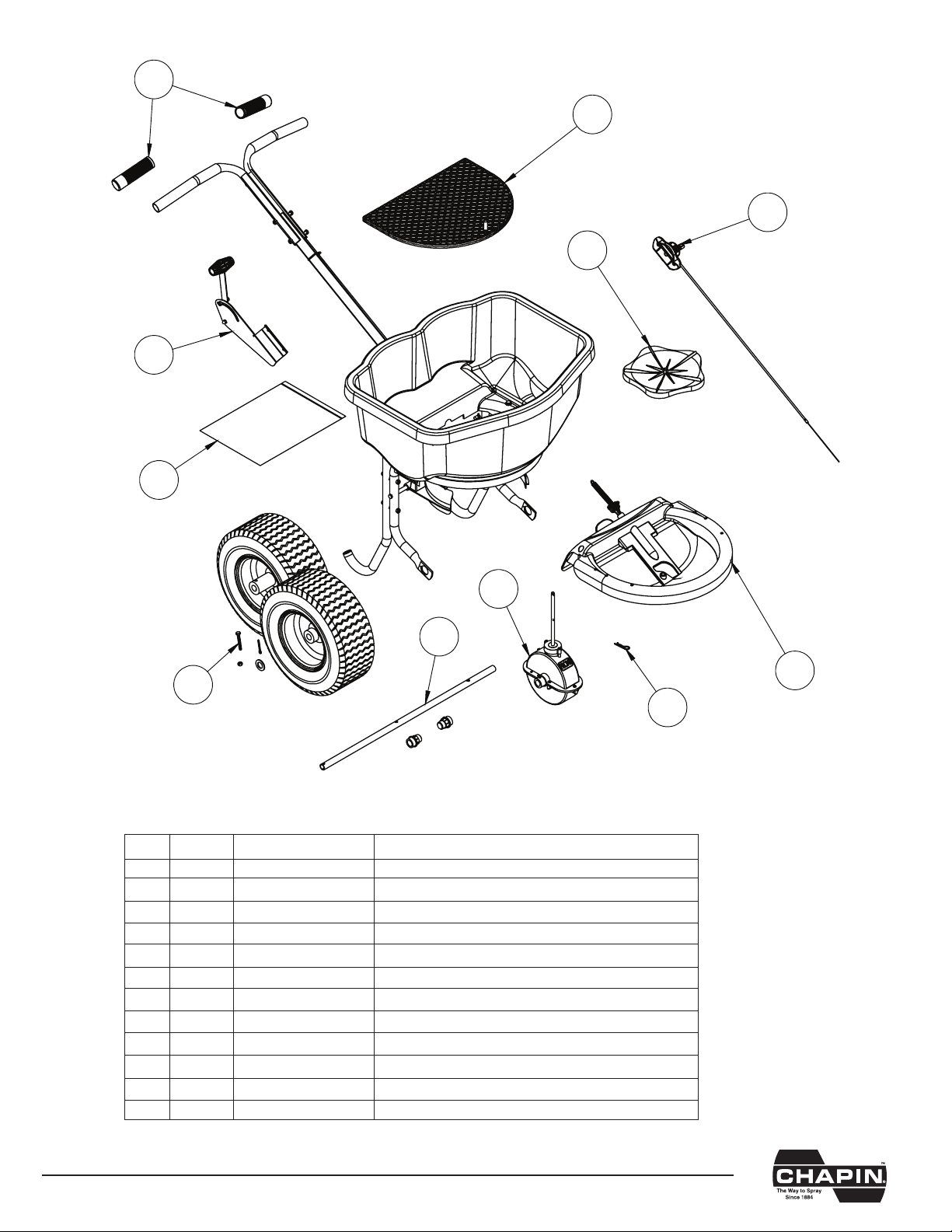

Replacement Parts
Ref.# Qty Part No. Description
1 1 6-9008 Hopper Base Assembly
2 1 6-9010 Gear Box Assembly
3 1 6-9009 Drive Shaft w/2 bearings
4 1 6-9011 Edge Control Assembly
5 1 6-9012 Gate Control Assembly
6 1 6-9013 R Pin
7 1 6-9014 Impeller
8 1 6-9015 Wheels w/hardware (red rim)
9 1 6-9016 Handle Grips
10 1 6-9017 Hardware Bag
11 1 6-9001 Grate
* 1 6-9000 Rain Cover
* Not Shown
