Fire Screen 11508424 / 42803951 (01-23-04)

WARNING

NEVER LEAVE FIRE UNATTENDED!

Do not allow small children near flame. Hot embers can

fly out of ring in breezy conditions. Adequate fire

extinguishing material should be readily available.

WARNING

CARBON MONOXIDE HAZARD

Burning charcoal inside can kill you. It gives off carbon

monoxide, which has no odor. NEVER burn charcoal

inside homes, vehicles or tents.

Read and follow all safety statements, warnings,

assembly instructions and use & care directions before

attempting to assemble.

CAUTIONCAUTION

Some parts may contain sharp edges – especially as

noted in manual. Wear protective gloves if necessary.

WARNING

Do not use this unit on a wood deck or on combustible

surfaces such as dry grass, leaves, mulch, etc. Do not

use this unit near heat sensitive or combustible structures

such as vinyl or wood siding.

FOR

OUTDOOR

USE

ONLY!

MODEL 11508424

Assembly

Instructions

Fire Screen

Tools needed

for assembly:

Phillips screwdriver

Adjustable wrench

STOP!

Missing a part?

No need to go back to the store!

The store where you made your purchase

does not stock parts for this item. If you

need parts, whether they are missing or

damaged, call the Customer Service toll

free Help Line.

Call us and we will gladly ship

the part you need

FREE OF CHARGE.

Call Our Help Line

Parts List

Item Description

55700433 RH Cover Assembly Kit

55700434 LH Cover Assembly Kit

55700435 RH Door Kit

55700436 LH Door Kit

55700437 Cover Tie Bar Kit

55700438 Door Tie Bar Kit

55700440 Cover Retainer Kit

40011180 Outer Carton

42000030 Hardware Bag

42803951 Assembly Instructions

1Fit the two large screen panels

together as shown. Lay the long strip

(with six holes) over the interlocked

screens. Secure with six #8-32x3/16”

machine screws.

NOTE: Screen panels are shown as

solid panels for clarity of illustrations.

Fit the two small screen panels together as

shown. Lay the short strip (with six holes and

lifting tab) over the interlocked screens.

Secure with six #8-32x3/16” machine screws.

Large screen

panel

Long strip

with six holes

Large screen

panel

Small screen

panel

Small screen

panel

Short strip with

six holes and

lifting tab

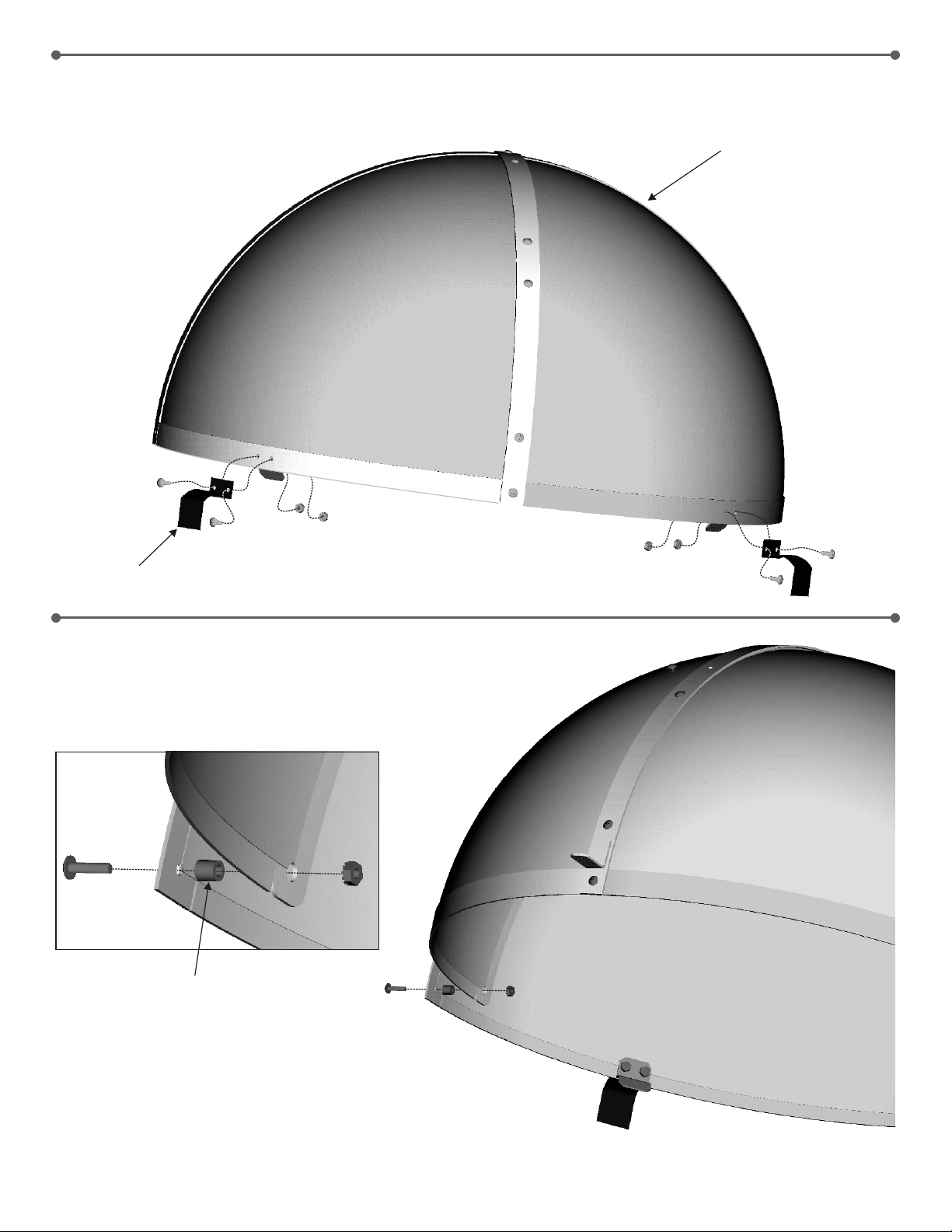

3Attach the two cover retainers to the back of the large screen

section using two #8-32x1/2” machine screws and two #8-32

keps nuts on each side. NOTE: Retainers should curve

downward. Large screen section

Cover retainer

Place small screen section inside large screen section,

forming a dome. Attach screen sections together using one

#8-32x3/4” machine screw, spacer, and #8-32 keps nut on

each side.

Small screen

section

Spacer between

screen sections Large screen

section

Bend cover retainer

under edge of firebowl.

Place screen on top of firebowl. Bend the two cover retainers

downward, to wrap around edge of firebowl.

HARDWARE LIST

Hardware is shown actual size. You may have spare hardware after assembly is complete.

#8-32x3/16”

Machine Screw

Qty. 12

#8-32

Keps Nut

Qty. 6

#8-32x1/2”

Machine Screw

Qty. 4

#8-32x3/4”

Machine Screw

Qty. 2

Spacer

Qty. 2

Limited Warranty

The manufacturer warrants the product for replacement or repair of parts and/or workmanship for a period of 90 days. Paint is not

warranted and will require touchup.

These limited warranties are made exclusively to the original customer presenting proof of purchase. These warranties are limited to

non-commercial residential use only. Any returned goods must be shipped prepaid. These warranties do not cover normal wear and

tear or damages resulting from abuse or misuse. This warranty excludes incidental or consequential cost due to damages or losses or

property of any nature.

NOTICE: Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an

implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and

you may also have other legal rights which may vary from state to state.

For further information, contact the manufacturer, toll free at 1-800-232-3398.

W.C. Bradley Co.

Columbus, GA 31902

www.charboil.com
