Char-Broil 8401504 Manuale utente
Assembly
Guide
Model Numbers:
(English)
42804526 • 8/16/2011
08401504
10401582
10401589
10401590
10401591
10401592
10401593
10401594
08401504-A2
08401504-A1
12401504
GAS (LP)
12401590
2 ASSEMBLY GUIDE
A, B, C, Assembly:
CAUTION: For your safety, before operating, Read Product Guide & Outdoor Cooking Guide
provided with this grill.
*SAFETY First…..Grill components may have sharp edges. Be careful when handling grill parts
during assembly. We suggest that you wear a sturdy pair of leather gloves while handling the grill parts.
BEFORE You Grill….
1. Read Product Guide & Outdoor Cooking Guide
2. Position Grill safely away from walls & structures
3. Pre– Heat Grill—15 minutes on High to season grill.
TOOLS REQUIRED FOR ASSEMBLY
NOTE….
Installer: Leave instructions with the grill.
Consumer: Retain instructions for reference.
Grill must be installed in accordance with local
codes…..
Designed for outdoor use on ly…
Read all instructions before operating…
Phillips Head
Screwdriver
(Not Supplied)
Small Adjustable
Wrench
BEFORE You begin assembly of your grill….
1. Carefully remove all components from the carton.
3. Please note that hardware used for assembly may not be shown actual size..
2.
Familiarize yourself with the components and hardware used for assembly.
4. After removing components from the carton, split the carton open and use it as
a scratch-free work pad to assemble your grill.
Key Qty Description
A 1 Grill Lid
B 1 Cooking Grate
C 1 Trough
D 1 Burner
E 1
F 1 Firebox Bottom
G 1 Heat Shield
H 2 Side Lift Mechanism
I 1 Rear Lift Mechanism
J 1 Left Side Shelf
K 1 Right Side Shelf
Inner Reflector
L 1 Regulator Control Valve
M 2 Wheel
Key Qty Description
N 1 Hinge Set
O 1
P 1 Handle
Q 1 Logo Plate
R 1 Electrode with Wire
S 2 Side Shelf Bushings
T 2 Cooler Bag
U 2 Axle Rod
X. 1 RH Cart Fascia
Venturi Latch Assembly
V 1 Cart Base
W 1 LH Cart Fascia
Y 1 Match Holder
Z 2 Cooler Tray Kit
NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from
those on your particular model. However, the method of assembly remains the same.
Key Qty Description
AA 1 Handle Heat Sheild
BB 1 Lid Clasp
CC 2 Cart Foot
DD 10 Tube Plug
EE 1 Venturi Guard
FF 1 Piezo Ignitor Button
GG 2 Cooler Liner
... 1 Hardware Pack
... 1 Assembly Manual, English
... 1 Assembly Manual, Spanish
1 Assembly Manual, French
1 Product Guide, English
... 1 Product Guide, Spanish
... 1 Product Guide, French
...
...
K
A
L
H
D
S
Q
F
I
J
P
N

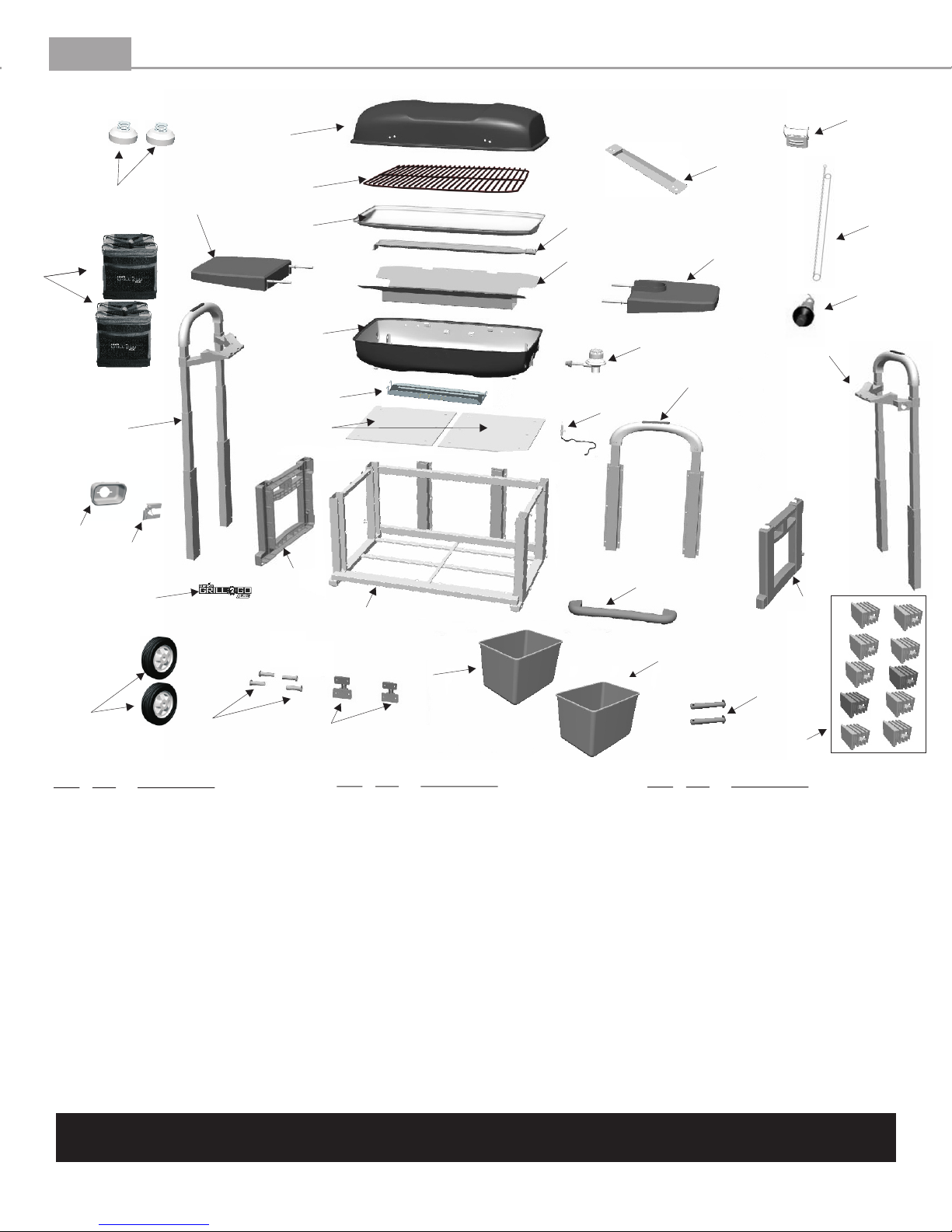

3 ASSEMBLY GUIDE Grill Parts Diagram
M
B
C
E
G
Y
V
W
X
ZR
U
GG
GG
AA
H
BB
CC
DD
EE O
FF
TT
4 ASSEMBLY GUIDE
Part Qty
A1– Cart RH Side Fascia
1
A2
– Cart Base 1
A3
– Cart Foot 2
A4
–
Fasteners
#10x3/4"
(qty 2)
GRILL CART Assembly
Wheels 2 (qty 14)
screw
Axle Rod
(qty 2)
Wheel Retaining
Clip
Step 2: Carefully place the cart assembly on its
back. Install the Cart Feet (A4) by
threading them into the bushings as shown.
Step 3: Assemble the Wheels (A5) to the Cart Base
(A3) by first sliding an axle rod through the wheel,
then sliding the axle rod through the axle rod holes
in the cart base. Secure with a wheel retaining clip.
Repeat for the other side.
Wheel Retaining Clip - install after
placing wheel and axle rod through
axle hole.
Axle Rod
Axle Hole
A5
A3
– Cart LH Side Fascia
1
A5
A1
A2
A3
Step 1: Assemble the LH and RH Side Fascia (A1 & A2)
to the Cart Base (A3) by aligning screw holes in the
fascias with corresponding holes in the cart base.
Secure with 7 each, #10x3/4 screws (7 per side) using a
phillips screwdriver. Repeat for other side. NOTE: The
lift handles are shown in the up position. You can
complete steps 1 and 2 with the handles lowered if
desired.
A4
A3
Wheel retaining clip -
Install after wheel and axle rod
through the hole as shown in
this direction only.
Clip shown properly installed.
Securely tighten the cart feet.
5 ASSEMBLY GUIDE
Part Qty
Fasteners
#10-24 x 1 1/4"

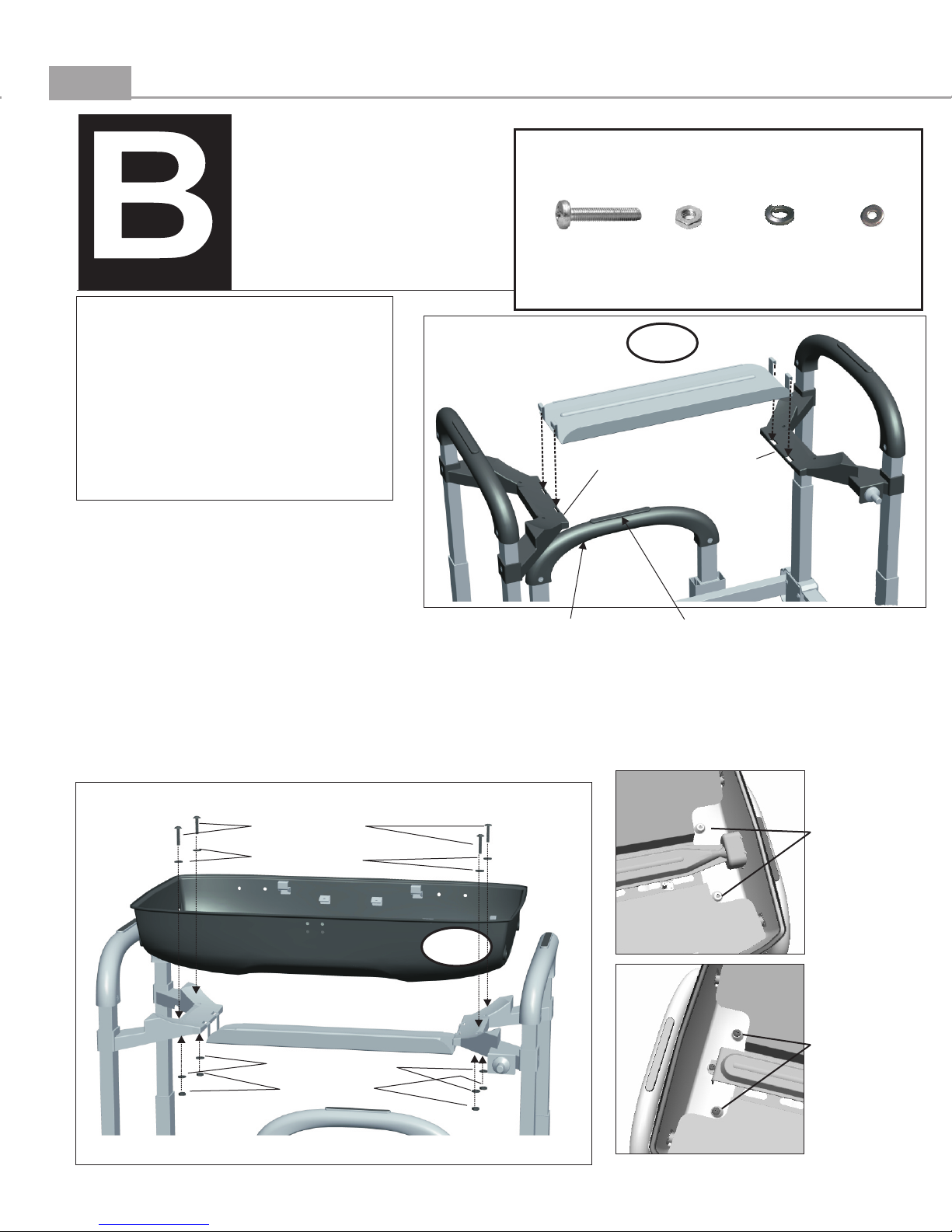

GRILL Assembly
(qty 4)
screw
B1–Heat Shield 1
B2–Fire Box Assembly 1
Step 1 - Install the Heat Shield(B1) to
the firebox mounting brackets by
engaging the tabs into the slots located
in the mounting brackets as shown on
the right.
Step 2 - Install the Fire Box Assembly(B2) to the cart by first placing the firebox assembly onto the
firebox mounting brackets. Be sure that the lid clasp is toward the front of the cart. Align the firebox
screw holes with the corresponding holes in the mounting brackets. Insert 4 #10-24 x 1 1/4" machine screws
and 4 fiber washers through the firebox and mounting brackets. Secure with 4 #10-24 nuts and 4 #10
lock washers from below the mounting brackets as shown below.
Right hand side
Firebox screw
holes
Left hand side
Firebox screw
holes
#10-24
(qty 4)
nut
#10 Lock
(qty 4)
washer
(qty 4)
Fiber Washer
Fiber washers
#10-24 x 1 1/4"
machine screws
#10 lock washers
#10-24 nuts
B2
FRONT
B1
Firebox Mounting Brackets
FRONT
NOTE: As viewed
from the front of
the grill.
NOTE: As viewed
from the front of
the grill.
Note: Before beginning this step of the
assembly, raise the two side lifts to their
highest position by pressing the button at the
top of the handle and pulling upward on the
handle.
The pull handle at the rear of the cart also has
a locking button, press the button to raise or
lower the pull handle into the desired
position. During Assembly, the rear pull
handle should remain in its lowered position.
Rear Pull Handle Pull Handle Locking Button
Assure FRONT marking on Heat Shield is to the front of the grill.
ASSEMBLY
6 ASSEMBLY GUIDE
Part Qty
B3– Hinge, RH 1
B4– Hinge, LH 1
B7– Handle 1
Fasteners
Step 3 - Attach the Hinges (LH and RH) (B4 & B3) to the
Firebox Bottom by aligning the screw holes on the bottom of
the grill with the corresponding holes in the hinges. Secure
with 2 each #10-24x5/8" screws, 2 fiber washers and 2 #10-24
nuts as shown.
(qty 8)
Fiber Washer
(qty 2)
Spacer for Lid
GRILL Assembly
LH side shown,
RH side similar.
Step 4 - Attach the Grill Lid (B5) to the Hinges by
aligning the screw holes on the grill lid with the
corresponding holes in the hinges. Secure with 2 each #10-
24x5/8" screws, 1 spacer and 2 #10-24 nuts as shown.
B5
B7
B6
B2
B2
(qty 8)
10-24 Nut
B5– Grill Lid 1
(qty 12)
screw
10-24 x 5/8"
B6– Heat Shield 1
B4
B5
LH Hinge
NOTE: The LH hinge is mounted to the left side
of the firebox bottom as viewed from the rear of
the firebox. See Hinge Detail below.
NOTE: The LH and RH hinge locations are referenced
from the rear of the firebox.
NOTE:
Assembling
the handle
may require
the assistance
of a helper.
Step 5 - Attach the Heatshield (B6) and Handle (B7) the
Grill Lid (B5) by aligning the screw holes in the handle to and
heatshield with the corresponding holes in the Grill Lid.
Loosely install 1 10-24 x 5/8" Screw and 1 fiber washer on the
LH side of handle. Loosely install a second 10-24 x 5/8" Screw
and 1 fiber washer on the RH side of handle. Now install the
remaining 2 10-24 x 5/8" Screws and 2 fiber washers. When all
four screws and fibers washer have been started, tighten each
screw, but do not over tighten the screws.
B3 - RH Hinge
B4 - LH Hinge
View from rear of firebox
Hinge section to attach
to Grill Lid (Top)
Hinge section to attach
to Firebox (Bottom)
Hinge Detail
7 ASSEMBLY GUIDE GRILL FINAL Assembly
Part Qty.
C1 – Side Shelf, RH
1
C2 – Side Shelf, LH 1
C3 – Trough 1
C4 – Cooking Grate
1
C6 – Cooler Bags/Coolers 2
Step 1 - Install the Regulator Control Valve (C5) by first sliding the regulator lock toward the rear of the grill, inserting
the Regulator Control Valve fully into the exposed burner tube, and then releasing the regulator lock. Next, press the end of
the Ignitor Wire (C7) onto the push button ignitor as shown.
Step 2 - Place the Side Shelves RH and LH (C1 & C2) into position by aligning the mounting rods with the bushing located
in the firebox bottom. Press the shelves into place firmly. Place the Trough (C3) into the Firebox Bottom, then place the
Cooking Gate (C4) into the Trough. The Cooler Bags (C6) rest on the bottom shelf of the grill cart, as shown.
C5 – Regulator Control Valve 1
C5
C2
C1
C6
C6
C3
C4
C7 – Ignitor Wire
Part Qty.
1
C7
Regulator Lock
1. Slide to rear
Regulator
2. Insert Regulator fully
into burner tube.
3. Release lock.
© 2011 Char-Broil, LLC Printed in China • Columbus, GA 31902 •
