OWNER’S MANUAL

LP Gas Grill

DANGER:

DO NOT use gas grill for indoor cooking or heating.

TOXIC fumes can accumulate and cause

asphyxiation. Do not use in or on boats or recreational

vehicles.

PROP 65 WARNING:

Chemicals known to the state of California to cause

cancer, birth defects or other reproductive harm are

created by the combustion of propane.

SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE. IF YOU ARE ASSEMBLING THIS

UNIT FOR SOMEONE ELSE, GIVE THIS MANUAL

TO HIM OR HER TO SAVE FOR FUTURE

REFERENCE.

FOR CUSTOMER SERVICE, CALL 912-638-4724

A propane gas cylinder is required for operation.

This gas grill is not intended for commercial use.

Grillin’ Pro™ 3001

WARNING

For Outdoor Use Only (outside any enclosure)

™ & © Char-Griller / A&J Mfg.

Model #3001

Features:

•Porcelain Coated Cast Iron Grates

•Stainless Steel Thermometers

•Nickel Plated Warming Racks

•40,800 BTU’s

•645 Inches of Cooking Area

•Side Burner, 12,000 BTU, Cast Brass

•Stainless Steel Tube Burners

•Electronic Ignition System

•Porcelain Coated Flame Shields

•6” Wheels

•Dual Stacks for Even Heating

•Stay Cool™ Hood Handle

MH45677

WARNING:

Improper installation, adjustment, alteration, service or

maintenance could cause injury or property damage

Read the installation, operation and maintenance

instructions thoroughly before assembling or servicing

this equipment.

Failure to follow these instructions could result in fire

or explosion that could cause property damage,

personal injury or death.

DANGER

If you smell gas:

Shut off gas to the appliance.

Extinguish any open flame.

Open Lid.

If odor continues, keep away from the appliance

and immediately call your gas supplier or your fire

department.

WARNING

1. Do not store or use gasoline or other flammable

liquids or vapors in the vicinity of this or any

other appliance.

2. An LP cylinder not connected for use shall not

be stored in the vicinity of this or any other

appliance.

page 2

™ & © Char-Griller / A&J Mfg.

Table of Contents

Important Safety Information.………………………..page 4 - 5

Illustrated Parts List……………………………..…..page 6 – 7

Tools Required, Assembly Tips and Hardware List..…..page 8

Assembly Instructions……………………………....page 9 – 15

Operating Grill

Connecting Gas Cylinder……………………….page 16

Checking for Leaks……………………………...page 16

Lighting Grill…...…………………………………page 17

Cleaning and Care………………………………page 18

Gas Grill Troubleshooting……………………………page 19 - 20

Grill Preparation………………………………………page 21

Recipes……………………………………………..….page 22

Accessories…………………………………………….page 23 - 24

page 3

™ & © Char-Griller / A&J Mfg.

page 4

Grillin’ Pro model # 3000 Owner’s Manual

WARNING

FOR YOUR SAFETY

1. DO NOT store or use gasoline or any other flammable vapors and liquids within 25 feet (8m) of

this or any other appliance.

2. When cooking with oil/grease, do not allow the oil/grease to exceed 350°F (177°C). Do not

store of use extra cooking oil in the vicinity of this or any other appliance.

3. An LP Cylinder not connected for use should be stored a minimum of 10 feet (3m) away from

this or any other appliance. Never fill the cylinder beyond 80 percent full. If the above

information not followed exactly, a fire causing death or serious injury may occur.

4. If you smell gas:

- Shut Off gas to the grill.

- Extinguish any open flame.

- Open Lid.

- If odor continues, immediately call your gas supplier or fire department.

For Your Safety

Stop! Call us first! Do Not return product to store. This grill has been made to high quality

standards. If you have any questions not addressed in this manual or if you need parts please

call our customer service department at 1-912-638-4724 (USA), Monday-Friday 9am-5pm

(EST).

NOTE: The use and installation of this product must conform to local codes. In absence of local

codes, use the National Fuel Gas Code, ANSI Z223.1/NFPA54.

IMPORTANT NOTICE: read all instructions prior to assembly and use.

Read and understand all warnings and precautions prior to operating your grill.

CAUTION

1. This grill is for use with propane gas only (propane gas cylinder not included).

2. Never attempt to attach this grill to the self-contained propane system of a camper trailer, motor

home or house.

3. Never use charcoal or lighter fluid with the gas grill.

4. Do not use gasoline, kerosene or alcohol for lighting. The LP-gas supply cylinder must be

constructed and marked in accordance with the specifications for propane gas cylinders of the

U.S. Department of Transportation (DOT) CFR 49. This grill is not intended to be used in or

installed on recreation vehicles and/or boats.

5. Do not attempt to move the grill while it is lit.

6. Do not use the grill unless it is completely assembled and all parts are securely fastened and

tightened.

7. Keep all combustible items and surfaces at least 36 inches (91.4cm) away from grill at all times.

8. DO NOT use this grill or any gas product near unprotected combustible constructions.

™ & © Char-Griller / A&J Mfg.

page 5

9. Do not use in an explosive atmosphere. Keep grill area clear and free from combustible

materials, gasoline and other flammable vapors and liquids.

10. Do not touch metal parts of grill until it has completely cooled (about 45 minutes) to avoid burns,

unless you are wearing protective gear (BBQ mittens, pot holders, etc.)

11. Do not alter this grill in any manner.

12. Clean and inspect the hose before each use. If there is evidence of abrasion, wear, cuts, or

leaks, the hose must be replaced prior to operating the appliance. The replacement hose

assembly will be that which is specified by the manufacturer.

13. Move gas hoses as far away as possible from hot surfaces and dripping hot grease.

14. Never keep a filled container in a hot car or car trunk. Heat will cause the gas pressure to

increase, which may open the relief valve and allow gas to escape.

15. Keep the grill’s valve compartment, burners and circulating air passages clean. Inspect the grill

before each use.

WARNING

1. This grill is for outside use only, and should not be used in a building, garage or any other

enclosed area.

2. The use of alcohol, prescription or non-prescription drugs may impair the operator’s ability to

properly assemble or safely operate the grill.

3. Always open grill lid slowly and carefully as heat and steam trapped within the grill can burn you

severely.

4. Always place your grill on a hard, level surface far away from combustibles. An asphalt or

blacktop surface may not be acceptable for this purpose.

5. Do not leave a lit grill unattended. Keep children and pets away from the grill at all times.

6. Do not place this grill on any type of tabletop surface.

7. Do not use the grill in high winds.

DANGER

Liquid propane (LP) gas is flammable and hazardous if handled improperly. Know its characteristics

before using any propane product.

• Propane Characteristics: Flammable, explosive under pressure, heavier than air and settles in

pools and low areas.

• In its natural state, propane has no odor. For your safety, an odorant has been added.

• Contact with propane can cause freeze burns to skin.

• This grill is shipped from the factory for propane gas use only.

• Never use a propane cylinder with a damaged body, valve, collar or footing.

• Dented or rusted propane cylinders may be hazardous and should be checked by your propane

gas supplier.

™ & © Char-Griller / A&J Mfg.

page 6

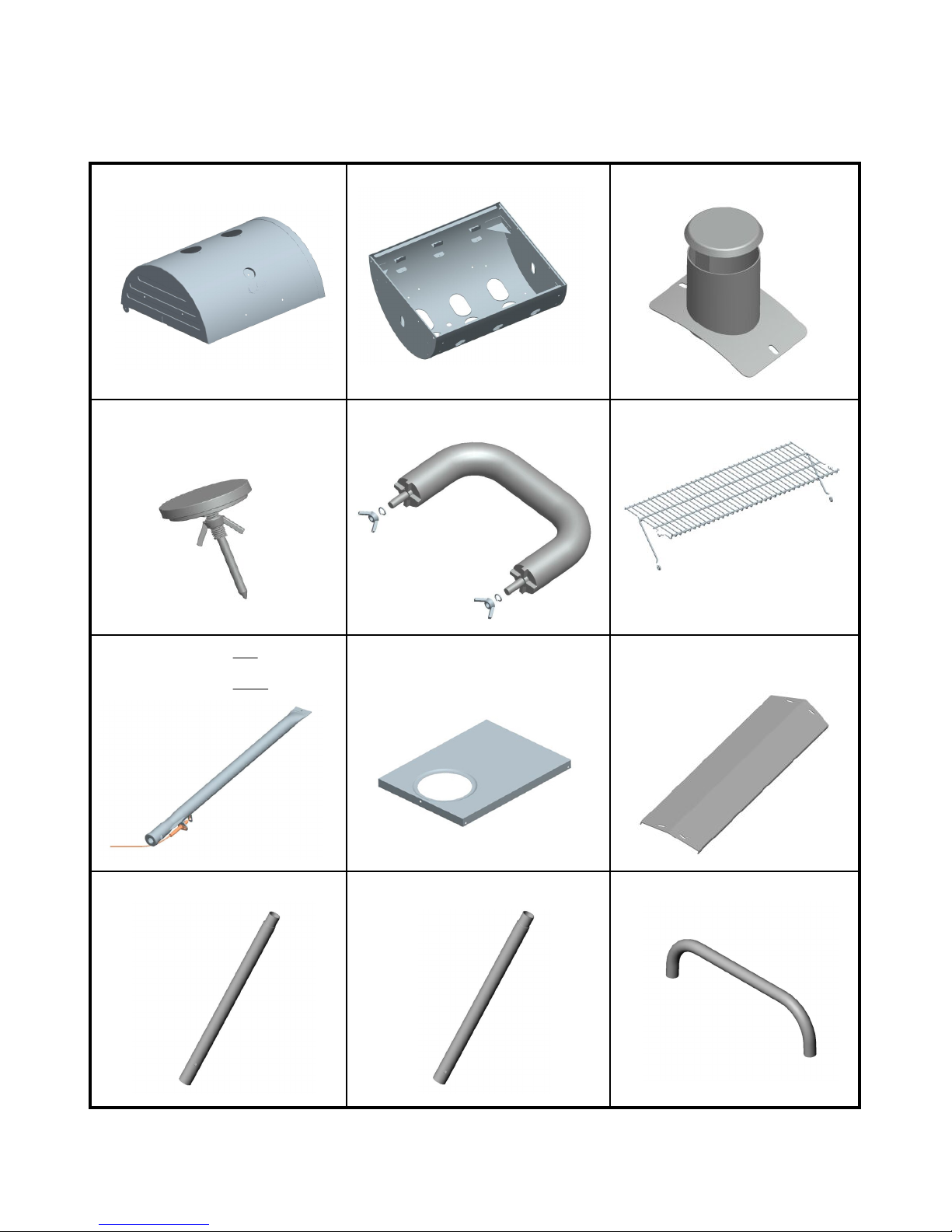

12. LEG CROSS BAR....2PCS

11. SHORT LEG………….2PCS10. LONG LEG………..…2PCS

9. FLAME SHIELD…..3PCS8. BASE………………..…1PC7A. BURNER (with short wire)….2PC

6.WARMING.RACK…..1 PC5. HOOD HANDLE……..1 SET4. THERMOMETER……1 PC

3. CHIMNEY……..2PCS2. GRILL BODY……...1PC1. HOOD……………....1PC

ILLUSTRATED PARTS LIST:

™ & © Char-Griller / A&J Mfg.

7B. BURNER (with longer wire)…1PC

page 7

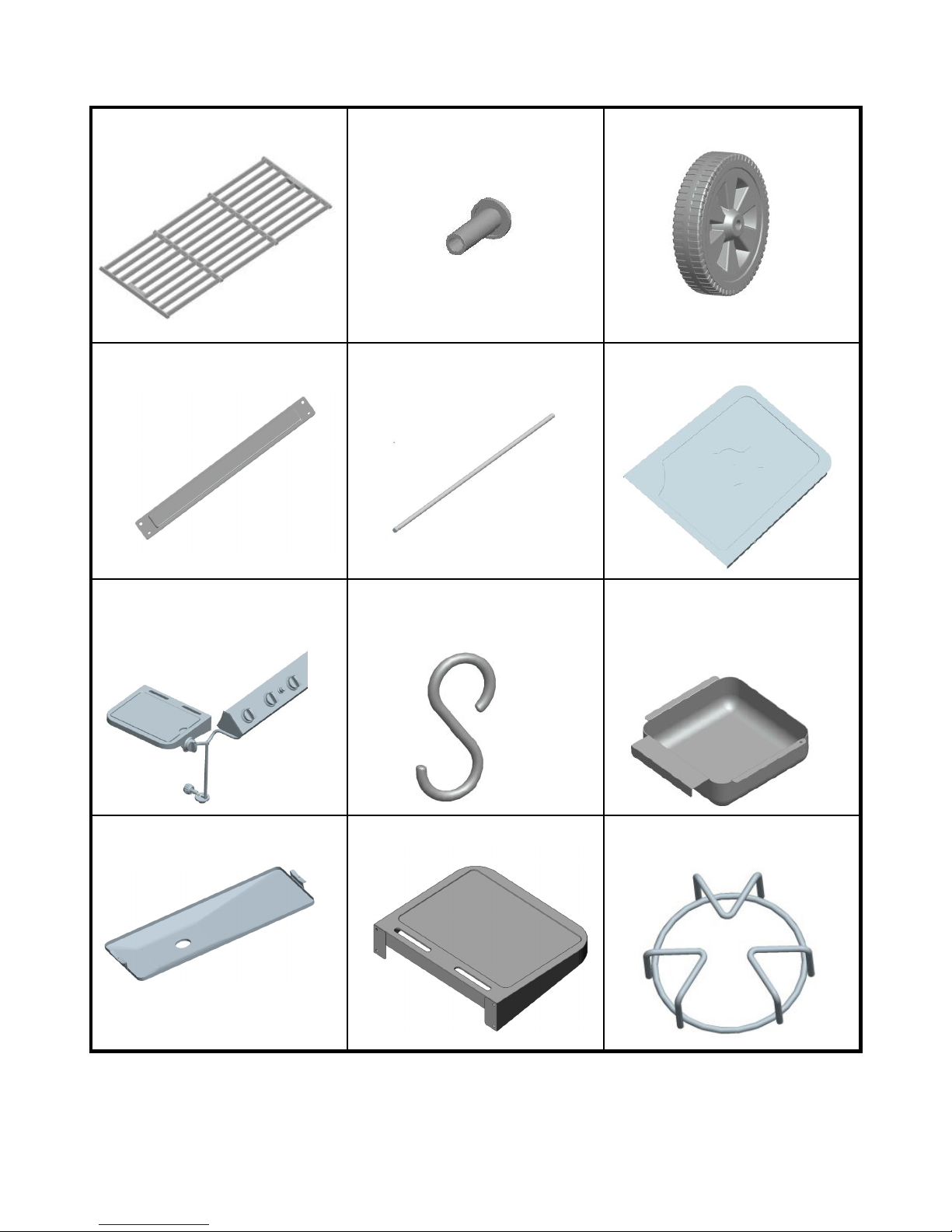

24. POT STAND……1 PC23. SIDE SHELF…………1 PC22. CATCH PAN……..…..1PC

21. GREASE TRAY..……1PC20. UTENSIL HOOK….3PCS

19. SIDE BURNER / CONTROL

PANEL / HOSE VALVE…1SET

18. FRONT PANEL……..1PC

17. AXEL………………..….1PC

16. LEG BRACE……….2PCS

15. WHEEL…………......2PCS

14. AXEL CAP…………....2PCS13.COOKING GRATE….3PCS

™ & © Char-Griller / A&J Mfg.

page 8

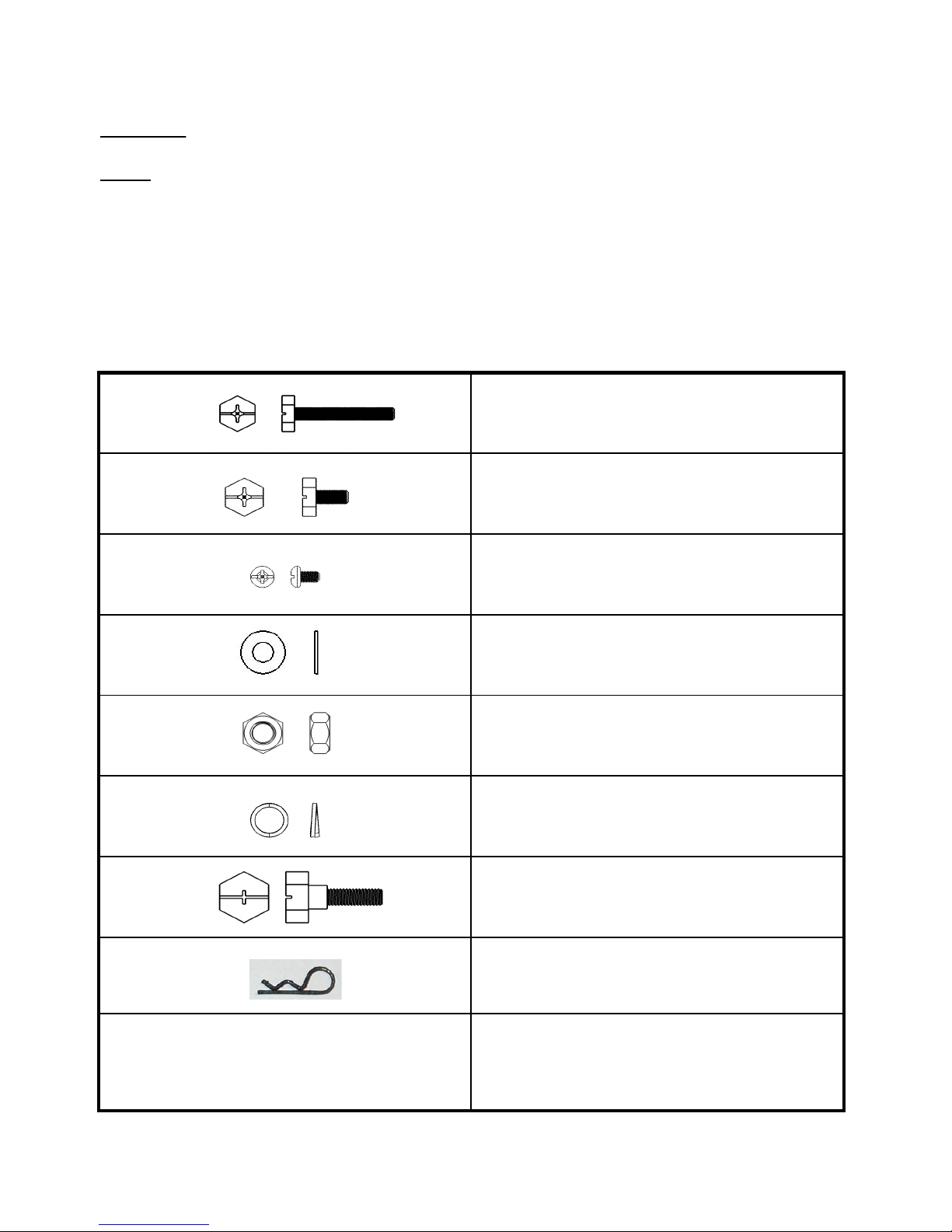

HAIR COTTER PIN….2 PCS

¼” LOCK WASHER…32 PCS

HINGE PINS………..2 PCS

¼-20 HEX NUT……..8 PCS

¼” FLAT WASHER…4 PCS

SCREW……………….3 PCS

¼-20x1/2” BOLT….... 38 PCS

¼-20x 1 ½” BOLT……4 PCS

Assembly: Requires 2 people. Get another person to help.

Tools Needed: Pliers, Phillips Head Screwdriver and a 7/16” Nut Driver.

NOTE: Do Not tighten any bolts unless instructed to do so. Tightening too soon may prohibit

parts from fitting together. All Hex Nuts should be on the inside of the grill unless stated

otherwise. Unpack all contents in a well cleared and padded area.

Estimated Assembly Time: 45 minutes

STOP! Do Not Return to Store. If you are missing parts or need assistance please email us at

info@chargriller.com or call 912-638-4724. Do not attempt assembly if you are missing parts.

HARDWARE:

™ & © Char-Griller / A&J Mfg.

page 9

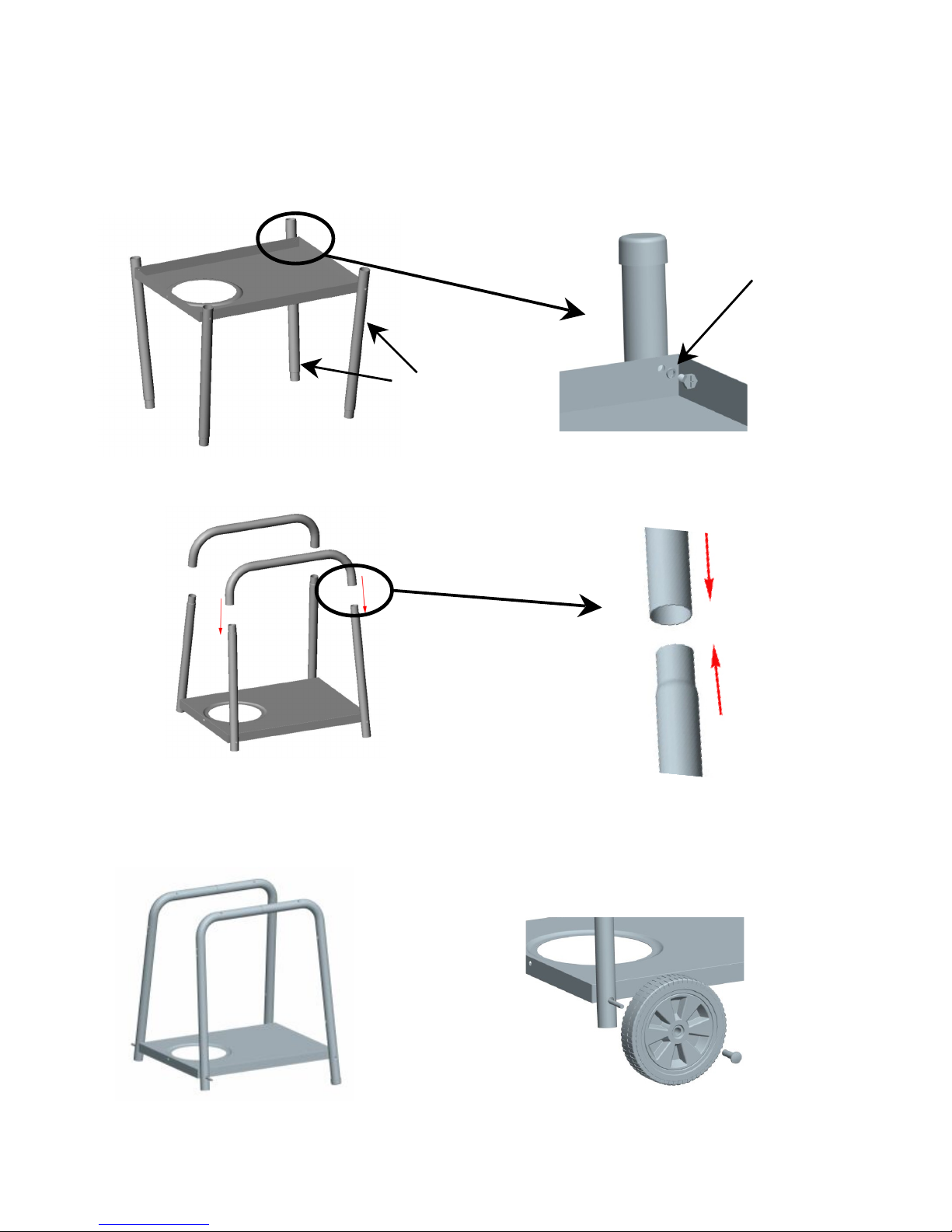

Step 1

Attach the LONG LEGS and SHORT LEGS to the base, opposite the tank well/hole with two (2)

lock washers ½” Bolts as shown below.

Assembly Instructions

Step 2

Insert the LEGS into the LEG CROSS BARS as shown below.

Step 3

Insert the AXEL through the SHORT LEGS and through the BASE. Slide WHEELS onto

AXEL and hammer AXEL CAPS onto each end of the AXEL to secure WHEELS.

™ & © Char-Griller / A&J Mfg.

Lock Washer

Long Legs

page 10

Step 4

Install the two (2) LEG BRACES to the LEGS using eight (8) LOCK WASHERS and eight (8) ½”

BOLTS as shown. Remember to NOT tighten the bolts until the grill is completely assembled.

Step 5

Attach the FRONT PANEL to the inside of the front LEGS using four (4) LOCK WASHERS and

½” BOLTS as shown below.

Step 6

Attach the GRILL BODY to the LEGS using four (4) LOCK WASHERS, four (4) ½” BOLTS and four (4)

FLAT WASHERS as shown. Make sure to insert the bolt first through the lock washer then the flat

washer then through the grill body as shown. You may need to loosen other bolts and move the GRILL

BODY slightly to get the holes in the GRILL BODY to line up with the holes in the LEGS.

™ & © Char-Griller / A&J Mfg.

Lock Washer

LEG BRACE

Lock Washer

Flat Washer

Lock Washer

Bolt
