Charmglow CT3402W Manuale utente

ASSEMBLER/INSTALLER:

LEAVE THESE INSTRUCTIONS WITH THE CONSUMER.

CONSUMER/USER:

READ ALL THESE INSTRUCTIONS AND KEEP THEM IN

A SAFE PLACE FOR FUTURE REFERENCE.

11412239 021802

TOOLS REQUIRED

#2 PHILLIPS SCREWDRIVER

PLIERS

HAMMER

BOX END WRENCH

WARNING:

THE EDGES OF SHEET METAL PARTS CAN

CAUSE INJURY IF NOT HANDLED WITH CARE.

USE EXTREME CAUTION!

IMPORTANT!

TO ENSURE PROPER GAS FLOW,BURNER

CONTROL VALVES MUST BE “OFF”BEFORE

OPENING THE GAS CYLINDER VALVE.

LOOK INSIDE FOR:

EASY ASSEMBLY INSTRUCTIONS

IMPORTANT WARRANTY INFORMATION

SAFETY AND MAINTENANCE TIPS

NOTE:

HARDWARE SHOWN ACTUAL SIZE

IN MANUAL.

FOR YOUR CONVENIENCE,EXTRA

HARDWARE MAY BE INCLUDED.

OUTDOOR COOKING

4101 Howard Bush Dr.

Neosho, Mo. 64850

INTERNET SITE:

www.bbqhq.com

ENGINEERING

CODE

CCF11244

MODEL

CT3402W

*CYLINDERNOTINCLUDED

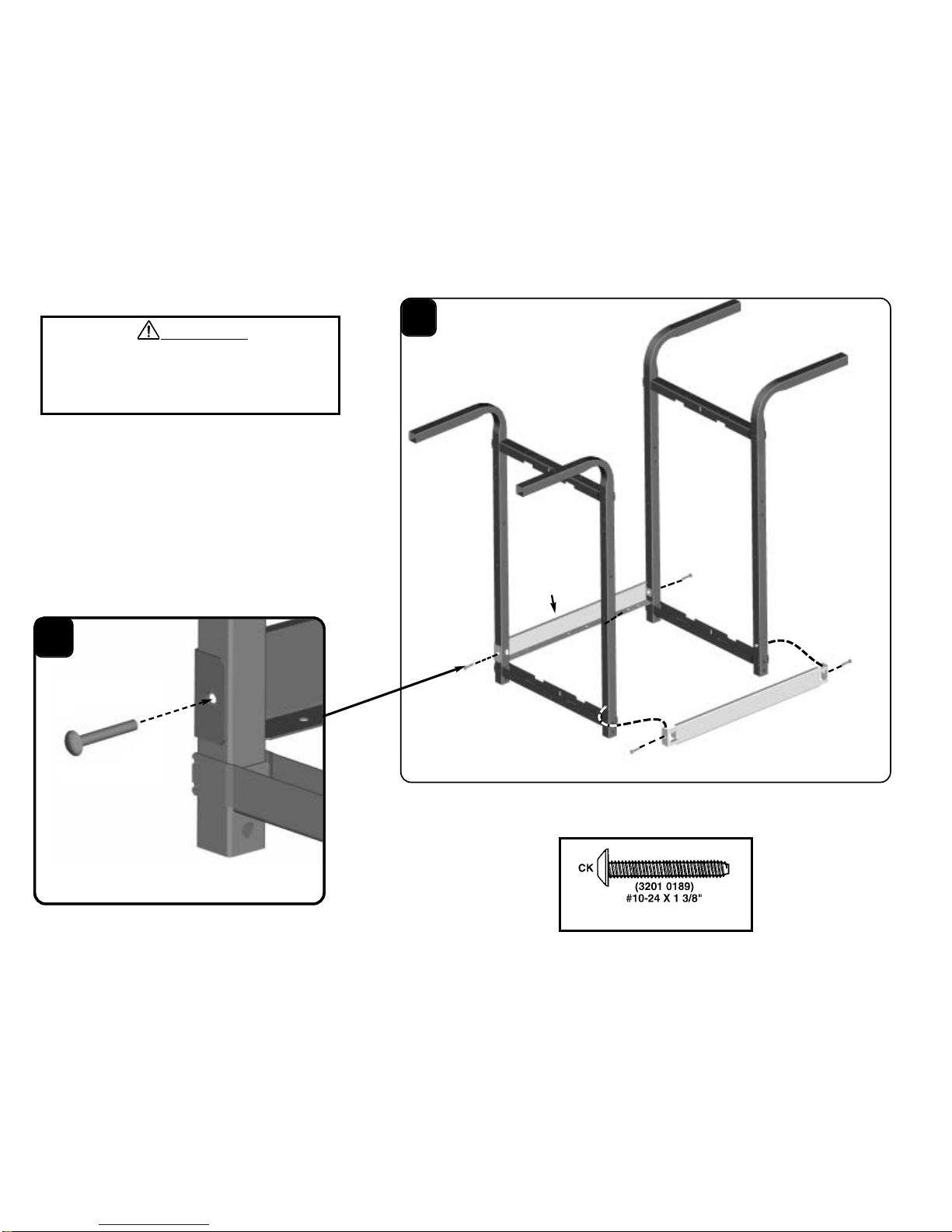

11412239 (Pg. 2)

(4) Qty

LEFT

RIGHT

BACK

FRONT

LABEL

BACK

LEFT

WARNING:

Combustion by-products produced when using

this product contains chemicals known to the

State of California to cause cancer, birth defects,

or other reproductive harm.

11412239 (Pg. 3)

RIGHT

FRONT

LEFT

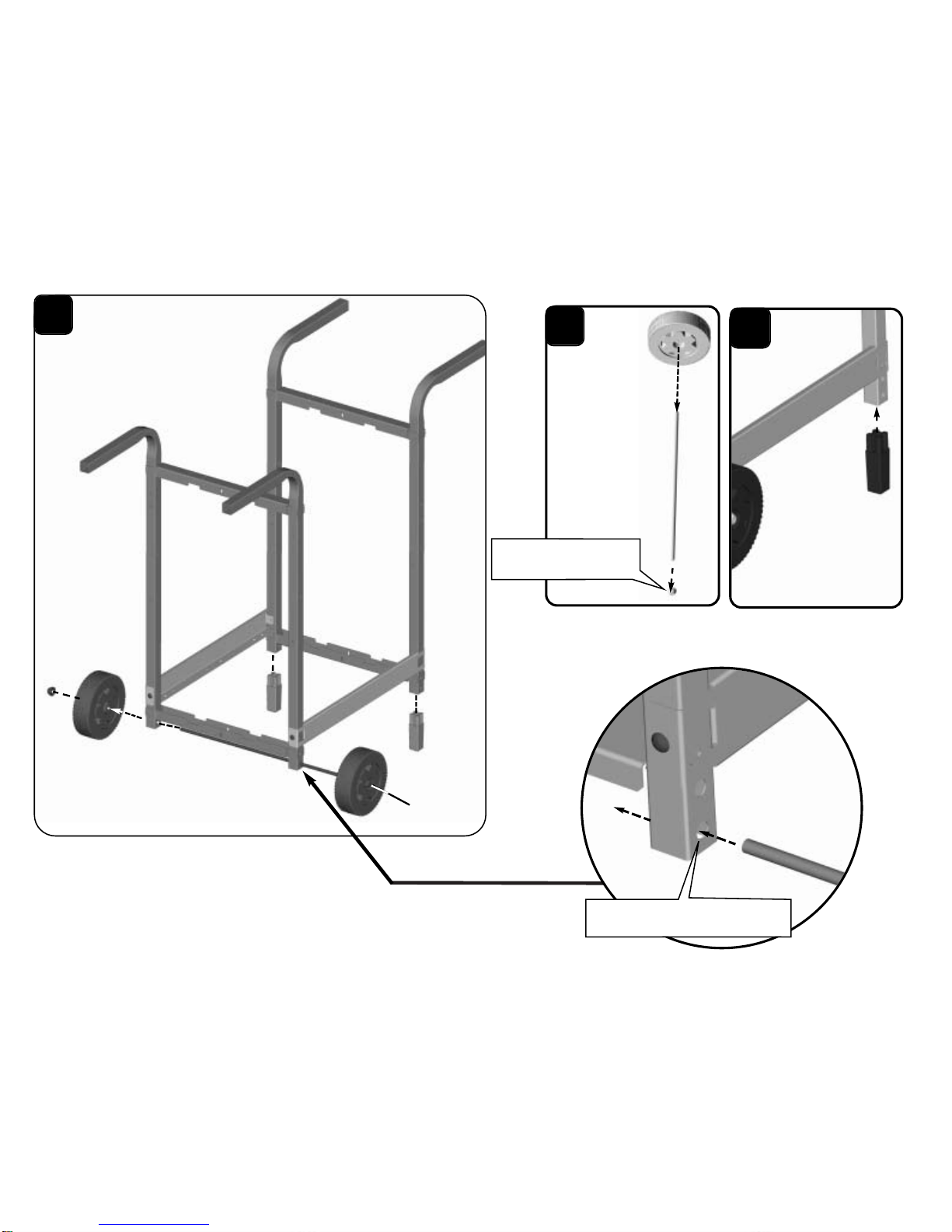

TAP AXLE (3) INTO ONE HUB

CAP (17) WITH A HAMMER.

INSERT THE AXLE INTO THE BOTTOM

HOLES IN THE LEFT LEGS.

11412239 (Pg. 4)

(4) Qty

(2) Qty

BACK

C1 42

BACK

SOUP CAN NOT

INCLUDED

11412239 (Pg. 5)

FRONT

NOTE VALVE AND HOSE

ORIENTATION

LEFT

(4) Qty (2) Qty

11412239 (Pg. 6)

48a

SPRING TAB

NOTCH

48a

(2) Qty.

NOTE: THE SPRING TAB MUST BE ON TOP

AND SNAP INTO NOTCH ON ELECTRODE.

CORRECT SPRING POSITION

ELECTRODE TIP

11412239 (Pg. 7)

(2) Qty (1) Qty

BACK

UNDERNEATH VIEW

VENTURI TUBES

ORIFICE

SMALL

HEAT SHIELD

IMPORTANT: POSITION THE BURNER VENTURI TUBES

OVER THE VALVE ORIFICES.THE ORIFICES MUST BE

VISIBLE THROUGH THE VENTURI TUBE’S AIR OPENINGS.

HEAT SHIELD NOT

SHOWN FOR CLARITY

LEFT

LARGE

HEAT SHIELD

47a

NOTE: THE BURNER WILL HOLD

THE HEAT SHIELD IN PLACE.

11412239 (Pg. 8)

TEST THE IGNITER: A SPARK SHOULD APPEAR AT ELECTRODE TIP.

IF THE SPARK DOES NOT APPEAR:

- CHECK THE WIRE CONNECTION TO THE IGNITER.

-CHECK THE ELECTRODE INSTALLATION IN DETAIL E.

MAIN BURNER

ELECTRODE WIRE

THE ELECTRODE TIP IS LOCATED ON

THE BURNER ASSEMBLED IN THE

BOTTOM CASTING.

BACK

RIGHT

(12) Qty

HBACK

RIGHT

REPEAT FOR LEFT SIDE TABLE

11412239 (Pg. 9)

(2) Qty

JJ2

(2) Qty

11412239 (Pg. 10)

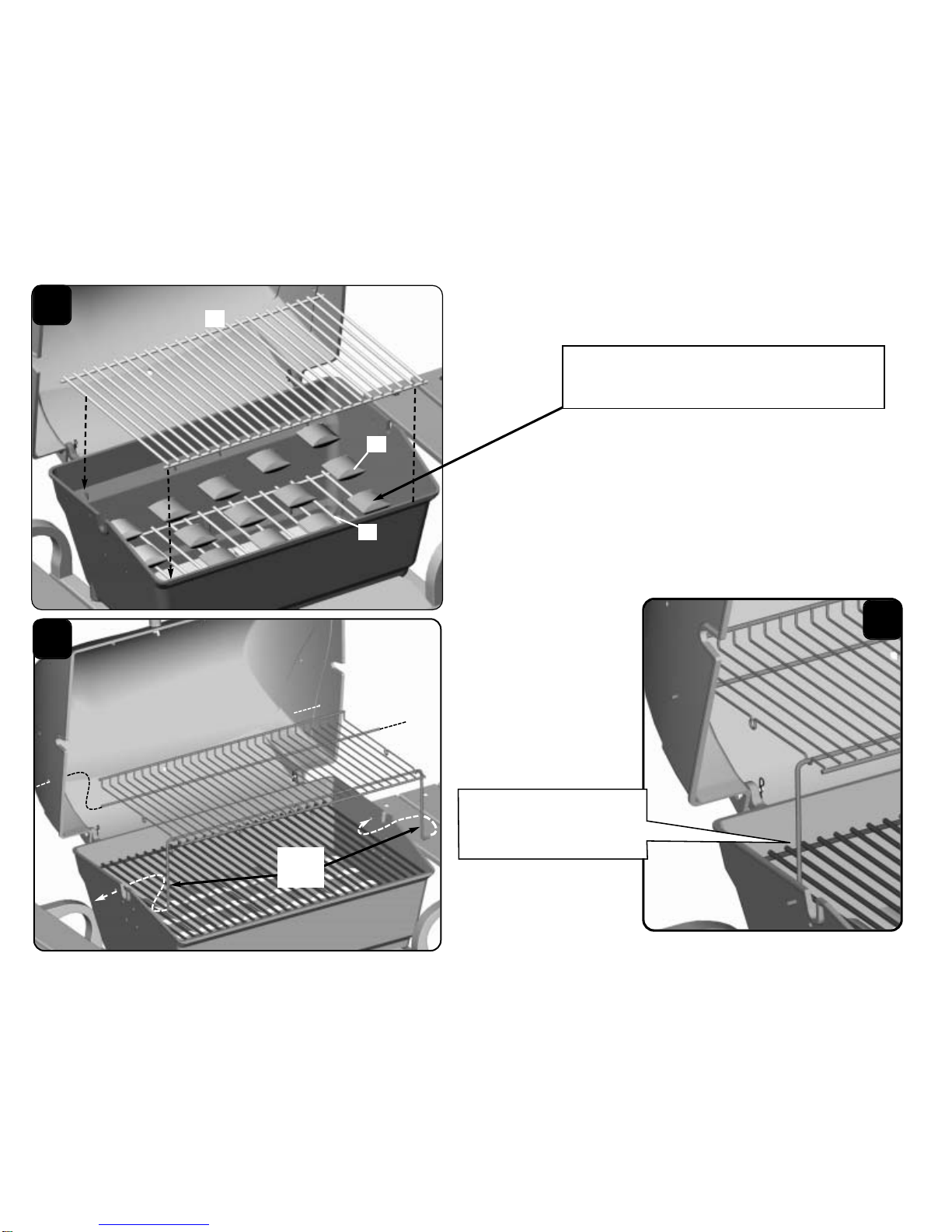

TO CENTER THE RACK,SLIGHTLY

BEND THE PIVOT WIRES TO ADJUST

FOR A TIGHT FIT.

IMPORTANT: EVENLY SPACE THE CERAMIC

BRIQUETTES (62) ON TOP OF THE ROCK GRATE.DO NOT USE

OR SUBSTITUTE CHARCOAL IN A GAS GRILL.

PIVOT

WIRES
