BubbleMachine

User Manual

Page 2 of 11 Bubble Machine User Manual (Rev. 04)

TABLE OF CONTENTS

1. Before You Begin.................................................................................3

What Is Included ...............................................................................................3

Unpacking Instructions......................................................................................3

Claims........................................................................................................................ 3

Text Conventions..............................................................................................3

Icons..................................................................................................................3

Document Information.......................................................................................3

Product at a Glance ..........................................................................................4

Safety Notes......................................................................................................4

2. Introduction..........................................................................................5

Product Overview..............................................................................................5

3. Setup.....................................................................................................6

AC Power..........................................................................................................6

Fuse Replacement..................................................................................................... 6

Mounting ...........................................................................................................7

Orientation ................................................................................................................. 7

Rigging....................................................................................................................... 7

4. Operation..............................................................................................8

Operation ..........................................................................................................8

5. Technical Information..........................................................................9

Product Maintenance........................................................................................9

General Troubleshooting ..................................................................................9

Contact Procedure..........................................................................................10

CHAUVET® Contact Information....................................................................10

Returning Products to CHAUVET® ................................................................10

6. Technical Specifications...................................................................11

Bubble Machine User Manual (Rev. 04) Page 3 of 11

EFORE

EGIN

What Is

Included

1 x Bubble Machine

1 x Power Cord

1 x Warranty Card

1 x User Manual

Unpacking

Instructions

Immediately upon receipt, carefully unpack the product and check the container to make

sure you have received all the parts indicated above in good condition.

Claims

If the container or the material inside the container (the product and included

accessories) appear damaged from shipping, or show signs of mishandling, notify the

carrier immediately, not CHAUVET®, upon receipt. Failure to do so in a timely manner

may invalidate your claim with the carrier. In addition, keep the container and all the

packing material for inspection.

For other issues such as missing components or parts, damage not related to shipping,

or concealed damage, file a claim with CHAUVET® within seven (7) days of receiving

the merchandise.

Text

Conventions

Convention Meaning

1~512 A range of values

50/60 A set of values of which only one can be chosen

Settings A menu option not to be modified

Menu > Settings A sequence of menu options to be followed

<ENTER> A key to be pressed on the product’s control panel

ON A value to be entered or selected

Icons

Icon Meaning

This paragraph contains critical installation, configuration, or

operation information. Failure to comply with this information may

render the product partially or completely inoperative, cause

damage to the product, or cause harm to the user.

This paragraph contains important installation or configuration

information. Failure to comply with this information may prevent

the product from functioning correctly.

This paragraph reminds you of useful, although not critical,

information.

Document

Information

The information and specifications contained in this document are subject to change

without notice. CHAUVET® assumes no responsibility or liability for any errors or

omissions that may appear in this manual. CHAUVET® reserves the right to update the

existing document or to create a new document to correct any errors or omissions.

You can download the latest version of this document from www.chauvetlighting.com.

Electronically published by CHAUVET® in the United States of America

Author Date Editor Date

A. Diaz 10/06/11 B. Pillow 10/28/11

Page 4 of 11 Bubble Machine User Manual (Rev. 04)

Product at a

Glance

Use on Dimmer



Auto Programs



Outdoor Use



Fixed voltage (120 V or 230 V)



Sound Activated



Replaceable Fuse



DMX



User Serviceable



Master/Slave



Duty Cycle



Safety Notes

Please read the following Safety Notes carefully before working with the product. The

Notes include important safety information about installation, usage, and maintenance.

Always connect the product to a grounded circuit to avoid the risk of electrocution.

Always disconnect the product from the power source before cleaning or replacing

the fuse.

Make sure the power cord is not crimped or damaged.

Never disconnect the product from power cord by pulling or tugging on the cord.

If mounting the product overhead, always secure to a fastening device using a

safety cable.

Make sure there are no flammable materials close to the product when operating.

Always make sure that the voltage of the outlet to which you are connecting the

product is within the range stated on the decal or rear panel of the product.

The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not

expose the product to rain or moisture.

Always install the product in a location with adequate ventilation, at least 20 in (50

cm) from adjacent surfaces.

Be sure that no ventilation slots on the product’s housing are blocked.

Never connect the product to a dimmer.

Make sure to replace the fuse with another of the same type and rating.

Never carry the product from the power cord or any moving part. Always use the

hanging/mounting bracket or the handles.

The maximum ambient temperature is 104° F (40° C). Do not operate the product at

higher temperatures.

Do not leave unused fluid in the reservoir for an extended period. The fluid

may thicken in the reservoir.

In the event of a serious operating problem, stop using the product immediately.

Never try to repair the product. Repairs carried out by unskilled people can lead to

damage or malfunction. Please contact the nearest authorized technical assistance

center.

Keep this User Manual for future consultation. If you sell the product to another

user, be sure that they also receive this document.

Bubble Machine User Manual (Rev. 04) Page 5 of 11

NTRODUCTION

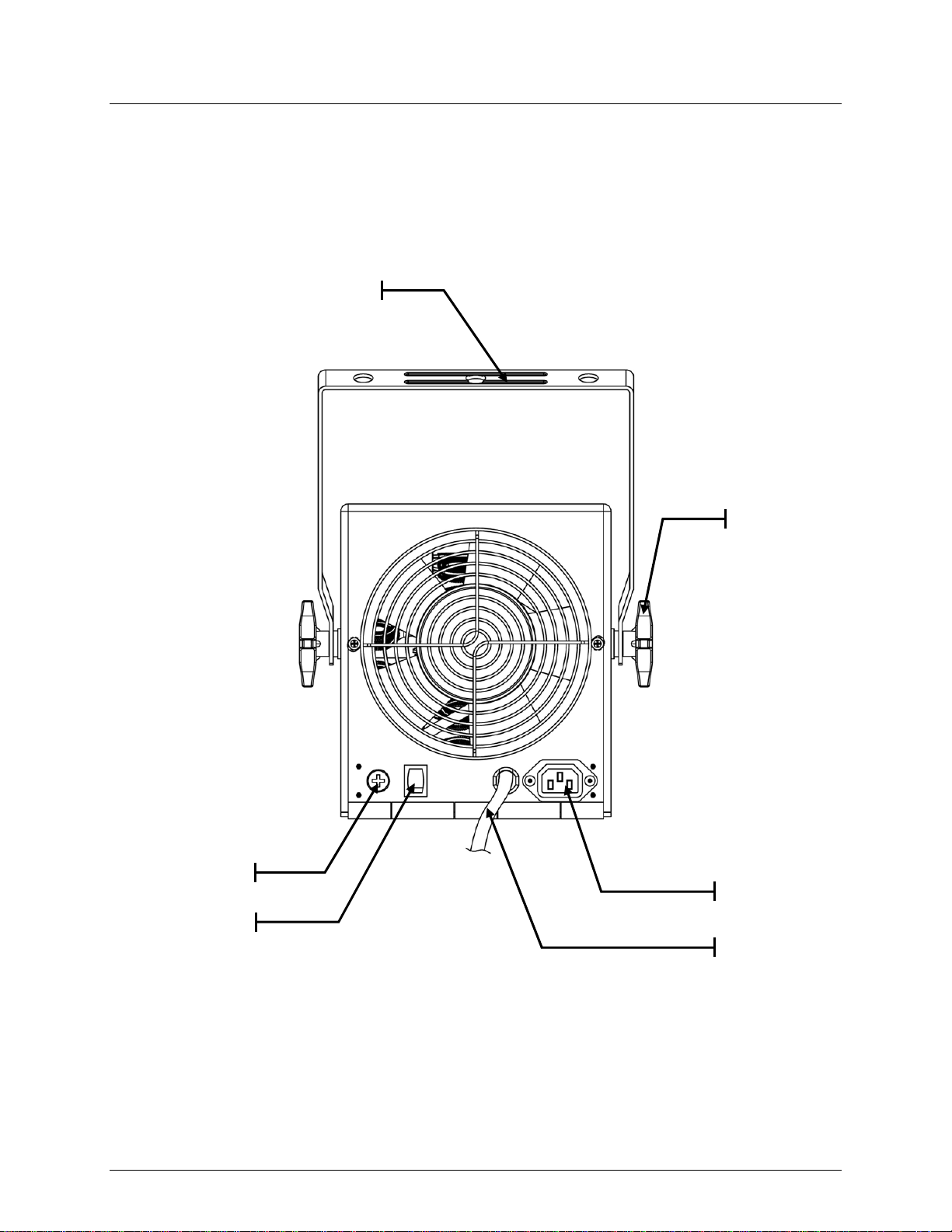

Product Overview

AdjustmentKnob

MountingBracket

On/OffSwitch

FuseHolder

RemoteIn

PowerCord

Page 6 of 11 Bubble Machine User Manual (Rev. 04)

ETUP

AC Power

The Bubble Machine has a fixed voltage power supply and can work with an input

voltage of either 120 V, 60 Hz or 230 V, 50 Hz, depending on the specific model.

To determine the product’s power requirements (circuit breaker, power outlet, and

wiring), use the current value listed on the label affixed to the product’s back panel, or

refer to the product’s specification chart. The listed current rating indicates the product’s

average current draw under normal conditions.

Always connect the product to a protected circuit (circuit breaker or fuse). Make

sure the product has an appropriate electrical ground to avoid the risk of

electrocution or fire.

Never connect the product to a rheostat (variable resistor) or dimmer circuit, even

if the rheostat or dimmer channel serves only as a 0 to 100% switch.

Fuse

Replacement

Follow the instructions below to change the fuse, if necessary.

Disconnect the product from the power outlet before replacing the fuse.

1. Disconnect the product from the power outlet.

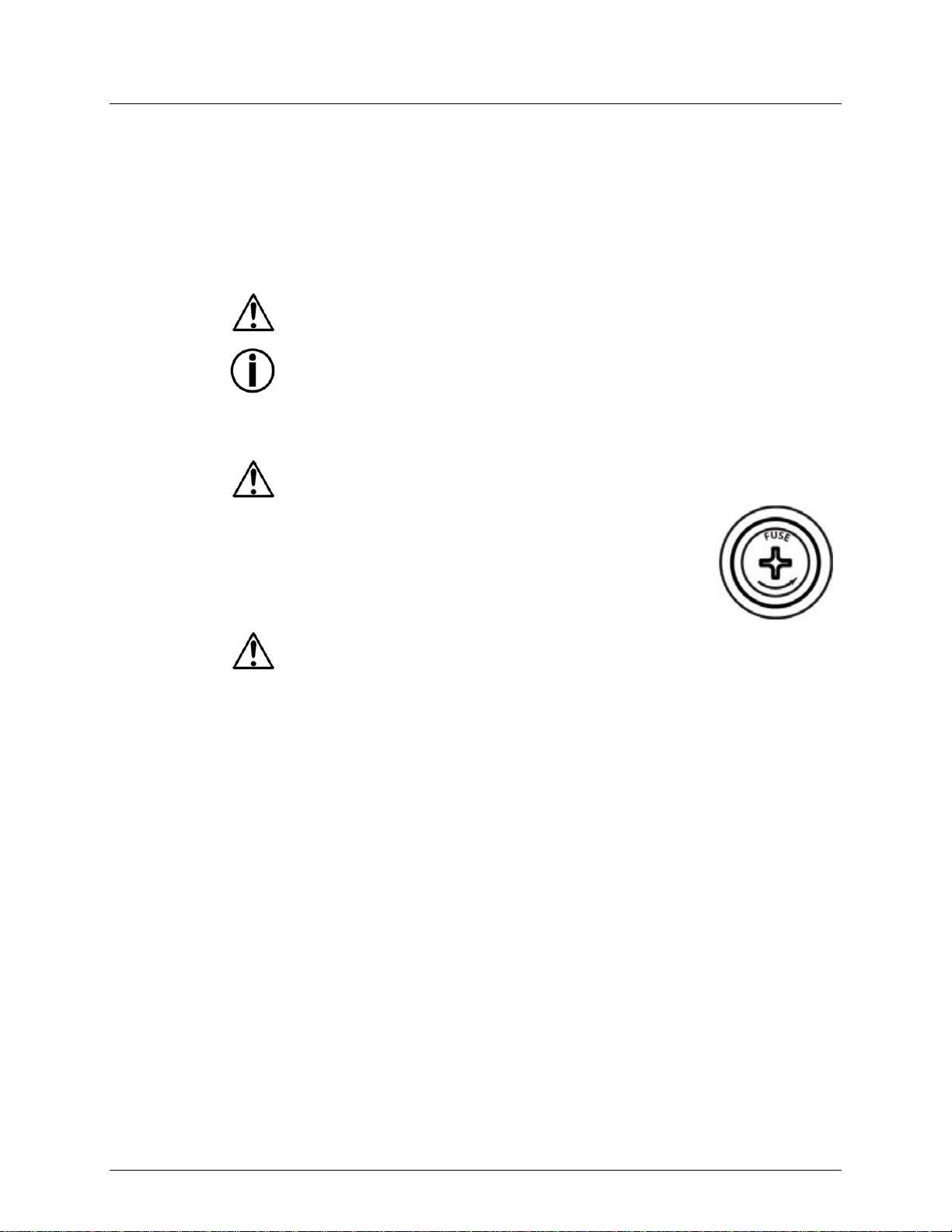

2. With a Phillips #2 head screwdriver, unscrew the fuse holder

cap from the housing.

3. Remove the blown fuse and replace with a good fuse of the

same type and rating.

4. Screw the fuse holder cap back in place and reconnect power.

Always replace a blown fuse with the same type and rating.

Bubble Machine User Manual (Rev. 04) Page 7 of 11

Mounting

Before mounting the product, read and follow the safety recommendations indicated in

the Safety Notes section.

Orientation

The Bubble Machine may be mounted in any position; however, make sure adequate

ventilation is provided around the product.

Rigging

Before deciding on a location for the product, always make sure there is easy

access to the product for maintenance and fluid replenishment purposes.

Make sure that the structure or surface onto which you are mounting the product

can support the product’s weight. Please see the Technical Specifications section of

this manual for weight information.

When mounting the product overhead, always use a safety cable. Mount the

product securely to a rigging point, whether an elevated platform or a truss.

When rigging the product onto a truss, you should use a mounting clamp of

appropriate weight capacity. The bracket has a 13 mm hole, which is appropriate for

this purpose.

The bracket adjustment knobs allow for directional adjustment when aiming the

product to the desired angle. Only loosen or tighten the bracket knobs manually.

Using tools could damage the knobs.

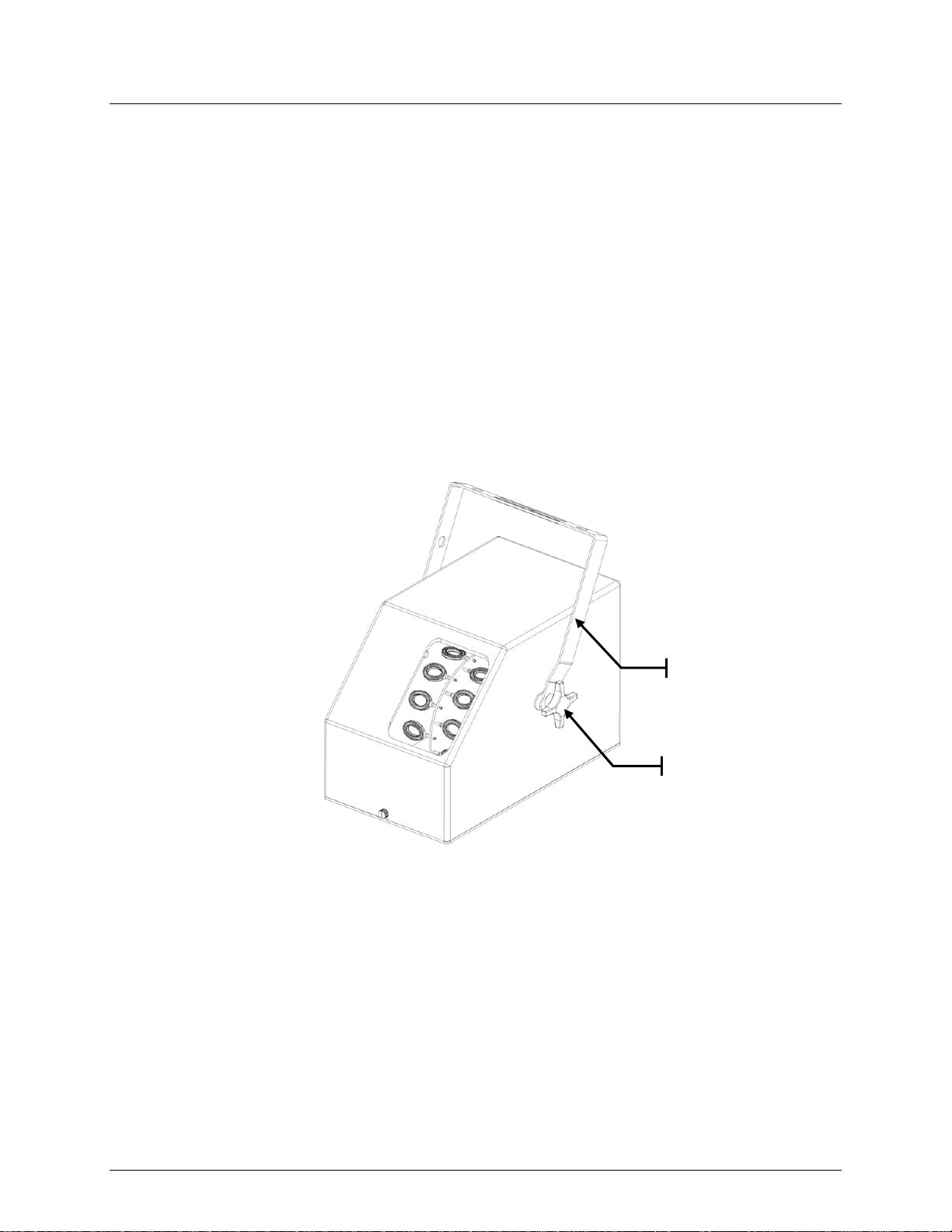

MountingDiagram

MountingBracket

AdjustmentKnob

Page 8 of 11 Bubble Machine User Manual (Rev. 04)

PERATION

Operation

1. Place the Bubble Machine on a level surface and loosen the thumbscrews on the

front of the unit for fluid tank access. Lift the cover.

2. Fill the tank with bubble fluid.

Note: We recommend using CHAUVET® bubble fluid (BJU) which has been

specially formulated for use with CHAUVET® bubble machines.

3. Lower the cover and tighten screws.

4. Plug into a suitable wall outlet.

5. Turn on the unit. For remote use, move the switch to Remote and use the optional

remote controller to operate the bubble machine.

Note: Do not leave unused fluid in the reservoir for an extended period. The

fluid may thicken in the reservoir.

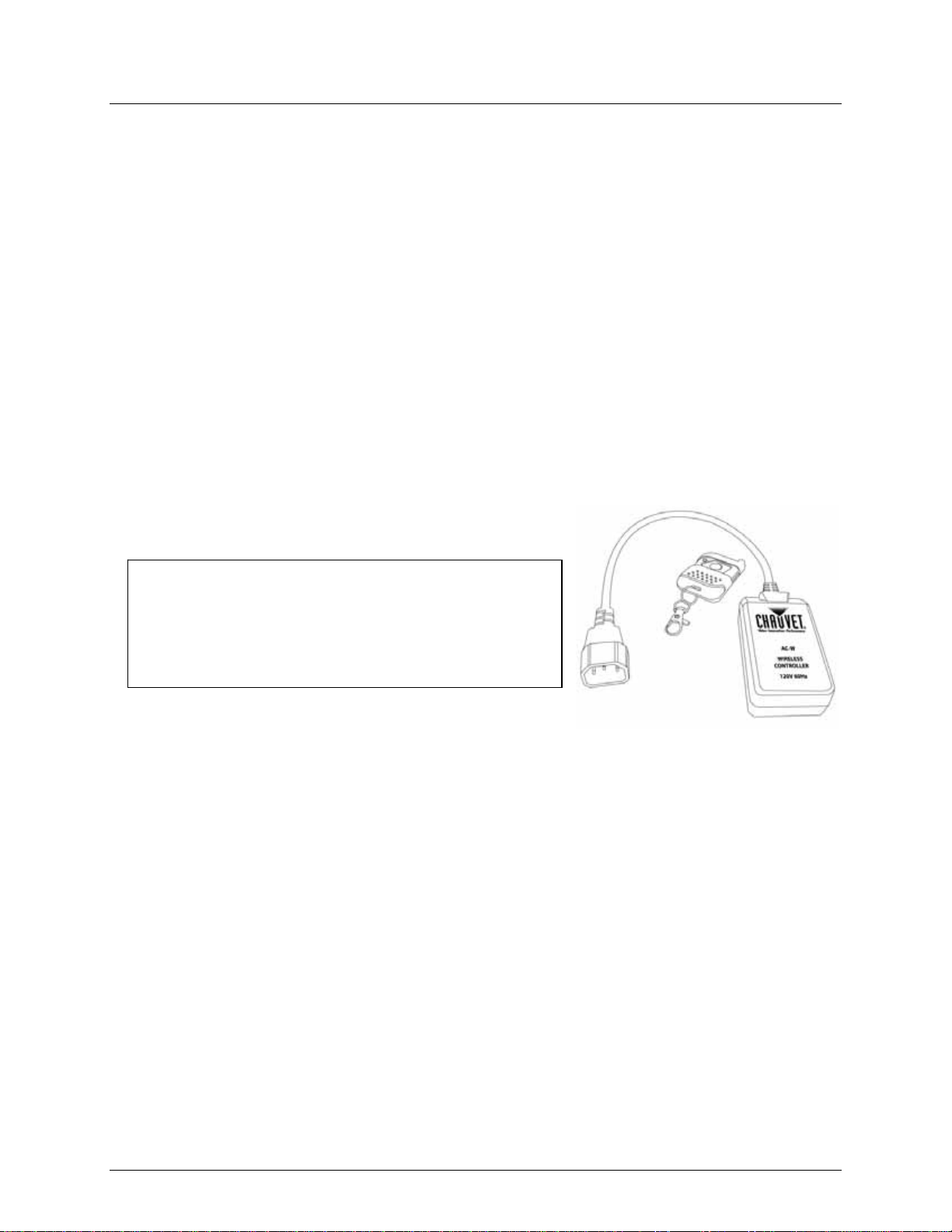

AC-W wireless controlle

is now available for use with the

Bubble Machine. The AC-W is a wireless trigger that does not

need an external power supply — easy setup and easy teardown.

In addition, the AC-W has an operation range of 100 ft.

(unobstructed) for increased flexibility enabling the attached

machines to be triggered from almost anywhere.

Bubble Machine User Manual (Rev. 04) Page 9 of 11

ECHNICAL

NFORMATION

Product

Maintenance

Dust build up reduces output performance and can cause overheating. This can lead to

reduction of the product’s life and mechanical wear. To maintain optimum performance

and minimize wear, you should clean your products frequently. However, be aware that

usage and environmental conditions could be contributing factors to increase the

cleaning frequency.

After every 40 hours of continuous operation or when the machine will be idle for a long

time it is recommended to rinse the bubble wands and fluid tank with warm water to

prevent a build-up of residue which could reduce performance.

To clean the product, follow the instructions below:

While the unit is unplugged, loosen the thumbscrew and lift cover to reveal the fluid

tank.

Empty all bubble fluid from the tank and replace with warm water.

Plug the product in and allow it to run as usual until all wands appear to be free of

residue.

Always dry the surfaces carefully after cleaning them.

Do not spin the fan using compressed air because you could damage it.

General Troubleshooting

Symptom Possible Cause Possible Action

Circuit breaker or fuse

keeps blowing

Excessive load on the circuit Make sure that the total load does not

exceed 80% of the breaker or fuse

nominal current

Short circuit along the power lines Check the power lines and power cords

Product does not power

No energy on power outlet Check power outlet

Change to another outlet

Loose or damaged power cord Check the power cord

Blown fuse Replace blown fuse with a good one of

the same type and rating

Internal problem Send product for repair

If you still experience problems after trying the above solutions, contact

CHAUVET® Technical Support.

Page 10 of 11 Bubble Machine User Manual (Rev. 04)

Contact

Procedure

In case you need to return a product or request support, follow the procedure below:

If you live in the US, contact CHAUVET® World Headquarters (see below).

If you live in the UK or Ireland, contact CHAUVET® Europe Ltd.(see below).

If you live in any other country, DO NOT contact CHAUVET®. Instead, contact your

distributor of record. Refer to our Web site for contact details of distributors outside

the US, United Kingdom, or Ireland.

CHAUVET®

Contact

Information

World Headquarters

CHAUVET®

General Information

Address: 5200 NW 108th Avenue

Sunrise, FL 33351

Voice: (954) 929-1115

Fax: (954) 929-5560

Toll free: (800) 762-1084

United Kingdom & Ireland

CHAUVET® Europe Ltd.

General Information

Address: Unit 1C

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK

NG16 6NT

Voice: +44 (0)1773 511115

Fax: +44 (0)1773 511110

Technical Support

Voice: (954) 929-1115 (Press 4)

Fax: (954) 756-8015

Email: [email protected]

Technical Support

Email: [email protected]

World Wide Web

www.chauvetlighting.com

World Wide Web

www.chauvetlighting.co.uk

If you live outside the US, United Kingdom, or Ireland, contact your distributor of

record and follow their instructions on how to return CHAUVET® products to

them. Visit our Web site for contact details.

Returning

Products to

CHAUVET®

Call the corresponding CHAUVET® Tech Support office and request a Return

Merchandise Authorization (RMA) number before shipping the product. Be prepared to

provide the model number, serial number, and a brief description of the cause for the

return.

You must send the merchandise prepaid, in its original box, and with its original packing

and accessories. CHAUVET® will not issue call tags.

Clearly label the package with the RMA number. CHAUVET® will refuse any product

returned without an RMA number.

Write the RMA number on a properly affixed label. DO NOT write the RMA number

directly on the box.

Before sending the product, clearly write the following information on a piece of paper

and place it inside the box:

Your name

Your address

Your phone number

The RMA number

A brief description of the problem

Be sure to pack the product properly. Any shipping damage resulting from inadequate

packaging will be your responsibility. As a suggestion, proper UPS packing or double-

boxing is always a safe method to use.

CHAUVET® reserves the right to use its own discretion to repair or replace

returned product(s).

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Chauvet Attrezzatura per DJ

Chauvet

Chauvet Hurricane 2000 Manuale utente

Chauvet

Chauvet Well Quad-M Manuale utente

Chauvet

Chauvet LEDrain 56 Manuale utente

Chauvet

Chauvet COLORado Zoom Tour WW Manuale utente

Chauvet

Chauvet Ovation E-910FC Manuale dell'operatore

Chauvet

Chauvet COLORdash Par-Q12 IP Manuale utente

Chauvet

Chauvet Colordash Accent Quad Manuale utente

Chauvet

Chauvet SM-150 Manuale utente

Chauvet

Chauvet EPIX STRIP TOUR Manuale utente

Chauvet

Chauvet Maverick MKII Spot Manuale utente

Chauvet

Chauvet Colordash Par-Quad 7 Manuale utente

Chauvet

Chauvet Colorado 1-Quad Tour Manuale utente

Chauvet

Chauvet Vivid 4 X4 Manuale utente

Chauvet

Chauvet WELL GOBO Manuale utente

Chauvet

Chauvet Gobo Zoom LED 2.0 Manuale utente

Chauvet

Chauvet SLIMPAR 56 Manuale utente

Chauvet

Chauvet TFX-950CM Manuale utente

Chauvet

Chauvet COLORdash Par-h12 ip Manuale utente

Chauvet

Chauvet EPIX FLEX 20 Manuale utente

Chauvet

Chauvet Double Derby CH-310 Manuale utente

Chauvet

Chauvet Colordash Par-Quad 7 Manuale utente

Chauvet

Chauvet MINI MOON CH-202B Manuale utente

Chauvet

Chauvet COLORado Batten 144 Tour Manuale utente

Chauvet

Chauvet SlimPAR T6 USB Manuale utente

Manuali Attrezzatura per DJ popolari di altre marche

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuale del proprietario

Zumtobel

Zumtobel APHRODITE Home Manuale utente

Snow Masters

Snow Masters Zig Oscillator Manuale utente

EuroLite

EuroLite 50530554 Manuale utente

Beamz

Beamz BUV243 Manuale utente

thomann

thomann Stairville DJ Lase 40-G MK-III Manuale utente

Eagletone

Eagletone 6 Eyes Flower Manuale utente

EuroLite

EuroLite FLD-1508 Manuale utente

Technical Pro

Technical Pro LG8xSEA Manuale utente

JB Systems

JB Systems Lounge Laser DMX Manuale utente

Lightmaxx

Lightmaxx Vega Halo 90 Manuale utente

Elation

Elation FUZE WASH Z350 Manuale utente

Maverick

Maverick MK3 WASH Manuale utente

Infinity

Infinity TF-260C7 Fresnel Manuale utente

Eliminator Lighting

Eliminator Lighting E 138 Manuale utente

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuale utente

KAM

KAM DMX Laser80 FScan Manuale utente

Eurotherm

Eurotherm LED TMH-X18 Manuale utente
