HD Outdoor Dome Camera (CV167)
Installation Quick Reference
No. Connector Pin Definition Remarks
1 RJ-45 - For network and PoE connections
2Power
(DC 12V / AC 24V)
1 AC24V 1 Power
connection
2 AC24V 2
3 GND
4 DC 12V +
3 BNC - For analog video output
4 Alarm & Audio I/O 1 Alarm In — Alarm
connection
2 Alarm In +
3 Alarm Out —
4 Alarm Out +
5 Audio Out R Audio Out
(future)
6 Audio Out L
7 Audio GND
8 Audio In R Audio In
(future)
9 Audio In L
5 microSD Card Slot - microSD card pre-inserted in card
slot for continuous recording. Do
not remove the microSD card when
the camera is powered on.
6 Reset Button - Press the button with one finger
for at least 10 seconds to restore
settings.
2. Before installing the camera in its
final location, connect the router
to “Data In” on the PoE injector and
connect the injector’s “Data & Power
Out” port to the Camera using Cat-5
network cables. Note: Runs can be
no longer than 100 meters. Connect
the PoE injector to a power outlet.
You may eliminate the PoE injector
by using a PoE-enabled router.
3. If you intend to take advantage of the camera’s onboard heater, the camera must
be powered using a 12VDC/24VAC power supply. Attach the camera’s “Power”
connector (Step 1, connector 2) to the power cable adapter using the optional
Phoenix connector and plug in a power supply to the female barrel connector. When
using a separate power supply, the PoE injector is no longer necessary. Instead use
a Cat-5 network cable to connect the camera’s network jack to the router.
4. If the connections have been made correctly, the network jack on the camera will
light green and yellow. This will be your sign to continue.
THINGS YOU NEED FOR INSTALLATION
If this CheckVideo device will be monitored
by a central station, please contact
the central station for a username and
password on their existing CheckVideo
account. The central station will add the
device to their account.
Included in the box:
• CheckVideo® HD Outdoor Bullet Camera
• Bag of mounting parts: screws (5), drywall
mounts (5), hex wrench, 2 Phoenix con-
nectors
• 32GB MicroSD card, pre-inserted
• Power Over Ethernet (PoE) injector
• Power cable adapter (female connector)
•Liquid tight conduit connector and
alternate rubber seal. Must be used in
outdoor installations to ensure weather
tight seal
You’ll also need:
• PC or Mac® with Broadband Internet
Service
• Router, connected to the Internet
• Phillips screwdriver
• Cat-5 network cables
• 12VDC/24VAC, 2A camera power supply,
not provided
1REVIEW THE CAMERA CONNECTORS
2CONNECT CAMERA TO ROUTER
1. For later reference, enter the device’s serial number
in the space below. This number is found on the
underside of the camera:
A: Power Cable Adapter
B: Phoenix Connector B
A
1 2 3 4 5 6

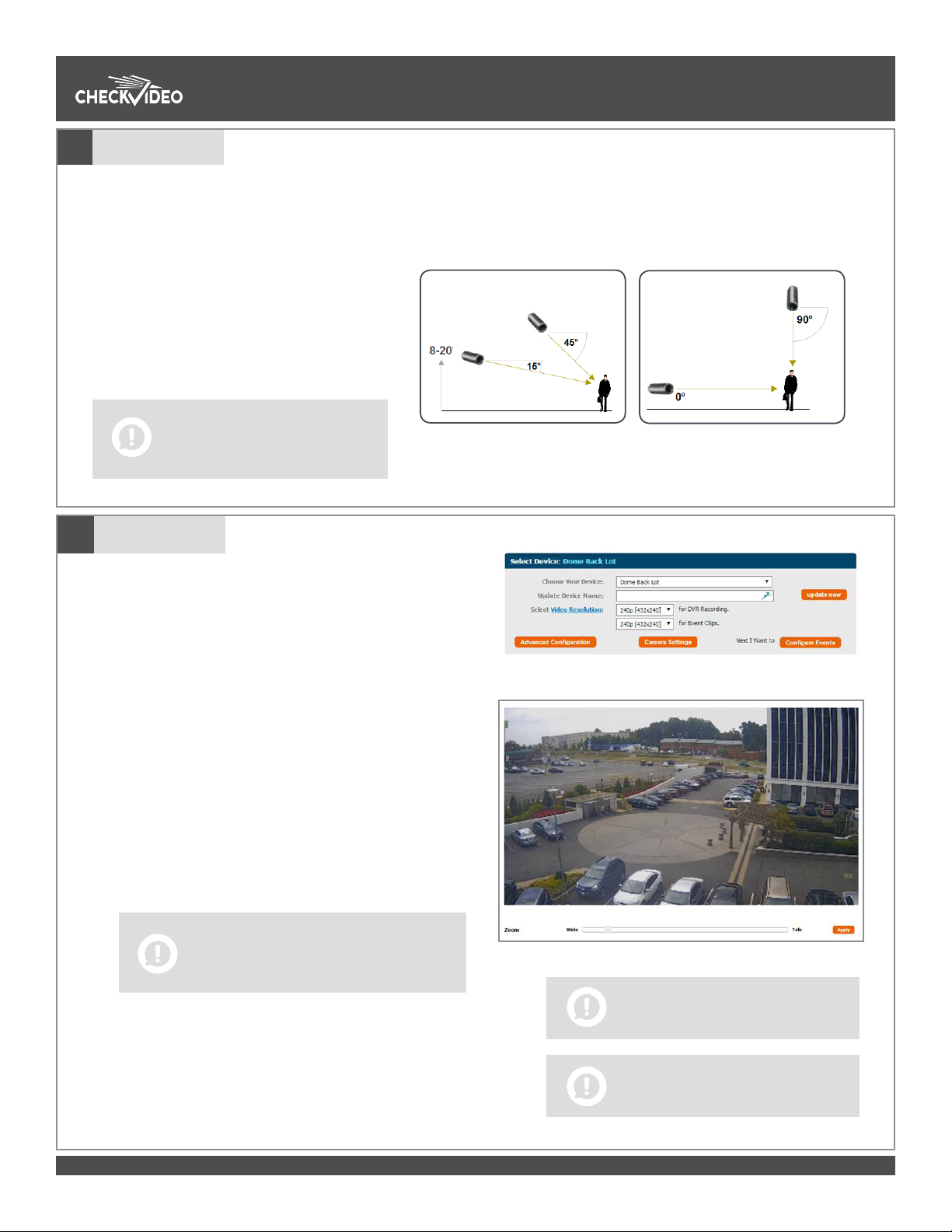

3ADD CHECKVIDEO HD CAMERA
1. If monitored by a Central
Station, contact them to add
the device to your account. If
self-monitored, go to the Check-
Video dashboard login page:
portal.checkvideo.net
2. On the CheckVideo Dashboard,
click on Devices > Add Device
3. In Register Device section, enter
the serial number found on the
underside of the camera and
define a Device Name
4. Click the Text Device button
to make sure the CheckVideo
Soware Service (CVSS) can
communicate to the device
5. When prompted, update the
device firmware.
© 2017 CheckVideo, LLC. CheckVideo is a registered trademark of CheckVideo, LLC. All rights reserved. 7CVCPQC000E-07.03
1 2 3 4
123456789
Outdoor installations require that you use the provided liquid tight conduit
connector. Please contact CheckVideo Support for installation instructions.
