Chef GHS604 (S/W) Manuale utente

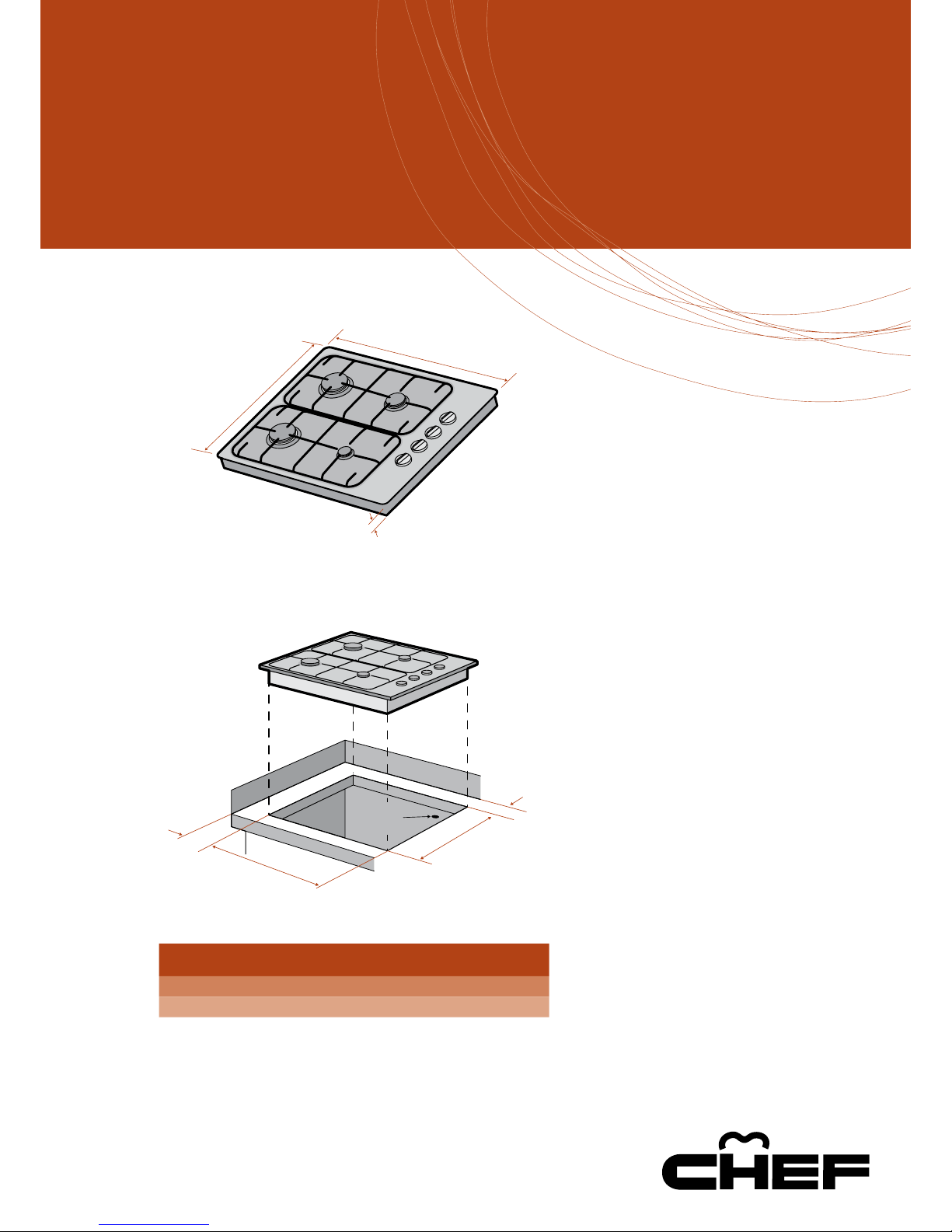

cooktop dimensions
installation guide
chef gas cooktops
models: GHS604 (S/W), GHC604 (S/W), GHS614 (S/W),
GHC614 (S/W), GHCF644S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMGHS/GHC600mm
535mm
58mm
built in
height
600mm
building-in cut-out dimensions
A minimum
B minimum
570mm
490mm
Gas supply
connection
*Minimum height of non-combustible surface is 150mm
NOTE: All appliances must be installed to Australian Standard AS5601
minimum distance to
combustible vertical surface minimum distance to
non-combustible vertical surface*
A 130mm 50mm
B 130mm 50mm
Walls around cooktop
must be heat resistant for
temperatures up to 90°C
to a height of 150mm
above the bench top.
GHC and GHCF models
supplied with 10Amp
plug and lead.
cooktop dimensions
installation guide
chef gas cooktops
models: GHS604 (S/W), GHC604 (S/W), GHS614 (S/W),
GHC614 (S/W), GHCF644S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMGHS/GHC600mm
535mm
58mm
built in
height
600mm
building-in cut-out dimensions
A minimum
B minimum
570mm
490mm
Gas supply
connection
*Minimum height of non-combustible surface is 150mm
NOTE: All appliances must be installed to Australian Standard AS5601
minimum distance to
combustible vertical surface minimum distance to
non-combustible vertical surface*
A 130mm 50mm
B 130mm 50mm
Walls around cooktop
must be heat resistant for
temperatures up to 90°C
to a height of 150mm
above the bench top.
GHC and GHCF models
supplied with 10Amp
plug and lead.
cooktop dimensions
fitting gas hob with rangehood
installation guide
chef gas cooktops
models: GHS914 (S/W), GHS934 (S/W), GHC944S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMGHS/GHC 900mm
510mm
58mm
built in
height
860mm
A minimum
B minimum
830mm
470mm
Gas supply
connection
*Minimum height of non-combustible surface is 150mm
NOTE: All appliances must be installed to Australian Standard AS5601
minimum distance to
combustible vertical surface minimum distance to
non-combustible vertical surface*
A135mm 50mm
B120mm 50mm
Walls around cooktop
must be heat resistant for
temperatures up to 90°C
to a height of 150mm
above the bench top.
GHC models supplied
with 10Amp plug and
lead.
cooktop dimensions
installation guide
chef gas cooktops
models: GHS604 (S/W), GHC604 (S/W), GHS614 (S/W),
GHC614 (S/W), GHCF644S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMGHS/GHC600mm
535mm
58mm
built in
height
600mm
building-in cut-out dimensions
A minimum
B minimum
570mm
490mm
Gas supply
connection
*Minimum height of non-combustible surface is 150mm
NOTE: All appliances must be installed to Australian Standard AS5601
minimum distance to
combustible vertical surface minimum distance to
non-combustible vertical surface*
A 130mm 50mm
B 130mm 50mm
Walls around cooktop
must be heat resistant for
temperatures up to 90°C
to a height of 150mm
above the bench top.
GHC and GHCF models
supplied with 10Amp
plug and lead.
cooktop dimensions
installation guide
chef gas cooktops
models: GHS604 (S/W), GHC604 (S/W), GHS614 (S/W),
GHC614 (S/W), GHCF644S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMGHS/GHC600mm
535mm
58mm
built in
height
600mm
building-in cut-out dimensions
A minimum
B minimum
570mm
490mm
Gas supply
connection
*Minimum height of non-combustible surface is 150mm
NOTE: All appliances must be installed to Australian Standard AS5601
minimum distance to
combustible vertical surface minimum distance to
non-combustible vertical surface*
A 130mm 50mm
B 130mm 50mm
Walls around cooktop
must be heat resistant for
temperatures up to 90°C
to a height of 150mm
above the bench top.
GHC and GHCF models
supplied with 10Amp
plug and lead.
cooktop dimensions
installation guide
chef gas cooktops
models: GHS604 (S/W), GHC604 (S/W), GHS614 (S/W),
GHC614 (S/W), GHCF644S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMGHS/GHC600mm
535mm
58mm
built in
height
600mm
building-in cut-out dimensions
A minimum
B minimum
570mm
490mm
Gas supply
connection
*Minimum height of non-combustible surface is 150mm
NOTE: All appliances must be installed to Australian Standard AS5601
minimum distance to
combustible vertical surface minimum distance to
non-combustible vertical surface*
A 130mm 50mm
B 130mm 50mm
Walls around cooktop
must be heat resistant for
temperatures up to 90°C
to a height of 150mm
above the bench top.
GHC and GHCF models
supplied with 10Amp
plug and lead.
cooktop dimensions
fitting gas hob with rangehood
installation guide
chef gas cooktops
models: GHS914 (S/W), GHS934 (S/W), GHC944S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMGHS/GHC 900mm
510mm
58mm
built in
height
860mm
A minimum
B minimum
830mm
470mm
Gas supply
connection
*Minimum height of non-combustible surface is 150mm
NOTE: All appliances must be installed to Australian Standard AS5601
minimum distance to
combustible vertical surface minimum distance to
non-combustible vertical surface*
A135mm 50mm
B120mm 50mm
Walls around cooktop
must be heat resistant for
temperatures up to 90°C
to a height of 150mm
above the bench top.
GHC models supplied
with 10Amp plug and
lead.
cooktop dimensions
fitting gas hob with rangehood
installation guide
chef gas cooktops
models: GHS914 (S/W), GHS934 (S/W), GHC944S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMGHS/GHC 900mm
510mm
58mm
built in
height
860mm
A minimum
B minimum
830mm
470mm
Gas supply
connection
*Minimum height of non-combustible surface is 150mm
NOTE: All appliances must be installed to Australian Standard AS5601
minimum distance to
combustible vertical surface minimum distance to
non-combustible vertical surface*
A135mm 50mm
B120mm 50mm
Walls around cooktop
must be heat resistant for
temperatures up to 90°C
to a height of 150mm
above the bench top.
GHC models supplied
with 10Amp plug and
lead.
