Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . . .2

Instrument Panel Cluster . . . . . . . . . . . . . . . . . . .3

Rear Folding Seat . . . . . . . . . . . . . . . . . . . . . . . . .4

Rear Center Safety Belt Operation . . . . . . . . . . .5

Passenger-Side Power Rearview Mirror . . . . . . .5

Audio Systems . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Wiper/Washer Controls . . . . . . . . . . . . . . . . . . . . .8

Power Door Locks and Lockout Protection . . . .8

Remote Keyless Entry and

Content Theft-Deterrent Systems . . . . . . . . . . . .9

Climate Control System . . . . . . . . . . . . . . . . . . . .9

Accessory Power Outlet and

Cigarette Lighter . . . . . . . . . . . . . . . . . . . . . . . . .10

Malfunction Indicator Lamp/

Service Engine Soon . . . . . . . . . . . . . . . . . . . . . .11

Shifting the Automatic Transaxle

into Park or Neutral . . . . . . . . . . . . . . . . . . . . . . .11

Automatic Transaxle Hold Control Mode . . . . .12

Reverse Lockout Feature

(Manual Transaxle) . . . . . . . . . . . . . . . . . . . . . . .12

Opening the Hood . . . . . . . . . . . . . . . . . . . . . . . .13

Roadside Assistance . . . . . . . . . . . . . . . . . . . . .16

My GMLink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Congratulations on your purchase of a Chevrolet Aveo. Please read this information and your Owner Manual

to ensure an outstanding ownership experience. Note that your vehicle may not include all the features

described in this booklet. Place this booklet in your Owner Manual portfolio for easy reference.

Aveo_r4.qxd 6/21/04 12:15 PM Page 1

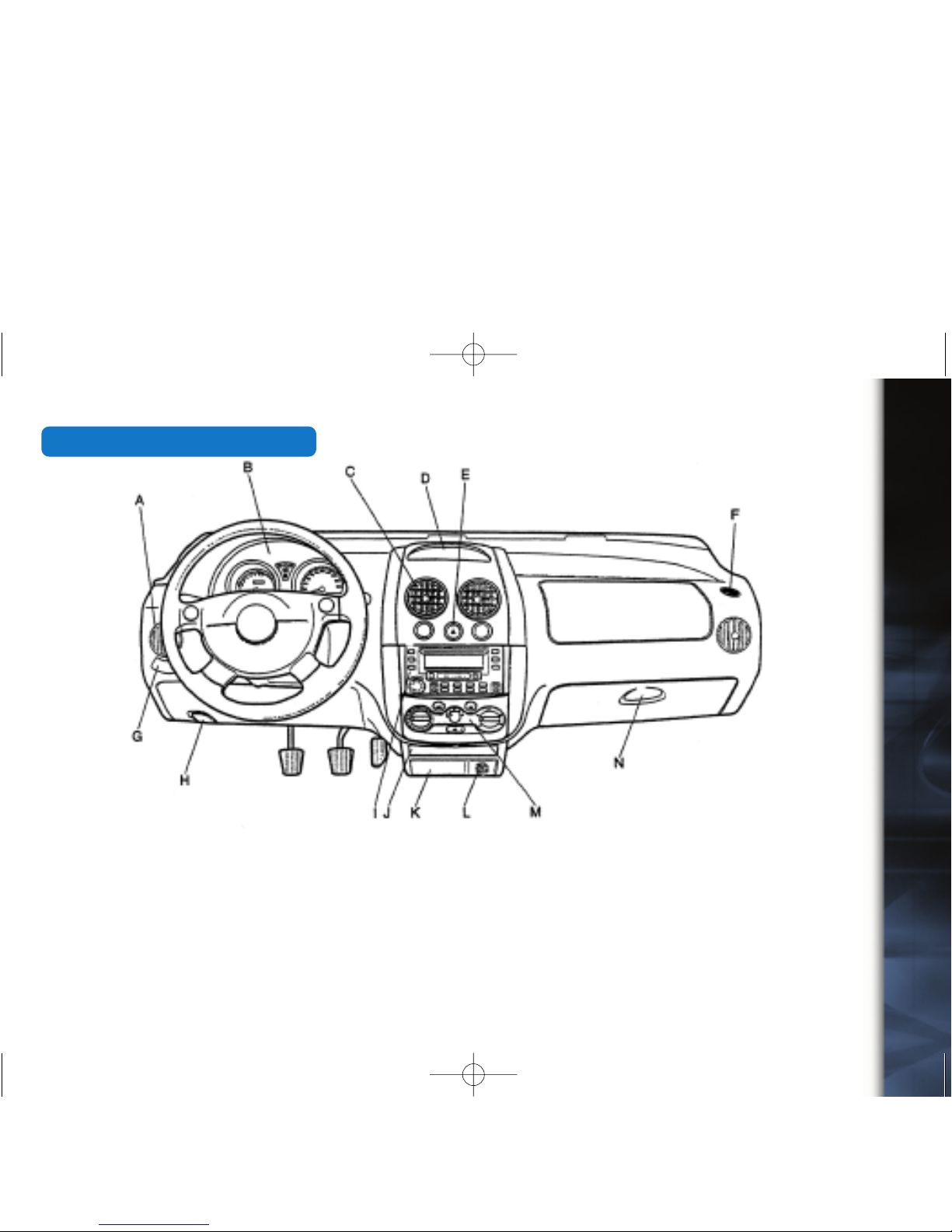

A. Air Outlet

B. Instrument Panel Cluster

C. Air Outlet

D. Digital Clock and Secondary

Information Center

E. Hazard Warning Flashers Button

F. Air Outlet

G.Instrument Panel Brightness

Control

H. Hood Release

I. Audio System

J. Cupholder

K. Ashtray

L. Cigarette Lighter

M.Climate Control System

N. Glove Box

Getting to Know Your Aveo

Instrument Panel

See Section 3 of your Owner Manual.

Aveo_r4.qxd 6/21/04 12:15 PM Page 2

See Section 3 of your Owner Manual.

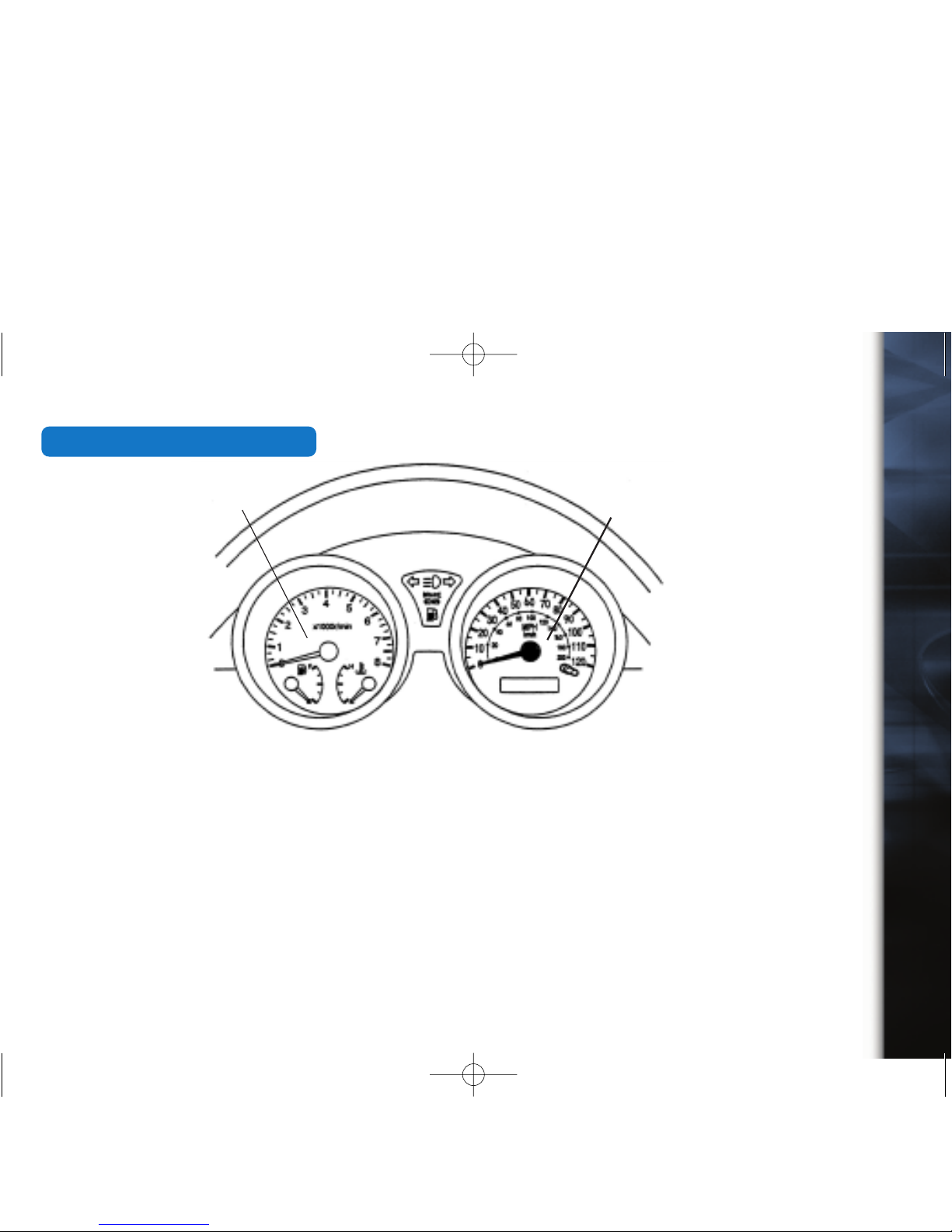

Instrument Panel Cluster

Your vehicle’s instrument panel is

designed to let you know at a glance

how your vehicle is running. You’ll

know how fast you’re going, about

how much fuel you’ve used, and

many other things necessary for

driving safely and economically.

The instrument panel cluster includes

these key features:

A. Tachometer/Fuel Gauge/Coolant

Temperature Gauge

B. Speedometer/Odometer/Trip

Odometer

IMPORTANT: The instrument panel

cluster is designed to let you know

about many important aspects of

your vehicle’s operation. It is impor-

tant to read your Owner Manual and

become familiar with the information

being relayed to you by the lights,

gauges and indicators, as well as

what action can be taken to ensure

safety and to prevent damage.

Aveo_r4.qxd 6/21/04 12:15 PM Page 3

To create more cargo room, the rear

seatback can be folded down:

• Pull up the release knob on top of the

rear seatback (shown above).

• Your vehicle has adjustable head

restraints; push them down all the

way.

• Fold the seatback forward and down.

• Move the safety belts/buckles out

of the space between the seatback

and seatback cushion.

Getting to Know Your Aveo

Rear Folding Seat On 5-door model only:

• Pull both release tabs on the rear

side of the seat cushion to release

the rear seat.

• Lift and fold up the seat, and clip the

hook to the head restraint of the front

seat to keep the rear seat secure.

• Store rear safety belts/buckles in the

storage area under the floor mat.

• Reverse the process to return the

seatback to the upright position,

ensuring that the seat cushion and

seatback are securely latched and

that the safety belts/buckles are in

their original position between the

rear seatback and seat cushion.

See Section 1 of your Owner Manual.

Aveo_r4.qxd 6/21/04 12:15 PM Page 4

Passenger-Side Power Rearview

Mirror (if equipped)

Your vehicle may be equipped with an

outside power mirror control that adjusts

the passenger-side mirror. The control is

located on the driver door panel, above

the power window buttons. Adjust the

passenger-side mirror by pressing the

edges of the control pad to move the

mirror in the direction that you want it to

go. The ignition must be ON.

See Section 2 of your Owner Manual.

Rear Center Safety Belt

Operation

Your vehicle has a removable safety

belt in the rear center seating position.

To install the rear center safety belt:

• Pull the belt from the retractor.

• Push the latch plate at the end of the

safety belt strap into the buckle with

the black release button until the

mechanism clicks, ensuring that the

strap is not twisted and that the slid-

ing latch plate faces the front of the

vehicle.

• Insert the upper part of the safety belt

into the safety belt guide, ensuring

that the belt is not twisted.

The buckles for the rear center seat belt

are positioned outboard of the left and

right rear passenger’s buckles. The cen-

ter passenger’s seat belt uses two buck-

les. The center passenger’s buckles can

be identified by the black release button

on the left side, and by the word

“CENTER” on the top of the buckle on

the right side. The positions of the

buckles are correct. Please don’t try to

rearrange their position.

See Section 1 of your Owner Manual.

Aveo_r4.qxd 6/21/04 12:15 PM Page 5

Getting to Know Your Aveo

Audio Systems

AM/FM Radio (if equipped)

Use the following controls to operate the

system:

( ) (Power)

( ) (Volume)

AM/FM: Press this button to switch

between AM, FM1 and FM2.

( ) (Tune): Turn this knob to tune

stations.

( ) (Scan): Press this knob until

“SCAN” flashes on the display; then

press either the up or down arrow button

to determine the scanning direction.

() (Bass/Treble/Balance/Fade): Press

this button until BAS, TRE, BAL or FAD

appears on the display. Then turn the

volume knob to adjust to your preferred

settings.

Setting Preset Stations

You can preset up to 18 of your favorite

stations (six AM, six FM1 and six FM2)

using the six numbered pushbuttons on

the radio.

AM/FM Radio with CD Player and MP3

(if equipped)

Playing a CD

Insert a CD partway into the slot, label

side up. The player will pull it in and the

player will begin playing. (Note: You can

insert a CD with the ignition off.)

2 RPT (Repeat): Press this button to

repeat the current track. Press the but-

ton again to turn off repeat play.

3 INT (Scan): Press this button to listen

to the first few seconds of each track on

each CD inserted. Press the button

again to stop scanning. The current

track will begin to play.

4 RDM (Random): Press this button to

hear the tracks in random, rather than

sequential, order. Press the button again

to turn off random play.

TRACK (Previous/Next Track): Turn this

knob one notch to go to the start of the

current track or to go to the next track.

The player will continue moving back-

ward or forward through the CD with

each turn of the knob.

Aveo_r4.qxd 6/21/04 12:15 PM Page 6

TUN (Forward/Reverse): Press, turn and

hold this knob to fast forward or reverse

through the current track.

AM/FM: Press this button to listen to the

radio when a CD is playing.

CD: Press this button to play a CD when

listening to the radio. Press this button

while a CD is playing to pause the CD.

Press the button again to start playing

the CD.

( ) (Eject): Press this button to eject

a CD.

Playing an MP3

With the ignition on, insert a CD partway

into the slot, label side up. The player

will pull it in. The words “Loading,”

“Filecheck” and “MP3” will appear

sequentially on the display and the play-

er will begin playing.

As each new track starts to play, “F001”

(the track number) and the song name

will appear on the display.

MP3 Controls

All of the CD player functions work the

same while playing an MP3, except for

the following:

5DN (Down): Press this button to go to

the previous directory.

6UP: Press this button to go to the next

directory.

TRACK (Previous/Next File): Turn this

knob one notch to go to the first track in

the previous folder or to go to the next

folder. The player will continue moving

backward or forward through the CD

with each turn of the knob.

DIR (Directory): Press and release this

button to repeat tracks in the current

directory. Press and release this button

twice to repeat the tracks in all of the

directories. Press and release the button

again to turn off repeat play.

See Section 3 of your Owner Manual.

Note: Do not add paper labels to your

CDs, as they could get caught in the

player. Also, do not play 3-inch CDs

without a standard adapter CD. If an

error appears on the player display, see

CD Messages in Section 3 of your

Owner Manual.

Aveo_r4.qxd 6/21/04 12:15 PM Page 7

Getting to Know Your Aveo

Wiper/Washer Controls

The lever on the right side of the steer-

ing column operates the front and rear

windshield wipers. Move the lever to the

following positions to operate the front

wipers:

HI (High Speed): Move the lever to this

position to wipe at high speed.

LO (Low Speed): Move the lever to this

position to wipe steadily at slow speed.

INT (Intermittent): Move the lever to this

position to choose a delayed wiping

cycle.

OFF: Move the lever to this position to

turn off the windshield wipers.

To wash the windshield, pull the lever

toward you. When you release it, the

washers will stop, then continue for

several cycles and go to their previous

setting.

Rear Wiper/Washer: Push the lever

away from you to operate the rear wiper.

The wiper operates continuously in the

first position. Push it to the second posi-

tion and washer fluid will spray onto the

rear window.

See Section 3 of your Owner Manual.

Power Door Locks and Lockout

Protection

Your vehicle may have a central door

locking/unlocking system that is activat-

ed from the driver door. When the driver

door is closed, pushing the lock knob

down (shown below) centrally locks all

doors.

To prevent accidental lockouts, this func-

tion will not operate when the driver

door is open, and the driver door itself

will not lock when it is open.

You can also lock or unlock your vehicle

with the ignition key, or by using the

optional Remote Keyless Entry

transmitter. To further prevent lockouts,

the Remote Keyless Entry System will

not lock the driver door if it is open.

However, central locking will lock all

doors if the driver door is closed and

other doors are open.

See Section 2 of your Owner Manual.

Aveo_r4.qxd 6/21/04 12:15 PM Page 8

Remote Keyless Entry and

Content Theft-Deterrent

Systems (if equipped)

On equipped vehicles, use the Remote

Keyless Entry System transmitter

(integral to the ignition key) to:

• Unlock the vehicle doors by pressing

the UNLOCK button once.

• Lock the doors and arm the Content

Theft-Deterrent System by pressing

the LOCK button once to lock all

doors.

The Content Theft-Deterrent System will

arm only if you use the remote transmit-

ter or lock the doors with a power lock

switch. It will not arm if you lock the door

with a key. To turn off the alarm, press

the UNLOCK button on the key or

unlock any door with the key.

The remote transmitter’s range is up to

about 20 feet (6 m). If it doesn’t work or

range is reduced, check the:

• Distance — you may be too far away.

• Location — other vehicles or objects

may be blocking the signal.

• Battery in the transmitter (use

replacement battery CR1616).

• Match of the transmitter to the vehicle

(see Owner Manual).

See Section 2 of your Owner Manual.

Climate Control System

Use the following controls to operate

your climate control system:

Air Temperature: Turn the temperature

knob (see “A” above) clockwise or coun-

terclockwise to increase or decrease the

temperature.

Air Conditioning (if equipped): With

the fan turned on, press the air condi-

tioning button (see “B” above) to turn the

A/C on or off.

Fan Knob: Turn the fan control (see “C”

above) clockwise or counterclockwise to

increase or decrease fan speed.

Recirculation: Press this button (see

“D” above) to prevent outside air from

entering the vehicle. If your vehicle has

an air intake lever (base models), move

the lever to choose the recirculation

mode. Note: Extended use of the recir-

culation mode can cause the windows to

fog. If this happens, select the defrost

mode.

Mode Knob: Use this knob (see “E”

above) to direct the flow of air into your

vehicle. Modes include:

(Vent): Directs air to the instrument

panel outlets.

(Bi-Level): Directs half of the airflow

to the instrument panel outlets and the

rest to the floor outlets.

ADE

Aveo_r4.qxd 6/21/04 12:15 PM Page 9

Getting to Know Your Aveo

(Floor): Directs most of the air to the

floor outlets, and, on equipped vehicles,

to the rear outlets as well. (Recirculation

does not work in this mode.)

(Defog): Directs most of the air to

the windshield and the floor outlets and

a small amount to the side window out-

lets. (Recirculation does not work in this

mode.)

To help clear the side windows quickly:

• Select the bi-level mode.

• Select the highest fan speed.

• Select A/C (if equipped).

• Select the temperature.

(Defrost): Directs most air to the

windshield, with some sent to the side

window outlets and floor outlets.

(Recirculation does not work in this

mode.)

(Rear Defogger): Press this button

to turn the rear window defogger on or

off. The heated outside rearview mirrors

on equipped vehicles will activate as

well.

See Section 3 of your Owner Manual.

Accessory Power Outlet and

Cigarette Lighter

Your vehicle has an accessory power

outlet to power accessories such as a

cell phone. It is located next to the park-

ing brake.

To use it, remove the protective cap and

plug in the accessory. Replace the cap

when not in use. (See your Owner

Manual for important safety details.)

The cigarette lighter is located to the

right of the front ashtray. With the igni-

tion key in the ACC or ON position (the

lighter will not operate in the OFF posi-

tion), push the lighter knob in all the way

and release it. When the element is fully

heated, the knob will pop back out

automatically.

See Section 3 of your Owner Manual.

Aveo_r4.qxd 6/21/04 12:15 PM Page 10

Altri manuali per 2005 Aveo

Indice

Altri manuali Chevrolet Automobile

Chevrolet

Chevrolet Equinox Manuale utente

Chevrolet

Chevrolet 2003 Cavalier Manuale utente

Chevrolet

Chevrolet 1995 Camaro Manuale utente

Chevrolet

Chevrolet CORVETTE 2020 Manuale utente

Chevrolet

Chevrolet 2011 Aveo Manuale utente

Chevrolet

Chevrolet 2004 Malibu Manuale utente

Chevrolet

Chevrolet BeaT LPG Manuale utente

Chevrolet

Chevrolet 2016 Equinox Istruzioni per il montaggio

Chevrolet

Chevrolet 2007 Avalanche Istruzioni per il montaggio

Chevrolet

Chevrolet 2013 Spark Manuale utente

Chevrolet

Chevrolet Beat diesel Manuale utente

Chevrolet

Chevrolet 1977 light duty truck Manuale utente

Chevrolet

Chevrolet CAMARO ZL1 Manuale di istruzioni

Chevrolet

Chevrolet 2009 Silverado 3500 Pickup Manuale utente

Chevrolet

Chevrolet 2013 Cruze Manuale utente

Chevrolet

Chevrolet 2013 Cruze Manuale utente

Chevrolet

Chevrolet 2013 SONIC Manuale utente

Chevrolet

Chevrolet 1995 Astro Cargo Manuale utente

Chevrolet

Chevrolet 2008 Corvette Navigation System Manuale utente

Chevrolet

Chevrolet 2006 Equinox Manuale utente

Chevrolet

Chevrolet Colorado 2019 Manuale utente

Chevrolet

Chevrolet TRAX 2019 Istruzioni per il montaggio

Chevrolet

Chevrolet 2015 Captiva Manuale utente

Chevrolet

Chevrolet 2009 Malibu Manuale utente

Manuali Automobile popolari di altre marche

Toyota

Toyota 2000 Tundra Manuale utente

CITROËN

CITROËN DS4 DSign Manuale utente

Lexus

Lexus 2015 CT 200h Manuale utente

Cadillac

Cadillac CTS 2008 Manuale utente

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuale utente

Porsche

Porsche Boxster S Manuale utente

GMC

GMC 2010 Savana 1500 Cargo Manuale utente

KIAM

KIAM SPORTAGE 2014 Manuale elenco delle parti

GMC

GMC 2013 Terrain Istruzioni per il montaggio

GMC

GMC T-Series 1999 Manuale utente

Mercury

Mercury 1998 Mystique Manuale utente

Mercury

Mercury 2007 Mariner Manuale utente

Mazda

Mazda 2007 Mazdaspeed 3 Guida

Mazda

Mazda 2014 CX-5 Manuale utente

GMC

GMC Chevrolet Express 2022 Manuale utente

GMC

GMC 1997 Jimmy Manuale utente

Cadillac

Cadillac 2010 Escalade Manuale utente

Skoda

Skoda FABIA RS - ANNEXE 118 Manuale utente
