Contents Introduction . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . 25
Seats and Restraints . . . . . . . . . . . 51
Storage . . . . . . . . . . . . . . . . . . . . . . . . . 99
Instruments and Controls . . . . . . 103
Lighting . . . . . . . . . . . . . . . . . . . . . . . 146
Infotainment System . . . . . . . . . . 152
Climate Controls . . . . . . . . . . . . . . 186
Driving and Operating . . . . . . . . . 191
Vehicle Care . . . . . . . . . . . . . . . . . . 238
Service and Maintenance . . . . . 320
Technical Data . . . . . . . . . . . . . . . . 333
Customer Information . . . . . . . . . 337
Reporting Safety Defects . . . . . . 347
OnStar ........................ 351
Index .................... 361

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

10122735) - 2017 - crc - 7/12/16

2 Introduction

Introduction

The names, logos, emblems,

slogans, vehicle model names, and

vehicle body designs appearing in

this manual including, but not limited

to, GM, the GM logo, CHEVROLET,

the CHEVROLET Emblem, and

TRAX are trademarks and/or

service marks of General Motors

LLC, its subsidiaries, affiliates,

or licensors.

For vehicles first sold in Canada,

substitute the name “General

Motors of Canada Company”for

Chevrolet Motor Division wherever it

appears in this manual.

This manual describes features that

may or may not be on the vehicle

because of optional equipment that

was not purchased on the vehicle,

model variants, country

specifications, features/applications

that may not be available in your

region, or changes subsequent to

the printing of this owner manual.

Refer to the purchase

documentation relating to your

specific vehicle to confirm the

features.

Keep this manual in the vehicle for

quick reference.

Canadian Vehicle Owners

A French language manual can be

obtained from your dealer, at

www.helminc.com, or from:

Propriétaires Canadiens

On peut obtenir un exemplaire de

ce guide en français auprès du

concessionnaire ou à l'adresse

Helm, Incorporated

Attention: Customer Service

47911 Halyard Drive

Plymouth, MI 48170

USA

Using this Manual

To quickly locate information about

the vehicle, use the Index in the

back of the manual. It is an

alphabetical list of what is in the

manual and the page number where

it can be found.

About Driving the Vehicle

As with other vehicles of this type,

failure to operate this vehicle

correctly may result in loss of

control or an accident. Be sure to

read the driving guidelines in this

manual in the section called

“Driving and Operating”and

specifically Driver Behavior 0192,

Driving Environment 0192, and

Vehicle Design 0192.

Litho in U.S.A.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

10122735) - 2017 - crc - 7/12/16

Introduction 3

Danger, Warning, and

Caution

Warning messages found on vehicle

labels and in this manual describe

hazards and what to do to avoid or

reduce them.

{Danger

Danger indicates a hazard with a

high level of risk which will result

in serious injury or death.

{Warning

Warning indicates a hazard that

could result in injury or death.

Caution

Caution indicates a hazard that

could result in property or vehicle

damage.

A circle with a slash through it is a

safety symbol which means “Do

Not,” “Do not do this,”or “Do not let

this happen.”

Symbols

The vehicle has components and

labels that use symbols instead of

text. Symbols are shown along with

the text describing the operation or

information relating to a specific

component, control, message,

gauge, or indicator.

M:Shown when the owner

manual has additional instructions

or information.

*:Shown when the service

manual has additional instructions

or information.

0:Shown when there is more

information on another page —

“see page.”

Vehicle Symbol Chart

Here are some additional symbols

that may be found on the vehicle

and what they mean. For more

information on the symbol, refer to

the Index.

9:Airbag Readiness Light

#:Air Conditioning

!:Antilock Brake System (ABS)

%:Audio Steering Wheel Controls

or OnStar

(if equipped)

$:Brake System Warning Light

":Charging System

I:Cruise Control

`:Do Not Puncture

^:Do Not Service

B:Engine Coolant Temperature

O:Exterior Lamps

_:Flame/Fire Prohibited

#:Fog Lamps

.:Fuel Gauge

+:Fuses

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

10122735) - 2017 - crc - 7/12/16

4 Introduction

3:Headlamp High/Low-Beam

Changer

j:LATCH System Child Restraints

*:Malfunction Indicator Lamp

::Oil Pressure

P:Power

/:Remote Vehicle Start

>:Safety Belt Reminders

7:Tire Pressure Monitor

d:Traction Control/StabiliTrak

a:Under Pressure

M:Windshield Washer Fluid

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10122735) - 2017 - crc - 7/12/16
In Brief 5
In Brief
Instrument Panel
Instrument Panel . . . . . . . . . . . . . . . . 6
Initial Drive Information
Initial Drive Information . . . . . . . . . . 8
Remote Keyless Entry (RKE)
System . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Vehicle Start . . . . . . . . . . . 9
Door Locks . . . . . . . . . . . . . . . . . . . . . 9
Liftgate .......................... 9
Windows . . . . . . . . . . . . . . . . . . . . . . . 10
Seat Adjustment . . . . . . . . . . . . . . . 10
Second Row Seats . . . . . . . . . . . . 12
Heated Seats . . . . . . . . . . . . . . . . . . 12
Head Restraint Adjustment . . . . 12
Safety Belts . . . . . . . . . . . . . . . . . . . . 13
Passenger Sensing System . . . 13
Mirror Adjustment . . . . . . . . . . . . . . 13
Steering Wheel Adjustment . . . . 14
Interior Lighting . . . . . . . . . . . . . . . . 14
Exterior Lighting . . . . . . . . . . . . . . . 15
Windshield Wiper/Washer . . . . . . 16
Climate Controls . . . . . . . . . . . . . . . 16
Transmission . . . . . . . . . . . . . . . . . . 17
Vehicle Features
Radio(s) ....................... 18
Satellite Radio . . . . . . . . . . . . . . . . . 19
Portable Audio Devices . . . . . . . . 19
Bluetooth
®
..................... 19
Steering Wheel Controls . . . . . . . 19
Cruise Control . . . . . . . . . . . . . . . . . 20
Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . 20
Forward Collision Alert (FCA)
System . . . . . . . . . . . . . . . . . . . . . . . 21
Lane Departure
Warning (LDW) . . . . . . . . . . . . . . . 21
Side Blind Zone
Alert (SBZA) . . . . . . . . . . . . . . . . . . 21
Rear Vision Camera (RVC) . . . . 21
Rear Cross Traffic Alert (RCTA)
System . . . . . . . . . . . . . . . . . . . . . . . 21
Parking Assist . . . . . . . . . . . . . . . . . 21
Power Outlets . . . . . . . . . . . . . . . . . 22
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . 22
Performance and Maintenance
Traction Control/Electronic
Stability Control . . . . . . . . . . . . . . 23
Tire Pressure Monitor . . . . . . . . . . 23
Fuel ........................... 23
E85 or FlexFuel . . . . . . . . . . . . . . . . 24
Engine Oil Life System . . . . . . . . 24
Driving for Better Fuel
Economy . . . . . . . . . . . . . . . . . . . . . 24
Roadside Assistance
Program ...................... 24

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

10122735) - 2017 - crc - 7/12/16

6 In Brief

Instrument Panel

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

10122735) - 2017 - crc - 7/12/16

In Brief 7

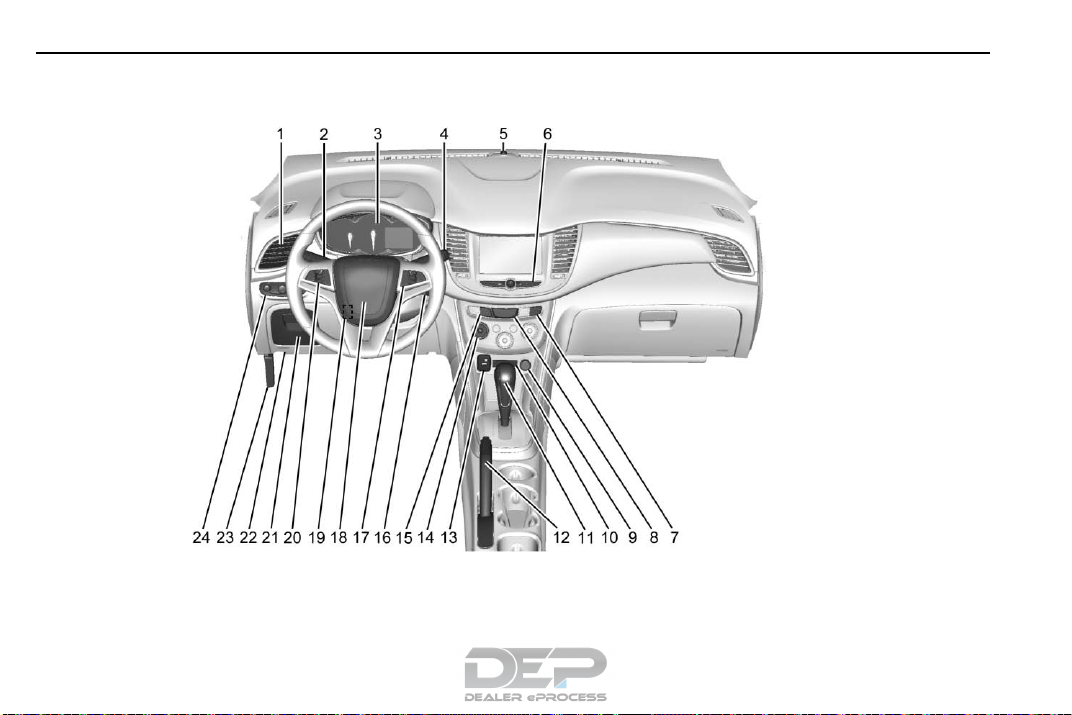

1. Air Vents 0188.

2. Turn Signal Lever. See Turn

and Lane-Change

Signals 0148.

Headlamp High/Low-Beam

Changer 0146.

3. Instrument Cluster 0111.

4. Windshield Wiper/

Washer 0105.

Rear Window Wiper/

Washer 0106.

5. Light Sensor. See Automatic

Headlamp System 0147.

6. Infotainment 0152.

7. Lane Departure Warning

(LDW) 0231 (If Equipped).

8. Hazard Warning

Flashers 0148.

9. Power Outlets 0109.

10. Passenger Safety Belt

Reminder Light. See Safety

Belt Reminders 0114.

11. Shift Lever. See Automatic

Transmission 0214 or Manual

Transmission 0216.

12. Parking Brake 0219.

13. USB Port 0165.

14. Climate Control

Systems 0186.

15. Traction Control/Electronic

Stabilty Control Button. See

Traction Control/Electronic

Stability Control 0221.

16. Ignition Positions (Key Access)

0203 or Ignition Positions

(Keyless Access) 0205.

17. Steering Wheel Controls 0104.

18. Horn 0105.

19. Steering Wheel

Adjustment 0104.

20. Cruise Control 0223 (If

Equipped).

Forward Collision Alert (FCA)

System 0228 (If Equipped).

21. Instrument Panel Storage 099

(If Equipped).

22. Data Link Connector (DLC)

(Out of View). See Malfunction

Indicator Lamp (Check Engine

Light) 0116.

23. Hood Release. See

Hood 0241.

24. Exterior Lamp Controls 0146.

Instrument Panel Illumination

Control 0149.

Front Fog Lamps 0148 (If

Equipped).

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

10122735) - 2017 - crc - 7/12/16

8 In Brief

Initial Drive

Information

This section provides a brief

overview about some of the

important features that may or may

not be on your specific vehicle.

For more detailed information, refer

to each of the features which can be

found later in this owner’s manual.

Remote Keyless Entry

(RKE) System

The Remote Keyless Entry (RKE)

transmitter may work up to 30 m

(98 ft) away from the vehicle.

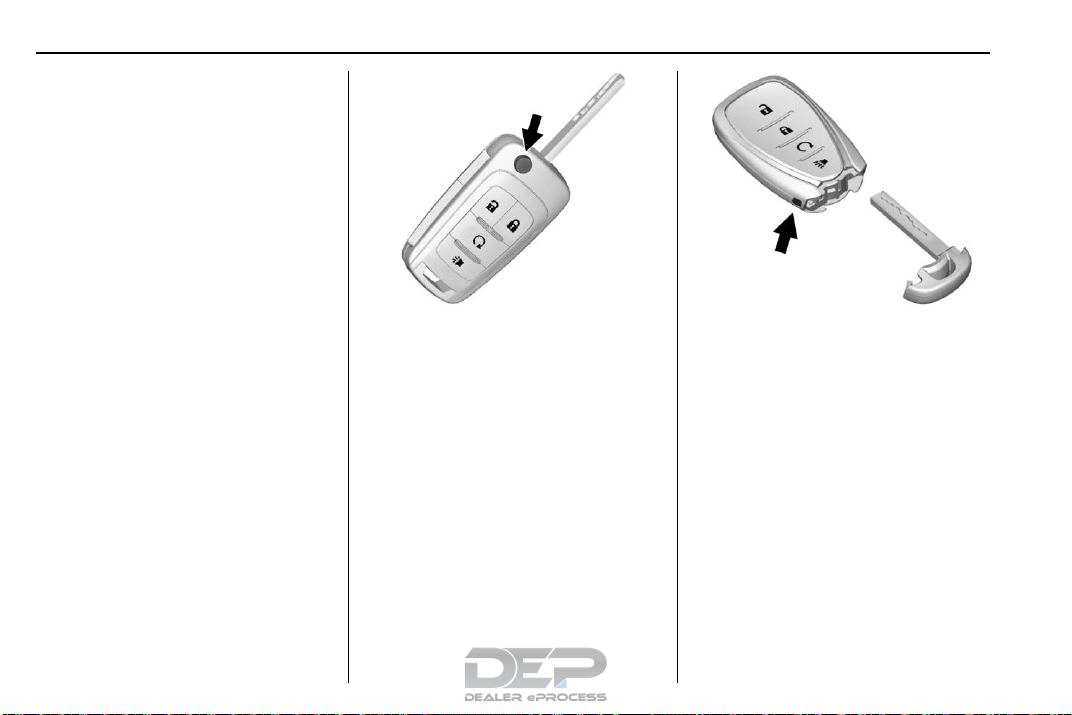

Key Access

Press the key release button to

extend the key blade. The key can

be used for the ignition and all

locks.

Keyless Access

Press the key release button to

release the key. The key can be

used for all locks.

K:Press to unlock the driver door

or all doors, depending on the

vehicle personalization settings.

If equipped, the locking fuel door will

also unlock. The hazard warning

flashers may flash.

Q:Press to lock the doors, and,

if equipped, the locking fuel door.

Lock and unlock feedback can be

personalized. See Vehicle

Personalization 0137.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

10122735) - 2017 - crc - 7/12/16

In Brief 9

7:If equipped, press and hold

briefly to initiate vehicle locator.

Press and hold for at least

three seconds to sound the panic

alarm. Press again to cancel the

panic alarm.

See Keys (Keyless Access) 027 or

Keys (Key Access) 025 and

Remote Keyless Entry (RKE)

System Operation (Keyless Access)

031 or Remote Keyless Entry

(RKE) System Operation (Key

Access) 028.

Remote Vehicle Start

If equipped, the engine can be

started from outside of the vehicle.

Starting the Vehicle

1. Press and release Qon the

RKE transmitter.

2. Immediately press and hold /

for at least four seconds or until

the turn signal lamps flash.

Start the vehicle normally after

entering.

When the vehicle starts, the parking

lamps will turn on.

Remote start can be extended.

Canceling a Remote Start

To cancel a remote start, do one of

the following:

.Press and hold /until the

parking lamps turn off.

.Turn on the hazard warning

flashers.

.Turn the vehicle on and then off.

See Remote Vehicle Start 036.

Door Locks

To lock or unlock the doors from the

outside:

.Press Kor Qon the Remote

Keyless Entry (RKE) transmitter.

See Remote Keyless Entry

(RKE) System Operation

(Keyless Access) 031 or

Remote Keyless Entry (RKE)

System Operation (Key

Access) 028.

.Use the key in the driver door.

Keyless Access

The RKE transmitter must be within

1 m (3 ft) of the door being opened.

Press the button on the door handle

to open. See “Keyless Access

Operation”under Remote Keyless

Entry (RKE) System Operation

(Keyless Access) 031 or Remote

Keyless Entry (RKE) System

Operation (Key Access) 028.

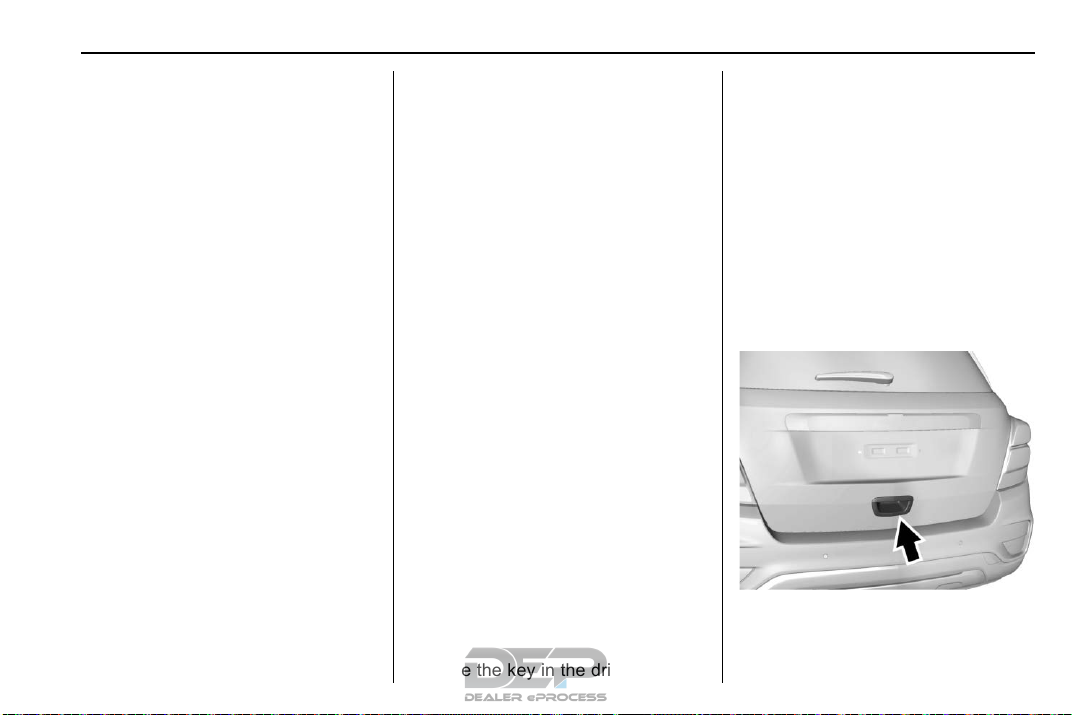

Liftgate

Indice

Altri manuali Chevrolet Automobile

Chevrolet

Chevrolet Corvette 1953 Manuale utente

Chevrolet

Chevrolet 2002 Cavalier Manuale utente

Chevrolet

Chevrolet LUMINA 1995 Manuale utente

Chevrolet

Chevrolet 4500 HD 2023 Manuale utente

Chevrolet

Chevrolet 2011 Malibu Manuale utente

Chevrolet

Chevrolet 2016 Volt Manuale utente

Chevrolet

Chevrolet 2013 Cruze Manuale utente

Chevrolet

Chevrolet 2011 HHR Manuale utente

Chevrolet

Chevrolet Tavera BS4 Manuale utente

Chevrolet

Chevrolet 2009 Traverse Istruzioni per il montaggio

Chevrolet

Chevrolet SUBURBAN 1998 Manuale utente

Chevrolet

Chevrolet 2016 SS Sedan Manuale utente

Chevrolet

Chevrolet GMC 2024 Manuale utente

Chevrolet

Chevrolet SUBURBAN 1994 Manuale utente

Chevrolet

Chevrolet 2011 Volt Manuale utente

Chevrolet

Chevrolet 2011 Cruze Manuale utente

Chevrolet

Chevrolet 2000 Express Van Manuale utente

Chevrolet

Chevrolet 2011 Traverse Manuale utente

Chevrolet

Chevrolet Impala 2016 Manuale utente

Chevrolet

Chevrolet SS Sedan 2015 Manuale utente

Chevrolet

Chevrolet 2008 Equinox Manuale utente

Chevrolet

Chevrolet Silverado 2500HD Classic Manuale utente

Chevrolet

Chevrolet t Malibu Istruzioni per il montaggio

Chevrolet

Chevrolet Silverado 4500HD 2022 Manuale utente

Manuali Automobile popolari di altre marche

Toyota

Toyota 2000 Tundra Manuale utente

CITROËN

CITROËN DS4 DSign Manuale utente

Lexus

Lexus 2015 CT 200h Manuale utente

Cadillac

Cadillac CTS 2008 Manuale utente

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuale utente

Porsche

Porsche Boxster S Manuale utente

GMC

GMC 2010 Savana 1500 Cargo Manuale utente

KIAM

KIAM SPORTAGE 2014 Manuale elenco delle parti

GMC

GMC 2013 Terrain Istruzioni per il montaggio

GMC

GMC T-Series 1999 Manuale utente

Mercury

Mercury 1998 Mystique Manuale utente

Mercury

Mercury 2007 Mariner Manuale utente

Mazda

Mazda 2007 Mazdaspeed 3 Guida

Mazda

Mazda 2014 CX-5 Manuale utente

GMC

GMC Chevrolet Express 2022 Manuale utente

GMC

GMC 1997 Jimmy Manuale utente

Cadillac

Cadillac 2010 Escalade Manuale utente

Skoda

Skoda FABIA RS - ANNEXE 118 Manuale utente
