Condition
The power sliding side door motor continues to run for up to three seconds after the door has fully
closed.
Cause
The door is closing too quickly. It needs to see two detent signals 450 milliseconds apart.
Correction
%DFN )RUZDUG! Document ID# 1933131
2007 Chevrolet Uplander Ext.
)HHGEDFN 3ULQW
Subject: General Power Sliding Side Door Diagnosis/Repair
Procedures #07-08-64-007 - (03/23/2007)
Models: 2005-2007 Buick Terraza
2005-2007 Chevrolet Uplander
2005-2007 Pontiac Montana
2005-2007 Saturn Relay
Page
1
of
13
Service Information
4/9/2007
http://service.gm.com/servlets/BlobShtml?ShtmlFile=1933131&pubid=1632&evc=sm

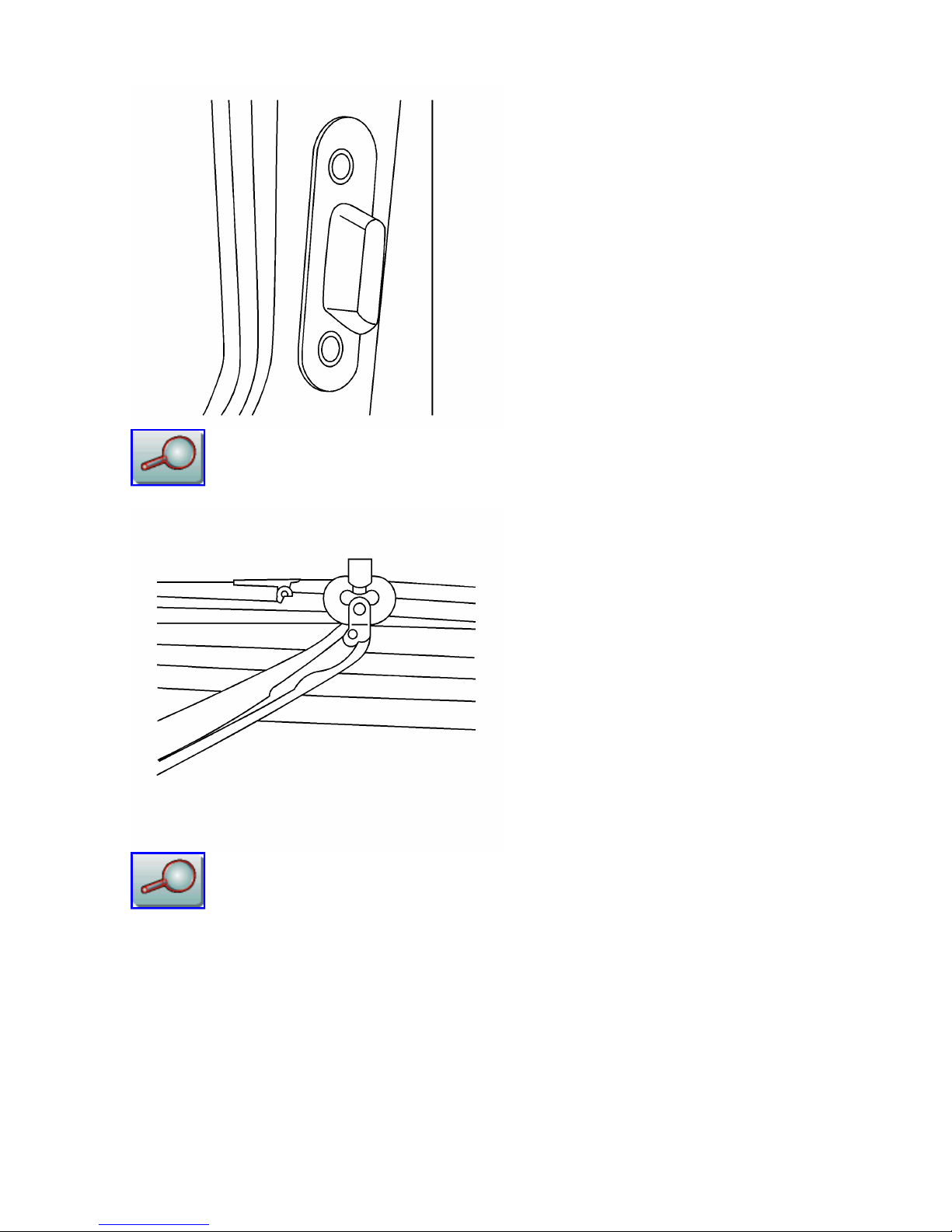

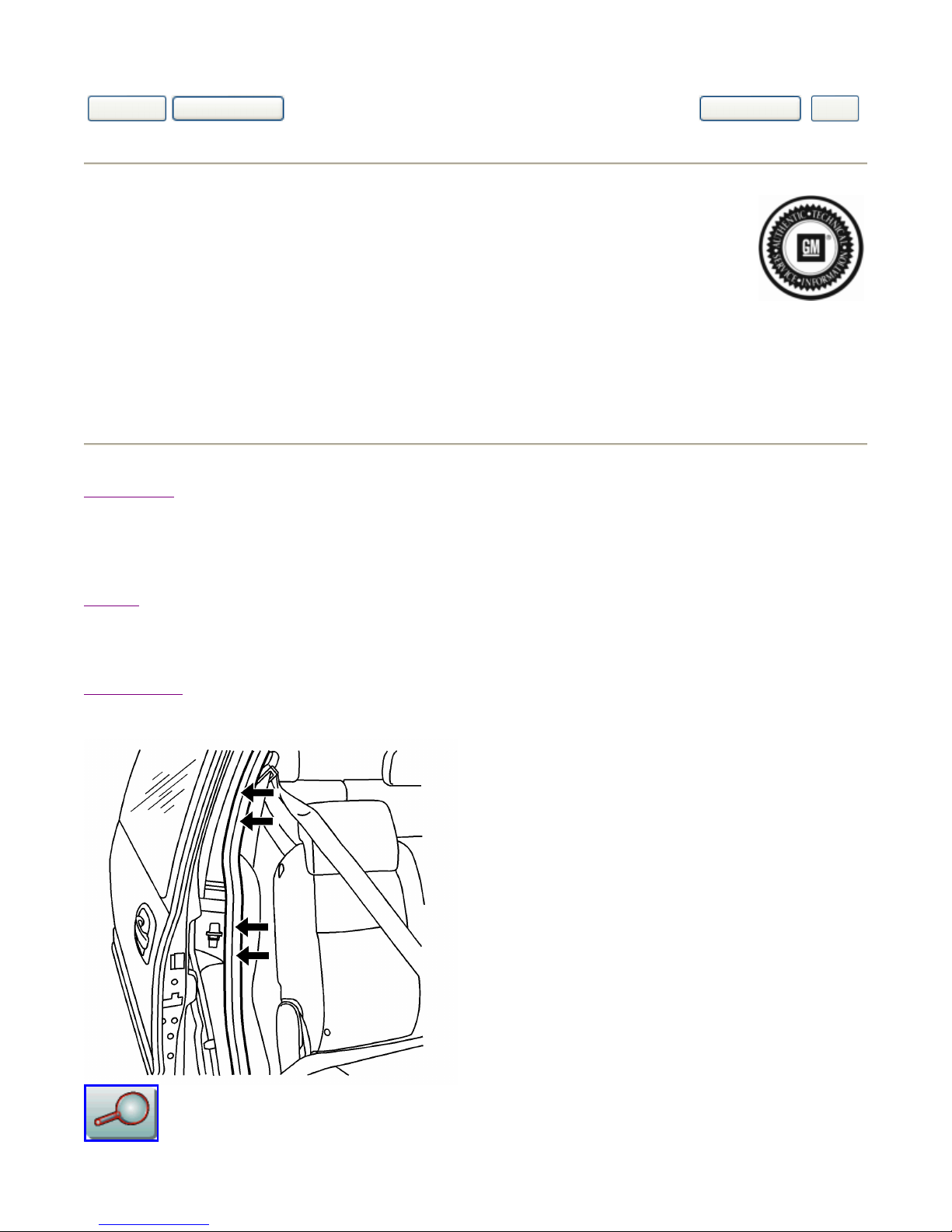

First verify that the door is flush to the rear quarter panel or inwards 1 to 2mm (0.039 to 0.078in). Bend
the primary weatherstrip flange 1/8inch outboard above and below the rear striker. Refer to the
illustration above.
Condition
The power side door reverses prior to making contact with the pads and plungers.
Cause

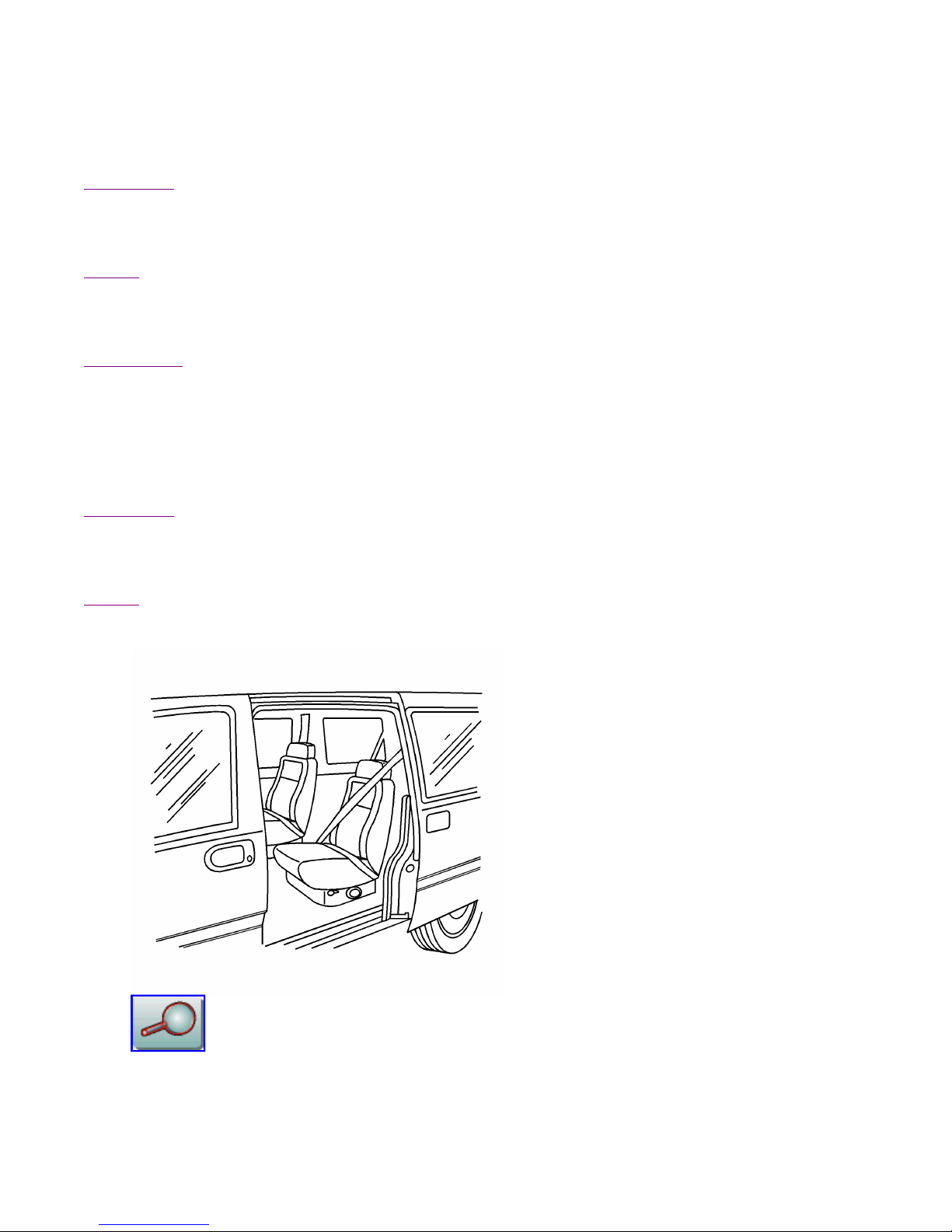

Visually inspect the upper/lower roller tracks for foam and/or debris.
Correction
Manually operate the door applying downward pressure on the handle and see if the lower bracket
contacts the primary seal. If yes, loosen and rotate the lower roller bracket to increase the clearance
between the top of the primary seal and the bottom of the roller bracket. Inspect and adjust the front and
rear door latches, strikers and door wedge as needed.
Condition
The power sliding side door reverses.
Cause
1.
Inspect the door opening and tracks for obstructions. Refer to the illustration above.
Page
2
of
13
Service Information
4/9/2007
http://service.gm.com/servlets/BlobShtml?ShtmlFile=1933131&pubid=1632&evc=sm
2. Inspect the C-Pillar striker alignment. Refer to the illustration above.
3.

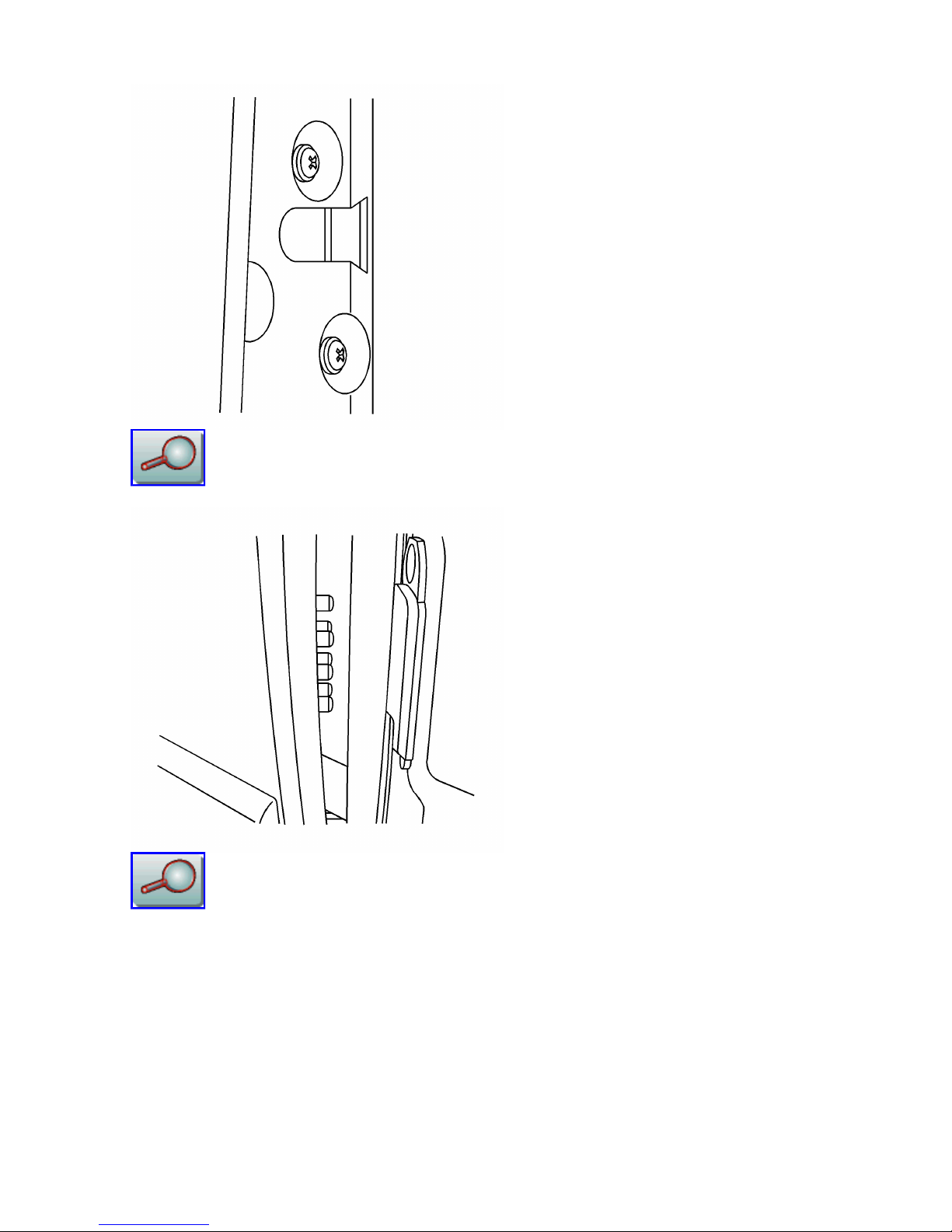

Inspect the pad and plunger alignment. Refer to the illustration above.
Page
3
of
13
Service Information
4/9/2007
http://service.gm.com/servlets/BlobShtml?ShtmlFile=1933131&pubid=1632&evc=sm
4. Inspect the pin and pocket alignment. Refer to the illustration above.
5.
Inspect the lower arm clearance to the track. Refer to the illustration above.
Page
4
of
13
Service Information
4/9/2007
http://service.gm.com/servlets/BlobShtml?ShtmlFile=1933131&pubid=1632&evc=sm

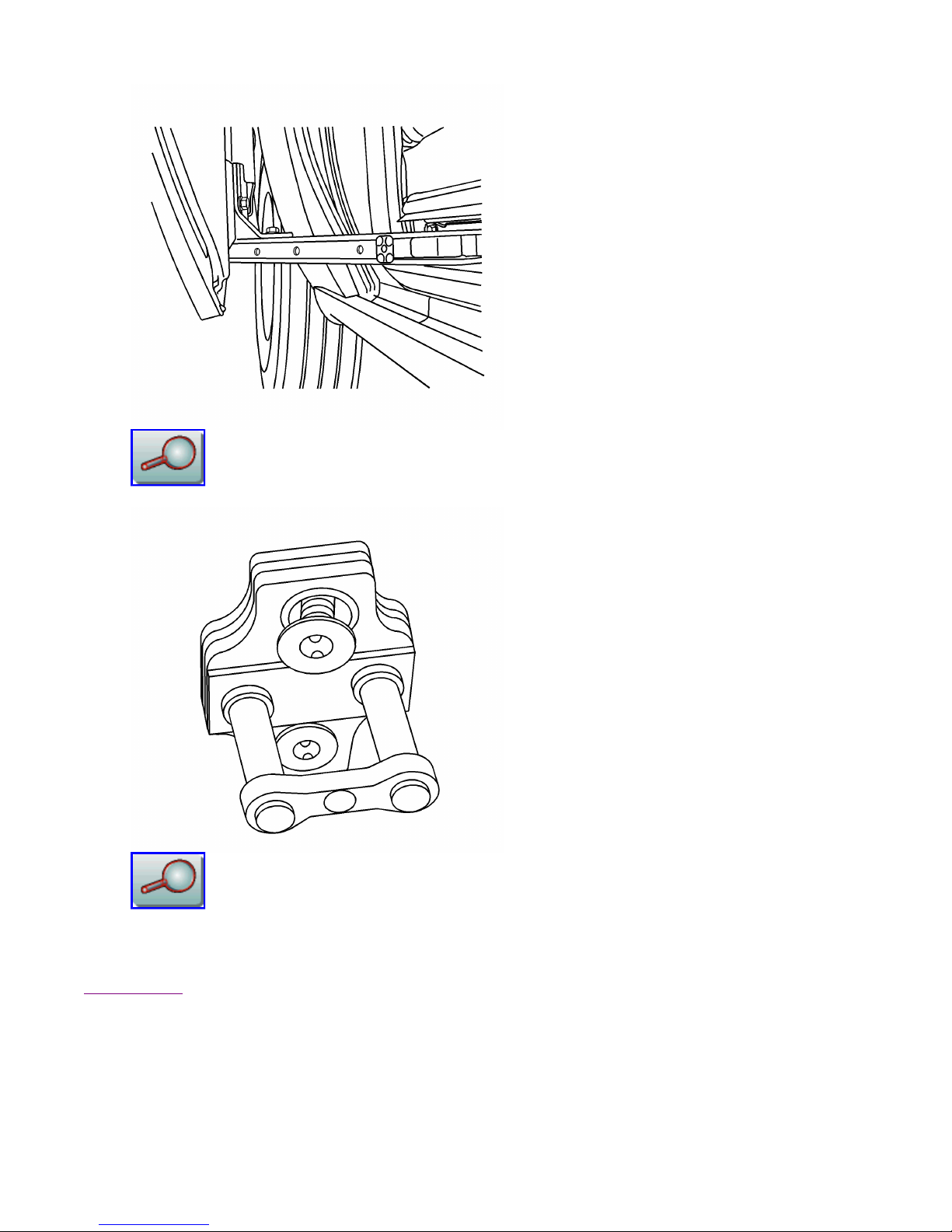

6. Inspect the lower hinge arm clearance to the primary seal. Refer to the illustration above.
7. Inspect all door hardware for alignment and to make sure it is properly seated. Refer to the
illustration above.
Correction
1.
Eliminate any obstructions in the tracks.
Page
5
of
13
Service Information
4/9/2007
http://service.gm.com/servlets/BlobShtml?ShtmlFile=1933131&pubid=1632&evc=sm

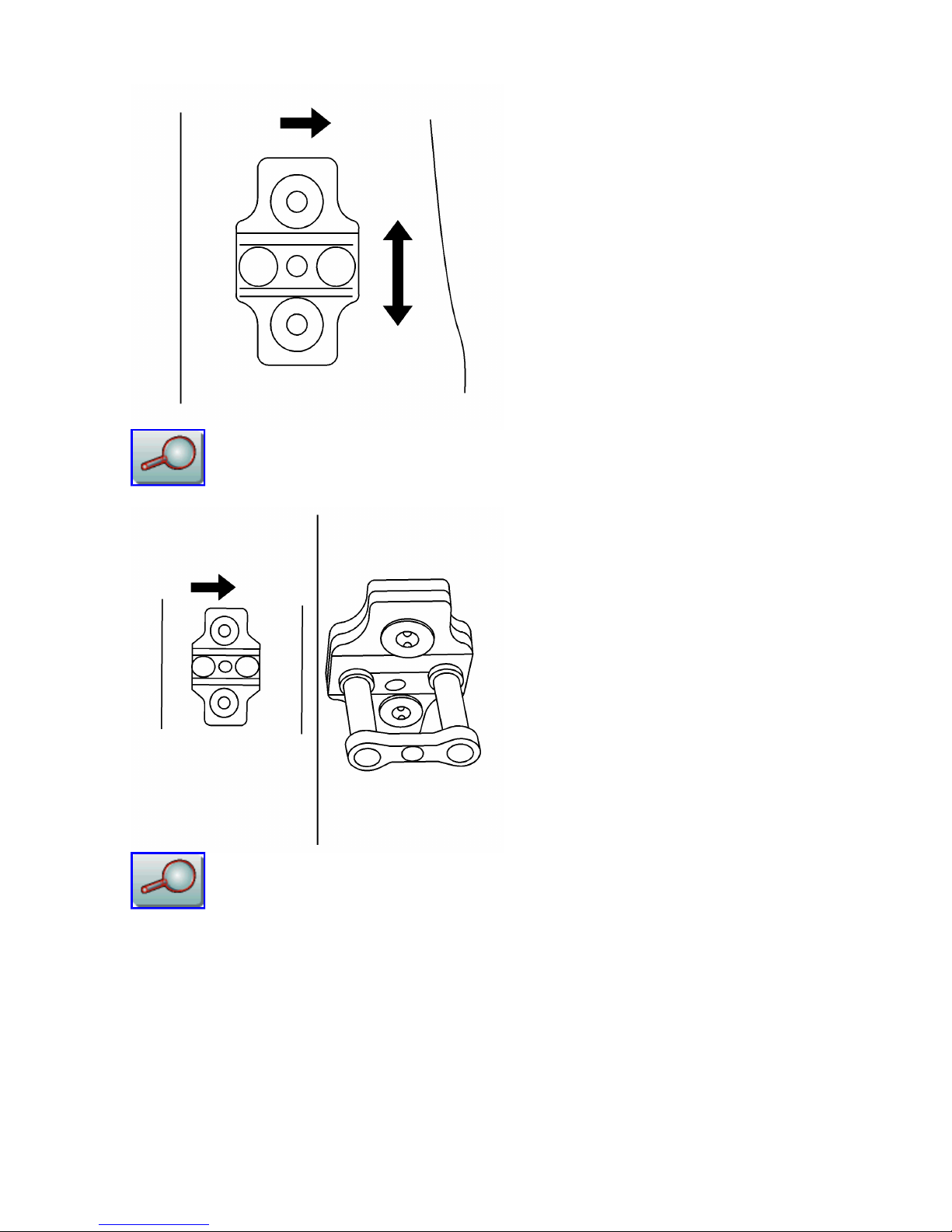

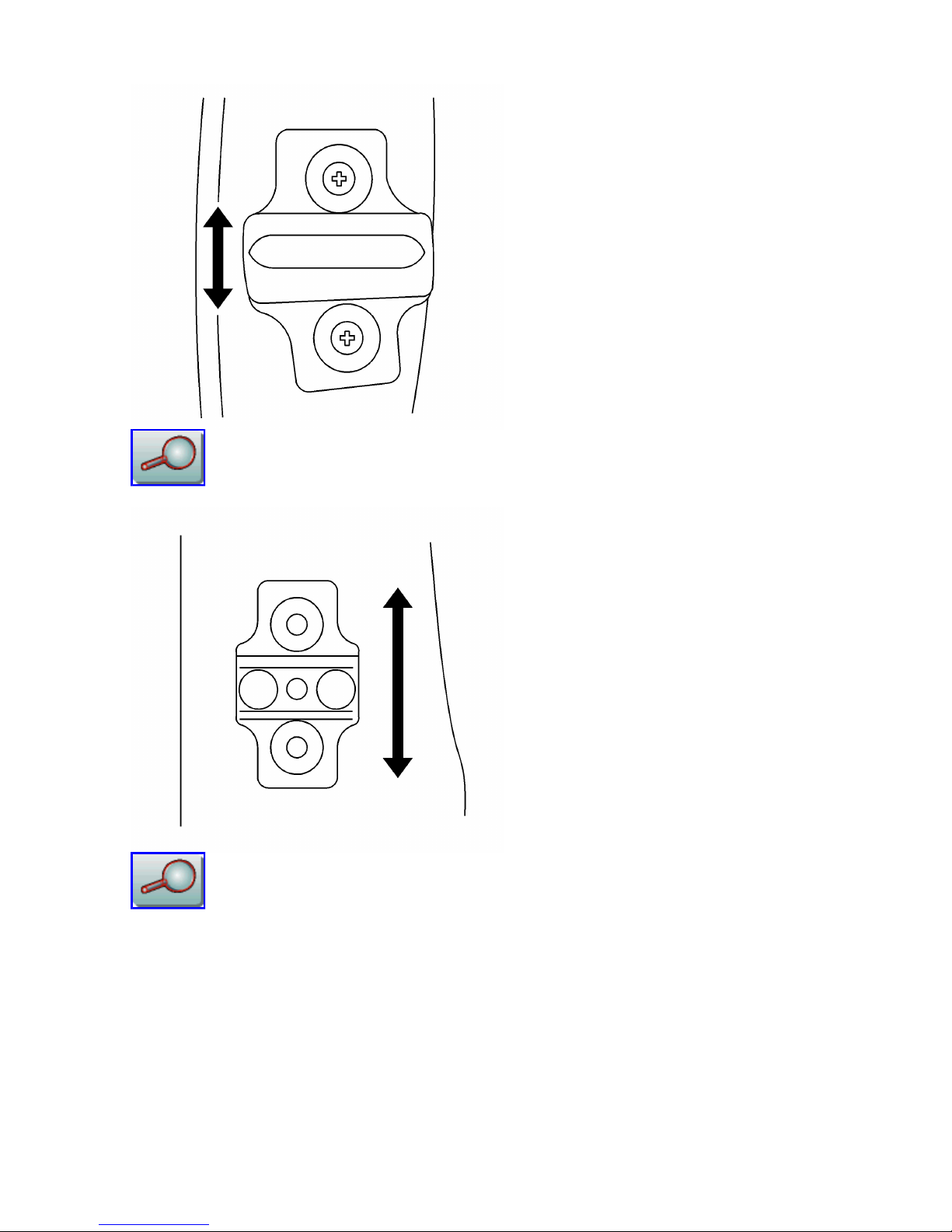

2. Adjust the "C" pillar striker up or down. Refer to the illustration above.
3.
Adjust the "B" pillar striker up or down. Refer to the illustration above.
Page
6
of
13
Service Information
4/9/2007
http://service.gm.com/servlets/BlobShtml?ShtmlFile=1933131&pubid=1632&evc=sm

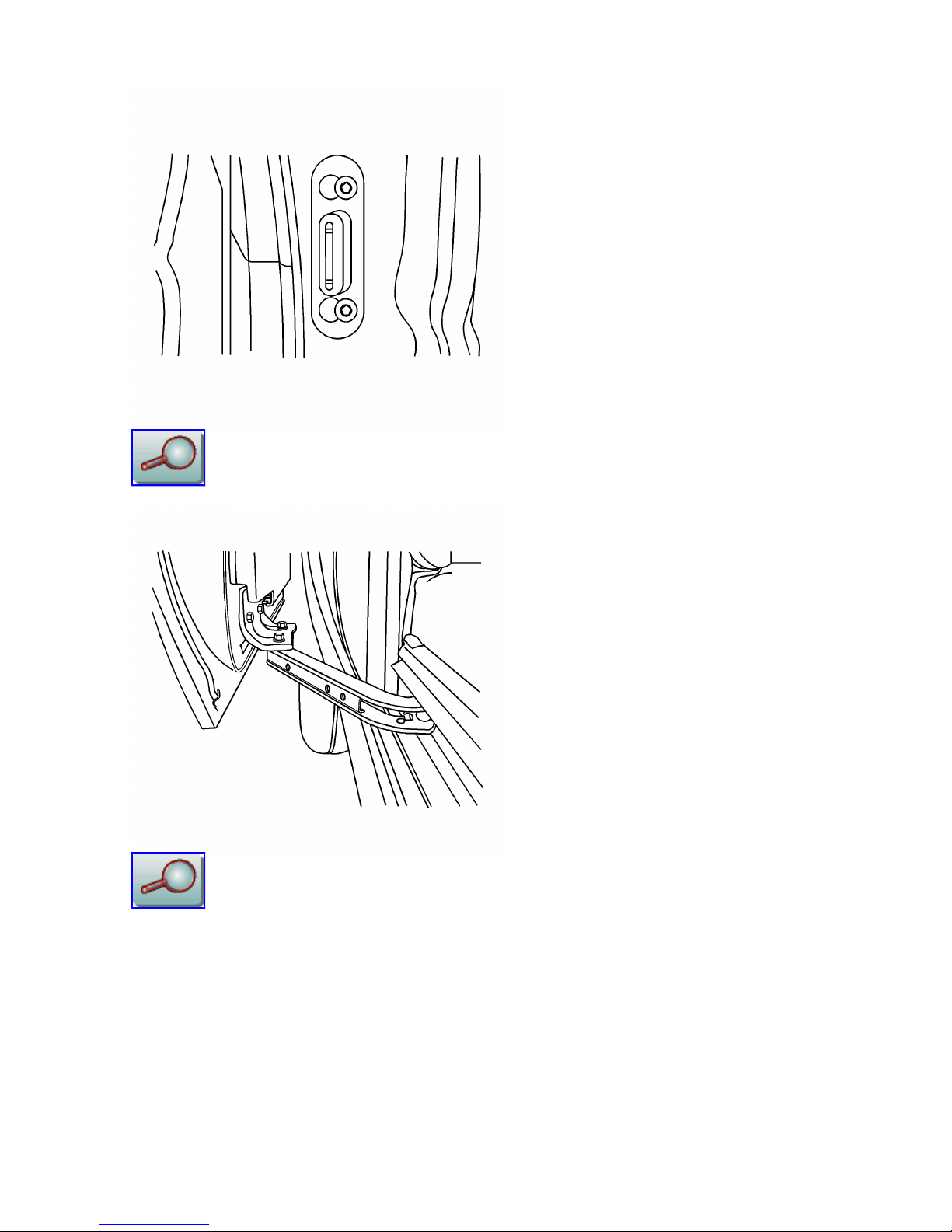

4. Adjust the pins on the door for proper alignment. Refer to the illustration above.
5.
Slightly bend the lower arm to create track clearance. Refer to the illustration above.
Page
7
of
13
Service Information
4/9/2007
http://service.gm.com/servlets/BlobShtml?ShtmlFile=1933131&pubid=1632&evc=sm

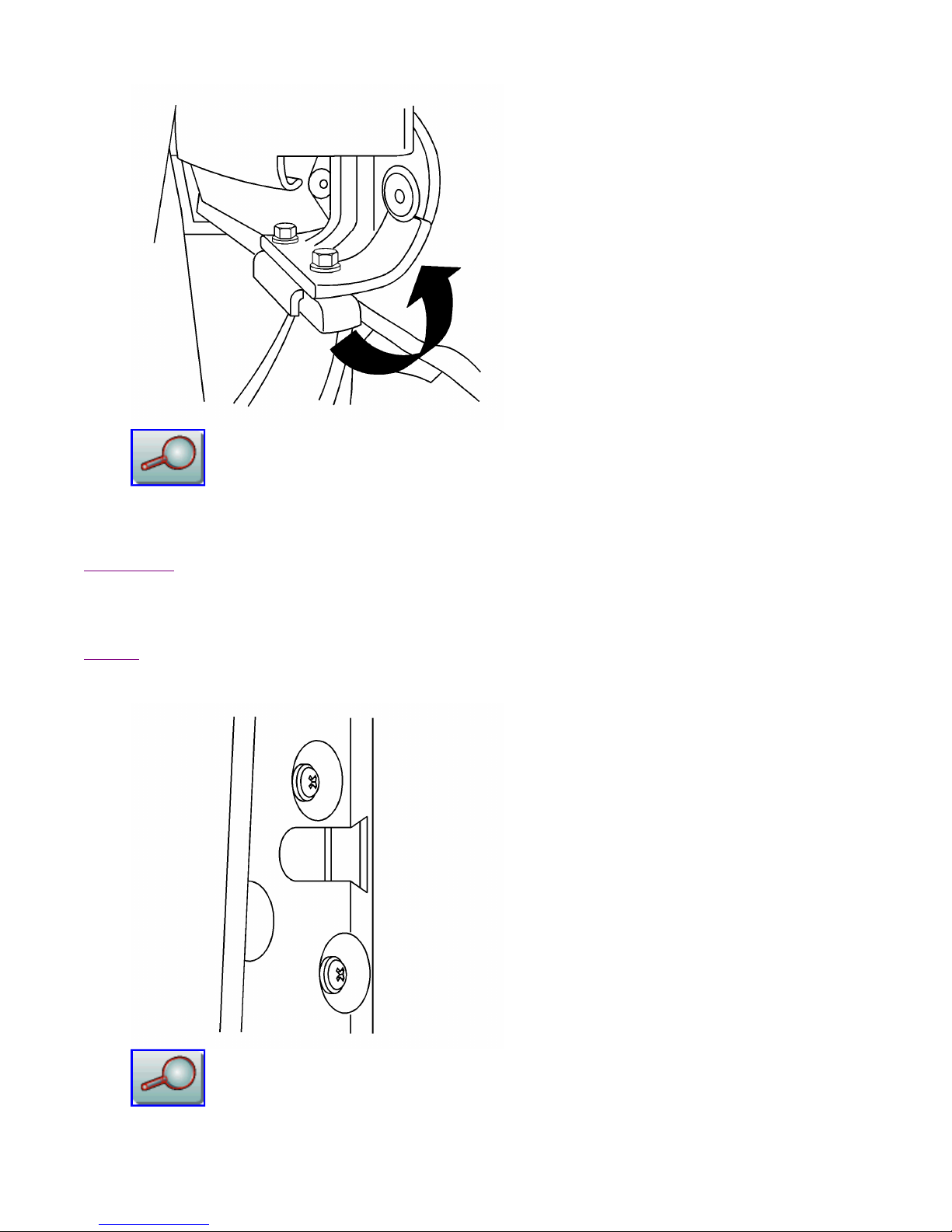

6. Rotate the lower hinge arm for proper clearance. Refer to the illustration above.
7. Align and seat any hardware as necessary. Refer to the illustration above.
Condition
The power sliding side door starts to close then reopens.
Cause
1.
Inspect the "C" pillar for proper alignment. Refer to the illustration above.
Page
8
of
13
Service Information
4/9/2007
http://service.gm.com/servlets/BlobShtml?ShtmlFile=1933131&pubid=1632&evc=sm
2. Inspect the "C" pillar for latch wear. Refer to the illustration above.
3. Inspect the "C" pillar for a bent striker.
4. Inspect all door hardware for alignment and make sure it is properly seated. Refer to the
illustration above.
Correction
Page
9
of
13
Service Information
4/9/2007
http://service.gm.com/servlets/BlobShtml?ShtmlFile=1933131&pubid=1632&evc=sm

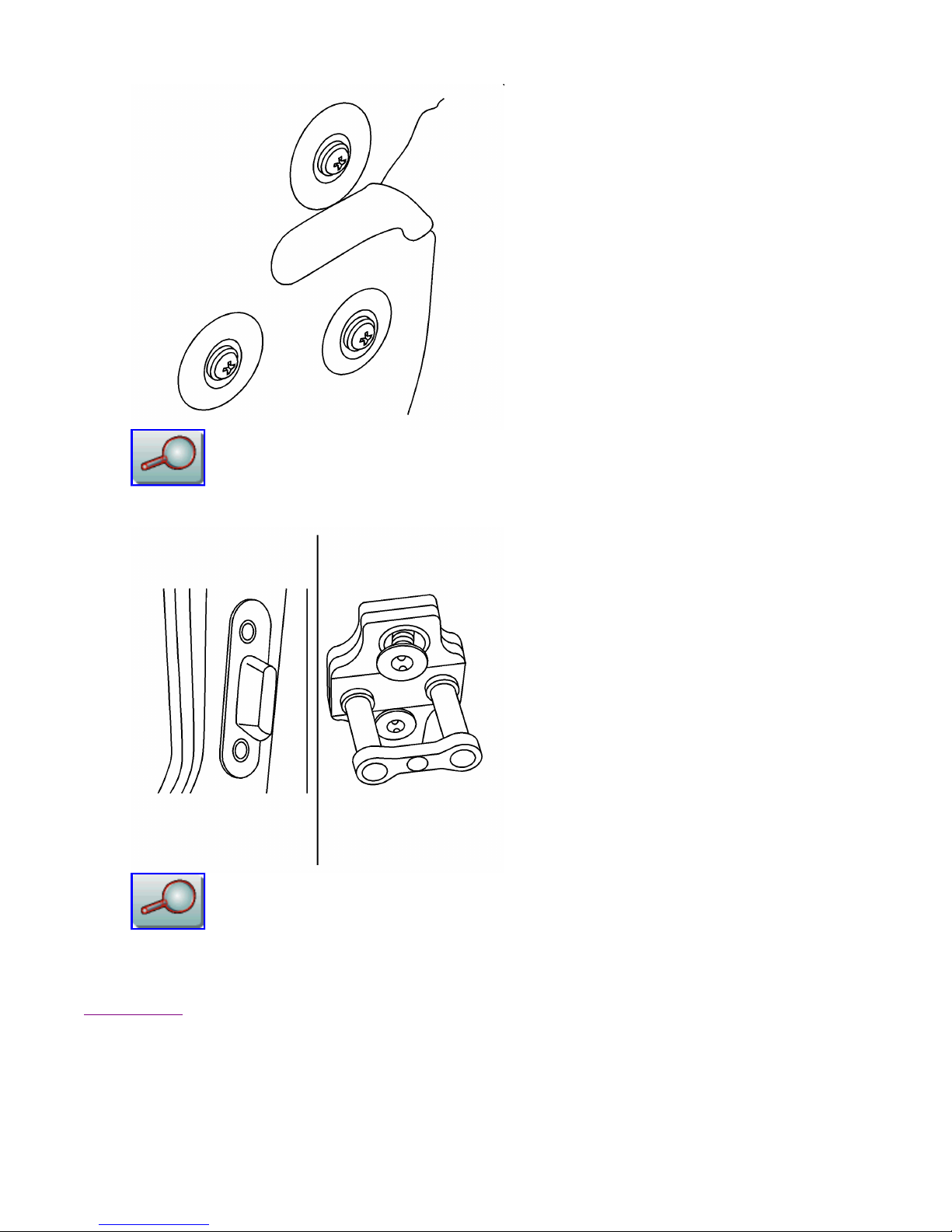

1. Adjust the "C" pillar striker up or down or outward. Refer to the illustration above.
2. Adjust the "C" pillar striker outward. Look under the striker for a third shim. If this shim is
present, remove the shim. Refer to the illustration above.
Page
10
of
13
Service Information
4/9/2007
http://service.gm.com/servlets/BlobShtml?ShtmlFile=1933131&pubid=1632&evc=sm
