Congratulations on your new Chevrolet Volt.

It’s an amazing vehicle, and we’re sure you’re eager to get behind the wheel and see what it can do.

For a quick introduction to the Volt, review this guide. It provides the basic information needed to charge

it, start it, and hit the road. Complete details can be found in your Owner Manual.

If you have any questions or would like more information about your Volt, contact a Volt Customer

Advisor at 1-877-4-VOLT-INFO (1-877-486-5846).

www.chevrolet.com/volt

Driver

Information

Center Controls

Instrument Panel

Illumination

Control

Turn Signal Lever/

Pedestrian-Friendly

Alert Button/Exterior

Lamps Control

Audio

Steering

Wheel

Controls

Cruise

Control

Fuel Door

Release

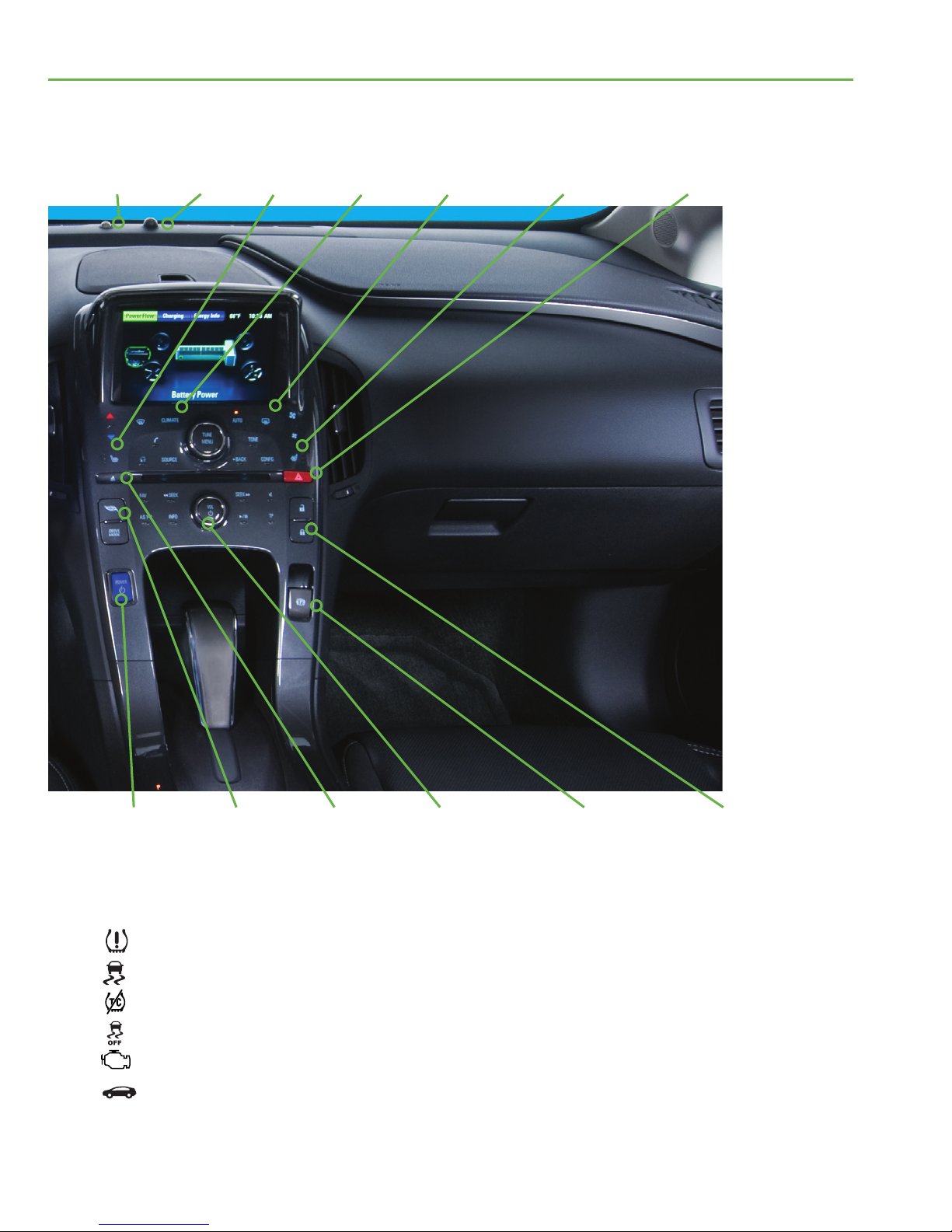

INSTRUMENT PANEL CONTROLS

Brake System

Safety Belt Reminder

REAR Seat Safety

Belt Reminder

Airbag Readiness

High Beam Headlamps

Engine Oil Pressure

12V Charging System

Forward Collision Alert

Lane Departure Warning

Engine Coolant

Temperature

Security

Service Electric Parking

Brake

PARK Electric Parking

Brake Set

Cruise Control

Door, Hood or

Hatch Open

Low Fuel

Antilock Brake System

Lights On Reminder

Instrument

Cluster/Driver

Information

Center

Windshield

Wipers

Lever

Power Mirror Controls/

Power Window/Rear

Door Safety Lock

Tilt/Telescopic

Steering

Wheel Lever

Refer to your Owner Manual to learn about the

information being relayed by the lights, gauges

and indicators of the instrument cluster.

See Instruments and Controls in your Owner Manual.

Climate

Control

Screen

Climate/

Fan

Controls

Leaf/Drive

Mode

Power Infotainment

System

Passenger’s

Heated Seat

INSTRUMENT PANEL CONTROLS

Charging

Status

Indicator

Driver’s

Heated

Seat

Hazard

Warning

Flashers

Electric

Parking Brake

Light

Sensor

Power Door

Lock/Unlock

Disc

Eject

Low Tire Pressure

StabiliTrak/Traction Control

Traction Control Off

StabiliTrak Off

Check Engine

READ

Vehicle Ready

GETTING STARTED

To get started driving your Volt, review the basic information in this guide along

with your Owner Manual. To view informative online videos about Volt operations,

scan the QR code in this guide with your smartphone. To scan a code:

1. Use the QR Code Reader on your smartphone or download a free reader to

your smartphone from your phone’s app store.

2. Start the reader.

3. Hold the phone over the code and shoot. Some phones will recognize the code

automatically.

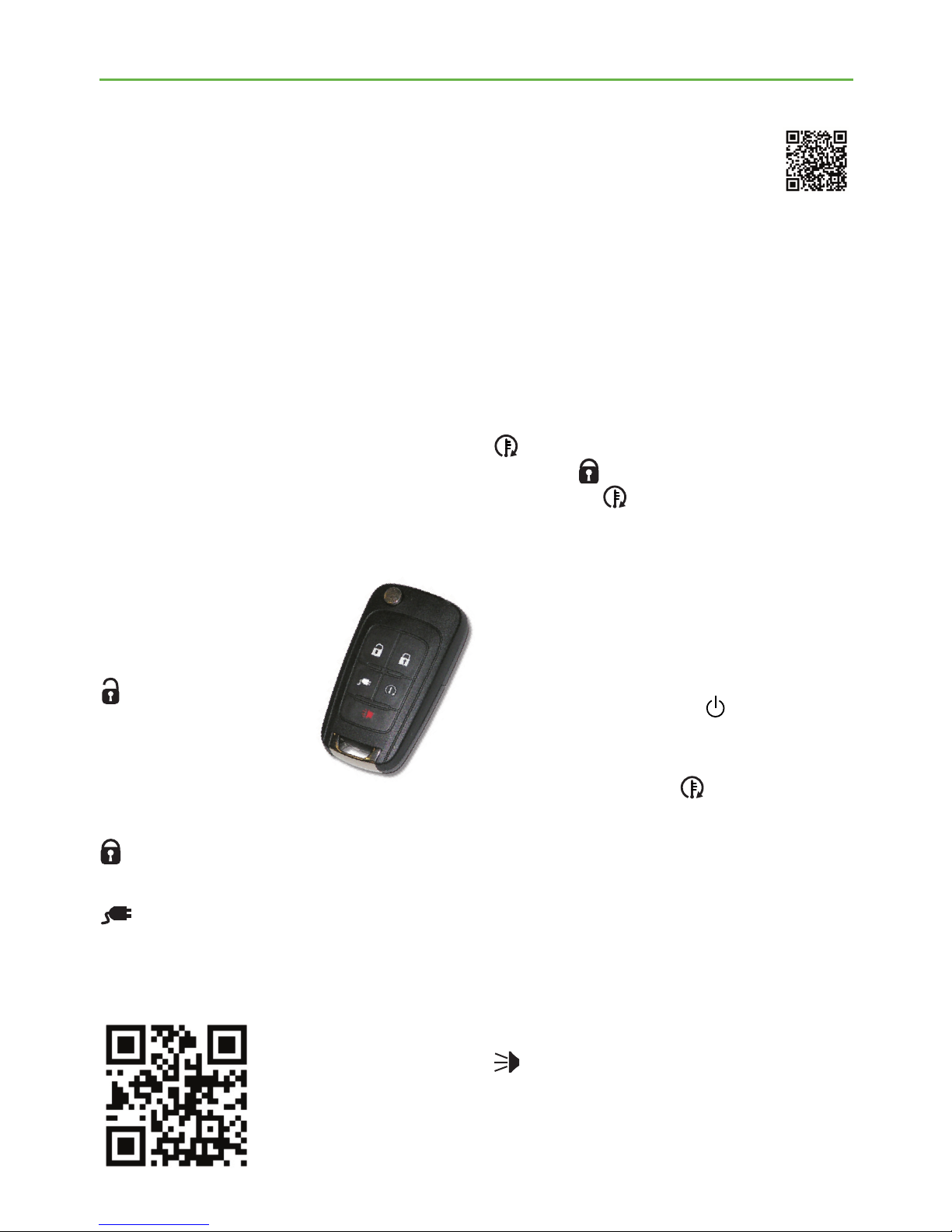

Remote Keyless Entry (RKE)

The RKE transmitter performs several remote functions and must be in the vehicle to

operate the Volt.

Keyless Access

With the RKE transmitter within 3 ft. (1m)

of the door, press the chrome button on

the door handle to unlock the door. Press it

again within 5 seconds to unlock all doors.

Key Release

Press the top button to

extend the key, which

can be used for all locks.

Unlock

Press to unlock the

driver’s door. Press

again to unlock all doors.

Press and hold to open

all windows from outside the vehicle.

Lock

Press to lock all doors.

Change Charge Mode

Press and hold to override a delayed

charging event and begin charging

immediately.

Remote Start

Press the Lock button and then press

and hold the button until the turn signal

lamps ash to start the vehicle and condi-

tion the passenger cabin temperature

from outside. The heating or air condition-

ing system and rear window defogger

(if needed) will turn on. Depending on

conditions and vehicle personalization

settings, the engine may start.

After entering the vehicle, press the brake

pedal and then press the POWER

button before driving.

Note:

• Press and hold the Remote Start

button until the parking lamps turn off to

cancel a remote start.

• Only two remote starts are allowed

between ignition cycles.

• It’s RECOMMENDED to use this feature

when the vehicle is plugged in to allow

energy from the wall outlet to assist

in getting the cabin to a comfortable

temperature and to leave more battery

energy for driving.

Panic Alarm

Press and release to locate the vehicle.

Press and hold for three seconds to sound

the panic alarm.

See Keys, Doors and Windows in your Owner Manual.

Getting

Started

Basics

Sample

GETTING STARTED

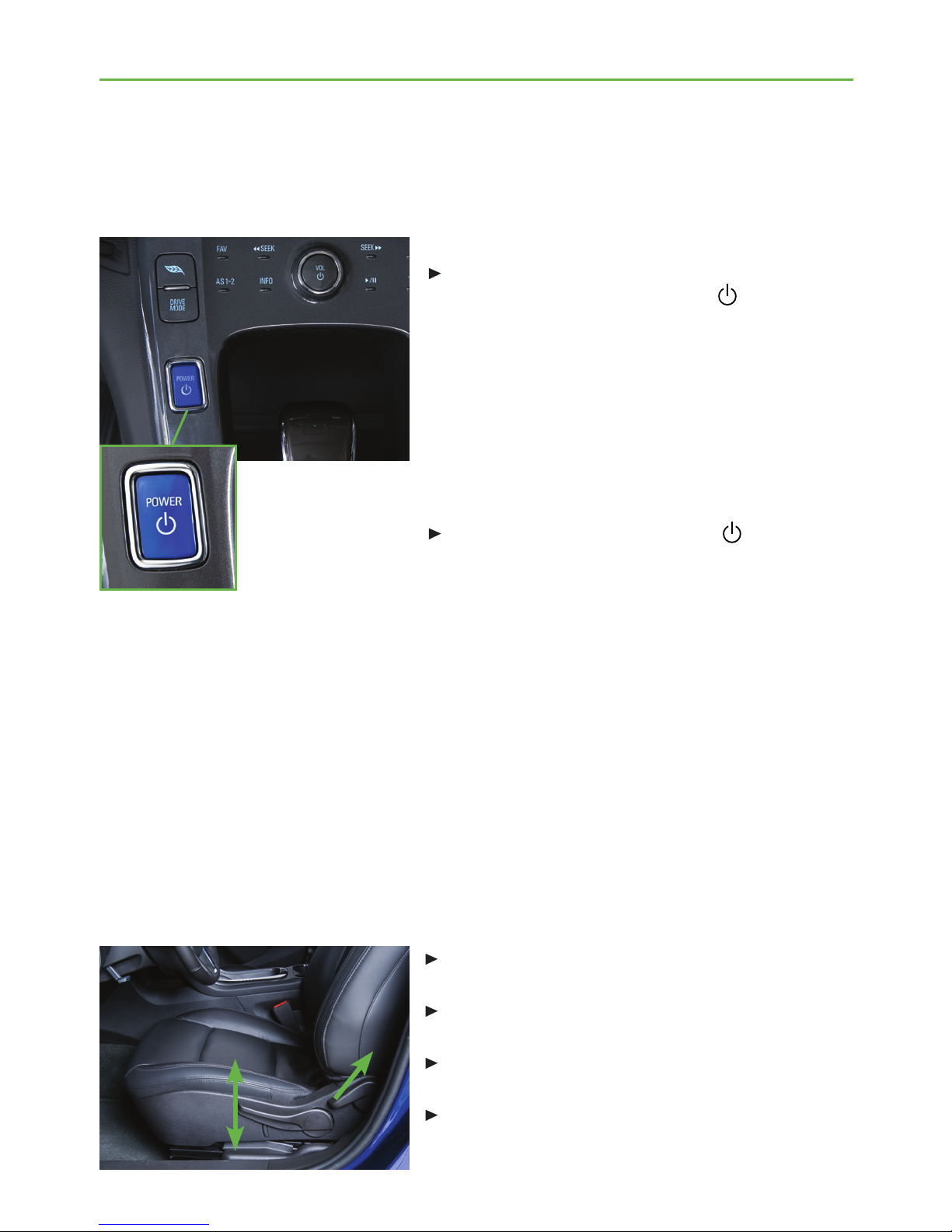

POWER Button

The Volt features an electronic push-button start. The POWER button ashes when the

driver’s door is opened upon entry. Once the vehicle is ON, the button illuminates.

Note: The air conditioning compressor, pumps and fan may run at any time, even when the vehicle is

OFF, to cool or warm the propulsion battery.

Conditions for the Engine Starting

When vehicle power is ON, the engine may start independent of the vehicle being plugged

in or completely charged. Conditions that may cause the engine to start include:

Starting the Vehicle/ON

With the vehicle in Park or Neutral, press the

brake pedal and then press the POWER

button. A power ON audio cue will sound.

The vehicle will not shift out of Park and will

display a Charge Cord Connected message

if the vehicle is still plugged in.

When ON, the instrument cluster will display an

active battery or fuel gauge. The engine will start

only if needed.

Stopping the Vehicle/OFF

Shift to Park and then press the POWER

button. A power OFF audio cue will sound.

• Propulsion battery charge is low

• Propulsion battery temperature is hot or cold

• Cold ambient temperatures (depending on

engine-assisted heating options; see Vehicle

Personalization on page 11)

• Hood is open

• Engine and Fuel Maintenance Modes

(occur only if the engine has had

very limited operation over a long

period)

See Driving and Operating in your Owner Manual.

Seat and Steering Wheel Adjustment

Before driving, adjust the seat and steering wheel to a comfortable position.

Pull down the lever (A) to unlock the steering

wheel and adjust its position.

Lift the handle (B) under the right-front side of

the seat to slide the seat forward or rearward.

Ratchet the side lever (C) up or down to raise or

lower the seat.

Lift the rear lever (D) to adjust the seatback.

See Seats and Restraints in your Owner Manual.

ELECTRIC AND EXTENDED-RANGE MODES

Volt is an electric vehicle with extended range capability. Plug it in, let it charge overnight,

and it’s ready to run on a pure electric charge — gas- and tailpipe emissions-free. After that,

Volt keeps going, even if you can’t plug it in. Volt uses a range-extending gas engine that

produces enough energy to power it for hundreds of miles on a single tank of gas.

Electric Mode

In Electric Mode, the Volt will not use gasoline or produce tailpipe emissions unless in

extreme temperatures. During this primary mode, the Volt is powered by electrical energy

stored in its propulsion battery. It can operate in this mode until the battery is depleted to a

predetermined level.

Electric range is affected by colder outside temperatures. During colder months, the energy

needed to warm the vehicle’s cabin and propulsion battery can cause the vehicle’s electric

range to decline. See Driving for Better Energy Efciency in the Driving and Operating sec-

tion of your Owner Manual.

Extended-Range Mode

Once the electric charge is depleted, the range-extending gas engine will start to gener-

ate enough power to continue driving the vehicle. The engine ensures that you will not be

stranded by a depleted battery. The vehicle determines when the engine needs to run.

Engine speed will vary, depending on driving conditions, to optimize efciency. The engine

will not fully charge the propulsion battery. The vehicle must be plugged in to recharge.

Total Vehicle Range

Total vehicle range is based on the available combined electric and extended range. The

displayed electric and fuel ranges are projections based on past vehicle performance and

charge/fuel level. The displayed ranges will change based on driving style, outside tem-

perature and climate settings.

See Driving and Operating in your Owner Manual.

PARkING

Electric Parking Brake

To apply the parking brake, pull the PARK Parking Brake switch by the shift lever.

To release the parking brake, with the ignition in the ON or Accessory position, press

the brake pedal and press the

PARK

Parking Brake switch.

Driving and Operating in your Owner Manual.

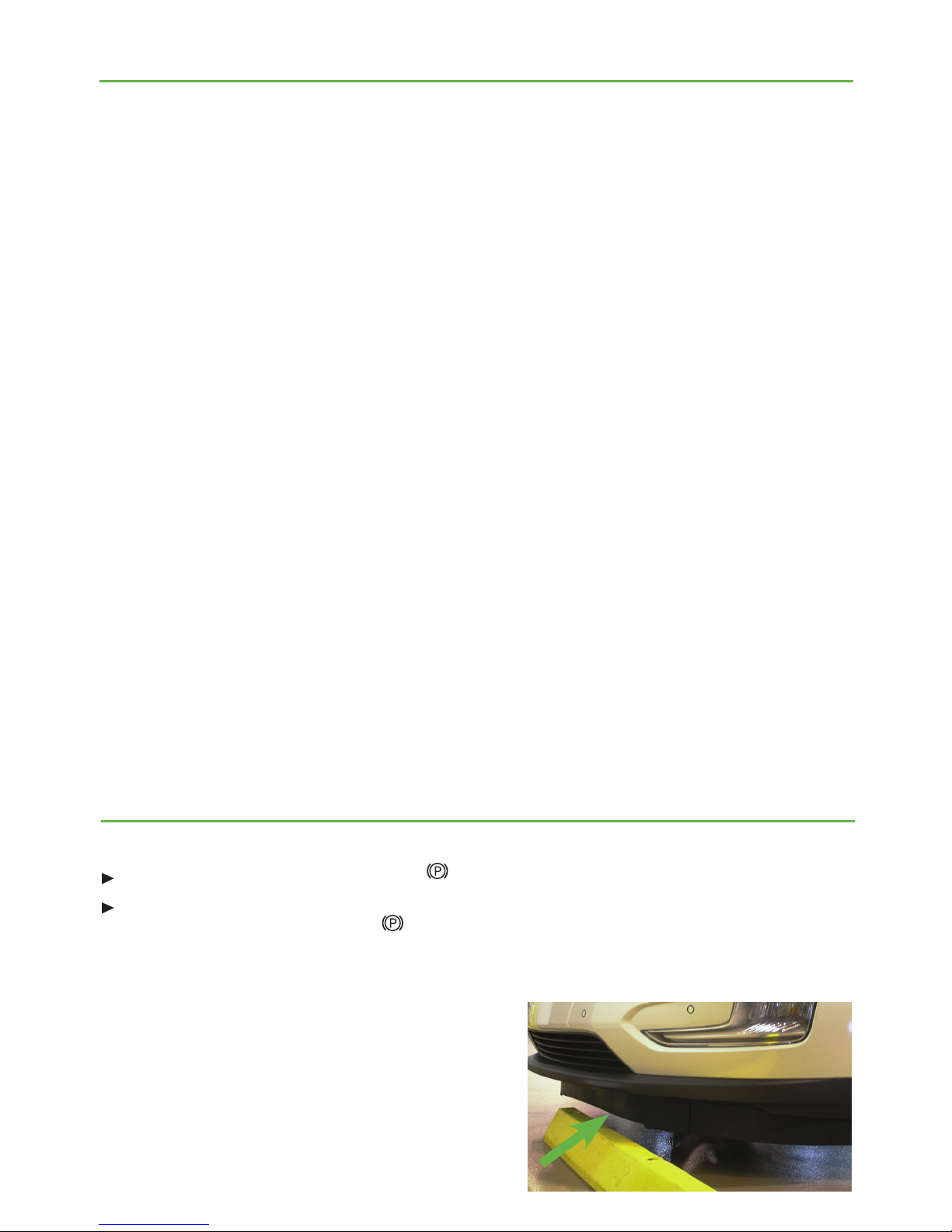

Low Ground Clearance

The low ground clearance of the Volt aids in the

aerodynamic efciency of the vehicle. As a result,

the exible air deector under the front fascia

(bumper) may contact a parking block or curb if

the vehicle is parked too closely. Use care when

parking to avoid damage.

See Vehicle Care in your Owner Manual.

INSTRUMENT CLUSTER

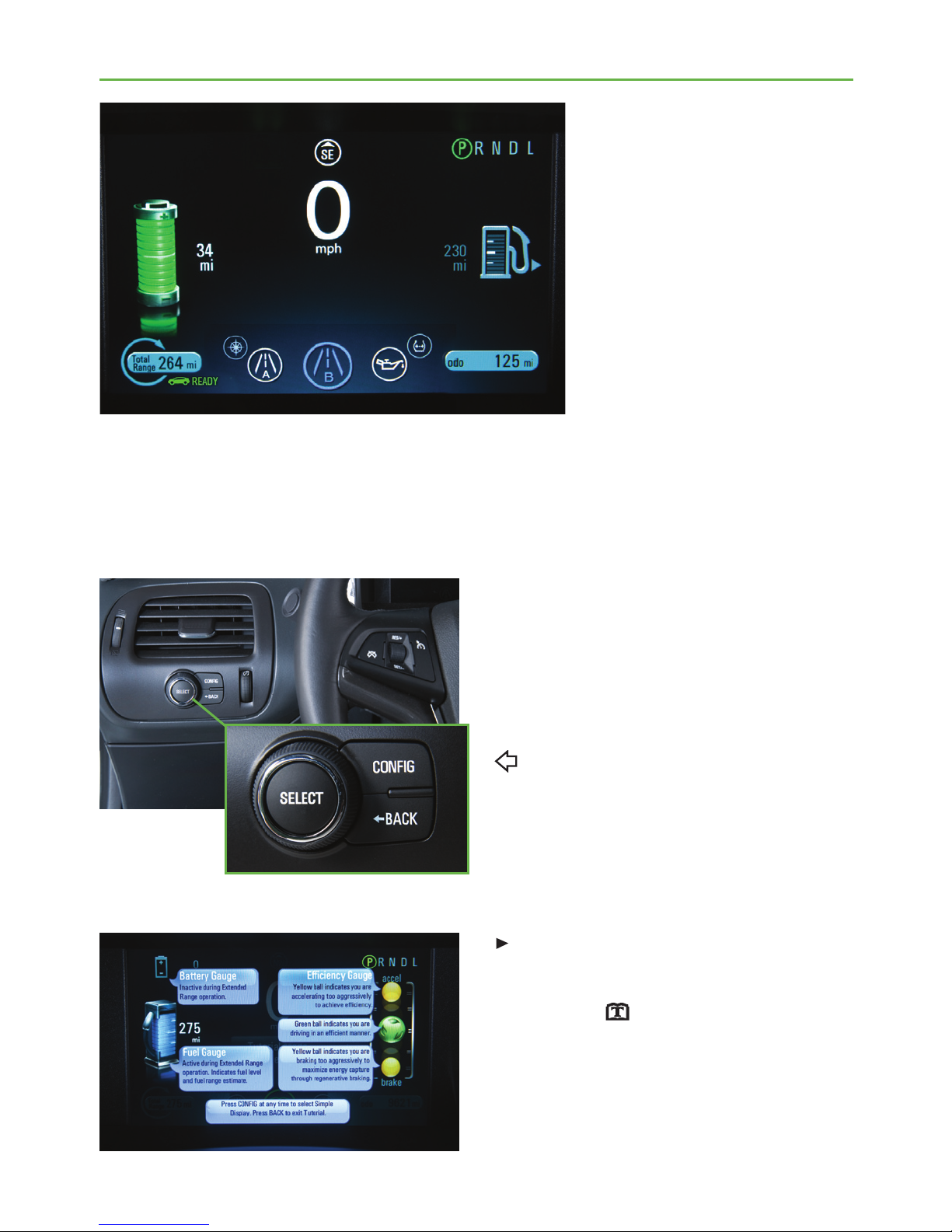

The instrument cluster features

a recongurable 7-inch LCD

screen that displays a variety

of operating information.

The Simple Conguration

displays basic information for

Electric Mode and Extended-

Range Mode operation.

The Enhanced Conguration

displays an additional driver

efciency gauge. (Not avail-

able in Mountain or Hold drive

mode.)

Driver Information Center

Use the Driver Information Center controls on the left side of the instrument panel to

change the instrument cluster display and access the menus.

CONFIG

Press to select the Simple or Enhanced

instrument cluster display conguration.

SELECT

Turn the knob to scroll through the menus.

Press it to select a highlighted item.

BACK

Press to move back or exit a menu.

Simple Conguration shown

Enhanced Conguration shown

Cluster Tutorial

To view a tutorial about the unique

features of the instrument cluster, with

the vehicle in Park, turn the SELECT

knob until Tutorial Mode is high-

lighted. Press the knob to select it.

See Instruments and Controls in your Owner Manual.

INSTRUMENT CLUSTER

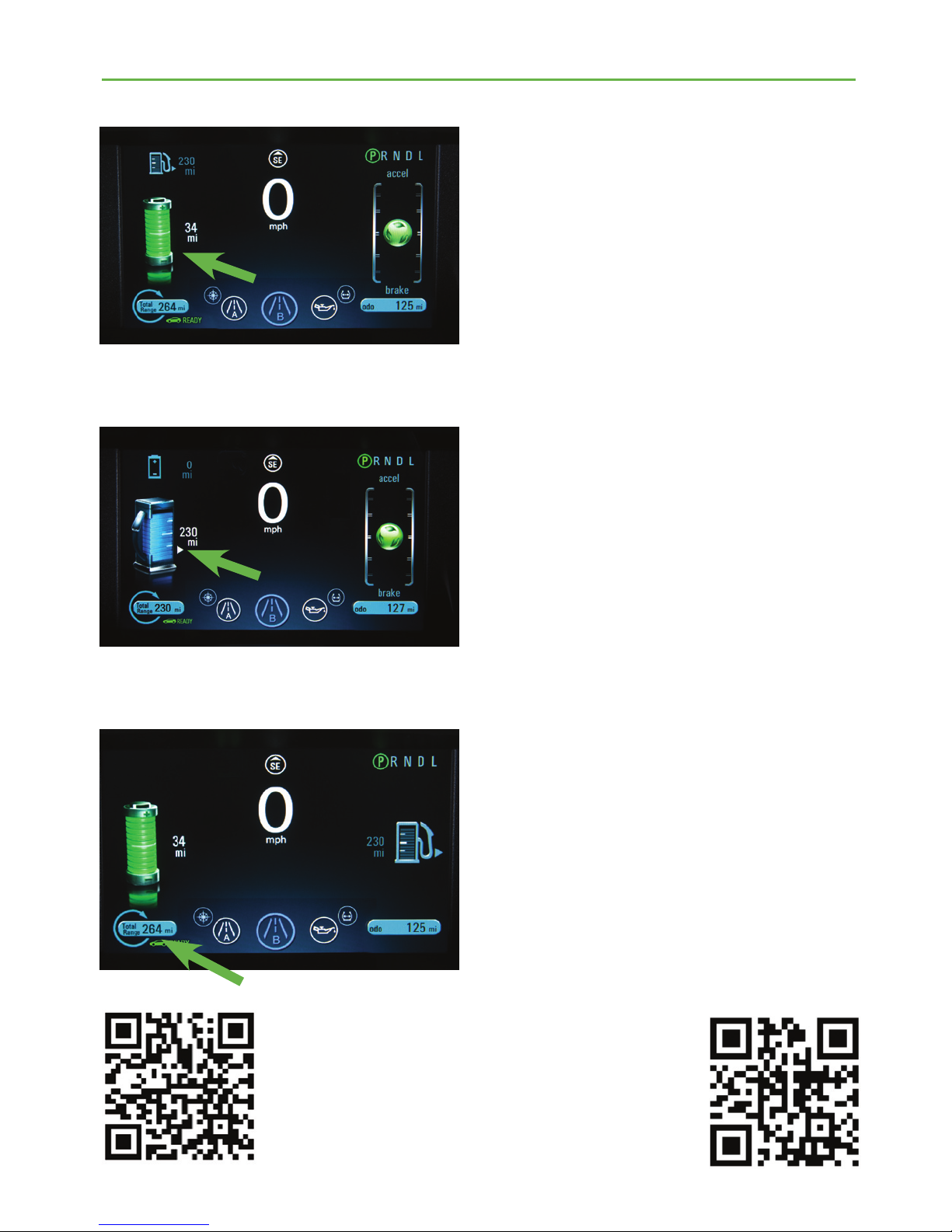

Electric Mode Display

The propulsion battery gauge and electric

range estimate are in color and displayed

in the foreground when the vehicle is

operating in Electric Mode. The fuel gauge

is grayed out.

Enhanced Conguration shown

The fuel gauge and fuel range estimate are

in color and displayed in the foreground

when the vehicle is operating in Extended-

Range Mode. The propulsion battery gauge

is grayed out.

Enhanced Conguration shown

Extended-Range Mode Display

The Total Range indicator displays the

total distance that can be driven, based

on available electric and extended range

projections.

See Instruments and Controls in your Owner Manual.

Congurable

Cluster

Display

Driver

Information

Center

Total Vehicle Range

EFFICIENCY

Driving Style

Your driving style plays a large role in the efciency of the vehicle. Avoid rapid acceleration

or deceleration to help maximize energy efciency and range. Electric range is maximized at

50 mph and below; higher speeds use more energy and signicantly reduce range.

Press the CONFIG button to select

the Enhanced Conguration of the

instrument cluster to display the

efciency gauge.

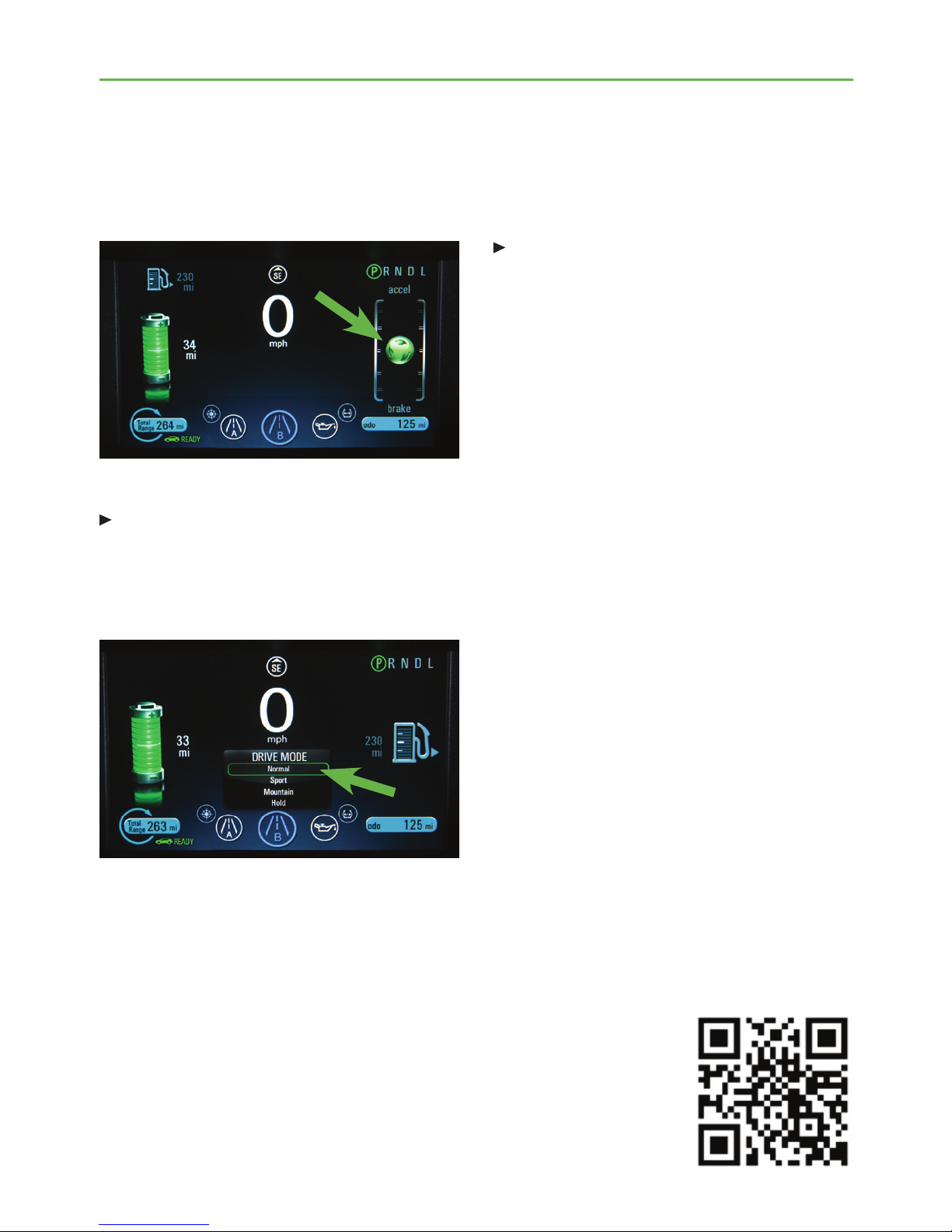

While driving, try to keep the spinning ball

in the Efciency Gauge green and in the

center of the gauge. The ball will turn yel-

low and move up or down during inefcient

acceleration or aggressive braking.

Efciency Gauge

Driver-Selected Operating Modes

Climate Settings

Optimal efciency is achieved with the heat, air conditioning and fan turned off. If using the

climate mode settings, the most efcient operation is in the following order:

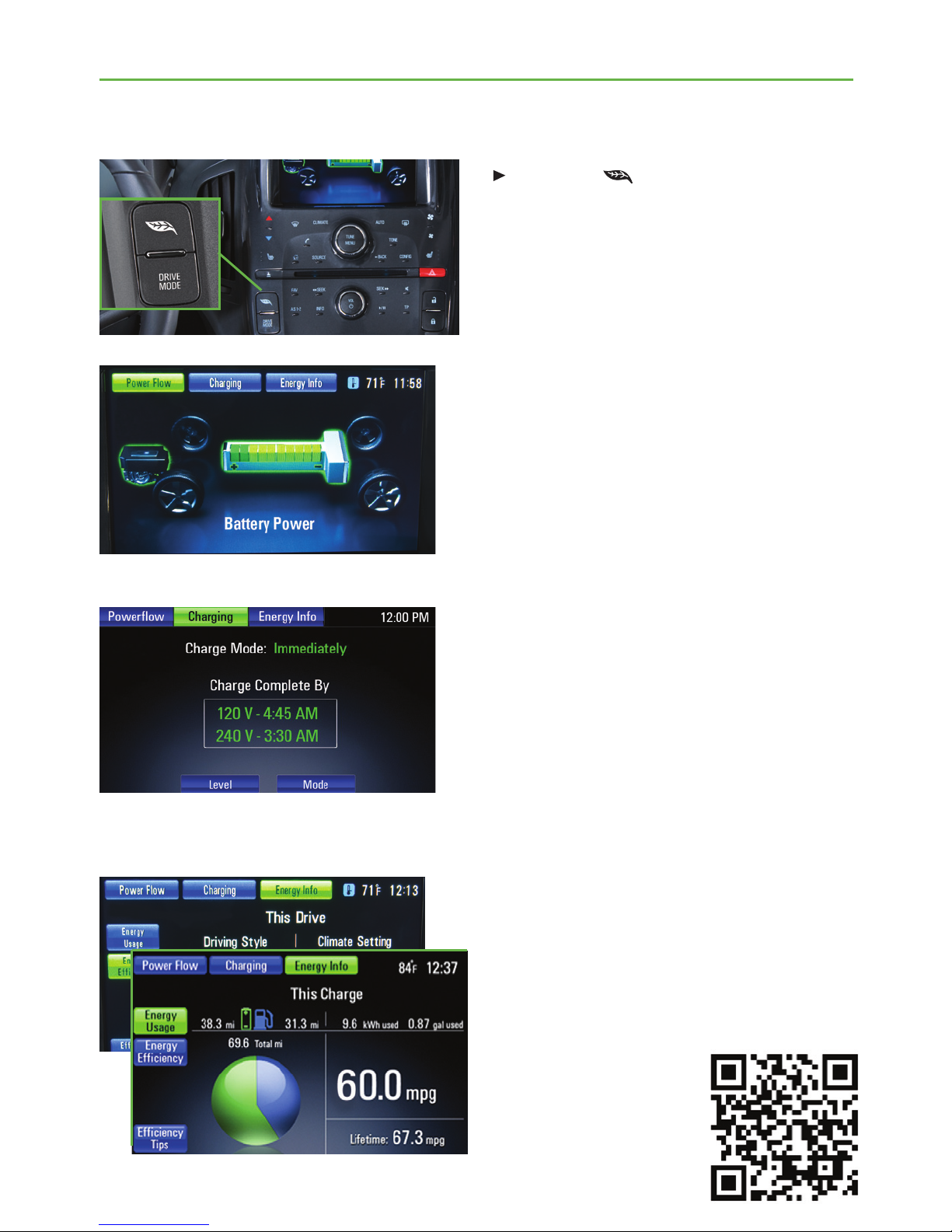

Press the DRIVE MODE button on the

center stack to scroll through a menu of

operating modes when more perfor-

mance is needed. After three seconds,

the highlighted mode will become active.

Normal (Default): Use in normal driving

conditions for efcient operation; is active

each time the vehicle is started.

Sport: Use when more responsive accel-

eration is desired; may reduce efciency.

Mountain: Use when planning to drive in

mountainous terrain (long grades of 5% or

higher); reserves battery power to maintain

higher speeds on steep grades.

Hold: Use to preserve electric range for

later use. Range-extending operation will

engage.

Winter

Driving

Efciency

• FAN ONLY – electric cabin heating/cooling is off

• ECO – limits cabin heating/cooling to balance

comfort with energy use

• COMFORT – provides the most cabin heating/

cooling but uses the most energy

Use the heated seats (if equipped) to reduce the

demand on the cabin heating system. Heating the seats

uses less energy than heating the vehicle interior.

See Driving and Operating in your Owner Manual.

EFFICIENCY

Center Stack Information Displays

The center stack touch screen displays Power Flow, Charging and Energy Information.

Press the Leaf button on the center

stack and then touch the desired tab at

the top of the screen to display the

desired information.

Power Flow

The Power Flow screens show the power

ow between the propulsion battery, elec-

tric drive unit and engine. Each component

is highlighted when it is active.

Charging

The Charging screens show the charge

mode status. The vehicle has three

programmable charge modes:

• Immediately upon plug-in

• Delayed based on departure time

• Delayed based on electric rates and

departure time

Charge Complete times are estimates and

most accurate at moderate temperatures.

The charging level can be programmed

using the Level screen button (see

Charging on page 13).

Energy Information

The Energy Info screens show the energy

use (Electric Mode and Extended-Range

Mode) since the last time the vehicle was

fully recharged, energy efciency over

the last drive cycle, and efciency tips to

improve energy use.

See Instruments and Controls in your Owner Manual.

Power Flow screen

Charging screen

Energy Info screens

Leaf Button

Altri manuali per VOLT 2014

Indice

Altri manuali Chevrolet Automobile

Chevrolet

Chevrolet 2005 Equinox Istruzioni per il montaggio

Chevrolet

Chevrolet 2013 VOLT Istruzioni per il montaggio

Chevrolet

Chevrolet 2000 Prizm Manuale utente

Chevrolet

Chevrolet 2011 Suburban 2500 Manuale utente

Chevrolet

Chevrolet 2007 Colorado Manuale utente

Chevrolet

Chevrolet Sail U-VA 2014 Manuale utente

Chevrolet

Chevrolet 2008 Corvette Navigation System Manuale utente

Chevrolet

Chevrolet Colorado 2020 Istruzioni per il montaggio

Chevrolet

Chevrolet 1997 Tahoe Manuale utente

Chevrolet

Chevrolet 2006 TrailBlazer EXT Manuale utente

Chevrolet

Chevrolet 2003 Impala Manuale utente

Chevrolet

Chevrolet 2013 SONIC Manuale utente

Chevrolet

Chevrolet 2006 HHR Manuale utente

Chevrolet

Chevrolet SIERRA 2021 Istruzioni per il montaggio

Chevrolet

Chevrolet 2008 Cobalt Manuale utente

Chevrolet

Chevrolet Silverado 4500HD 2022 Manuale utente

Chevrolet

Chevrolet Camaro 2012 Manuale utente

Chevrolet

Chevrolet 2012 Equinox Istruzioni per il montaggio

Chevrolet

Chevrolet 1996 Express Van Manuale utente

Chevrolet

Chevrolet 2015 Equinox Istruzioni operative

Chevrolet

Chevrolet SS Sedan 2015 Manuale utente

Chevrolet

Chevrolet Equinox 2014 Istruzioni per il montaggio

Chevrolet

Chevrolet 2013 VOLT Manuale utente

Chevrolet

Chevrolet 2003 Avalanche Manuale utente

Manuali Automobile popolari di altre marche

Toyota

Toyota 2000 Tundra Manuale utente

CITROËN

CITROËN DS4 DSign Manuale utente

Lexus

Lexus 2015 CT 200h Manuale utente

Cadillac

Cadillac CTS 2008 Manuale utente

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuale utente

Porsche

Porsche Boxster S Manuale utente

GMC

GMC 2010 Savana 1500 Cargo Manuale utente

KIAM

KIAM SPORTAGE 2014 Manuale elenco delle parti

GMC

GMC 2013 Terrain Istruzioni per il montaggio

GMC

GMC T-Series 1999 Manuale utente

Mercury

Mercury 1998 Mystique Manuale utente

Mercury

Mercury 2007 Mariner Manuale utente

Mazda

Mazda 2007 Mazdaspeed 3 Guida

Mazda

Mazda 2014 CX-5 Manuale utente

GMC

GMC Chevrolet Express 2022 Manuale utente

GMC

GMC 1997 Jimmy Manuale utente

Cadillac

Cadillac 2010 Escalade Manuale utente

Skoda

Skoda FABIA RS - ANNEXE 118 Manuale utente
