Chiayo Coach 400 Series Manuale utente
Operation manual
CHIAYO ELECTRONICS CO., LTD.
COACH 400
Personal Wireless Portable Amplifier
1
COACH 400 Personal Wireless Portable Amplifier
Congratulation and thank you for the purchase of this all-in-one ultra compact portable sound
system. To ensure a trouble-free operation, please read this manual thoroughly to fully
understand its controls and functions.
Configuration
Switch mode power supply
(100-240VAC DC:18V/2.7A)
Operation manual
Shoulder strap
Optional accessories
Receiver/MP3 recorder module
Wireless handheld or bodypack transmitter
Tripod stand (ST-30)
Storage bag (SB-41)
Remark
Manufacturer reserves the rights to change the above combinations without prior notice.

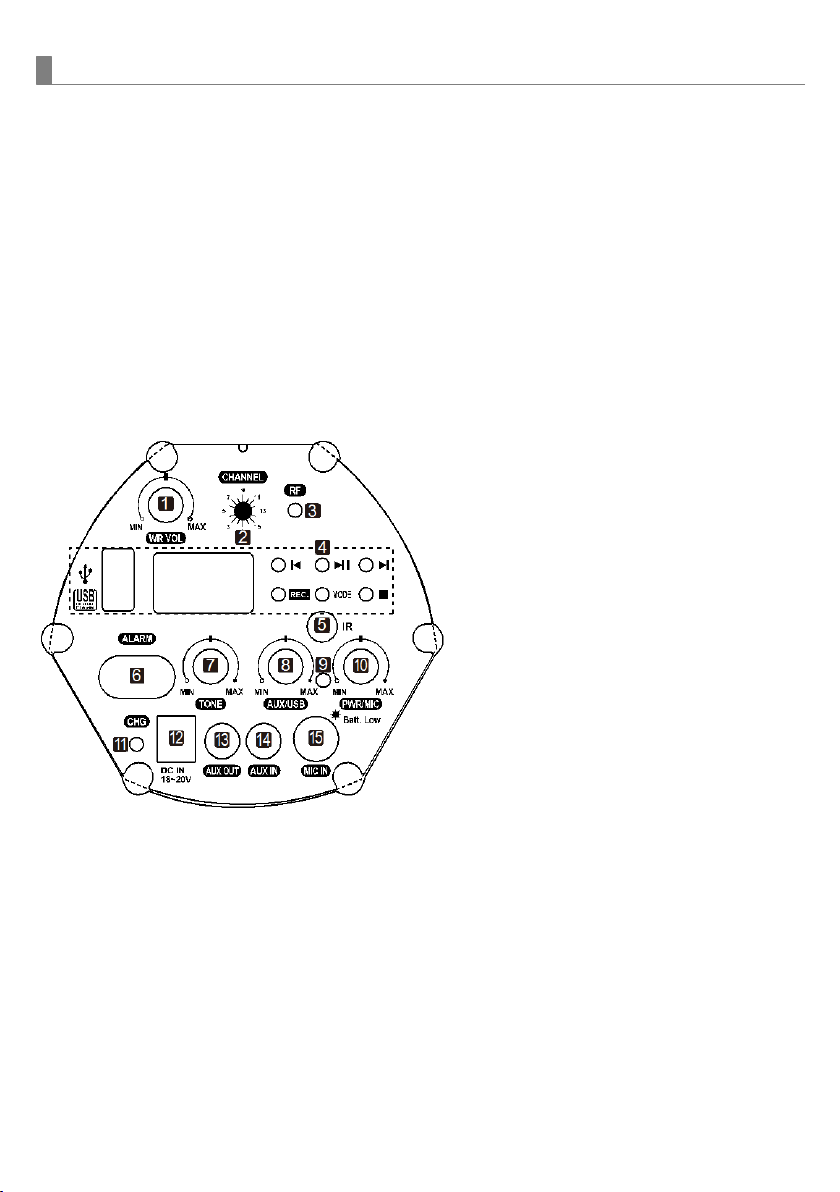

Rear control panel
1.Power and volume control of wireless
microphone
2.Channel selector
3.RF signal indicator
4.USB digital recorder player
5.IR sensor area
6.Emergency alarm(2 sounds for selection)
7.Tone control
8.Volume control of audio input/USB
9.Power/Battery low indicator:
Normal(GREEN)/battery low(RED)
10.Power / Volume control of wired
microphone
11.Charging indicator: During
charging(RED)/Charging
finished(GREEN)
12.DC in
13.Aux output
14.Aux input
15.Wired microphone input
Recharge its inbuilt Lithium battery before first use
After unpacking the unit for the first time, please recharge the unit for about 4~5 hours before
operation. This is absolutely necessary as the built-in rechargeable battery might have been
discharged naturally due to long shipment and storage time, even though it had been fully
charged in the factory prior to shipment.
To charge the battery, just plug in the DC end of the switch mode power supply into the DC IN
⑫of the unit and charging will start automatically. During the charging process, the charging
indicator LED ⑪will be RED. When this LED turns GREEN, this battery is then fully charged.
2
Instructions
Battery maintenance
Battery should be charged regularly after every use or every month
Do not short, disassemble, heat or put the battery into a fire.
Do not solder a battery directly.
Be sure to use the specified type of battery.
Note the correct polarity when inserting a battery in the unit.
Avoid locations exposed to the direct sunlight, high temperature and high humidity when
storing batteries.

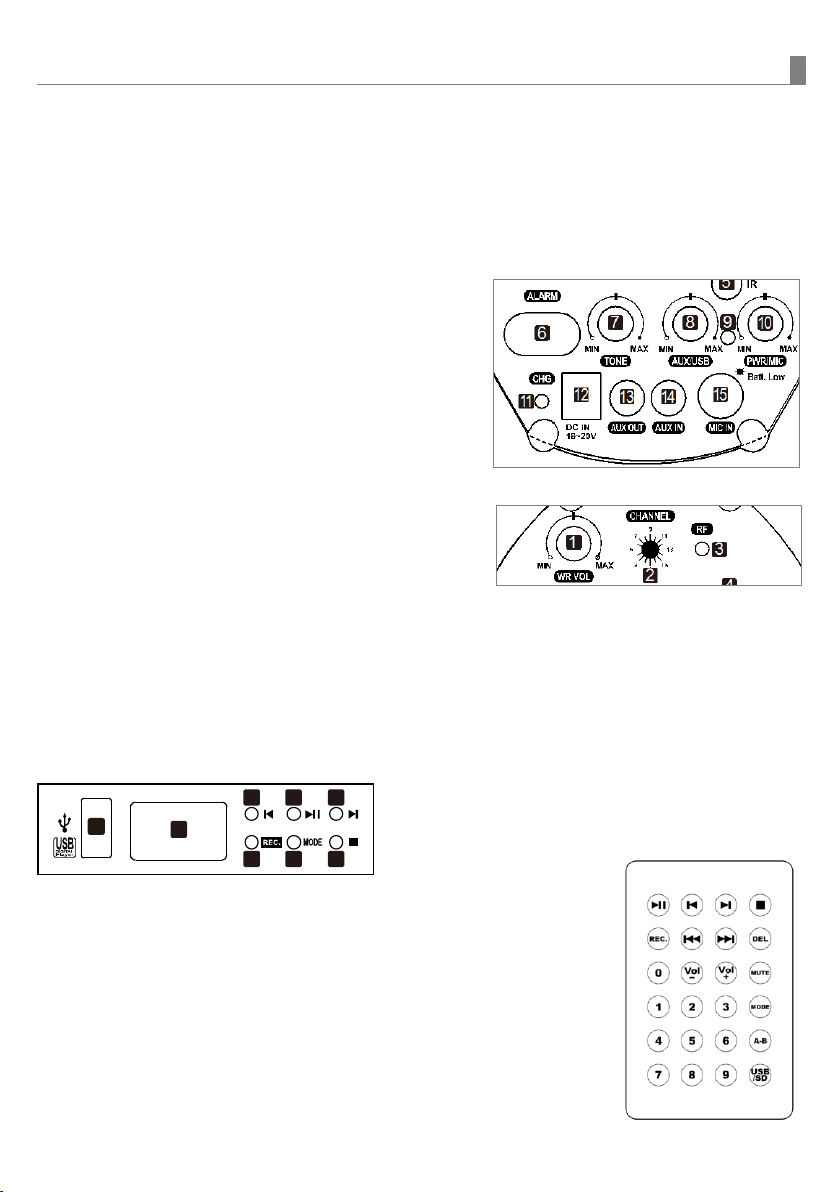

Operating procedures
To operate this portable sound unit, turn on the main
power switch ⑩and the power indicator ⑨will be
GREEN. If it turns RED, its battery power might be too
low and recharging is necessary. The main power
switch does not switch on the wireless microphone and
USB digital recorder player as each of them has an
individual Power / Volume control.
Operating the built-in wireless microphone system
To use the wireless microphone, first turn on the main
power switch ⑩, then turn on the WR power/volume
control switch ①. Switch on the corresponding
transmitter and set this system to the same frequency
and RF signal LED ③will grow GREEN.
Operating the wired microphone
There is a MIC IN jack ⑮with dedicated volume control ⑩for this portable sound unit. To use
a wired microphone, just insert its phone plug into the MIC IN jack ⑮. Then turn on the
Power/volume control ⑩and rotate it to adjust the volume.
DPR-400mMP3 recorder player module
1.USB 2.0 input
2.LCD display
3.Press to return to previous track, press and hold to fast reverse.
4.Press to play/pause or stop recording.
5.Press to go to next track, press and hold to fast forward.
6.Press to record.
7.Press to switch repeat modes.
8.Press to stop playing or recording.
12
345
678
remote control▲
COACH 400 Personal Wireless Portable Amplifier
Operating functions on the panel and the remote
Note:
Supports FAT and FAT32 file systems only.
Supports MP3, WAV and WMA music formats only
Record track format :MP3; Bit rate: 128kbps; Sampling frequency: 44kHz
Recordable only when USB is detected.
Record files will be stored in the RECORD folder of USB.
The files will be named as FILE_001, FILE_002, FILE_003…etc.
The name of a deleted track won’t be applied to its next one.
Recordable until FILE_999 appears with LCD displaying Num Full.
LCD displays USB FULL when insufficient memory left.
Don’t remove the USB during the recording process in case the interrupted track might be
damaged.
Operating function
On the panel
On the remote
Play/pause
Press
Record
Press to record and or to stop.
Press to record and or to stop.
Skip forward
Press
Press
Fast forward
Press and hold
Press and hold
Skip backward
Press
Press
Fast backward
Press and hold
Press and hold
Next folder
-
Press
Previous folder
-
Press
Track select (#0-9)
-
input track number, then press
Repeat mode switch
(ALL/SINGLE/FOLDER)
Press
Press
Volume control
-
Press or
A-B section play
-
Press to start, again to play section
and again to stop
Delete tracks
-
Press to delete track and again to
confirm your delete
Mute
-
press to mute/recover
CHIAYO ELECTRONICS CO.,LTD.
Http://www.chiayo.com.tw｜Email: sales@chiayo.com.tw
Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan
Tel: 886-2-27415741｜Fax: 886-2-27525242
Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan
Tel: 886-5-2711000｜Fax: 886-5-5767611
