Chicago Electric 95000 Guida di riferimento rapido

SOLAR CHARGER 18V-24V

Model

95000

ASSEMBLY AND OPERATION INSTRUCTIONS

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

of this manual or any artwork contained herein may be reproduced in

any shape or form without the express written consent of Harbor Freight

Tools. Diagrams within this manual may not be drawn proportionally.

Due to continuing improvements, actual product may differ slightly from

the product described herein. Tools required for assembly and service

may not be included.

Fortechnicalquestionsorreplacementparts,pleasecall1-800-444-3353.

Revised Manual 09k

Page 2SKU 95000 For technical questions, please call 1-800-444-3353.

SPECIFICATIONS

Features

Solar Panels in a Portable Folding Design

For Charging 18V through 24V Batteries, Charging Indicator LED,

Blocking Diode to Prevent Draining, Four Different Adaptors

Overall Dimensions 26 1/2” L X 20 1/2” W x 3/4” T (open position)

Output 400 mA Maximum

~24 V Direct Sunlight, ~17.5 V Indirect Sunlight

Power Cord 10 ft. Length, Two Way Insulated Plug

Weight 9.7 lb.

Save This Manual

You will need this manual for the safety warnings and precautions, assembly, operat-

ing, inspection, maintenance and cleaning procedures, parts list and assembly diagram.

Keep your invoice with this manual. Write the invoice number on the inside of the front

cover. Write the product’s serial number in the back of the manual near the assembly

diagram, or write month and year of purchase if product has no number. Keep this manual

and invoice in a safe and dry place for future reference.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below may result in electric

shock, ﬁre, and/or serious injury.

SAVE THESE INSTRUCTIONS

1. Keep your work area clean and well lit. Cluttered areas invite accidents.

Keep bystanders, children, and visitors away while operating this product.2. This

product is not a toy.

Stay alert. Watch what you are doing, and use common sense when operating3.

this product. Do not set up this product while tired or under the inﬂuence of

drugs, alcohol, or medication.

Do not overreach. Keep proper footing and balance at all times.4. Proper footing

and balance enables better control of this product in unexpected situations.

Use the correct charger for your application.5. Do not use the charger for a purpose

for which it is not intended.

Use only accessories that are recommended by the manufacturer for your6.

model. Accessories that may be suitable for one charger may become hazardous

when used on another charger.

Charger service must be performed only by qualiﬁed repair personnel.7. Service

or maintenance performed by unqualiﬁed personnel could result in a risk of injury.

Page 3SKU 95000 For technical questions, please call 1-800-444-3353.

Follow instructions in the8. “Inspection, Maintenance, And Cleaning” section of

this manual. Use of unauthorized parts or failure to follow maintenance instructions

may create a risk of property damage or injury.

Maintain labels and nameplates on the charger.9. These carry important information.

If unreadable or missing, contact Harbor Freight Tools for a replacement.

Maintain a safe working environment.10. Do not use this product in a damp or wet

location.

Follow all safety precautions provided with the battery you will charge.11. Lead-

acid batteries are especially dangerous and caution must be exercised.

Lead-acid batteries generate hydrogen gas during normal operation, and evena.

more gas is generated when the battery is charging. Hydrogen gas is explosive

and highly ﬂammable. Never smoke near a charging battery.

Do not attempt to start a vehicle with Charger connected to its battery.b.

If battery acid comes in contact with skin, wash with soap and water and applyc.

water and baking soda to the site. If the ﬂuid comes into contact with eyes, ﬂush

with water for several minutes and contact a physician immediately.

Do not attempt to charge a leaking battery.d.

CAUTION: To Prevent Property Damage

The Solar Charger is fragile.1. Be careful, after opening up and positioning the support

legs, that the Solar Charger is on a level surface and will not fall over.

Keep the Solar Charger free of dirt, dust and grime.2. Dust covering the Solar

Charger will block out sunlight causing a decrease or stoppage of efﬁciency in re-

charging the batteries.

Only use this Charger with charging bases from Harbor Freight Tools that ac-3.

cept a 5.5 x 2.1 mm plug and are from 12 V – 18 V. Do not use on another brand,

another voltage, or a charging base designed for a different plug.

Do not hook up more than one solar charger in series.4.

Do not short circuit the positive to the negative.5.

UNPACKING

When unpacking, check to make sure that the item is intact and undamaged. If any

parts are missing or broken, please call Harbor Freight Tools at the number shown on the

cover of this manual as soon as possible.

Page 4SKU 95000 For technical questions, please call 1-800-444-3353.

OPERATION

Figure 1

Leg

Solar Charger (1)

1. Unfold the Solar Charger. Open the “support legs” on the backs. See Figure 1.

Place the Charger in a position that can receive direct sunlight without shade. Turn2.

the Solar Charger toward the sun. The blue LED will go on (or ﬂash) whenever the

Solar Charger is generating electricity. A blocking Diode in the Solar Charger helps

to ensure that it will not drain your battery. If the weather is cloudy or if the charger

is even partially shaded, the output will be drastically reduced.

Identify the Adapter charger connection you need.3. See Figure 2.

Plug the adaptor to the Power Cord on the Solar Charger.4.

Connect the correct Adapter (2 through 5) to the device you are powering.5.

Cordless

Tool Charging

Connector (6)

Charging Base

Adapter (2)

Alligator Clamp

Adapter (3)

Cigarette Lighter

Receptacle

Adapter (4)

Cigarette

Lighter Plug

Adapter (5)

Page 5SKU 95000 For technical questions, please call 1-800-444-3353.

See below for charging function instructions:6.

Charging Base Adapter2) : Refer to the manual that comes with the charging base.

The charging time will be altered substantially–the Solar Charger must receive

at least four hours direct sunlight to fully charge a battery. Different batteries will

have different capacities and may require different charging times. Periodically

check on the charger.

Alligator Clamp Adapter3) : Connect cables to the 12V lead-acid car battery in

a well-ventilated area outside the vehicle. Periodically remove the cables and

check the battery’s voltage. Once the battery’s voltage reaches 13-1/2 V it is

completely charged.

Cigarette Lighter Receptacle Adapter4) : This item can be used to power certain

accessories that use 12 V nominal input from a cigarette lighter-style plug. Do

not use this item to power sensitive electronics.

Cigarette Lighter Plug Adapter5) : This item can be used to provide a trickle or

maintenance charge to a car’s battery through the car’s cigarette lighter receptacle.

The vehicle’s ignition may need to be in the accessory position to permit the

connection.

CordlessTool Charging Connector6) : This item can be used to charge the battery

of 18V-24V Cordless Tool.

This product can charge a 24 volt tool but you need to make sure the charger has7)

a removeable cord so that your adaptor can be plugged in.

Disconnect charger, fold, and store after use.7.

INSPECTION, MAINTENANCE, AND CLEANING

1. WARNING! BEFORE EACH USE, inspect the general condition of the tool. Check

for loose screws, misalignment or binding of moving parts, cracked or broken parts,

damaged electrical wiring, and any other condition that may affect its safe operation.

If abnormal noise or vibration occurs, have the problem corrected before further use.

Do not use damaged equipment.

Disposing of solar panels should comply with the standards for waste disposal in your2.

community. Contact your local city government ofﬁce for the nearest waste disposal

area in your community.

Page 6SKU 95000 For technical questions, please call 1-800-444-3353.

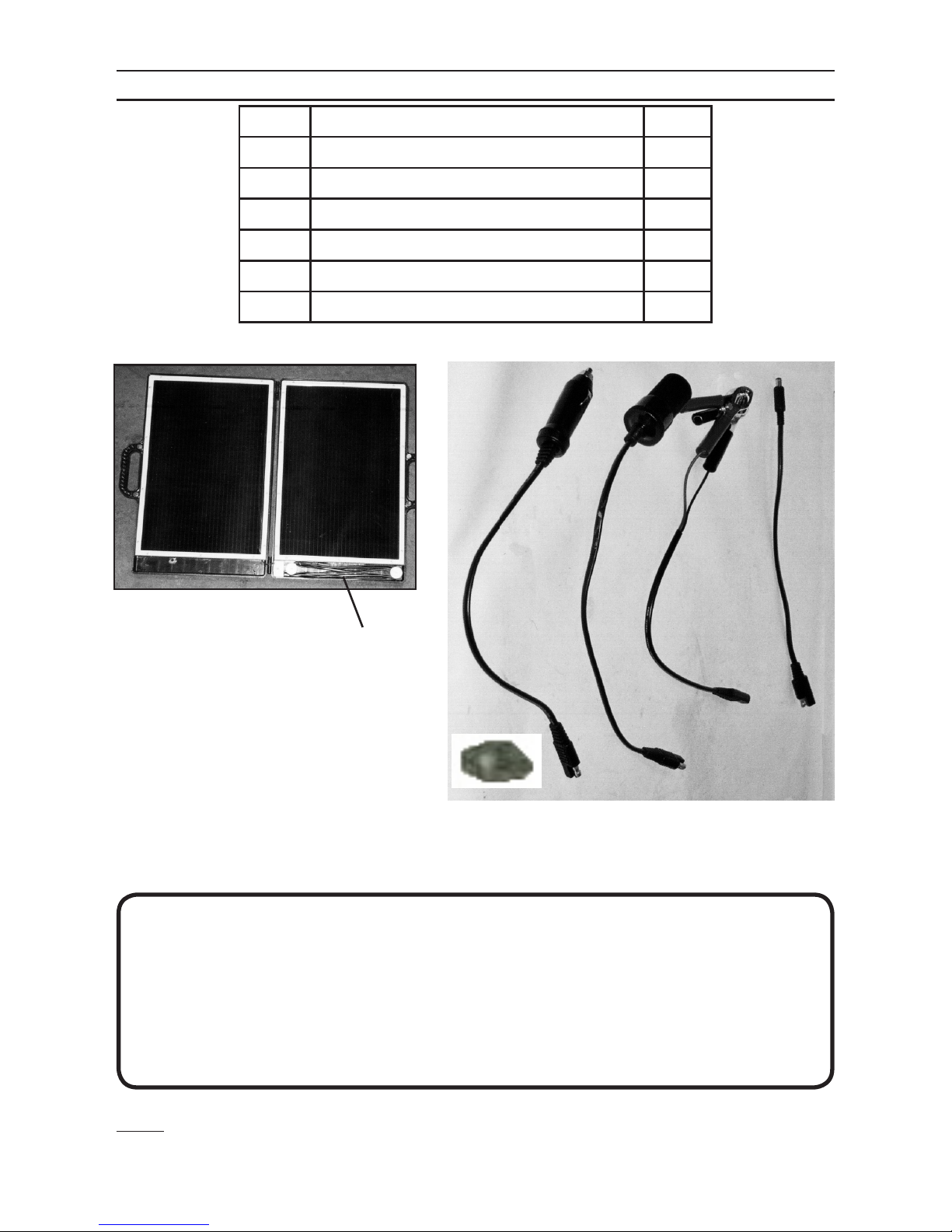

PARTS LIST

Part Description Q’ty

1 Solar Charger w/Power Cord 1

2 Charging Base Adapter 1

3 Alligator Clamp Adapter 1

4 Cigarette Lighter Receptacle Adapter 1

5 Cigarette Lighter Plug Adapter 1

6 Cordless Tool Charging Connector 1

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY

DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR

DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT

HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS

QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR

DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE

UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BYTHE BUYER. THE BUYER

ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL

PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION

OF REPLACEMENT PARTS THERETO.

Note: Some parts are listed and shown for illustration purposes only, and are not

available individually as replacement parts.

(1)

(2)

(3)

(4)

(5)

(6)

Page 7SKU 95000 For technical questions, please call 1-800-444-3353.

LIMITED 90 DAY WARRANTY

Harbor Freight Tools Co. makes every effort to assure that its products meet high

quality and durability standards, and warrants to the original purchaser that this product

is free from defects in materials and workmanship for the period of 90 days from the date

of purchase.This warranty does not apply to damage due directly or indirectly, to misuse,

abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity,

improper installation, normal wear and tear, or to lack of maintenance.We shall in no event

be liable for death, injuries to persons or property, or for incidental, contingent, special

or consequential damages arising from the use of our product. Some states do not allow

the exclusion or limitation of incidental or consequential damages, so the above limitation

of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL

OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with

transportation charges prepaid. Proof of purchase date and an explanation of the com-

plaint must accompany the merchandise. If our inspection veriﬁes the defect, we will either

repair or replace the product at our election or we may elect to refund the purchase price

if we cannot readily and quickly provide you with a replacement. We will return repaired

products at our expense, but if we determine there is no defect, or that the defect resulted

from causes not within the scope of our warranty, then you must bear the cost of return-

ing the product.

This warranty gives you speciﬁc legal rights and you may also have other rights which

vary from state to state.

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353

Indice

Altri manuali Chicago Electric Caricabatterie per batterie

Chicago Electric

Chicago Electric 92416 Manuale utente

Chicago Electric

Chicago Electric 3418 Manuale elenco delle parti

Chicago Electric

Chicago Electric 99857 Manuale di installazione

Chicago Electric

Chicago Electric 47618 Manuale di installazione

Chicago Electric

Chicago Electric 90604 Manuale utente

Chicago Electric

Chicago Electric 42292 Manuale utente

Chicago Electric

Chicago Electric 3418 Manuale utente

Chicago Electric

Chicago Electric 66718 Manuale di installazione

Chicago Electric

Chicago Electric 45005 Manuale di installazione

Chicago Electric

Chicago Electric 65834 Manuale di installazione

Chicago Electric

Chicago Electric 92775 Manuale utente

Chicago Electric

Chicago Electric 93258 Manuale utente

Chicago Electric

Chicago Electric 94533 Manuale utente

Chicago Electric

Chicago Electric 95000 Manuale elenco delle parti

Chicago Electric

Chicago Electric 66783 Manuale di installazione

Chicago Electric

Chicago Electric 46944 Manuale utente

Chicago Electric

Chicago Electric 92426 Manuale utente

Chicago Electric

Chicago Electric 65042 Manuale di installazione

Chicago Electric

Chicago Electric 68859 Istruzioni per il montaggio

Chicago Electric

Chicago Electric 42292 Manuale utente

Chicago Electric

Chicago Electric 93781 Guida di riferimento rapido

Chicago Electric

Chicago Electric 45005 Manuale utente

Chicago Electric

Chicago Electric 67104 Manuale di installazione

Chicago Electric

Chicago Electric 91325 Manuale utente

Manuali Caricabatterie per batterie popolari di altre marche

AA Portable Power Corp

AA Portable Power Corp Universal Smart Charger Manuale utente

Enelion

Enelion Vertica Manuale utente

RCA

RCA CHU6 Manuale utente

ANSMANN

ANSMANN ALCT 6/24-10 Manuale utente

Hitachi

Hitachi UC 18YRSL Guida alla risoluzione dei problemi

Olympus

Olympus B-20 LPC Manuale utente

Exibel

Exibel ZH1708143 Manuale utente

Lenmar

Lenmar Mach 1 Manuale utente

CTEK

CTEK MXS 5.0 Manuale utente

ABB

ABB HT842379 Manuale utente

Nitecore

Nitecore Superb Charger SC4 Manuale utente

Renogy

Renogy RBC2125DS-21W Manuale utente

Braun

Braun BWC02M Manuale utente

CTEK

CTEK MXS 3.6 Manuale utente

Black & Decker

Black & Decker BDV090 Manuale utente

Trinity

Trinity DPD Manuale utente

Hulkman

Hulkman Sigma 1 Manuale utente

IKEA

IKEA koppla Manuale utente
