Chicago Electric 91848 Manuale utente

POWER INVERTER

700 WATT / 1800 WATT PEAK

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at http://www.harborfreight.com

this manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions and replacement parts, please call 1-800-444-3353

TO PREVENT SERIOUS INJURY,

READ AND UNDERSTAND ALL WARNINGS

AND INSTRUCTIONS BEFORE USE.

91848

SKU 91848 Page 2For technical questions, please call 1-800-444-3353.

Save This Manual

You will need the manual for the safety warnings and precautions, assembly

instructions, operating and maintenance procedures, parts list and diagram. Keep

your invoice with this manual. Write the invoice number on the inside of the front

cover. Keep the manual and invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING: When using this device, basic safety precautions should always be

followed to reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Do not plug in a battery charger if the charger has a warning that dangerous

voltages are present at the battery terminals.

2. Keep work area clean. Cluttered areas invite injuries.

METINOITPIRCSED

rewoPsuounitnoCsttaW007

rewoPkaePsttaW0081

egatloVtupnICDstloV21

egatloVtuptuOzH06taCAstloV511

selcatpeceRCAsteltuOdeziraloP,gnorP-3owT)2(

ycneiciffE%09yletamixorppA

esuF)elbaecivres-resuton,lanretni(s

pmA03

snoisnemiD-6xL"9

-2xW"

thgieWsbl1.5

srotacidnInorewop=DELneerG

hctiwSffO/nO,epytrekcoR

erutarepmeTgnitarepOF°311-05

sdroCtupnIyret

taB

gulpdnaelbacrethgiletteragiC

)yticapacdetimil;dedulcniton(

spmalchtiwelbacyrettaB

)dednemmocerselbacr

egralroGWA4#;dedulcniton(

serutaeF

noitcetorpdaolrevohtiwevawenisdeifidoM-

ffotuhsdaolrevO-

mralaegatlovw

oL-

ffotucdna

;V5.01ta

V8tuobata

Specifications

SKU 91848 Page 3For technical questions, please call 1-800-444-3353.

3. Observe work area conditions. Do not use machines or power tools in damp

or wet locations. Don’t expose to rain. Keep work area well lighted. Do not use

electrically powered tools in the presence of flammable gases or liquids.

4. Keep inverter away from any direct heat source or combustible material.

5. Do not open the metal case; risk of electric shock.

6. Keep children away. Children must never be allowed in the work area. Do not

let them handle machines, tools, or extension cords.

7. Store idle equipment. When not in use, tools must be stored in a dry location

to inhibit rust. Always lock up tools and keep out of reach of children.

8. Use the right tool for the job. Do not attempt to force a small tool or

attachment to do the work of a larger industrial tool. There are certain

applications for which this tool was designed. It will do the job better

and more safely at the rate for which it was intended. Do not modify this

tool and do not use this tool for a purpose for which it was not intended.

9. Dress properly. Do not wear loose clothing or jewelry as they can be caught in

moving parts. Protective, electrically nonconductive clothes and nonskid footwear

are recommended when working. Wear restrictive hair covering to contain long

hair.

10. Use eye protection. Always wear ANSI approved impact safety goggles when

using tools.

11. Do not overreach. Keep proper footing and balance at all times. Do not reach

over or across running machines.

12. Maintain tools with care. Keep tools sharp and clean for better and safer

performance. Follow instructions for changing accessories. Inspect tool cords

periodically and, if damaged, have them repaired by an authorized technician.

13. Disconnect power. Unplug inverter when not in use.

14. Avoid unintentional starting. Be sure the switch is in the Off position when

not in use and before plugging in any appliance.

15. Stay alert. Watch what you are doing, use common sense. Do not operate any

tool when you are tired.

16. Check for damaged parts. Before using any tool, any part that appears damaged

should be carefully checked to determine that it will operate properly and perform

its intended function. Check for alignment and binding of moving parts; any

broken parts or mounting fixtures; and any other condition that may affect proper

operation. Any part that is damaged should be properly repaired or replaced by

a qualified technician. Do not use the tool if any switch does not turn On and Off

properly.

SKU 91848 Page 4For technical questions, please call 1-800-444-3353.

17. Guard against electric shock. Prevent body contact with grounded surfaces

such as pipes, radiators, ranges, and refrigerator enclosures.

18. Servicing. This device should be serviced only by a qualified technician. This

item does not have any user-replaceable parts.

19. Do not operate tool if under the influence of alcohol or drugs. Read warning

labels on prescriptions to determine if your judgment or reflexes are impaired

while taking drugs. If there is any doubt, do not operate the tool.

20. People with pacemakers should consult their physician(s) before using

this product. Electromagnetic fields in close proximity to a heart pacemaker

could cause interference to or failure of the pacemaker.

21. Use tools with both hands when required. Many tools such as chain saws,

drills, routers, etc., require the use of both hands when operating. This helps

maintain tool stability and keeps hands away from the working area of the tool.

22. Keep the Inverter well-ventilated. Do not place any objects on top of or next to

the Inverter or allow anything to cover the cooling fans; doing so can cause the

Inverter to overheat, causing a potential fire hazard and/or damage to the Inverter.

23. Read and adhere to all warnings and safety precautions in the owner’s

manual for the device that this inverter is used to power.

Note: Performance of this unit may vary depending on the inverter voltage, available

battery power, or appliance wattage.

Warning: The warnings, cautions, and instructions discussed in this instruc-

tion manual cannot cover all possible conditions and situations that may oc-

cur. It must be understood by the operator that common sense and caution

are factors which cannot be built into this product, but must be supplied by

the operator.

Warning: If a cigarette lighter plug with cable (not included) is used to power

the Inverter, do not attempt to power a device over 150 watts; to do so will

damage the Inverter.

Unpacking

When unpacking, check to make sure that the Inverter is in good condition.

If any parts are missing or broken, please call Harbor Freight Tools at the number on

the cover of this manual as soon as possible.

SKU 91848 Page 5For technical questions, please call 1-800-444-3353.

For the power inverter to work properly, your power source must provide 12

volts DC, and the power source must provide enough current (i.e., 46 amps to oper-

ate the load of 560 Watts or under).

Caution:This inverter must only be connected to batteries with a nominal out-

put voltage of 12 volts. Lower voltage will not operate the inverter properly, and

more voltage could damage the inverter or the device being powered. Do not

use this inverter with positive ground electrical systems.

1. Place the Power Inverter on a flat surface. Make sure it has adequate ventilation

and is not in direct sunlight.

2. Connect the battery clamp cable lugs (not included; #4 AWG or larger cables

recommended) to the red and black terminal screws on the back of the Inverter,

see

BACK

above. Securely tighten.

3. The Power Inverter can be used either while the engine is running or off. Connect

the Battery Cable Clamps (not included) to the negative (black) and Positive

(red) terminals of the battery.

4. Plug the 115 VAC device(s) you wish to power into the 3-prong AC Receptacles.

See

FRONT

above. The appliance(s) must not use more than 700 (total) watts

during continuous operation, otherwise it may overload the Inverter.

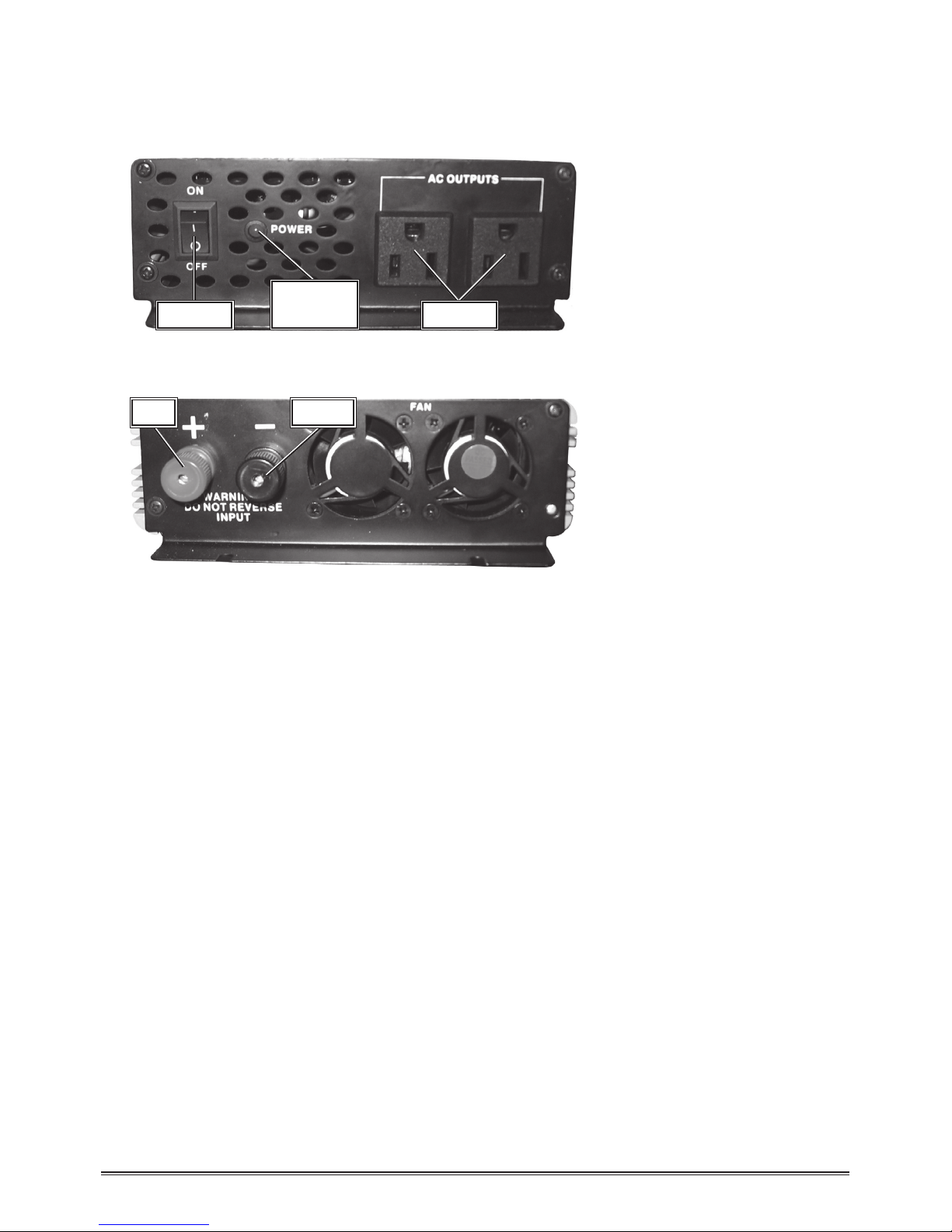

FRONT

Outlets

Power

Indicator

Switch

BACK

Red Black

Operation

WARNING!

Risk of Fire!

The positive battery

terminal connection

must be the LAST

connection and must be

done with the inverter’s

switch off.

REV 06/06

SKU 91848 Page 6For technical questions, please call 1-800-444-3353.

Caution: Some rechargeable appliances may damage the Power Inverter or the

appliance. When first using a rechargeable device, check the inverter’s tem-

perature for the first 10 minutes. If it becomes abnormally hot, do not use this

device with the Inverter.

5. Flip the Power Switch to the On (I) position to turn on. Do not use the appliance

until the green power LED indicator is on.

6. Turn on appliance. If an alarm sound is heard, turn off the appliance.

Caution: It is recommended that the vehicle be started every hour to recharge

the battery system. Doing this will help prevent any unexpected shutdown of

the equipment. This will also help ensure that there will be enough battery

power to start the vehicle.

ECNAILPPAEGATTAW

reffuBsttaW77

regrahCredrocmaCsttaW99

regrahCllirDsttaW8

nuGeulGsttaW02

VTroloChcni31sttaW27

RCVs

ttaW04

regnahCDCsttaW06

retupmoCpotpaLsttaW08

Appliance Power Consumption

The Appliance Power Consumption table below gives approximate general

use wattage. Always verify the appliance wattage before using.

Maintenance

1. This device does not contain any replaceable parts. If it needs service take it to

a qualified technician.

2. Keep this unit clean and dry. Unplug the unit before cleaning. Clean only the

outside of this unit with a soft, dry cloth; never clean this unit with water or harsh

cleaners.

SKU 91848 Page 7For technical questions, please call 1-800-444-3353.

Troubleshooting Tips

1. If the low battery alarm sounds, this means that the input voltage is below the

necessary 10.5 V. The battery needs recharging. You should stop using the

appliance and then recharge the battery. If this is not done, the Inverter will shut

off automatically at around 8 V.

2. If you are unsure if the inverter will have the proper amount of current to run the

device, use this rough guideline: Take the power consumption of the load in

watts and divide it by 12 (input voltage). The result will be the approximate

number of amps needed to power your device.

Example: Load is rated at 312 watts. 312 watts / 12 V = 26 amps needed. You

could use this device with the inverter.

3. If your television will not start, it is important to keep in mind that some appliances

(including many televisions) may require two to six times their wattage to start

up. This inverter will not work with such devices.

4. If your audio system buzzes while using this inverter, it is because some sound

systems can not filter out the modified sine wave produced by the inverter. The

only solution is to use a sound system that incorporates a higher quality power

supply.

5. This inverter is made to minimize the interference with TV signals. However,

especially with weak TV signals, some interference may still be visible. To

correct this, place the inverter as far away as possible from the television antenna

and it’s cables. Next, adjust the orientation of the inverter to the antenna cables

and TV power cord to minimize the interference. Also use a shielded antenna

cable.

6. If the low battery alarm is on all the time, try these corrective measures: Recharge

battery if in poor condition. Next, check the condition of the lighter cable plug

and the socket. You may need to clean the socket.

7. If you are getting a low output voltage, try reducing the load to minimize watts.

You may have overloaded the inverter. Reduce your load to 140 watts. Also,

keep input voltage above 10.5 volts to maintain a constant flow of power.

8. If you are not getting any power output, turn the power switch Off and On again,

until the green power light comes on. Some automotive systems require that

the ignition be turned on. Turn the ignition to the accessory position. Your

devices may draw too much power to operate them. The inverter may be in

thermal shutdown. Let it cool down and make sure there is adequate ventilation

around the unit.

Indice

Altri manuali Chicago Electric Invertitore

Chicago Electric

Chicago Electric 66944 Manuale di installazione

Chicago Electric

Chicago Electric 66817 Manuale di installazione

Chicago Electric

Chicago Electric 66814 Manuale di installazione

Chicago Electric

Chicago Electric 92708 Manuale di installazione

Chicago Electric

Chicago Electric Power Systems 95596 Manuale di installazione

Chicago Electric

Chicago Electric 66972 Manuale di installazione

Chicago Electric

Chicago Electric Power Systems 96706 Manuale di installazione

Chicago Electric

Chicago Electric 94009 Manuale utente

Chicago Electric

Chicago Electric 02514 Manuale utente

Chicago Electric

Chicago Electric Power Systems 97047 Manuale di installazione

Chicago Electric

Chicago Electric 91813 Manuale utente

Chicago Electric

Chicago Electric Power Systems 93761 Manuale utente

Chicago Electric

Chicago Electric 95519 Manuale elenco delle parti

Chicago Electric

Chicago Electric 47639 Manuale utente

Chicago Electric

Chicago Electric 92464 Manuale utente

Chicago Electric

Chicago Electric 92708 Manuale utente

Chicago Electric

Chicago Electric 66835 Manuale di installazione

Chicago Electric

Chicago Electric 92280 Manuale utente

Chicago Electric

Chicago Electric 66818 Manuale dell'operatore

Chicago Electric

Chicago Electric 98391 Guida utente

Chicago Electric

Chicago Electric 66967 Manuale di installazione

Chicago Electric

Chicago Electric 54206 Manuale utente

Chicago Electric

Chicago Electric Power Systems 93280 Manuale elenco delle parti

Chicago Electric

Chicago Electric 54516 Manuale utente

Manuali Invertitore popolari di altre marche

Fourgroup

Fourgroup Easy Manuale utente

Velleman

Velleman PI300M Manuale utente

Sungrow

Sungrow SG350HX-US Manuale utente

WilTec

WilTec 61897 Manuale utente

SMA

SMA SUNNY BOY STORAGE 2.5 Manuale utente

Simplicity

Simplicity LANDLORD 316 Manuale utente

Santak

Santak SMAX 3000 Manuale utente

ATON

ATON RA.Store-3 Manuale utente

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuale utente

Tektronix

Tektronix CFG250 Manuale utente

Champion

Champion 200989 Manuale utente

Vanner

Vanner 20-500 Series Manuale utente

GE GEP Manuale utente

Astrel Group

Astrel Group Power Reducer Guida rapida

MULTIQUIP

MULTIQUIP GDP-5H Guida

GoWISE

GoWISE PS1007 Manuale utente

Promate

Promate PM13500D ES Manuale utente

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuale utente
