Chicago Electric 8825 Manuale utente

OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit ourWeb site at http://www.harborfreight.com

or any artwork contained herein may be reproduced in any shape or form without the

express written consent of Harbor Freight Tools.

For technical questions, please call 1-800-444-3353

SPOTLIGHT

3 Million Candle Power with 9” Lens

SKU 08825 For technical questions, please call 1-800-444-3353. PAGE 2

SPECIFICATIONS

SAVE THIS MANUAL

You will need the manual for the safety warnings and precautions, assembly

instructions, operating and maintenance procedures, parts list and diagram. Keep

your invoice with this manual. Write the invoice number on the inside of the front

cover. Keep the manual and invoice in a safe and dry place for future reference.

SAFETY WARNINGS AND PRECAUTIONS

1. AVOID WORKING ALONE. If an accident happens, an assistant can bring help.

2. KEEP PRODUCT USAGE AREA CLEAN. Keep area free from moisture or oil.

Cluttered areas invite injuries.

3. KEEP CHILDREN AWAY FROM PRODUCT USAGE AREA. Allow children to

handle this product only with supervision.

4. CHECK FOR DAMAGED PARTS. Before using this product, carefully check that it

will operate properly and perform its intended function. Check for damaged parts

and any other conditions that may affect its operation. Replace or repair damaged

or worn parts immediately.

5. REPLACEMENT PARTS AND ACCESSORIES. Use only identical replacement

parts.

6. ALWAYS BE AWARE OF DANGER OF FIRE and place the Spotlight away from

sides of tent or any flammable materials while illuminated.

7. DISPOSE OF BATTERY PROPERLY. Never put in fire. Contact local Hazardous

Waste Disposal authorities for proper guidelines.

8. NEVER LOOK DIRECTLY INTO THE SPOTLIGHT.

REV 06/03; 09/03; 10/04; 01/07

DESCRIPTION

9" Diameter Round x 1/8" Thick Glass Lens

ABS-Orange with Black Ring

3 Million (ON2 Setting), 1 Million (ON1 Setting)

115 Watt Blue Halogen Bulb (H-3 / 12V)

Two 6V, 4Ah Batteries

120 VAC / 60 Hz

15 VDC

Auto-Lighter-Type, Fused w/ 5 Ft. Long Cord

6.5 Lbs.

9" W X 11" in Length

ITEM

Lens

Construction

Rated Candle Power

Light Source

Power Source

Power Adapter

Output Voltage

Car Adapter

Weight

Overall Dimensions

SKU 08825 For technical questions, please call 1-800-444-3353. PAGE 3

PROPER VOLTAGE WARNINGS

Common household current is 110-120 volts. As long as the outlet used with the tool

is rated from 110-120V there will be no complications using it with household receptacles.

Plug the tools with Power Adapter into a 110-120V properly grounded outlet protected by a

15-amp, dual element time delay fuse or circuit breaker.

NEVER try to plug a 110-120V tool into a 220-240V circuit or serious complications

and possible injury to the operator may occur. The plugs have different shapes to prevent

this.

9. AVOID TOUCHING THE LENS as it may become hot during operation.

10. DO NOT DISASSEMBLE THE BATTERY or remove any parts from the Battery

and surrounding connections.

11. DO NOT ALLOW THE SPOTLIGHT TO BE EXPOSED TO FIRE OR HIGH HEAT

as this may result in an explosion.

12. DISCONNECT POWER. Unplug charger when not in use.

13. MAINTENANCE. For your safety, maintenance should be performed regularly by a

qualified technician.

14. SPOTLIGHT IS NOT COMPLETELY WATERPROOF.

Warning: The warnings, cautions, and instructions discussed in this instruction manual

cannot cover all possible conditions and situations that may occur. It must be

understood by the operator that common sense and caution are factors which

cannot be built into this product, but must be supplied by the operator.

Warning: Operation of equipment in close proximity to a heart pacemaker could cause

interference or failure of the pacemaker.

Warning: This product contains or, when used, produces a chemical known to the State

of California to cause cancer and birth defects or other reproductive harm.

(California Health & Safety Code § 25249.5, et seq.)

Note: Performance of this tool (if powered by line voltage) may vary depending on varia-

tions in local line voltage. Extension cord usage may also affect tool performance.

UNPACKING

When unpacking your Spotlight, check to make sure the following parts are included. If

any parts are missing or broken, please call Harbor Freight Tools at 1-800-444-3353.

SKU 08825 For technical questions, please call 1-800-444-3353. PAGE 4

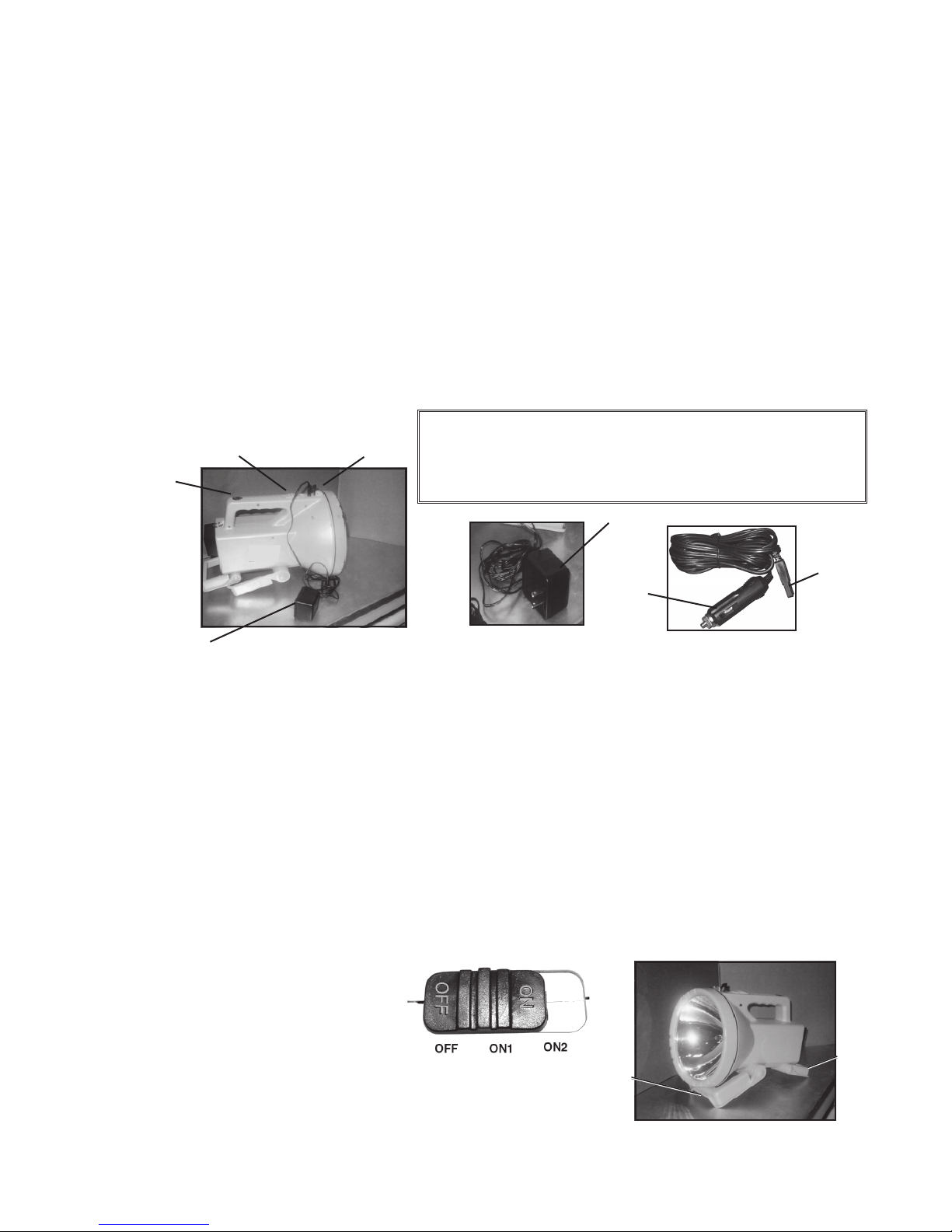

CAR ADAPTER

1. Your Spotlight comes with a Car Adapter (20, 21). To operate your Car Adapter, remove the

Rubber Cover (5) and insert the narrow end of the Car Adapter (21) into the 12 V Inlet (17)

underneath.

Figure A

. The other end (20) will fit into your car’s cigarette lighter socket.

See

Figure C.

2. The Spotlight is ready to be used while plugged into the Car Adapter. The Car Adapter will not

charge the Spotlight’s battery, however. While using the Car Adapter, take care so that the

car’s battery does not get discharged.

OPERATION

To assist you with operating your Spotlight, please refer to the Operational Figures as well as

the Parts List and Assembly Diagram.

CHARGING INSTRUCTIONS

Actual charging of the Spotlight Battery is required before using the Spotlight.

recharge

the Battery follow the directions below.

1. To charge the Battery (3), your Spotlight comes with an AC/DC Adapter (19). Lift the Waterproof

Stopper (7) on top of Spotlight. Insert the round end of the AC/DC Adapter (19) into the AC/DC

Socket (13).

Plug the prong end of the AC/DC Adapter (19) into an electrical outlet. The red

charging light will turn on while the battery is being recharged.

See Figure A

, B.

2. Charging time will take from 10 to approximately 12 hours.The red light will shut off automatically

when the battery is fully charged. After the battery is charged for the required time, unplug the

AC/DC Adapter from the wall socket and the AC/DC Socket on the Spotlight. Never attempt to

turn on the Spotlight while it is being recharged. Once recharged, with the AC/DC Adapter

removed, the Spotlight is ready to be used. A fully charged Spotlight will provide approximately

a 20 minute strong beam or 50 minute weaker beam.

REV 06/03; 09/03; 08/04; 10/04; 01/07

Figure C

Figure A

7, 13

6, 14

Figure B

Note: This unit is equipped with an automatic shutoff. If the

Battery’s power is running low, the unit will automati-

cally stop operating to protect the battery. Charge the

battery immediately.

Note: After each use of the spotlight,

always fully recharge the battery.

Figure D

22a

22b

Switch

2. Adjust the Stands (22a & 22b) to angle the beam of light to

the desired position.

Figure D.

1. Push forward on the 3-Way

Slider Switch (6) to one of the

two ON positions to turn the

Spotlight ON. Pull the 3-Way

Slider Switch all the way back

to turn the Spotlight OFF - see

Switch

, right.

SKU 08825 For technical questions, please call 1-800-444-3353. PAGE 5

Remove Rear Cover (2). Remove pin/connectors from the old Battery. Reconnect Red and

Black pins/connectors to the proper corresponding connectors on the new battery. After connecting

properly, put the new Battery back in Housing. Replace Rear Cover (2).

Caution: Burns or an explosion could occur if handled improperly. (See Battery Disposal)

See Figure E.

WARNING–BATTERY DISPOSAL

The Spotlight is powered by a Battery which will have a long life span.When the

Battery is no longer functioning, the used up Battery should be properly recycled.

Many states require recycling. Contact your local solid waste authority for information

on recycling.

Battery Lifetime

Note: Always recharge the Spotlight within a 24 hour period after each use.

Caution: Never completely discharge the battery. Deep battery discharge will decrease

battery life.

The battery capacity will be reduced if the Spotlight is not used for 3 months. It is recommended

that the battery be recharged at least one time every 3 months.

Note: The battery should be charged before the first use.

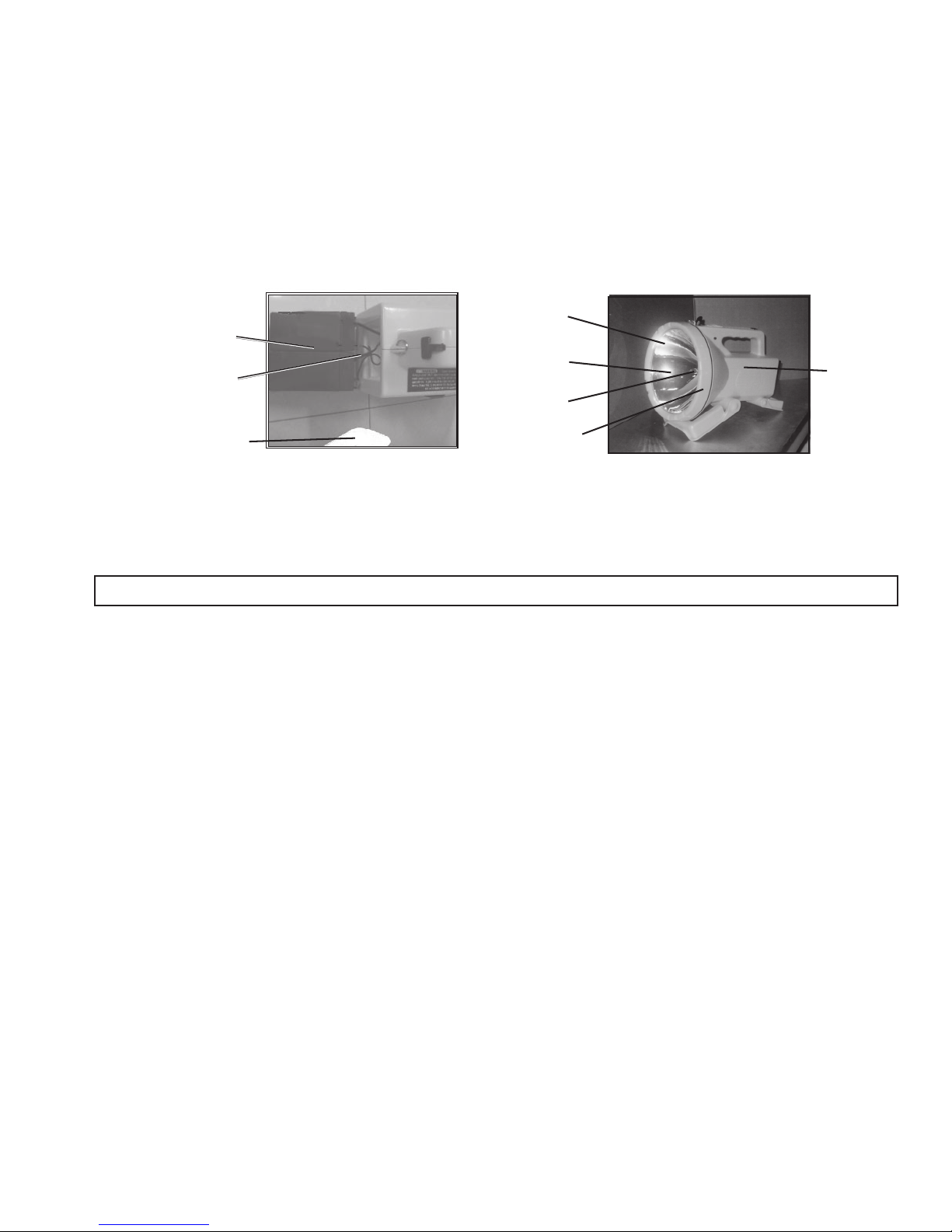

REPLACING BATTERY

Battery

Cover (2)

Figure E

Batteries (3)

Battery

Connecting

Wire (1)

Figure F

Glass

Lens (11)

Reflector

Glass (10)

Lamp Lid (12)

Bulb (18)

REV 09/03; REV 10/04; 01/07

See Parts Drawing on Page 6.

IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE, DO NOT OPERATE THE TOOL.

MAINTENANCE

1. For better and safer performance, keep all parts of this product clean and dry.

2. Periodically check to see that all hardware is in place.

SKU 08825 For technical questions, please call 1-800-444-3353. PAGE 6

PART DESCRIPTION QTY

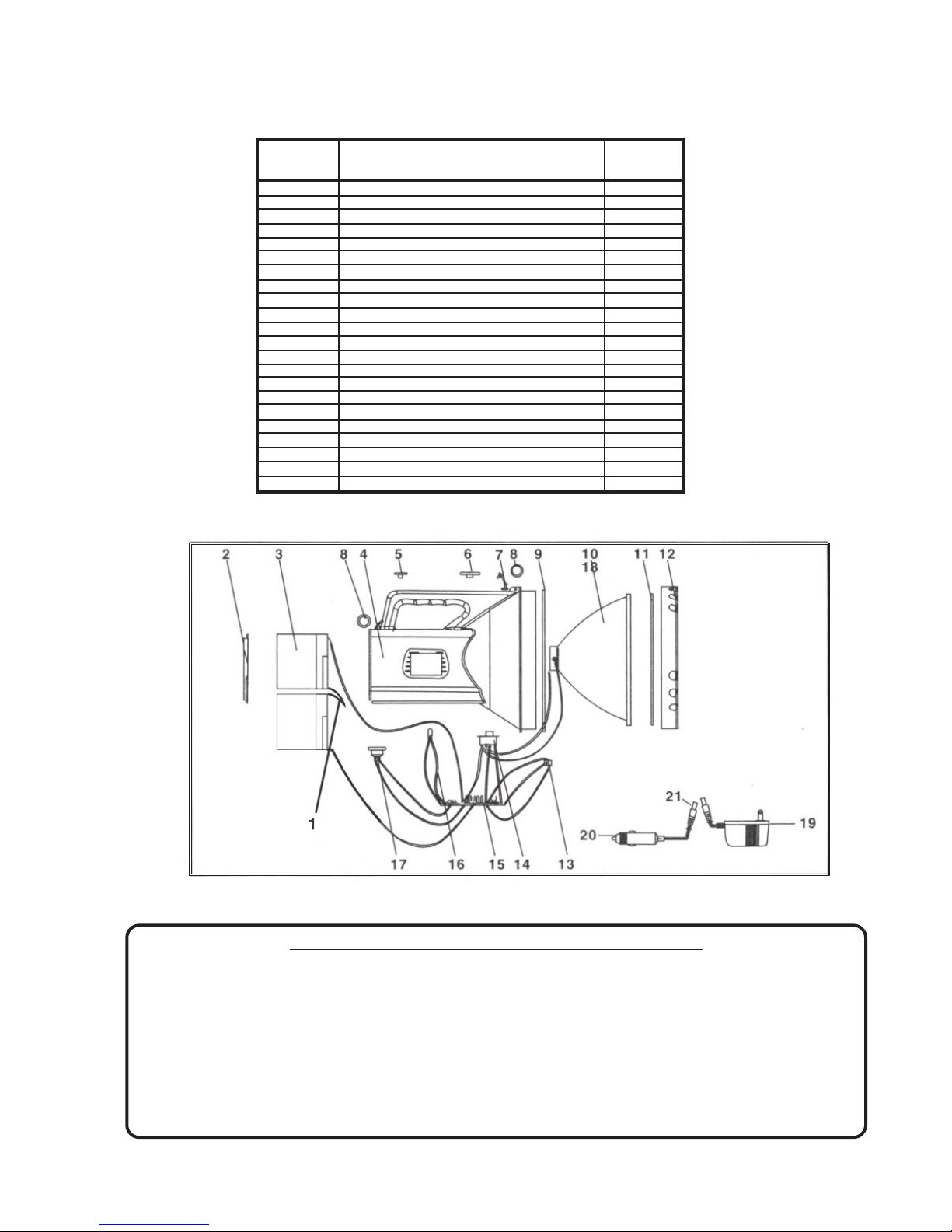

PARTS DRAWING

PARTS LIST

20/21

22a

22b

Battery Connecting Wire

Rear Cover

Battery

Plastic Body Housing

Rubber Cover

3-Way Slider Switch Cover

Waterproof Stopper over Adapter Socket

Iron Ring

Sealing Ring

Reflector Glass

Glass Lens

Lamp Lid

Socket (Power Adapter)

Switch

Circuit Board

Charging Light

12 V Inlet

Bulb

AC/DC Adapter

Car Adapter

Adjustable Stand (front) (not shown)

Adjustable Stand (back) (not shown)

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL

AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY

REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO

MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS

OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT

ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED

TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING

OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTSTHERETO, OR

ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

REV 09/03; 08/04; 01/07

NOTE: Some parts are listed and shown for illustration purposes only and are not available individu-

ally as replacement parts.
