CHIEF RPM Manuale utente

DIGITAL SIGNAGE

FLAT PANEL MOUNTS FOR:

Retail

Supermarkets

Transportation

Restaurants

Entertainment Venues

Public Spaces

Our Mounts. Your Vision.

FSRV™

Fixed Wall Mount

W: 45 lbs (20.4 kg)

D: .75” (19 mm)



MSRV™

Fixed Wall Mount

W: 100 lbs (45.4 kg)

D: 1.56” (40 mm)



PRODUCT SELECTION

To specify color options, add S (silver) or B (Black) to the model number.

DIGITAL SIGNAGE

Small LCD TVs & Monitors

MSRU™

Fixed Wall Mount

W: 125 lbs (56.7 kg)

D: 2.25” (57 mm)



PSTU™

Fixed Wall Mount

W: 200 lbs (90.7 kg)

D: 2.31” (59 mm)



VESA (–V)

Mounts ending in "V" include a fixed interface

with multiple VESA hole mounting patterns.

Universal (–U)

Mounts ending in "U" include an adjustable

interface to adapt to random hole patterns.

Custom (–XXXX)

Mounts ending in a 4-digit number (i.e. 2540)

include an interface custom-designed for a

given display.

ORDERING OPTIONS

Custom product options also available!

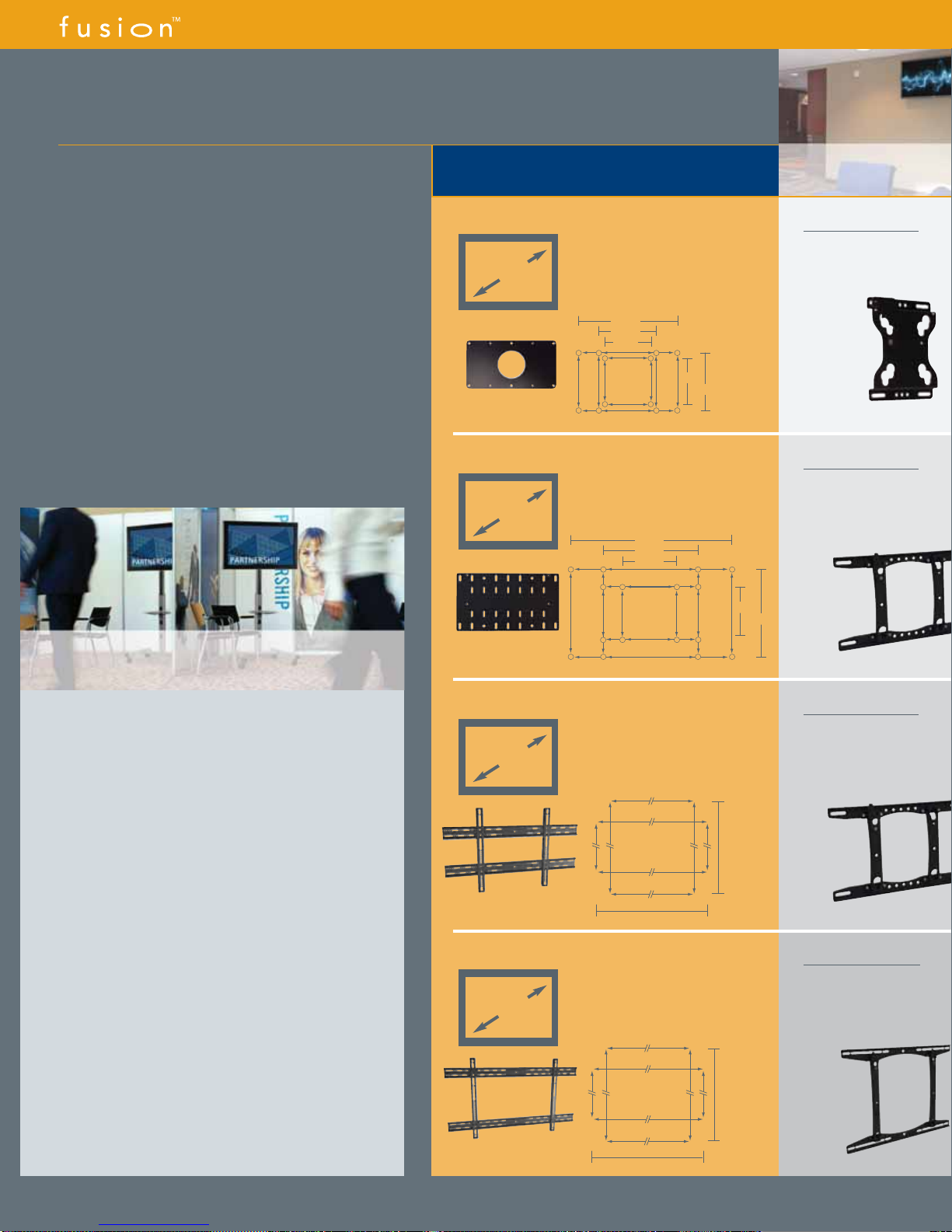

10–26”

Medium LCD TVs & Monitors

27–45”

VESA

100 mm

200 mm

400 mm

100 mm

200 mm

Large LCD & Plasma TVs

30–50”

Horizontal Adjustment:

3.94–27.93” (100–709 mm)

Vertical Max:

17”(432 mm)

RANDOM

HOLE PATTERN

Extra-Large LCD & Plasma TVs

42–63”+

RANDOM

HOLE PATTERN

Horizontal Adjustment:

7.87–39.93” (20–101.4 cm)

Vertical Max:

20.37”(517 mm)

FIXED WALL MO

VESA

75 mm

100 mm

200 mm

75 mm

100 mm

FSBV VESA

Interface Bracket

MSBV VESA

Interface Bracket

MSBU Universal

Interface Bracket

PSBU Universal

Interface Bracket

Chief is fully staffed to handle a variety of projects

ranging in complexity. Dedicated technical and design

resources work with you to create the perfect solution,

while maintaining schedules and budget expectations.

Chief clients enjoy a full range of options, from a

state-of-the-art standard product mix, to a completely

custom solution.

Largest line of mounting solutions worldwide, including

custom and universal interfaces, and UL Listed designs

Hundreds of patent-protected features within modular

components that can integrated into a custom solution

Custom Design and Technical Team that will generate a

completely unique project solution

A full line of accessories to support any project and

maximize form and function

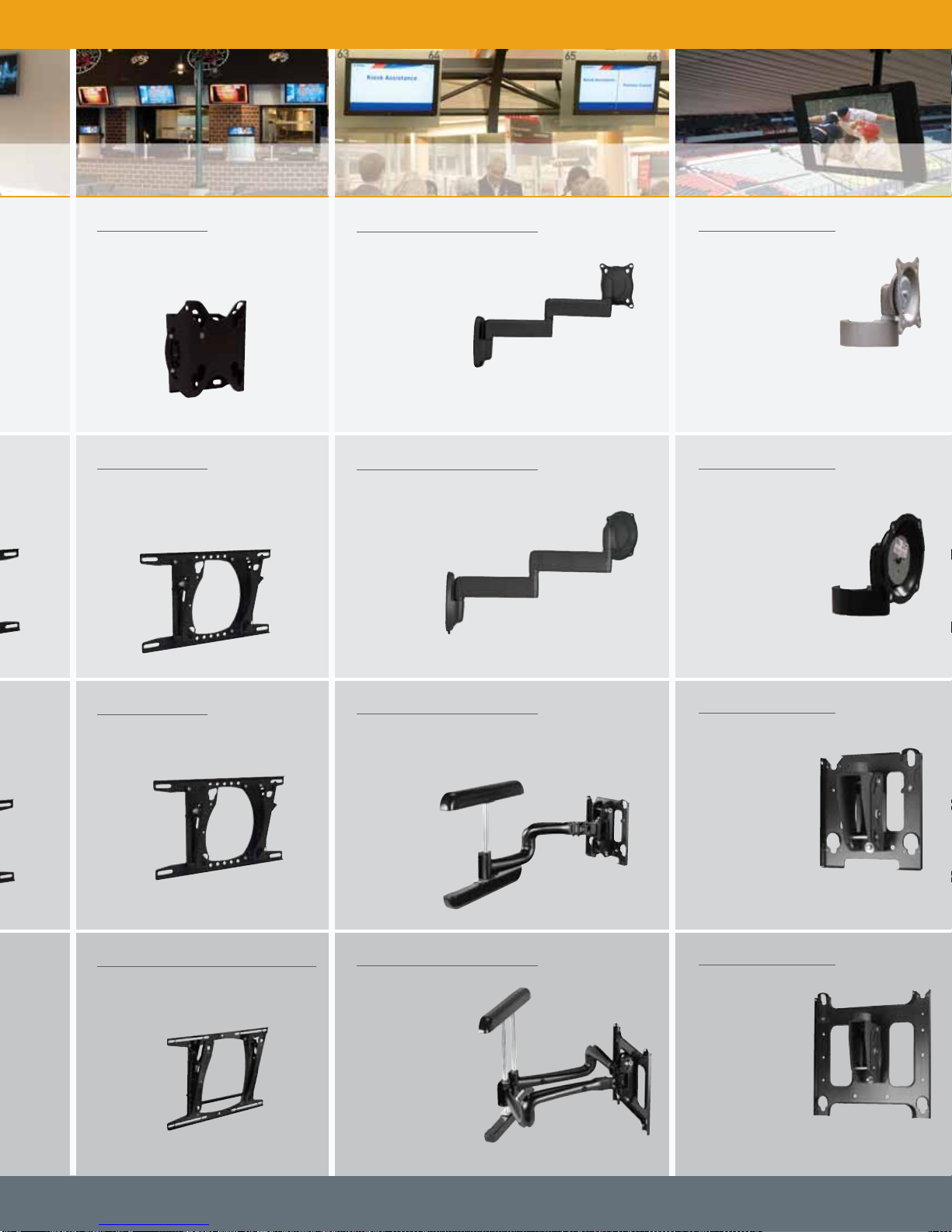

INNOVATIVE DESIGNS

FTRV™

Tilt Wall Mount

W: 45 lbs (20.4 kg)

D: 1.94” (50 mm)

T: +5/-15˚



MTRV™

Tilt Wall Mount

W: 100 lbs (45.4 kg)

D: 1.81” (46 mm)

T: 0–15˚



PLPU™

Pull-N-Tilt

™

Wall Mount

(with fingertip adjustment)

W: 200 lbs (90.7 kg)

D: 2.31” (59 mm)

T: 0–15˚



PDRU™

Dual Swing Arm Wall Mount

W: 200 lbs (90.7 kg)

D: 3.88” (99 mm)

E: 24.8” (630mm)



MTRU™

Tilt Wall Mount

W: 125 lbs (56.7 kg)

D: 2.5” (64 mm)

T: 0–15˚



UNTS TILT WALL MOUNTS SWING ARM MOUNTS CEILING MOUNTS

PNRU™

(not pictured)

Dual Swing Arm Mount

MWC™

(not pictured)

Tilt Wall Mount with CPU Storage

PWC™

(not pictured)

Tilt Wall Mount with CPU Storage

PCSU™

Single Ceiling Mount

W: 175 lbs (79.4 kg)

T: +5/-20˚



FHSV™

Single Ceiling Mount

W: 40 lbs (18.1 kg)

T: +/-15˚



JHSV™

Single Ceiling Mount

W: 100 lbs (45.4 kg)

T: +/-15˚



MCSU™

Single Ceiling Mount

W: 125 lbs (56.7 kg)

T: +5/-20˚



PCMU™

(not pictured)

Angled Column Ceiling Mount

For greater stability up to 200 lbs (90.7 kg)

FHP18

(not pictured)

Ceiling Mount w/ 1-1/2” NPT

Adjustable Column allows 22–38” of adjustment

FWDV™

Dual Swing Arm Wall Mount

W: 40 lbs (18.1 kg)

D: 2.17” (55 mm)

E: 15.94” (405 mm)



JWDV™

Dual Swing Arm Wall Mount

W: 75 lbs (34 kg)

D: 3” (76 mm)

E: 20.38” (518 mm)



Note: Desk and height-adjustable

options are also available for this model

MWRU™

Dual Swing Arm Wall Mount

W: 125 lbs (56.7 kg)

D: 4.38” (111 mm)

E: 24.88” (632 mm)



SPECIFICATIONS KEY:

W: Weight Capacity D: Depth from Wall E: Extension T: Tilt S: Swivel (left/right) H: Height Adjustment C: Color

PAC510™

Retrofit Pre-Install Box

(Shown with PSTU™Fixed Wall Mount,

surge protector and conduit)

PAC500™

In-Wall Accessory

For use with MWRU and PNRU

Dual Swing Arm Wall Mounts

(Shown with PNRU)

W: 200 lbs (90.7 kg)



IN-WALL ACCCESSORIES ACCESSORIES

installation accessories

PAC515™

New Construction Pre-Install Box

PAC520™

(not pictured)

Multiple Option New

Construction Pre-Install Box

TPS™

Fixed Truss & Pole Mount

W: 150 (68 kg)



PAC400™

Rotation Adapter

For Extra-Large Flat Panels

(42-63)

PAC251™

CPU/DVD/VCR Universal Adapter

For Extra-Large Flat Panels

(42-63)

MAC400™

(not pictured)

Rotation Adapter

For Large Flat Panels (30-50)

TPM™

(not pictured)

Tilt-Adjustable Pole Mount

PAC300™

Side Speaker Adapter

Adds 20 lbs (9.1 kg) to installation



PAC301™

Center Channel

Speaker Adapter

Adds 10 lbs (4.5 kg) to installation



PAC102™

Shelf for Pole Installations

PAC103™

Shelf for Wall Installations (not pictured)

Accessory Shelf Strap

MAC251™

(not pictured)

CPU/DVD/VCR Universal Adapter

For Large Flat Panels (30-50)

MAC500™

In-Wall Accessory

For use with JWDV Dual Swing

Arm Wall Mount

(Shown with JWDV)

W: 75 lbs (34 kg)



MFCU™

Mobile Cart

For Large Flat Panels (30–50”+)

(Shown with PAC710™Accessory Shelf)

W: 125 lbs (56.7 kg)

T: +/-15˚

H: 24” (610 mm)



PFCU™

(not pictured)

Mobile Cart

For Extra-Large Flat Panels (42–63”)

MF1U™

Display Stand

For Large Flat Panels (30–50”+)

(Shown with PAC710™Accessory Shelf)

W: 125 lbs (56.7 kg)

T: +/-15˚

H: 36” (914 mm)



PF1U™

(not pictured)

Display Stand

For Extra-Large Flat Panels (42–63”)

SL150™

Automated Projector Lift

W: 35 lbs (16 kg)

H: 8.25” (210 mm)



CM3T45™

Automated Swivel Table Stand

W: 125 lbs (56.7 kg)

S: +/-45˚



Optional

Travel Case

SPECIFICATIONS KEY:

W: Weight Capacity D: Depth from Wall E: Extension T: Tilt S: Swivel (left/right) H: Height Adjustment C: Color

specialty products

CM2L40™

Automated Pop-Up Lift

W: 190 lbs (86.2 kg)

H: 40” (102 cm)



DGC™

Outdoor Enclosures

W: 75 lbs (34 kg)



CM1W18™

Automated Swing Arm

W: 170 lbs (77.1 kg)

D: 4.25” (108 mm)

E: 18” (457 mm)



DGP™

Indoor Partial Enclosures (not pictured)



AUTOMATED MOUNTS ENCLOSURES

CARTS & STANDS

DFK™

Decorative Frames Kits

Available in 4 colors

BLACK DARK PECAN SILVER GOLD

Model Type Max Weight Color(s)

RPM* Custom 50 lbs (22.7 kg) 

RPM-U* Universal 50 lbs (22.7 kg)  

RPA Custom 50 lbs (22.7 kg) 

RPA-U Universal 50 lbs (22.7 kg)  

*For Q-Lock

integrated security, order RPMA, RPMB or RPMC with A, B

or C designating the key option.

PROJECTOR MOUNTS

CMS445

CMS-0XX0XX CMS115

Model Description Color(s)

CMS™-0XX 1-1/2” NPT Fixed 

Extension Column

CMS™-0XX0XX 1-1/2” NPT Adjustable 

Extension Column

CMS115™Ceiling Plate 

CMS440™Lightweight Suspended 

Ceiling Kit

CMS445™Ceiling Tile Replacement Kit 

CMA470™Plenum Enclosure 

CMS440

CMA470

FOR A COMPLETE LIST OF ACCESSORIES,

VISIT WWW.CHIEFMFG.COM

RPA Elite Projector Mount

Custom option shown

™

Q-Lock™

Integrated Locking Lever

Provides enhanced security with an

integrated key and lock system.

*Optional – order RPMA/B/C with A, B or

C to designate key option

MicroZone™

Micro Adjustment

For fast and precise projector

registration, including flush-

mount installations.

Centris™ Technology

Fingertip Adjustment

Enables effortless,

fingertip positioning

ACCESSORIES



Independent Roll, Pitch

and Yaw



Integrated Cable

Management



Quick Projector

Connect/Disconnect



All-Points

™

Security

System

ALSO AVAILABLE

RPA™Projector Mount

CHIEF MANUFACTURING A DIVISION OF MILESTONE AV TECHNOLOGIES  www.chiefmfg.com

USA/INTERNATIONAL P 800.582.6480/952.894.6280  F 877.894.6918/952.894.6918  [email protected]

CHIEF MOUNTS CANADA P 877.345.4329  F 888.377.5314  [email protected]

MILESTONE EUROPE B.V. P 31 (0)40 2668620  F 31 (0)40 2668615  [email protected]

MILESTONE ASIA PACIFIC LTD P 86 755 8996 9226  F 86 755 8996 9217  [email protected]

identification purposes and are trademarks of their respective owners. All patents are protected under existing designations. Other patents pending.

end-user focused faster installation superior service proven quality
