SPECIFICATIONS
Series
Size inch (Diagonal cm)
Resolution 1440900 / WXGA+
Display Color 16.7 M colors supported
Pixel Pitch Horizontal 0.2835mm Vertical 0.2835mm
Brightness 330cd/m2
Dynamic Contrast Ratio 10000 : 1
Viewing Angle [max] Horizontal 170б Vertical 160°
Panel
Display Area Horizontal 408.24 mm Vertical 255.15mm
Signal Input Graphic Signal: Analog RGB (0.7VP-P)Δ75Ө
Δ
(Separate Synchronization and Composite Synchronization)
Sync. Frequency Horizontal 30kHz~83kHz Vertical 56Hz~76Hz
Input
Bandwidth 160MHz
Model 957A/957D

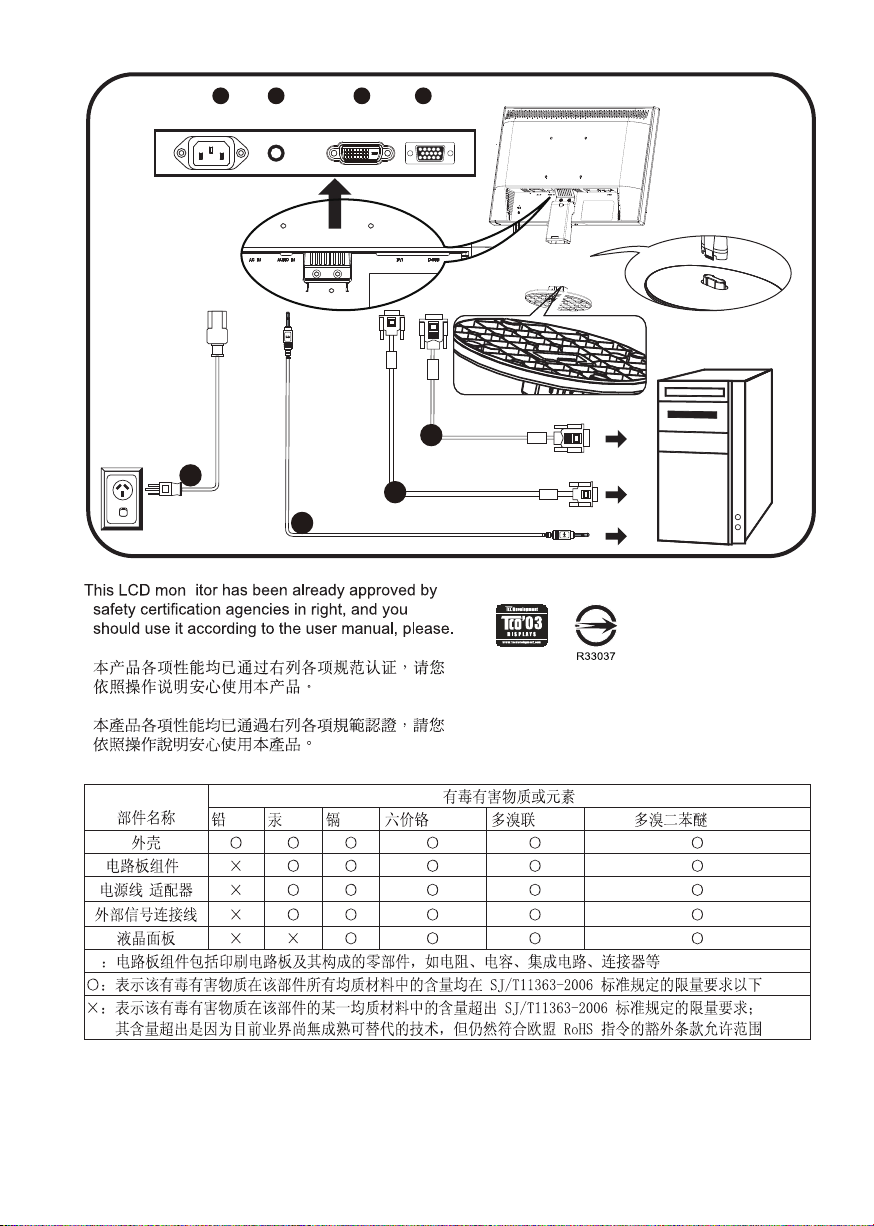

Input Connector D-Sub/D-Sub+DVI
Input interface
Audio Phone Jack, d=3.5mm
Input Power AC100~240Volts, 50~60 Hz
Operation Mode < 40 W
Stand-by & Suspend mode < 2 W
Power
Consumption
Temperature 0к~ 40к(Working) / -20к~ 60к(Storage)
Environment
Requirement Humidity 15% ~ 90% (Working) / 15% ~ 90% (Storage)
Dimension [W X H X D] 439.02 mm x 365.09 mm x 190 mm
Net Weight 4.0Kg
DISPLAY MODE ϬIf the signals are different, please refer to your computers Video Card User Guide for
adjustment because the screens will not display or only the LED will light.
7A/957D
19 48.1
VESA MODES
Horizontal Vertical
Mode Resolution Total
Nominal
Frequency
+/- 0.5kHz
Sync
Polarity Nominal
Freq.
+/- 1 Hz
Sync
Polarity Nominal Pixel
Clock (MHz)
640x480@60Hz 800 x 525 31.469 N 59.940 N 25.175
640x480@72Hz 832 x 520 37.861 N 72.809 N 31.500
VGA 640x480@75Hz 840 x 500 37.500 N 75.00 N 31.500
800x600@56Hz 1024 x 625 35.156 N/P 56.250 N/P 36.000
800x600@60Hz 1056 x 628 37.879 P 60.317 P 40.000
800x600@72Hz 1040 x 666 48.077 P 72.188 P 50.000
SVGA
800x600@75Hz 1056x625 46.875 P 75.000 P 49.500
1024x768@60Hz 1344x806 48.363 N 60.004 N 65.000
1024x768@70Hz 1328x806 56.476 N 70.069 N 75.000
XGA 1024x768@75Hz 1312x800 60.023 P 75.029 P 78.750
1280x1024@60Hz 1688x1066 63.981 P 60.020 P 108.000
1280x1024@75Hz 1688x1066 79.976 P 75.025 P 135.000
SXGA 1280x960@60Hz 1800x1000 60 P 60 P 108
WXGA
1440x900@60Hz 1904 x934 55.935 N 59.887 N 106.6
IBM MODES
Horizontal Vertical
DOS 720x400@70Hz 900 x 449 31.469 N 70.087 P 28.322
XGA 1024x768@72Hz 1304 x 798 57.515 P 72.1P 75.000
MAC MODES
VGA 640x480@60Hz 864x525 35.000 N 66.667 N 30.240
SVGA 832x624@75Hz 1152x667 49.725 N 74.551 N 57.2832
1280x1024@60Hz 1688x1066 63.981 P 60.020 P 108.000
SXGA
