China Aerospace MPIP-618W-A Manuale utente
China Aerospace Telecommunications Ltd
1/44

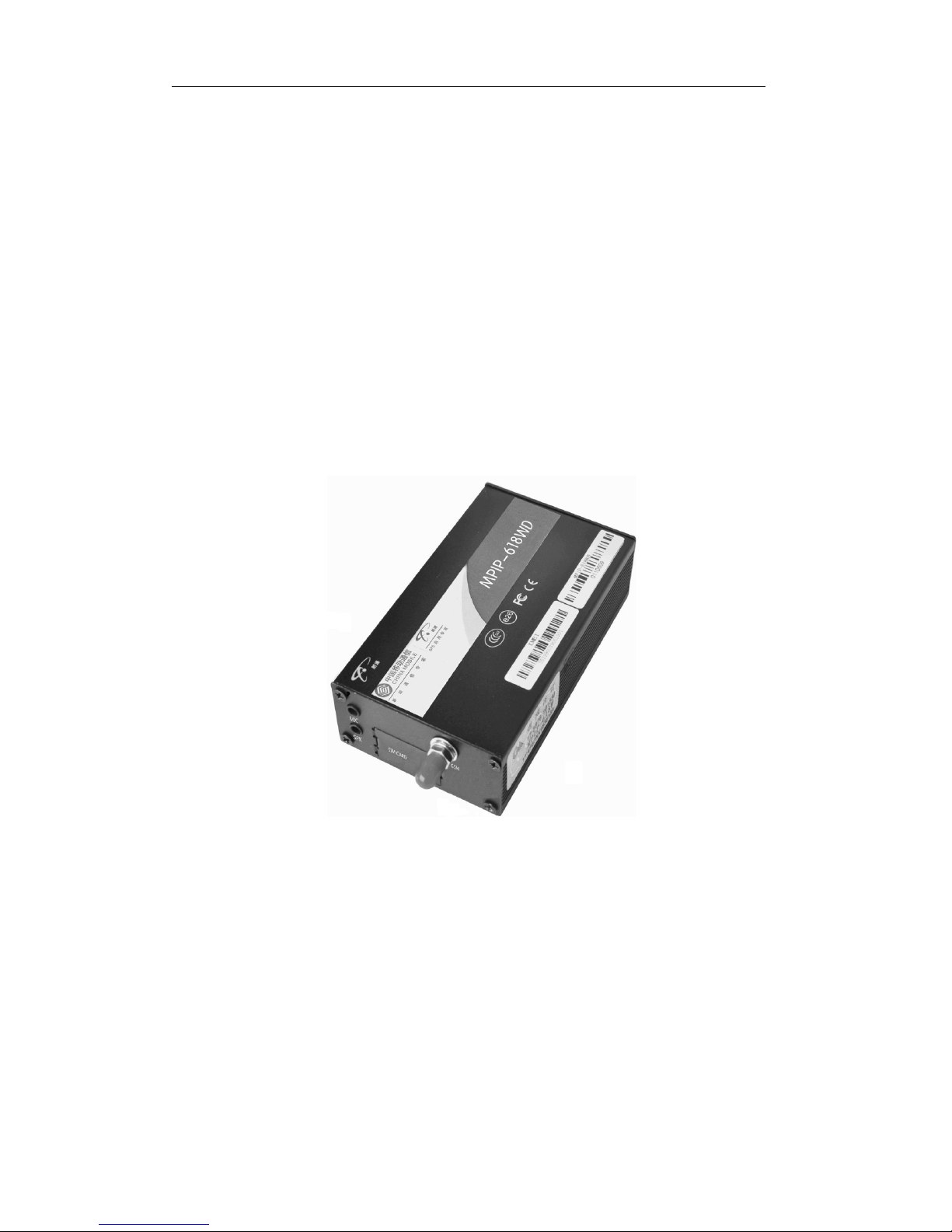

MPIP-618W-A
GPS Tracker
China Aerospace Telecommunications Ltd
2/44
User Manual V1.0.2
China Aerospace Telecommunications Ltd
Content
1.Product introduction........................................................................................................... 5
2.Disclaimer............................................................................................................................. 5
3.Product overview.................................................................................................................5
4.External port.........................................................................................................................6
1、Port introduction......................................................................................................6
2、Port connection diagram......................................................................................... 7
5.In-vehicle terminal functions..............................................................................................8
5.1 specific function........................................................................................................8
1）Easy installation OBD port plug-n-play......................................................... 8
2)GPS global position.............................................................................................8
3)Real-time location check....................................................................................8
4)Platform management & E-mail forwarder of reports................................... 8
5)Smart power saving........................................................................................... 8
6)Location Query................................................................................................... 9
7) Command from call center............................................................................... 9
8)Maintenance reminder...................................................................................... 9
5.2 Locate and tracking function...................................................................................9
9)Vehicle location query....................................................................................... 9
China Aerospace Telecommunications Ltd
3/44
10)Tracking by interval.........................................................................................9
11)Fixed upload..................................................................................................... 9
12)Compressed uploading..................................................................................10
13)Real-time tracking......................................................................................... 10
14)Mileage statistics............................................................................................10
15)Store and resend in blind area......................................................................10
5.3 State detection and controlling.............................................................................10
16)Vehicle status detection................................................................................ 10
17)Read battery voltage......................................................................................10
18) vehicle diagnosis........................................................................................... 10
19)Temperature Check....................................................................................... 10
20)Fuel check....................................................................................................... 10
21)Read Remaining Fuel Value.......................................................................... 11
22) Read the total fuel consumption..................................................................11
23)RFID identification check and attendance statistics............................... 11
24)Remote control ignition................................................................................ 11
25)Monitor& hands-free call.............................................................................. 11
26)Image capture.................................................................................................12
5.4 Terminal alarm function........................................................................................12
27)SMS alarm....................................................................................................... 12
28)SOS alarm........................................................................................................12
29)Geo-fence alarm............................................................................................. 12
30)Abnormal alarms........................................................................................... 12
31)Alarms showing on LCD screen.................................................................... 12
32) Compatible with commercial vehicle / passenger car OBD protocol...... 12
5.5, Terminal maintenance..........................................................................................13
33）Setting tool maintenance............................................................................ 13
34)setting by SMS................................................................................................ 13
35)Remote setting and Protect.......................................................................... 13
6.Setting Guide...................................................................................................................... 13
China Aerospace Telecommunications Ltd
4/44
6.1 Computer tool Setting............................................................................................13
6.2 Platform parameter Setting.................................................................................. 15
6.3 SMS setting ............................................................................................................. 15
7.Installation Guide...............................................................................................................16
7.1、SIM CARD installation.........................................................................................16
7.2、Operation specifications of wire installation................................................... 17
7.3、Placement of the MPIP-618W main unit.......................................................... 20
7.4、Installation of G-mouse (GPS receiver).............................................................20
7.5、Installation of GSM antenna............................................................................. 21
7.6、Installation of SOS button...................................................................................21
7.7、Installation HT-196 driving behavior analyzer............................................... 21
7.8 Installation Temperature Sensor..........................................................................22
7.9 Installation Fuel Sensor......................................................................................... 22
7.10 Installation Camera..............................................................................................22
7.11 Installation Relay................................................................................................. 22
7.12、Finishing the installation................................................................................. 23
7.13、Indication of operation status of the main unit............................................. 23
8.Packing List........................................................................................................................ 25
8.1 Standard.................................................................................................................. 25
8.2 Optional...................................................................................................................25
9.Technical specification...................................................................................................... 26
10.Notes for Care and Maintenance....................................................................................28
11.Solutions to Common Failures....................................................................................... 29
12.Claim................................................................................................................................. 31
China Aerospace Telecommunications Ltd
5/44
1. Product introduction
China Aerospace Telecommunications Ltd
6/44
MPIP-618W-A in-vehicle terminal integrates internationally leading
technologies of GPS, GSM, intelligent automatic control and anti-theft
alarming. It is able to monitor the position, safety, operation and technical
status of the moving target 24 hours a day, and it can provide you real-time
tracking, fleet management ,anti-theft of vehicle, asking for help in case of
accident, fault repair , data checking ,fuel consumption statistics, mileage
statistics, maintenance reminder, driving behavior analyzer, RFID attendance
statistics, SMS alarm, Geo-fence alarm, easy installation, read the total fuel
consumption, read the fault alarm, read the engine speed alarm, temperature
alarm, etc.
2.Disclaimer
1. MPIP-618W-A in-vehicle terminal is developed based on the GPS
applied technology of the United States. Since its GPS receiver must always
keep direct communication with the satellite in the course of operation, the
equipment may be affected when it operates in electromagnetic shielded
areas or when the carrier (such as a vehicle)using it is under some shelters like
indoors, in the underground parking lot or under a footbridge;
China Aerospace Telecommunications Ltd
7/44
2. MPIP-618W-A in-vehicle terminal is a radio communication
equipment. The product in use shall be kept as far away as possible from
areas that might lead to explosion like fuel warehouses, chemical plants, and
soon. The product may be affected in places sensitive to external
radio-frequency signals, such as gas stations, hospitals, schools, etc, where
radio frequency suppressors may be installed;
3. Because data communication is conducted between the system
adopting GSM technology and the monitoring center, the user must use SIM
cards supporting GPRS data traffic offered by the public communication
network operators that offer support to the region within which the vehicle
operates. Besides, the SIM card shall always contain sufficient value installed.
Do not use SIM cards subject to limitations of regions;
4. Please use accessories provided by the original manufacturer to
guarantee normal operation of the product;
3.Product overview
China Aerospace Telecommunications Ltd
8/44

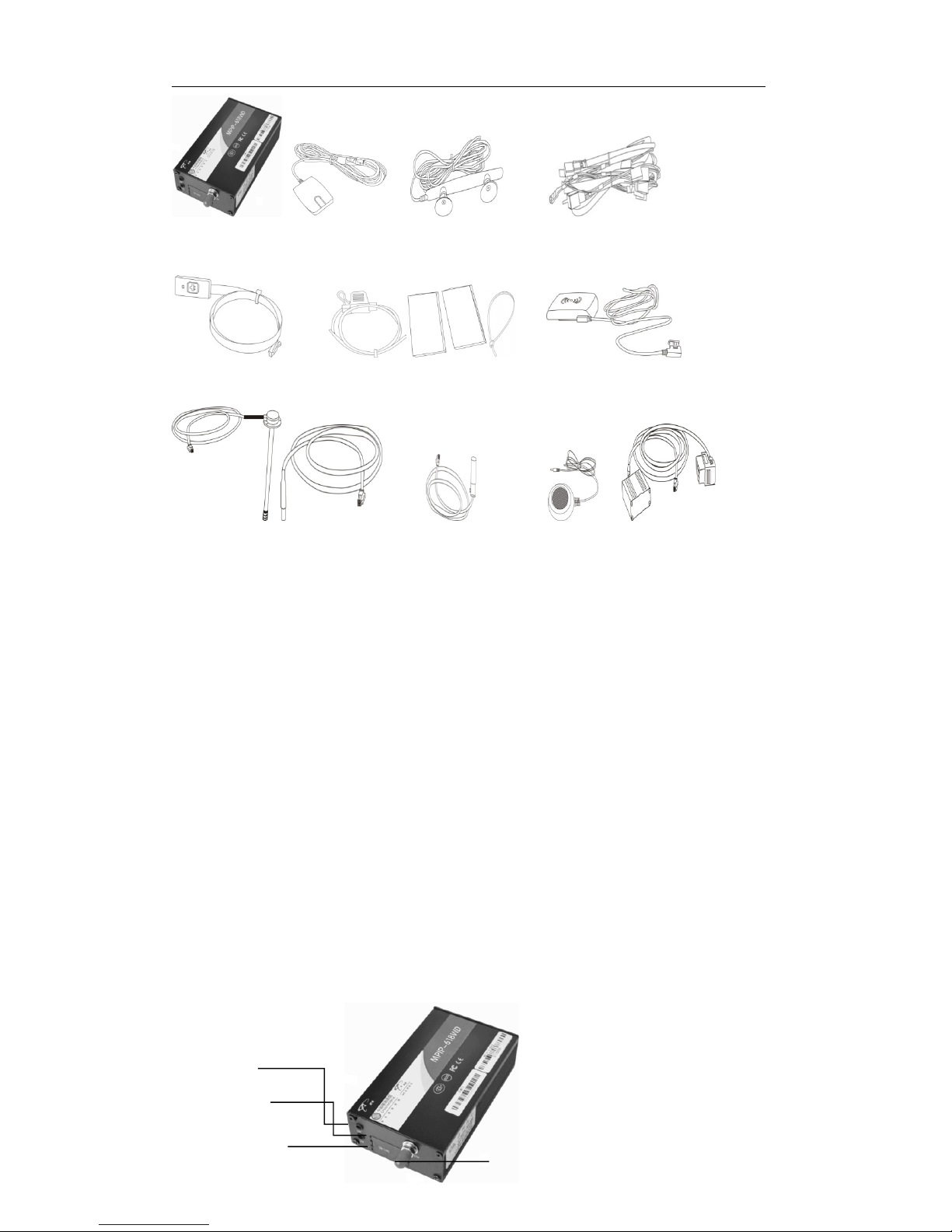

Main Box GMOUSE GSM antenna multi-functional cable
SOS button Installation kit HT-196
Fuel sensor Temperature sensor Microphone Speaker 192-OBD auto
inspection part
4.External port

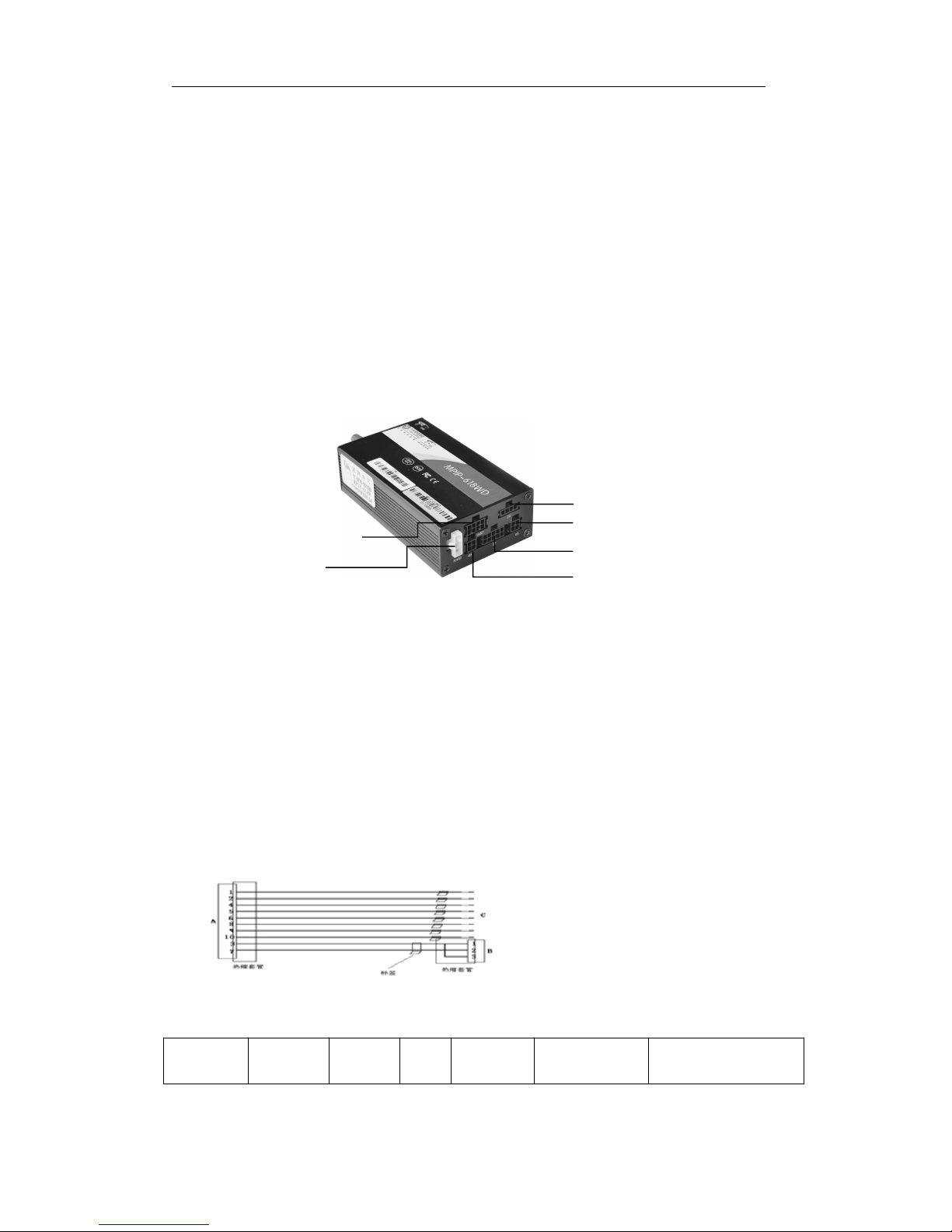

1、Port introduction
MPIP-618W-A has 10 external port, including multi-functional cable port,
power cable port, G-mouse port(including RS232 port),GSM antenna port,
SIM slot, double RS485 port, handset or LCD screen interface (including
RS232 port) ,microphone port, speaker port, pls check following picture:
Microp
GSM antenna port
SIM Slot
Speake
China Aerospace Telecommunications Ltd
9/44
2、Port connection diagram
2.1 10PIN multi-functional cable connection
zone pin zone pin function color tag
Multi-functional cable I/O port
Power input /ACC
handset/LCD screen/displayer
G-MOUSE/HT-196
485-2
485-1 port
China Aerospace Telecommunications Ltd
10 /44
Definition of 10 PIN of multi-functional cable.
Remarks: function IN1-5 is input detection line,OUT1-2 is output control
line, can define according to actual use, for example: door open/close check,
power/fuel cut off.
A
1
C
IN1 Green AD-IN1
2 O/P1 Black/Brawn
open/close the
door
4 IN5 white AD5
5 CUT
1
purple/braw
n
lock
power/fuel
6 GND black GND
8 IN3 yellow door status
detection cable
9 IN4 gray AD4
10 IN2 blue AD2
3
B
1
,3
SOS_IN purple SOS button
7
2
SOS_LE
D
blue
Indice
