Chitongda YL-007M2 Manuale utente

Intelligent GSM/PSTN Auto-Dial Alarm System

Users’ Manual

Before use please have a through reading of this book for right usage

Forward

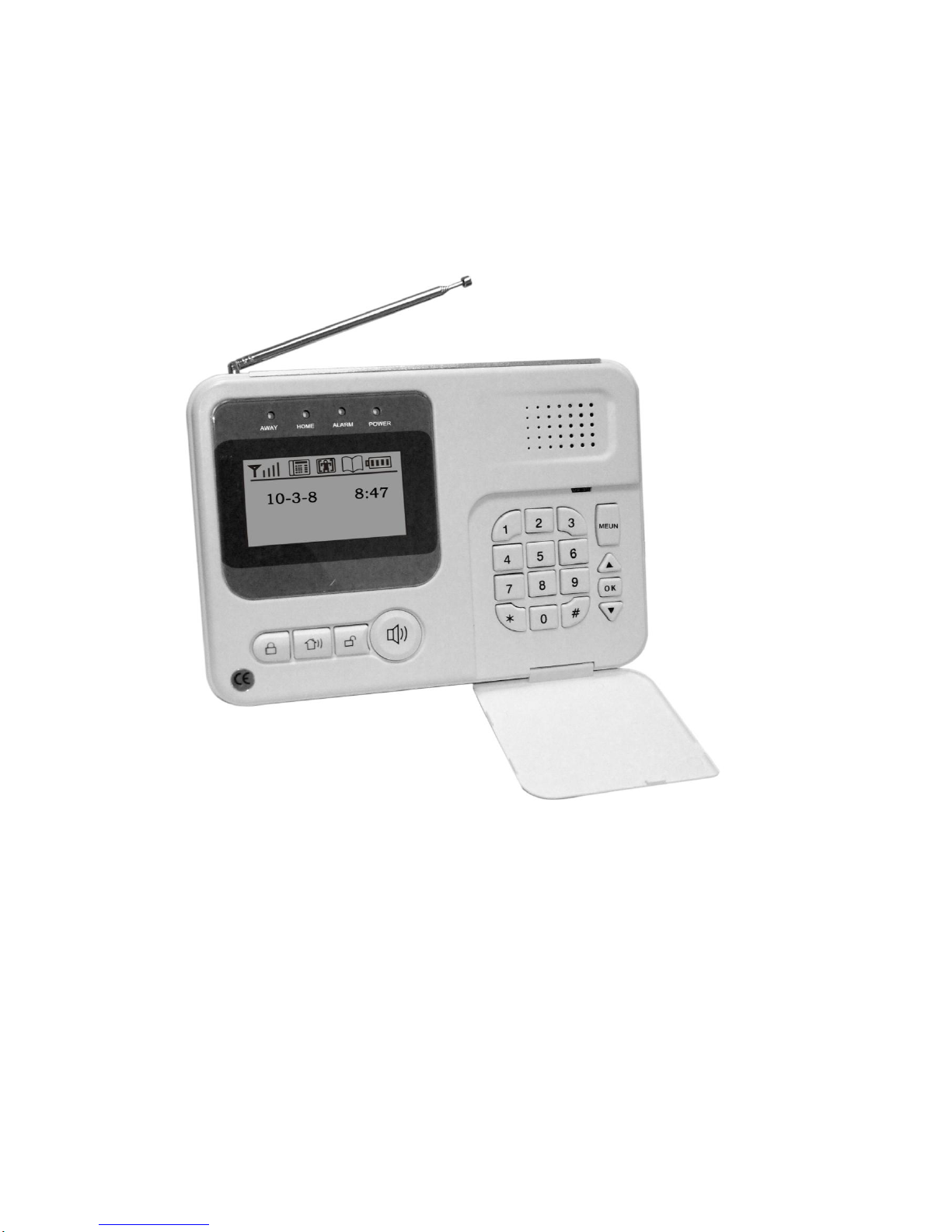

Welcome to use intelligent GSM/PSTN auto-dial alarm system with powerful

functions. Large LCD screen with English menu navigation function make the operation

easier. It can call 5 users’ numbers by GSM/PSTN dual-network (PSTN first) when it

alarming. Listening-in function is available for users by using mobile phone and

telephone.

This alarm system is widely used for security protecting, data surveying and remote

monitoring in families, shops, villas, financial offices, residential estates and

department of electricity, petroleum, coal, government, public security and so on.

Please read the manual carefully in hopes that the product could serve you well.

Ⅰ、Features…………………………………………………………

Ⅱ、Main Panel Button’s Function and Ports Introduction………

Ⅲ、Operation Manual………………………………………………

1. Installation Setting……………………………………………

1.1 Basic Installation Direction……………………………..

1.2 Power on Direction……………………………………...

1.3 Installation Direction……………………………………

1.4 Basic Setting Direction…………………………………..

1.5 Detector Management………………………………..

2. User Guide……………………………………………………..

2.1 Test the alarm function………………………..

2.2 Control the Monitor with Wireless Remote Controller…...

2.3 History Research……………………………………………

3. System Reset…………………………………………………..

Ⅳ、Technology Parameter…………………………………………..

Ⅴ、Whole Kit List…………………………………………………...

Ⅵ、Storage, Transportation and After Services……………………..

Ⅰ、Main Panel Button’s Function and Ports Introduction

1. Dual-network (GSM&PSTN) alarm function, alarm information more safe; Intelligent

recording PSTN first.

2. Large LCD screen with menu navigation function, by which users can operate it easily and

directly.

3. Full-function keypad. Users can complete all the operations on the host.

4. 99 wireless zones and 3 wired zones; each zone can be programmed independently.

5. Learning code way for wireless detector, each zone can connect with all kinds of wireless

detector.

6. Powerful＂Black Box＂function, which can store and search 99 arm and disarm historic

alarm information.

7. Can set 6 groups of fixed time for arm and disarm.

8. Can record alarm voice repeatedly and check it on-site.

9. Hint the function of telephone line error.

10. Can control the system by calling-in, such as arm, disarm,

listening-in and so on.

11. Alarm first and grab-line alarm.

12. Built-in high-performance rechargeable battery can make sure the

host still work when the electricity is cut off.

13. Use of time-save chip specialized battery.

II、Main Panel Button’s Function and Ports Introduction

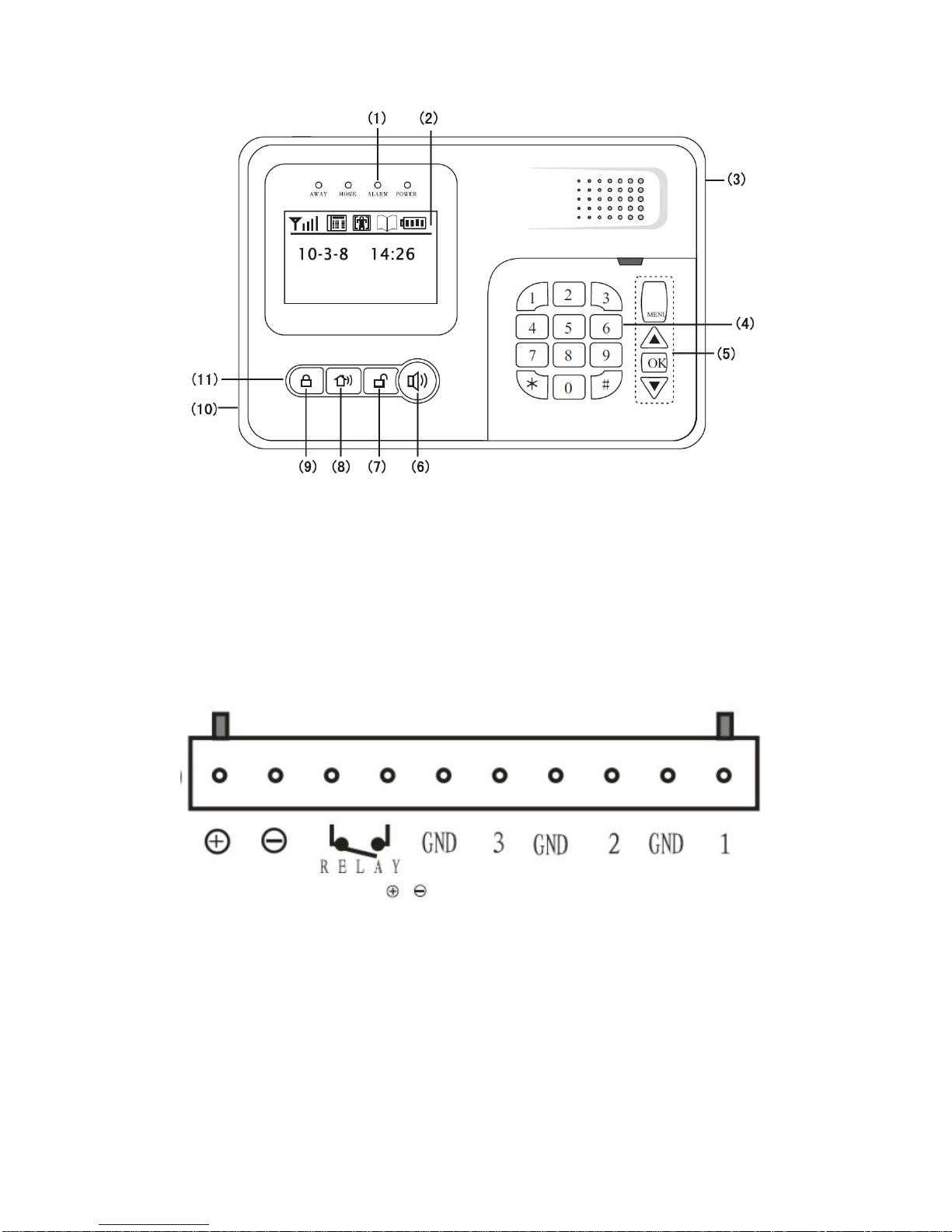

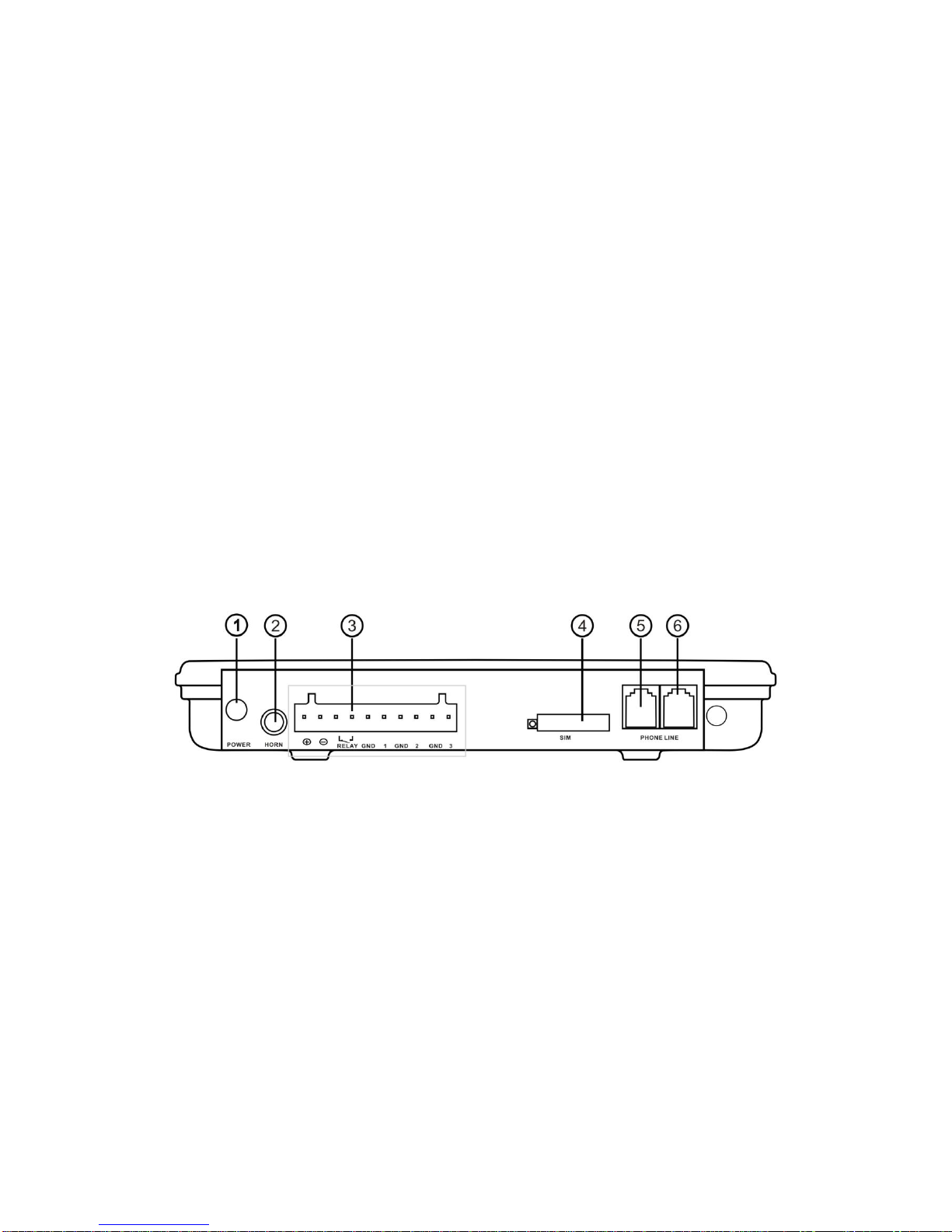

①Power Socket ②Horn Socket ③Cable Outlets

④SIM Card Seat ⑤Phone Line Socket ⑥External Line Socket

⑴Status Indicator Lamp ⑵LCD Screen ⑶Power Switch

⑷Number Button ⑸Programming Button ⑹Emergency Alarm

⑺Disarm ⑻Home Alarm ⑼Out Alarm

⑽Microphone ⑾Function Button

NOTE:

1) SIM Card Slot: click the yellow button near the SIM card seat, take out the card seat, put a

effective SIM card in it and insert it back.

2) Power Socket: connect 12V/1.5A DC, inner core is positive, shell is negative.

3) 10 Core Socket:

The first and second ports ( ) are internal power source output pin (load capacity:

12V/300mA output).

The third and fourth ports are internal relay exit. They are normally opened. They will keep

closed for 2 minutes when alarming. They can also link the power, video and so on when

working.

The fifth and sixth ports are wired input1. The seventh and eighth ports are wired input2. The

ninth and tenth ports are wired input3. These 3 wired ports will trigger alarm when they are

open-collector.

Ⅲ、Operation Manual

1、Installation Setting

1.1 Basic Installation Direction

1) Prepare a useful SIM card;

2) Put the SIM card in the card seat on the back of the host;

3) Connect with telephone line;

4) Prolong the antenna and connect all the wired detectors with the host if any;

5) Connect with power and turn on the host;

6) Power light turns green and GSM antenna icon ( ) is flashing means the host is checking the

SIM card and searching the GSM signal. This icon won’t flash and the signal strength icon

( ) will come out in a few seconds, then equipment start working.

1.2 Power on Direction

LED Light Status Explanation

LED Light

LED Status

System Working Status

Power

Off

Didn’t turn on the host / didn’t plug the power / no

power in built-in battery

Green

Power supply is normal

ALARM

Red

In alarm status

Red (flash)

Alarm memoring, can be closed after arm again

Off

Alert remove

HOME

Red

Home Arm

Off

Home Disarm

AWAY

Red

Out Arm

Red (flash slowly), 30’s later

red on

Out Arm with delay time

Off

Out Disarm

LCD Icons Introduction

Without flash: GSM module and SIM card normal

Flash: GSM module and SIM card error

Show GSM network signal strength

Flash: External telephone line error

Without flash: External telephone line normal

Programming Status: Phone number setting

Without flash: Operation records

Programming Status: History Checking

Show Battery Power

Home Arm

Out Arm

System Alarming

Conventional Paramater Setting

Function On-Off Setting

Record Message

Wireless Detector Learing Code

Zone Mode Setting

Time and Date Setting

Password Setting

1.3 Installation Direction

1）Installation of the Host

a. Try to install the host in the center of the defense zone and prolong the antenna for getting more

wireless signal receiving distance.

b. The installation position should be far away with huge metal objects and wireless devices.

c. The host should be installed in a shelter.

d. Turn on the host and it will come into the working state after 2 minutes warming-up.

2) Installation of Door Sensor

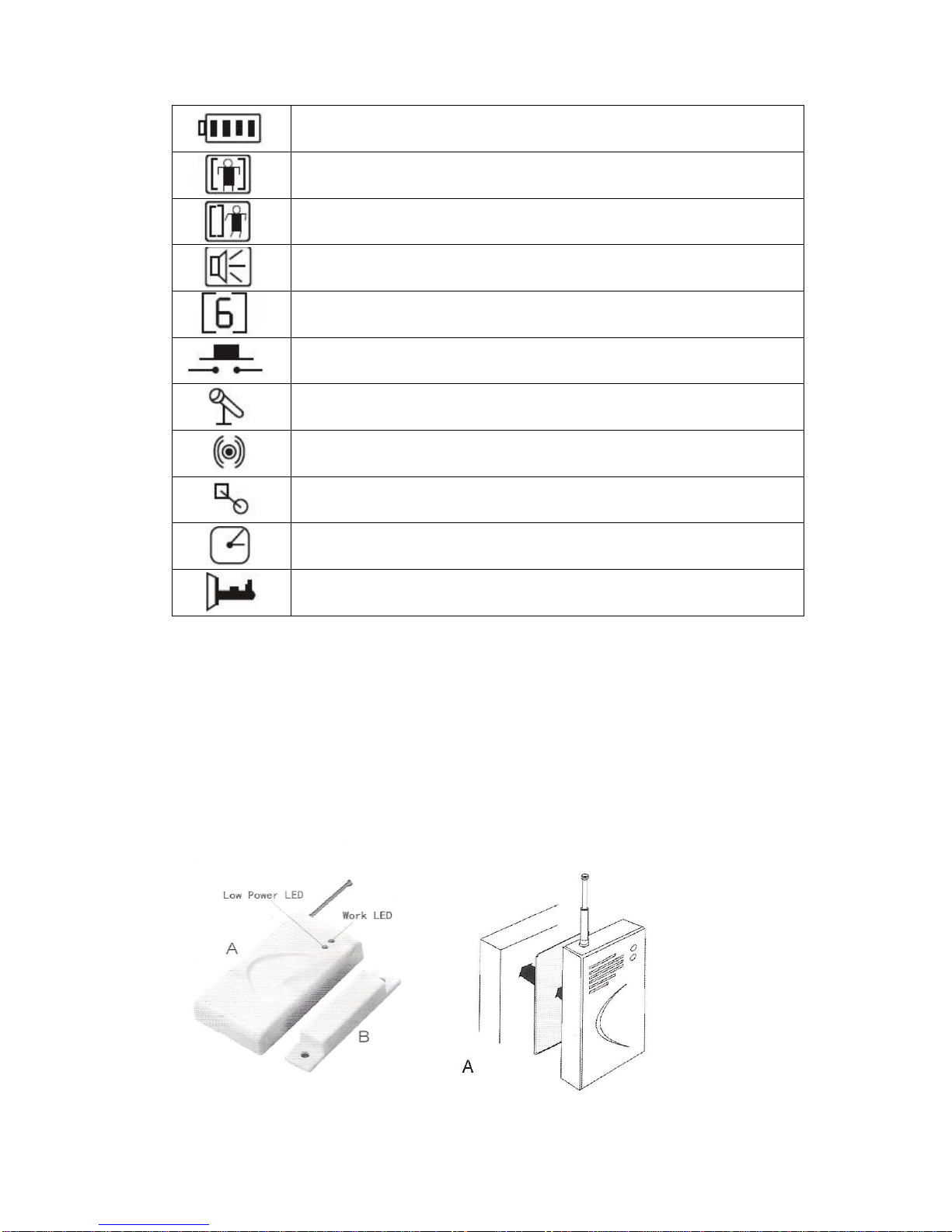

We define the Magnetic door/window contact for 2 parts : part A and part B. First pack

the battery into the part A, and then according to the show of sketch map to fis part Aand

part B (with screws) on the monitored door/window. It is better if the distance between

them is closer (≤15mm between part A and part B )

NOTE:

a. Magnet should be close to signal status and make the transmitter box and magnet as

close as possible (<10mm).

b. In order to get the best receiving distance, you should pull the antenna and make it

upwards.

c. If the indicator lights of door sensor are still blinking, it shows battery fails. So please

replace it as soon as possible.

3）Installation of Wireless PIR

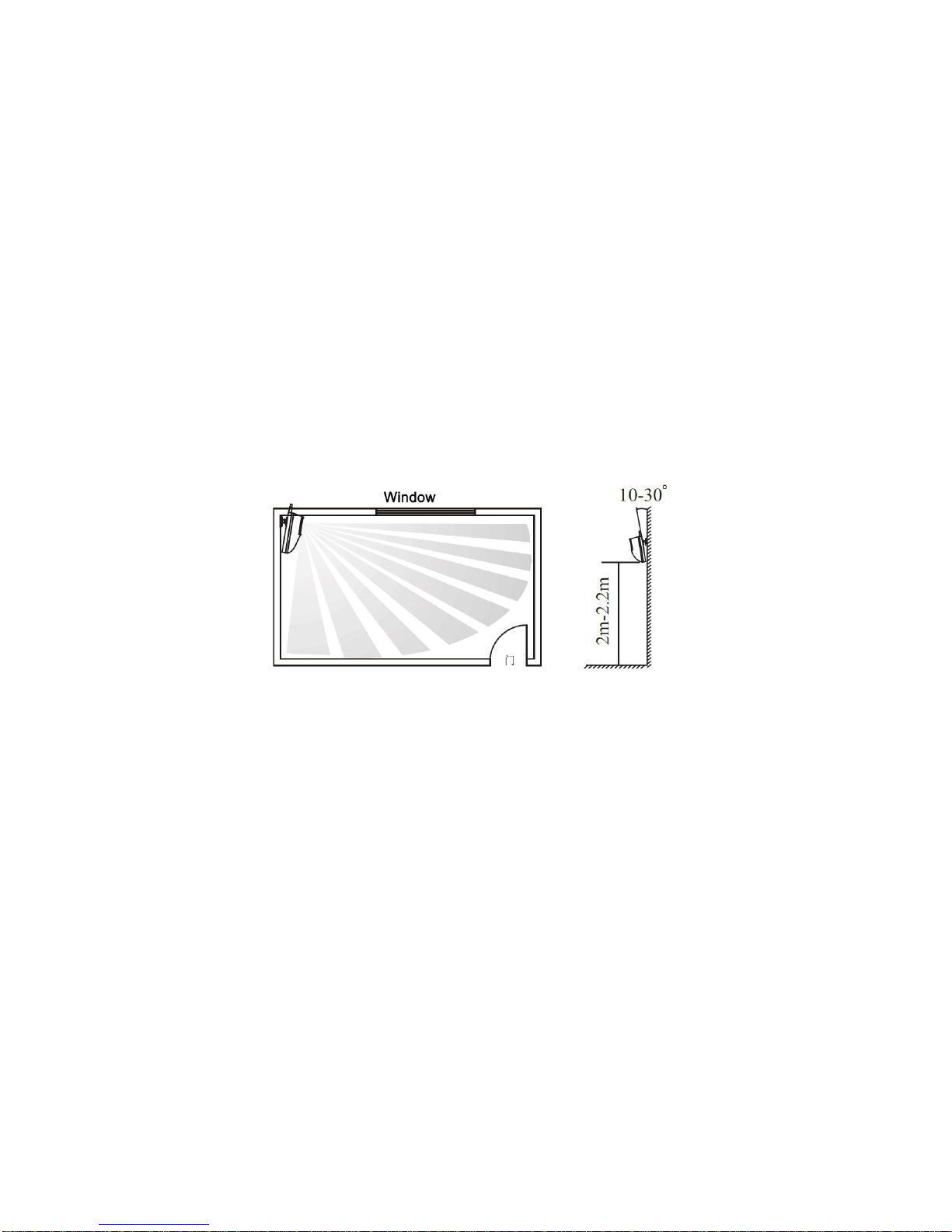

PIR Sensors are used for detecting if someone moves within in a certain place. Fix it on

the wall, 2—2.2meters high and you should adjust the position to make it face to the

defense zone.

NOTE:

a.Adjust the detecting angle, try to make the detecting window plumb to the direction of

people’s walking.

b.Keep away from the heat or air-conditioner blowing and air convection area(close the

window & door when alarm the detector)

c.Make the obstacles and floating objects away from the detecting area, such as the

clothes, durtain and flowers.

d.Make the detector steadily installed, without any shake and trembling.

e.Keep away from the direct sunlight irradiation.

f.If the light in the PIR keep on, it shows battery fails. So please replace it as soon as

possible.

1.4 Basic Setting Direction

◆System Setup

Please enter the correctly password (original password: 1234) and press the button【MENU】on the

panel before any operation. Two beeps show that the operation is successful. The LED indicates

lights of Arm and Disarm will be on at the same time. You can see 6 icons in the screen. Press

button【▲】【 ▼】or keypad to chose corresponding icon. Then press button【OK】to do detailed

setting . Please press button【OK】to save after you finished your operations. The system will show

“saved”in screen and with two beeps. Four short beeps shows failure. Please press【MENU】to try

it again.

◆Exist System Setup

Please press button【#】to end the programming status after you finish your operations. System will

exist automatically if there is any order within 30 seconds.

a、Record alarm message

Enter system setting status and press button 【▲】【 ▼】or keypad【5】to chose icon :

(1) Please chose “Record”or press button【OK】. System will show “Recording”and

recording time in screen. Facing to the microphone in the left side of the host to record alarm

message. The message should be short and clear. For example: This is room××，building×

×and zone×× asking for help. The system will exist with two beeps automatically after

10 seconds.

(2) Chose “PLAY”and press button【OK】, you can hear the voice you record in the telephone

connected with the host. Record again if you want to change the voice.

b、Set user’s and alarm center phone numbers to receive alarm

Enter system setting status and press button 【▲】【 ▼】or keypad【4】to chose icon :

2 groups of receiving alarm center number: number to connect with the alarm center.

NOTE: It is unnecessary to setup this Number by the individual user.

6 groups of users’ number: number to receive alarm for users. (mobile phone or telephone

number)

Press button【▲】【 ▼】to chose the number group you want to modify or delete and then press

button.【OK】

Modify: input telephone number or mobile phone number with the host keypad and then press

button【OK】to save it. The screen will show “Saved”.

Delete: Press button【OK】and the screen will show “Deleted”

NOTE:

◇The host will make a voice of “di”for three times in every 25 seconds if there is any

receive-alarm-number.

◇Each group of phone number cannot over 16 digitals. Please dial

the “Out No. *”before the receive-alarm-number if your system use extension

number.

(E.g.: If you should dial 9 when you make an outside line call, please set the

receive-alarm-number as “9*outside line call number”)

c、Conventional System Setup

Enter system setting status and press button 【▲】【 ▼】or keypad【2】to chose icon , press

button【OK】and then press button【▲】【 ▼】to chose options as followings:

User’s account: to set user’s ID in alarm receiving center. 4 numbers (0001～9999)

NOTE: It is not necessary to setup by the individual user.

Ringing times: to set remote control ringing times. 00～12 times.

00 means turn off the remote control function.

（Default Setting: 8 times ）

Siren ring time: to set siren ring time when alarming. 00～30mins.

00 means turnoff the hooter whistle function.

（Default Setting: 1 minute）

Delay alarm time: to set the host alarm time between the host receive detector’s signal and start

to alarm. 00～30sec,

00 means turnoff the alarm delay function.

(Default Setting: 30sec)

Delay arm time: to set the host arm time between the host receive controller’s signal or remote

arm order and start to arm. 00～30sec.

00 means turnoff the arm delay function.

(Default Setting: 30sec)

d、Function on/off setup

Enter system setting status and press button 【▲】【 ▼】or keypad【3】to chose icon , press

【OK】and then press button【▲】【 ▼】to chose options as followings:8

Line-Cut alarm: to set whether hooter whistle alarm when external line error.

Press button【▲】【 ▼】to chose On / Off.

（Default Setting: Off）

Wired Input Port: to set whether the host enables the wired input port

Press button【▲】【 ▼】to chose On / Off.

（Default Setting: Off）

NOTE: Please disable all the wired input ports when there is no wired detector linked with

to make the host work steadily.

e 、Host Zones Mode Setup

Enter system setting status and press button【▲】【 ▼】or keypad【7】to chose icon , then press

【OK】, input zone number with keypad in the zone number blank. Press button 【▲】【 ▼】to

chose wired or wireless, press【OK】and press button【▲】【 ▼】or keypad to chose zone mode,

and then press【OK】to save. There are 5 modes for each zone as following:

1. Close —— no matter arm or disarm, the host won't alarm when detectors in this zone are

triggered

2. Immediate —— host will alarm immediately when detectors in this zone are triggered in

arm mode.

3. Delay —— host will alarm after the delay time when detectors in this zone are triggered in

arm mode.

4. Emergency —— no matter arm or disarm, the host will alarm immediately when detectors

in this zone are triggered.

5. Home —— in this mode, the host won't alarm even if detectors in this zone are triggered. It

Indice

Manuali Sistema di sicurezza popolari di altre marche

Inner Range

Inner Range Concept 2000 Manuale utente

Climax

Climax Mobile Lite R32 Istruzioni per il montaggio

CADDX

CADDX NX-6 Manuale utente

FBII

FBII XL-31 Series Manuale utente

Johnson Controls

Johnson Controls PENN Connected PC10 Manuale utente

Aeotec

Aeotec Siren Gen5 Manuale utente

Blaupunkt

Blaupunkt SA 2700 Manuale utente

IDEAL

IDEAL Accenta Manuale del proprietario

AJAX

AJAX DoubleButton Manuale utente

Swann

Swann SW-P-MC2 Manuale utente

Ecolink

Ecolink Siren+Chime Manuale utente

Digital Monitoring Products

Digital Monitoring Products XR150 Manuale utente

EDM

EDM Solution 6+6 Wireless-AE Manuale utente

Highway Safety Group

Highway Safety Group EA401 Manuale utente

Siren

Siren LED GSM Manuale utente

Detection Systems

Detection Systems 7090i Istruzioni per il montaggio

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuale utente

Siemens

Siemens FDM273 Manuale utente
