Christopher Ward C1 Grand Malvern Worldtimer Guida utente

C1 Grand Malvern

Worldtimer

Owner’s handbook

Your Christopher Ward watch has been designed

and engineered by experts to ensure not only precise

timekeeping, but also to give you a sense of pride

whenever you wear it.

You’ve made an investment, a good one, and the

aim of this handbook is to help you make the most of

it during what I hope will be a lifetime of ownership.

Christopher Ward

Time on your side...

Introduction

Contents

C1 Grand Malvern Worldtimer 2–3

Technical information 4

How to operate your C1 Grand Malvern

Worldtimer 6–14

Our watch care programme 15

Keeping in touch 16

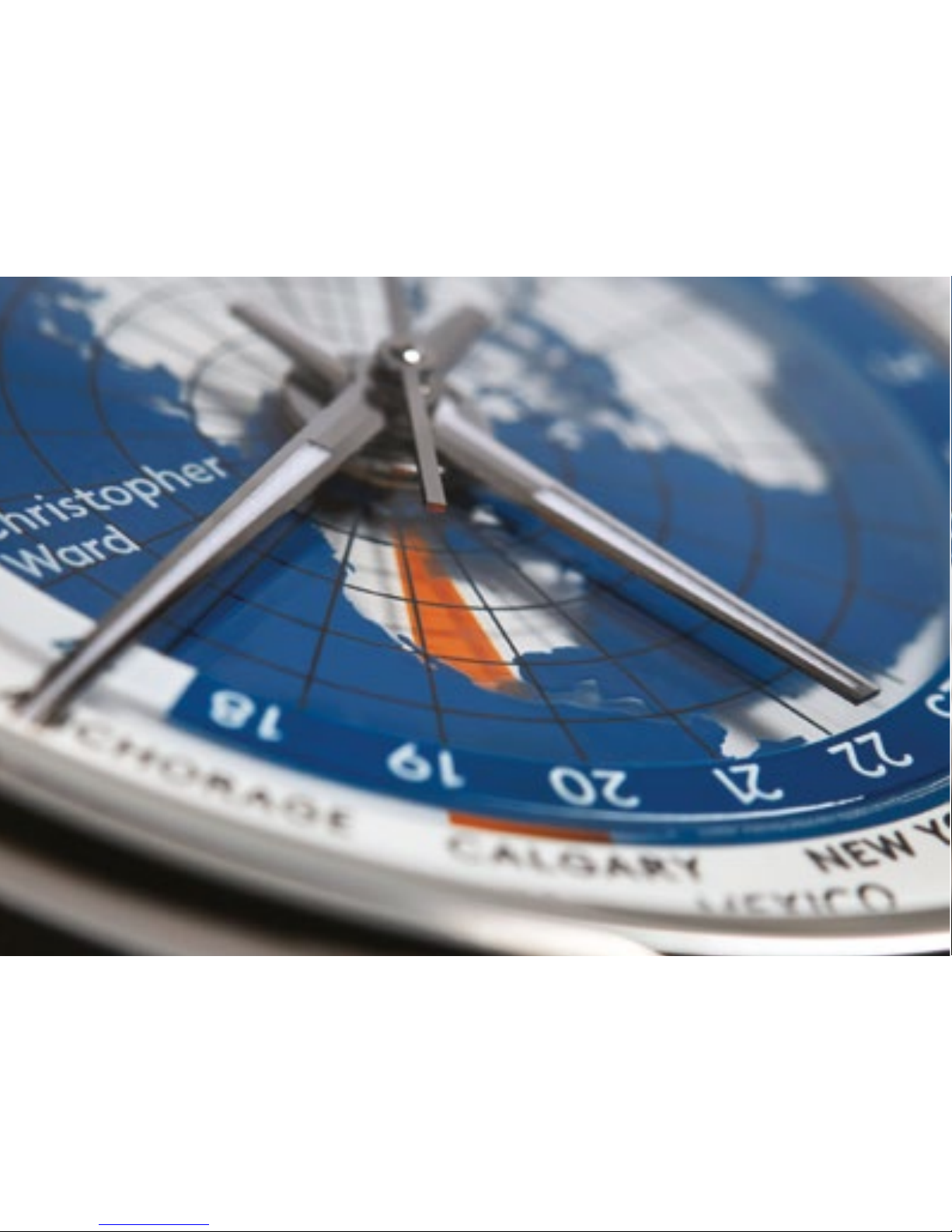

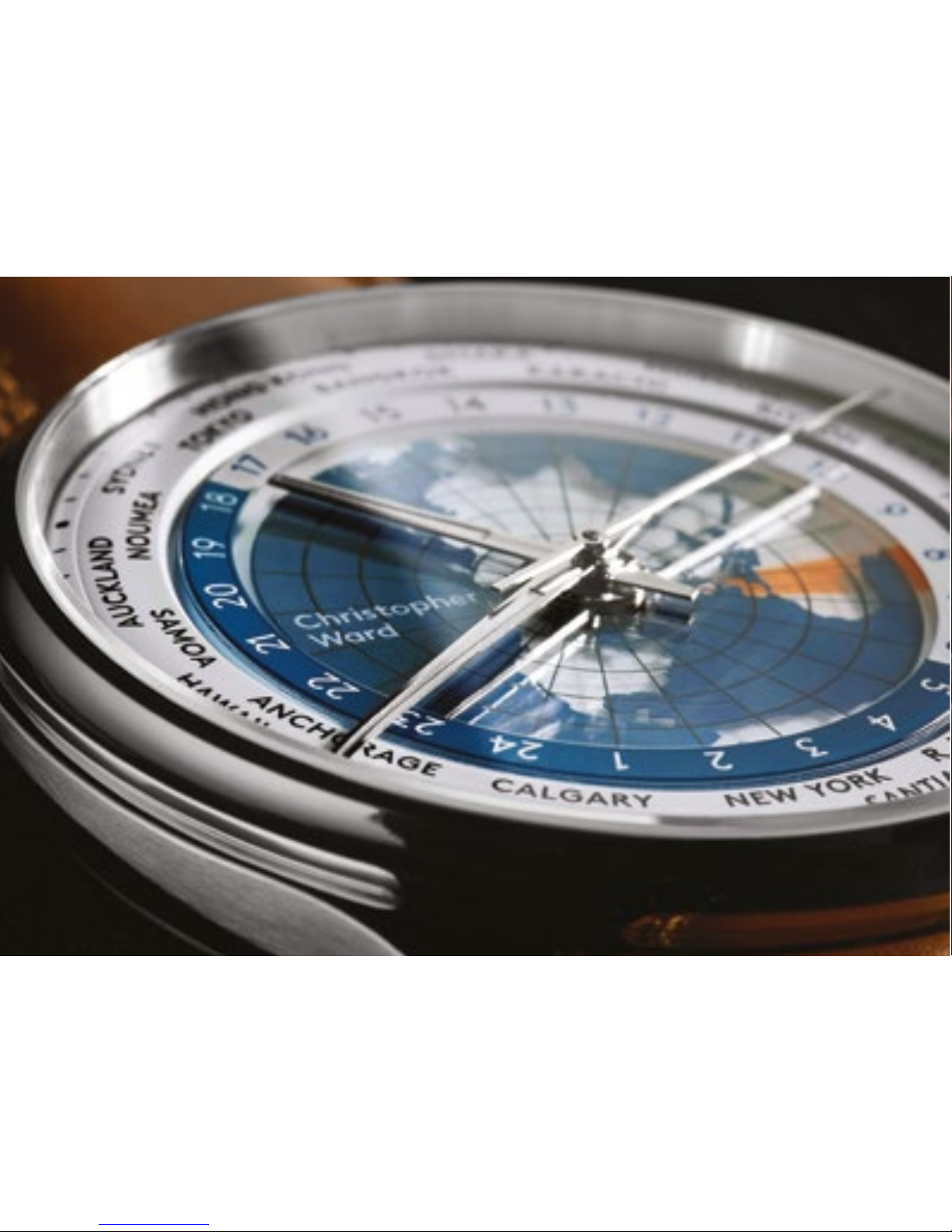

C1 Grand Malvern Worldtimer

When we announced the C1 Grand Malvern Collection

back in 2016, it was always our intention that the

JJ Calibre modications introduced in our C9 dress

range would return in updated form. Over the past

two years, new interpretations of watches such as the

C9 Jumping Hour and Moonphase came to follow,

showcasing a more modern dial aesthetic and a new

signature case design. Yet one particularly popular

JJ Calibre remained conspicuously absent: JJ03, our

worldtimer modication.

Good things take time, and in the case of the C1 Grand

Malvern Worldtimer, the years of development input by

the CW design team have paid o in glorious fashion.

For while many of the C1 Grand Malvern models were

gentle evolutions of their C9 counterparts, the new

C1 Grand Malvern Worldtimer has been born from a

nigh-on blank canvas. The root of this change came

from a refreshed JJ03, whose mechanical update

opened a whole new world of possibilities (excuse

the pun) when it came to the C1’s dial design. With

a 24-hour GMT disc that now moves in conjunction

with the C1’s hands, not only is this the rst ‘true’

worldtimer Christopher Ward has designed; it is also

one of the most ambitious.

Thanks to the eorts of the technical team in Biel,

the C1 Grand Malvern Worldtimer has delivered on

those lofty ambitions once again – and all at a price

that few worldtimer watches of this quality can rival.

C1 Grand Malvern Worldtimer

Features

–Swiss made

–Self-winding 21 jewel movement with ‘JJ03’

in-house worldtimer module

–Unique orange city indicator to highlight

chosen timezone

–40 hour power reserve

–Colimaçoné rotor nish lled with blue lacquer

–Polished surgical-grade stainless steel case

with brushed sides

–Blue and white worldtimer dial

–Rotating 24-hour disc with night and day colouring

–International cities ring with curved nish

–Anti-reective domed sapphire crystal

–Push-down crown with twin ag motif

–Brushed and polished steel hands

Technical information

Technical

Diameter: 43.5mm

Height: 11.55mm

Weight: 66g

Calibre: ETA 2893 with JJ03 module

Case: 316L stainless steel

Water Resistance: 3 ATM (30 metres)

Vibrations: 28,800 per hour (4 Hz)

Timing tolerance: ±20 secs per day

Lug to lug: 51.9mm

Strap: 22mm

–Hour and minute hands lled with T-C1

SuperLumiNova®

–Exhibition backplate with unique engraved

serial number

How to operate your C1 Grand Malvern Worldtimer

Setting the time/date

123

1. Manual winding

2. 24-hour disc and city indicator setting

3. Time setting

How to operate your C1 Grand Malvern Worldtimer

The crown should sit ush to the case (position

)

in order to maintain water resistance.

• To re-power the watch after a period of non-

use, simply wind the crown in a clockwise

direction. Your C1 Grand Malvern Worldtimer has

a maximum power reserve of 40 hours when

fully wound. Normal wearing will allow the rotor

to start re-powering the watch over time after

putting it on your wrist.

• To set the time pull out the crown gently into

position

. This position is used for handsetting

and stopping of the second hand. Turn the crown

until you reach the correct time e.g. 10.08 hr.

For precise time setting it is recommended to

pass beyond the desired minute and to set the

hand backwards.

• Move the crown into position 2. To set the

24-hour disc, which moves in individual hour

increments, turn in a clockwise direction to

rotate the current time to your nearest city

location. To set the orange city indicator,

turn the crown anti-clockwise until you have

reached the desired city.

How to operate your C1 Grand Malvern Worldtimer

Setting the 24-hour disc and city indicator

Firstly, you’ll need to set the 24-hour disc to your

home city. To do this, pull the crown gently into

position 2. Turning it clockwise will activate the

24-hour disc, which moves in individual hour

increments. Let’s say, for example, that it’s 4pm in

London. You would need to turn the crown until the

number 16 on the 24-hour disc is aligned against

London on the outer cities ring (gure 1). To set the

orange city indicator which highlights your preferred

city location, turn the crown anti-clockwise until you

have reached the desired city eg. London (gure 2).

Figure 1

Figure 2
