INTRODUCTION

TABLE OF CONTENTS

page page

DESCRIPTION AND OPERATION

VEHICLE SAFETY CERTIFICATION LABEL ......1

VEHICLE IDENTIFICATION NUMBER ..........1

VIN CHECK DIGIT.........................2

BODY CODE PLATE .......................2

INTERNATIONAL SYMBOLS.................4

FASTENER IDENTIFICATION.................5

FASTENER USAGE ........................5

THREADED HOLE REPAIR ..................8

METRIC SYSTEM .........................8

TORQUE REFERENCES.....................8

DESCRIPTION AND OPERATION

VEHICLE SAFETY CERTIFICATION LABEL

DESCRIPTION

A vehicle safety certification label is attached to

the left side of B-pillar or on the rearward facing of

the front door (Fig. 1). This label indicates date of

manufacture (month and year), Gross Vehicle Weight

Rating (GVWR), Gross Axle Weight Rating (GAWR)

front, Gross Axle Weight Rating (GAWR) rear and

the Vehicle Identification Number (VIN). The Month,

Day and Hour of manufacture is also included.

All communications or inquiries regarding the

vehicle should include the Month-Day-Hour and

Vehicle Identification Number.

VEHICLE IDENTIFICATION NUMBER

DESCRIPTION

The Vehicle Identification Number (VIN) is located

on the upper left corner of the upper plenum, near

the left windshield pillar (Fig. 2). The VIN consists of

17 characters in a combination of letters and num-

bers that provide specific information about the vehi-

cle. Refer to VIN Code Breakdown table for decoding

information.

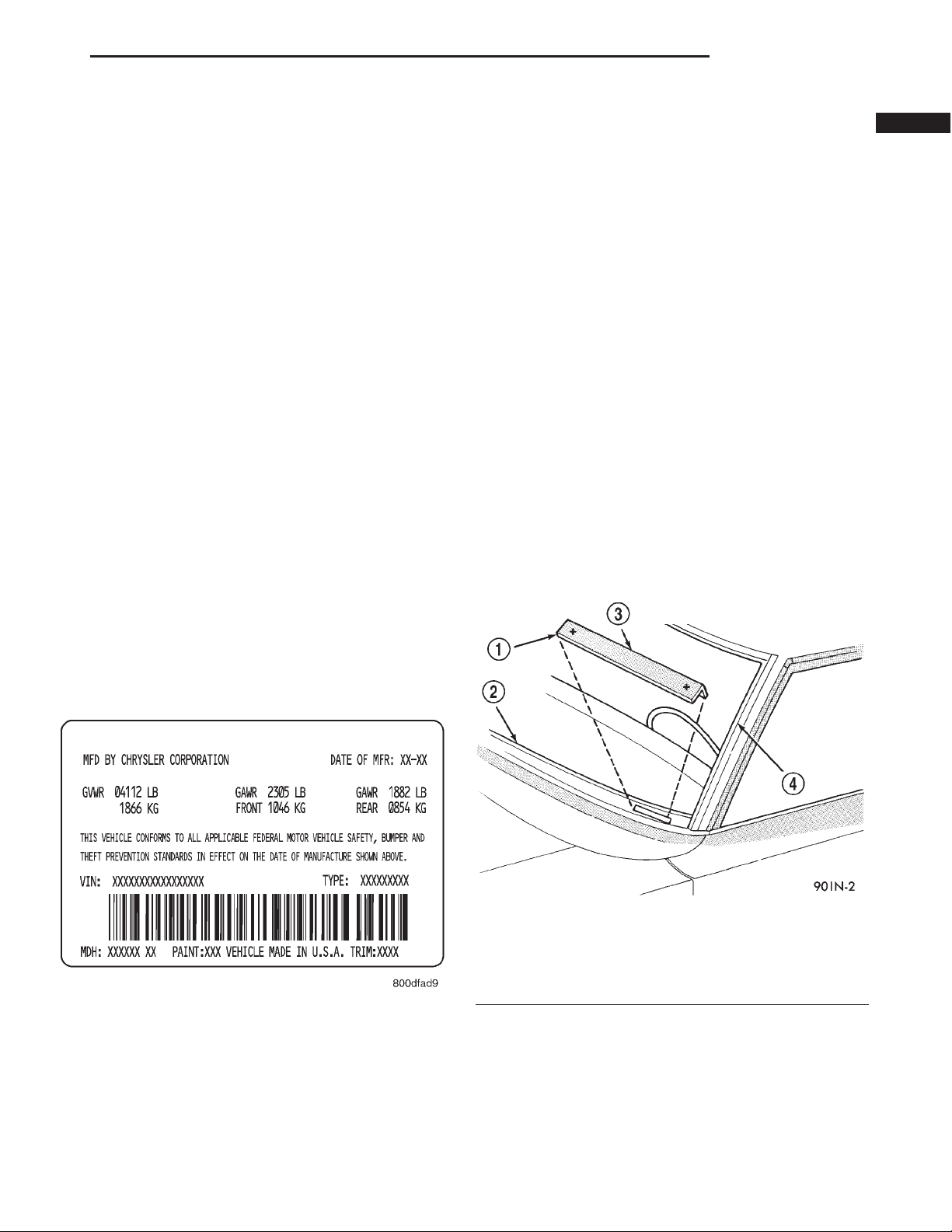

Fig. 1 Vehicle Safety Certification Label

Fig. 2 Vehicle Identification Number (VIN Plate)

1 – V.I.N.PLATE

2 – DASH PANEL

3 – 17 DIGITS

4 – WINDSHIELD OPENING

LH INTRODUCTION 1

VIN CODE BREAKDOWN

POSITION INTERPRETATION CODE = DESCRIPTION

1 Country of Origin 2 = Built in Canada by Chrysler Canada Ltd.

2 Make B = Dodge

C = Chrysler

3 Vehicle Type 3 = Passenger Car

4 Passenger Safety H = Restraint System - Active Driver and Passenger Air Bags

5 Car Line C = Chrysler, LHS

D = Chrysler, Concorde

E = Chrysler, 300M

F = Chrysler Intrepid R/T (Canada)

H = Chrysler, Intrepid (Canada & Mexico)

D = Dodge, Intrepid (U. S. A.)

F = Dodge, Intrepid R/T (U. S. A. & Mexico

6 Series 3 = Medium

4 = High Line

5 = Premium

6 = Sport

X = Special

7 Body Style 6 = 4 Door Sedan

8 Engine G = 3.5L V6 Cyl 24 Valve Gasoline SOHC

J = 3.2L V6 Cyl 24 Valve Gasoline SOHC

R = 2.7L V6 Cyl 24 Valve Gasoline DOHC

U = 2.7L V6 Cyl 24 Valve Gasoline DOHC

V = 2.7L V6 Cyl 24 Valve Gasoline DOHC

9 Check Digit 0 through 9 or X

10 Model Year Y = 2000

11 Assembly Plant H = Bramelea Assembly

12 through 17 Sequence Number Six digit number assigned by assembly plant

VIN CHECK DIGIT

DESCRIPTION

To protect the consumer from theft and possible

fraud the manufacturer is required to include a

Check Digit at the ninth position of the Vehicle Iden-

tification Number. The check digit is used by the

manufacturer and government agencies to verify the

authenticity of the vehicle and official documenta-

tion. The formula to use the check digit is not

released to the general public.

BODY CODE PLATE

LOCATION AND DECODING

DESCRIPTION

The Body Code Plate (Fig. 3) is located in the

engine compartment on the battery tray front side

(Fig. 4). There are seven lines of information on the

body code plate. Lines 4, 5, 6, and 7 are not used to

define service information. Information reads from

left to right, starting with line 3 in the center of the

plate to line 1 at the bottom of the plate.

2 INTRODUCTION LH

DESCRIPTION AND OPERATION (Continued)

BODY CODE PLATE LINE 3

DIGITS 1, 2, AND 3

Paint procedure

DIGIT 4

Open Space

DIGITS 5 THROUGH 7

Primary paint

See Group 23, Body for color codes.

DIGIT 8 AND 9

Open Space

DIGITS 10 THROUGH 12

Secondary Paint

DIGIT 13 AND 14

Open Space

DIGITS 15 THROUGH 18

Interior Trim Code

DIGIT 19

Open Space

DIGITS 20, 21, AND 22

Engine Code

•EER = 2.7 L, Six Cylinder, 24 Valve, DOHC,

Gasoline, Aluminum Block

•EGW = 3.2 L, Six Cylinder, 24 Valve, SOHC,

Gasoline, Aluminum Block

•EGG = 3.5 L, Six Cylinder, 24 Valve, SOHC,

Gasoline, Aluminum Block

•EES = 2.7 L, Six Cylinder, 24 Valve, DOHC,

Gasoline, Aluminum Block

•ECG = 3.5 L, Six Cylinder, 24 Valve, SOHC,

Gasoline, Aluminum Block

DIGIT 23

Open Space

BODY CODE PLATE – LINE 2

DIGITS 1 THROUGH 12

Vehicle Order Number

DIGITS 13, THROUGH 15

Vinyl Roof Code

DIGITS 16 AND 17

Open space

DIGITS 18 AND 19

Vehicle Shell Line

•LH

DIGITS 20

Carline

•C = Chrysler

•D = Dodge

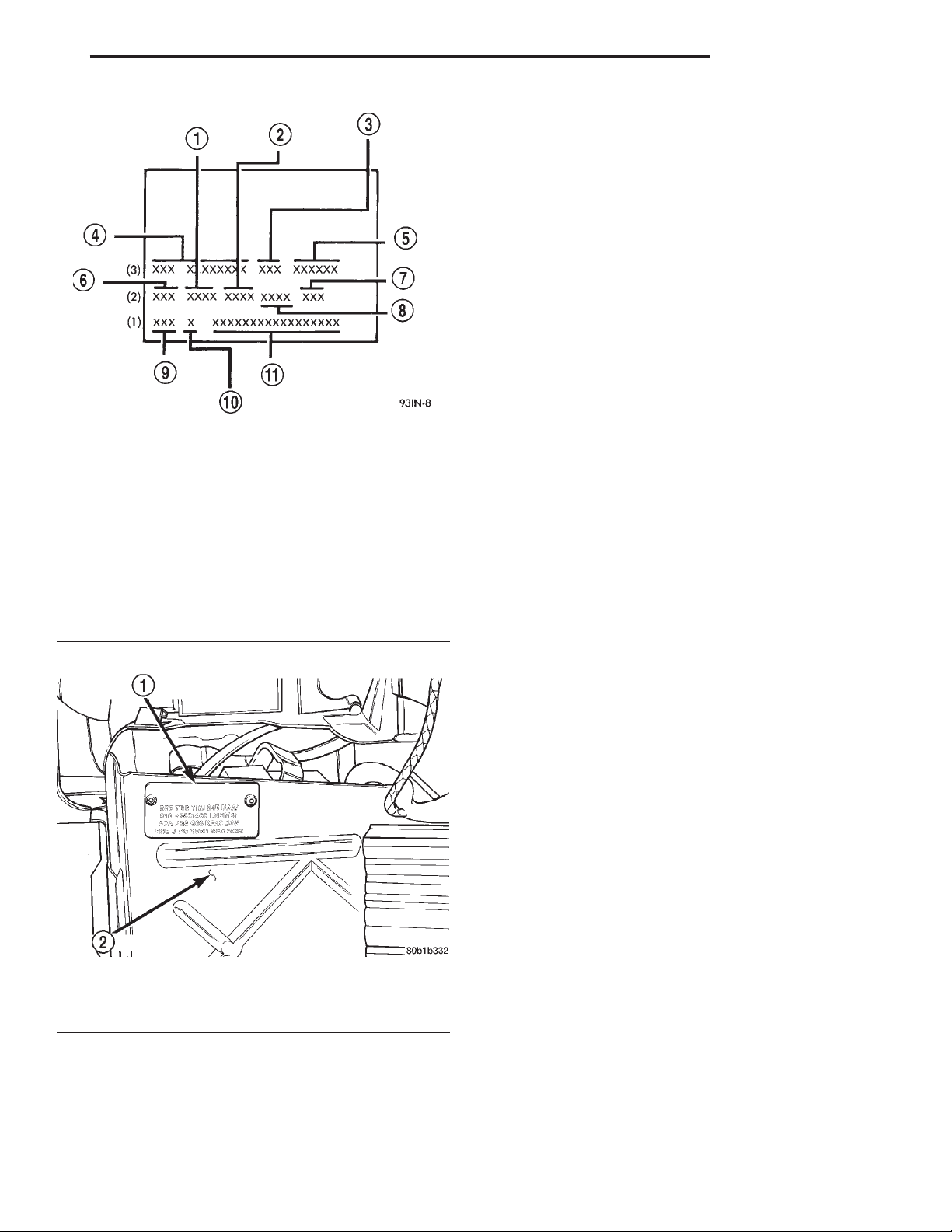

Fig. 3 Body Code Plate

1 – PRIMARY PAINT

2 – SECONDARY PAINT

3 – VINYL ROOF

4 – VEHICLE ORDER NUMBER

5 – CAR LINE SHELL

6 – PAINT PROCEDURE

7 – ENGINE

8 – TRIM

9 – TRANSMISSION

10 – MARKET

11 – VIN

Fig. 4 Body Code Plate Location

1 – BODY COPY PLATE

2 – BATTERY TRAY

LH INTRODUCTION 3

DESCRIPTION AND OPERATION (Continued)

•Y = Chrysler

DIGIT 21

Price Class

•E = Economy

•H = High Line

•L = Low Line

•M = Mid Line

•P = Premium

•S = Special/Sport

•X = Performance Image

DIGITS 22 AND 23

Body Type

•41 = Four Door Sedan

BODY CODE PLATE LINE 1

DIGITS 1, 2, AND 3

Transaxle Codes

•DGX = 42LE four speed Electronic Automatic

Transaxle

DIGIT 4

Open Space

DIGIT 5

Market Code

•C = Canada

•B = International

•M = Mexico

•U = United States

DIGIT 6

Open Space

DIGITS 7 THROUGH 23

Vehicle Identification Number

•Refer to Vehicle Identification Number (VIN)

paragraph for proper breakdown of VIN code.

IF TWO BODY CODE PLATES ARE REQUIRED

The last code shown on either plate will be fol-

lowed by END. When two plates are required, the

last code space on the first plate will indicate (CTD)

When a second plate is required, the first four

spaces of each line will not be used due to overlap of

the plates.

INTERNATIONAL SYMBOLS

DESCRIPTION

The graphic symbols illustrated in the following

International Control and Display Symbols Chart are

used to identify various instrument controls. The

symbols correspond to the controls and displays that

are located on the instrument panel.

4 INTRODUCTION LH

DESCRIPTION AND OPERATION (Continued)

FASTENER IDENTIFICATION

DESCRIPTION

GRADE/CLASS IDENTIFICATION

The SAE bolt strength grades range from grade 2

to grade 8. The higher the grade number, the greater

the bolt strength. Identification is determined by the

line marks on the top of each bolt head. The actual

bolt strength grade corresponds to the number of line

marks plus 2. The most commonly used metric bolt

strength classes are 9.8 and 10.9. The metric

strength class identification number is imprinted on

the head of the bolt. The higher the class number,

the greater the bolt strength. Some metric nuts are

imprinted with a single-digit strength class on the

nut face. Refer to the Fastener Identification and

Fastener Strength Charts.

FASTENER USAGE

DESCRIPTION

WARNING: USE OF AN INCORRECT FASTENER

MAY RESULT IN COMPONENT DAMAGE OR PER-

SONAL INJURY.

Figure art, specifications and tightening torque ref-

erences in this manual are identified in metric and

SAE format.

During any maintenance or repair procedures, it is

important to salvage all fasteners (nuts, bolts, etc.)

for reassembly. If the fastener is not salvageable, a

fastener of equivalent specification must be use.

1 High Beam 13 Rear Window Washer

2 Fog Lamps 14 Fuel

3 Headlamp, Parking Lamps, Panel Lamps 15 Engine Coolant Temperature

4 Turn Warning 16 Battery Charging Condition

5 Hazard Warning 17 Engine Oil

6 Windshield Washer 18 Seat Belt

7 Windshield Wiper 19 Brake Failure

8 Windshield Wiper and Washer 20 Parking Brake

9 Windscreen Demisting and Defrosting 21 Front Hood

10 Ventilating Fan 22 Rear hood (Decklid)

11 Rear Window Defogger 23 Horn

12 Rear Window Wiper 24 Lighter

LH INTRODUCTION 5

DESCRIPTION AND OPERATION (Continued)

FASTENER IDENTIFICATION

6 INTRODUCTION LH

DESCRIPTION AND OPERATION (Continued)

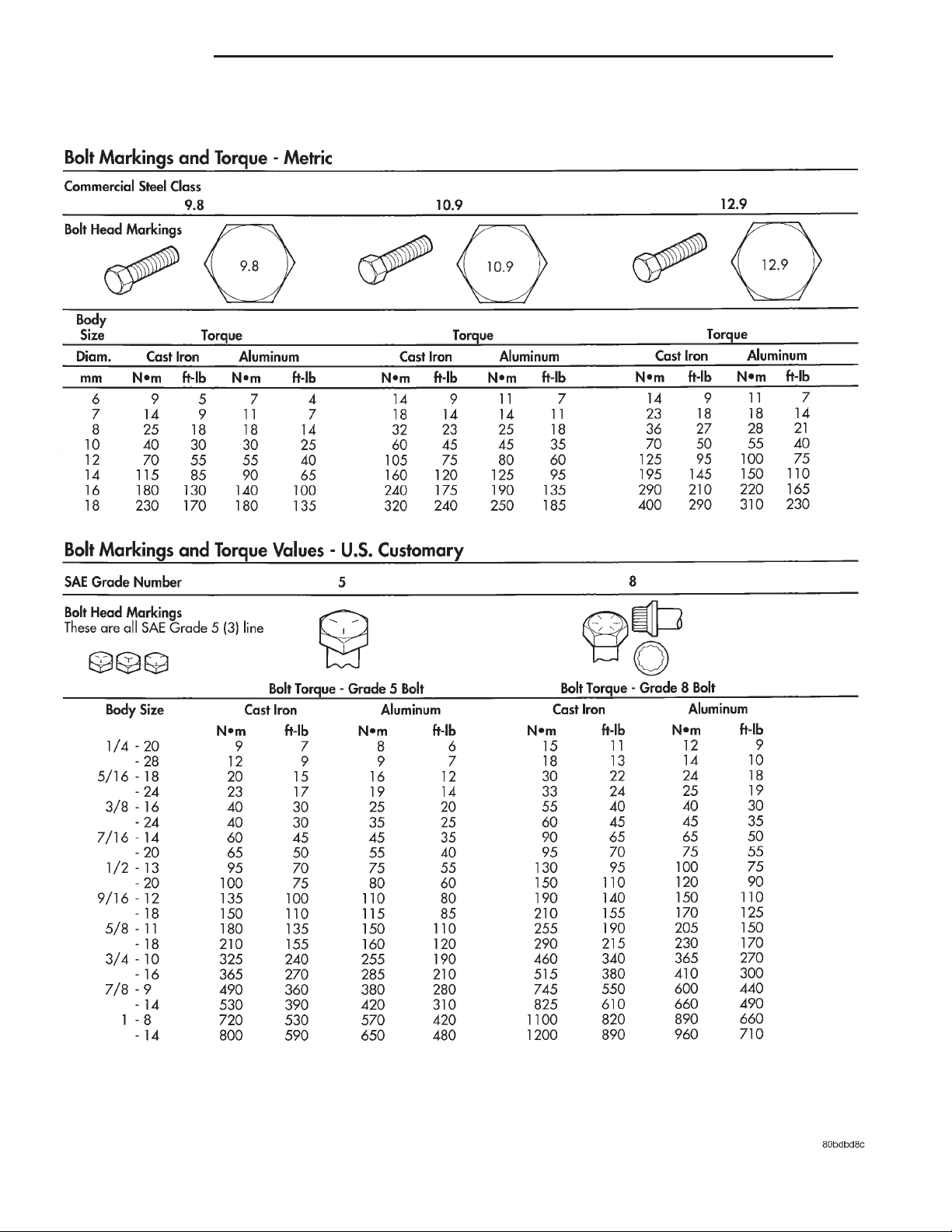

FASTENER STRENGTH

LH INTRODUCTION 7

DESCRIPTION AND OPERATION (Continued)

THREADED HOLE REPAIR

DESCRIPTION

Most stripped threaded holes can be repaired using

a Helicoil t. Follow the manufacture recommendation

for application and repair procedures.

METRIC SYSTEM

DESCRIPTION

The metric system is based on quantities of one,

ten, one hundred, one thousand and one million.

The following chart will assist in converting metric

units to equivalent English and SAE units, or vise

versa.

CONVERSION FORMULAS AND EQUIVALENT VALUES

MULTIPLY BY TO GET MULTIPLY BY TO GET

in-lbs x 0.11298 = Newton Meters (N·m) N·m x 8.851 = in-lbs

ft-lbs x 1.3558 = Newton Meters (N·m) N·m x 0.7376 = ft-lbs

Inches Hg

(60° F) x 3.377 = Kilopascals (kPa) kPa x 0.2961 = Inches Hg

psi x 6.895 = Kilopascals (kPa) kPa x 0.145 = psi

Inches x 25.4 = Millimeters (mm) mm x 0.03937 = Inches

Feet x 0.3048 = Meters (M) M x 3.281 = Feet

Yards x 0.9144 = Meters M x 1.0936 = Yards

mph x 1.6093 = Kilometers/Hr. (Km/h) Km/h x 0.6214 = mph

Feet/Sec x 0.3048 = Meters/Sec (M/S) M/S x 3.281 = Feet/Sec

mph x 0.4470 = Meters/Sec (M/S) M/S x 2.237 = mph

Kilometers/

Hr. (Km/h) x 0.27778 = Meters/Sec (M/S) M/S x 3.600 Kilometers/Hr.

(Km/h)

COMMON METRIC EQUIVALENTS

1 inch = 25 Millimeters 1 Cubic Inch = 16 Cubic Centimeters

1 Foot = 0.3 Meter 1 Cubic Foot = 0.03 Cubic Meter

1 Yard = 0.9 Meter 1 Cubic Yard = 0.8 Cubic Meter

1 Mile = 1.6 Kilometers

Refer to the Metric Conversion Chart to convert

torque values listed in metric Newton- meters (N·m).

Also, use the chart to convert between millimeters

(mm) and inches (in.)

TORQUE REFERENCES

DESCRIPTION

Individual Torque Charts appear at the end of

many Groups. Refer to the Standard Torque Specifi-

cations Chart for torque references not listed in the

individual torque charts.

8 INTRODUCTION LH

DESCRIPTION AND OPERATION (Continued)

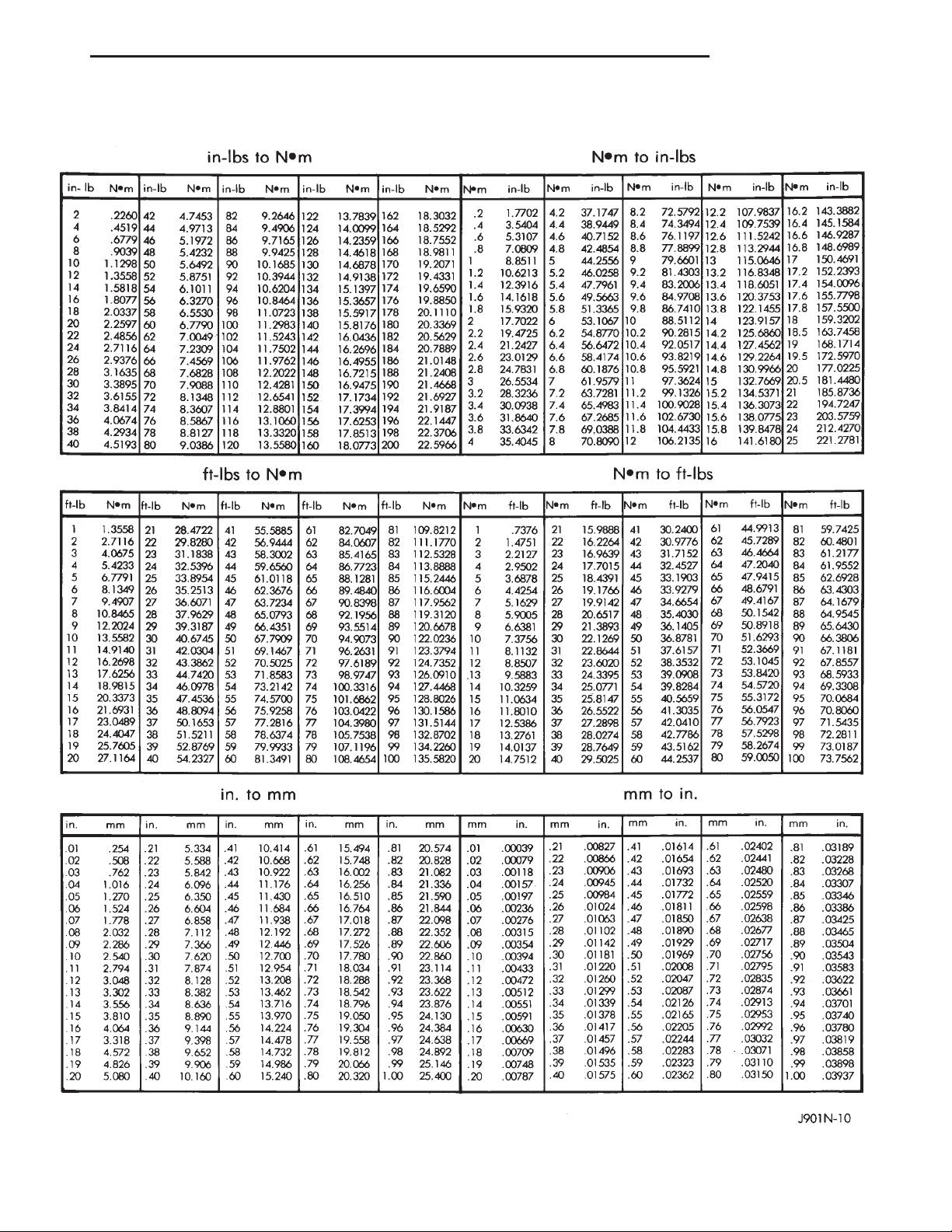

METRIC CONVERSION CHART

LH INTRODUCTION 9

DESCRIPTION AND OPERATION (Continued)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Chrysler Automobile

Chrysler

Chrysler 2008 Town and Country Manuale utente

Chrysler

Chrysler 2005 Sebring Manuale utente

Chrysler

Chrysler 200 Convertible Manuale utente

Chrysler

Chrysler Voyager 2001 Manuale del proprietario

Chrysler

Chrysler TOWN & COUNTRY 2010 Manuale utente

Chrysler

Chrysler 2005 Sebring Manuale utente

Chrysler

Chrysler YPSILON 2012 Manuale tecnico

Chrysler

Chrysler 2013 Town&Country Manuale utente

Chrysler

Chrysler JOURNEY Manuale utente

Chrysler

Chrysler 300 Touring RWD 2010 Manuale utente

Chrysler

Chrysler 300 2015 Manuale del proprietario

Chrysler

Chrysler Pacifica Hybrid 2021 Manuale del proprietario

Chrysler

Chrysler Town & Country 2014 Manuale utente

Chrysler

Chrysler 2017 Pacifica Manuale utente

Chrysler

Chrysler 2004 Sebring Sedan Manuale utente

Chrysler

Chrysler Sebring Convertible 2010 Manuale utente

Chrysler

Chrysler 2014 200 Convertible Manuale utente

Chrysler

Chrysler Sebring Convertible Manuale utente

Chrysler

Chrysler Pacifica 2021 Manuale utente

Chrysler

Chrysler 2006 Sebring Manuale utente

Chrysler

Chrysler 2009 Grand Caravan Manuale utente

Chrysler

Chrysler Crossfire Coupe Limited 2006 Manuale di installazione e funzionamento

Chrysler

Chrysler 300 2013 Manuale utente

Chrysler

Chrysler Dodge Ram 5500 Chassis Cab 2009 Manuale utente

Manuali Automobile popolari di altre marche

Toyota

Toyota 2000 Tundra Manuale utente

CITROËN

CITROËN DS4 DSign Manuale utente

Lexus

Lexus 2015 CT 200h Manuale utente

Cadillac

Cadillac CTS 2008 Manuale utente

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuale utente

Porsche

Porsche Boxster S Manuale utente

GMC

GMC 2010 Savana 1500 Cargo Manuale utente

KIAM

KIAM SPORTAGE 2014 Manuale elenco delle parti

GMC

GMC 2013 Terrain Istruzioni per il montaggio

GMC

GMC T-Series 1999 Manuale utente

Mercury

Mercury 1998 Mystique Manuale utente

Mercury

Mercury 2007 Mariner Manuale utente

Mazda

Mazda 2007 Mazdaspeed 3 Guida

Mazda

Mazda 2014 CX-5 Manuale utente

GMC

GMC Chevrolet Express 2022 Manuale utente

GMC

GMC 1997 Jimmy Manuale utente

Chevrolet

Chevrolet 2012 Malibu Manuale utente

Cadillac

Cadillac 2010 Escalade Manuale utente
