AFTER SHIPMENT FROM THE FACTORY THE BATTERY
NEEDS RECHARGING. IF NOT USED FOR A LONG PERIOD
OF TIME, THE BATTERY WILL START SELF-DISCHARGING,
WHICH MAY RESRLT IN A SHORT SERVICE LIFE OF THE
BATTERY OR MAY EVEN CAUSE DAMAGE TO IT DURING
WARRANTY PERIOD. CARE SHOULD ALSO BE TAKEN TO
AVOID EXCESSIVE TEMPERATURE AROUND THE UPS,
WHICH COULD ALSO RESULT IN REDUCING SERVICE
LIFE OF THE BATTERY. TO ACHIEVE MAXIMUM SERVICE
LIFE FROM THE BATTERY THE ABOVE INSTRUCTIONS
SHOULD BE FOLLOWED.

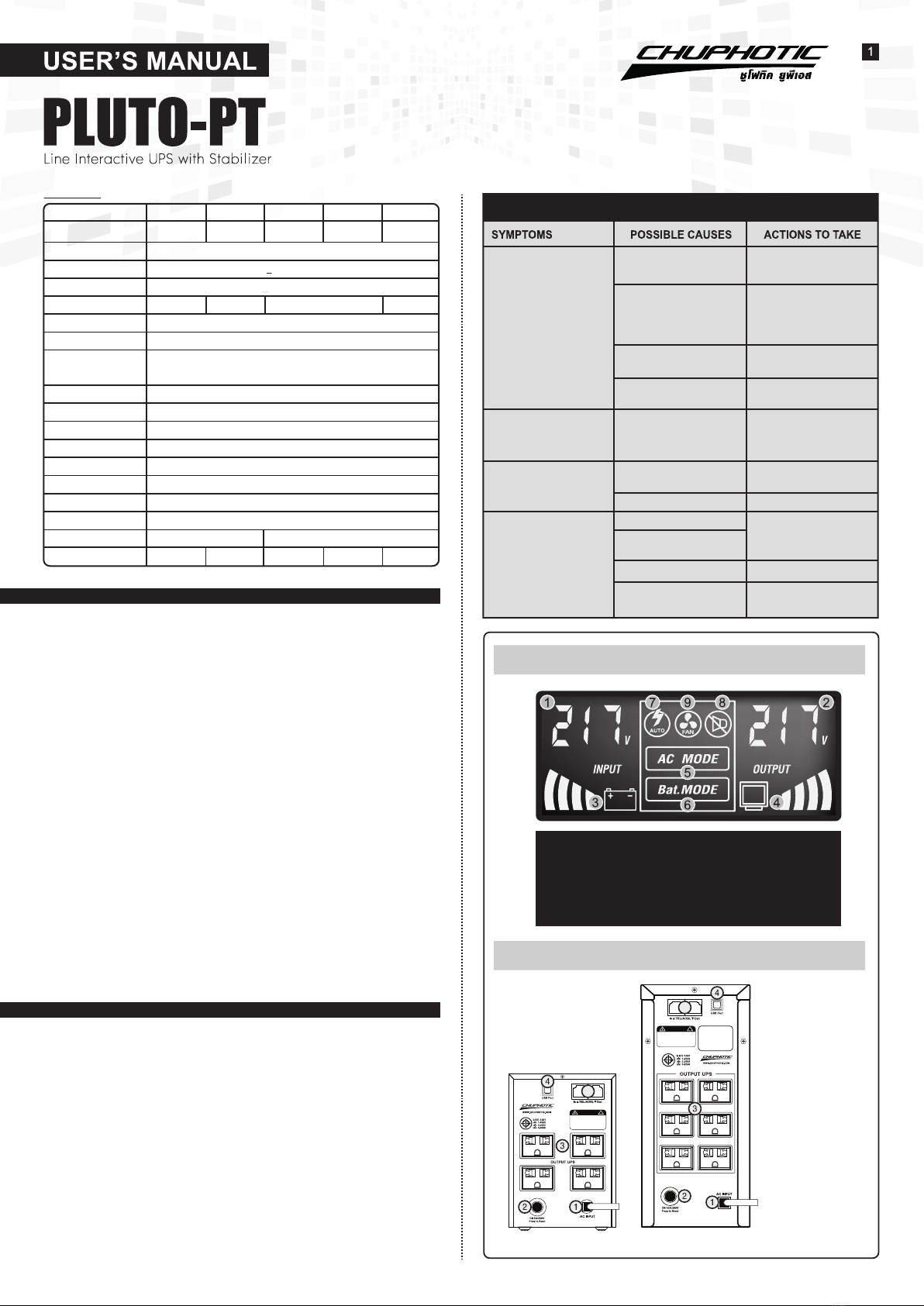

Line Interactive UPS with LEDLine Interactive UPS with LED

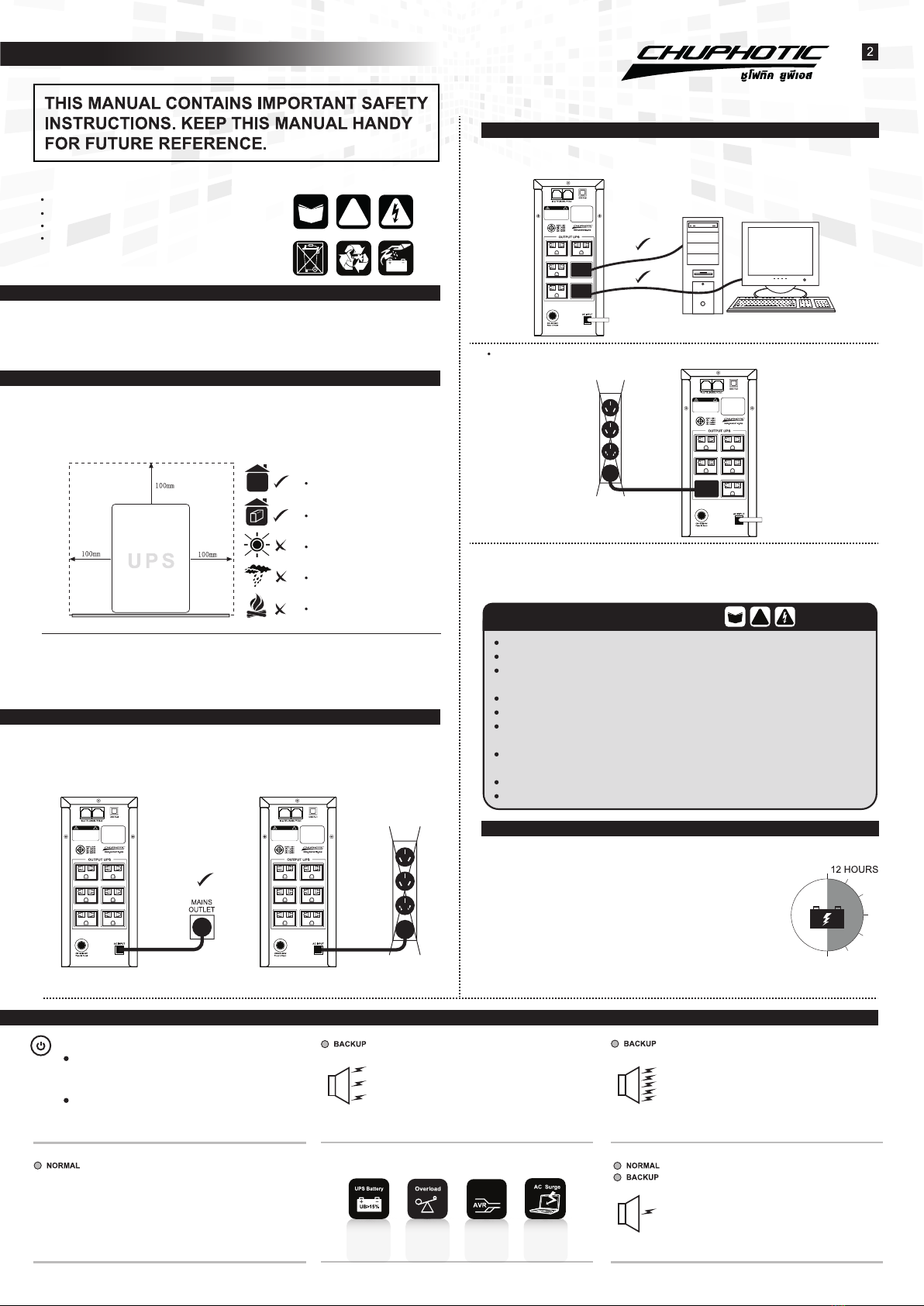

CONNECT EQUIPMENT TO UPS
PLACE LOCATION THE UPS
Inspect items inside box:
User’s Manual & Warranty Card
UPS & Packaging Material
Mains Power Cord
Program & Communication(Option)
Examine the packing carton for damage. Notify your dealer immediately if damage
is observed. Store the packing in a safe place for possible future trans-shipment of
the UPS.
Avoid Direct Sulight.
Avoid Excessive Heat.
Avoid Excessive Humidity
or Liquids.
Avoid Excessive Dust.
IP20 Indoor Use.
The UPS is intended for indoor use only. Although your UPS is very rugged, its internal
components are not sealed from the environment. Kindly note the following.
Place location the UPS on a sturdy, dry surface in a wellventilated area away from
direct sources of heat. Leave at least 100mm clearance all around the UPS to provide
adequate ventilation.
CONNECT UPS TO POWER LINE
Connect the Power Cord, to a verified grounded 3-wire receptacle. Do not power the UPS
using a surge suppressor or power strip. The utility power Turn ON.
IP20
UPS INDICATORS AND CONTROLS
Product contains voltages, which are potentially
hazardous.
Qualified service personnel should perform all repairs.
Do not try to open the cover and to service the
system yourself, on user
serviceable parts inside.
Refer servicing to qualified service personnel only and warranty Condition
Product has its own internal energy source
(battery).
Outlet receptacles may be Hot even
when the product is not connected
to an AC supply.
In case of fire risky, please change the Fuse with
the same kind and same
rate or Reset breaker.
Product is intended for indoor use only.
Kindly note to avoid excessive heat, dust, humidity
CAUTION AND WARNING
i
Enable the UPS by turning on the Power ON/OFF switch, which is situated on the
front panel.
The UPS is now ready to use. Switch on your equipment and you are ready to function.
BATTERY MAINTENANCE / BATTERY CHARGING
ON / OFF SWITCH
Turn ON this button to supply power
to the
UPS outlets. To switch off power
to the UPS
outlets
Turn OFF the switch. This switch is
situated
on the front panel of the UPS.
BACKUP INDICATOR
(Red LED continuous bright)
The buzzer beeps every 8 seconds.
The battery is powering the UPS outlets.
The expected runtime for a typical personal
computer (PC) is about 10 to 40 minutes.
LOW BATTERY INDICATION
(Red LED continuous bright)
The buzzer beeps fast whenever the
battery is near the end of its runtime.
Promptly save your data and exit all
applications and shutdown the operating
system.
OVERLOAD INDICATION
The Yellow LED flashes, with continuous
beeping. UPS protects itself at this time.
Please move some load.
AC NORMAL INDICATOR
(Green LED continuous)
The UPS is supplying conditioned
utility power to its outlets.
UPS
BATTERY
OVERLOAD
PROTECTION
AUTOMATIC
VOLTAGE
REGULATION
AC SURGE
PROTECTION
Buck-2Boost
FEATUREFEATURE
Connect the Power Cord, to a verified grounded 3-wire receptacle. Do not power
the UPS using a surge suppressor or power strip. The utility power Turn ON.
Do not connect a surge suppressor, power strip, or extension cord to the UPS outlet.
i
Pb
CAUTION :
BEFORE INSTALLATION & OPERATION
Risk of electrical shock.
Do not remove cover.
No user serviceable part Inside.
Refer servicing to qualified person
Refer manual for environmental.
!
CAUTION
Serial :
Risk of electrical shock.
Do not remove cover.
No user serviceable part Inside.
Refer servicing to qualified person
Refer manual for environmental.
!
CAUTION
Serial :
Risk of electrical shock.
Do not remove cover.
No user serviceable part Inside.
Refer servicing to qualified person
Refer manual for environmental.
!
CAUTION
Serial :
Risk of electrical shock.
Do not remove cover.
No user serviceable part Inside.
Refer servicing to qualified person
Refer manual for environmental.
!
CAUTION
Serial :
Chuphotic.User’s Manual English-21.PLUTO-Plus 650-1500VA.Rev1.10/2019
