CIC Torus 15 Manuale utente

Installation Guide

For assistance, please email the manufacturer at

[email protected]

Diagram above is shown with optional reader attached.

Safety and Warnings

Notices

Contents

Please read this Installation Guide carefully. If the cabinet is sold, this guide must be provided to to the buyer and/or installers. Under no

circumstances does the manufacturer accept warranty or liability for damage caused by improper use or failing to follow these instructions.

This document contains information about products and services provided by CIC Technology. Every commercially reasonable eﬀort has been taken to ensure the quality and accuracy of the

information provided, however the content is for informational purposes only. The described product or process in this document is subject to change without prior notice, due to continuous

development and improvement.

Neither CIC Technology nor any of its directors, employees or other representatives shall be responsible for any loss that you may incur, either directly or indirectly, arising from any use or

decisions based on the information provided.

Torus software, ﬁrmware, database, hardware, and mechanical design are subject to copyright owned by CIC Technology Pty Ltd. CIC Technology is the owner of all Torus and CIC trademarks

reproduced in this document. Other products, brands, trademarks referenced are not the property of CIC Technology.

POWER

Cabinet is an electronic device. It can be powered

using 110-240V AC power or Power Over Ethernet

(POE/POE+/POE++)

Safety & Warnings

Before You Begin

Package Contents

Installation Instructions

Adding a Card Reader or Other Device

Page 2

Page 3

Page 4

Page 5

Page 10

ENVIRONMENT

Cabinet is for interior use only. It must be installed

on a wall capable of supporting its weight, with no

direct exposure to sunlight or water.

TEMPERATURE

The operating temperature of the cabinets is

between 0°C and 55°C (32°F - 130°F).

CLEANING

Wipe the surface of the door and touchscreen

with a soft cloth. Use gentle cleaning solution or

water as ‘dry’ cleaning may cause dust particles to

scratch the surface. Never use abrasive or high

alkaline cleaners.

DAMAGE / SCRATCHING

Damage to the cabinet caused by intentional

misuse or failure to follow the instructions will not

be covered under warranty.

WEIGHT

Each cabinet is heavy (see page 4). Correct lifting

techniques and safe handling methods must be

observed.

OTHER

Torus is an Internet of Things (IoT) solution which

requires a subscription to the software and an

internet connection for the cabinet.

TORUS Installation Guide 2

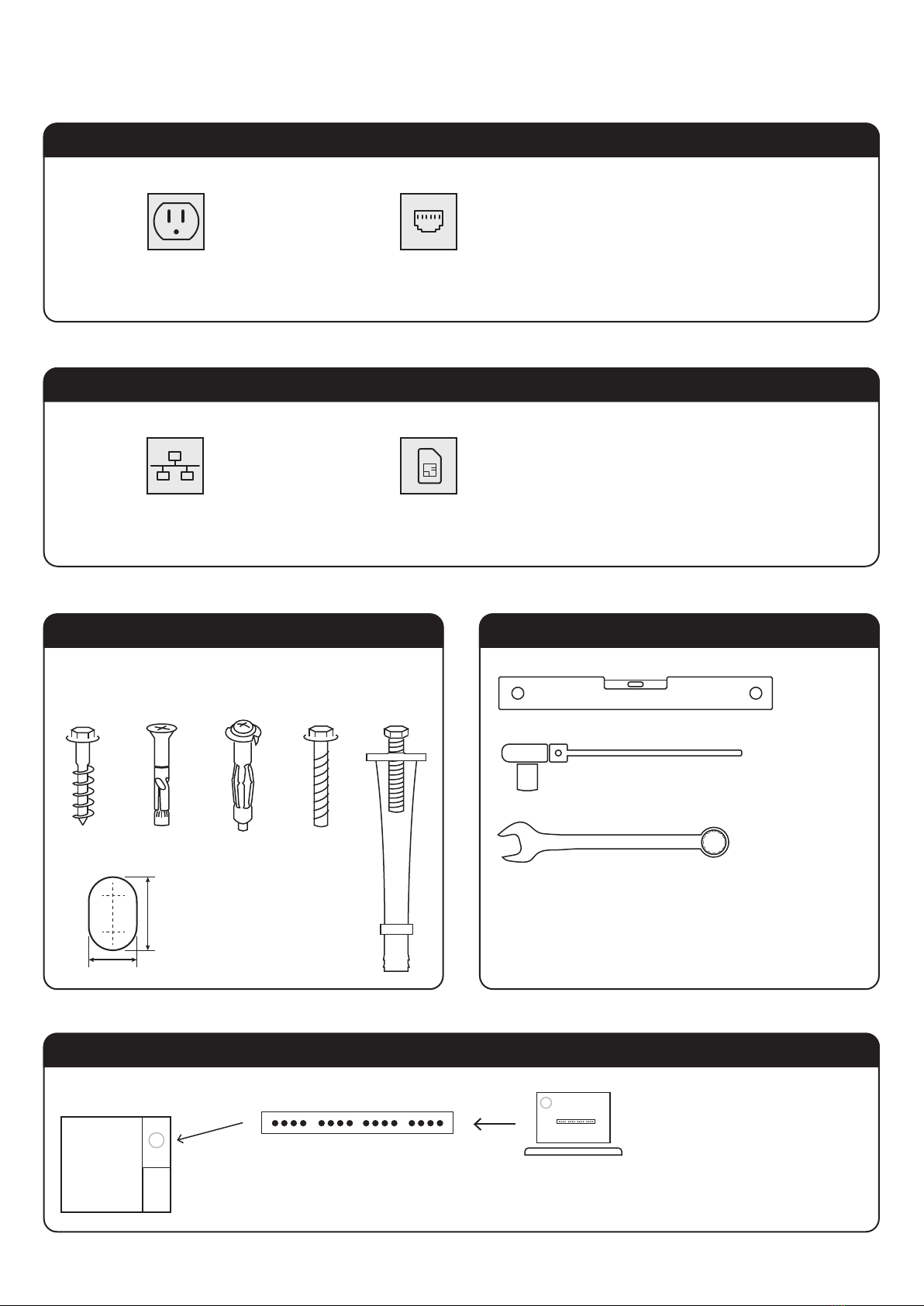

Power

Before You Begin

AC Power

110-240V

Power over Ethernet

POE / POE+ / POE++

The cabinet can be powered from a

regaular power outlet or by using

POE. Make sure the chosen option

is ready and available before

commencing installation.

The relevant ports should be within

2m / 6’ of the cabinet.

Provisioning key

The provisioning key is a 12-digit number found in the Torus

software. Each cabinet has a unique provisioning key that

must be entered into cabinet to complete the installation.

Provisioning Key

Fasteners are not supplied with the Torus cabinet. Each fastener

must hold at least 50lbs / 20kgs and be appropriate for the wall

substrate.

Mounting holes:

Fasteners

10mm

15mm

Tools Required

Power

Spirit Level with Magnetic Base

Ratchet Driver with 10mm Socket

10mm Open Ended Ring Wrench

Plus drill and tools for chosen fasteners.

Note: If a card reader is being installed, additional tools will be

required. Refer to card reader mounting instructions.

Connectivity

LAN

Local Area Network

4G SIM Card

Regular - not micro or nano

The Torus Administrator has been

sent an activation email detailing

the requirements for each of these

methods. Cabinets must be

connected to the internet to

function.

TORUS Installation Guide 3

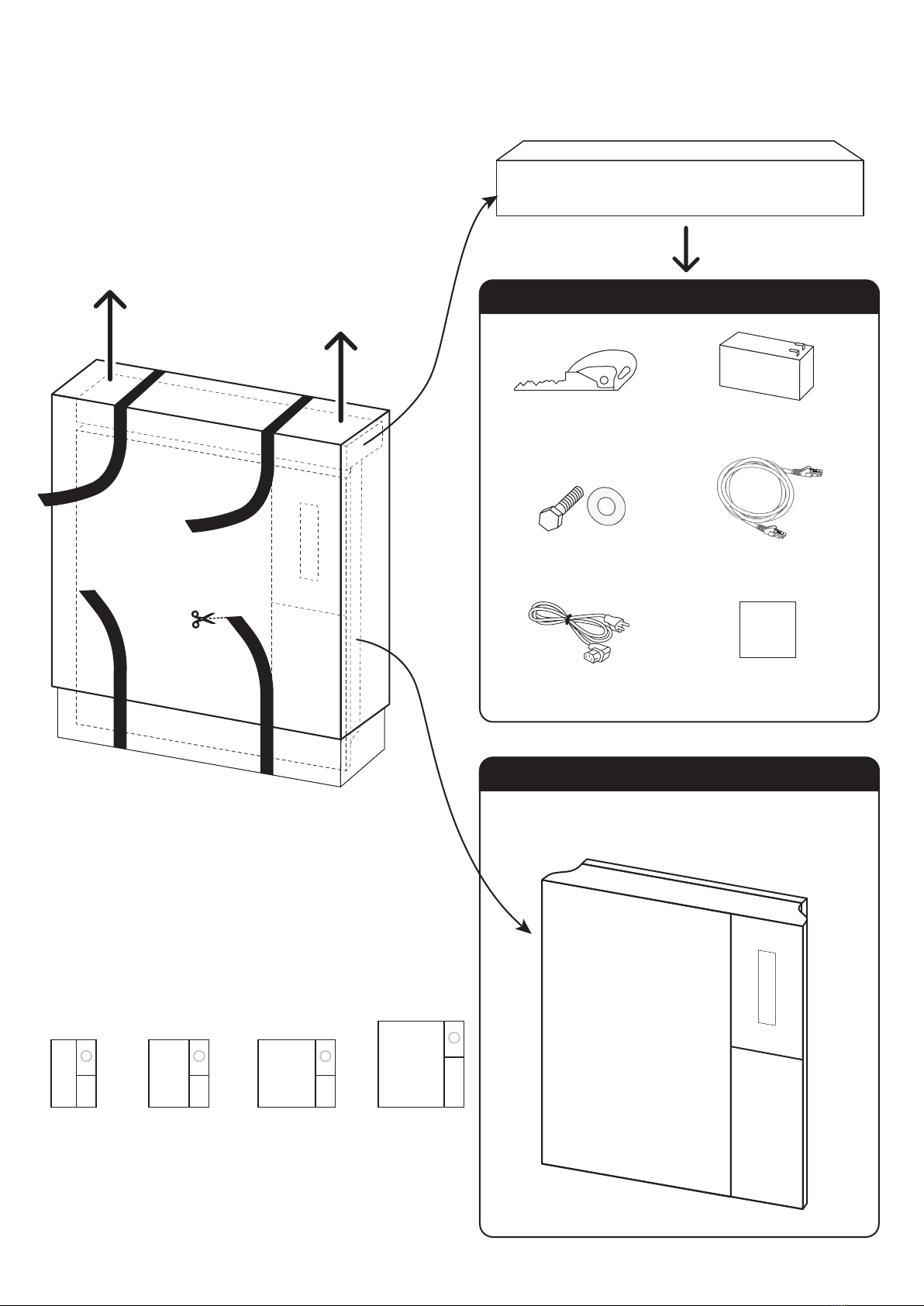

Package Contents

Keeping the cabinet upright at all times, cut the straps and lift

the outer box upwards.

Inside there will be a separate box containing cables and

accessories.

There are 4 sizes of Torus cabinet.

The installation process is largely the same for each size.

However, the Torus 100:

• attaches to the wall at 6 points instead of 4

• includes an additional strap to support the weight of the keypanel

• has 2 ribbon cables that connect to the Control Unit.

Accessories Box

Accessories

Override Key Backup Battery

12V 7AH

Screws & Washers

4 of each

Ethernet Cable

Cat5 Cable (5m)

Power Cable

Right Angle IEC Cable (5m)

Other

Key Rings & Accessories

Torus 15

77lbs / 35kgs

Torus 25

92lbs / 42kgs

Torus 50

119lbs / 54kgs

Torus 100

196lbs / 89kgs

Cabinet & Bracket

Torus Cabinet

Available in 4 sizes

Mounting Bracket

Connected but not secured

to the back of the cabinet

TORUS Installation Guide 4

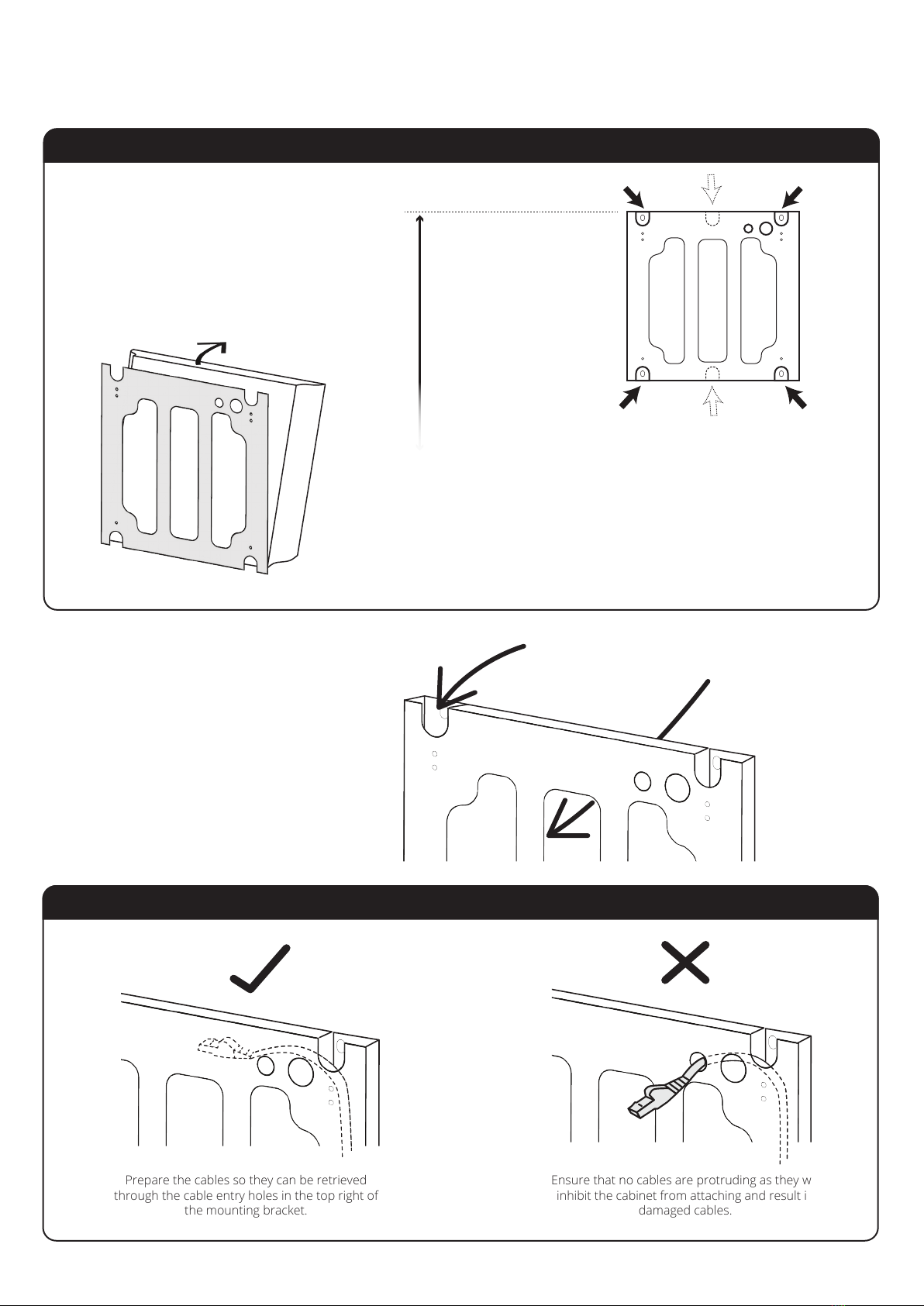

Installing the Cabinet

Attach the mounting bracket to the wall

Prepare the cables so they can be retrieved

through the cable entry holes in the top right of

the mounting bracket.

Ensure that no cables are protruding as they will

inhibit the cabinet from attaching and result in

damaged cables.

Through the wall

behind the bracket

Into the mounting

bracket at any corner

External to the wall

Power and data cables that are on the outside

of the wall can enter the mounting bracket at

any of the four corners.

Through the wall cavity

Power and data cables that are run through the

wall can enter the cavity behind the bracket at

any point.

The mounting bracket is connected, but not

secured, to the back of the cabinet.

Gently and carefully tilt the cabinet forwards so

you can remove the bracket.

Cable Management

Height:

1600mm / 63”

from the ﬂoor.

Find the desired location on the wall and mark the holes ensuring the

bracket is level. Torus recommends that the top of the bracket is 1600mm /

63” from the ﬂoor so the screen will be at eye level, although any height can

be chosen based on the customer’s needs.

Torus 100 will attach to the wall at 6 locations, whereas the other cabinet

sizes will attach at 4 (each corner).

Using appropriate fasteners, secure the bracket to the wall.

Prepare Cables

TORUS Installation Guide 5

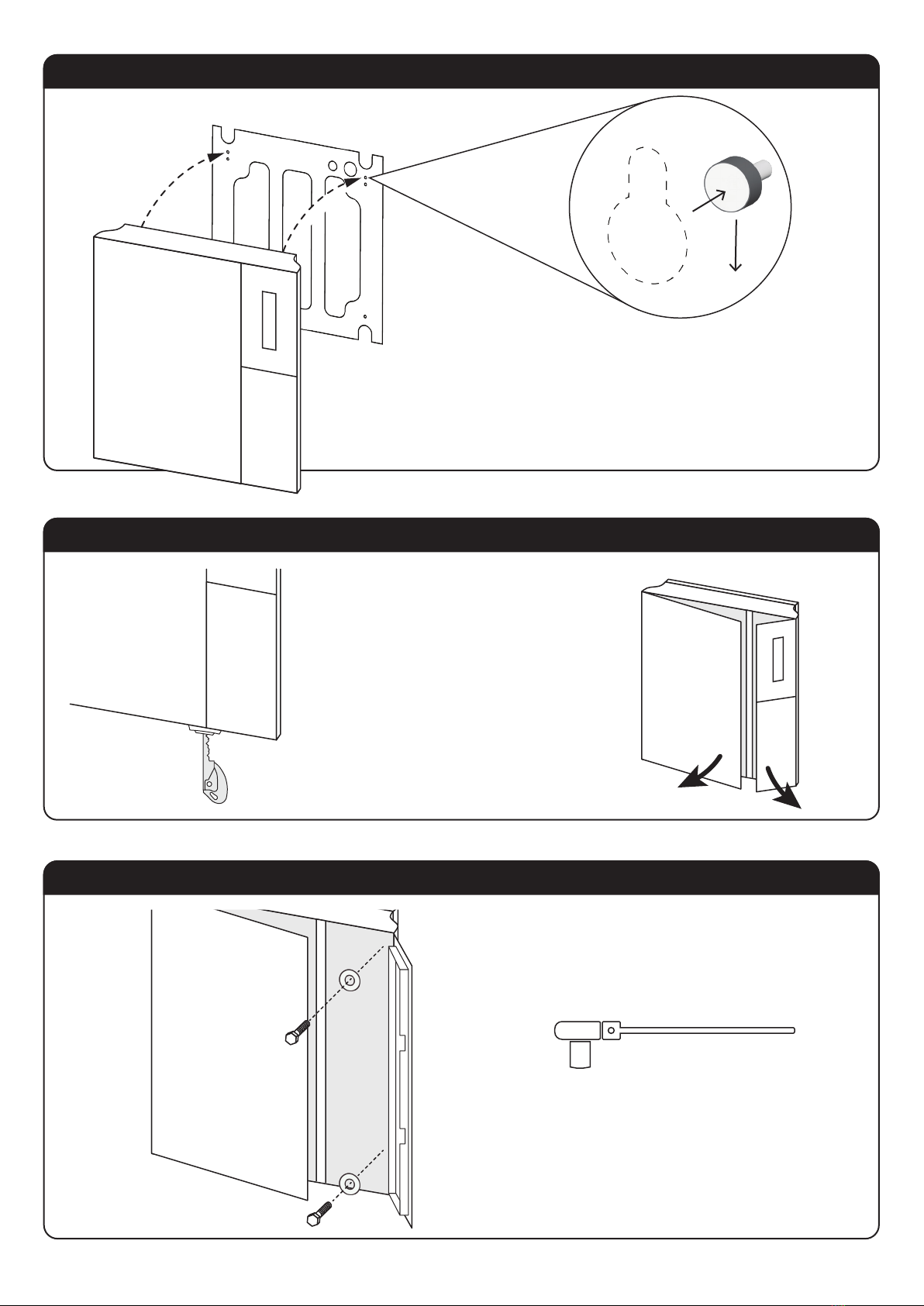

Hang the Cabinet on the Bracket

Use the Override Key to Open the Doors

Screw the Cabinet to the Bracket

Locate the override key and insert it

on the underside of the cabinet.

Turning the key will cause the doors

to pop open.

Open the right side door.

Use the screws and washers provided

to secure the cabinet to the bracket.

Lift the cabinet onto the mounting bracket

There are two pins at the top of the bracket that will locate into keyhole

slots in the back of the cabinet. Once both pins are inserted, the cabinet

will hang in place, supported by the bracket

The cabinets are very heavy - safe handling methods must be obvserved.

Override Key

Ratchet driver with 10mm socket

TORUS Installation Guide 6

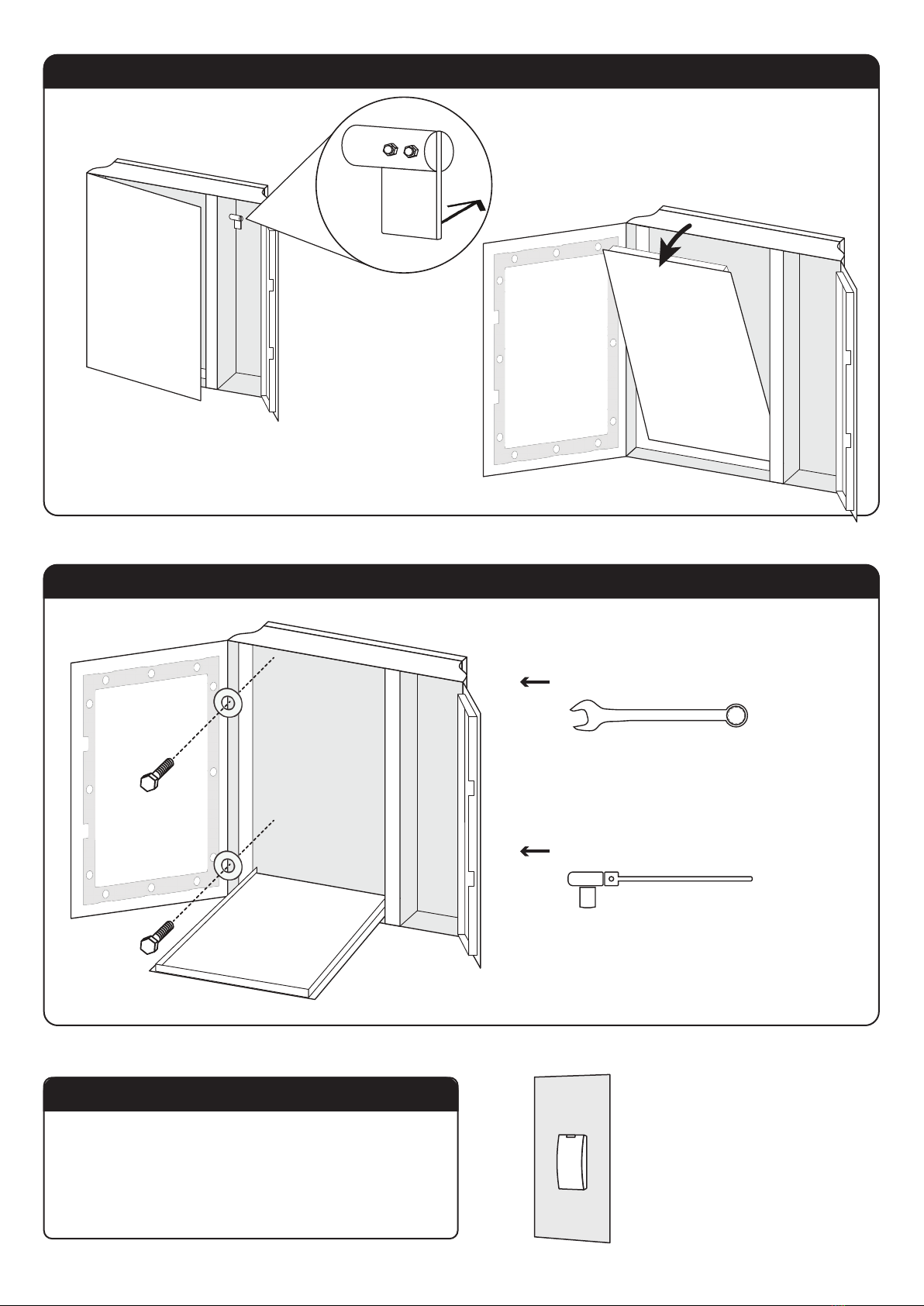

Lower the Keypanel

Screw the Cabinet to the Bracket

Check Connections Reader

10mm Open Ended Ring Wrench/Spanner

Ratchet Driver with 10mm socket

Find the latch in the top of the right side of the cabinet.

Gently push it away from you to release the key panel.

Make sure the main door is open and lower the key panel.

Secure the cabinet to the bracket using the screws

and washers provided.

Access is limited around the top left screw so you

will need to use the opended spanner/wrench.

With the keypanel lowered, check that all of the boards are

seated correctly and the cables are ﬁrmly connected.

When complete, raise the keypanel until it locks in place.

The cabinet is capable of

accepting the input from a

reader using OSDP or Wiegand.

If you are installing a reader, skip

to supplementary instructions on

page 10.

TORUS Installation Guide 7

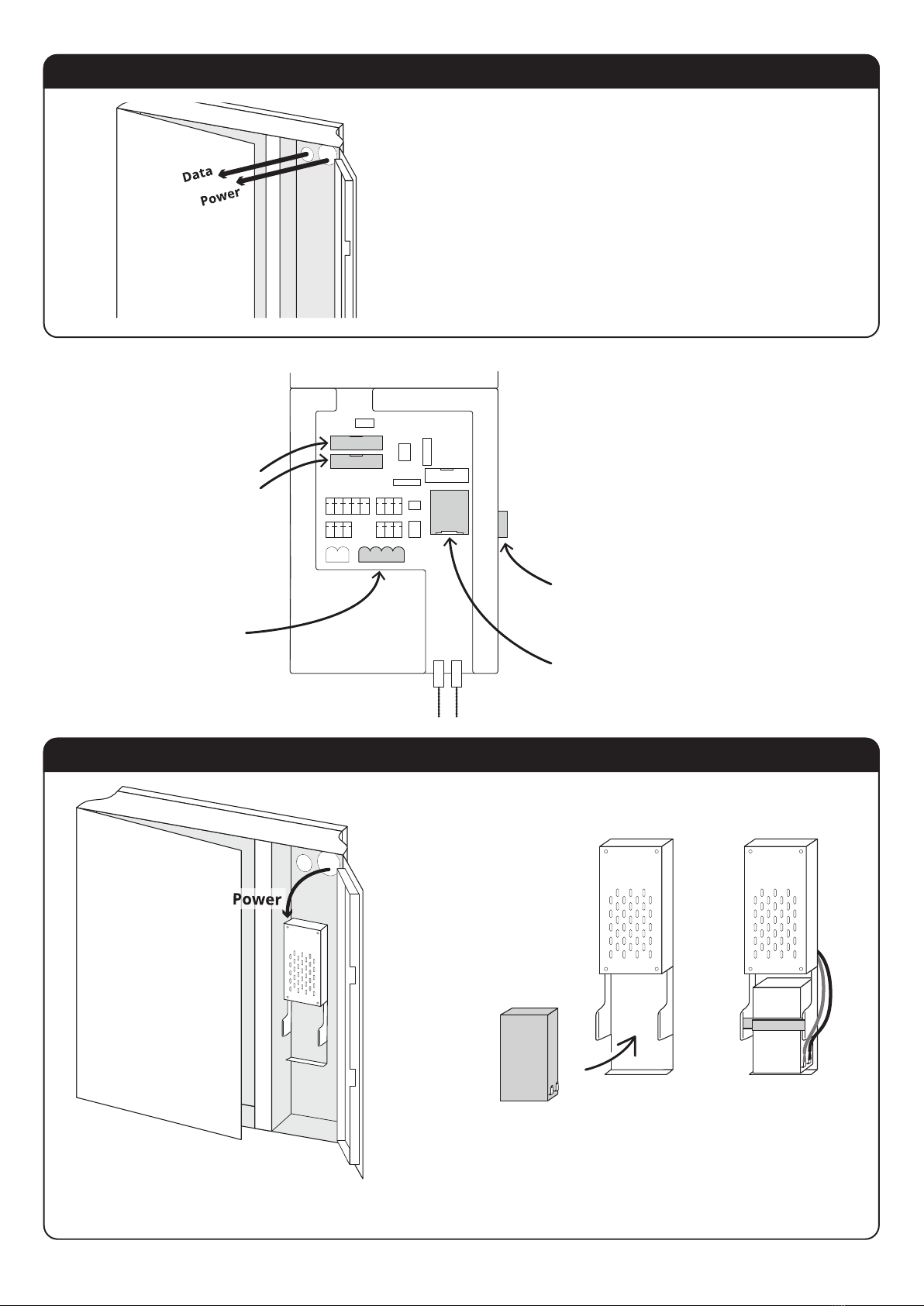

Bring in the Cables

Check all Connections

Connect Power and Backup Battery

Now that the cabinet is secured to the

wall, you can bring the network cable (and

power if not using POE) into the cabinet.

Follow this diagram and make sure all of

the cabling is plugged in securely to the

back of the control unit.

KSP Ribbon Cable/s

These ports are interchangeable

Torus 100 will have 2 cables

Power cable

Green Phoenix connector

Ground

This may be on the other side.

Ethernet

Door Solenoid Door Sensor

If you are not using POE, connect the power cable to the PSU

Retrieve the backup battery from the accessories box and insert

it beneath the PSU. Attach the red wire to the postive terminal

and the black wire to the negative terminal.

Secure battery in place with velcro strap.

TORUS Installation Guide 8

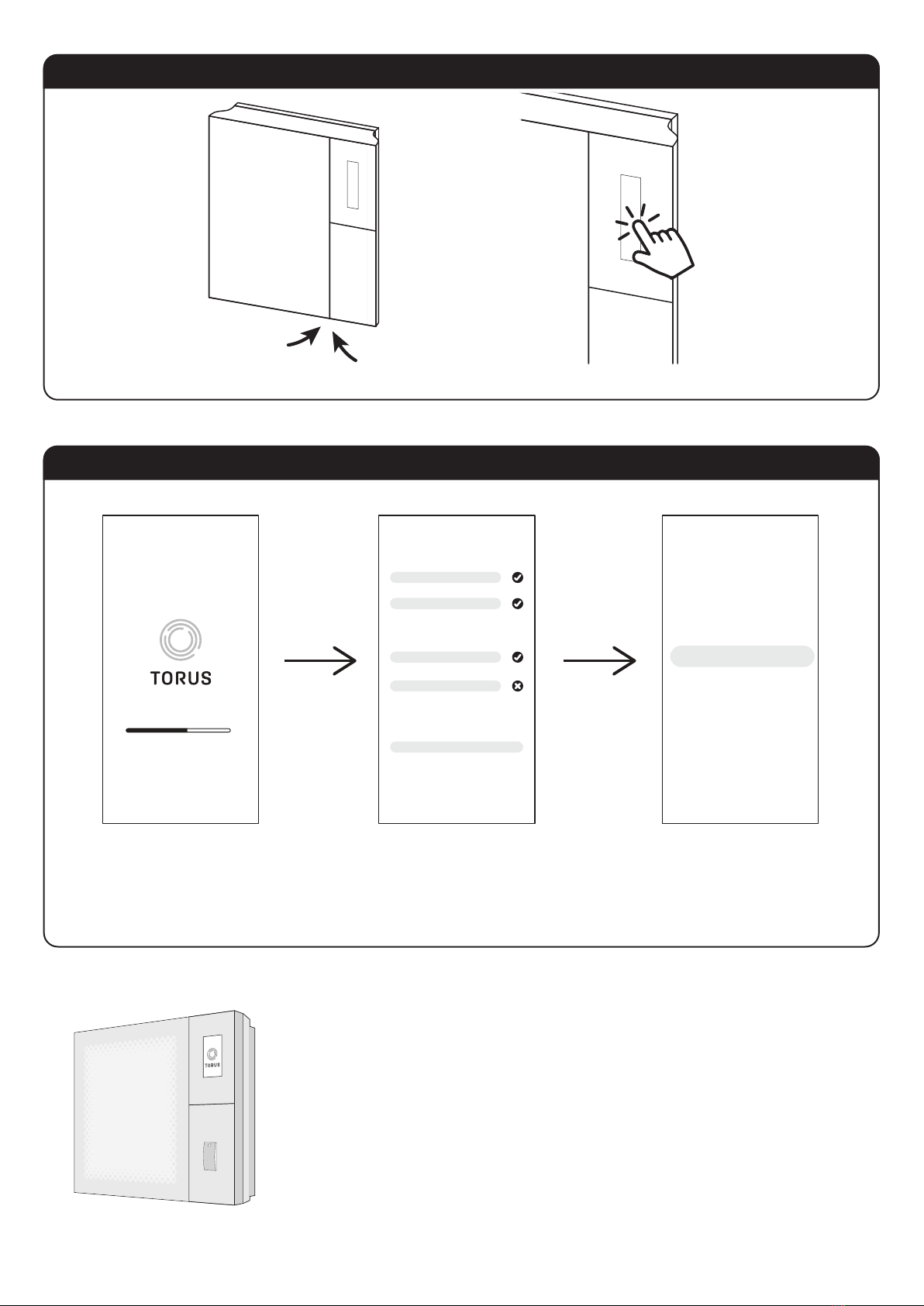

Startup the Cabinet

Close both doors.

Tap the screen to

boot up the cabinet.

Enter Provisioning Key

End-points

Ports

IP Address

Provisioning Key

The cabinet will show you if the

necessary network conﬁgurations

have been made. If not, you will be

unable to progress to the next step.

Enter the provisioning key.

A secure connection will be made

between the cabinet and the

customer’s software account.

Congratulations on completing the cabinet installation.

Thank you for being Torus partner, connect with us here:

torus-technology.com

[email protected]

linkedin.com/company/torus-technology

TORUS Installation Guide 9

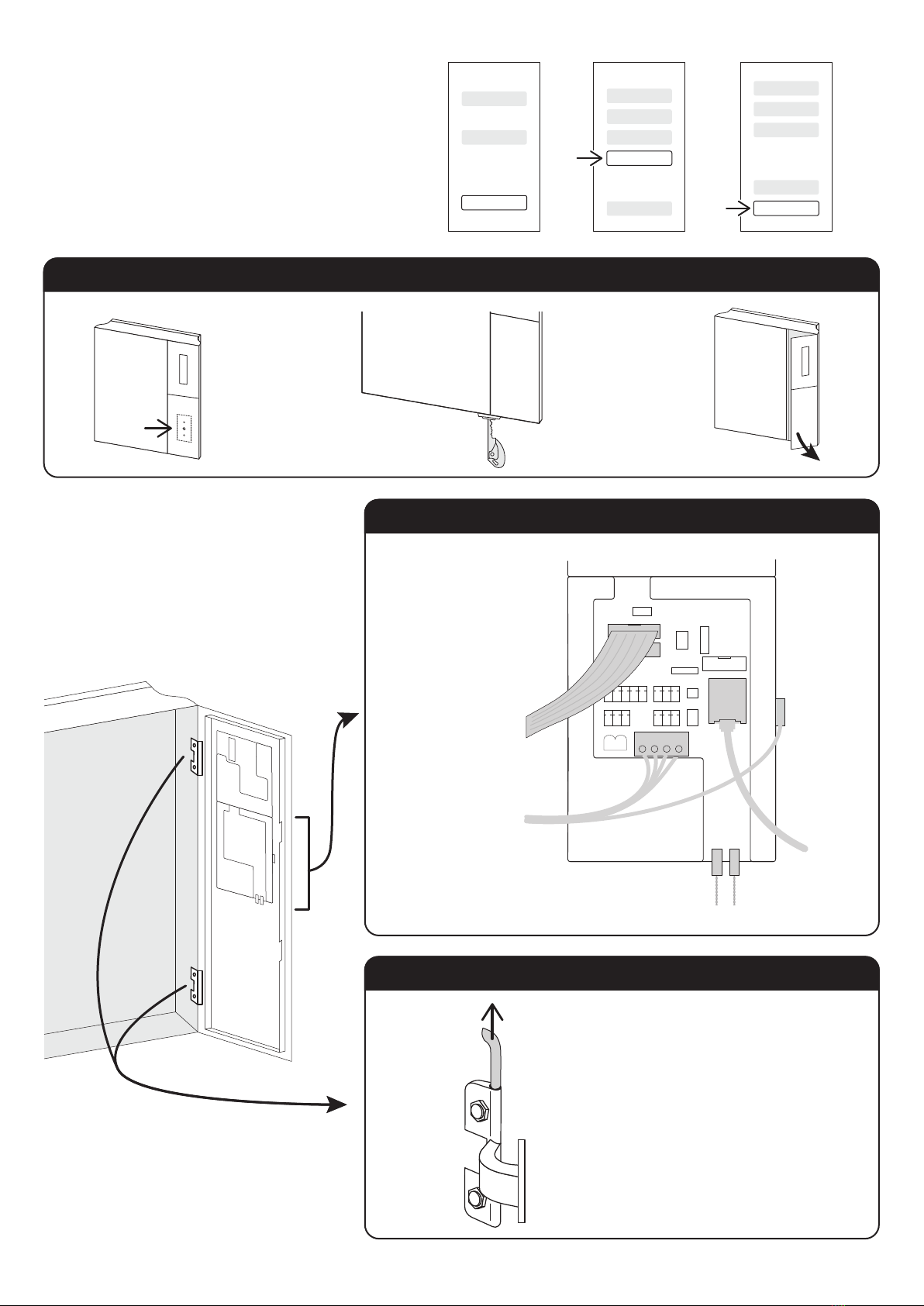

Remove Door

Unplug Cables

Open Right Hand Door

Installing a Reader

User ID

Settings

Shutdown

Reader

Make sure you are supporting the

weight of the door

Remove the hinge pins from both the upper

and lower hinge.

This will separate the door from the cabinet.

Gently lay the door face down on a

non-abrasive surface so as not to scratch

the touchscreen.

Be careful of the 4G modem, which

protrudes from the control unit.

Use the override key

to open the

right hand door.

If the cabinet is already in a powered-on state,

make sure you gracefully shut it down ﬁrst.

1. Login as a cabinet admin,

2. Tap settings,

3. Tap shutdown.

Wait for the screen to turn completely black.

KSP Ribbon Cable/s

These 2 ports are

interchangeable

Torus 100 will have 2 cables

Power cable

Green Phoenix connector

Ground

This may be on

the other side

Ethernet

Door Solenoid Door Sensor

The reader will be

mounted on the panel

below the screen.

Unlplug these cables from

the back of the control unit

so you can remove the door.

TORUS Installation Guide 10
