CONTINUOUS INFECTIOUS MICROBIAL REDUCTION (CIMR®)

Active Air and Surface Pathogen Scavenging Technology

A Unique and Proprietary Solution

SECTION 1

HOW CAN…

•People safely occupy shared indoor air spaces?

•Indoor air and surfaces be sanitized effectively to ensure a healthy environment?

•We combat and eliminate the transmission and spreading of pathogens (viruses, bacteria,

fungi, and molds).

•We be protected from future variations and mutations 24/7/365.

CIMR®’S CAPABILITIES

•CIMR®'s Air Infusion Technology is designed specifically to kill airborne and surface pathogens.

•CIMR® is an ultra-low level, safe and effective Hydrogen Peroxide-based air and surface

disinfectant system that produces zero ozone.

•Hydrogen Peroxide (water and oxygen) actively targets and deactivates both aerosolized and

surface pathogens in enclosed spaces.

•CIMR® produces 0.02 ppm (parts per million) of Hydrogen Peroxide at 1/50th of OSHA

(Occupational Safety and Health and Administration) limits.

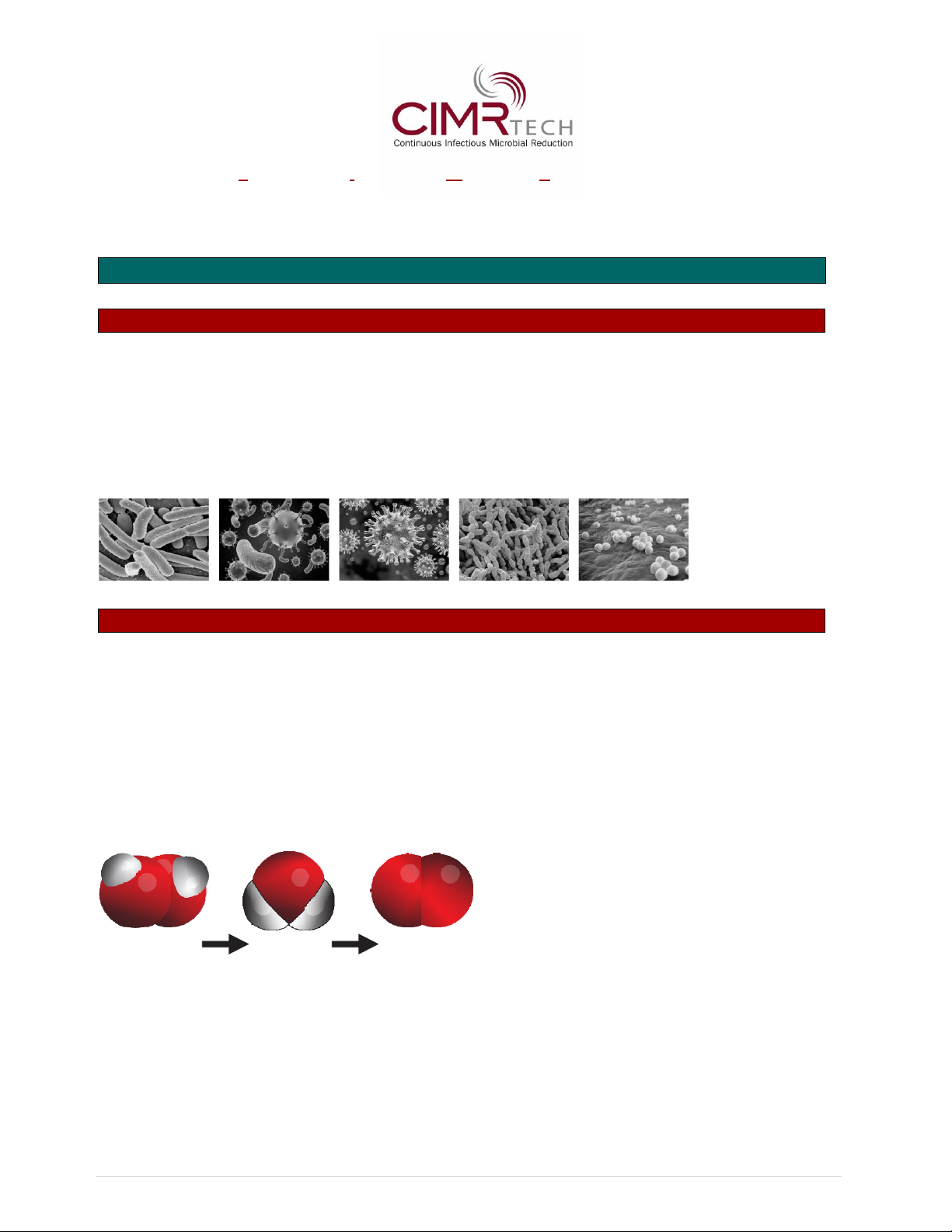

2H O

2 2 O2

hydrogen peroxide water oxygen

•CIMR® continuously purifies the air much faster than other systems and chemicals.

•CIMR® is military-grade technology and scientifically proven through numerous independent

tests.

•CIMR® eliminates up to 99.9% pathogens.

•Similar levels of Hydrogen Peroxide are present in the outside air.

4 | P a g e

CIMR®’S CREDENTIALS

•CIMR® was developed in 2004 by Alton Holt while working with the US Army Corps of Engineers,

US Army and US Navy.

•CIMR®-TECH, a division of HI-TECH, is the only designer, developer, and supplier of CIMR®

Technology, equipment and programs.

•HI-TECH provides customized engineering design systems and services based on decades of

experience, independent testing and scientific reviews.

•Hundreds of military facilities have been and are using CIMR® with thousands of units installed

worldwide.

•CIMR® was tested, in accordance with national and international standards as required by

regulatory authorities.

•CIMR® is registered, and verified by accredited, independent authorities, and scientific labs.

CIMR®’S COMPLIANCE

•CIMR® was independently tested, is safe and has no adverse effects on metal, wood, fabric,

and electronic equipment.

•CIMR® is FDA (Food Drug Administration) compliant.

•CIMR® carries the CARB (California Air Resources Board) certifying ZERO ozone emissions.

•CIMR® meets and exceeds EPA (Environmental Protection Agency), OSHA (Occupational Safety

and Health Administration), CDC (Center for Decease Control) and the WHO (World Health

Organization) Regulations in Air and Surface Disinfection standards.

•CIMR® technology and equipment has achieved various certifications, registrations, compliance

seals, and stamps of approval.

5 | P a g e

CIMR®’S CUSTOMERS

•The United States Military, US Army Corps of Engineers, FEMA (Federal Emergency

Management Agency),

•State and County facilities, United State Department of Homeland Security, and National

Historical Society.

•Universities, schools and colleges such as Lamar University, Beaumont, Texas, Texas

Educational Systems and Houston Baptist University.

•Hospitals, clinics, doctor's offices and senior care homes.

•Entertainment venues, corporate offices, oil and gas drilling, hotel and leisure facilities.

•Shelters, food production and processing facilities, places of worship, churches and homes.

SECTION 2

DESCRIPTION AND TYPE

•The CIMR® Cloud uses UV light and our proprietary photocatalytic process to remove harmful

contaminants from the indoor environment.

•The CIMR® unit is designed for commercial and industrial use.

•Contains its own fan system for improved circulation.

•Ideally suited for in-ceiling use as a stand-alone system.

•Fits into a standard size ceiling tile (2ft x 2ft/61 x 61 cm).

•Can be easily installed to provide air and surface sanitization.

•Discreet installation.

•Low maintenance.

FACILITIES AND APPLICATIONS

Due to its compact size it is ideal for sites that are unable to install ductwork/air conditioning,

systems such as:

•Health care facilities and nursing homes.

•Educational institutions and dorms.

•Airports and dorms.

•Arenas, theaters, and auditoriums.

•Conference and exhibition venues.

•Government and commercial office buildings.

6 | P a g e

ABOUT THE UNIT

WARNING!

•Please read this manual carefully for the proper procedures and operation.

•When using an electrical appliance the basic precautions should always be taken.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock, or injury to people, observe the following:

•Use the CIMR® unit only in the manner intended by the manufacturer.

•Do not attempt to repair and/or adjust any of the electrical or mechanical functions.

•Contact your CIMR® distributor for service information.

•Do not use this fan with any solid-state speed control.

•Do not use the CIMR® unit outdoors or on wet surfaces.

•Do not allow it to be used as a toy.

•Do not allow children around the CIMR® unit.

•Do not handle the CIMR® unit with wet hands.

•Do not cover the CIMR® unit with a wet blanket, towel or cloth.

•Do not allow foreign objects to enter the ventilation openings.

•Keep hair, clothing, fingers, and all parts of body away from the ventilation openings.

•To reduce the risk of electric shock, do not expose the CIMR® unit to water or rain.

•If you have any questions, contact your CIMR® distributor.

WARNING!

UV Light in operation

7 | P a g e

•Before servicing or cleaning the CIMR® unit, switch the power off at the service panel and

lock the service connector to prevent the power from being switched on accidentally.

•When the service disconnector cannot be locked, securely fasten a prominent warning

device, such as a tag, to the service panel.

Reduce the risk of fire, electric shock, or injury to persons by observing the following:

•Installation work and electrical wiring must be done by qualified person(s) in accordance with

all applicable codes and standards, including fire-rated construction.

•When cutting or drilling into the wall or ceiling, do not damage the electrical wiring and other

hidden utilities.

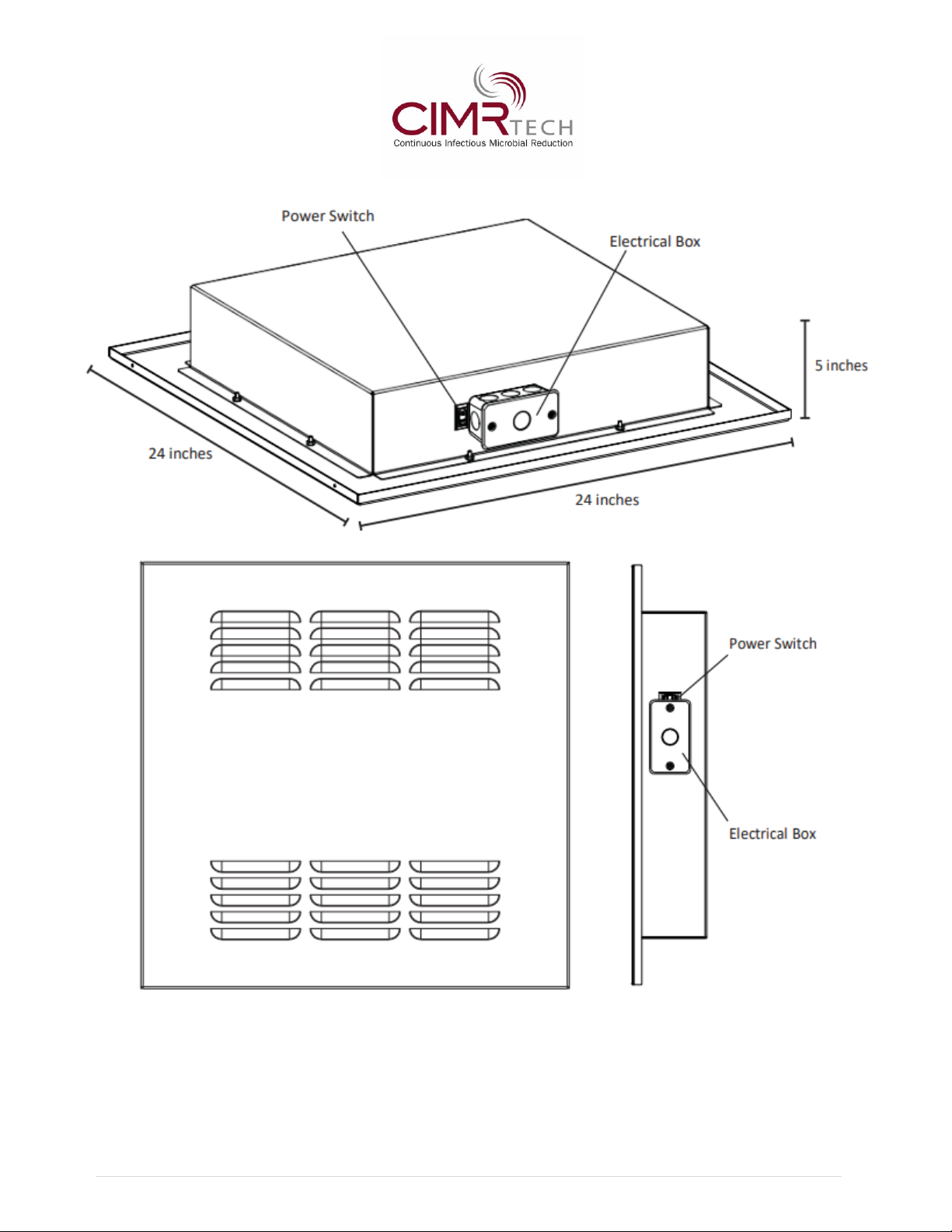

DIMENSIONS:

Unit: 24 W x 24 W x 4.5 H inches

61 W x 61 W x 12.7 H cm

Boxed: 28.75 x 28.75 x 5.5 inches

73.03 x 73.03 x 13.97 cm

Weight: 20 lbs./9.07 kg

SPECIFICATIONS:

Electrical: 120V, 60Hz, 0.75A/220-240V/50HZ, .3A

Mechanical: 1 x Fan

1 x 14 inch/35.56 cm CIMR® cell

1 x UV light

Power usage: 37 Watts

Coverage: 2,000 square foot/186 square meters

Please note: Square foot/meters capacity and sizing is based on

8 - 10 foot/2.44 –3.05 meters ceiling heights.

8 | P a g e

9 | P a g e

10 | P a g e

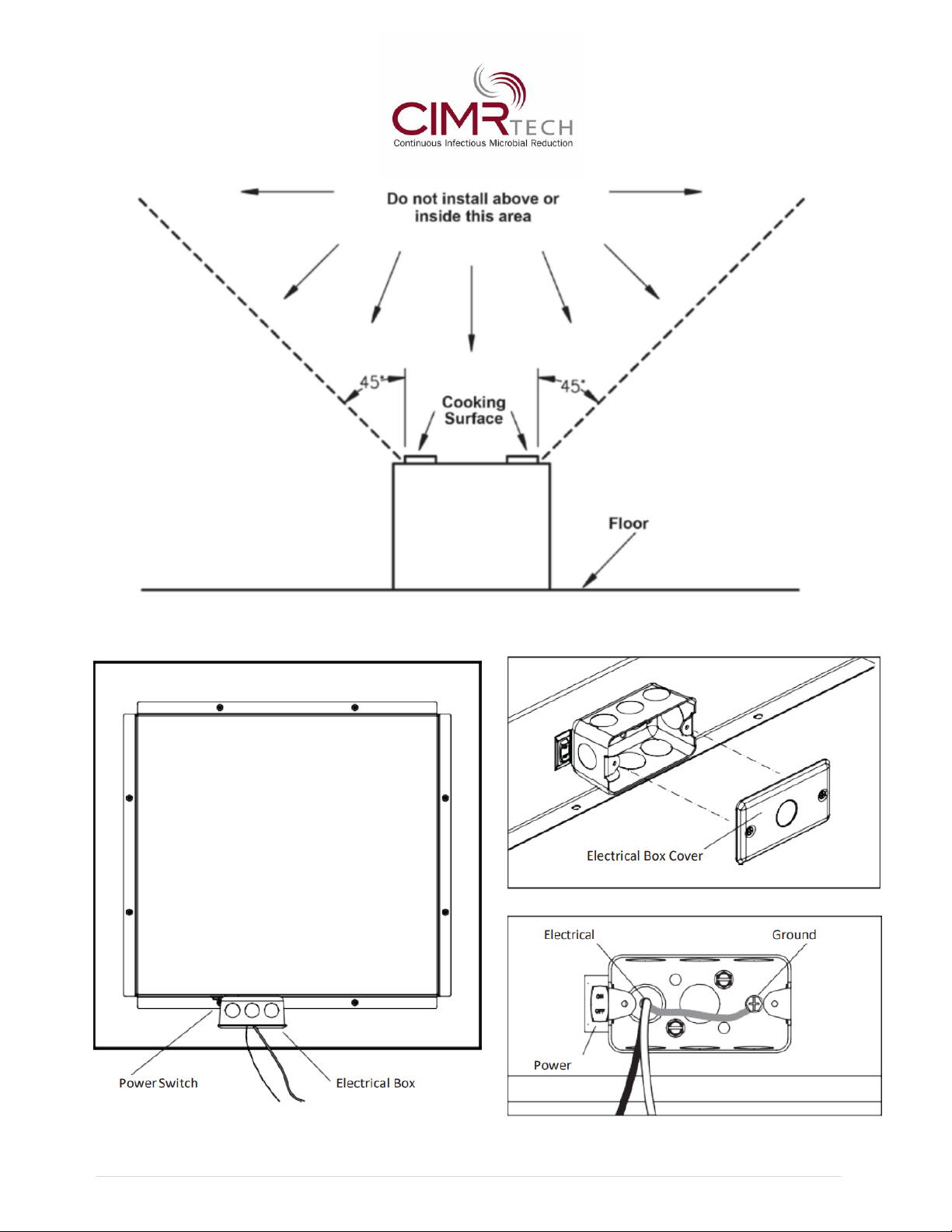

INSTALLATION

•The CIMR® Cloud is designed to be mounted in the space of a standard 2 x 2 feet/60 x 60

centimeter ceiling tile.

•The CIMR® unit must not be installed in a ceiling thermally insulated to a value greater than

R40 (resistance to heat flow value).

•The CIMR® unit is not a cook surface ventilator.

•Do not install the CIMR® unit above or adjacent to a cooking surface.

•Grease from a cooking surface may cause damage to the CIMR® unit.

•Connect the power cable to an appropriate electrical power source according to local or

national codes.

•A power switch turns the CIMR® unit on and off.

•Turn power switch on for operation.

SERVICE AND MAINTENANCE

•Service should only be performed by a qualified electrician.

•Make sure the power switch is turned off and wiring is disconnected prior to handling.

•Remove 8 (eight) bolts to disassemble the backing from the ventilation panel.

•Remove screws holding the CIMR® cell in place.

•Slide the used CIMR® cell out and discard.

•It is recommended maintenance to vacuum off the vent openings and clean the underside of

the CIMR® unit if any dust build-up has accumulated.

NOTE

•A face mask should be worn to prevent inhalation of any particles released into the air during

the process.

•Eye protection may be necessary when cleaning the CIMR® unit from below while it is mounted

in the ceiling.

•Slide the new CIMR® cell into place.

•Reinstall the screws securing the new CIMR® cell into position.

•Replace the backing using the same 8 (eight) bolts previously removed.

•Mount the CIMR® unit back into ceiling.

•Reconnect the power supply connections and turn the power switch on.
