Cinterion Netkom XT65 Manuale utente
Netkom XT65
User Guide
Copyright © Netkom Sp. z o.o. All rights reserved
Cinterion
wireless modules by embedded
3
Copyright © Netkom Sp. z o.o. All rights reserved
Safety information
Radio devices have limitations in the
vicinity of electronic devices:
When in hospitals or other health care•
facilities, observe the restrictions on the
use of mobiles. Switch off the cellular
terminal or mobile if to be instructed
to do so by the guidelines posted in
sensitive areas. Medical equipment may
be sensitive to RF energy.
Switch the Terminal off when flying.•
Secure it so that it cannot be switched
on inadvertently.
Do not operate the cellular terminal or•
mobile in the presence of flammable
gases or fumes. Operation of any
electrical equipment in potentially
explosive atmospheres can constitute a
safety hazard.
Interference can occur if the device is•
used near televisions, radios or PCs.
In order to avoid possible damage,•
we recommend that you only use the
specified accessories.These have been
tested and shown to work well with the
Terminal. However, the warranty does
not cover these accessories.
The warranty does not apply in the
event of improper use.
4Copyright © Netkom Sp. z o.o. All rights reserved
Contents
Safety information..............................................3
Contents................................................................4
Front view .................................................. 6
Rear view ................................................... 6
Overview...............................................................6
Product description............................................7
Highlights................................................... 8
Applications ............................................... 8
Interfaces................................................... 8
Highlights................................................... 9
SMS ........................................................... 9
Certification................................................ 9
Features................................................................9
Data ......................................................... 10
Fax............................................................ 10
Supplementary services .......................... 10
External interfaces................................... 10
Accessories.............................................. 10
Package contents / scope of delivery.......11
Safety and installation information ..........11
Installation..........................................................11
DIN rail installation .................................. 12
IO interface .............................................. 13
Interface description .......................................13
IO Interface Connector............................. 14
Power supply............................................ 17
Programmable outputs ............................ 18
Inputs ....................................................... 19
Analog input............................................. 20
Serial interface......................................... 22
5
Copyright © Netkom Sp. z o.o. All rights reserved
Contents
I2C interface............................................. 24
1-Wire interface....................................... 26
VDD supply .............................................. 27
Reset and watchdog............................... 28
Watchdog ................................................ 29
GSM antenna connector FME ................. 35
GPS antenna connector SMA.................. 37
GSM status LED ...................................... 39
Programmable LED .................................. 41
Hardware settings ................................... 42
Switching on/off terminal ........................ 44
Startup ................................................................44
AT command control................................ 45
SW update............................................... 45
Firmware.............................................................45
Maintenance tips..................................... 46
Certification.............................................. 46
Certification / maintenance............................46
6Copyright © Netkom Sp. z o.o. All rights reserved

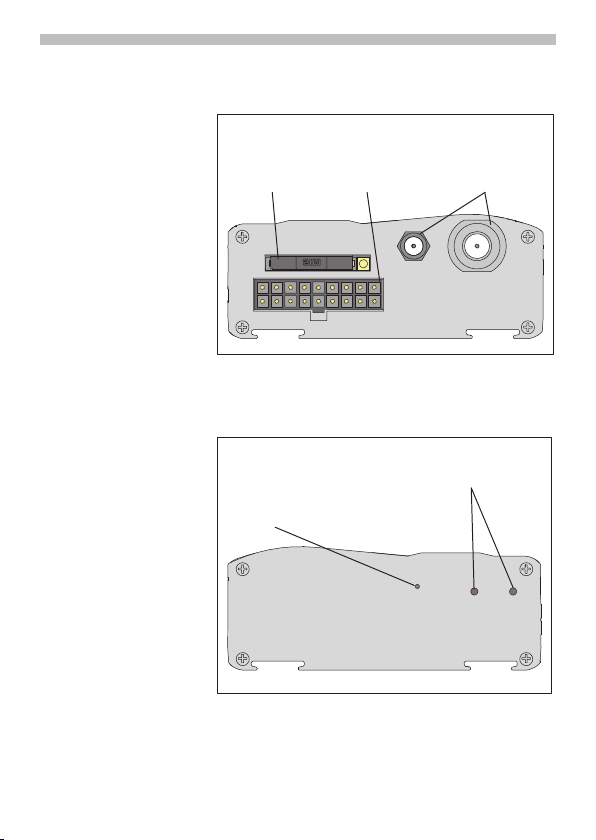

Overview
Front view
Rear view
SIM card
reader
18-PIN
connector
Antenna
connectors
LEDs display
Reset
7
Copyright © Netkom Sp. z o.o. All rights reserved
Product description
The heart of this modern
compact modem is a Java™
programmable GSM and GPS modem. It
will send current state and GPS position
of the logistic unit via SMS or GPRS.
An integration in a VPN network is
possible too.The competed price of GPRS
data transfer with known quality gives
users advantage to be always connected.
Why Netkom XT65?
This device is a build for join
between the GPS technology and the
logistic management.
The Netkom XT65 gives an ideal solution
for transporting and logistic company.
The XT65 it’s an excellent
ingredient which joins the feature of
Java and the german excellence of
Cinterion(Siemens).
8Copyright © Netkom Sp. z o.o. All rights reserved
Product description
Quad-band GSM 850/900/1800/1900•
GPRS multi-slot class 12•
Output Power: Class4 / Class 1•
SIM via GSM or GPRS•
SIM application tool kit•
JAVA included•
Highlights
Applications
Interfaces GSM antenna: SMA/FME connector•
GPS antenna: SMA connector•
Reset button•
4-pole Western plug (female) for audio•
accessory
18 pin Micro-N-Lok connector:•
- 1 x analog in (ADC) with selectable
(GPIO) range
- Vout (3V)
- 4 x digital inputs Vin<30V
(3 x active high, 1 x active low)
- 2 x output OC
- 1 x RS232 serial interface
(RXD,TXD,RTS,CTS )
- I2C interface
- 1-wire interface
- Power supply
SIM card interface 3V, 1.8V•
Operating status LED:•
- for GSM/ GPRS
Control LED(programmable)•
Micro-switch for select peripheral•
devices (only for advanced users)
Logistic monitoring•
Remote monitoring•
Remote meter reading•
9
Copyright © Netkom Sp. z o.o. All rights reserved
Features
Highlights
SMS
Quad-band 850/900/1800/1900 MHz•
CE certificate•
JAVA included•
Dimensions(WxDxH): 76x55x30•
Weight: 143•
Ambient temperature range: -25•
SMS cell broadcast•
Text and PDU mode•
Transmission of SMS alternatively over•
CSD or GPRS
10 Copyright © Netkom Sp. z o.o. All rights reserved
Features
GPRS: max. 86 kbps DL & UL•
Coding scheme CS 1, 2, 3, 4•
PBCCH support•
CSD up to 14.4 kbps•
USSD support•
Non-transparent mode•
V.110•
Data
Fax Group 3, class 1•
Supplementary
services
Phone book•
Multiparty•
External interfaces 18-pin Mocro-N-Lok connector•
SIM card holder•
GPS antenna connector SMA•
GSM antenna connector FME•
Accessories Antenna GSM, Antenna GPS, SIM cards
