Cisco AIRANT2524DWR Manuale utente

Americas Headquarters:

Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Cisco Aironet Dual-band Dipole Antenna

(AIR-ANT2524DB-R, AIR-ANT2524DG-R, and

AIR-ANT2524DW-R)

This document describes and provides specifications for the Cisco Aironet high-performance, dual-band

dipole antenna. The antenna operates in both the 2.4-GHz and 5-GHz frequency bands and is designed

for use with Cisco Aironet 2.4-GHz and 5-GHz radio products that have dual-band reverse-polarity TNC

(RP-TNC) antenna ports. The antenna has a nominal gain of 2 dBi in the 2.4-GHz frequency band and

4 dBi in the 5-GHz frequency band. The three antennas covered in this document are electrically the

same. They differ physically by the color of the radome, which is specified by the product part number

shown in Table 1.

The following information is provided in this document.

•Technical Specifications, page 2

•System Requirements, page 3

•Features, page 3

•Installing the Antenna, page 3

•Obtaining Documentation and Submitting a Service Request, page 3

Table 1 Antenna Radome Colors

Antenna Part Numbers Radome Color

AIR-ANT2524DB-R Black

AIR-ANT2524DG-R Gray

AIR-ANT2524DW-R White

Cisco Aironet Dual-band Dipole Antenna (AIR-ANT2524DB-R, AIR-ANT2524DG-R, and AIR-ANT2524DW-R)

OL-58653-01

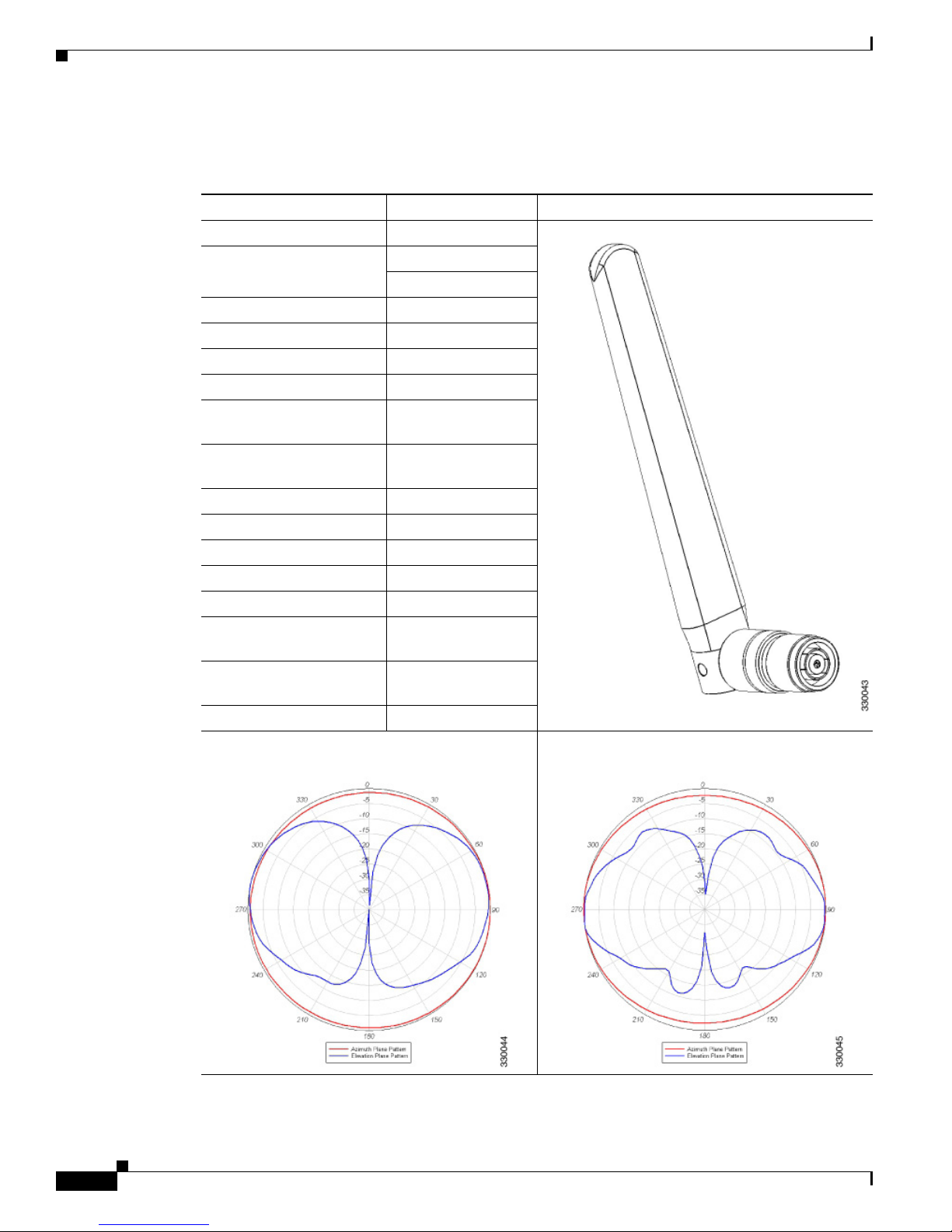

Technical Specifications

Table 2 AIR-ANT2524Dx-R Series Dual-band Dipole Specifications

Parameter Specification

Antenna type Dual-band dipole

Operating frequency range 2400 to 2500 MHz

5150 to 5850 MHz

Nominal input impedance 50 Ohms

VSWR Less than 2:1

Peak Gain @ 2.4. GHz 2 dBi

Peak Gain @ 5 GHz 4 dBi

Elevation plane 3dB

beamwidth @2.4 GHz

63 degrees

Elevation plane 3dB

beamwidth @ 5 GHz

39 degrees

Connector type RP-TNC plug

Antenna length 6.63 in. (168.5 mm)

Antenna width 0.83 in (21 mm)

Radome length 4.88 in. (124 mm)

Weight 1.3 oz

Operating temperature –20°C to 60°C

(–4° to 140°F)

Storage temperature –40°C to 85°C

(–40°F to 185°F)

Environment Indoor, office

Azimuth and Elevation Plane Patterns for 2.4 GHz Azimuth and Elevation Plane Patterns for 5 GHz

Cisco Aironet Dual-band Dipole Antenna (AIR-ANT2524DB-R, AIR-ANT2524DG-R, and AIR-ANT2524DW-R)

OL-58653-01

System Requirements

This antenna is designed for use with Cisco Aironet access points that support simultaneous operation

in the 2.4 GHz band and the 5 GHz band and that have dual-band antenna ports, labeled as such in orange

text.

Features

The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0

to 90 degrees at its joint.

Installing the Antenna

Caution The AIR-ANT2524Dx-R series of antennas are dual-band antennas, meaning that they operate in both

the 2.4 GHz and 5 GHz frequency bands. The AIR-ANT2524Dx-R series antennas have an orange ID

band on them to indicate their dual-band functionality. Connect these antennas only to dual-band antenna

ports, which are identified with orange text on Cisco Aironet access points. Using these antennas on

Cisco Aironet access points that employ single-band antennas might result in lower performance.

Follow these steps to install the antenna.

Step 1 Verify that the connector to which you are connecting the antenna is a dual-band antenna port, identified

by orange text on the access point.

Step 2 Align the antenna connector with the RP-TNC connector on the access point.

Step 3 Engage the antenna connector threads with the RP-TNC connector on the access point.

Step 4 Tighten the antenna by hand. Do not use a wrench or any other tool to tighten the antenna.

Step 5 Adjust the antenna’s articulating joint to the desired position.

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional

information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and

revised Cisco technical documentation:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What’s New in Cisco Product Documentation as an RSS feed and set content to be

delivered directly to your desktop using a reader application. The RSS feeds are a free service. Cisco currently

supports RSS Version 2.0.

Cisco Aironet Dual-band Dipole Antenna (AIR-ANT2524DB-R, AIR-ANT2524DG-R, and AIR-ANT2524DW-R)

OL-58653-01

Installing the Antenna

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of

Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The

use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)
