Data Sheet

Cisco TelePresence SX20 Quick Set

Product Overview

The Cisco TelePresence®SX20 Quick Set (SX20 Quick Set) can transform any flat panel display into a sleek and

powerful telepresence system. The SX20 Quick Set is designed to deliver high definition video and multiparty

conferencing with the flexibility to accommodate various room size and configurations - all at a value price. The

SX20 Quick Set supports embedded capability for multipoint support with Cisco®TelePresence MultiSite

technology, enabling users to add three additional participants to a telepresence call.

SX20 Quick Set combines a powerful codec, three camera choices, and a dual-display option in an easy-to-deploy

and easy-to-use solution. Whether you're a small business just getting started with telepresence or a large

enterprise looking to expand your existing deployment, the SX20 Quick Set delivers the performance you would

expect from more expensive systems - in a compact and feature-rich package. Cisco TelePresence SX20 Quick

Set is designed to truly extend the power of in-person to everyone, everywhere.

Figure 1. Cisco TelePresence SX20 Quick Set in a Small Meeting Room Environment

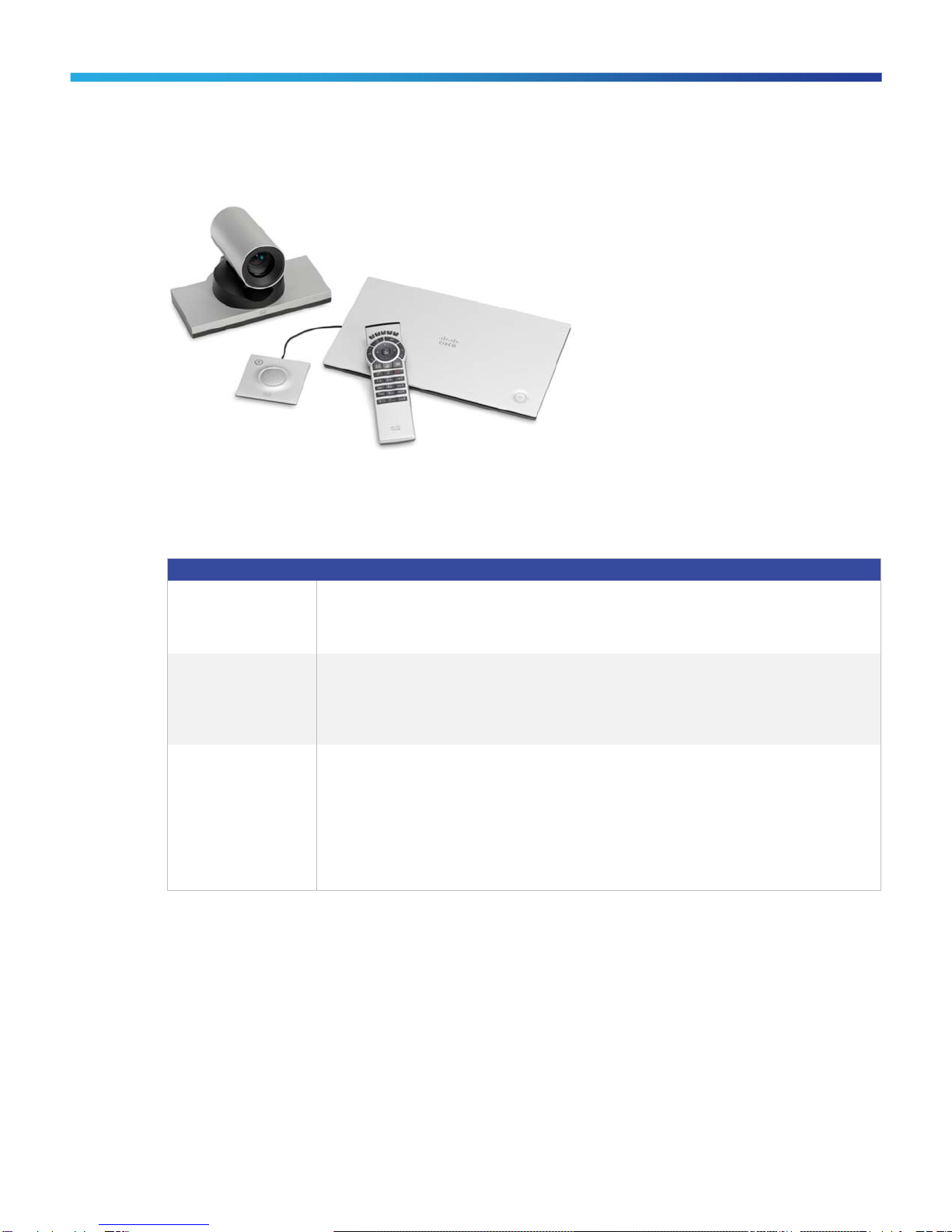

Figure 2. Cisco TelePresence SX20 Quick Set with 4x PrecisionHD Camera, Table Microphone, and Remote Control

Features and Benefits

Table 1 summarizes the primary features for the Cisco TelePresence SX20 Quick Set.

Table 1. Cisco TelePresence SX20 Quick Set Feature Summary

Feature Summary

Design Features ●Transforms a flat panel display into a 1080p high-definition meeting space

●Intuitive connections make setup as easy as connecting a DVD player

●Provides up to 1080p60 resolution - compatible with standards-based video without loss of features

●Sleek, compact design

Application Features ●Multimedia and presentations can be shared at the touch of a button

●Basic API available over IP (Telnet or Secure Shell Protocol [SSH])

●Dual-display option available

●High-definition content sharing up to 1080p15 resolution

●One button to push (OBTP) to start a meeting

Performance Features ●Optimal definition up to 1080p60

●H.323/SIP calls up to 6 Mbps

●Built-in individually transcoded multipoint conferencing offers ability to add three additional participants

●Easy provisioning and self-configuration with Cisco Unified Communications Manager (CUCM), Cisco

TelePresence Video Communications Server (VCS), or Cisco WebEx TelePresence

●Takes advantage of the Cisco TelePresence Total Solution approach, including Cisco TelePresence Multiway

features, recording and streaming, and firewall traversal services

●Cisco Unified Communications Manager native support (requires Cisco Unified Communications Manager

Version 8.6 or higher)

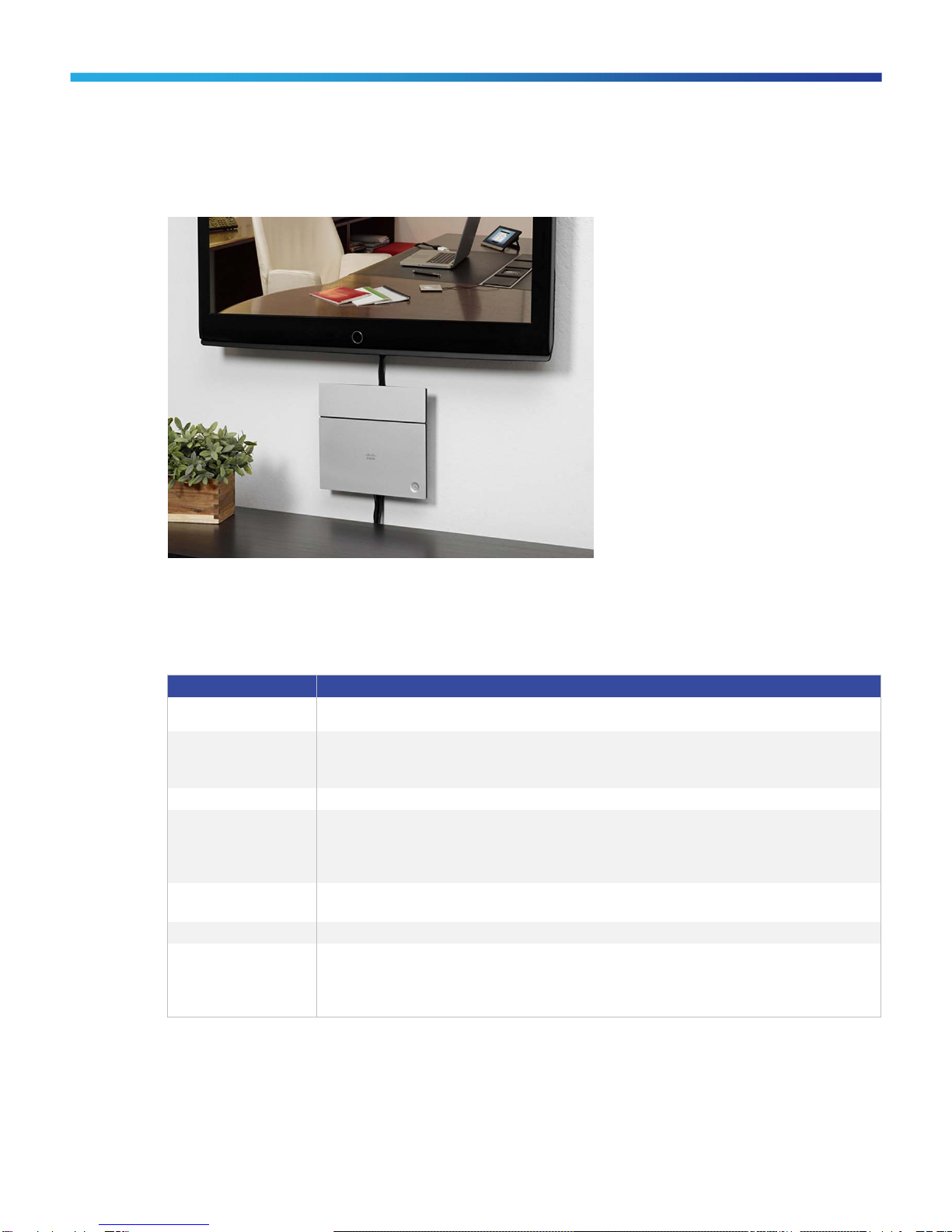

Figure 3. Cisco TelePresence SX20 Quick Set on Wall Mount

Product Specifications

Table 2 lists the product capability specifications for the Cisco TelePresence SX20 Quick Set.

Table 2. Product Specifications

Specification Description

Default components in

SX20 Quickset:

●SX20 Codec, Cisco TelePresence PrecisionHD Camera – (option of 1080p2.5, 1080p4xS2 or - 1080p12x) Cisco

TelePresence Table Microphone 20, remote control, cables, and power supply

Optional components ●Cisco TelePresence Touch 8

●Wall mount kit

●Additional microphone

Bandwidth ●H.323 and SIP up to 6 Mbps

Minimum bandwidth for

resolution/frame rate

●720p30 from 768 kbps

●720p60 from 1152 kbps

●1080p30 from 1472 kbps

●1080p60 from 2560 kbps

Firewall Traversal ●Cisco TelePresence Expressway Technology

●H.460.18, H.460.19 firewall traversal

Video Standards ●H.263, H.263+, H.264

Video Features ●Native 16:9 widescreen

●Advanced screen layouts

●Intelligent video management

●Local auto-layout

Specification Description

Video Inputs (Two Inputs) One HDMI and One DVI-I (Analog and Digital): Supported Formats:

●640x480

●720x480

●720x576

●800x600

●848x480

●1024x768

●1152x864

●1280x720

●1280x1024

●1280x768

●1280x800

●1280x960

●1360x768

●1366x768

●1400x1050

●1440x900

●1680x1050

●1920x1080

Extended DisplayIdentification Data (EDID)

Video Outputs

(Two Outputs) Two HDMI Outputs Supported Formats:

●1920 x 1080@60 fps (1080p60)

●1920 x 1080@50 fps (1080p50)

●1280 x 720@60 fps (720p60)

●1280 x 720@50 fps (720p50)

●1366 x 768@60 fps (WXGA)

●1360 x 768@60 fps(WXGA)

●1280 x 768@60 fps (WXGA)

VESA Monitor Power Management

EDID

Live Video Resolutions (Encode and Decode):

●176 x 144@30, 60 fps (QCIF) (Decode only)

●352 x 288@30, 60 fps (CIF)

●512 x 288@30, 60 fps (w288p)

●576 x 448@30, 60 fps (448p)

●768 x 448@30, 60 fps (w448p)

●704 x 576@30, 60 fps (4CIF)

●1024 x 576@30, 60 fps (w576p)

●640 x 480@30, 60 fps (VGA)

●800 x 600@30, 60 fps (SVGA)

●1024 x 768@30, 60 fps (XGA)

●1280 x 768@30, 60 fps (WXGA)

●1280 x 720@30, 60 fps (HD720p)

●1920 x 1080@30, 60 fps (HD1080p)

Audio Standards ●G.711, G.722, G.722.1, 64 kbps AAC-LD

Specification Description

Audio Features ●CD-quality 20 KHz mono

●Two acoustic echo cancellers

●Automatic Gain Control (AGC)

●Automatic noise reduction

●Active lip synchronization

Audio Inputs

(Four Inputs)

●Two microphones, 4-pin minijack

●One minijack for line-in (stereo)

●One audio in from camera (HDMI)

Audio Outputs

(Two Outputs)

●One minijack for line out (stereo)

●One HDMI, (digital main audio)

Dual Stream ●H.239 (H.323) dual stream

●BFCP (SIP) dual stream

●Support resolutions up to 1080p (1920 x 1080)

MultiPoint Support ●Four-way embedded SIP/H.323 MultiPoint reference MultiSite

●Cisco TelePresence Multiway support (requires Cisco TelePresence Video Communication Server [Cisco VCS]

and Cisco TelePresence MCU)

●Ability to natively join multipoint conferences hosted on Cisco Telepresence Multipoint Switch (CTMS)

MultiSite Features

(Embedded Multipoint)

●Adaptive SIP/H.323 MultiSite; resolution up to 576p30

◦

3-way resolution up to 720p30

◦

4-way resolution up to 576p30

●Full individual audio and video transcoding

●Individual layouts in multisite continuous presence

●H.323/SIP/VoIP in the same conference

●Support for Presentation (H.239/BFCP) from any participant at resolutions up to 1080p15/SXGA

●Best Impression (automatic continuous presence layouts)

●H.264, encryption and dual stream from any site

●IP Downspeeding

●Dial in and dial out

●Conference rates up to 6 Mbps

Protocols ●H.323

●SIP

●ISDN (requires Cisco TelePresence ISDN Link)

Embedded Encryption ●H.323 and SIP point-to-point

●Standards-based: H.235 v3 and Advanced Encryption Standard (AES)

●Automatic key generation and exchange

●Supported in dual stream

IP Network Features ●DNS lookup for service configuration

●Differentiated services (quality of service [QoS])

●IP-adaptive bandwidth management (including flow control)

●Automatic gatekeeper discovery

●Dynamic playout and lip-sync buffering

●H.245 Dual Tone Multifrequency (DTMF) tones in H.323

●Date and time support using Network Time Protocol (NTP)

●Packet loss-based downspeeding

●Uniform resource identifier (URI) dialing

●TCP/IP

●DHCP

●802.1x network authentication

●802.1Q Virtual LAN

●802.1p (QoS and class of service [QoS])

●ClearPath

●Medianet: Mediatrace and Metadata

Specification Description

Cisco Unified

Communications Manager

(Requires Cisco Unified

Communications Manager

Version 8.6 or Later)

●Native registration with Cisco Unified Communications Manager

●Basic Cisco Unified Communications Manager provisioning

●Software upgrade from Cisco Unified Communications Manager

●Cisco Discovery Protocol and DHCP option 150 support

●Basic telephony features such as hold/resume/transfer and Corporate Directory lookup

IPv6 Network Support ●Single call stack support for both H323 and SIP

●Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ

●Support for both Static and Automatic IP configuration (stateless address auto configuration)

Security Features ●Management using HTTPS and SSH

●IP administration password

●Menu administration password

●Disable IP services

●Network settings protection

Network Interfaces ●One LAN and Ethernet (RJ-45) 10/100/1000 Mbit

Other Interfaces ●Two USB ports for future usage

System management ●Support for the Cisco TelePresence Management Suite

●Total management using embedded SNMP, Telnet, SSH, XML, SOAP

●Remote software upload: using web server, secure copy (SCP), HTTP, HTTPS

●Cisco TelePresence Touch (optional)

●Remote control and on-screen menu system

Directory Services ●Support for local directories (My Contacts)

●Corporate directory

●Unlimited entries using server directory supporting LDAP and H.350 (requires Cisco TelePresence Management

Suite)

●Unlimited number for corporate directory (through Cisco TelePresence Management Suite)

●Received calls with date and time

●Placed calls with date and time

●Missed calls with date and time

Power ●Auto-sensing power supply

●100 - 240 VAC, 50/60 Hz

●Maximum 40 watts for codec and main camera

Operating Temperature

and Humidity

●0°C to 40°C (32°F to 104°F) ambient temperature

●10% to 90% Relative Humidity (RH)

Storage and Transport

Temperature

●-20°C to 60°C (-4°F to 140°F) at RH 10% - 90% ( non -condensing)

SX20 Codec Dimensions ●Width: 11.8 inches (30.0 cm)

●Height: 1.4 inches (3.4 cm)

●Depth: 7.1 inches (18.0 cm)

●Weight: 3.1 pounds (1.4 kg)

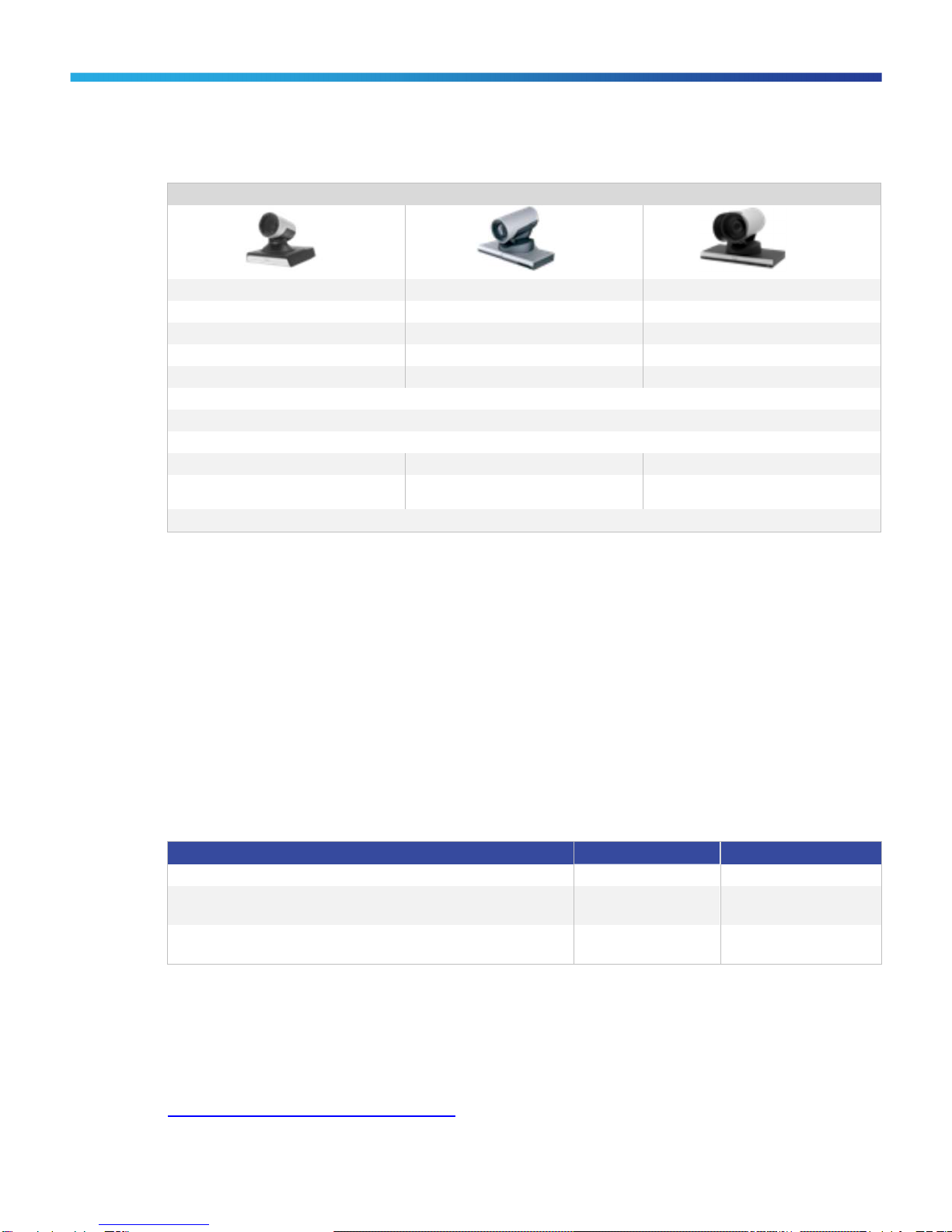

Camera Overview

2.5x optical zoom (5x with digital*) 4x optical zoom (8x with digital*) 12x optical zoom

Motorized +5°/-25°tilt, +/- 30°pan Motorized +15°/-25°tilt, +/- 90°pan Motorized +15°/-25°tilt, +/- 90°pan

51.5°vertical field of view 43.5°vertical field of view 43.5°vertical field of view

83°horizontal field of view 70°horizontal field of view 72°horizontal field of view

F 2.0 F 1.7 F 1.7

1920 x 1080 pixels progressive @ 60 fps

Automatic or manual focus, brightness, and white balance

Far-end camera control

Dual HDMI/Camera Control and USB output Dual HDMI/Camera control HDMI, HD-SDI output, and daisy chain

Upside-down mounting, picture flips

automatically Upside-down mounting, manual picture flip. Upside-down mounting, picture flips

automatically

Focus distance 0.3 m – infinity

*needs future software upgrade

Regulatory Compliance

●Directive 2006/95/EC (Low-Voltage Directive) - Standard IEC/EN 60950-1

●Directive 2004/108/EC (EMC Directive) - Standard EN 55022, Class A - Standard EN 55024 - Standard EN

61000-3-2/-3-3

●Approved according to UL 60950-1 and CAN/CSA-C22.2 No. 60950-1-07

●Complies with FCC CFR 47 Part 15 Class A

Ordering Information

To place an order, please contact your local Cisco representative and refer to Table 3.

Table 3. Ordering Information

Product Name Part Number Compliance Model Number

Cisco TelePresence SX20 Quick Set with Precision HD 1080p 2.5x Camera CTS-SX20-PHD2.5X-K9

Cisco TelePresence SX20 Quick Set with Precision HD 1080p 4x Camera CTS-SX20-PHD4X-K9 TTC7-21 (SX20 Codec)

TTC8-05 (Camera)

Cisco TelePresence SX20 Quick Set with Precision HD 1080p 12x Camera CTS-SX20-PHD12X-K9 TTC7-21 (SX20 Codec)

TTC8-02 (Camera)

Cisco Service and Support

Cisco and our partners provide a broad portfolio of smart, personalized services and support that can help you

realize the full business value of your Cisco TelePresence investment by increasing business agility and network

availability. This portfolio of services accelerates business innovation by harnessing the network as a powerful

business platform. For more information about these services, please visit:

http://www.cisco.com/go/telepresenceservices.

For More Information

For more information about the Cisco TelePresence SX20 Quick Set, http://www.cisco.com/go/telepresence or

contact your local account representative.

Printed in USA C78-688342-09 11/13

Altri manuali per TelePresence SX20

Indice

Altri manuali Cisco Sistema di conferenza

Cisco

Cisco Spark Room 70 Single Manuale utente

Cisco

Cisco TelePresence MXP Series Manuale di servizio

Cisco

Cisco ICS-7750 Istruzioni per l'uso e l'installazione

Cisco

Cisco SX80 Manuale di servizio

Cisco

Cisco Unified MeetingPlace Web Conferencing Manuale di installazione e funzionamento

Cisco

Cisco TelePresence SX10 Manuale utente

Cisco

Cisco TelePresence SX20 Manuale di servizio

Cisco

Cisco TelePresence DX80 Manuale utente

Cisco

Cisco TelePresence SX20 Manuale di servizio

Cisco

Cisco Aironet 3500 Series Guida di riferimento

Cisco

Cisco 7936 - IP Conference Station VoIP Phone Manuale di istruzioni

Cisco

Cisco Webex Room 70D Manuale utente

Cisco

Cisco Telepresence MX800 Manuale utente

Cisco

Cisco TelePresence SX20 Manuale di servizio

Cisco

Cisco TelePresence Profile 55 Manuale utente

Cisco

Cisco MX300 G2 Manuale utente

Cisco

Cisco TelePresence SX20 Manuale utente

Cisco

Cisco Webex Room Panorama Manuale utente

Cisco

Cisco Quick Set C20 Manuale utente

Cisco

Cisco Profile Series Manuale utente

Cisco

Cisco TelePresence MCU 4203 Manuale utente

Cisco

Cisco 3200 Series Manuale utente

Cisco

Cisco MX300 G2 Manuale di istruzioni

Cisco

Cisco MX200 Series Manuale utente

Manuali Sistema di conferenza popolari di altre marche

Kramer

Kramer VIA GO Manuale utente

AVT

AVT MAGIC AC1 Go Manuale utente

ProSoft Technology

ProSoft Technology AN-X4-AB-DHRIO Manuale utente

Sony

Sony PCS-I150 Manuale utente

Middle Atlantic Products

Middle Atlantic Products VTC Series Manuale utente

Prentke Romich Company

Prentke Romich Company Vanguard Plus Guida

Speakerbus

Speakerbus iD 712 Manuale utente

Trelleborg

Trelleborg SafePilot CAT PRO Manuale utente

Sennheiser

Sennheiser ADN Manuale utente

ADTRAN

ADTRAN NetVanta 7100 Manuale utente

AINA

AINA PTT Voice Responder Manuale utente

Yamaha

Yamaha ProjectPhone PJP-100H Manuale utente

vissonic

vissonic VLI Series Manuale utente

Panasonic

Panasonic KX-VC500 Manuale utente

Poly

Poly Trio 8300 Manuale utente

Crestron

Crestron Mercury CCS-UCA-SMK Disegno dimensionale

Inmarsat

Inmarsat mini M Manuale utente

Tenveo

Tenveo ALL-IN-ONE Manuale utente
