Cisco Linksys SPA8000-XU Istruzioni operative originali
QUICK INSTALLATION
8-Port Telephony
Gateway
Model: SPA8000
Package Contents
8-Port Telephony Gateway
RJ-45 Ethernet Cable
Power Supply
Power Cord
Quick Installation
•
•
•
•
•
3
Table of Contents
Connect....................................................4
Configuration...............................................6
Interactive Voice Response Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
RegulatoryInformation....................................12
WEEEInformation .........................................16
Warranty..................................................22
ContactInformation.......................................23
4
Before You Begin
Make sure you have the following:
An active Network connection
Active Internet phone service accounts and settings (if connecting to Internet phone service)
A cable/DSL modem (if connecting to Internet)
One computer for configuration of the Gateway or an analog telephone with an RJ-11 phone
cable
NOTE: If the Gateway is pre-configured by your ITSP, then you
do not need to change any of the default voice settings. Refer to
the documentation supplied by your service provider for more
information.
Power off your network devices,
including your modem and PC.

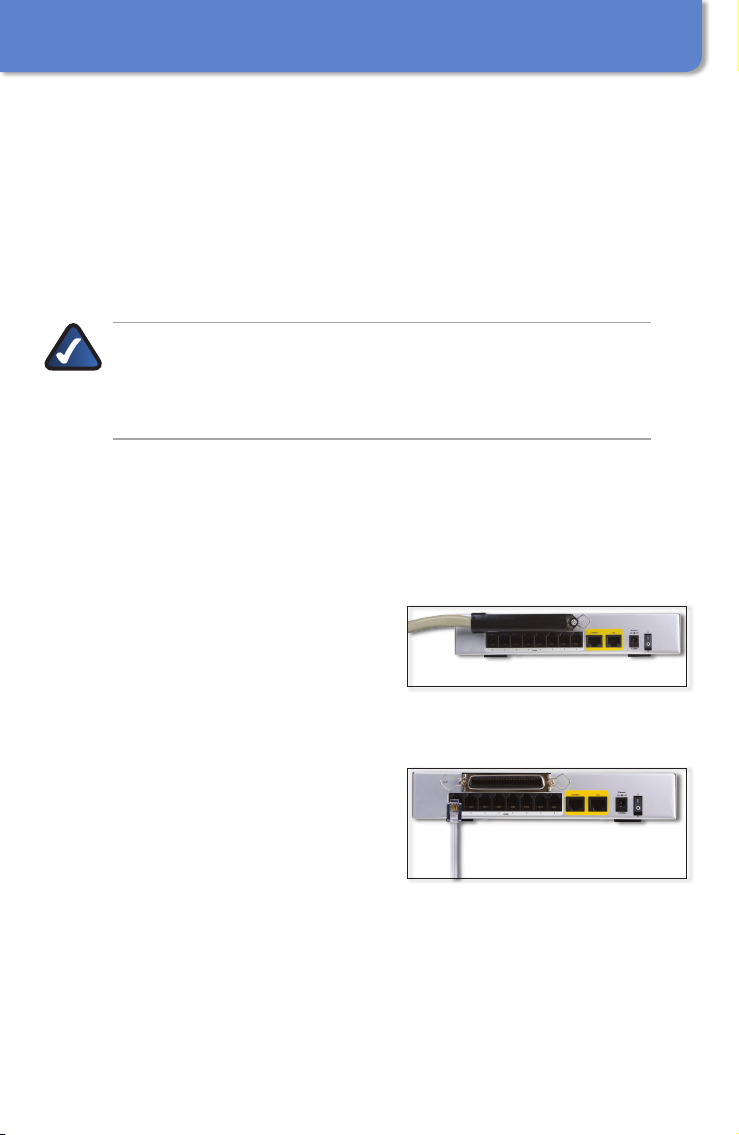

If you have an RJ-21 connector
available, you can connect to
the RJ-21 port on the back of the
Gateway. Then skip to step E. If you
are connecting individual phone
lines, go to step C.
Connect one end of an RJ-11 phone
cable to the Gateway’s PHONE 1
port. Connect the other end to your
analog telephone.
Repeat Step C with each PHONE
port if you have an additional
telephones to connect.
•
•
•
•
A.
B.
C.
D.
RJ-21 ConnectionRJ-21 Connection
RJ-11 Phone portRJ-11 Phone port
Connect1�
5
Connect one end of an Ethernet
network cable (included) to the
ETHERNET port of the Gateway.
Connect the other end to your
cable/DSL modem.
Connect one end of a different
Ethernet network cable to the AUX
port of the Gateway. Connect the
other end to the Ethernet port of
your PC.
Power on the cable/DSL modem.
Connect the included power
adapter to the Gateway’s power
port, and then plug the power
adapter into an electrical outlet.
Press the On switch to power on
the Gateway. The power LEDs on
the front panel will light up as soon
as the Gateway powers on.
Power on your PC.
NOTE: Make sure your PC’s Ethernet adapter is set to obtain an
IP address automatically. For more information, refer to Windows
Help.
E.
F.
G.
H.
I.
Ethernet ConnectionEthernet Connection
AUX ConnectionAUX Connection
Power PlugPower Plug
6
Configuration2�
Launch the web browser on the PC.
Enter http://192.168.0.1/
advanced in the Address field
(192.168.0.1 is the default local IP
address of the Gateway). Then press
Enter.
If your Internet Telephony Service
Provider (ITSP) did not supply a
password, you will not see a login
screen. Proceed to step D.
If your ITSP supplied a password,
you will see a login screen. In the
User Name field, enter user, which
is the default user name for user
access (this cannot be changed).
Then enter the password supplied
by your ITSP.
The Router - Status screen will
appear. Click the WAN Setup tab.
Proceed to the appropriate
instructions for your Internet
Connection Type: DHCP, Static IP,
or PPPoE.
DHCP
Select DHCP for the
Connection Type.
If you use a cable modem, you
may need to configure the
MAC Clone Settings. (Contact
your ISP for more information.)
Enable MAC Clone Service.
If your service uses a specific
PC MAC address, then select
yes from the Enable MAC Clone
A.
B.
C.
D.
E.
1.
2.
Login screenLogin screen
Router - Status ScreenRouter - Status Screen
Enable MAC Clone ServiceEnable MAC Clone Service
7
Service setting. Then enter the
PC’s MAC address in the Cloned
MAC Address field.
Click Submit All Changes.

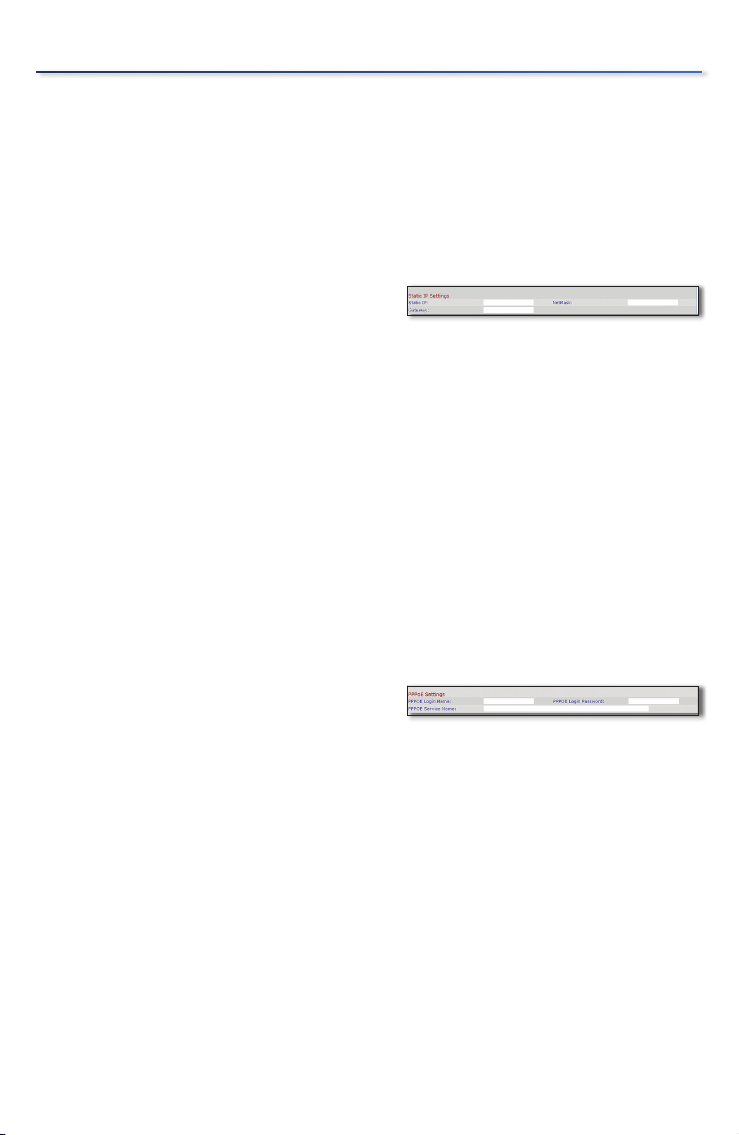

Static IP
Select Static IP for the
Connection Type.
In the Static IP Settings section,
enter the IP address in the
Static IP field, the subnet mask
in the NetMask field, and the
default gateway IP address in
the Gateway field
In the Optional Settings
section, enter the DNS server
address(es) in the Primary DNS
and optional Secondary DNS
fields.
Click Submit All Changes.
PPPoE (most DSL users)
Select PPPoE for the
Connection Type.
Enter the user name in the
PPPoE Login Name field, and
enter the password in the
PPPoE Login Password field.
Click Submit All Changes
If the Gateway is pre-configured by your ITSP, then you do not need to change
any of the default voice settings. Refer to the documentation supplied by your
service provider for more information.
If you want to change the settings for your Internet phone service, refer to the
User Guide, which is available on the Linksys website at www.linksys.com.
If you want to configure network settings using the Interactive Voice Response
Menu, refer to the next section.
3.
1.
2.
3.
4.
1.
2.
3.
Static IPStatic IP
PPPoEPPPoE
8
This section explains how to use the Interactive Voice Response Menu to
configure the Gateway’s network settings. You will use the telephone’s keypad
to enter your commands and select choices, and the Gateway will use voice
responses.
To access the Interactive Voice Response Menu:
Use a telephone connected to the PHONE port of the Gateway. (You can
only access the Interactive Voice Response Menu through an analog
telephone, not any of the Internet phones.)
Press **** (in other words, press the star key four times).
Wait until you hear the“Linksys configuration menu—please enter the
option followed by the # (pound) key or hang up to exit” response.
Refer to the following table that lists actions, commands, menu choices, and
descriptions. After you select an option, press the # (pound) key. To exit the
menu, hang up the telephone.
Using the Interactive Voice Response Menu
While entering a value, such as an IP address, you may exit without entering any
changes. Press the * (star) key twice within half a second. Otherwise, the * will
be treated as a decimal point or dot.
After entering a value, such as an IP address, press the # (pound) key to indicate
you have finished your selection. To save the new setting, press 1. To review the
new setting, press 2. To re-enter the new setting, press 3. To cancel your entry
and return to the main menu, press * (star).
For example, to enter the IP address 191.168.1.105 by keypad, press these keys:
191*168*1*105. Press the # (pound) key to indicate that you have finished
entering the IP address. Then press 1 to save the IP address or press the * (star)
key to cancel your entry and return to the main menu.
If the menu is inactive for more than one minute, the Gateway will time out. You
will need to re-enter the menu by pressing ****.
The settings you have saved will take effect after you hang up the telephone.
The Gateway may reboot at this time.
A.
B.
C.
Interactive Voice Response Menu3�
9
Interactive Voice Response Menu
Action Command Choices Description
Enter Interactive
Voice Response
Menu
****
Use this command to enter
the Interactive Voice Response
Menu. Do not press any other
keys until you hear, “Linksys
configuration menu. Please
enter the option followed by
the # (pound) key or hang up
to exit.”
Check Internet
Connection Type 100 Check static or dynamic IP
address assignment.
Set Internet
Connection Type
101 DHCP - 0
Static IP - 1
PPPoE - 2
PPPoe, DHCP - 3
DHCP, PPPoE - 4
Select the type of Internet
connection you are using. Refer
to the documentation supplied
by your Internet Service
Provider (ISP)
Check IP Address
(Ethernet Port)
110 Hear the IP address assigned
to the Gateway’s Internet
(external) interface.
Set Static IP
Address
111 First, set the Internet
Connection Type to static IP
address; otherwise, you will
hear, “Invalid Option,”if you try
to set the static IP address. Use
the * (star) key when entering a
decimal point.
Check Network
Mask (or Subnet
Mask)
120 Hear the network or subnet
mask assigned to the Gateway.
Set Network (or
Subnet) Mask
121 First, set the Internet
Connection Type to static IP
address; otherwise, you will
hear, “Invalid Option,”if you try
to set the network or subnet
mask. Use the * (star) key when
entering a decimal point.
Check Gateway
IP Address
130 Hear the IP address of the
Gateway (usually the network
router).
10
Interactive Voice Response Menu
Action Command Choices Description
Set Gateway IP
Address
131 First, set the Internet
Connection Type to static IP
address; otherwise, you will
hear, “Invalid Option,”if you try
to set the gateway IP address.
Use the * (star) key when
entering a decimal point.
Check MAC
Address
140 Hear the MAC address of the
Gateway in hexadecimal string
format.
Check Firmware
Version
150 Hear the version number of
the firmware running on the
Gateway.
Check Primary
DNS Server IP
Address
160 Hear the IP address of the
primary DNS (Domain Name
Service) server.
Set Primary DNS
Server IP Address
161 First, set the Internet
Connection Type to static IP
address; otherwise, you will
hear, “Invalid Option,”if you
try to set the IP address of the
primary DNS server. Use the
* (star) key when entering a
decimal point.
Check Internet
Web Server Port
170 Hear the port number of the
Internet Web server used for
the Web-based utility
Check AUX port
IP Address
210 Hear the IP address of the AUX
port.
