AFN Atlantic SATNET on Galaxy 16
AFN7500HD Decoder Settings and Channel Guide
Current as of 20211104 1
NOTE: The settings in this guide are applicable starting at 1200 EDT / 1600 GMT, 3 Nov 2021. Do
not change the settings before that time as there is NO dual illumination period on the satellite.
This guide contains the Cisco 9865 decoder settings changes for the Atlantic Satellite Network (SATNET)
service and the new AFN Channel Guide. If you use a satellite dish that is three meters in diameter,
receive the eight-channel SATNET programming service and live within the area identified in the map
below, you need these decoder settings to get the AFN HD service. Refer to page two for the decoder
settings for AFN customers in the area below.
Important information about this satellite feed
Satellite Name: Galaxy 16
Satellite Orbital Location: 99° West
Transponder: NAC
Band: C-band
Satellite Dish Low Noise Blocker (LNB) Technical Specifications
a. Right-hand circular feedhorn
b. 20° Kelvin Low Noise Blocker
AFN Atlantic SATNET on Galaxy 16
AFN7500HD Decoder Settings and Channel Guide
Current as of 20211104 2
To set up your decoder you must access the decoder settings “Satellite Setup” menu. Using the circular
navigation wheel on your AFN7500HD remote control, access the “Main Menu” and scroll to the
“Settings” menu, then select “Installation” as shown below.
Now select the “Satellite Setup” menu as shown below.
You may be prompted to enter a pin number for the Satellite Setup menu. The default pin is 0000. After
entering the pin you’ll see a warning dialog box designed to alert you that settings changes may affect the
channels you see. Please select “continue” to access the next screen.
AFN Atlantic SATNET on Galaxy 16
AFN7500HD Decoder Settings and Channel Guide
Current as of 20211104 3
The “Select Satellite” screen (below) gives you the option to load a pre-set satellite configuration for your
area or enter the decoder settings manually. We’ll cover the automatic settings first.
The gray bar, displayed below, highlights the current selection. The left and right arrows on the gray bar
allow you to scroll through the various satellites used by AFN to deliver programming worldwide. You
need to select the AFN ATL G16satellite to load the settings you need. Once the satellite is selected the
transponder information will automatically load and your decoder should work.
Note: You do not need to adjust the DiSEqC1.1 settings.
AFN Atlantic SATNET on Galaxy 16
AFN7500HD Decoder Settings and Channel Guide
Current as of 20211104 4
You can also manually enter the decoder settings for your decoder by following the instructions below.
From the “Select Satellite” menu page, use the circular navigation wheel on your AFN7500HD decoder
remote control to select the “Transponder” on the third line down. Change the setting to “Manual” to
access the “Configure Transponder” menu.

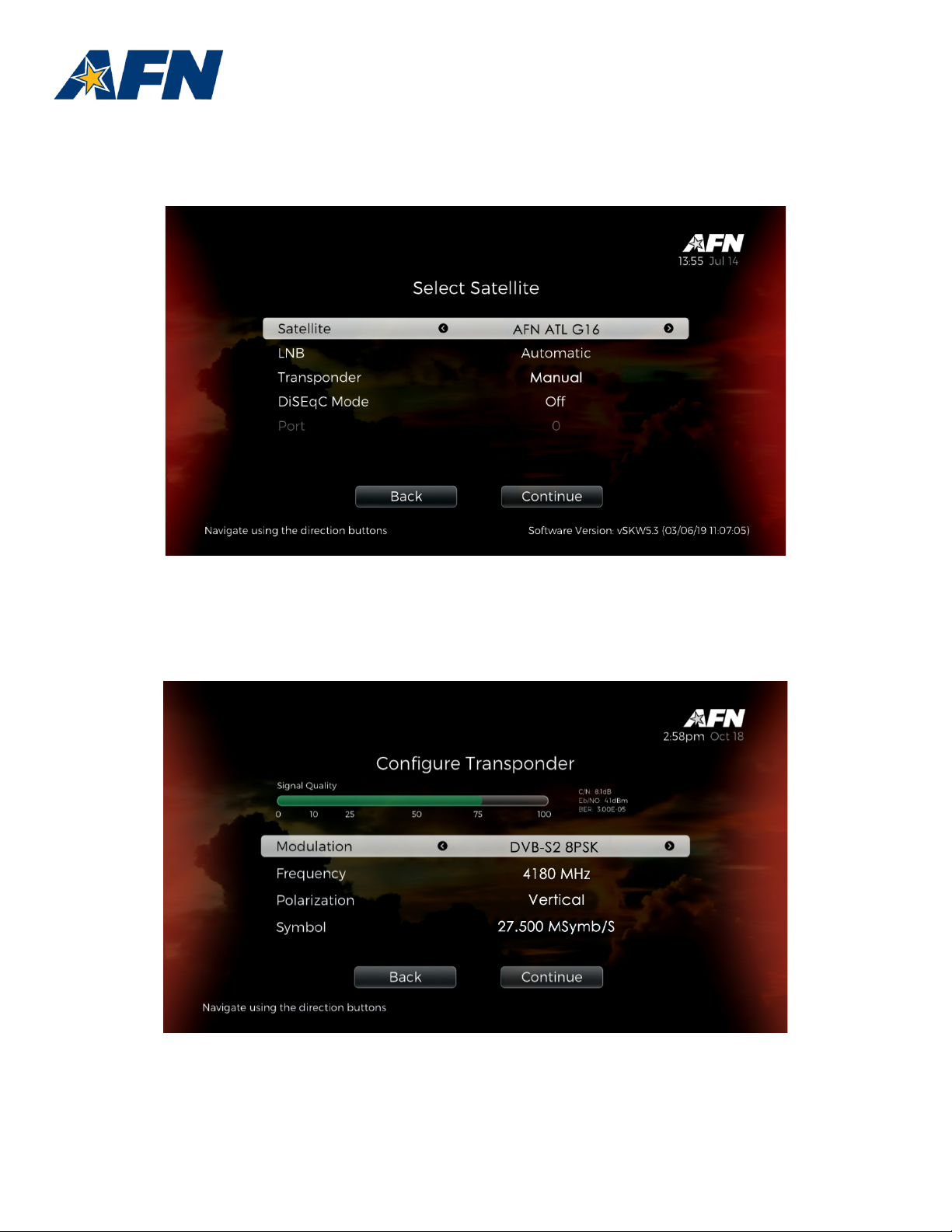

The Configure Transponder page is where you enter the four settings you need for this satellite footprint.
Use the circular navigation wheel on your AFN7500HD remote control to cycle through the settings, in the
left column, for Modulation, Frequency, Polarization, and Symbol. Enter the settings as depicted below.
You can use the numeric keypad on your decoder remote control to enter the frequency and symbol
settings.
Select “Continue.”
AFN Atlantic SATNET on Galaxy 16
AFN7500HD Decoder Settings and Channel Guide
Current as of 20211104 5
The next screen will show a progress bar.
When configuration is complete, the next screen will show that the decoder is acquiring the AFN services.
AFN Atlantic SATNET on Galaxy 16
AFN7500HD Decoder Settings and Channel Guide
Current as of 20211104 6
When you see Services found: ## (shown below), press “Continue.”
Note: The number of ‘Services found’ will vary depending upon your location and the specific satellite you
are receiving the signal from.
Press OK to continue, and the decoder will return to the Satellite Setup menu, with the channel image
displayed behind the menu.
You can either press Menu twice, or press Exit, and your TV will go to programming … and you’re done!
Problems? Contact our AFN Broadcast Center Technologists at DSN: (312) 348-1339;
commercial: +1 (951) 413-2339; or email: [email protected].
AFN Atlantic SATNET on Galaxy 16
AFN7500HD Decoder Settings and Channel Guide
Current as of 20211104 7
This programming is available to AFN Direct to Home and AFN Satellite Network (SATNET)
customers outside of the United States, its territories and possessions in North and Central
America and the Caribbean.
AFN Atlantic Decoder Channel Guide
TV Services
Audio Services
Channel
Service
Channel
Service
Channel
Service
102 AFN|prime Atlantic 120 AFN Atlantic Eagle 133 Freedom Radio
103 AFN|news 121 AFN The Voice 135 AFN Aviano Eagle
104 AFN|sports 122 AFN Power Talk 136 AFN Bavaria Eagle
105 AFN|prime Pacific 123 AFN Clutch Sports
Radio 137 AFN Benelux Eagle
106 AFN|spectrum 124 AFN Fans 138 AFN Incirlik Eagle
107 AFN|sports 2 125 AFN Hot Adult
Contemporary 139 AFN K-town Eagle
108 AFN|family 126 AFN Legacy 140 AFN Naples Eagle
109 AFN|movie 127 AFN Joe FM 141 AFN Rota Eagle
128 AFN Gravity 142 AFN Souda Bay Eagle
129 AFN Country 143 AFN Spangdahlem
Eagle
130 NPR International 144 AFN Stuttgart Eagle
131 AFN Seasonal 145 AFN Vicenza Eagle
402 AFN Test Pattern 132 AFN Contingency 146 AFN Wiesbaden Eagle
147 AFN Bahrain Eagle
