CHAPTER

Overview of the Router 1-1

Overview of the Router

Table 1-1 lists the router models discussed in this publication and provides a summary of

the interfaces supported on each model. These router models are similar in functionality,

but differ in the number of interfaces supported.

Table 1-1 Summary of Router Interfaces

Model Ethernet

AUI1(DB-15)

1. AUI = attachment unit interface.

Token Ring

(DB-9) Serial

(DB-60) ISDN2BRI3

(RJ-45)

2. ISDN = Integrated Services Digital Network.

3. BRI = Basic Rate Interface.

Cisco 2501/

CPA2501 1–2–

Cisco 2502/

CPA2502 –12–

Cisco 2503/

CPA2503 1–21

Cisco 2504/

CPA2504 –121

Cisco 2513/

CPA2513 112–

Cisco 2514/

CPA2514 2–2–

Cisco 25154

4. A CPA2515 model is not available.

–22–

1-2 Router Installation and Configuration Guide

Hardware Features

Note Throughout the remainder of the publication, one model number will be used in text

references. For example, references to the model 2501 router will apply to both the

Cisco 2501 and CPA2501 routers.

Hardware Features

In addition to the interfaces listed in Table 1-1, the routers include the following hardware

features:

•Dynamic random-access memory (DRAM) for main memory and shared memory

•Nonvolatile random-access memory (NVRAM) for storing configuration information

•Flash memory for running the Cisco IOS software

•EIA/TIA-232 console port for local system access using a console terminal

•EIA/TIA-232 auxiliary port for remote system access using a modem

Note EIA/TIA-232 and EIA/TIA-449 were known as recommended standards RS-232

and RS-449 before their acceptance as standards by the Electronic Industries Association

(EIA) and Telecommunications Industry Association (TIA).

Figure 1-1 to Figure 1-7 show the rear panels of the router models discussed in this

publication.

Overview of the Router 1-3

Hardware Features

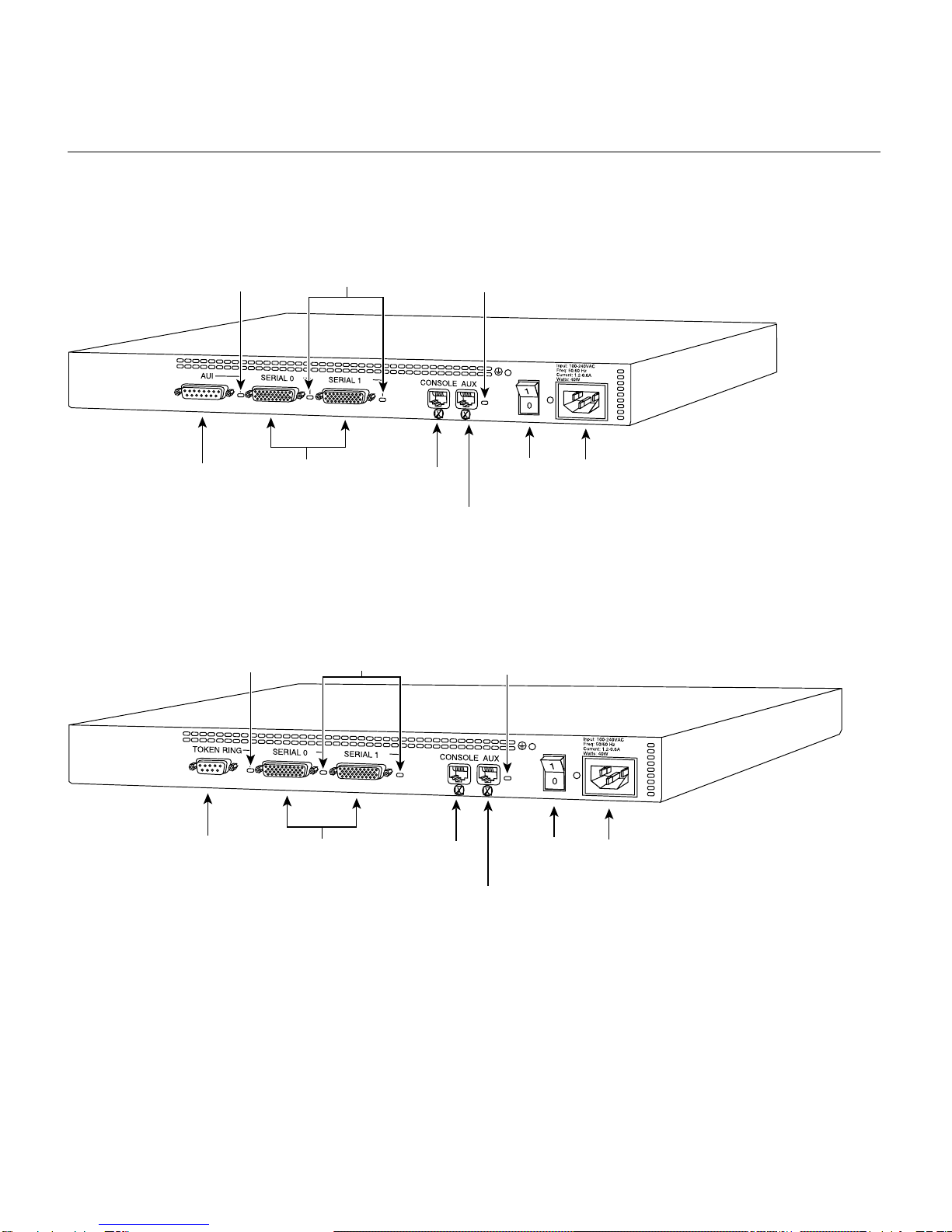

Figure 1-1 Model 2501 Router Rear Panel

Figure 1-2 Model 2502 Router Rear Panel

H4262

Ethernet

AUI LED

Ethernet

AUI port

(DB-15)

Console

port (RJ-45)

Auxiliary port

(RJ-45)

On/off

switch Power

Synchronous

serial LEDs

Synchronous

serial ports

(DB-60)

System

OK LED

H6585

Token Ring

port (DB-9) Console

port (RJ-45)

Auxiliary port

(RJ-45)

On/off

switch Power

Synchronous

serial ports

(DB-60)

Token Ring

LED Synchronous

serial LEDs System

OK LED

1-4 Router Installation and Configuration Guide

Hardware Features

Figure 1-3 Model 2503 Router Rear Panel

Figure 1-4 Model 2504 Router Rear Panel

H6586

Ethernet

AUI port

(DB-15)

PowerSynchronous

serial ports

(DB-60)

Console

port

(RJ-45)

ISDN

BRI port

(RJ-45)

Auxiliary port

(RJ-45)

Ethernet

AUI LED Synchronous

serial LEDs ISDN

BRI LED System

OK LED

On/off

switch

Power

On/off

switch

H6587

Token Ring

port (DB-9) Synchronous

serial ports

(DB-60)

Token Ring

LED

Synchronous

serial LEDs

System

OK LED

ISDN

BRI LED

Console

port

(RJ-45)

ISDN

BRI port

(RJ-45)

Auxiliary port

(RJ-45)

Overview of the Router 1-5

Hardware Features

Figure 1-5 Model 2513 Router Rear Panel

Figure 1-6 Model 2514 Router Rear Panel

H6588

TOKEN RING

Token Ring

port (DB-9) Ethernet

AUI port

(DB-15)

Synchronous

serial ports

(DB-60)

Token Ring

LED

Power

On/off

switch

Ethernet

AUI LED Synchronous

serial LEDs

System

OK LED

Console port

(RJ-45)

Auxiliary port

(RJ-45)

Synchronous

serial ports

(DB-60)

On/off

switch Power

H6589

Ethernet

AUI ports

(DB-15)

Ethernet

AUI LEDs Synchronous

serial LEDs System

OK LED

Console

port (RJ-45)

Auxiliary port

(RJ-45)

1-6 Router Installation and Configuration Guide

System Specifications

Figure 1-7 Model 2515 Router Rear Panel

System Specifications

The system specifications of the routers are listed in Table 1-2.

Table 1-2 System Specifications

Description Specification

Dimensions (H x W x D) 1.75 x 17.5 x 10.56 in. (4.44 x 44.45 x 26.82 cm),

one rack unit

Weight 10 lb (4.5 kg)

Input voltage, AC power supply

Current

Frequency

Power dissipation

100 to 240 VAC

1.2 to 0.6A

50/60 Hz

40W (maximum), 135.5 Btus1/hr

Input voltage, DC power supply

Current

Power dissipation

40W, 40 to 72 VDC

1.5 to 1.0A

40W (maximum), 135.5 Btus/hr

Processor 20-MHz Motorola 68EC030

On/off

switch Power

H6590

System

OK LED

Token Ring

LEDs Synchronous

serial LEDs

Synchronous

serial ports

(DB-60)

Token Ring

ports (DB-9) Console

port (RJ-45)

Auxiliary port

(RJ-45)

Overview of the Router 1-7

Obtaining Service and Support

For service and support for a product purchased from a reseller, contact the reseller.

Resellers offer a wide variety of Cisco service and support programs, which are described

in the information packet that shipped with your chassis.

Interfaces See Table 1-1 for a list of interfaces supported on each

router model.

• Ethernet AUI (IEEE2802.3) (DB-15)

• Token Ring (IEEE 802.5) (DB-9)

• Synchronous serial3(DB-60)

• ISDN BRI (RJ-45)4

• Console (RJ-45)

• Auxiliary (RJ-45)

Operating environment 32 to 104°F (0 to 40°C)

Nonoperating temperature –40 to 185°F (–40 to 85°C)

Operating humidity 5 to 95%, noncondensing

Noise level 34 dBa @ 3 ft (0.914 m)

Regulatory compliance FCC Class A and Canadian DOC Class A

For more regulatory information, refer to the

Regulatory Compliance and Safety Information

document that accompanied your router.

1. Btus = British thermal units.

2. IEEE = Institute of Electrical and Electronic Engineers.

3. The synchronous serial interface supports the following standards in data terminal equipment (DTE) and

data communications equipment (DCE) mode: EIA/TIA-232, EIA/TIA-449, V.35, and X.21. The

EIA-530 standard is supported in DTE mode only.

4. External network terminal 1 (NT1) device required.

Table 1-2 System Specifications (Continued)

Description Specification

1-8 Router Installation and Configuration Guide

Cisco Connection Online

Note If you purchased your product from a reseller, you can access Cisco Connection

Online (CCO) as a guest. CCO is Cisco Systems’ primary, real-time support channel.Your

reseller offers programs that include direct access to CCO’s services.

For service and support for a product purchased directly from Cisco, use CCO.

Cisco Connection Online

CCO is Cisco Systems’ primary, real-time support channel. SMARTnet customers and

partners can self-register on CCO to obtain additional content and services.

Available 24 hours a day, 7 days a week, CCO provides a wealth of standard and

value-added services to Cisco’s customers and business partners. CCO services include

product information, software updates, release notes, technical tips, the Bug Navigator,

configuration notes, brochures, descriptions of service offerings, and download access to

public and authorized files.

CCO serves a wide variety of users through two interfaces that are updated and enhanced

simultaneously—a character-based version and a multimedia version that resides on the

World Wide Web (WWW). The character-based CCO supports Zmodem, Kermit,

Xmodem, FTP, and Internet e-mail, and is excellent for quick access to information over

lower bandwidths. The WWW version of CCO provides richly formatted documents with

photographs, figures, graphics, and video, as well as hyperlinks to related information.

You can access CCO in the following ways:

•WWW: http://www.cisco.com.

•WWW: http://www-europe.cisco.com.

•WWW: http://www-china.cisco.com.

•Telnet: cco.cisco.com.

•Modem: From North America, 408 526-8070; from Europe, 33164464082.Usethe

following terminal settings: VT100 emulation; databits: 8; parity: none; stop bits: 1; and

baud rates up to 14.4 kbps.

Overview of the Router 1-9

Ordering Documentation

Fora copyof CCO’s Frequently AskedQuestions(FAQ), contact [email protected]. For

additional information, contact [email protected].

Note If you need technical assistance with a Cisco product that is under warranty or

covered by a Cisco maintenance contract, contact Cisco’s Technical Assistance Center

(TAC) at 800 553-2447, 408 526-7209, or [email protected].

Please use CCO to obtain general information about Cisco Systems, Cisco products, or

upgrades. If CCO is not accessible, contact 800 553-6387, 408 526-7208, or

[email protected].

Ordering Documentation

Documentation for Cisco products is available in three forms: on a CD-ROM, printed

books, and on the World Wide Web. You have the option of subscribing to the

documentation CD through an update service. Or you can order printed documentation at

an additional cost. Refer to the information packet included with the router for detailed

ordering information. You can also access Cisco documentation on the World Wide Web

URL http://www.cisco.com.
