Cisco 2515-RF - 2515 Router Manuale utente

About This Guide xv

About This Guide

This section discusses the objectives, audience, organization, and conventions of this

hardware installation and conﬁguration guide.

Objectives

This publication will step you through the initial site preparation and installation of the

router. Troubleshooting, maintenance procedures, and cable speciﬁcations are also

provided.

Although minimum software conﬁguration information is provided, it is not meant as

comprehensive router conﬁguration instructions. For detailed software conﬁguration

information, refer to the Cisco IOS conﬁguration guide and command reference

publications. These publications are available on the documentation CD that came with

your router or you can order printed copies. Refer to the “Ordering Documentation” section

in the “Overview of the Router” chapter for ordering information.

This publication describes a variety of router models that are similar in functionality, but

differ in the number of interfaces supported. Some information provided may not apply to

your particular router model.

AudienceThispublicationisdesignedforthepersoninstallingtherouter,whoshouldbefamiliarwith

electronic circuitry and wiring practices and have experience as an electronic or

electromechanical technician.

xvi Router Installation and Configuration Guide

Organization

The major sections of this hardware installation and conﬁguration guide are as follows:

•Chapter 1, “Overview of the Router,” discusses the features and speciﬁcations of the

routers, and describes how to obtain technical support and order documentation.

•Chapter 2, “Preparing to Install the Router,” discusses environmental requirements,

safety recommendations, and describes the various ports and how to prepare for

connections between networks and ports.

•Chapter 3, “Installing the Router,” includes basic installation information and discusses

making connections to your LAN, WAN, and console terminal.

•Chapter 4, “Conﬁguring the Router,” discusses how to conﬁgure your router using the

prompt-driven System Conﬁguration Dialog, conﬁguration mode, or AutoInstall. This

chapter also provides some basic information about how to use the Cisco IOS software.

•Appendix A, “Troubleshooting the Router,” discusses how to isolate problems and read

the LEDs.

•Appendix B, “Maintaining the Router,” discusses selected maintenance procedures.

•Appendix C, “Cable Speciﬁcations,” provides pinouts for the router ports and cables.

Conventions

This publication uses the following conventions to convey instructions and information.

Command descriptions use these conventions:

•Commands and keywords are in boldface font.

•Variables for which you supply values are in italic font.

•Elements in square brackets ([ ]) are optional.

•Alternative but required keywords are grouped in braces ({ }) and are separated by

vertical bars ( | ).

About This Guide xvii

Conventions

Examples use these conventions:

•Terminal sessions and information the system displays are in screen font.

•Information you enter is in boldface screen font.

•Nonprinting characters are in angle brackets (< >).

•Default responses to system prompts are in square brackets ([ ]).

Note Meansreader takenote. Notes contain helpful suggestions orreferences to materials

not contained in this manual.

Timesaver Means the described action saves time. You can save time by performing the

action described in the paragraph.

Caution Means reader be careful. In this situation, you might do something that could

result in equipment damage or loss of data.

Warning This warning symbol means danger. You are in a situation that could cause

bodily injury. Before you work on any equipment, you must be aware of the hazards

involved with electrical circuitry and familiar with standard practices for preventing

accidents. (To see translated versions of this warning, refer to the Regulatory Compliance

and Safety Information document that accompanied your router.)

xviii Router Installation and Configuration Guide

Conventions

CHAPTER

Overview of the Router 1-1

Overview of the Router

Table 1-1 lists the router models discussed in this publication and provides a summary of

the interfaces supported on each model. These router models are similar in functionality,

but differ in the number of interfaces supported.

1. AUI = attachment unit interface.

2. ISDN = Integrated Services Digital Network.

3. BRI = Basic Rate Interface.

4. A CPA2515 model is not available.

Table 1-1 Summary of Router Interfaces

Model Ethernet

AUI1(DB-15) Token Ring

(DB-9) Serial

(DB-60) ISDN2BRI3

(RJ-45)

Cisco 2501/

CPA2501 1–2–

Cisco 2502/

CPA2502 –12–

Cisco 2503/

CPA2503 1–21

Cisco 2504/

CPA2504 –121

Cisco 2513/

CPA2513 112–

Cisco 2514/

CPA2514 2–2–

Cisco 25154–22–

1-2 Router Installation and Configuration Guide

Hardware Features

Note Throughout the remainder of the publication, one model number will be used in text

references. For example, references to the model 2501 router will apply to both the

Cisco 2501 and CPA2501 routers.

Hardware Features

In addition to the interfaces listed in Table 1-1, the routers include the following hardware

features:

•Dynamic random-access memory (DRAM) for main memory and shared memory

•Nonvolatile random-access memory (NVRAM) for storing conﬁguration information

•Flash memory for running the Cisco IOS software

•EIA/TIA-232 console port for local system access using a console terminal

•EIA/TIA-232 auxiliary port for remote system access using a modem

Note EIA/TIA-232 and EIA/TIA-449 were known as recommended standards RS-232

and RS-449 before their acceptance as standards by the Electronic Industries Association

(EIA) and Telecommunications Industry Association (TIA).

Figure 1-1 to Figure 1-7 show the rear panels of the router models discussed in this

publication.

Overview of the Router 1-3

Hardware Features

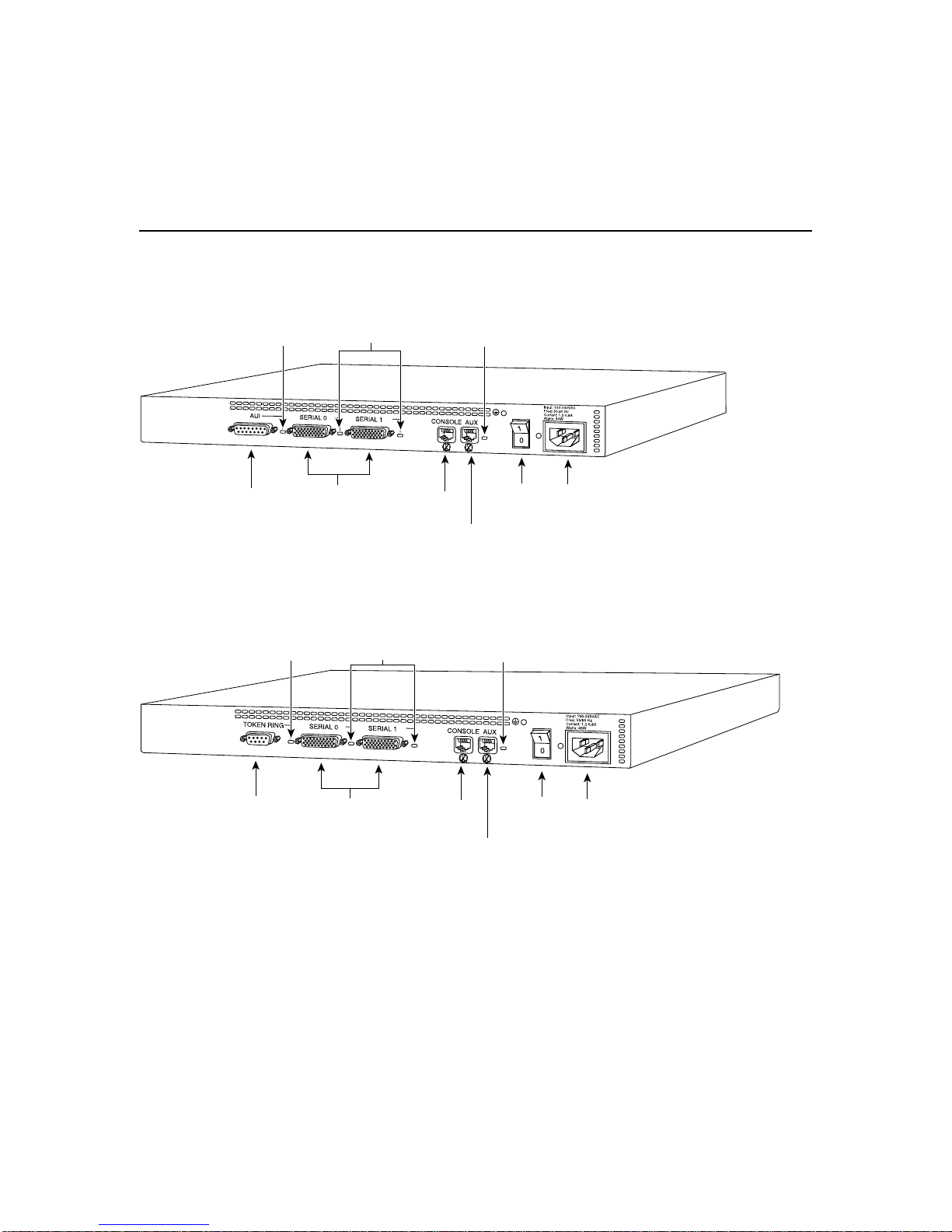

Figure 1-1 Model 2501 Router Rear Panel

Figure 1-2 Model 2502 Router Rear Panel

H4262

Ethernet

AUI LED

Ethernet

AUI port

(DB-15)

Console

port (RJ-45)

Auxiliary port

(RJ-45)

On/off

switch Power

Synchronous

serial LEDs

Synchronous

serial ports

(DB-60)

System

OK LED

H6585

Token Ring

port (DB-9) Console

port (RJ-45)

Auxiliary port

(RJ-45)

On/off

switch PowerSynchronous

serial ports

(DB-60)

Token Ring

LED Synchronous

serial LEDs System

OK LED

1-4 Router Installation and Configuration Guide

Hardware Features

Figure 1-3 Model 2503 Router Rear Panel

Figure 1-4 Model 2504 Router Rear Panel

H6586

Ethernet

AUI port

(DB-15)

PowerSynchronous

serial ports

(DB-60)

Console

port

(RJ-45)

ISDN

BRI port

(RJ-45)

Auxiliary port

(RJ-45)

Ethernet

AUI LED Synchronous

serial LEDs ISDN

BRI LED System

OK LED

On/off

switch

Power

On/off

switch

H6587

Token Ring

port (DB-9) Synchronous

serial ports

(DB-60)

Token Ring

LED Synchronous

serial LEDs System

OK LED

ISDN

BRI LED

Console

port

(RJ-45)

ISDN

BRI port

(RJ-45)

Auxiliary port

(RJ-45)

Overview of the Router 1-5

Hardware Features

Figure 1-5 Model 2513 Router Rear Panel

Figure 1-6 Model 2514 Router Rear Panel

H6588

TOKEN RING

Token Ring

port (DB-9) Ethernet

AUI port

(DB-15)

Synchronous

serial ports

(DB-60)

Token Ring

LED

Power

On/off

switch

Ethernet

AUI LED Synchronous

serial LEDs System

OK LED

Console port

(RJ-45)

Auxiliary port

(RJ-45)

Synchronous

serial ports

(DB-60)

On/off

switch Power

H6589

Ethernet

AUI ports

(DB-15)

Ethernet

AUI LEDs Synchronous

serial LEDs System

OK LED

Console

port (RJ-45)

Auxiliary port

(RJ-45)

1-6 Router Installation and Configuration Guide

System Specifications

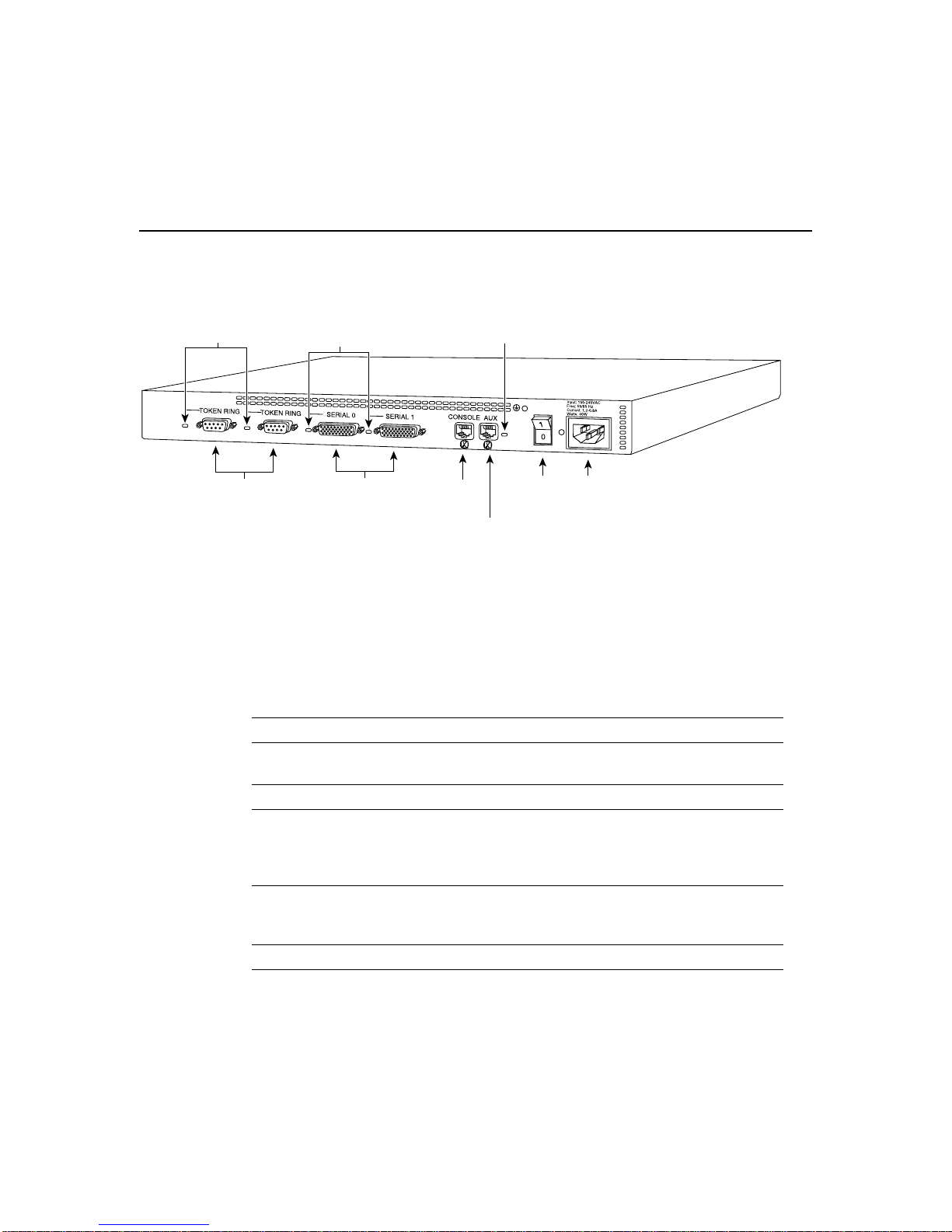

Figure 1-7 Model 2515 Router Rear Panel

System Speciﬁcations

The system speciﬁcations of the routers are listed in Table 1-2.

Table 1-2 System Speciﬁcations

Description Speciﬁcation

Dimensions (H x W x D) 1.75 x 17.5 x 10.56 in. (4.44 x 44.45 x 26.82 cm),

one rack unit

Weight 10 lb (4.5 kg)

Input voltage, AC power supply

Current

Frequency

Power dissipation

100 to 240 VAC

1.2 to 0.6A

50/60 Hz

40W (maximum), 135.5 Btus1/hr

Input voltage, DC power supply

Current

Power dissipation

40W, 40 to 72 VDC

1.5 to 1.0A

40W (maximum), 135.5 Btus/hr

Processor 20-MHz Motorola 68EC030

On/off

switch Power

H6590

System

OK LED

Token Ring

LEDs Synchronous

serial LEDs

Synchronous

serial ports

(DB-60)

Token Ring

ports (DB-9) Console

port (RJ-45)

Auxiliary port

(RJ-45)
