Cisco Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview

Cisco 860, 880, 890 Series

Figure 1-67 shows the front panel of the Cisco 897VAW and the Cisco 897VAMW routers.

Figure 1-67 Front Panel of the Cisco 897VAW and the Cisco 897VAMW Routers

Figure 1-68 shows the back panel of the Cisco 897VAMW Router.

Figure 1-68 Back Panel of the Cisco 897VAMW Router

344770

1LEDs

7 6 GELAN 5 4

3 2 POE 1 0

GE WAN

54VDC 1.2A

12VDC 2.5A

VDSL/ADSL

overPOTS

CONSOLE

RESET

344772

1 2 3 4 7 89 10

5 6

1GE WAN interface 7On/Off switch

2SFP port 8Reset button

3USB port 9Earth ground connection

48-port Gigabit Ethernet switch110 Kensington security slot

5Console/Auxiliary port 11 VDSL / ADSL over POTS

6Power connector

1. Port 0 through 3 can be configured as POE. POE is an optional feature for this model. If this feature was not configured with

the factory order, you must order and install it to enable the PoE function.

1-109

Cisco Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview Cisco 860, 880, 890Series

Figure 1-69 shows the back panel of the Cisco 898EA router.

Figure 1-69 Back Panel of the Cisco 898EA Router

Caution The primary WAN port is designed for an RJ-45 connector only. Damage to the primary WAN

port may occur if a non-RJ-45 connector is inserted.

Figure 1-70 shows the front panel of the Cisco 898EA Router.

Figure 1-70 Front Panel of the Cisco 898EA Router

7 6 GELAN 5 4

3 2 POE 1 0

GE WAN

SFP

854VDC 1.2A

12VDC 2.5A

SHDSL

RJ45 ONLY

CONSOLE

RESET

Cisco 898EA

AUX

344774

1 2 3 4 7 89 10

5 6

1GE WAN interface 7On/Off switch

2SFP port 8Reset button

3USB port 9Earth ground connection

48-port Gigabit Ethernet switch1

1. Ports 0 through 3 can be configured as POE, which is an optional feature for this model. If this feature is not configured with

the factory order, you must order and install it to enable the PoE function.

10 Kensington security slot

5Console/Auxiliary port 11 SHDSL (RJ45 only)

6Power connector

344773

1LEDs

1-110

Cisco Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview

Cisco 860, 880, 890 Series

Cisco C897VAB-K9

The Cisco 897VAB-K9 ISR is designed tosupport 2-pair VDSL2 bonding up to the 17a profile and single

pair support for ADSL/VDSL over POTS up to the 30a profile.

Table 1-38 provides information about important hardware specifications pertaining to Cisco

C897VAB-K9 ISR.

Figure 1-71 shows the back panel of the Cisco 897VAB-K9 ISR.

Figure 1-71 Back panel of the Cisco 897VAB-K9 ISR

Table 1-38 Hardware Specifications of Cisco C897VAB-K9 ISR

Hardware Description

Flash Memory 256 MB

Main Memory 1-GB DDR RAM; fixed and not extendable

USB port A USB 2.0-compliant port located on the back

panel

FAN Fanless chassis

PoE (Optional) Four internal PoE ports

Primary WAN VDSL/ADSL over POTS

Backup WAN 10/100/1000 GE port (RJ-45/SFP)

Console or auxiliary port RJ-45

LAN switch 8-port 10/100/1000 GE Switch

ISDN

over POTS,VDSL

364228

1 2 3 4 5 6 7 10 121189

1Primary WAN VDSL / ADSL over POTS,

VDSL2 Bonding17Console/Auxiliary Port

2SFP port 8Power Connector

3GE WAN Interface 9On/Off Switch

4ISDN 10 Reset Button

5USB Port 11 Earth Ground connection

68-port Gigabit Ethernet Switch212 Kensington Security slot

1-111

Cisco Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview Cisco 860, 880, 890Series

Caution The primary WAN port is designed for an RJ-11 or RJ-14 connector only. Damage to the

primary WAN port may occur if a non-RJ-11 or RJ-14 connector is inserted.

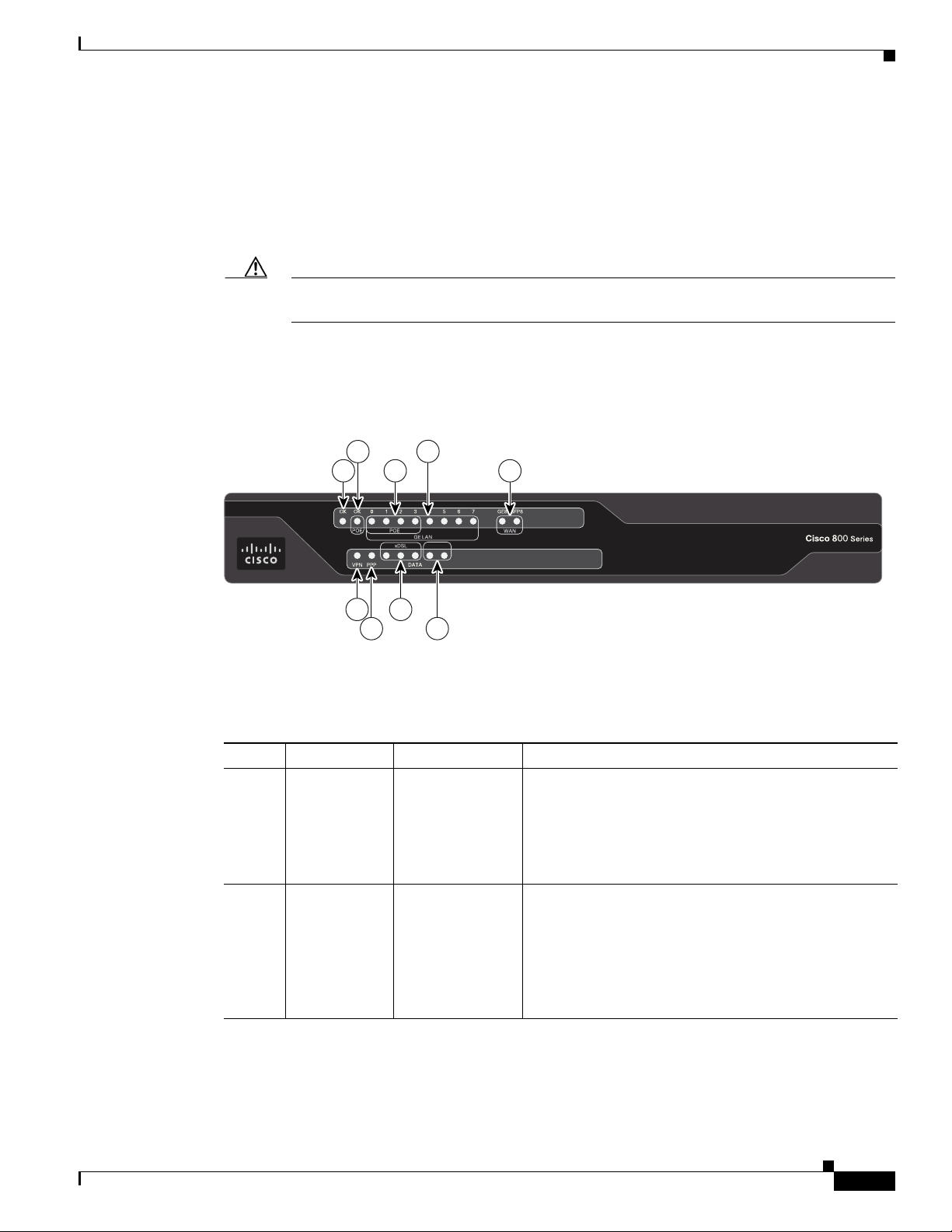

Figure 1-72 shows the front panel of the Cisco 897VAB-K9 ISR.

Figure 1-72 Front panel of the Cisco 897 VAB-K9 ISR

Table 1-39 describes the LEDs for the Cisco 897VAB-K9 ISR.

1. 1.ADSL and VDSL (up to 17a) single-pair functionality uses the center pair of pins in the RJ-11 connector. VDSL 30a single

pair functionality makes use of the pins just adjacent to the center pins. VDSL Bonding makes use of both the center pair pins

& those just adjacent to the center pair to provide the 2 bonded VDSL lines. For more information, see Cisco 890 Series

Integrated Services Routers Data Sheet.

2. 2.Ports 0 through 3 can be configured as POE, which is an optional feature for this model. If this feature is not configured

with the factory order, you must order and install it to enable the PoE function.

364227

CD0 CD1 B1 B2

ISDN

1 3

Table 1-39 LED Descriptions for the Cisco 897VAB-K9 ISR

Number LED Color Description

1 Power OK Green On—DC power is being supplied to the router and the

Cisco IOS software is running.

Blinking—Boot up is in process, or the router is in ROM

Monitor (ROMMON) mode.

Off—Power is not supplied to the router.

2 PoE OK Green/Yellow Off—Both POE card & POE power supply are not

present.

Yellow On—Either POE card or POE power supply is

not present.

Green On—Both POE card & POE power supply are

present.

1-112

Cisco Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview

Cisco 860, 880, 890 Series

3 GE LAN 0

GE LAN 1

GE LAN 2

GE LAN 3

Green/Yellow Off—No link.

Green On—Link.

Yellow On—Fault with PoE. Implies no link.

Green Blinking—Data is either being received or

transmitted.

4 GE LAN 4

GE LAN 5

GE LAN 6

GE LAN 7

Green Off—No link.

On—Link.

Blinking—Data is either being received or being

transmitted.

5 GE WAN 8 Green Off—No link.

On—Link.

Blinking—Data is either being received or being

transmitted.

SFP WAN 8 Green Off—No link.

On—Link.

Blinking—Data is either being received or being

transmitted.

6 VPN Green Off—No tunnel.

On—At least one tunnel is up.

7 PPP Green Off—No PPP session.

On—At least one PPP session established.

8 xDSL CD0 Green Off—Interface is shutdown.

On—Showtime, Link up.

Slow Blinking—Modem initialization.

Fast Blinking—Training up the line.

If both CD0 & CD1 are ON then VDSL Bonding is

active.

xDSL CD1

xDSL DATA Green Off—No Data.

Blinking—Data is either being received or transmitted.

9 ISDN B1 Green Blinking—Data is either being received or transmitted.

Off—No Data.

ISDN B2

Table 1-39 LED Descriptions for the Cisco 897VAB-K9 ISR (continued)

Number LED Color Description

1-113

Cisco Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview Cisco 860, 880, 890Series

Cisco C891 Series ISRs

Cisco C891 Series ISRs are designed to deliver secure broadband, metro Ethernet, wireless LAN

(WLAN) connectivity, and business continuity. Cisco C891 Series ISRs also provide a 1-port Gigabit

Ethernet SFP socket for WAN connectivity.

This section includes the hardware information for the following models:

•Cisco C891F

•Cisco C891FW

Table 1-40 provides information about the hardware specifications of the Cisco C891 Series Routers.

For detailed hardware specifications, see the Cisco C890 Series hardware data sheet at:

http://www.cisco.com/en/US/prod/collateral/routers/ps380/data_sheet_c78-519930.html

Cisco C891F Router

Figure 1-73 shows the front panel of the Cisco C891F Router.

Table 1-40 Hardware Specifications of Cisco C891 Series ISR

Hardware Description

Flash Memory 256 MB

Main Memory 1-GB DDR RAM; fixed and not extendable

USB port A USB 2.0-compliant port located on the back

panel

FAN Fanless chassis

PoE 4 PoE ports

WAN 1-port GE or 1-port SFP

Data Backup •1-port FE

•1-port ISDN

•1-port V.92

Console or auxiliary port RJ-45

LAN switch 8-port Gigabit Ethernet

Embedded Wireless AP Dual 802.11b/g/n and 802.11a/n radios for

C891FW

1-114

Cisco Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview

Cisco 860, 880, 890 Series

Figure 1-73 Front Panel of the Cisco C891F Router

For detailed description about the LEDs on the Cisco C890 Series Routers, see the “LEDs” section on

page 1-25.

361136

Cisco

Cisco 800

Series

PPP

GE LAN

VPN

V.92

ISDN

OK 01 2 3 4 567

GE8

SFP8

FE0

WAN

1LEDs

1-115

Cisco Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview Cisco 860, 880, 890Series

Figure 1-74 shows the back panel of the Cisco C891F Router.

Figure 1-74 Back Panel of the Cisco C891F Router

For information on installing the Cisco C890 Series Routers, see:

http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/guide/2Instal

l880-860.html

Cisco C891FW Router

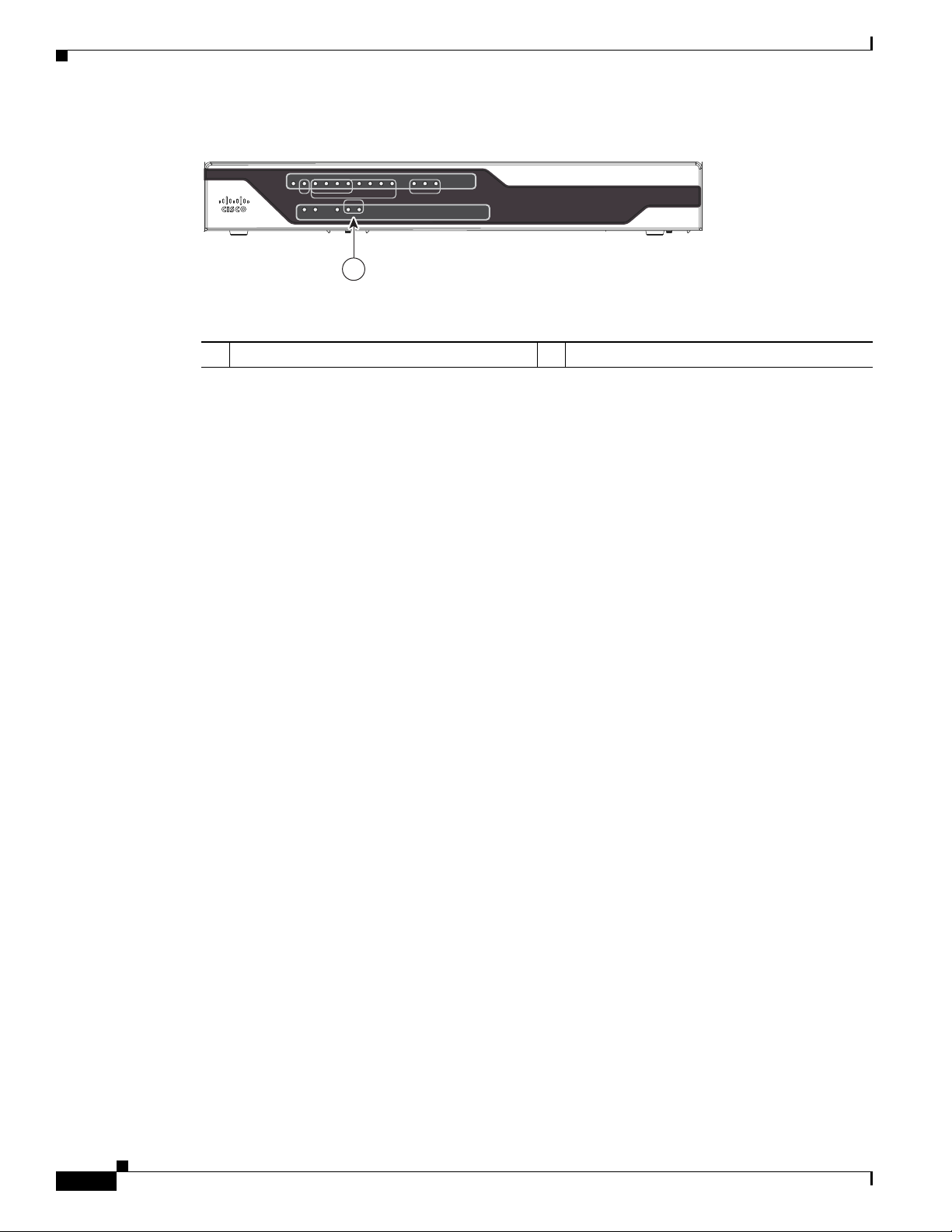

Figure 1-75 shows the front panel of the Cisco C891FW Router.

Figure 1-75 Front Panel of the Cisco C891FW Router

For detailed description about the LEDs on Cisco C890 Series Router, see “LEDs” section on page 1-25.

361137

FE W

ISDN

GE W

SFP

.92

7 6

GE L

ONS

OLE

Cisco

891F

RES

RESET

5 4

3 2

POE

POE 10

8 8

54V

54VDC 1

.5A

3.5-5A

12V

12VDC

(POE)

1 2 3 4 5 7 813129 11

1Back up WAN port—FE WAN 8Console/Auxiliary port

2ISDN 9Power connector

3Primary WAN port—GE WAN 10 On/Off switch

4SFP 11 Reset button

5USB port 12 Earth ground connection

6V.92 backup 13 Kensington security slot

78-port 10/100/1000 Ethernet switch

361138

POE

PPP

GE LAN

VPN V.92

ISDN

OK 0 1234567GE8SFP8FE0 5GHz

2.4GHz

WAN

B1 B2

POE

Cisco 800 Series

1LEDs

1-116

Cisco Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview

Cisco 860, 880, 890 Series

Figure 1-76 shows the back panel of the Cisco C891FW Router.

Figure 1-76 Back Panel of the Cisco C891FW Router

For information on installing the Cisco C890 Series Routers, see:

http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/guide/2Instal

l880-860.html

361139

FE W

ISDN

GE W

SFP

.92

7 6

GE L

ONS

OLE

Cisco

891

RES

RESET

5 4

3 2

POE

POE 10

8 8

54V

54VDC 1

.5A

3.5-5A

12V

12VDC

(POE)

1 2 3 4 5 7 813129 11

1Back up WAN port—FE 8Serial port—Console or auxiliary

2ISDN 9Power connector

3Primary WAN port—GE 10 On/Off switch

4SFP port 11 Reset button

5USB port 12 Earth ground connection

6V.92 backup port 13 Kensington security slot

78-port 10/100/1000 Ethernet switch

1-117

Cisco Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview Cisco 860, 880, 890Series

Cisco C891-24X/K9 Integrated Services Router

Cisco C891-24X/K9 Integrated Services Router (ISR) is a fixed Cisco 890 Series ISR that supports 24

port GE LAN. Cisco C891-24X/K9 ISR provides more switch port options compared to other 890 Series

ISRs and Cisco C891-24X/K9 ISR is useful in deployment scenarios where more switching capability

is required. Cisco C891-24X/K9 ISR also supports PoE on 8 switch ports. Cisco C891-24X/K9 ISR

supports WAN connectivity through dual GE or SFP ports.

Table 1-41 provides information about important hardware specifications pertaining to Cisco

C891-24X/K9 ISR.

Figure 1-77 shows the front panel of the Cisco C891-24X/K9 ISR.

Figure 1-77 Front Panel of the Cisco C891-24X/K9 ISR

Table 1-41 Hardware Specifications for Cisco C891-24X/K9 ISR

Hardware Description

Flash Memory 256 MB Flash and 8 MB serial boot flash

Main Memory 1-GB DDR RAM

USB port A USB 2.0-compliant port located at the back

panel

PoE 8 PoE ports

WAN 2-port GE WAN (copper or SFP)

Console or auxiliary port RJ-45

LAN switch 24-port 10/100/1000 BASE-T

Fan Fan less Chassis

POWER

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Cisco Router di rete

Cisco

Cisco Linksys RVL200 Manuale utente

Cisco

Cisco RV042 - Small Business Dual WAN VPN Router Manuale utente

Cisco

Cisco 1600 series Manuale

Cisco

Cisco 2811 - Voice Security Bundle Router Manuale utente

Cisco

Cisco 2821 Series Guida rapida

Cisco

Cisco ASR1006-10G-SEC/K9 - ASR 1006 VPN+FW Bundle... Manuale utente

Cisco

Cisco ASR-920-12CZ-A Manuale utente

Cisco

Cisco Network Convergence System 6000 Series Manuale utente

Cisco

Cisco SRP500 Manuale utente

Cisco

Cisco Catalyst 2928 Manuale utente

Cisco

Cisco CVR100W Manuale di istruzioni

Cisco

Cisco Universal Broadband Router Cisco uBR10012 Manuale

Cisco

Cisco ASR1006 - ASR 1006 Modular Expansion Base Manuale

Cisco

Cisco WS-SUP720-3B - Supervisor Engine 720 Manuale utente

Cisco

Cisco 3600 Series Manuale

Cisco

Cisco ASR 900 Series Manuale utente

Cisco

Cisco 10000 Series Manuale utente

Cisco

Cisco XR 12000 Manuale utente

Cisco

Cisco Linksys WET11 Manuale utente

Cisco

Cisco Nexus 5500 Series NX-OS Manuale utente

Cisco

Cisco MGX 8230 Istruzioni operative e di manutenzione

Cisco

Cisco 2010 Manuale

Cisco

Cisco CRS-1 - Carrier Routing System Router Manuale utente

Cisco

Cisco Router Cisco 831 Come usare

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

EnGenius

EnGenius ESR-9710 Manuale utente

LevelOne

LevelOne FBR-1416 Manuale utente

Dynacord

Dynacord Promatrix 6000 Manuale utente

Lorex

Lorex F5D8230-4 Manuale utente
