Linksys E1200 configuration guide

certified router

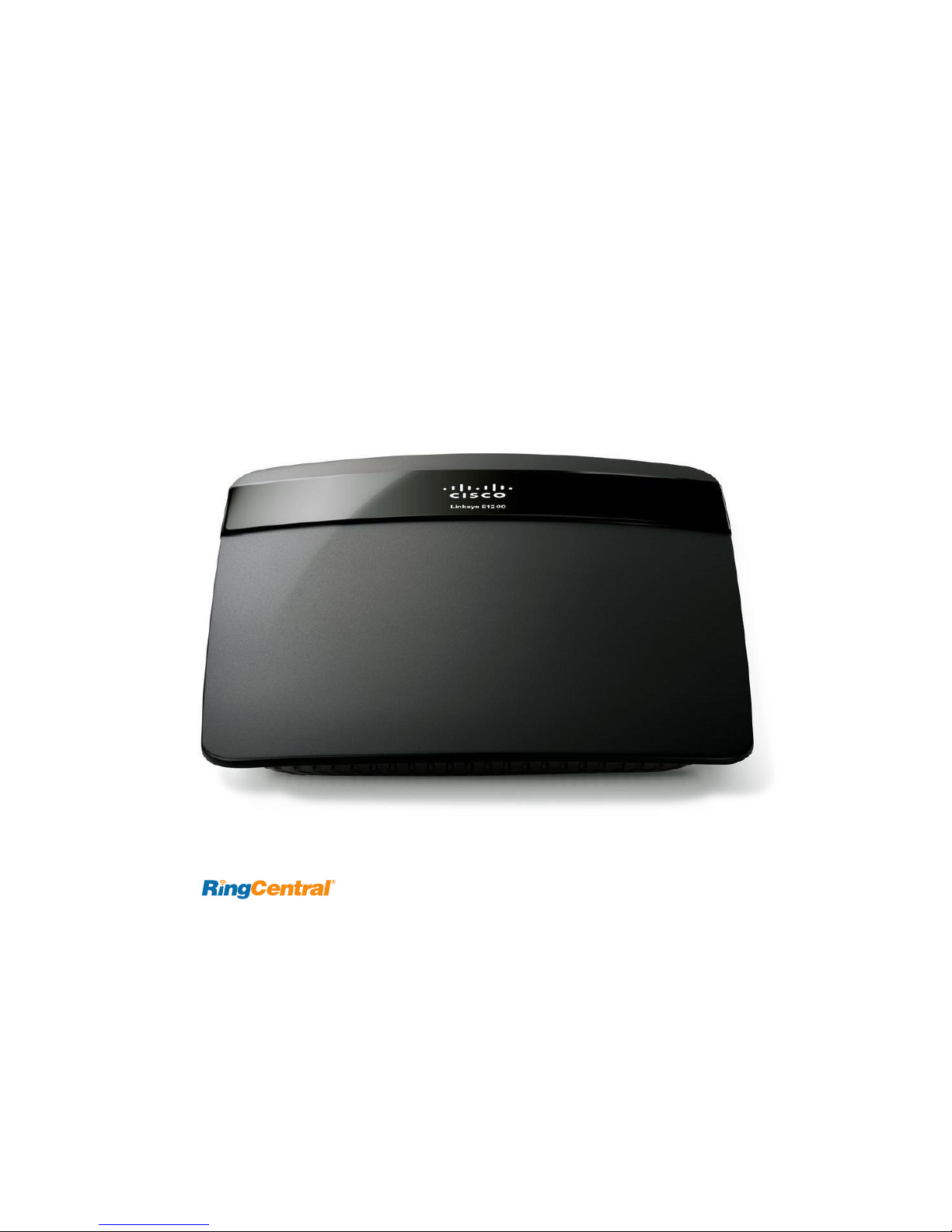

RingCentral certified router Linksys E1200 | Mac Method

1. Log in to the router. The default IP address is 192.168.1.1.

The default username is “admin”. The default password is “admin”.

2. Click on “Applications & Gaming” tab.

3. Click on “QoS”.

4. Select the radial button “Enabled” next to the field labeled

“Internet Access Priority”.

5. In the field labeled “Upstream Bandwidth”, select “Manual” from

the drop-down menu and enter your current upload speed. (If unsure

of your current upload speed, please run a speed test at http://www.

ringcentral.com/support/capacity.html.)

Configuring QoS on the Linksys E1200

to Prioritize VoIP Traffic (MAC Method)

4

Brand: Linksys

Model: E1200

Hardware Version: E1200

Firmware Version: 2.0.04 build 1

2

3

5

1

RingCentral certified router Linksys E1200 | Mac Method

6. Select “MAC Address” from the drop-down menu

labeled “Category”.

7. You will need the MAC address for each IP device to continue. In the

field labeled “Enter a Name”, enter a unique name for the device for

which you will prioritize traffic.

8. In the field labeled “MAC Address” enter the MAC address for

the device.

6

7

8

RingCentral certified router Linksys E1200 | Mac Method

9. In the field labeled “Priority”, select “High” from the

drop-down menu.

10. Click “Apply” to save changes.

9

10

RingCentral certified router Linksys E1200 | Mac Method

11. Repeat steps 6-10 until you have entered all of the IP phones.

When all have been entered and you see them in the “Summary”

section, click on “Save Settings”.

12. Power cycle/reboot the router before proceeding.

11

RingCentral certified router Linksys E1200 | Port Method

1. Log in to the router. The default IP address is 192.168.1.1.

The default username is “admin”. The default password is “admin”.

2. Click on “Applications & Gaming” tab.

3. Click on “QoS”.

4. Select the radial button “Enabled” next to the field labeled

“Internet Access Priority”.

5. In the field labeled “Upstream Bandwidth”, select “Manual” from

the drop-down menu and enter your current upload speed. (If unsure

of your current upload speed, please run a speed test at http://www.

ringcentral.com/support/capacity.html.)

Configuring QoS on the Linksys E1200

to Prioritize VoIP Traffic (Port Method)

4

2

3

5

1

RingCentral certified router Linksys E1200 | Port Method

6. In the “Category” section, select “Applications” from the

drop-down menu.

7. In the field labeled “Applications”, select “Add a New Application”

from the drop-down menu.

8. Enter a unique name in the “Enter a Name” field. Enter the following

port ranges and select “UDP” from the drop-down menu to the

right of each port range field and set the priority to “High” on the

drop-down menu: 5060-5090, 8000-8200, 16384-16482.

6

7

8a

8b

8c

RingCentral certified router Linksys E1200 | Port Method

9. Click “Apply”. You will see your changes in the “Summary” section.

10. Click “Save Settings”.

11. Power cycle/reboot the router before proceeding.

9

10
