Introduction to the Services Ready Platform

This chapter provides information to familiarize you with the product features and

get started using the web-based Configuration Utility.

•Feature Overview, page 8

•Product Overview, page 8

Feature Overview

Thank you for choosing the Cisco Services Ready Platform SRP 500 Series. The

Services Ready Platform has the features needed for small business.

SRP 500 Series platforms include:

•Intelligence to support voice, data, security, and application services.

•Industry-leading Session Initiation Protocol (SIP) stack to deliver clear, high-

quality voice service.

•Interoperability with popular soft switches and voice gateways.

•Integrated security, VPN capabilities, and an 802.11n wireless access point.

•Standards-based provisioning for streamlined deployments.

Product Overview

The Services Ready Platform, a member of the Cisco Small Business Pro family, is a

unified communications solution for small businesses that provides voice, data,

video, security, and wireless capabilities.

With its web-based interface, the Services Ready Platform is easy to setup and

configure.

Introduction to the Services Ready Platform

Product Overview

Services Ready Platform SRP 500 Series Administration Guide 9

SRP 521W Front Panel

SRP 526W / SRP 527W Front Panel

LED Description

Power/Sys Solid green indicates that the SRP is powered on.

Green flash indicates that the SRP is booting.

LAN Ports 1 to 4 Solid green indicates link. Green flash indicates link

traffic.

WAN (SRP 521W only) Solid green indicates link. Green flash indicates link

traffic.

DSL CD (SRP 526W/527W

only)

Solid green indicates carrier detection.

DSL Data (SRP 526W/527W

only)

Green flash indicates DSL activity.

WLAN Solid green indicates the radio is operational. Green

flash indicates wireless traffic.

276377

LANPOWER/SYS

PHONE USB WPSWLANWLAN

Cisco Small Business Pro

SRP 521W

12 2143

195210

LANPOWER/SYS

PHONE

CD Data

DSL

USB WPSWLAN

Cisco Small Business Pro

SRP 526W

12 2143

Introduction to the Services Ready Platform

Product Overview

Services Ready Platform SRP 500 Series Administration Guide 10

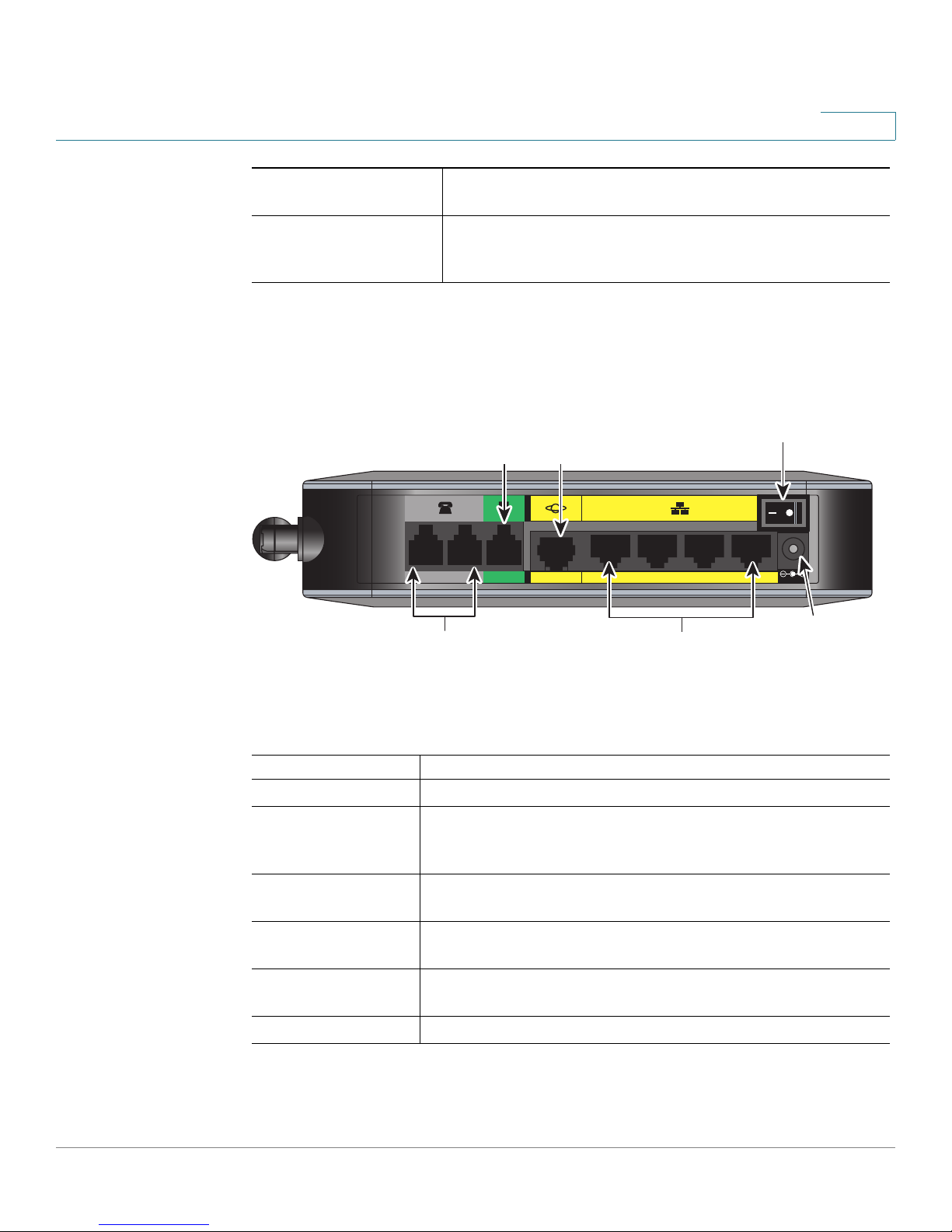

SRP 521W Back Panel

USB Solid green indicates USB device is operational. Green

flash indicates device failure or unsupported device.

WPS Solid green indicates WiFi Protected Setup success.

Slow green flash indicates setup in progress. Fast

green flash indicates a setup error.

Feature Description

Phone Ports 1 to 2 Use these ports to connect to standard analog telephones.

FXO Line Port Use this port to connect to analog telephone Service

(PSTN) which is the analog telephone service network that

traditional telephone service uses.

WAN Port Use this port to connect the Services Ready Platform to

your WAN Internet connection.

LAN Ports 1 to 4 Use these ports to connect to wired computers and other

network devices.

On/Off Switch Use this switch to power the Services Ready Platform on

or off.

12 V DC Power Use this port to connect the provided power adapter.

276375

12VDC

LAN (10/100)WAN (10/100)

21 1234

LINE (FXO)PHONE (FXS)

WAN

Port

On/Off

Switch

FXO

Line

Port

Phone

Ports

12V DC

Power

LAN

Ports
