CISEYE CIP-750 Manuale utente

Instruction Manual

NETWORK CAMERA

CIS INDOOR IP DOME CAMERAEYE

CIS SECURITY TECHNOLOGIES SDN. BHD.EYE (Co. No. 691660-P)

49, Jalan 1/119, Taman Bukit Hijau, Cheras 56000, Kuala Lumpur, Malaysia.

Tel : 603-9132 9151 (9152/9153) Fax : 603-9132 9553 Website : www.ciseye.com Email : [email protected]

CIP-750

™

CISEYE

NOTICE!

This symbol indicates information or a company policy that relates directly or indirectly to the

safety of personnel or protection of property.

CAUTION!

Indicates a potentially hazardous situation.

If not avoided, this may result in mirror or moderate injury.

Alert the user to important instructions accompanying the unit.

DANGER! High Risk :

This lightning flash with arrowhead symbol is intended to alert the user to the presence of

insulated "dangerous voltage" within the product's enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

WARNING! Medium Risk :

This exclamation point symbol is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature accompanying the

appliance.

CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS.

NOT USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONAL.

CAUTION :

CAUTION

RISK OF ELECTRIC

SHOCK DO NOT OPEN

CAUTION

WARNING :

WARNING : TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS CAMERA

TO RAIN OR MOISTURE.

Thank you purchasing a Color CCD Indoor IP Dome Camera! Before using this camera, please read this

operation manual carefully to obtain the best result and keep this manual for future reference.

2/52CISEYE Indoor IP Dome Camera Users Manual

1. NOTICE ...............................................................................................................................................

Before you use this Product ........................................................................................................................

Important Safeguard ................................................................................................................................

Precautions ...........................................................................................................................................

2. INTRODUCTION ....................................................................................................................................

Features ...............................................................................................................................................

About Network Function ............................................................................................................................

Product Components ................................................................................................................................

3. INSTALLATION ......................................................................................................................................

Camera Positioning ..................................................................................................................................

.....................................................................................................................................

Cabling ................................................................................................................................................

...............................................................................................................Quick Start of Network Connection

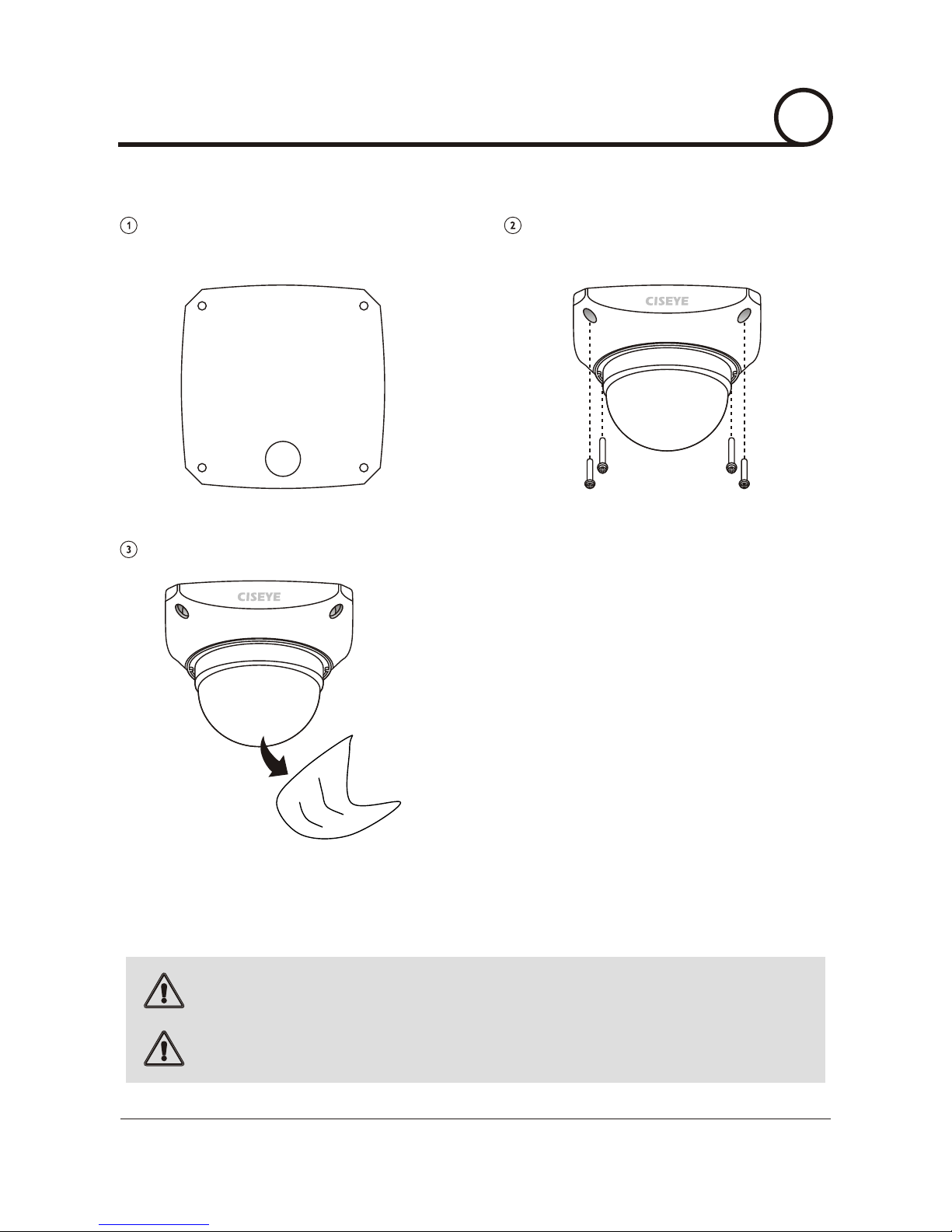

Ceiling Mounting

4. NETWORK SETUP ..................................................................................................................................

Initial Setup via a Crossover Cable .................................................................................................................

Guide to Network Environment .....................................................................................................................

Port Forwarding .......................................................................................................................................

Starting IP Dome Camera ............................................................................................................................

5. WEB VIEWER ........................................................................................................................................

Web Viewer Screen ...................................................................................................................................

Motion Detection Tab .................................................................................................................................

6. ADMIN TOOL .........................................................................................................................................

Video Tool ..............................................................................................................................................

Control Tool ............................................................................................................................................

Motion Detection Tool ................................................................................................................................

TCP/IP Tool ............................................................................................................................................

SMTP Tool ..............................................................................................................................................

Date & Time Tool .....................................................................................................................................

Users Tool ..............................................................................................................................................

Firmware Update Tool ...............................................................................................................................

Default Set Tool .......................................................................................................................................

Rebooting Tool .........................................................................................................................................

7. APPENDIX ............................................................................................................................................

A: Current TCP/IP Setting ...........................................................................................................................

B: Changing Your Computers IP Address and Subnet Mask .....................................................................................

C: Port Forwarding ...................................................................................................................................

8. FAQ ....................................................................................................................................................

9. SPECIFICATIONS ...................................................................................................................................

Technical Specifications .............................................................................................................................

Dimension ..............................................................................................................................................

CONTENTS

3/52CISEYE Indoor IP Dome Camera Users Manual

Before you use this Product

This CISEYE product has been designed with safety in mind. However, if not used properly electrical products can cause

fire which may lead to serious body injury. To avoid such accidents, be sure to heed the following.

Slot and openings in the camera are provided for ventilation and to ensure reliable operation of the product and to

protect it from overheating. Air circulation around the device should never be blocked or/and the opening never be

covered.

Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards,

damage product and void warranty.

Do not place or mount this product in or on an unstable or improperly supported location. Improperly installed product

may fall, causing serious injury to a child or adult, and damage to the product. To ensure proper mounting, follow the

CISEYE's instructions and use only mounting accessories recommended by CISEYE.

Read all the safety precautions and operating instructions before using the product. Save these instructions for future

reference.

Important Safeguard

󼰪 Legal Caution

󼰪 Heed the safety precautions

Video and audio surveillance can be forbidden by laws that vary from country to country. Check the laws in your local

region before using this product for surveillance purposes.

󼰪 Ventilation

󼰪 Handling

󼰪 Cleaning

󼰪 Attachments/Accessories

󼰪 Installation

󼰪 Power Source

•When transporting the camera, repack it as originally packed at the factory or in materials of equal quality.

•Disconnect this appliance's power before cleaning.

•Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be removed using a soft cloth

dampened with a small quantity of detergent solution, then wipe dry.

•Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the surface.

•This product should be operated only from the type of power source indicated. If you are not sure of the type of the

power supplied to your home, consult your dealer. Do not overload outlets and extension cords as this can result in a

risk of fire or electric shock.

•Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or

against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit

from the appliance.

•Product and cart combination should be moved with care. Quick stop, excessive force and uneven surface may cause

the product cart and combination to overturn.

•Do not disassemble or tamper with parts inside the camera.

NOTICE

4/52CISEYE Indoor IP Dome Camera Users Manual

Precautions

Adjust only those controls specified in the operating instructions. Improper adjustment of other controls may cause

damage to the unit. Use of controls or adjustments, or performance of procedures other than those specified, may

result in hazardous radiation exposure.

•Do not point camera at any source of bright light. If the object contain very bright areas, bright vertical or horizontal

lines may appear on the screen. This is called smear, a phenomenon, which often occurs with solid-state pickups,

and is not a malfunction.

" "

•Bright lights may cause bleaching of the sensor's color filters. This will be visible as colored spots in the picture and is

irreversible.

󼰪 Operating

󼰪 In case of abnormal operation

󼰪 Storage location

󼰪 Object and Liquid Entry

󼰪 Replacement Parts

󼰪 Avoid bright lights in the field of view of the camera

󼰪 Controls adjustment

• Before using, make sure power supply and others are properly connected.

•If the unit emits smoke or an unusual smell.

•If the power supply cord or plug is damaged.

•If exposure to moisture, water, and/or inclement weather(rain, snow, etc.).

•If unit exhibits a distinct change in performance.

•If unit does not operate normally when the user correctly follows the operating instructions.

•If liquid or other foreign objects enter the camera, or

•If you drop the unit or damage the camera :

(I) Disconnect the cable and the connecting cables.

(II) Contact CISEYE or your authorized CISEYE dealer.

•While operating, if any abnormal condition or malfunction is observed, stop using the camera immediately and

contact CISEYE or your authorized CISEYE dealer.

Avoid operating or storing the camera in the following locations :

Never push objects of any kind into this unit through openings as they may touch dangerous voltage points or short-out

parts that could result in a fire or electrical shock. Never spill liquid of any kind on the unit. Do not place objects filled

with liquids, such as vases or cups, on the unit.

When replacement parts are required, be sure the service technician has used replacement parts specified by the

manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire,

electric shock or other hazards.

•Extremely hot or cold places(Operating temperature : 0°C to +45°C [32°F to 113°F]).

•Exposed to direct sunlight for a long time, or close to heating sources such as heaters, stoves, or other equipment

(including amplifiers) that produce heat.

•Close to sources of strong magnetism.

•Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters.

•Locations subject to strong vibration or shock.

•Close to sources of dusty and moisture.

•Expose to rain and water, for example near a bathtub, washbowl, sink, laundry basket, in a damp or wet basement,

near a swimming pool, in an unprotected outdoor installation, or in any area classified as a wet Location.

NOTICE

5/52CISEYE Indoor IP Dome Camera Users Manual

The CISEYE Indoor IP Dome Camera , CIP-750 an a intelligent camera for indoor surveillance and remote monitoring. It

offers a convenient, compact and cost-efficient solution with highly intelligent functions. Users of CIP-750 can easily

access it via Internet , receiving synchronized video & audio from anywhere anytime.

CIP-750 provides two-way audio support .This enables remote users not only to view, but also to listen in on an area and

communicate orders or requests to visitors or intruders.

Thanks to its high-quality image sensor as well as advanced image processing, this camera delivers crisp and clear images

also in poorly illuminated or low-light conditions. CIP-750 support day/night function which can even view in total

darkness with the use of CISEYE Centralized IR Illumination System.

Moreover, The CIP-750 also offers a hardware based motion detection function. If you marks some area of interested , you

can make the camera to sound the alert voice or activate the alarm output, and send the image via e-mail or to an FTP

location. All of these functions are provided not by client PC but by the camera itself.

Features

󼰪 Wide Connectivity Support

• Static, Dynamic, PPPoE Support.

• Dynamic IP Support with DDNS.

󼰪 Various Software Support

• Web Viewer

• CISEYE VS Multi-View & Recording Software

- Pure web browser-basedMonitoring

- Simultaneous Monitoring & Recording up to 16 CH.

- Motion detection setup.

- Event Recording by Schedule, Alarm, Motion, Manual.

- Remote Settings and Firmwar Upgradinge .

- Automatic HDD Shift in Recording Mode.

- Remote configuration and control sixteen devices.

- Instant database searching and event preview.

- Remote indicator and control for D/I and D/O.

- High compression ratio and storage capacity.

󼰪 High Frame Rate with Superior Video Quality

󼰪 Compact & Stable IP Dome Camera

• MJPEG and MPEG4 selectable to optimize quality & bandwidth.

• Embedded Linux OS.

• Bidirectional Audio support.

• Simultaneous Motion JPEG & MPEG-4 dual streaming.

• Optional Power over Ethernet(IEEE802.3af) support.

• Digital I/O for external alarm and sensor(1 In/1 Out).

• Supports multiple PTZ camera control protocols through RS485.

• Excellent image quality with up to 30 fps (25 fps) in full D1 resolution.

• Various image resolution.

INTRODUCTION

6/52CISEYE Indoor IP Dome Camera Users Manual

About Network Function

•This product is only compatible with current versions of the Microsoft Window OS.

•This product operates with Microsoft's Internet Explorer only.

•You must have ActiveX controls enable on your browser, found in the Option menu.

•Some pop-up blocker may block legitimate configuration screen, please disable these blocker when configuring the

camera.

•Some hardware manufacturer include a cable/DSL modem, router/firewall, and Ethernet switch in one device.

•If you have no available port on your router(with integrated switch) you can purchase 10/100 Ethernet switch to

expand your local area network.

•The crossover cable is not wired as a typical straight-though network cable. This cable(or any crossover) should be

used for initial setup of the camera via a PC/laptop.

•Please temporarily disconnect any proxy servers associated with Internet Explorer when configuring the Camera.

• UPnP for fast and easy installation.

•Optimal synchronization of video & audio.

•OSD - English On/Off.

• Supports day/night function.

•High sensitivity illumination.

i This document is for CIP-CISEYE Indoor IP Dome Camera 750

INTRODUCTION

7/52CISEYE Indoor IP Dome Camera Users Manual

Cable

DC12V

I/O TERMINAL

BNC (VIDEO)

AUDIO OUT

AUDIO IN

NETWORK CROSS

Product Components

󼰪 Product & Accessories

Main Body

Software CD

Screw

Power Adapter

NOTICE!

If equipment appears to have been damaged during shipment, repack it in the original pakaging and notify

the shipping agent or supplier.

INTRODUCTION

8/52CISEYE Indoor IP Dome Camera Users Manual

Camera Positioning

The physical default position of the camera is as the top of the image. The camera module position can be adjusted along

two axes. Set the camera to the desired position by performing the following steps :

For horizontal adjustment(pan), rotate the camera module in the base. Do not rotate more than 360°.•

For vertical adjustment(tilt), loosen thumbscrews, position camera, then gently tighten thumbscrews to secure

Camera.

•

To obtain a horizontal horizon(for tilted ceilings or sidewall mounting), rotate the base of the lens as necessary to align

the picture shown on the monitor. Do not rotate more than 340°.

•

CAUTION!

The CCD image sensors are highly sensitive and require special care for proper performance and extended

lifetime. Do not expose them to direct sunlight or bright spotlights in operating and non-operating

conditions. Avoid lights in the field of view of the camera.

INSTALLATION

9/52CISEYE Indoor IP Dome Camera Users Manual

After passing the cables though the 40mm hole, fix

the main body to ceiling with 4 Screw provided.

Ceiling Mounting

As shown below, make a 40mm hole on the ceiling

panel top pass the cable and drill 5mm hole at the

position designated.

Remove protection vinyl from the clear dome cover.

CAUTION!

The camera module is a sensitive device and must be handle carefully. Do not drop when disassembling the

unit.

CAUTION!

Installation should only be performed by quality service personnel in accordance with the National Electrical

Code or applicable local codes.

INSTALLATION

10/52CISEYE Indoor IP Dome Camera Users Manual

Altri manuali CISEYE Telecamera di sicurezza

CISEYE

CISEYE cip300 Manuale utente

CISEYE

CISEYE CIP-100 Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
