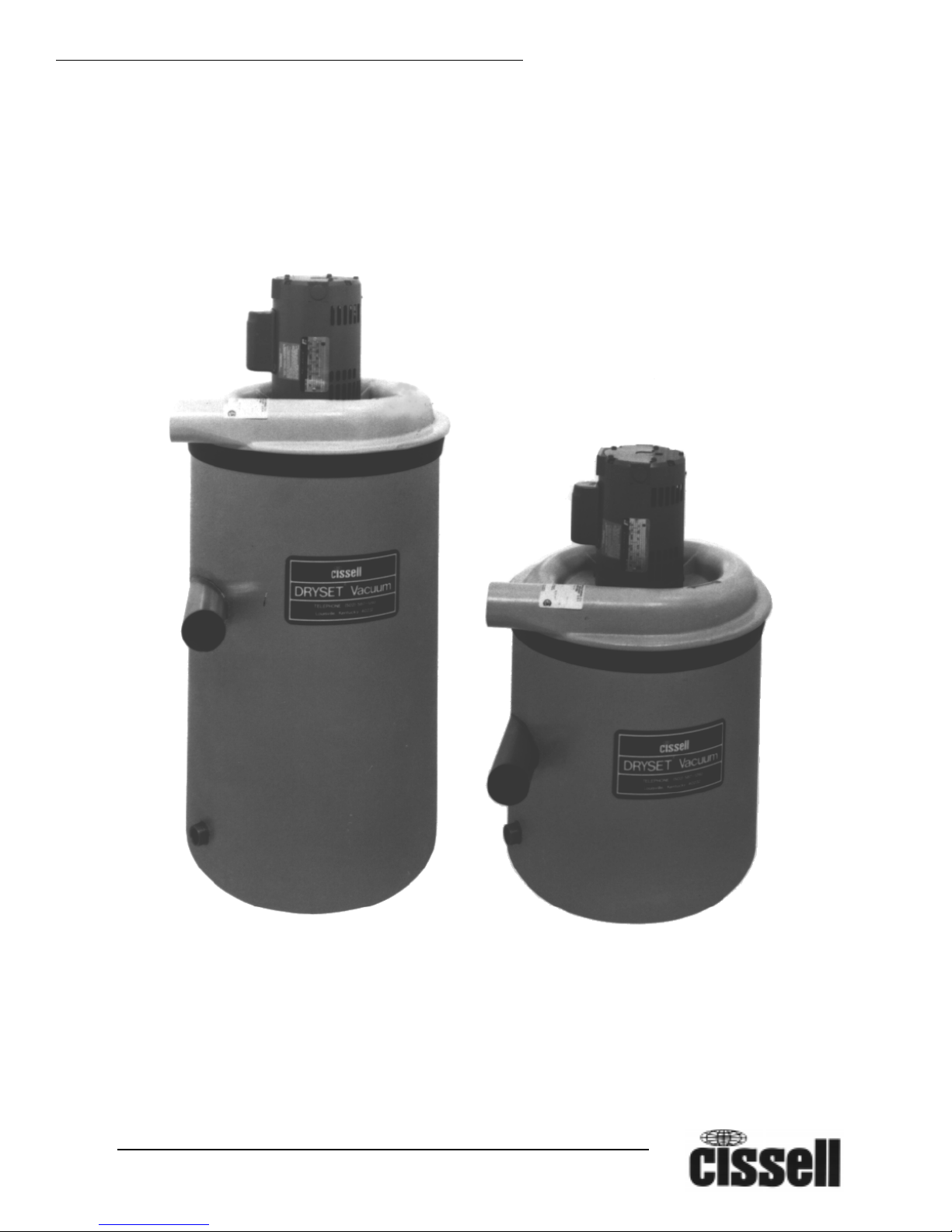

Dryset Vacuums

All Cissell Dryset Vacuum units feature a standard polished stainless steel tank. Motor is provided with a corrosion

resistant shaft. Power unit has cast aluminum involuted outlet head for better efficiency. Units are provided with soft

rubber sleeves, tank seals and tank feet for quiet operation.

Cissell Supply Catalog

2PARTS EXPRESS: 1-800-882-6665 FAX: 1-800-861-6665

60 Cycle Models

MODEL POWER UNIT TANK

VOLTAGE POWER UNIT PART # HP PART #

2D1 115/230/60/1 UD10111 3/4 UD10071

2D3 208/230/480/60/3 UD10126 3/4 UD10071

3D1 115/230/60/1 UD10122 3/4 UD10072

3D3 208/230/480/60/3 UD10123 3/4 UD10072

4D1 115/230/60/1 UD10112 1 UD10072

4D3 208/230/480/60/3 UD10113 1 UD10072

6D1 115/230/60/1 UD10114 1 UD10072

6D3 208/230/480/60/3 UD10115 1 UD10072

8D1 115/230/60/1 UD10118 1 1/2 UD10072

8D3 208/230/480/60/3 UD10116 1 1/2 UD10072

12D3 208/230/480/60/3 UD139399 3 UD148399

50 Cycle Models

MODEL POWER UNIT TANK

VOLTAGE POWER UNIT PART # HP PART #

2DX1 115/230/50/1 UD10317 3/4 UD10071

2DX3 240/415/50/3 UD10311 3/4 UD10071

3DX1 115/230/50/1 UD10491 1 UD10072

3DX3 240/415/50/3 UD10492 1 UD10072

4DX1 115/230/50/1 UD10318 1 UD10072

4DX3 240/415/50/3 UD10315 1 UD10072

6DX1 115/230/50/1 UD10319 1 UD10072

6DX3 240/415/50/3 UD10316 1 UD10072

8DX3 240/415//50/3 UD10511 1 1/2 UD10072

12DX3 240/415/50/3 UD138699 3 UD148399

Cissell Supply Catalog

PARTS EXPRESS: 1-800-882-6665 FAX: 1-800-861-6665

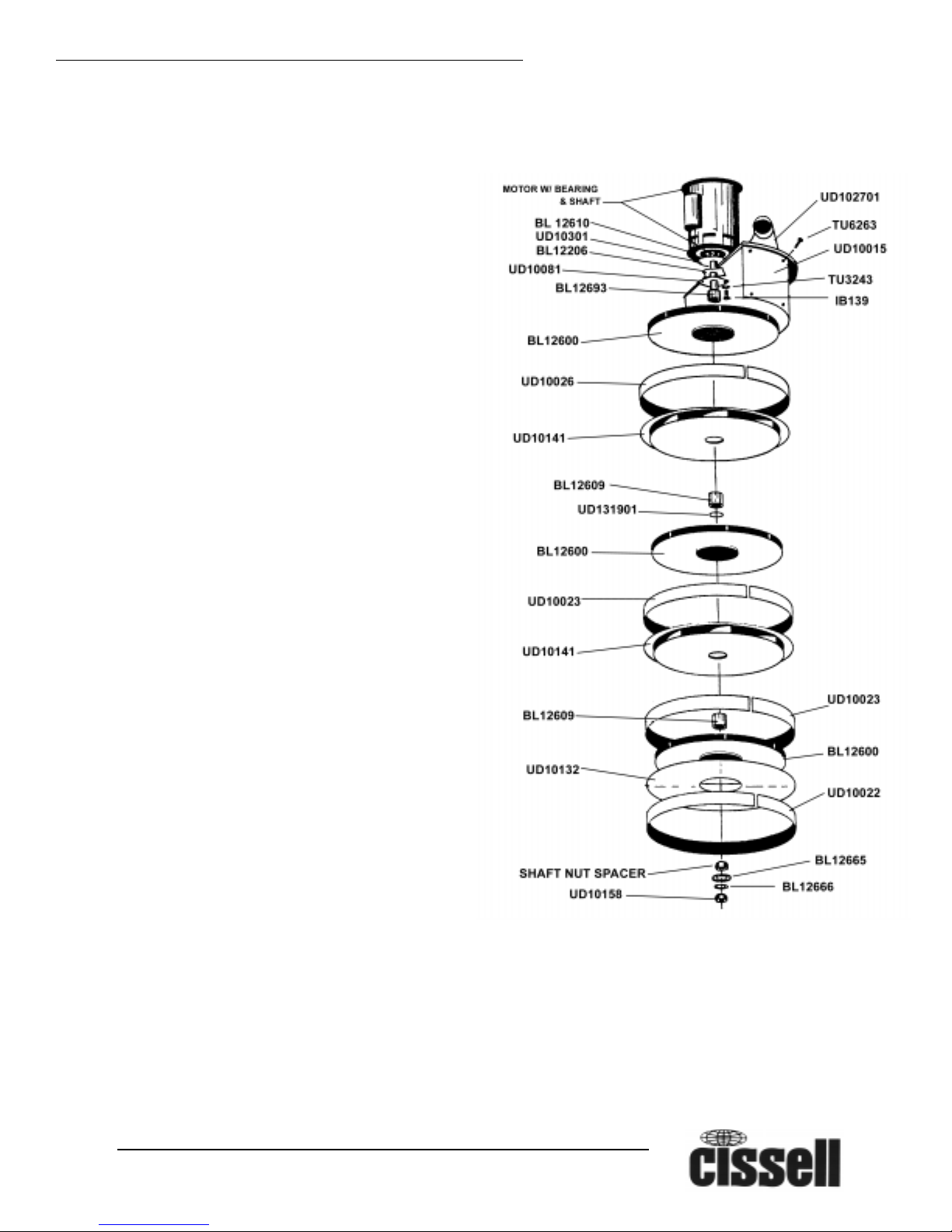

Vacuum Dryset Parts

PART # DESCRIPTION

BL12206 SHAFTSEAL

BL12600 IMPELLER

BL12609 IMPELLERSPACER1-9/16"

BL12610 5/8"ALUMINUMSPACER

BL12665 MALE

BL12666 FEMALE

BL12693 SPACER1-1/16"

IB139 3/8" x 16 x 1-1/4" HEX HEAD CAP SCREW

TU3243 3/8"LOCKWASHER

TU6263 #10-24x 1/2" SELFTAPPINGSCREW

UD10015 SKIRT

UD10022 INTERMEDIATESPACERRING1-9/16"

UD10023 INTERMEDIATESPACERRING1-9/16"

UD10026 1st INTERMEDIATE SPACER RING 1/2"

UD10061 TANKGASKET

UD10081 SEALRETAINER

UD10132 INLETCOVER

UD10141 INTERMEDIATESECTION

UD10158 SHAFTNUT

UD102701 OUTLETHEAD

UD10301 COOLINGFAN

UD105301 SOFT SLEEVE 2 1/2"

UD105302 SOFTSLEEVE 3"

UD130002 3/4HPMOTOR115/230/60/1

(USEDFORIDI,2DI,3D1)

UD130003 3/4HPMOTOR208/220/460/60/3

(USEDFOR2D3,3D3)

UD130023 1 HP MOTOR208/230/60/1

(USEDFOR4D1,6D1)

UD130008 1 HP MOTOR208/230/460/60/3

(USEDFOR3D3,4D3)

UD130012 1 1/2HPMOTOR115/230/60/1

(USEDFOR8D1)

UD130013 1 1/2HPMOTOR208/220/440/60/3

(USEDFOR8D3)

UD130006 3 HP MOTOR 208/230/460/60/3 (USEDFOR 12D3)

UD130005 3/4HP MOTOR115/230/50/1 (USEDFOR1DX1,2DX1)

UD130006 3/4HP MOTOR 240/415/50/3 (USED FOR 1DX3,2DX3)

UD130010 1 HP MOTOR 115/230/50/1 (USED FOR 1DX1, 4DX1,6DX1)

UD130011 1 HP MOTOR 240/415/50/3 (USED FOR 4DX3,3DX3,6DX3)

UD130015 1 1/2HP MOTOR240/415/50/3 (USED FOR8DX3)

UD130018 3 HP MOTOR 240/415/50/3 (USED FOR 12DX3)

UD131901 IMPELLERSHIM(ASNEEDED)
